Large Drives Applications siemens.com/LDA Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Version: 2019.11 Page 1 of 5Technical data sheet for Medium-voltage drives SINAMICS PERFECT HARMONY GH180 Air-cooled Ordering information Article number 6SR5202-0DE41-2BF0-Z Line data Number of phases3 AC Input voltage4160V Input voltage tolerance+10 %, -10 %1) of nominal rated input voltage Input frequencyHz50 Input frequency tolerance+/-5 % Motor data Motor typeAC Induction Motor voltageV4,160 Motor base frequencyHz50 Motor shaft powerkW932 Motor efficiency%96.4 Motor power factor cos phi%88 Motor service factor1 Motor currentA152.6 1) Input voltage falls below 90% to 65% of rated value • output power is rolled-back linearly from 100% power @ 90% input voltage down to 50% power @ 65% input voltage • output power is reduced by limiting the available motor torque • continuous operation in this mode possible
Large Drives Applications Siemens.com/LDA Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Version: 2019.11 Page 2 of 5Ambient conditions Cooling methodForced air cooled Ambient temperature+5°C to +40°C Installation altitudemax 1000m / 3300ft Relative air humidity< 95 % (condensation not permitted) Cable length motor-converter≤2200m / 7215 ft General data Item typeMedium-voltage drive Power semiconductorsIGBT’s, diodes TopologyVoltage source inverter: Cell-based topology, multilevel cascaded H-bridge cells Line-side rectifier54 pulse diode rectifier Motor-side inverterMultilevel drive (PWM) Drive control methodsSensor-less or open loop vector control, encoder or
closed loop vector control, volts-hertz control. Degree of protectionIP42 (Std) StandardsANSI The SINAMICS Perfect Harmony GH180 converter system is supplied with an integral isolation transformer which allows to adapt to line side voltage as a standard solution from 475 V up to 8.00 kV for drives with 9 cells. Drives with more than 9 cells can be supplied with line side voltage from 2.3 kV up to 13.8 kV. Because of the unique multi-cell topology design, the SINAMICS Perfect Harmony GH180 converter does not cause any significant stress on the motor insulation or bearings. The motor side Harmonic Voltage Factor is below requirements of NEMA MG1-30 standard. Therefore, it is suitable for operation of both new and existing standard direct-on-line motors.

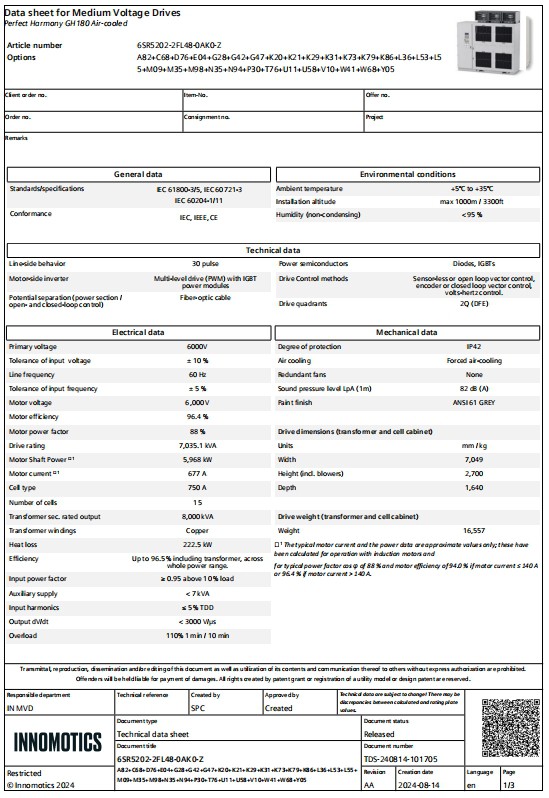

Data sheet for Medium Voltage Drives
Perfect Harmony GH180 Air-cooled
Article number
Options
6SR5202-2FL48-0AK0-Z
A82+C68+D76+E04+G28+G42+G47+K20+K21+K29+K31+K73+K79+K86+L36+L53+L5
5+M09+M35+M98+N35+N94+P30+T76+U11+U58+V10+W41+W68+Y05
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
Responsible department Technical reference Created by Approved by
IN MVD SPC Created
automatically
Technical data are subject to change! There may be
discrepancies between calculated and rating plate
values.
Document type Document status
Technical data sheet Released
Document title Document number
TDS-240814-101705
Restricted Revision Creation date Language Page
© Innomotics 2024
6SR5202-2FL48-0AK0-Z
A82+C68+D76+E04+G28+G42+G47+K20+K21+K29+K31+K73+K79+K86+L36+L53+L55+
M09+M35+M98+N35+N94+P30+T76+U11+U58+V10+W41+W68+Y05
AA 2024-08-14
10:17
en 1/3
Client order no. Item-No. Offer no.
Order no. Consignment no. Project
Remarks
General data
Standards/specifications IEC 61800-3/5, IEC 60721-3
IEC 60204-1/11
Conformance IEC, IEEE, CE
Environmental conditions
Ambient temperature +5°C to +35°C
Installation altitude max 1000m / 3300ft
Humidity (non-condensing) < 95 %
Technical data
Line-side behavior 30 pulse
Motor-side inverter Multi-level drive (PWM) with IGBT
power modules
Potential separation (power section /
open- and closed-loop control)
Fiber-optic cable
Power semiconductors Diodes, IGBTs
Drive Control methods Sensor-less or open loop vector control,
encoder or closed loop vector control,
volts-hertz control.
Drive quadrants 2Q (DFE)
Electrical data
Primary voltage 6000V
Tolerance of input voltage ± 10 %
Line frequency 60 Hz
Tolerance of input frequency ± 5 %
Motor voltage 6,000 V
Motor efficiency 96.4 %
Motor power factor 88 %
Drive rating 7,035.1 kVA
Motor Shaft Power 1 5,968 kW
Motor current 1 677 A
Cell type 750 A
Number of cells 15
Transformer sec. rated output 8,000 kVA
Transformer windings Copper
Heat loss 222.5 kW
Efficiency Up to 96.5 % including transformer, across
whole power range.
Input power factor ≥ 0.95 above 10 % load
Auxiliary supply < 7 kVA
Input harmonics ≤ 5 % TDD
Output dV/dt < 3000 V/µs
Overload 110% 1 min / 10 min
1 The typical motor current and the power data are approximate values only; these have
been calculated for operation with induction motors and
for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A
or 96.4 % if motor current > 140 A.
Mechanical data
Degree of protection IP42
Air cooling Forced air-cooling
Redundant fans None
Sound pressure level LpA (1m) 82 dB (A)
Paint finish ANSI 61 GREY
Drive dimensions (transformer and cell cabinet)
Units mm / kg
Width 7,049
Height (incl. blowers) 2,700
Depth 1,640
Drive weight (transformer and cell cabinet)
Weight 16,557
Branding disclaimer applies
Data sheet for Medium Voltage Drives
Perfect Harmony GH180 Air-cooled
Article number
Options
6SR5202-2FL48-0AK0-Z
A82+C68+D76+E04+G28+G42+G47+K20+K21+K29+K31+K73+K79+K86+L36+L53+L5
5+M09+M35+M98+N35+N94+P30+T76+U11+U58+V10+W41+W68+Y05
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
Responsible department Technical reference Created by Approved by
IN HVM SPC Created
automatically
Technical data are subject to change! There may be
discrepancies between calculated and rating plate
values.
Document type Document status
Technical data sheet Released
Document title Document number
TDS-240814-101705
Restricted Revision Creation date Language Page
© Innomotics 2024
6SR5202-2FL48-0AK0-Z
A82+C68+D76+E04+G28+G42+G47+K20+K21+K29+K31+K73+K79
+K86+L36+L53+L55+M09+M35+M98+N35+N94+P30+T76+U11+U
58+V10+W41+W68+Y05
AA 2024-08-14
10:17
en 2/3
Options
A82 SEL 710 motor protection relay
C68 Innomotics Connect 500
D76 Documentation in English
E04 Additional customer analog, digital inputs and outputs (I/O) modules
G28 Modbus Ethernet interface
G42 Ethernet network switch with fiber optic port
G47 Ethernet port connector mounted on the door
K20 Signal lamps in the cabinet door
K21 Display instruments in the cabinet door for voltage, current, speed and power also including signal lamps
K29 Pushbutton kit
K31 Off-Local-Remote Selector
K73 I/O signal voltage 24 V DC
K79 Connection for control voltage 120 V AC by customer
K86 NXGpro+ Safe Torque Off
L36 Surge suppressor
L53 UPS for power supply of open-loop and closed-loop control
L55 Anti-condensation heating for cabinet
M09 Mechanical door interlock - Kirk
M35 Gland plates, aluminium
M98 Cabinet color: ANSI 61
N35 Controlled outgoing feeder for anti-condensation heating, 230 V 1 AC 50 Hz, max. 1.2 kW or 120 V 1 AC 60 Hz, max. 0.7 kW
Data sheet for Medium Voltage Drives
Perfect Harmony GH180 Air-cooled
Article number
Options
6SR5202-2FL48-0AK0-Z
A82+C68+D76+E04+G28+G42+G47+K20+K21+K29+K31+K73+K79+K86+L36+L53+L5
5+M09+M35+M98+N35+N94+P30+T76+U11+U58+V10+W41+W68+Y05
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
Responsible department Technical reference Created by Approved by
IN MVD SPC Created
automatically
Technical data are subject to change! There may be
discrepancies between calculated and rating plate
values.
Document type Document status
Technical data sheet Released
Document title Document number
TDS-240814-101705
Restricted Revision Creation date Language Page
© Innomotics 2024
6SR5202-2FL48-0AK0-Z
A82+C68+D76+E04+G28+G42+G47+K20+K21+K29+K31+K73+K79+K86+L36+L53+L55+
M09+M35+M98+N35+N94+P30+T76+U11+U58+V10+W41+W68+Y05
AA 2024-08-14
10:17
en 3/3
N94 Grounding Studs
P30 No approval; full release to manufacturing
T76 Rating plate and warning labels in english/english
U11 Cell bypass
U58 Elevated Transformer BIL (Basic Impulse Level)
V10 Motor voltage 6.0 kV
W41 Drive prepared for air-to-air heat exchanger
W68 Special discount for IC500 Connect Hardware until 31st December 2024.
Y05 Customer-specific nameplate:
Branding disclaimer applies
Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 1 of 2 Version: 2020.01 Offer no. , Item no. Generated: 2022-11-30 18:12 Data sheet for Medium-voltage drives SINAMICS PERFECT HARMONY GH180 Air-cooled Article number Options 6SR5602-0DH43-2AK0-ZA59+C68+D76+E04+F03+F73+G22+G38+G47+K31+K69+K73+K86+L55+M37+M46+M61+M68+M 92+N27+N37+N94+P31+T04+T76+U11+V06+W68 Client order no.: Item no.: Order no.: Consignment no.: Offer no.: Project: Remarks: General data Standards/specifications IEC 61800-3/5, IEC 60721-3 IEC 60204-1/11 Conformance IEC, IEEE, CE Environmental conditions Ambient temperature +5°C to +40°C Installation altitude max 1000m / 3300ft Humidity (non-condensing) < 95 % Technical data Line-side behavior 54 pulse Motor-side inverter Multi-level drive (PWM) with IGBTpower modules Potential separation (powersection / open- and closedloop control) Fiber-optic cable Power semiconductors Diodes, IGBTs Drive Control methods Sensor-less or open loop vectorcontrol, encoder or closed loopvector control, volts-hertz control. Drive quadrants 2Q (DFE) Electrical data Primary voltage 4160V Tolerance of input voltage ± 10 % Line frequency 60 Hz Tolerance of inputfrequency ± 5 % Motor voltage 4,160 V Motor efficiency 96.4 % Motor power factor 88 % Drive rating 2,924.5 kVA Motor Shaft Power ˟1 2,424 kW Motor current ˟1 396.7 A Cell type 430 A Number of cells 9 Transformer sec. ratedoutput 3,250 kVA Transformer windings Copper Heat loss 90.4 kW Efficiency Up to 96.5 % including transformer,across whole power range. Input power factor ≥ 0.95 above 10 % load Auxiliary supply < 7 kVA Input harmonics ≤ 5 % TDD Output dV/dt < 3000 V/µs Overload 110% 1 min / 10 min Mechanical data Degree of protection IP42 Air cooling Forced air-cooling Redundant fans Yes Sound pressure level LpA (1m) 80 dB (A) Paint finish MUNSELL N6.5 Drive dimensions (transformer and cell cabinet) Units mm / kg Width 3,400 Height (incl. blowers) 2,936 Depth 1,274 Drive weight (transformer and cell cabinet) Weight 7,320Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 2 of 2 Version: 2020.01 Offer no. , Item no. Generated: 2022-11-30 18:12 A59 Motor monitor PEXTRON Rtd.C68 SINAMICS CONNECT 500D76 Documentation in EnglishE04 Additional customer analog, digital inputs and outputs (I/O) modulesF03 Visual acceptance testF73 Functional acceptance (without motor), witnessedG22 Modbus RTU interface, network 1 RS 485G38 Additional Modbus Ethernet interfaceG47 Ethernet port connector mounted on the doorK31 Off-Local-Remote SelectorK69 Control voltage 120 V AC by SiemensK73 I/O signal voltage 24 V DCK86 NXGpro+ Safe Torque OffL55 Anti-condensation heating for cabinetM37 Gland plates, stainless steelM46 INDAC - mechanical door interlocksM61 Redundant blowerM68 Drive prepared for duct flange connection in rearM92 Munsell N6.5N37 Controlled outgoing feeder for anti-condensation heating, 230 V 1 AC 50 Hz, max. 3.5 kW or 120 V 1 AC 60 Hz, max. 1.8 kWN94 Grounding StudsP31 Complete drawing approvalT04 Nameplate color, material: Stainless steelT76 Rating plate and warning labels in english/englishU11 Cell bypassV06 Motor voltage 4.16 kVW68 Special discount for SC500 Connect Hardware until 31st December 2022.Options
