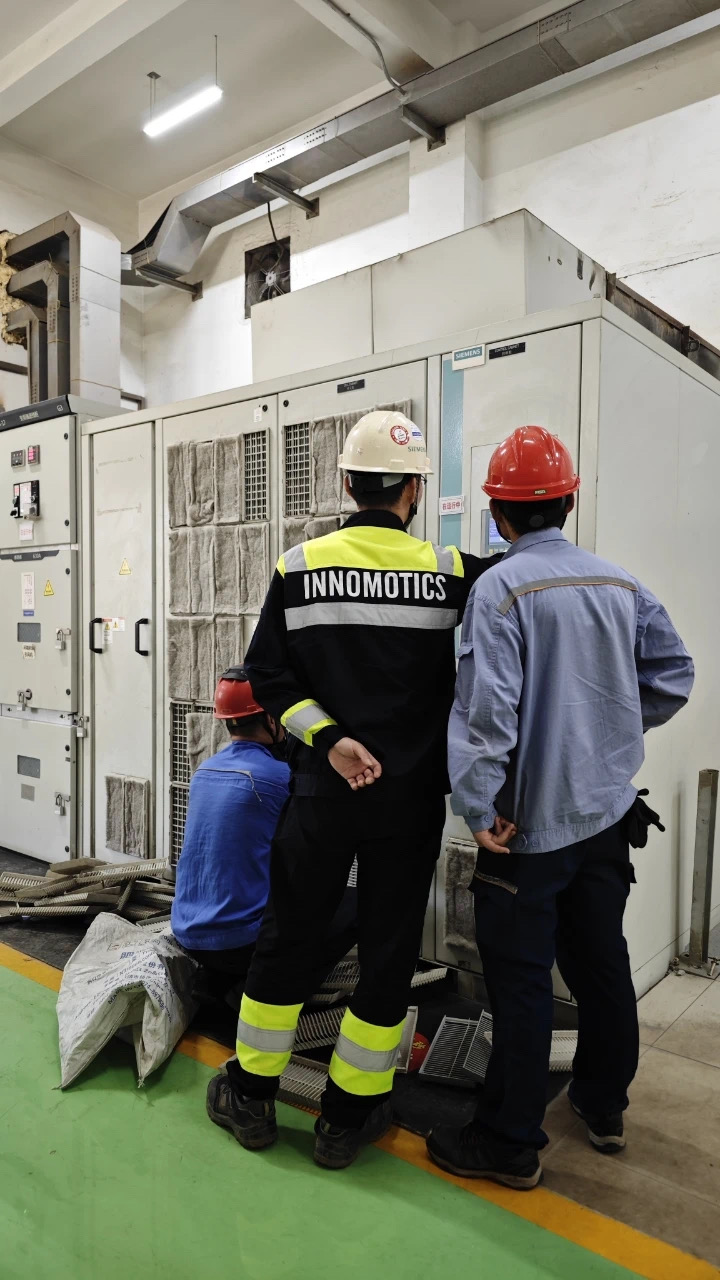

Siemens Innomotics Perfect Harmony GH180 Air-cooled
6SR5502-2SG44-0AJ0-Z C68+D15+D76+F73+G47+G91+K33+K69+K73+M35+M61+M97+N27+N94+Q83+T03+T76+U11+U58+V12+W68
General data
Standards/specifications IEC 61800-3/5, IEC 60721-3
IEC 60204-1/11
Conformance IEC, IEEE, CE
Environmental conditions
Ambient temperature +5°C to +40°C
Installation altitude max 1000m / 3300ft
Humidity (non-condensing) < 95 %
Technical data
Line-side behavior 30 pulse
Motor-side inverter Multi-level drive (PWM) with IGBT
power modules
Potential separation (power section /
open- and closed-loop control)
Fiber-optic cable
Power semiconductors Diodes, IGBTs
Drive Control methods Sensor-less or open loop vector control,
encoder or closed loop vector control,
volts-hertz control.
Drive quadrants 2Q (DFE)
Electrical data
Primary voltage 13800V
Tolerance of input voltage ± 10 %
Line frequency 60 Hz
Tolerance of input frequency ± 5 %
Motor voltage 6,600 V
Motor efficiency 96.4 %
Motor power factor 88 %
Drive rating 3,517.5 kVA
Motor Shaft Power
Options
C68 Innomotics Connect 500
D15 One set of printed documentation (multiple orders possible)
D76 Documentation in English
F73 Functional acceptance (without motor), witnessed
G47 Ethernet port connector mounted on the door
G91 PROFIBUS DP interface
K33 Keyed Off-Local-Remote selector
K69 Control voltage 120 V AC by Manufacturer
K73 I/O signal voltage 24 V DC
M35 Gland plates, aluminium
M61 Redundant blower
M97 Cabinet color: RAL7035
N27 Transformer insulation class H
N94 Grounding Studs
Q83 Extension of the liability for defects to a total of 42 months (3½ years) from delivery.
T03 Black letters with white core nameplate.
T76 Rating plate and warning labels in english/english
U11 Cell bypass
U58 Elevated Transformer BIL (Basic Impulse Level)
V12 Motor voltage 6.6 kV
W68 Special discount for IC500 Connect Hardware until 31st December 2024.
Article No. Description Ref. Des Quantity Image
6SR0900-0RM02-0AM0 Switch auxiliary switch PB1
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 4 ST
Materialnumber: A5E35334120
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8536909000
SparePartCode: SN
6SR0950-0RM06-0AD0 Circuit breaker 1 pole_24V_1A NXGpro+
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E48177764
Net weight: 0.04 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8536200020
SparePartCode: SN
6SR0960-0QA03-0AA0 Terminal strip input/output assembly, 12-pole
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 8 ST
Materialnumber: A5E00989145
Net weight: 0.02 KG
ALNUM: N
ECCN: N
Commodity code: 85359000
SparePartCode: SN
6SR5900-0EM12-0AD0 PCA, BCB Type 4/5 coil (100A/200)
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E45777827004
Net weight: 0.50 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8504907500
SparePartCode: SN
6SR0960-0MM33-0AD0 PERFECT HARMONY GH180 Damping resistor 11.0 kV 7.9 MOhm
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 3 ST
Material number: A5E31657383
Net weight: 0.06 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8533100060
SparePartCode: SN
9LD9000-0BH10-0AA0 \9LD9000-0BH10-0AA0 \pilot_Thermo_1UHH2_ 1 ST
Material number: A1A012123
6SR5902-0CC16-0AM0 User I/O Interface Board Terminal 16P
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35451294
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
6SR0900-0SM11-0AM0 Auxiliary switch PB1-F-C01_1NC
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 3 ST
Materialnumber: A5E35334106
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8536909000
SparePartCode: SN
3RT2023-1AN20 Power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 220 V AC, 50/60 Hz, Auxiliary contacts: 1 NO + 1 NC, Bolt Type terminal, size: S0 3 ST
Materialnumber: A5E32362953
Net weight: 0.40 KG
ALNUM: N
ECCN: N
Commodity code: 85364900
SparePartCode: SN
5SY4204-8CC Miniature circuit breaker 400V 10kA, 2 poles, D, 4A 2 ST
Material number: A5E35282783
Net weight: 0.32 KG
ALNUM: N
ECCN: N
Commodity code: 85362000
SparePartCode: SN
6SR0960-0CC07-1AD0 GH180 24 V DC user I/O module
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E37101742
Net weight: 1.00 KG
Original article No.: 6SR0900-0RM05-0AM0
ALNUM: N
ECCN: EAR99I
Commodity code: 8504907500
SparePartCode: SN
6SR0960-1CM18-0AD0 Resistor 63.13 ohm, current transformer
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A1A164372.42
Net weight: 0.01 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8543704000
SparePartCode: SN
6SR5900-0HM00-0AM0 PH GH180 AC 6SR5 Current transformer 500A, 100mA, LF510
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E38507829
Net weight: 0.24 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8504909090
SparePartCode: SN
3UG4512-2BR20 !!!Discontinued product!!! The preferred successor is the 3UG5512-2BR20 Phase failure and phase sequence 3X160-690 V 2 W Analog monitoring relay Phase failure and phase sequence 3 x 160 - 690 V AC 50 - 60 Hz 2 changeover contacts Spring-loaded connection system 1 ST
Materialnumber: A5E30663806
Net weight: 0.14 KG
ALNUM: N
ECCN: 9N9999
Commodity code: 85364900
Phase Out: 01.10.2023
Product Cancellation: 01.10.2028
Product Discontinuation: 01.10.2029
SparePartCode: SN
6SR0960-0QA02-0AA0 Data cable input/output assembly, 50 pole, 5FT
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E00993969
Net weight: 0.42 KG
ALNUM: N
ECCN: EAR99H
Commodity code: 85444290
SparePartCode: SN
6SR0960-0HA02-0AM0 Current Transformer 100: 5 A, LMS-0.66-D87
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Material number: LDZ10501927
Net weight: 8.60 KG
ALNUM: N
ECCN: N
Commodity code: 8504311000
SparePartCode: SN
6SR5902-0CM00-0AM0 Power supply for GH180 NXGpro user I/O board
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E37356659
Net weight: 0.46 KG
ALNUM: N
ECCN: N
Commodity code: 8504401400
SparePartCode: SN
9LD9000-0AS55-0AA0 Keyboard cable 2.43m / 8 FT NXGPRO+ to KTP700DP-P
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E50108600003
Net weight: 0.30 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8544429090
SparePartCode: SN
6SR0900-0KM01-0AM0 Filter low pass RE1201 275V
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product . 2 ST
Materialnumber: A5E30204948
Net weight: 0.05 KG
ALNUM: N
ECCN: N
Commodity code: 8543709990
SparePartCode: SN
6SR0900-0PM01-0AM0 Relay closure RR2KP-U-220V AC, with base
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: LDZ10506414
Net weight: 0.10 KG
ALNUM: N
ECCN: N
Commodity code: 85364900
SparePartCode: SN
6SR5900-0GM11-0AM1 AC Centrifugal_Fan_Suction Ring_RHA560
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E33846996
ALNUM: N
ECCN: N
Commodity code: 7616991090
SparePartCode: SN
3RT6026-1AN20 Contactor 220 V AC 50/60 HZ AC3 11 kW 400 V Auxiliary contacts 1 NO + 1 NC 3-pole, size S0 Screw terminals 1 ST
Material number: A5E31751451
Net weight: 0.39 KG
ALNUM: N
ECCN: N
Commodity code: 85364900
SparePartCode: SN
6SR0960-0DE00-0AD0 DEV_OTHER_Anybus_M40_Profibus Profibus-DP, NXGPro+
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E45545846
Net weight: 0.03 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8517620090
SparePartCode: SN
6SR0900-0RM04-0AM0 Wago Relay Module 788-312
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 5 ST
Material number: LDZ10501494
ALNUM: N
ECCN: N
Commodity code: 8536490090
SparePartCode: SN
3RH6122-1AN20 Contactor relay, 2 NO + 2 NC, 220 V AC, 50/60 Hz, size S00, screw terminals 4 ST
Materialnumber: A5E35282647
Net weight: 0.22 KG
ALNUM: N
ECCN: N
Commodity code: 85364900
SparePartCode: SN
6SR0960-0CC16-0AD0 GH180 NXGPRO system interface board without output filter CT
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E36968571
ALNUM: N
ECCN: EAR99
Commodity code: 8504909650
SparePartCode: SN
6SR0900-0FM00-0AM0 Filter installationThis
is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 31 ST
Materialnumber: A5E03927689
Net weight: 0.35 KG
ALNUM: N
ECCN: N
Commodity code: 8421999090
SparePartCode: SN
6SR0950-0RM05-0AD0 Power supply DNR60_264V_24v_2.5A_YES
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E48177765
Net weight: 0.36 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8504409520
SparePartCode: SN
6SR5902-0CC04-0AM0 User I/O Interface Board Terminal 4P
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E00515841
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
3RV6021-4DA15 Circuit breaker 25 AA release 20...25 A, N release 325 A, for motor protection, class 10, threaded connection, standard switching capacity, with cross auxiliary switch 1 NO + 1 NC 2 ST
Materialnumber: A5E35283578
Net weight: 0.38 KG
ALNUM: N
ECCN: N
Commodity code: 85362090
SparePartCode: SN
6SR5902-0CC12-0AM0 I/O socket 4P
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 7 ST
Materialnumber: A5E35451283
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
6SR5902-0EM00-0AM0 Power supply assembly, bypass
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E38292328
ALNUM: N
ECCN: N
Commodity code: 8504401400
SparePartCode: SN
6SR5900-0GM01-0AM1 Radial fan_RHA560D4.155A-3K_
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E39760704
Net weight: 30.50 KG
ALNUM: N
ECCN: N
Commodity code: 8414593000
SparePartCode: SN
6SR0900-0SM10-0AM0 Switching command pressure PB1S-AAZR/R
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35334140
Net weight: 0.02 KG
ALNUM: N
ECCN: N
Commodity code: 8536500090
SparePartCode: SN
6SR0900-0RM03-0AM0 Auxiliary switch ACC Switch bracket PB1
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product . 4 ST
Materialnumber: A5E35334172
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
6SR0960-0CE15-0AD0 NXGpro Plus DCR 15 unit without complete stop
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E45508681002
Net weight: 5.71 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8504909650
SparePartCode: SN
6SR0900-0SM12-0AM0 ACC button PB1-F-PC-b60 board
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35334092
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
6SR4900-0SM00-0AM0 SIMATIC HMI Development Control KTP700 Basic D
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E39206479
Net weight: 1.00 KG
ALNUM: N
ECCN: N
Commodity code: 8537109090
SparePartCode: SN
3SU1050-5BL11-0AA0 Siemens key-operated button head, C, 22 mm, round, metal, high-gloss, lock code SSG10, with 2 keys, 3 switch positions IO-II, locking, switching angle 2x45°, 10:30h/12h/13:30h, key removal I+O+II 1 ST
Materialnumber: A5E35334137
Net weight: 0.02 KG
ALNUM: N
ECCN: N
Commodity code: 85389099
SparePartCode: SN
6SR0950-0RM04-0AD0 DNR120_264V_24v_5A_YES
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E48177766
Net weight: 0.91 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8504409520
SparePartCode: SN
3RV6011-1GA15 Release 6.3 AA Release 4.5...6.3 A, N Release 82 A, for motor protection, class 10, threaded connection, standard switching capacity with transverse auxiliary switch 1 NO + 1 NC 2 ST
Materialnumber: A5E31763338
Net weight: 0.37 KG
ALNUM: N
ECCN: N
Commodity code: 85362090
SparePartCode: SN
6SR0960-0MM28-0AD0 PERFECT HARMONY GH180 Damping resistor 6.6 kV 4.8 MOhm
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 3 ST
Materialnumber: A5E31657376
ALNUM: N
ECCN: EAR99
Commodity code: 8533100060
SparePartCode: SN

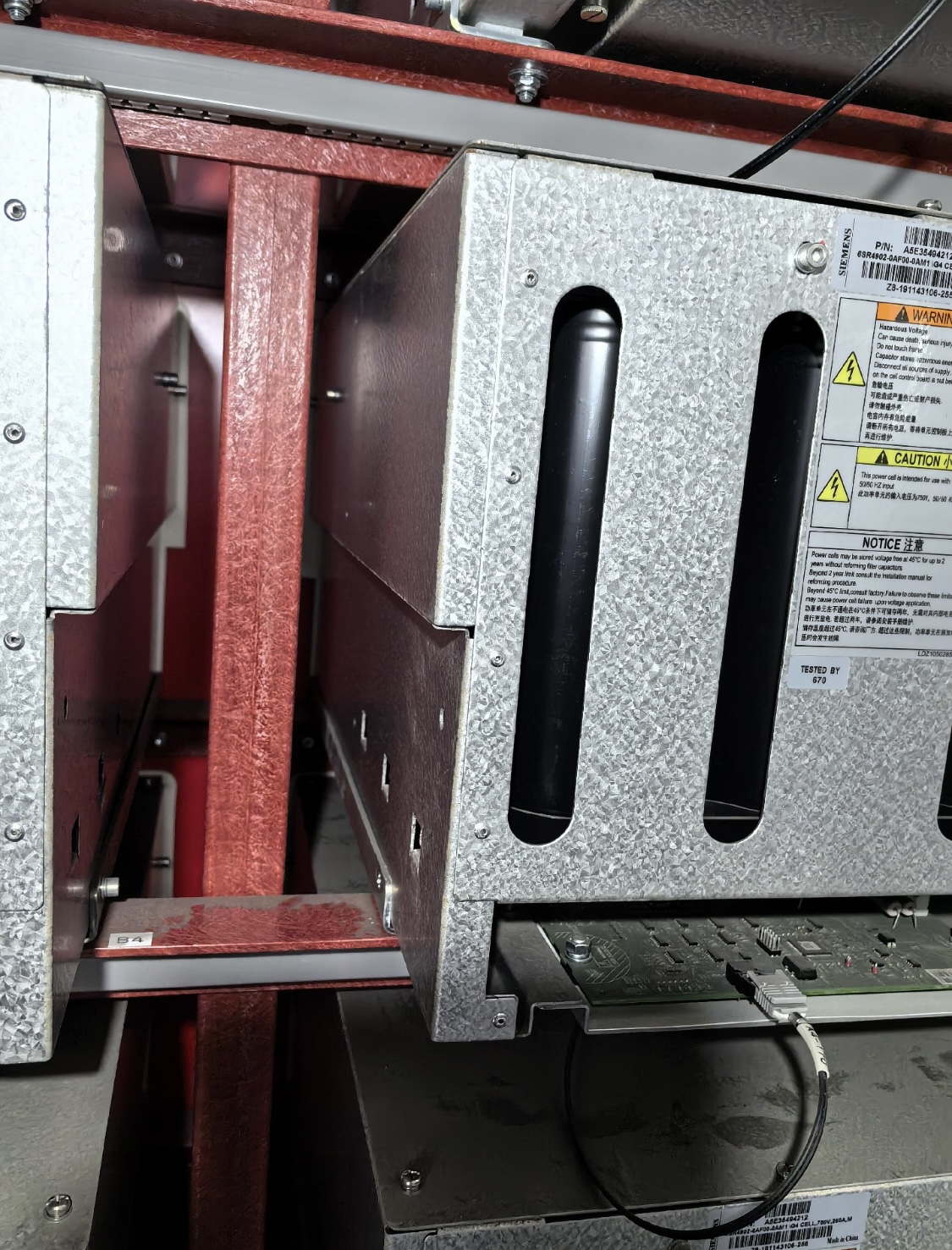

6SR5902-0AD13-0AM1 PH GH180 AC 6SR5 Power unit 140A 750V with bypass
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 15 ST
Materialnumber: A5E42740130
ALNUM: N
ECCN: EAR99
Commodity code: 8504909090
SparePartCode: SN
3SE5250-0CC05 Position switch Plastic housing Open 30 mm 1NO/1NC Snap action contact Metal plunger, IP20 5 ST
Materialnumber: A1A472563
Net weight: 0.04 KG
ALNUM: N
ECCN: N
Commodity code: 85365080
SparePartCode: SN
6SR0960-0CC07-1AD0 PCA, FINAL ASSY 24VDC User I/O Board 1 ST
Material number: A5E32100313
3RT2926-1CD00 Surge suppressor, RC element, 127-240 V AC, 50/60 Hz, 150-250 V DC, for contactors 3RT2.2 4 ST
Materialnumber: A5E35328464
ALNUM: N
ECCN: N
Commodity code: 85363010
SparePartCode: SN
Article No. Description Ref. Des Quantity Image
3SE5250-0CC05 Position switch Plastic housing Open 30 mm 1NO/1NC Snap action contact Metal plunger, IP20 2 ST
Materialnumber: A1A472563
Net weight: 0.04 KG
ALNUM: N
ECCN: N
Commodity code: 85365080
SparePartCode: SN
3LD2203-0TK53 SENTRON, 3LD switch disconnector, emergency stop switch, 3-pin, Iu: 32 A, Rated power/at 400 V at AC 23 A: 11.5 kW, front mounted, rotary drive, red/yellow, 4-hole fixing handle 1 ST
Materialnumber: A5E30572768
Net weight: 203.00 G
ALNUM: N
ECCN: N
Commodity code: 85365080
SparePartCode: SN
6SR0900-0PM01-0AM0 Relay closure RR2KP-U-220V AC, with base
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: LDZ10506414
Net weight: 0.10 KG
ALNUM: N
ECCN: N
Commodity code: 85364900
SparePartCode: SN
3RT2926-1CD00 Surge suppressor, RC element, 127-240 V AC, 50/60 Hz, 150-250 V DC, for contactors 3RT2.2 1 ST
Materialnumber: A5E35328464
ALNUM: N
ECCN: N
Commodity code: 85363010
SparePartCode: SN
6SR5900-0HM00-0AM0 PH GH180 AC 6SR5 Current transformer 500A, 100mA, LF510
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E38507829
Net weight: 0.24 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8504909090
SparePartCode: SN
6SR0900-0SM12-0AM0 ACC button PB1-F-PC-b60 board
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35334092
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
6SR0960-0MM50-0AD0 Suppressor and capacitor kit input
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product . 3 ST
Materialnumber: A5E31796141
ALNUM: N
ECCN: EAR99
Commodity code: 8536308000
SparePartCode: SN
6SR5902-0CM00-0AM0 Power supply for GH180 NXGpro user I/O board
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E37356659
Net weight: 0.46 KG
ALNUM: N
ECCN: N
Commodity code: 8504401400
SparePartCode: SN
6SR0960-0DC04-0AD0 Communication Suite MODBUS, NXGpro
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A1A10000441.00
Net weight: 0.09 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8471801000
Phase Out: 07.07.2022
Product Cancellation: 07.07.2022
Product Discontinuation: 01.01.2032
SparePartCode: SP
6SR0960-0MM13-0AD0 Attenuator phase 10kV
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 6 ST
Material number: A5E42739821012
Net weight: 1.00 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8533290000
SparePartCode: SN
6SR0900-0RM04-0AM0 Wago Relay Module 788-312
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product . 6 ST
Material number: LDZ10501494
ALNUM: N
ECCN: N
Commodity code: 8536490090
SparePartCode: SN
6SR5900-0CC00-0AM0 WIRE HARNESS, NXGpro TDK POWER SUPPLY 1 ST
Materialnumber: A5E44730404
6SR0960-0CC07-1AD0 GH180 24 V DC user I/O module
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E37101742
Net weight: 1.00 KG
Original article No.: 6SR0900-0RM05-0AM0
ALNUM: N
ECCN: EAR99I
Commodity code: 8504907500
SparePartCode: SN
6SR5902-0CC04-0AM0 User I/O Interface Board Terminal 4P
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E00515841
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
3RH6122-1AN20 Contactor relay, 2 NO + 2 NC, 220 V AC, 50/60 Hz, size S00, screw terminals 4 ST
Materialnumber: A5E35328473
Net weight: 0.22 KG
ALNUM: N
ECCN: N
Commodity code: 85364900
SparePartCode: SN
6SR0960-0CC07-1AD0 PCA, FINAL ASSY 24VDC User I/O Board 1 ST
Material number: A5E32100313
6SR5900-0QM00-0AM0 Connector (female) 34P str THT-REF 700mm
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 3 ST
Materialnumber: A5E32337724
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
3RT2023-1AN20 Power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 220 V AC, 50/60 Hz, Auxiliary contacts: 1 NO + 1 NC, Screw terminals, Size: S0 1 ST
Materialnumber: A5E32362953
Net weight: 0.40 KG
ALNUM: N
ECCN: N
Commodity code: 85364900
SparePartCode: SN
6SR0960-0CC16-0AD0 GH180 NXGPRO system interface board without output filter CT
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E36968571
ALNUM: N
ECCN: EAR99
Commodity code: 8504909650
SparePartCode: SN
6SL3978-6SX02-0AM0 Electromagnetic locking element TAU4060T-7, 4.5N
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Material number: A5E32173330
Net weight: 0.40 KG
ALNUM: N
ECCN: N
Commodity code: 8301400000
SparePartCode: SN
6SR0960-0CC08-0AD0 PH GH180 CF card NXGPro control software
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35236834
ALNUM: N
ECCN: 3A991X
Commodity code: 8542320070
SparePartCode: SN
6SR0960-0CC40-0AD0 Power supply NXGpro CPS 264 V and 15 V
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E44722441
Net weight: 1.80 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8504409530
SparePartCode: SN
6SR0900-0FM00-0AM0 Filter installationThis
is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 36 ST
Materialnumber: A5E03927689
Net weight: 0.35 KG
ALNUM: N
ECCN: N
Commodity code: 8421999090
SparePartCode: SN
3LD9221-0A Terminal cover, 3-pole, suitable for 25A and 32A, accessories for main switch and emergency stop switch 3LD2 1 ST
Materialnumber: A5E02350404
Net weight: 7.00 G
ALNUM: N
ECCN: N
Commodity code: 85389099
SparePartCode: SN
6SR4900-0SM00-0AM0 SIMATIC HMI Development Control KTP700 Basic D
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E39206479
Net weight: 1.00 KG
ALNUM: N
ECCN: N
Commodity code: 8537109090
SparePartCode: SN
5SY4101-8CC Miniature circuit breaker 230/400V 10kA, 1 pole, D, 1A 2 ST
Material number: A5E35282720
Net weight: 0.16 KG
ALNUM: N
ECCN: N
Commodity code: 85362000
SparePartCode: SN
6SR0900-0KM01-0AM0 Filter low pass RE1201 275V
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product . 2 ST
Materialnumber: A5E30204948
Net weight: 0.05 KG
ALNUM: N
ECCN: N
Commodity code: 8543709990
SparePartCode: SN
6SR0960-0NM10-0AD0 Suppressor and capacitor kit output
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product . 3 ST
Material number: A5E31808912
ALNUM: N
ECCN: EAR99
Commodity code: 8536308000
SparePartCode: SN
6SR5902-0AA02-0AM1 PH GH180 AC 6SR5 Power unit 40A 750V without bypass
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 21 ST
Materialnumber: A5E39021149
ALNUM: N
ECCN: EAR99
Commodity code: 8504909090
SparePartCode: SN
6SR0900-0RM02-0AM0 Switch auxiliary switch PB1
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 3 ST
Materialnumber: A5E35334120
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8536909000
SparePartCode: SN
6SR5902-0CC12-0AM0 I/O socket 4P
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 7 ST
Materialnumber: A5E35451283
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
6SR0900-0KM00-0AM0 Control transformer JBK3-630 50/60 Hz T40/H IP00 JB/T 5555
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: LDZ13500012.00
Net weight: 2.00 KG
ALNUM: N
ECCN: N
Commodity code: 85043180
SparePartCode: SN
6SR0960-0QA02-0AA0 Data cable input/output assembly, 50 pole, 5FT
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E00993969
Net weight: 0.42 KG
ALNUM: N
ECCN: EAR99H
Commodity code: 85444290
SparePartCode: SN
6SR5902-0CC16-0AM0 User I/O Interface Board Terminal 16P
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35451294
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
3LD9200-5B Auxiliary switch, 1 NO + 1 NC, accessories for main switch and emergency stop switch 3LD2 front mounting and for main switch and emergency stop switch 3LD5 UL front mounting 1 ST
Materialnumber: A5E30572769
Net weight: 21.00 G
ALNUM: N
ECCN: N
Commodity code: 85365080
SparePartCode: SN
6SR0900-0RM03-0AM0 Auxiliary switch ACC Switch bracket PB1
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 3 ST
Materialnumber: A5E35334172
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
6SR0900-0SM13-0AM0 Auxiliary switch red PB1S-AAXS6/K
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35334133
Net weight: 0.02 KG
ALNUM: N
ECCN: N
Commodity code: 8538900000
SparePartCode: SN
3RV6411-1CA10 Circuit breaker 2.5 AA release 1.8...2.5 A, N release 52 A, for transformer protection, threaded connection, standard switching capacity 1 ST
Materialnumber: A5E35282959
Net weight: 0.35 KG
ALNUM: N
ECCN: N
Commodity code: 85362090
SparePartCode: SN
3RV6011-1EA15 Circuit breaker 4 AA release 2.8...4 A, N release 52 A, for motor protection, class 10, threaded connection, standard switching capacity, with transverse auxiliary switch 1 NO + 1 NC 1 ST
Materialnumber: A5E35283013
Net weight: 0.38 KG
ALNUM: N
ECCN: N
Commodity code: 85362090
SparePartCode: SN
6SR0960-1CM15-0AD0 Resistive Hall Effect Load 220.97 ohms
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E01473390
Net weight: 0.01 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8533290000
SparePartCode: SN
6SR0960-0HA00-0AM0 Current transformer 50: 5 A, LMS-0.66-D87
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Material number: LDZ10501925
Net weight: 8.60 KG
ALNUM: N
ECCN: N
Commodity code: 8504311000
SparePartCode: SN
6SR5900-0GM10-0AM1 AC Centrifugal_Fan_Suction Ring_RHA500D4 _19.8"
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E31418339
Net weight: 2.50 KG
ALNUM: N
ECCN: N
Commodity code: 7616991090
SparePartCode: SN
6SR4900-0GM00-0AM0 Radial fan 19.8 inches
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E31418276
Net weight: 17.80 KG
ALNUM: N
ECCN: N
Commodity code: 8414593000
SparePartCode: SN
6SR0960-0CC21-0AD0 PERFECT HARMONY GH180 GH180 NXGPRO Controller 21 Unit
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E37764770
ALNUM: N
ECCN: EAR99
Commodity code: 8504909650
Phase Out: 07.07.2022
Product Cancellation: 07.07.2022
Product Discontinuation: 01.01.2032
SparePartCode: SP
6SR0960-0SM60-0AD0 KTP700 ASSY. KIT,<3000M,96'', SHILD,24AWG
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E39808478
ALNUM: N
ECCN: EAR99
Commodity code: 8537109170
End of Lifecycle: PM500 23.01.2024
Info A: Order on request. / NO REPLACEMENT TYPE, PRODUCT DELETED WITHOUT REPLACEMENT
Info B: The product you have requested has been phased out and is no longer available! Please contact your regional partner if you have any further questions.
SparePartCode: SN
6SR0900-0SM11-0AM0 Auxiliary switch PB1-F-C01_1NC
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 3 ST
Materialnumber: A5E35334106
Net weight: 0.01 KG
ALNUM: N
ECCN: N
Commodity code: 8536909000
SparePartCode: SN
6SR5902-0KM00-0AM0 Power supply UPS_N-1K
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E35632577
Net weight: 10.90 KG
Phase Out: 07.08.2024
Product Cancellation: 07.08.2024
Product Discontinuation: 30.09.2025
SparePartCode: SP
6SR5900-0QM00-0AD0 6SR5 KTP700 Cable Assembly 96''
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Material number: A5E39047590003
Net weight: 0.30 KG
ALNUM: N
ECCN: EAR99
Commodity code: 8544429090
SparePartCode: SN
6SR0900-0KM06-0AM0 Power supply holder
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 2 ST
Materialnumber: A5E31505866
Net weight: 0.10 KG
ALNUM: N
ECCN: N
Commodity code: 8504909090
SparePartCode: SN
6SR0900-0SM10-0AM0 Switching command pressure PB1S-AAZR/R
This is not a Siemens product but a product of Innomotics GmbH, Vogelweiherstr. 1-15, 90441 Nuremberg, Germany. Siemens assumes no responsibility for the accuracy or completeness of the information displayed regarding or in connection with this product. 1 ST
Materialnumber: A5E35334140
Net weight: 0.02 KG
ALNUM: N
ECCN: N
Commodity code: 8536500090
SparePartCode: SN
5SY4104-8CC Miniature circuit breaker 230/400V 10kA, 1-pole, D, 4A 2 ST
Materialnumber: A5E35282730
Net weight: 0.16 KG
ALNUM: N
ECCN: N
Commodity code: 85362000
SparePartCode: SN
Previous : 6SR5502-2SG44-0AJ0-Z, 6SR0960-0CC21-0AD0, A5E37764770, 6SR4900-0GM00-0AM0, A5E31418276, 6SR5900-0GM10-0AM1, A5E31418339, 6SR0960-1CM15-0AD0, A5E01473390, 6SR5902-0AA02-0AM1
Next : Innomotics Siemens Robicon 6SR3501-5MJ47-5BF1-Z, 6SR3502-6FB35-0BF0-Z, 6SR4502-5MB41-0BF0-Z, 6SR5502-5NT35-0FF1-Z, 6SR5502-4MC41-7FF1-Z, 6SR4502-5MB41-2BF1-Z
Copy product links
Long by picture save/share
A5E39021149, 6SR5902-0AD13-0AM1, A5E42740130, 6SR0960-0MM28-0AD0, A5E31657376, 6SR5900-0GM01-0AM1, A5E39760704, 6SR5900-0GM11-0AM1, A5E33846996
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
