Aluminum Electrolytic Capacitors Chemi-Con E36F451CAN143MEM9U 14000uF 450VDC Capacitor D76.2xL220mm Screw Terminals 5000 Hrs @ 85°C Tolerance±20%

Graphic
Detail

Aluminum Electrolytic Capacitors Chemi-Con E36F451CAN143MEM9U 14000uF 450VDC Capacitor D76.2xL220mm Screw Terminals 5000 Hrs @ 85°C Tolerance±20%

Product Detail

E36F451CAN143MEM9U

DigiKey Part Number

565-E36F451CAN143MEM9U-ND

Manufacturer

Chemi-Con

Manufacturer Product Number

E36F451CAN143MEM9U

Description

CAP ALUM 14MF 20% 450V SCREW CHA

Manufacturer Standard Lead Time

26 Weeks

Customer Reference

Detailed Description

14 mF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C

Product Attributes

Type

Description

Select All

Category

Capacitors

Aluminum Electrolytic Capacitors

Mfr

Chemi-Con

Series

U36F

Packaging

Bulk

Part Status

Active

Capacitance

14 mF

Tolerance

±20%

Voltage - Rated

450 V

ESR (Equivalent Series Resistance)

Lifetime @ Temp.

5000 Hrs @ 85°C

Operating Temperature

-40°C ~ 85°C

Polarization

Polar

Ratings

Applications

General Purpose

Lead Spacing

1.252' (31.80mm)

Size / Dimension

3.000' Dia (76.20mm)

Height - Seated (Max)

8.661' (220.00mm)

Surface Mount Land Size

Mounting Type

Chassis Mount

Package / Case

Radial, Can - Screw Terminals

Environmental & Export Classifications

Attribute Description

Moisture Sensitivity Level (MSL) Not Applicable

ECCN EAR99

HTSUS 8532.22.0085

Available To Order

Check Lead Time

This product is not kept in stock at DigiKey. The lead time shown will apply to the manufacturer’s shipment to DigiKey. Upon receiving the product, DigiKey will ship to fill open orders.

Quantity

All prices are in USD

Bulk

Quantity

Unit Price Ext Price

$94.24556 $848.21

Manufacturers Standard Package

Additional Resources

Attribute Description

Other Names 565-E36F451CAN143MEM9U

Standard Package 9

United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com 99

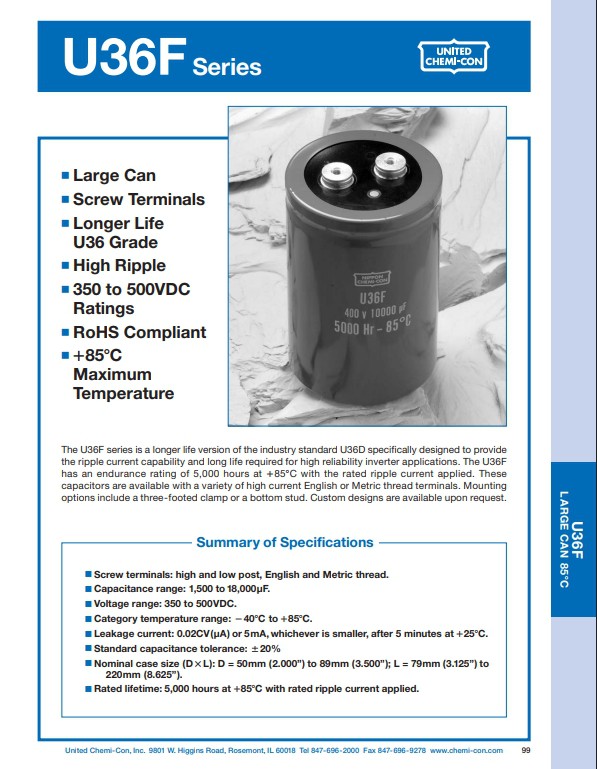

U36F

LARGE CAN 85C

U36F Series

The U36F series is a longer life version of the industry standard U36D specifically designed to provide

the ripple current capability and long life required for high reliability inverter applications. The U36F

has an endurance rating of 5,000 hours at 85C with the rated ripple current applied. These

capacitors are available with a variety of high current English or Metric thread terminals. Mounting

options include a three-footed clamp or a bottom stud. Custom designs are available upon request.

Large Can

Screw Terminals

Longer Life

U36 Grade

High Ripple

350 to 500VDC

Ratings

RoHS Compliant

85C

Maximum

Temperature

Screw terminals: high and low post, English and Metric thread.

Capacitance range: 1,500 to 18,000µF.

Voltage range: 350 to 500VDC.

Category temperature range: 40C to85C.

Leakage current: 0.02CV(µA) or 5mA, whichever is smaller, after 5 minutes at25C.

Standard capacitance tolerance: 20%

Nominal case size (DL): D = 50mm (2.000”) to 89mm (3.500”); L = 79mm (3.125”) to

220mm (8.625”).

Rated lifetime: 5,000 hours at85C with rated ripple current applied.

Summary of Specifications

U36F

LARGE CAN 85C

U36F Series

100 United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com

U36F Specifications - Screw Terminals

Item

Category Temperature Range 40 to85C

Rated Voltage Range 350 to 500VDC

Capacitance Range 1,500 to 18,000F at25C, 120Hz

Capacitance Tolerance 20% (M) at25C, 120Hz

Endurance

(Load Life)

The following specifications shall be satisfied when the capacitors are restored to25C after

subjecting them to DC voltage for 5,000 hours at85C with the rated ripple current applied.

The sum of the DC voltage and peak AC voltage must not exceed the full rated voltage of

the capacitors.

Capacitance change: ≤ 20% from initial measurement

ESR change : ≤ 200% of initial specified limit

Leakage current : ≤ initial specified limit

Shelf Life The following specifications shall be satisfied when the capacitors are restored to25C after

exposing them for 500 hours at85C without voltage applied. The rated voltage shall be

applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than

48 hours before the measurements.

Capacitance change: ≤ 20% from initial measurement

ESR change : ≤ 200% of initial specified limit

Leakage current : ≤ initial specified limit

Characteristics

Leakage Current I 0.02CV (A) or 5mA, whichever is smaller, after 5 minutes at25C.

Where I = Max. leakage current (A), C = Nominal capacitance (F) and V= Rated voltage (V)

Rated Ripple Current Multipliers Ambient Temperature (C)

45C

2.82

65C

2.00

85C

1.00

Vibration Rating

Maximum Tightening Torque

10-55Hz, 10g sinusoidal in three axis, 2 hours per axis.

Terminal

Code

Thread

Size

3 Threads Engaged

in·lb N·m in·lb N·m

6 Threads Engaged

10- 32 NF-2B

M5x0.8-6H

1/4 - 28 NF-2B

M6x1-6H

18.0

35.0

2.0

4.0

25.0

55.0

2.8

6.2

Typical Inductance (nH)

at 1MHz Terminal

Code

Case Diameter

Ø50 Ø63.5 Ø76 Ø89

—

Custom Designs Custom CV values per case size and termination type may be available upon request.

Contact appropriate representative with specific requirements.

United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com 101

U36F Series

U36F

LARGE CAN 85C

Large Can/Screw Terminals

Diagram of Dimensions - Screw Terminals

Insulating

Sleeve

Vent

Insulating

End Disk

Unit: mm (inches)

Case Size

Code

CA5

CB7

CD0

CE3

D79

D92

DA5

DB7

DD0

DE3

DN0

E79

E92

EA5

EB7

ED0

EE3

EJ0

EN0

F92

FA5

FB7

FD0

FE3

FF5

FK0

FN0

50.8 (2.000)

63.5 (2.500)

76.2 (3.000)

89.0 (3.500)

105 (4.125)

117 (4.625)

130 (5.125)

143 (5.625)

79 (3.125)

92 (3.625)

105 (4.125)

117 (4.625)

130 (5.125)

143 (5.625)

220 (8.625)

079 (3.125)

092 (3.625)

105 (4.125)

117 (4.625)

130 (5.125)

143 (5.625)

180 (7.125)

220 (8.625)

92 (3.625)

105 (4.125)

117 (4.625)

130 (5.125)

143 (5.625)

155 (6.125)

190 (7.500)

220 (8.625)

ØD

2.0 (0.080)

1.0 (0.040)

22.2 (0.875)

28.6 (1.125)

31.8 (1.250)

0.25 (0.010)

Case Dimensions

Terminal

Code

D-E

D-F

09.5 (0.375)

08.5 (0.335)

08.7 (0.344)

11.9 (0.468)

08.7 (0.344)

11.9 (0.468)

6.4 (0.250)

5.0 (0.200)

2.4 (0.093)

6.4 (0.250)

2.4 (0.093)

6.4 (0.250)

08.0 (0.313)

8.0 (0.313)

13.0 (0.512)

17.5 (0.689)

11.1 (0.438)

18.8 (0.740)

—

50.8 (2.000)

63.5 – 76.2 (2.500 – 3.000)

63.5 – 89.0 (2.500 – 3.500)

0.5 (0.020)

ØS

0.25 (0.010)

ØT

0.25 (0.010)

Available Case Diameter

2.0 (0.080)

Terminal Specifications

Thread

Size

Minimum

Thread

Depth

10- 32 NF-2B

M5x0.8-6H

1/4 - 28 NF-2B 1/4 - 28 NF-2B

M6x1-6H

ØD

Code

ØD

mm (inches)

U36F

LARGE CAN 85C

U36F Series

102 United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com

Type C: Clamp Dimensions

Type C: Three-Footed Clamp

Type S: Stud Mounting

Clamp: Zinc with silver trivalent

chromate post treatment.

Hardware: Screw, washer and hexagon

nut included with each clamp.

1.0 (0.040)

0.5 (0.020)

1.0 (0.040)

0.5 (0.020)

13.3 (0.524)

16.0 (0.630)

4.5 (0.177)

7.1 (0.280)

8.0 (0.313)

19.1 (0.751)

21.0 (0.827)

9.5 (0.374)

9.0 (0.354)

0.8 (0.032)

1.0 (0.040)

Case

ØD

Mounting

Code

50.8 (2.000)

63.5 (2.500)

76.2 (3.000)

89.0 (3.500)

31.8 (1.250)

38.1 (1.500)

44.5 (1.750)

50.8 (2.000)

36.5 (1.437)

42.9 (1.689)

49.2 (1.937)

56.5 (2.224)

Mounting Hardware - Screw Terminals

Unit: mm (inches)

360

455

D 15

5.10.5 (2 holes)

(0.2010.020)

A B

Note: Type B two-footed clamp available upon request for Ø50.8, Ø63.5 and Ø76.2. Consult UCC for specifications.

M N

Type S: Stud Mounting Dimensions

1.0 (0.040)

ØK

2.0 (0.080)

ØQ

1.0 (0.040)

18.0 (0.709) 30.0 (1.181) 22.0 (0.866) 1.40 (0.055)

Thread Size

1.0 (0.040)

Mounting

Code

S 16.0 (0.630) M12 19.0 (0.748)

United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com 103

U36F Series

U36F

LARGE CAN 85C

Supplement Code. Field 18.

C = PET insulation with end disk.

F = Coated can.

M= Pb-free PVC insulation with end disk.

Case Size. Fields 15, 16 and 17.

The single letter diameter code is inserted in field 15.

C = Ø50.8mm (Ø2.000”)

D = Ø63.5mm (Ø2.500”)

E = Ø76.2mm (Ø3.000”)

F = Ø89mm (Ø3.500”)

The double character length code is inserted in fields 16 and 17.

For lengths ≤ 99mm, insert the actual length rounded to nearest

millimeter. For lengths of 100mm or more, insert the appropriate

alpha numeric code as indicated below.

79 = 79mm (3.125”)

92 = 92mm (3.625”)

A5 = 105mm (4.125”)

B7= 117mm (4.625”)

D0= 130mm (5.125”)

E3 = 143mm (5.625”)

F5 = 155mm (6.125”)

J0 = 180mm (7.125”)

K0 = 190mm (7.500”)

N0= 220mm (8.625”)

Capacitance Tolerance. Field 14.

M= 20%

Capacitance. Fields 11, 12 and 13.

Expressed in Microfarads. The first two digits are significant

figures inserted in fields 11 and 12, and the third digit inserted

in field 13 indicates the number of zeros for capacitance of

10F or more. R indicates the decimal point for capacitance

less than 10F (e.g. 1R0 =1.0F; 100 = 10F; 101= 100F;

102 = 1,000F; 103 = 10,000F ).

Mounting Hardware. Field 10.

N = None.

B = Two-footed clamp.

C = Three-footed clamp.

S = Stud mount.

Terminal Type. Fields 8 and 9.

HP = High post 10-32 NF-2B screw thread.

HL = High post M5x0.8 screw thread.

CD = UTE M5x0.8 screw thread.

CP = Low post 1/4-28 NF-2B screw thread.

CH = High post 1/4-28 NF-2B screw thread.

CA = Low post M6x1 screw thread.

CS = High post M6x1 screw thread.

DC Rated Voltage. Fields 5, 6 and 7.

Expressed in Volts. The first two digits are significant figures

inserted in fields 5 and 6, and the third digit inserted in field 7

indicates the number of zeros for rated voltage of 10VDC or

more. R indicates the decimal point for rated voltage less than

10VDC (e.g. 4R0 = 4.0VDC; 400 = 40VDC; 401 = 400VDC).

Series Name. Fields 2, 3 and 4.

Enter the 3-letter/digit series name in fields 2, 3 and 4. If the

series name is only 2 letters/digits, place a dash in field 4.

For a series name with more than 3 letters/digits, refer to the

individual series for the appropriate 3-field series name.

Capacitor Type. Field 1.

Aluminum Electrolytic Capacitor (Polar).

Part Numbering System for U36F Series When ordering, always specify complete 18-field global part number.

E 3 6 F 4 0 1 C P N 103 M F E 3 M

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

18 Fields

U36F Series

104 United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com

U36F

LARGE CAN 85C

†For terminal, mounting and construction options, refer to the part numbering system for descriptions and codes.

* Refer to diagram of dimensions for detailed case size specifications.

Standard Voltage Ratings - Screw Terminals

Rated

Voltage

(WVDC)

Capacitance

(µF)

Case

Size

Code

Global

Part Number†

Nominal

Case Size*

DL (mm)

Maximum ESR

(mΩ) at

25C,120Hz

Rated Ripple Current

(A rms) at85C

120Hz 300Hz >3kHz

350 Volts

400 Volts Surge

2,200 E36F351HPN222MCA5M 50 105 CA5 45 8.2 9.9 11.5

2,200 E36F351HPN222MCD0M 50 130 CD0 39 9.9 12.8 14.8

2,700 E36F351HPN272MCB7M 50 117 CB7 37 9.6 11.5 13.4

2,200 E36F351CPN222MD79M 63.5 79 D79 45 8.2 9.9 11.5

2,200 E36F351CPN222MDA5M 63.5 105 DA5 39 9.9 12.8 14.8

2,700 E36F351CPN272MD92M 63.5 92 D92 37 9.6 11.5 13.4

2,700 E36F351CPN272MDD0M 63.5 130 DD0 32 11.8 15.4 17.7

3,300 E36F351CPN332MDA5M 63.5 105 DA5 30 11.1 13.3 15.6

3,300 E36F351CPN332MDE3M 63.5 143 DE3 26 14.3 18.6 21.4

3,900 E36F351CPN392MDD0M 63.5 130 DD0 26 13.7 16.4 19.1

4,700 E36F351CPN472MDE3M 63.5 143 DE3 21 15.1 18.1 21.2

5,600 E36F351CPN562MDN0M 63.5 220 DN0 15 21.5 28.0 32.3

8,200 E36F351CPN822MDN0M 63.5 220 DN0 12 23.9 28.7 33.5

2,700 E36F351CPN272ME92M 76 92 E92 32 11.8 15.4 17.7

3,300 E36F351CPN332ME79M 76 79 E79 30 11.1 13.3 15.6

3,300 E36F351CPN332MEA5M 76 105 EA5 26 14.3 18.6 21.4

3,900 E36F351CPN392ME92M 76 92 E92 26 13.7 16.4 19.1

3,900 E36F351CPN392MEB7M 76 117 EB7 22 15.7 20.5 23.6

4,700 E36F351CPN472MEA5M 76 105 EA5 21 15.1 18.1 21.2

4,700 E36F351CPN472MEE3M 76 143 EE3 18 18.8 24.5 28.2

5,600 E36F351CPN562MEB7M 76 117 EB7 18 17.1 20.5 24.0

6,800 E36F351CPN682MEE3M 76 143 EE3 16 19.9 23.9 27.8

6,800 E36F351CPN682MEJ0M 76 180 EJ0 13 23.7 30.8 35.6

8,200 E36F351CPN822MEN0M 76 220 EN0 11 30.1 39.2 45.2

10,000 E36F351CPN103MEJ0M 76 180 EJ0 10 27.5 33.0 38.5

12,000 E36F351CPN123MEN0M 76 220 EN0 8 33.5 40.2 46.9

3,900 E36F351CPN392MF92M 89 92 F92 22 15.7 20.5 23.6

4,700 E36F351CPN472MFA5M 89 105 FA5 18 18.8 24.5 28.2

5,600 E36F351CPN562MF92M 89 92 F92 18 17.1 20.5 24.0

5,600 E36F351CPN562MFB7M 89 117 FB7 15 21.5 28.0 32.3

6,800 E36F351CPN682MFA5M 89 105 FA5 16 19.9 23.9 27.8

6,800 E36F351CPN682MFD0M 89 130 FD0 13 23.7 30.8 35.6

8,200 E36F351CPN822MFD0M 89 130 FD0 12 23.9 28.7 33.5

8,200 E36F351CPN822MFE3M 89 143 FE3 11 30.1 39.2 45.2

10,000 E36F351CPN103MFE3M 89 143 FE3 10 27.5 33.0 38.5

10,000 E36F351CPN103MFK0M 89 190 FK0 9 34.0 44.2 51.0

12,000 E36F351CPN123MFF5M 89 155 FF5 8 33.5 40.2 46.9

12,000 E36F351CPN123MFN0M 89 220 FN0 7 39.6 51.5 59.5

15,000 E36F351CPN153MFK0M 89 190 FK0 7 38.2 45.9 53.5

18,000 E36F351CPN183MFN0M 89 220 FN0 6 44.6 53.5 62.4

400 Volts

450 Volts Surge

2,200 E36F401HPN222MCA5M 50 105 CA5 45 8.2 9.9 11.5

2,200 E36F401HPN222MCD0M 50 130 CD0 39 9.9 12.8 14.8

2,700 E36F401HPN272MCB7M 50 117 CB7 37 9.6 11.5 13.4

2,200 E36F401CPN222MD79M 63.5 79 D79 45 8.2 9.9 11.5

2,200 E36F401CPN222MDA5M 63.5 105 DA5 39 9.9 12.8 14.8

2,700 E36F401CPN272MD92M 63.5 92 D92 37 9.6 11.5 13.4

2,700 E36F401CPN272MDD0M 63.5 130 DD0 32 11.8 15.4 17.7

3,300 E36F401CPN332MDA5M 63.5 105 DA5 30 11.1 13.3 15.6

3,300 E36F401CPN332MDE3M 63.5 143 DE3 26 14.3 18.6 21.4

3,900 E36F401CPN392MDD0M 63.5 130 DD0 26 13.7 16.4 19.1

4,700 E36F401CPN472MDE3M 63.5 143 DE3 21 15.1 18.1 21.2

5,600 E36F401CPN562MDN0M 63.5 220 DN0 15 21.5 28.0 32.3

8,200 E36F401CPN822MDN0M 63.5 220 DN0 12 23.9 28.7 33.5

2,700 E36F401CPN272ME92M 76 92 E92 32 11.8 15.4 17.7

3,300 E36F401CPN332ME79M 76 79 E79 30 11.1 13.3 15.6

3,300 E36F401CPN332MEA5M 76 105 EA5 26 14.3 18.6 21.4

3,900 E36F401CPN392ME92M 76 92 E92 26 13.7 16.4 19.1

3,900 E36F401CPN392MEB7M 76 117 EB7 22 15.7 20.5 23.6

United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com 105

U36F Series

U36F

LARGE CAN 85C

†For terminal, mounting and construction options, refer to the part numbering system for descriptions and codes.

* Refer to diagram of dimensions for detailed case size specifications.

Standard Voltage Ratings - Screw Terminals

Rated

Voltage

(WVDC)

Capacitance

(µF)

Case

Size

Code

Global

Part Number†

Nominal

Case Size*

DL (mm)

Maximum ESR

(mΩ) at

25C,120Hz

Rated Ripple Current

(A rms) at85C

120Hz 300Hz >3kHz

400 Volts

450 Volts Surge

4,700 E36F401CPN472MEA5M 76 105 EA5 21 15.1 18.1 21.2

4,700 E36F401CPN472MEE3M 76 143 EE3 18 18.8 24.5 28.2

5,600 E36F401CPN562MEB7M 76 117 EB7 18 17.1 20.5 24.0

6,800 E36F401CPN682MEE3M 76 143 EE3 16 19.9 23.9 27.8

6,800 E36F401CPN682MEJ0M 76 180 EJ0 13 23.7 30.8 35.6

8,200 E36F401CPN822MEN0M 76 220 EN0 11 30.1 39.2 45.2

10,000 E36F401CPN103MEN0M 76 220 EN0 10 27.5 33.0 38.5

3,900 E36F401CPN392MF92M 89 92 F92 22 15.7 20.5 23.6

4,700 E36F401CPN472MFA5M 89 105 FA5 18 18.8 24.5 28.2

5,600 E36F401CPN562MF92M 89 92 F92 18 17.1 20.5 24.0

5,600 E36F401CPN562MFB7M 89 117 FB7 15 21.5 28.0 32.3

6,800 E36F401CPN682MFA5M 89 105 FA5 16 19.9 23.9 27.8

6,800 E36F401CPN682MFD0M 89 130 FD0 13 23.7 30.8 35.6

8,200 E36F401CPN822MFD0M 89 130 FD0 12 23.9 28.7 33.5

8,200 E36F401CPN822MFE3M 89 143 FE3 11 30.1 39.2 45.2

10,000 E36F401CPN103MFE3M 89 143 FE3 10 27.5 33.0 38.5

10,000 E36F401CPN103MFK0M 89 190 FK0 9 34.0 44.2 51.0

12,000 E36F401CPN123MFK0M 89 190 FK0 8 33.5 40.2 46.9

15,000 E36F401CPN153MFN0M 89 220 FN0 7 38.2 45.9 53.5

420 Volts

470 Volts Surge

1,500 E36F421HPN152MCA5M 50 105 CA5 89 6.7 8.0 9.4

1,500 E36F421HPN152MCD0M 50 130 CD0 76 8.0 10.4 12.0

1,800 E36F421HPN182MCB7M 50 117 CB7 74 7.7 9.3 10.8

1,800 E36F421HPN182MCE3M 50 143 CE3 63 9.2 11.9 13.7

2,200 E36F421HPN222MCE3M 50 143 CE3 61 9.3 11.2 13.0

1,500 E36F421CPN152MD92M 63.5 92 D92 89 6.7 8.0 9.4

1,500 E36F421CPN152MDA5M 63.5 105 DA5 76 8.0 10.4 12.0

1,800 E36F421CPN182MDA5M 63.5 105 DA5 74 7.7 9.3 10.8

1,800 E36F421CPN182MDB7M 63.5 117 DB7 63 9.2 11.9 13.7

2,200 E36F421CPN222MDB7M 63.5 117 DB7 61 9.3 11.2 13.0

2,200 E36F421CPN222MDE3M 63.5 143 DE3 52 11.1 14.4 16.6

2,700 E36F421CPN272MDD0M 63.5 130 DD0 49 11.1 13.4 15.7

3,900 E36F421CPN392MDN0M 63.5 220 DN0 29 17.6 22.9 26.5

2,200 E36F421CPN222MEA5M 76 105 EA5 52 11.1 14.4 16.6

2,700 E36F421CPN272MEA5M 76 105 EA5 49 11.1 13.4 15.7

2,700 E36F421CPN272MEB7M 76 117 EB7 42 12.9 16.7 19.3

3,300 E36F421CPN332MEB7M 76 117 EB7 40 12.9 15.5 18.1

3,300 E36F421CPN332MEE3M 76 143 EE3 34 14.8 19.3 22.2

3,900 E36F421CPN392MED0M 76 130 ED0 34 14.8 17.8 20.8

4,700 E36F421CPN472MEE3M 76 143 EE3 28 17.0 20.4 23.8

4,700 E36F421CPN472MEJ0M 76 180 EJ0 24 20.2 26.2 30.2

5,600 E36F421CPN562MEJ0M 76 180 EJ0 24 19.5 23.4 27.3

5,600 E36F421CPN562MEN0M 76 220 EN0 20 22.8 29.7 34.2

6,800 E36F421CPN682MEN0M 76 220 EN0 20 22.3 26.8 31.3

2,700 E36F421CPN272MF92M 89 92 F92 42 12.9 16.7 19.3

3,300 E36F421CPN332MF92M 89 92 F92 40 12.9 15.5 18.1

3,300 E36F421CPN332MFA5M 89 105 FA5 34 14.8 19.3 22.2

3,900 E36F421CPN392MFA5M 89 105 FA5 34 14.8 17.8 20.8

3,900 E36F421CPN392MFD0M 89 130 FD0 29 17.6 22.9 26.5

4,700 E36F421CPN472MFB7M 89 117 FB7 28 17.0 20.4 23.8

4,700 E36F421CPN472MFE3M 89 143 FE3 24 20.2 26.2 30.2

5,600 E36F421CPN562MFD0M 89 130 FD0 24 19.5 23.4 27.3

5,600 E36F421CPN562MFF5M 89 155 FF5 20 22.8 29.7 34.2

6,800 E36F421CPN682MFE3M 89 143 FE3 20 22.3 26.8 31.3

6,800 E36F421CPN682MFK0M 89 190 FK0 17 27.5 35.8 41.3

8,200 E36F421CPN822MFD0M 89 190 FK0 16 27.8 33.4 39.0

8,200 E36F421CPN822MFN0M 89 220 FN0 14 32.2 41.8 48.3

10,000 E36F421CPN103MFN0M 89 220 FN0 13 32.7 39.3 45.8

U36F Series

106 United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com

U36F

LARGE CAN 85C

†For terminal, mounting and construction options, refer to the part numbering system for descriptions and codes.

* Refer to diagram of dimensions for detailed case size specifications.

Standard Voltage Ratings - Screw Terminals

Rated

Voltage

(WVDC)

Capacitance

(µF)

Case

Size

Code

Global

Part Number†

Nominal

Case Size*

DL (mm)

Maximum ESR

(mΩ) at

25C,120Hz

Rated Ripple Current

(A rms) at85C

120Hz 300Hz >3kHz

450 Volts

500 Volts Surge

1,500 E36F451HPN152MCB7M 50 117 CB7 89 7.0 8.4 9.9

1,500 E36F451HPN152MCE3M 50 143 CE3 76 8.4 10.9 12.7

1,800 E36F451HPN182MCD0M 50 130 CD0 74 8.1 9.7 11.3

1,500 E36F451CPN152MD92M 63.5 92 D92 89 7.0 8.4 9.9

1,500 E36F451CPN152MDB7M 63.5 117 DB7 76 8.4 10.9 12.7

1,800 E36F451CPN182MDA5M 63.5 105 DA5 74 8.1 9.7 11.3

1,800 E36F451CPN182MDD0M 63.5 130 DD0 63 9.5 12.3 14.2

2,200 E36F451CPN222MDA5M 63.5 105 DA5 61 9.6 11.6 13.5

2,200 E36F451CPN222MDE3M 63.5 143 DE3 52 11.4 14.9 17.1

2,700 E36F451CPN272MDE3M 63.5 143 DE3 49 11.3 13.5 15.8

1,800 E36F451CPN182ME92M 76 92 E92 63 9.5 12.3 14.2

2,200 E36F451CPN222ME92M 76 92 E92 61 9.6 11.6 13.5

2,200 E36F451CPN222MEB7M 76 117 EB7 52 11.4 14.9 17.1

2,700 E36F451CPN272MEA5M 76 105 EA5 49 11.3 13.5 15.8

2,700 E36F451CPN272MED0M 76 130 ED0 42 13.4 17.5 20.2

3,300 E36F451CPN332MEB7M 76 117 EB7 40 12.9 15.5 18.1

3,300 E36F451CPN332MEE3M 76 143 EE3 34 15.5 20.1 23.2

3,900 E36F451CPN392MED0M 76 130 ED0 34 14.8 17.8 20.8

3,900 E36F451CPN392MEJ0M 76 180 EJ0 29 17.6 22.9 26.5

4,700 E36F451CPN472MEE3M 76 143 EE3 28 17.1 20.5 23.9

4,700 E36F451CPN472MEN0M 76 220 EN0 24 20.9 27.2 31.4

5,600 E36F451CPN562MEJ0M 76 180 EJ0 24 20.3 24.3 28.4

6,800 E36F451CPN682MEN0M 76 220 EN0 20 23.2 27.8 32.4

2,700 E36F451CPN272MFA5M 89 105 FA5 42 13.4 17.5 20.2

3,300 E36F451CPN332MF92M 89 92 F92 40 12.9 15.5 18.1

3,300 E36F451CPN332MFB7M 89 117 FB7 34 15.5 20.1 23.2

3,900 E36F451CPN392MFA5M 89 105 FA5 34 14.8 17.8 20.8

3,900 E36F451CPN392MFD0M 89 130 FD0 29 17.6 22.9 26.5

4,700 E36F451CPN472MFB7M 89 117 FB7 28 17.1 20.5 23.9

4,700 E36F451CPN472MFF5M 89 155 FF5 24 20.9 27.2 31.4

5,600 E36F451CPN562MFE3M 89 143 FE3 24 20.3 24.3 28.4

5,600 E36F451CPN562MFK0M 89 190 FK0 20 25.0 32.5 37.5

6,800 E36F451CPN682MFF5M 89 155 FF5 20 23.2 27.8 32.4

6,800 E36F451CPN682MFN0M 89 220 FN0 17 29.3 38.1 44.0

8,200 E36F451CPN822MFK0M 89 190 FK0 16 27.8 33.4 39.0

10,000 E36F451CPN103MFN0M 89 220 FN0 13 32.7 39.3 45.8

500 Volts

550 Volts Surge

1,500 E36F501HPN152MCD0M 50 130 CD0 107 6.7 8.0 9.4

1,800 E36F501HPN182MCE3M 50 143 CE3 89 7.7 9.2 10.8

1,500 E36F501CPN152MD92M 63.5 92 D92 107 6.7 8.0 9.4

1,500 E36F501CPN152MDD0M 63.5 130 DD0 93 8.3 10.8 12.5

1,800 E36F501CPN182MDA5M 63.5 105 DA5 89 7.7 9.2 10.8

1,800 E36F501CPN182MDE3M 63.5 143 DE3 78 9.5 12.4 14.3

2,200 E36F501CPN222MDD0M 63.5 130 DD0 73 9.0 10.8 12.6

2,700 E36F501CPN272MDE3M 63.5 143 DE3 59 10.5 21.6 14.7

1,500 E36F501CPN152ME92M 76 92 E92 93 8.3 10.8 12.5

1,800 E36F501CPN182MEA5M 76 105 EA5 78 9.5 12.4 14.3

2,200 E36F501CPN222ME92M 76 92 E92 73 9.0 10.8 12.6

2,200 E36F501CPN222MEB7M 76 117 EB7 64 10.7 13.9 16.0

2,700 E36F501CPN272MEA5M 76 105 EA5 59 10.5 21.6 14.7

2,700 E36F501CPN272MEE3M 76 143 EE3 52 12.9 16.8 19.4

3,300 E36F501CPN332MED0M 76 130 ED0 48 12.1 14.5 16.9

3,300 E36F501CPN332MEJ0M 76 180 EJ0 42 14.9 19.4 22.4

3,900 E36F501CPN392MEE3M 76 143 EE3 41 13.8 16.6 19.3

3,900 E36F501CPN392MEN0M 76 220 EN0 36 17.5 22.8 26.3

4,700 E36F501CPN472MEF5M 76 155 EF5 34 16.6 19.9 23.3

5,600 E36F501CPN562MEJ0M 76 180 EJ0 29 18.9 22.7 26.4

6,800 E36F501CPN682MEN0M 76 220 EN0 24 23.1 27.8 32.4

United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com 107

U36F Series

U36F

LARGE CAN 85C

†For terminal, mounting and construction options, refer to the part numbering system for descriptions and codes.

* Refer to diagram of dimensions for detailed case size specifications.

Standard Voltage Ratings - Screw Terminals

Rated

Voltage

(WVDC)

Capacitance

(µF)

Case

Size

Code

Global

Part Number†

Nominal

Case Size*

DL (mm)

Maximum ESR

(mΩ) at

25C,120Hz

Rated Ripple Current

(A rms) at85C

120Hz 300Hz >3kHz

500 Volts

550 Volts Surge

2,200 E36F501CPN222MFA5M 89 105 FA5 64 10.7 13.9 16.0

2,700 E36F501CPN272MFB7M 89 117 FB7 52 12.9 16.8 19.4

3,300 E36F501CPN332MF92M 89 92 F92 48 12.1 14.5 16.9

3,300 E36F501CPN332MFD0M 89 130 FD0 42 14.9 19.4 22.4

3,900 E36F501CPN392MFA5M 89 105 FA5 41 13.8 16.6 19.3

3,900 E36F501CPN392MFF5M 89 155 FF5 36 17.5 22.8 26.3

4,700 E36F501CPN472MFD0M 89 130 FD0 34 16.6 19.9 23.3

4,700 E36F501CPN472MFK0M 89 190 FK0 30 21.1 27.4 31.6

5,600 E36F501CPN562MFE3M 89 143 FE3 29 18.9 22.7 26.4

5,600 E36F501CPN562MFN0M 89 220 FN0 25 24.5 31.8 36.7

8,200 E36F501CPN822MFK0M 89 190 FK0 20 25.9 31.1 36.3

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

United Chemi-Con (UCC):

E36F451HLN152MC925 E36F451HLN182MCA55 E36F451HLN392MDD05 E36F351CSS682MEE3U

E36F351CDN123MEM9U E36F451CAN562MEE3U E36F501HLS562MEE3U E36F501HPS152MCD0U

E36F5H1CGS122MEA5U E36F5H1CGS182MEA5U E36F5H1CLS122MEA5U E36F601CGS182MEA5U

E36F501CSN822MFK0U E36F501CSS602QEM9U E36F501HLS222MEA5U E36F501HLS332MDE3U

E36F501HLS332MEA5U E36F501HLS472MEE3U E36F501CDC392MEE3U E36F501CDS222MEE3U

E36F501CDS472QEE0U E36F501CGN212ME79U E36F501CSN222MFA5U E36F501CSN472MFK0U

E36F451HLS472MEE3U E36F451HPN152MCA5U E36F451HPN152MCB7U E36F451HPS103QEM9U

E36F500HLN333MC79U E36F500HPN242UA54U E36F451CSS822MEF5U E36F451CSS822MFF5U

E36F451HLC152MC92Q E36F451HLC182MCA5Q E36F451HLC392MDD0Q E36F451HLN103MEM9U

E36F451CSN822MFE5U E36F451CSN822MFF5U E36F451CSS103MFH0U E36F451CSS392MEA5U

E36F451CSS472MEE3U E36F451CSS472QEE3U E36F451CRN472MEE3U E36F451CSN143MEM9U

E36F451CSN222MD92U E36F451CSN332MDB7U E36F451CSN682MFF5U E36F451CSN822MEF5U

E36F451CPN123MEM9U E36F451CPN153MFM9U E36F451CPN602AEM9Q E36F451CPS472MEE3U

E36F451CPS682MEF5U E36F451CPS682MFF5U E36F451CGS532MEB7U E36F451CGS682MFD0U

E36F451CGS742MED0U E36F451CHN113QEM9U E36F451CHN882QEM9U E36F451CHS562MEE3U

E36F451CGN472QEE3U E36F451CGN532MFA5Q E36F451CGS103MFF5U E36F451CGS103MFH0U

E36F451CGS372MEB7U E36F451CGS452MEB7U E36F451CGN372MFA5Q E36F451CGN422QDD8U

E36F451CGN442MEB7Q E36F451CGN452MEB7Q E36F451CGN452MFA5Q E36F451CGN472MEE3U

E36F451CDS682MEF5U E36F451CDS822MEM9U E36F451CGN222MDA5U E36F451CGN222MDE3U

E36F451CGN292MDD8U E36F451CGN372MEB7Q E36F451CDN272MDA5U E36F451CDN332MEA5U

E36F451CDN472MDE3U E36F451CDS332MEA5U E36F451CDS472MEA5U E36F451CDS682MEE3U

E36F421CDS472MEA5U E36F421CGS272MDA5U E36F421CGS272TDA5U E36F421CPN103MFM9U

E36F451CAN143MEM9U E36F451CDC682MEE3U E36F401HPN152MCA5U E36F401HPN152QDD0U

E36F401HPN682MED0U E36F401MLN332MEE3U E36F421CCC272QDA5U E36F421CDS332MEA5U

E36F401CSS682MEJ1U E36F401CSS902QFE5U E36F401CVN482MEA5U E36F401HLB562TED0U

Previous : 6SL3350-6TK00-0EA0, A5E01265024, 6SL3352-1AG35-8BA1, A5E00890963, 6SL3351-1AG35-8BA1, A5E00894999, 6SL3350-6TK00-0EA0, A5E01265024, 6SL3055-0AA00-3AA1, A5E01041581 Next : A5E02631229, A5E02265837, A5E01202645, A1A164877.02, A1A164877.03, A1A091703, A1A089836, A1A0100118, A5E014377.12, A1A080752, A1A081099, A1A089149, A1A11006181.00, A1A092604

Copy product links

Long by picture save/share

Aluminum Electrolytic Capacitors Chemi-Con E36F451CAN143MEM9U 14000uF 450VDC Capacitor D76.2xL220mm Screw Terminals 5000 Hrs @ 85°C Tolerance±20%

INQUIRY

Inquiry MORE+

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

We are the world's leading supplier of spare parts for medium voltage drives of various brands

GET IN TOUCH

East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong

Call us : +852 5261 7322

Email us : [email protected]

SITEMAP

分类标题

BUSINESS HOURS

Monday to Friday : 9 am to 6 pm

Saturday : 9 am to 12 am

Sunday : Closed Support Hours in 24/7 Everyday

DISCLAIMER:

We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.

Cancel

添加微信好友，详细了解产品

使用企业微信
“扫一扫”加入群聊

复制成功

添加微信好友，详细了解产品

我知道了

Aluminum Electrolytic Capacitors Chemi-Con E36F451CAN143MEM9U 14000uF 450VDC Capacitor D76.2xL220mm Screw Terminals 5000 Hrs @ 85°C Tolerance±20%

Aluminum Electrolytic Capacitors Chemi-Con E36F451CAN143MEM9U 14000uF 450VDC Capacitor D76.2xL220mm Screw Terminals 5000 Hrs @ 85°C Tolerance±20%

分享至微信
