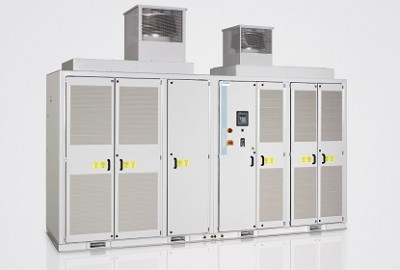

Siemens Robicon perfect harmony medium voltage drive

Siemens Robicon perfect harmony medium voltage drive

ROBICON Perfect Harmony is the undisputed first medium voltage inverter on the global market. Because the low voltage unit is connected in series, it can be finely scaled, and this degree makes it a medium voltage drive converter that can handle various voltages and rated power. The classic features of the ROBICON Perfect Harmony drive include: extremely simple installation and commissioning (where the transformer, power unit and closed-loop control are all combined in one unit), and the highest voltage quality that meets the standard, the most stringent specifications for harmonic content . Not only that, these drives also have unique advantages, thanks to the use of the leading cell bypass function (bypassing faulty cells in less than a quarter of a second) and the process-resistant ProToPS® to achieve Maximum availability. Protection System.

Name Robin Ken in perfect harmony

Voltage range: 2.3-13.8 kV

Power range: 0.2-132 MVA

Cooling: air-cooled to a maximum of 6.7 MW

Water cooling from 2.2 MW

Maximum output frequency: 330 Hz standard

Open/closed loop control:-sensorless vector control (optional with sensor)

-Communicate with all current BUS systems

-Automatic motor recognition

-Auto start

Protection level: IP21 or higher air cooling / IP52 water cooling

Rules and standards: ANSI; NEMA; UL; CSA; CE certification
