SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives Portfolio Brazilian Factory – JUNDIAI – Technical Characteristics

Catalog | Brazilian Edition | 2020

1

SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives

Portfolio Brazilian Factory – JUNDIAI – Technical Characteristics

The SINAMICS Perfect Harmony GH180 Air drive family consists of core design configurations, where they are

functionally identical and share a common controller. These designs are targeted at distinct output power

configurations with little overlap between the frame sizes. The SINAMICS PERFECT HARMONY GH180 family

is summarized in the tables below.

SINAMICS PERFECT HARMONY GH180 characteristics at a glance

Line-side rectifier 6SR4 / 6SR5 18 to 54 pulse diode rectifier

Motor-side inverter Multilevel drive (PWM)

Power cells A

6SR4 / 6SR5 40, 70, 100, 140, 200, 260

6SR4 315, 375, 500, 660, 750

Input voltage range kV 6SR4 / 6SR5 0.48 to 13.8

Input voltage tolerance kV +10%, -10% 1) of nominal rated input voltage

Input overvoltage (swell) +20%

Input undervoltage (dip or sag) -35%, continues operation with reduced torque

Medium voltage ride through 500 msec (30 cycles @ 60 Hz and 25 cycles @ 50 Hz)

Input frequency Hz 50/60 ± 5%

Input power factor ≥ 0.95 above 10% load

Input harmonics ≤ 3% total demand distortion (TDD) 2)

Output voltages kV

6SR5 2.3, 3.3, 4.0/4.16

6SR4 2.3, 3.3, 4.0/4.16, 4.6/4.8, 6.0, 6.6, 6.9/7.2, 8.4

Output frequency and drift Hz 0.5 ... 330 ± 0.5%, ± 0.1% with encoder

Output torque 100% from 10 - 167 Hz 3) without derating

Drive quadrants 2

Power range Hp

6SR5 150 to 2000 (100 kW to 1.5 MW)

6SR4 200 to 9000 (150 kW to 6.7 MW)

Overload 1 min / 10

min

6SR4 4)

(up to 260A) 150% built-in, higher on request

6SR4 5)

/ 6SR5 110% built-in, 150% available as an option, higher on request

Drive control methods Sensor-less closed-loop control, Open-loop vector control, V/Hz

Motor control

Induction

 Synchronous

 Permanent magnet motors, and

 Wound rotor motors

1) Below -5% current derate might be applied

2) As measured at the drive input, actual performance at the site will depend on the present harmonic distortion

3) GH180 drives, when de-rated properly, are available for high frequency applications with de-rated torque

4) For 140A cell, to use 150% overload the new rated current will be limited at 130A. See table on page 2 – Cell Overload Capability

5) GH180 drives with 750A for 6SR4 is only available with 100% rated current without overload.

Catalog | Brazilian Edition | 2020

2

SINAMICS PERFECT HARMONY GH180 Technical Data

General Technical Data

General Technical Data

Drive quadrants 2

Isolation Fiber optic cable

Rated Efficiency Cu Typical 97.0 % including transformer, 96.5% guaranteed across whole product range

Al Typical 96.5 % including transformer, 96% guaranteed across whole product range

Regulation compliances IEEE, ANSI, CE

Degree of Protection1)

6SR5 IP42 (standard)

6SR4 IP31 (standard) / IP42 (optional M42)

Altitude Ft (m) 0…3,300 (1,000) standard, Up to 14,763 (4,500) with de-rating

Sound Pressure Level at 3ft (1m) dBA 80

Power Cabling Cross Sections2)

6SR5 6SR5 6SR5 6SR4 6SR4

40-70A 100-140A 200-260A 315-375A 500-750A

Line-side, max. connectable per

phase with M10 screw

preliminary

AWG/MCM

(NEC, CEC)

1 x 350

MCM

1 x 4/0

AWG

1 x 500 MCM

2 x 2/0 AWG

2 x 500

MCM

2 x 1000

MCM

mm²

(DIN VDE) 1 x 177 1 x 107 1 X 253

2 x 67 2 x 253 2 x 507

Motor-side, max. connectable

per phase with M10 screw

preliminary

AWG/MCM

(NEC, CEC)

1 x #2

AWG

1 x 2/0

AWG

1 x 4/0

AWG

1 x 500

MCM

2 x 1000

MCM

mm²

(DIN VDE) 1 x 33 1 x 67 1x 107 2 x 507 2 x 507

PE (protective earth)

connection, max. connection

cross-section at enclosure with

M12 screw preliminary

AWG/MCM

(NEC, CEC) 2/0 AWG 2/0 AWG 2/0 AWG 2/0 AWG 1000 MCM

mm²

(DIN VDE) 67 67 67 67 507

1) According to IEC 60529

2) Maximum installable size per phase, shielded cables

Cell Overload Capability

6SR5 6SR4

Cell Rating 40 70 100 140 200 260 40 70 100 140 200 260 315 375 500 660 750

Maximum cell continuous

output current for 60s

(Imax,60)

44 77 110 154 220 286 44 77 110 154 300 390 346 412 550 726 750

110% Overload

(1min/10min) 40 70 100 140 200 260 40 70 100 140 200 260 315 375 500 660 682

150% Overload

(1min/10min) 29 51 73 103 147 191 40 70 100 130 200 260 231 275 367 484 500

Catalog | Brazilian Edition | 2020

3

Auxiliary Supply

Configuration 6SR4 / 6SR5

Control Voltage

Three Phase w/

CPT (K69) ????)

Three Phase w/o

CPT (K68/K79) Single Phase ????)

6SR5 40-70A - 9 cell kVA 2.0 3.5 0.5

6SR5 100-140A - 9 cell kVA 3.5 4.5 0.5

6SR5 200-260A - 9 cell kVA 6.5 8.0 0.5

6SR4 40-260A - 12/15 cell kVA 7.0 6.5 0.5

6SR4 40-260A - 12 FP kVA 10.0 9.5 0.5

6SR4 315-375A - 9/12 cell kVA 9.5 9.0 0.5

6SR4 500-750A - 9/12 cell up to 4000hp kVA 12.5 12.0 0.5

6SR4 500-750A - 9/12 cell 4500 to 6000hp kVA 15.5 15.0 0.5

6SR4 500-750A - 15/18 cell up to 4000hp kVA 15.5 15.0 0.5

6SR4 500-750A - 15/18 cell 4500 to 6000hp kVA 18.5 18.0 0.5

6SR4 500-750A - 15/18 cell 6500-8000hp kVA 18.5 18.0 0.5

6SR4 500-750A - 15/18 cell 9000hp kVA 18.5 18.0 0.5

1) Single phase 120 / 240 V AC for NXG control

2) Includes cooling blowers and NXG control power; largest unit shown. CPT: Control power transformer

3) Drive space heater option (L55) requires separate source

Note: Options E04 and other special relays will require slightly more current from the 120V source.

Catalog | Brazilian Edition | 2020

4

SINAMICS PERFECT HARMONY GH180 Air-Cooled Technical Data

SINAMICS Perfect Harmony GH180 6SR5 40-260A and 6SR4 315-750A Parameters

6SR5 40-260A and 6SR4 315-750A 2.4 kV Motor Voltage, 9 Cell Configuration

Drive

Series

Shaft Output ????) Motor

Current ????) Cell Rating Dimensions ????)

WxHxD Weight

Hp kW A A in mm lb kg

6SR5 150 112 32 40

48x102x40 1219x2591x1016 3)

3600 1633

6SR5 200 149 43 70 3700 1678

6SR5 300 224 65 70 4100 1860

6SR5 400 298 87 100

60x110x42 1524x2782x1067 3)

4900 2223

6SR5 500 373 108 140 5100 2313

6SR5 600 448 130 140 5500 2495

6SR5 700 481 140 140 5800 2631

6SR5 800 597 169 200

75x110x45 1905x2782x1143 3)

5900 2676

6SR5 900 671 190 200 6400 2903

6SR5 1000 746 212 260 6900 3130

6SR4 1250 932 268 315

150x125x50 3810x3175x1270

8445 3831

6SR4 1500 1118 321 375 14109 6400

6SR4 1750 1306 375 375 14329 6500

6SR4 2000 1492 428 500

188x119x50 4775x3023x1270 4)

26800 12156

6SR4 2250 1679 482 500 26800 12156

6SR4 2335 1741 500 500 26800 12156

6SR4 2500 1865 536 660 26800 12156

6SR4 3000 2235 643 660 26800 12156

6SR4 3500 2612 750 750 26800 12156

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos (sigma) of 88% and motor efficiency of 95.2%

2) Height includes blower cage; 40-70A configuration blowers are part of a cabinet, other configurations blowers are removed for

shipping. Certain options (e.g. K20, E04, M61 and others) will change drive dimensions, for more details see outline page.

3) For input voltage greater than 8.4 kV, an input cabinet is required.

4) For input voltage greater than 5 kV, an input cabinet is required.

Catalog | Brazilian Edition | 2020

5

6SR5 40-260A and 6SR4 315-750A 3.3 kV Motor Voltage, 9 Cell Configuration

Drive

Series

Shaft Output ????) Motor

Current ????) Cell Rating Dimensions ????)

WxHxD Weight

Hp kW A A in mm lb kg

6SR5 150 112 24 40

48x102x40 1219x2591x1016 3)

3600 1633

6SR5 200 149 31 40 3700 1678

6SR5 300 224 47 70 4100 1860

6SR5 400 298 62 70 4900 2223

6SR5 500 373 78 100

60x110x42 1524x2782x1067 3)

5100 2313

6SR5 600 448 94 100 5500 2495

6SR5 700 481 109 140 5800 2631

6SR5 800 597 125 140 5900 2676

6SR5 900 671 141 200 6400 2903

6SR5 1000 746 156 200 6900 3130

6SR5 1250 932 195 200

75x110x45 1905x2782x1143 3)

8100 3831

6SR5 1500 1118 234 260 9300 4218

6SR4 1750 1306 273 315

150x125x50 3810x3175x1270

15215 6901

6SR4 2000 1492 312 315 16065 7287

6SR4 2022 1508 315 315 16065 7287

6SR4 2250 1679 351 375 16915 7673

6SR4 2407 1796 375 375 16915 7673

6SR4 2500 1865 390 500

188x119x50 4775x3023x1270 4)

26800 12156

6SR4 3000 2235 467 500 26800 12156

6SR4 3209 2394 500 500 26800 12156

6SR4 3500 2611 539 660 26800 12156

6SR4 4000 2984 624 660 26800 12156

6SR4 4235 2988 660 660 26800 12156

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos (sigma) of 88% and motor efficiency of 95.2%

2) Height includes blower cage; 40-70A configuration blowers are part of a cabinet, other configurations blowers are removed for

shipping. Certain options (e.g. K20, E04, M61 and others) will change drive dimensions, for more details see outline page.

3) For input voltage greater than 8.4 kV, an input cabinet is required.

4) For input voltage greater than 5 kV, an input cabinet is required.

Catalog | Brazilian Edition | 2020

6

6SR5 40-260A and 6SR4 315-750A 4.16 kV Motor Voltage, 9 Cell Configuration

Drive

Series

Shaft Output ????) Motor

Current ????)

Cell

Rating

Dimensions ????)

WxHxD Weight

Hp kW A A in mm lb kg

6SR5 150 112 32 40

48x102x40 1219x2591x1016 3)

3600 1633

6SR5 200 149 36 40 3700 1678

6SR5 300 224 39 40 4100 1860

6SR5 400 298 52 70 4400 1996

6SR5 500 373 65 70 4700 2132

6SR5 600 448 78 100

60x110x42 1524x2782x1067 3)

5500 2495

6SR5 700 522 91 100 5800 2631

6SR5 800 597 104 140 6100 2767

6SR5 900 671 117 140 6400 2903

6SR5 1000 746 130 140 6500 2948

6SR5 1250 933 159 200

75x110x45 1905x2782x1143 3)

8100 3674

6SR5 1500 1119 190 200 9300 4218

6SR5 1750 1306 222 260 10500 4763

6SR5 2000 1492 254 260 11800 5352

6SR4 2200 1643 283 315

150x125x50 3180x3175x1270

15739 7139

6SR4 2450 1770 315 315 16099 7302

6SR4 2920 2124 375 375 17529 7951

6SR4 3900 2832 500 500 188x119x50 4775x3023x1270 4) 26800 12156

6SR4 5000 3541 643 660

212x121.5x50 5385x3086x1270 4)

31700 14379

6SR4 5835 4353 750 750 31700 14379

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos (sigma) of 88%, motor efficiency of 95.2% and motor voltage of 4.0 kV.

2) Height includes blower cage; 40-70A configuration blowers are part of a cabinet, other configurations blowers are removed for

shipping. Certain options (e.g. K20, E04, M61 and others) will change drive dimensions, for more details see outline page.

3) For input voltage greater than 8.4 kV, an input cabinet is required.

4) For input voltage greater than 5 kV, an input cabinet is required.

Catalog | Brazilian Edition | 2020

7

6SR4 40-750A 4.6 / 4.8 kV Motor Voltage, 12 Cell Configuration

Drive

Series

Shaft Output ????) Motor

Current ????)

Cell

Rating

Dimensions ????)

WxHxD Weight

Hp kW A A in mm lb kg

6SR4 300 224 33 40

114x121x45 2896x3073x1143

7926 3595

6SR4 369 275 40 40 8292 3762

6SR4 400 298 43 70 8292 3762

6SR4 500 373 54 70 8692 3943

6SR4 600 448 65 70 9158 4154

6SR4 630 467 70 70 9458 4290

6SR4 700 522 76 100 9458 4290

6SR4 800 597 87 100 9858 4472

6SR4 900 667 100 100 10324 4683

6SR4 1000 746 108 140 10824 4910

6SR4 1250 908 140 140 11736 5324

6SR4 1400 1048 157 200 12436 5641

6SR4 1790 1235 200 200 13036 5913

6SR4 2000 1415 223 260 13436 6095

6SR4 2250 1675 251 260 14453 6556

6SR4 2330 1735 260 260 14853 6738

6SR4 2500 1862 279 315

150x125x50 3810x3175x1270

18365 8330

6SR4 2820 2103 315 315 18365 8330

6SR4 3000 2236 335 375 19565 8874

6SR4 3350 2503 375 375 19565 8874

6SR4 4000 2984 447 500 208x119x50 5283x3023x1270 3) 28800 13064

6SR4 4500 3337 500 500

232x121.5x50 5893x3086x1270 3)

33700 15286

6SR4 5000 3725 558 660 33700 15286

6SR4 5900 4405 660 660 33700 15286

6SR4 6700 5006 750 750 232x130.5x50 5893x3315x1270 3) 33700 15286

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos (sigma) of 88% and motor efficiency of 95.2% and motor voltage of 4.6 kV.

2) Height includes blower cage; blowers are removed for shipping. Certain options (e.g. K20, E04, M61 and others) will change drive

dimensions, for more details see outline page.

3) For input voltage greater than 5 kV, an input cabinet is required.

Catalog | Brazilian Edition | 2020

8

6SR4 40-750A 6.0 / 6.6 / 6.9 kV Motor Voltage, 15 Cell Configuration

Drive

Series

Shaft Output ????) Motor

Current ????)

Cell

Rating

Dimensions ????)

WxHxD Weight

Hp kW A A in mm lb kg

6SR4 300 224 24 40

164x117x45 4166x2972x1143

6980 3166

6SR4 400 298 31 40 7330 3325

6SR4 500 373 39 40 7580 3438

6SR4 507 378 40 40 7790 3533

6SR4 600 448 47 70 7790 3533

6SR4 700 521 55 70 8320 3774

6SR4 800 600 62 70 8530 3869

6SR4 887 662 70 70 9080 4119

6SR4 900 671 71 100 9080 4119

6SR4 1000 746 78 100 9530 4323

6SR4 1250 932 98 100 11225 5092

6SR4 1280 959 100 100 11575 5250

6SR4 1500 1120 117 140 11575 5250

6SR4 1750 1304 136 140 13275 6021

6SR4 1775 1324 140 140 13905 6307

6SR4 2000 1492 154 200 13905 6307

6SR4 2250 1679 173 200 14925 6770

6SR4 2570 1915 200 200 15565 7060

6SR4 3000 2238 231 260 16685 7568

6SR4 3380 2521 260 260 18250 8278

6SR4 4000 2984 308 500

272x121.5x54 6909x3086x1372 3)

32000 14515

6SR4 5000 3730 385 500 36900 16738

6SR4 6000 4476 462 500 36900 16738

6SR4 7000 5222 539 660

272x130.5x54 6909x3315x1372 3)

36900 16738

6SR4 8000 5968 623 660 36900 16738

6SR4 9000 6714 701 750 282x139x54 7163x3531x1372 3) 45900 20820

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos (sigma) of 88% and motor efficiency of 95.2% and motor voltage of 6.6 kV.

2) Height includes blower cage; blowers are removed for shipping. Certain options (e.g. K20, E04, M61 and others) will change drive

dimensions, for more details see outline page.

3) For input voltage greater than 5 kV, an input cabinet is required.

Catalog | Brazilian Edition | 2020

9

6SR5 40-260A and 6SR4 315-750A 7.2 kV Motor Voltage, 18 Cell Configuration

Drive

Series

Shaft Output ????) Motor

Current ????)

Cell

Rating

Dimensions ????)

WxHxD Weight

Hp kW A A in mm lb kg

6SR4 3500 2611 269 500

248x120x54 6299x3048x1372 3)

32900 14923

6SR4 4000 2984 308 500 32900 14923

6SR4 5000 3730 385 500

272x128x54 6909x3251x1372 3)

37800 17146

6SR4 6000 4476 462 500 37800 17146

6SR4 7000 5222 539 660 37800 17146

6SR4 8000 5958 615 660 37800 17146

6SR4 9000 6714 643 660 282x144x54 7263x3658x1372 3) 46800 21228

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos (sigma) of 88% and motor efficiency of 95.2%

2) Height includes blower cage; blowers are removed for shipping. Certain options (e.g. K20, E04, M61 and others) will change drive

dimensions, for more details see outline page.

3) For input voltage greater than 5 kV, an input cabinet is required.

Floating Platform Series

6SR4 40-260A 4.16 kV Motor Voltage, 12 Cell Configuration

(Output Voltage up to 5.6kV)

Drive

Series

Shaft Output ????) Motor

Current ????)

Cell

Rating

Dimensions ????)

WxHxD Weight

Hp kW A A in mm lb kg

6SR4 300 223 37 40

116.5x122x47 2959x3099x1194

8076 3663

6SR4 500 377 65 70 8842 4011

6SR4 750 557 96 100 9808 4449

6SR4 1000 749 129 140 10974 4978

6SR4 1500 1161 193 200 12586 5709

6SR4 2000 1492 257 260 13586 6163

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos (sigma) of 88%, motor efficiency of 95.2% and 4.16 kV motor voltage

2) Height includes blower cage; blowers are removed for shipping. Certain options (e.g. K20, E04, M61 and others) will change drive

dimensions, for more details see outline page

3) Consult factory for correct drive configuration. Cabling information are requested as length, cross section, resistance/km,

inductance/km and capacitance/km.

Catalog | Brazilian Edition | 2020

10

Options Availability by Manufacturing Location

X – Option is available; E – some Engineering required; C – Check with specific factory

Options

Location

Brazil China Germany USA

A

A30 Touchscreen with standard cable (HMI) E x

A35 Remote Drive Control and Additional Customer Discrete I/O Panel E E

A36 Remote Drive Control and Additional Customer Hardwired I/O Panel E E

A59 Pextron RTD monitor - 8 channels x C C C

A80 TEC System RTD monitor x x

A60 TEC System RTD monitor - 8 channels x C C C

A82 SEL 710 motor protection relay E E

A83 Multilin 869 motor protection relay E E

X30 SIPROTEC motor protection relay E C C C

B

B09 Engineering and parameter configuration for ESP applications E E E E

B43 Production schedule: one issue x x x x

B44 Production schedule: updated at 2-week intervals x x x

B45 Production schedule: updated once per month x x x

D

D00 Documentation in German E x x

D02 Circuit diagrams, terminal diagrams and dimension drawings in DXF format x x x x

D15 One set of printed documentation x x x x

D56 Documentation in Russian E x x x

D76 Documentation in English x x x x

D78 Documentation in Spanish x C C C

D79 Documentation in Portuguese (Brazil) x x x

D84 Documentation in Chinese x x x

E

E04 Additional Customer Analog, Digital Inputs and Outputs (I/O) Modules x x x

F

F03 Visual acceptance of the drive x x x

F73 Functional acceptance of the drive with inductive load x x x

F77 Acceptance test of the insulation of the drive x x x

F79 Interface check with customer equipment (5 hours, on request) E x x

F97 Customer-specific acceptance E x

F02 Class 1 Witness Test x x

F94 Class 2 Witness Test x x

F95 Class 3 Witness Test x x

Catalog | Brazilian Edition | 2020

11

Options

Location

Brazil China Germany USA

G

G21 Modbus Plus interface, network x C C C

G22 Modbus RTU interface, network x x x x

G23 DeviceNet profile 12 interface, network 1 x x x x

G26 Control Net interface, network 1 x x x x

G28 Modbus Ethernet interface, network 1 x x x x

G31 Modbus Plus interface, network 2 x C C C

G32 Modbus RTU interface, network 2 x x x x

G34 Modbus Profinet by gateway x C C C

G37 EtherNet/IP interface, network 1 x x x x

G38 Modbus Ethernet interface, network 2 x x x x

G39 EtherNet/IP interface, network 2 x x x x

G42 Ethernet network switch with fiber optic port E x x

G43 DeviceNet profile 12 interface, network 2 x x x x

G46 Control Net interface, network 2 x x x x

G47 Ethernet port connector mounted on the door x x x x

G50 VFD Control Via Fieldbus Network Communication E

G91 PROFIBUS DP interface, network 1 x x x x

G93 PROFIBUS DP interface, network 2 x x x x

K

K20 Signal lamp on the cabinet door x x x x

K21 Display instruments for voltage, current and speed x x x x

K29 Pushbutton / Potentiometer Kit x x x x

K31 Off-Local-Remote selector switch x x x x

K32 Off-Hand-Auto selector x x x x

K33 Keyed Off-Local-Remote selector x x x x

K34 Keyed Off-Hand-Auto selector x x x x

K50 Closed loop vector control with provision for speed encoder x x x x

K68 Control voltage 220 V AC by customer x x

K69 Control voltage 120 V AC by Siemens x x x x

K73 I/O signal voltage 24 V DC x x x x

K79 Control voltage 120 V AC by customer x x x x

L

L29 Bidirectional Synchronized Transfer E x x x

L53 UPS for power supply of the control x x x x

L03 EMC filter x x x x

L09 Output reactor E x x x

L20 Bidirectional synchronized transfer of multiple motors, switchgear provided by

customer

E x

L50 Cabinet lighting and service socket outlet x x x x

L55 Anti-condensation heating for cabinet x x x x

L81 2 x 2 thermistor protection relays E x

L82 3 X 2 thermistor protection relays E x

L85 Redundant Control Power E x

L91 2 Pt100 evaluation units with 3 inputs each E x

L93 Pt100 evaluation unit with 6 inputs and 2 analog outputs E x

L95 Pt100 evaluation unit with 6 inputs for ex-proof motors and 6 analog outputs E x

Catalog | Brazilian Edition | 2020

12

Options

Location

Brazil China Germany USA

M

M08 Superior - Mechanical door interlock E x x

M09 Kirk - Mechanical door interlock E x x

M10 Castell - Mechanical door interlock E x x x

M46 INDAC - Mechanical door interlock x C C C

M12 Electrical door interlocks E x x

M35 Aluminum Gland plates x x x x

M36 Brass Gland plates x x x x

M37 Stainless Steel Gland plates x x x x

M38 Fortress - Mechanical door interlock x x x

M42 IP42 degree of protection x x x x

M57 Arc Resistant Design x

X30 Arc Fault Detection x C C C

M58 Outdoor Duty Drive x

M61 Redundant blower x x x x

M64/M68 Drive prepared for duct flange connection in front/rear x x x x

M67 Version for harsh environmental conditions x x x

M79 Copper system bus x

N

N10 Prepared for input contactor E x

N13 Prepared for input circuit breaker E x

N17 Bidirectional synchronized transfer of one motor, switchgear provided by

Siemens

E

x

N18 Bidirectional synchronized transfer of multiple motors, switchgear provided by

Siemens E x

N26 Synchronized pre-charge and pre-magnetization of transformer x

N30 Controlled outgoing feeder, 400 or 460/480VAC x C C C

N35 Controlled outgoing feeder for auxiliaries x x x x

N36 Controlled outgoing feeder, 230 or 120VAC x C C C

N40 Internal control cabling with SIS (Synthetic Insulated Switchboard) Wire x

N44 Make-proof grounding switch at drive input x x x

N45 Make-proof grounding switch at drive output x x x

N50 Internal cabling with halogen-free cables E x

N75 Power supply for external devices 24 V x

N94 Grounding Studs x x x x

P

P82 Delivery on two separate transport units x C C C

Q

Q80 12 months extension to a total of 24 months (2 years) from delivery x x x x

Q81 18 months extension to a total of 30 months (2½ years) from delivery x x x x

Q82 24 months extension to a total of 36 months (3 years) from delivery x x x x

Q84 30 months extension to a total of 42 months (3½ years) from delivery x x x x

Q81 36 months extension to a total of 48 months (4 years) from delivery x x x x

Q85 48 months extension to a total of 60 months (5 years) from delivery x x x x

Catalog | Brazilian Edition | 2020

13

Options

Location

Brazil China Germany USA

S

S17 Unmanned Station option E E

T

T03 White letters with black core x x x x

T04 Stainless steel x x x x

T58 Nameplate, warning labels in English/French E x x

T74 Nameplate, warning labels in English/German E x x

T76 Nameplate, warning labels in English x x x x

T60 Nameplate, warning labels in English/Spanish x C C C

T80 Nameplate, warning labels in English/Italian E x x

T82 Nameplate, warning labels English/Portuguese x x x

T85 Nameplate, warning labels in English/Russian E x x x

T91 Nameplate, warning labels in English/ Chinese x x x

U

U01 Version with UL listing x

U02 Version with CE conformity x x x x

U03 Version with CSA certification x

U04 EAC certificate x x E

U10 Process Tolerant Protection Strategy - ProToPS™ x x x x

U11 Advanced Cell Bypass x x x x

U12 N+1 Cell redundancy x x x

U13 One redundant cell per phase x x x

U57 High temperature x x x x

U58 Elevated BIL x x x x

U60 High Altitude ≤ 1500 m (5000ft) @ 40°C x x x x

U61 High Altitude ≤ 2000 m (6600ft) @ 40°C x x x x

U62 High Altitude ≤ 2500 m (8200ft) @ 40°C x x x x

U63 High Altitude ≤ 3000 m (10000ft) @ 40°C x x x x

U64 High Altitude ≤ 3500 m (12000ft) @ 40°C x x x x

U65 High Altitude ≤ 4000 m (13300ft) @ 40°C x x x x

V

V01 2.3 kV Motor Voltage x x x

V02 2.4 kV Motor Voltage x x x

V03 3.0 kV Motor Voltage x x x

V04 3.3 kV Motor Voltage x x x

V05 4.0 kV Motor Voltage x x x

V06 4.16 kV Motor Voltage x x x

V07 4.8 kV Motor Voltage x x

V08 5.0 kV Motor Voltage x x

V09 5.5 kV Motor Voltage x x

V10 6.0 kV Motor Voltage x x x x

V11 6.3 kV Motor Voltage x x x x

V12 6.6 kV Motor Voltage x x x x

V13 6.9 kV Motor Voltage x x

V14 7.2 kV Motor Voltage x x

V15 8.0 kV Motor Voltage x x

V18 10.0 kV Motor Voltage x

V19 11.0 kV Motor Voltage x

Catalog | Brazilian Edition | 2020

14

Options

Location

Brazil China Germany USA

Y

Y05 Customer-specific nameplate x x x

Y09 Paint finish other than standard x x x x

Y10 Circuit diagrams with customer-specific description field x x x x

Y15 Output Filter E x x x

Y36 Customer-specific cabinet labels x x x

PERFECT HARMONY GH180 Option Description

Motor Protection and Monitoring Option

Option Description

A59 Pextron RTD monitor - 8 channels

A device installed in the drive to monitor motor

temperature in windings and/or bearings. Basic

8-channel RTD monitor.

Communication Protocol:

– RS 485 Modbus (default)

A60 TEC System RTD monitor - 8 channels

A device installed in the drive to monitor motor

temperature in windings and/or bearings. Basic

8-channel RTD monitor.

Communication Protocol:

– None (default)

– RS 485 Modbus (option)

X30 SIPROTEC motor protection relay

Full featured high-end motor protection /

management relay with miscellaneous sensors

monitoring capability installed.

SIPROTEC model will be defined as customer

demand.

Communication Protocol:

– To be defined

Includes output phase CTs and PTs (as request).

Safety Options

Option Description

X30 Arc Fault Detection

Relay and sensors for internal arc fault

detection.

Sensors are installed in internal transformer and

cell cabinets.

Arc detection through UVA and small portion

visible light.

Mechanical Options

Option Description

P82 Delivery on two separate transport units

Valid only for Gen IV PH3 – 15 cells.

Transformer and cell cabinet delivered on two

separate transport units.

Controlled Outgoing Feeder for Auxiliaries

Option Description

N30 Controlled outgoing feeder, 400 or

460/480VAC

400V 3AC, 50Hz: max. 4kW or

460 / 480V 3AC, 60Hz: max. 4.8kW

N36 Controlled outgoing feeder, 230 or 120VAC

230V 1AC 50Hz, max. 2.2kW or

120V 1AC 60Hz, max. 1.5kW

Catalog |

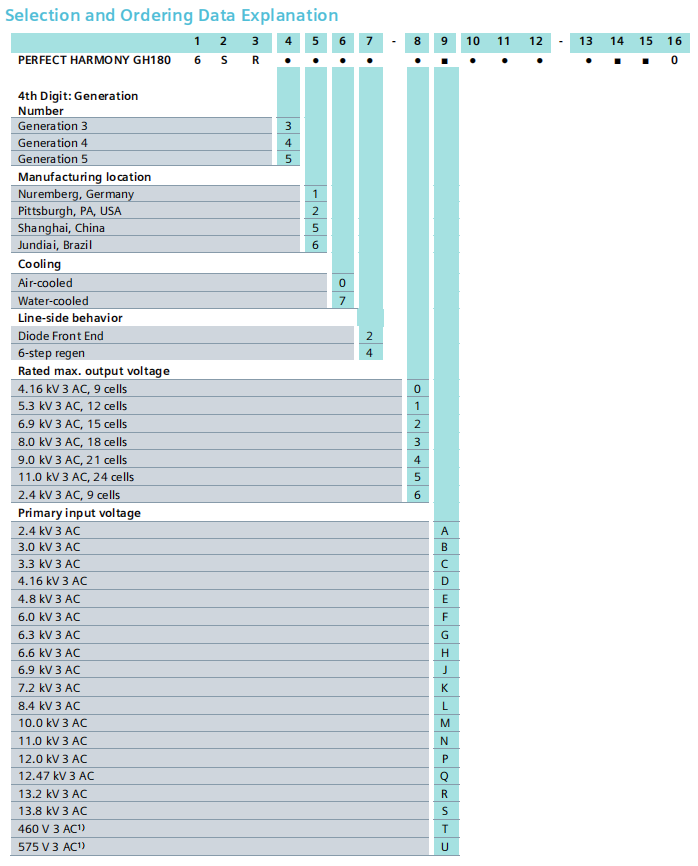

Selection and Ordering Data Explanation

1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16

PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0

4th Digit: Generation

Number

Generation 3 3

Generation 4 4

Generation 5 5

Manufacturing location

Nuremberg, Germany 1

Pittsburgh, PA, USA 2

Shanghai, China 5

Jundiai, Brazil 6

Cooling

Air-cooled 0

Water-cooled 7

Line-side behavior

Diode Front End 2

6-step regen 4

Rated max. output voltage

4.16 kV 3 AC, 9 cells 0

5.3 kV 3 AC, 12 cells 1

6.9 kV 3 AC, 15 cells 2

8.0 kV 3 AC, 18 cells 3

9.0 kV 3 AC, 21 cells 4

11.0 kV 3 AC, 24 cells 5

2.4 kV 3 AC, 9 cells 6

Primary input voltage

2.4 kV 3 AC A

3.0 kV 3 AC B

3.3 kV 3 AC C

4.16 kV 3 AC D

4.8 kV 3 AC E

6.0 kV 3 AC F

6.3 kV 3 AC G

6.6 kV 3 AC H

6.9 kV 3 AC J

7.2 kV 3 AC K

8.4 kV 3 AC L

10.0 kV 3 AC M

11.0 kV 3 AC N

12.0 kV 3 AC P

12.47 kV 3 AC Q

13.2 kV 3 AC R

13.8 kV 3 AC S

460 V 3 AC1) T

575 V 3 AC1) U

1) Utilization voltages, system voltages are 480V or 600V

Brazilian Edition | 2020

15

Catalog |

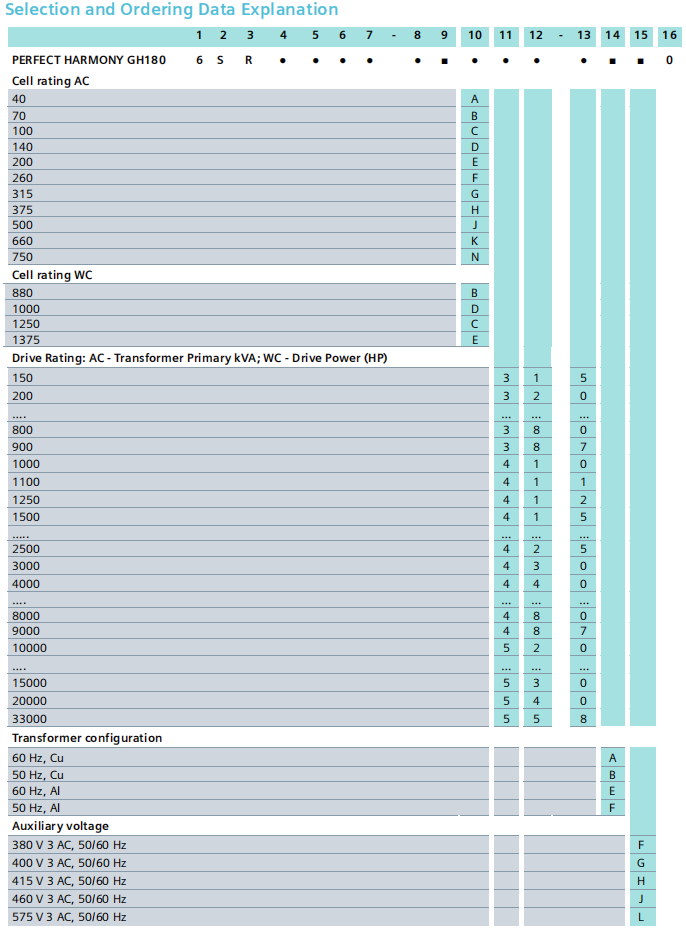

Selection and Ordering Data Explanation

1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16

PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0

Cell rating AC

40 A

70 B

100 C

140 D

200 E

260 F

315 G

375 H

500 J

660 K

750 N

Cell rating WC

880 B

1000 D

1250 C

1375 E

Drive Rating: AC - Transformer Primary kVA; WC - Drive Power (HP)

150 3 1 5

200 3 2 0

…. … … …

800 3 8 0

900 3 8 7

1000 4 1 0

1100 4 1 1

1250 4 1 2

1500 4 1 5

….. … … …

2500 4 2 5

3000 4 3 0

4000 4 4 0

…. … … …

8000 4 8 0

9000 4 8 7

10000 5 2 0

…. … … …

15000 5 3 0

20000 5 4 0

33000 5 5 8

Transformer configuration

60 Hz, Cu A

50 Hz, Cu B

60 Hz, Al E

50 Hz, Al F

Auxiliary voltage

380 V 3 AC, 50/60 Hz F

400 V 3 AC, 50/60 Hz G

415 V 3 AC, 50/60 Hz H

460 V 3 AC, 50/60 Hz J

575 V 3 AC, 50/60 Hz L

Brazilian Edition | 2020

16
