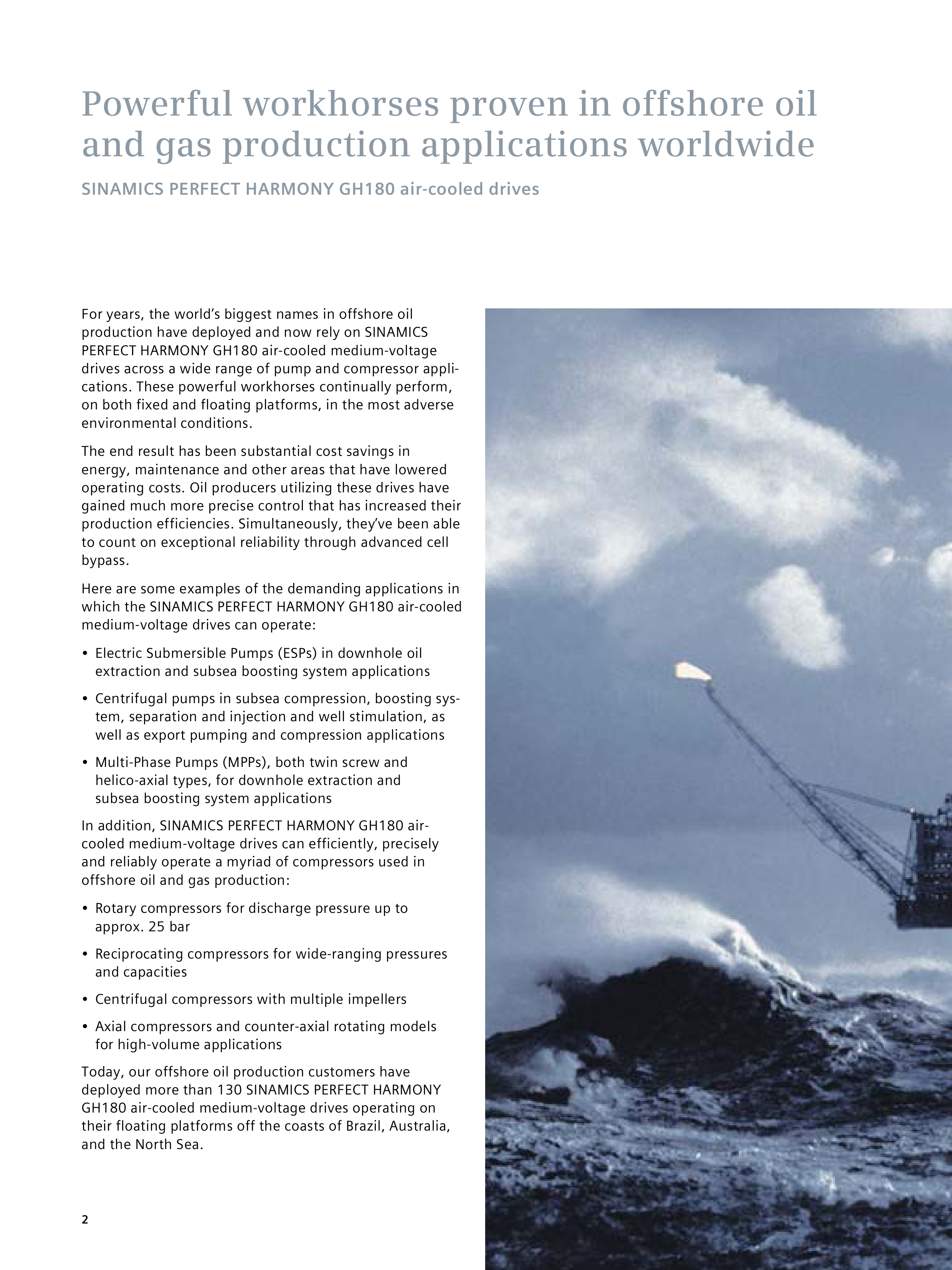

Powerful workhorses proven in offshore oil

and gas production applications worldwide

SINAMICS PERFECT HARMONY GH180 air-cooled drives

For years, the world’s biggest names in offshore oil

production have deployed and now rely on SINAMICS

PERFECT HARMONY GH180 air-cooled medium-voltage

drives across a wide range of pump and compressor appli￾cations. These powerful workhorses continually perform,

on both fixed and floating platforms, in the most adverse

environmental conditions.

The end result has been substantial cost savings in

energy, maintenance and other areas that have lowered

operating costs. Oil producers utilizing these drives have

gained much more precise control that has increased their

production efficiencies. Simultaneously, they’ve been able

to count on exceptional reliability through advanced cell

bypass.

Here are some examples of the demanding applications in

which the SINAMICS PERFECT HARMONY GH180 air-cooled

medium-voltage drives can operate:

• Electric Submersible Pumps (ESPs) in downhole oil

extraction and subsea boosting system applications

• Centrifugal pumps in subsea compression, boosting sys￾tem, separation and injection and well stimulation, as

well as export pumping and compression applications

• Multi-Phase Pumps (MPPs), both twin screw and

helico-axial types, for downhole extraction and

subsea boosting system applications

In addition, SINAMICS PERFECT HARMONY GH180 air￾cooled medium-voltage drives can efficiently, precisely

and reliably operate a myriad of compressors used in

offshore oil and gas production:

• Rotary compressors for discharge pressure up to

approx. 25 bar

• Reciprocating compressors for wide-ranging pressures

and capacities

• Centrifugal compressors with multiple impellers

• Axial compressors and counter-axial rotating models

for high-volume applications

Today, our offshore oil production customers have

deployed more than 130 SINAMICS PERFECT HARMONY

GH180 air-cooled medium-voltage drives operating on

their floating platforms off the coasts of Brazil, Australia,

and the North Sea.

2

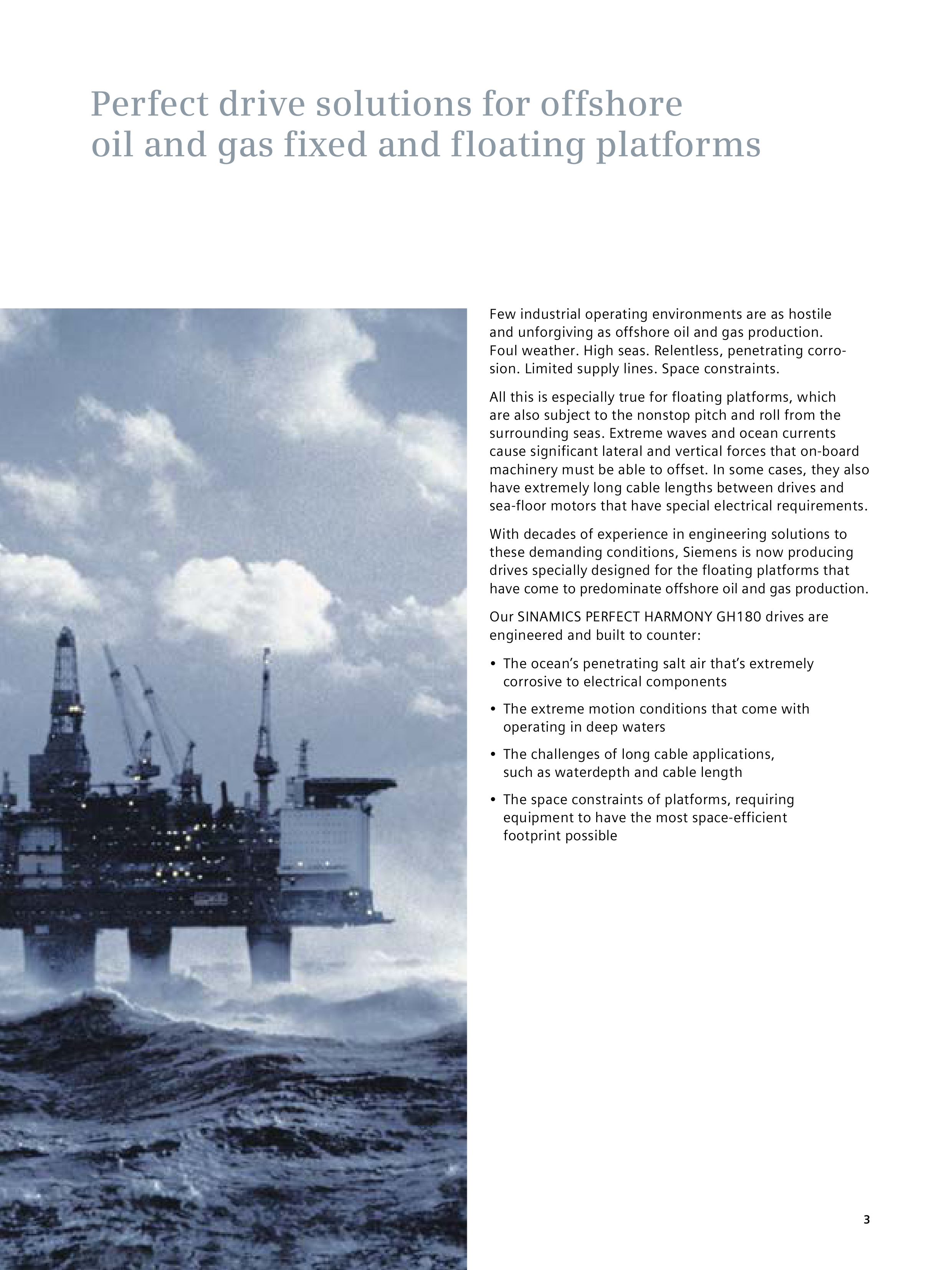

Perfect drive solutions for offshore

oil and gas fixed and floating platforms

Few industrial operating environments are as hostile

and unforgiving as offshore oil and gas production.

Foul weather. High seas. Relentless, penetrating corro￾sion. Limited supply lines. Space constraints.

All this is especially true for floating platforms, which

are also subject to the nonstop pitch and roll from the

surrounding seas. Extreme waves and ocean currents

cause significant lateral and vertical forces that on-board

machinery must be able to offset. In some cases, they also

have extremely long cable lengths between drives and

sea-floor motors that have special electrical requirements.

With decades of experience in engineering solutions to

these demanding conditions, Siemens is now producing

drives specially designed for the floating platforms that

have come to predominate offshore oil and gas production.

Our SINAMICS PERFECT HARMONY GH180 drives are

engineered and built to counter:

• The ocean’s penetrating salt air that’s extremely

corrosive to electrical components

• The extreme motion conditions that come with

operating in deep waters

• The challenges of long cable applications,

such as waterdepth and cable length

• The space constraints of platforms, requiring

equipment to have the most space-efficient

footprint possible

3

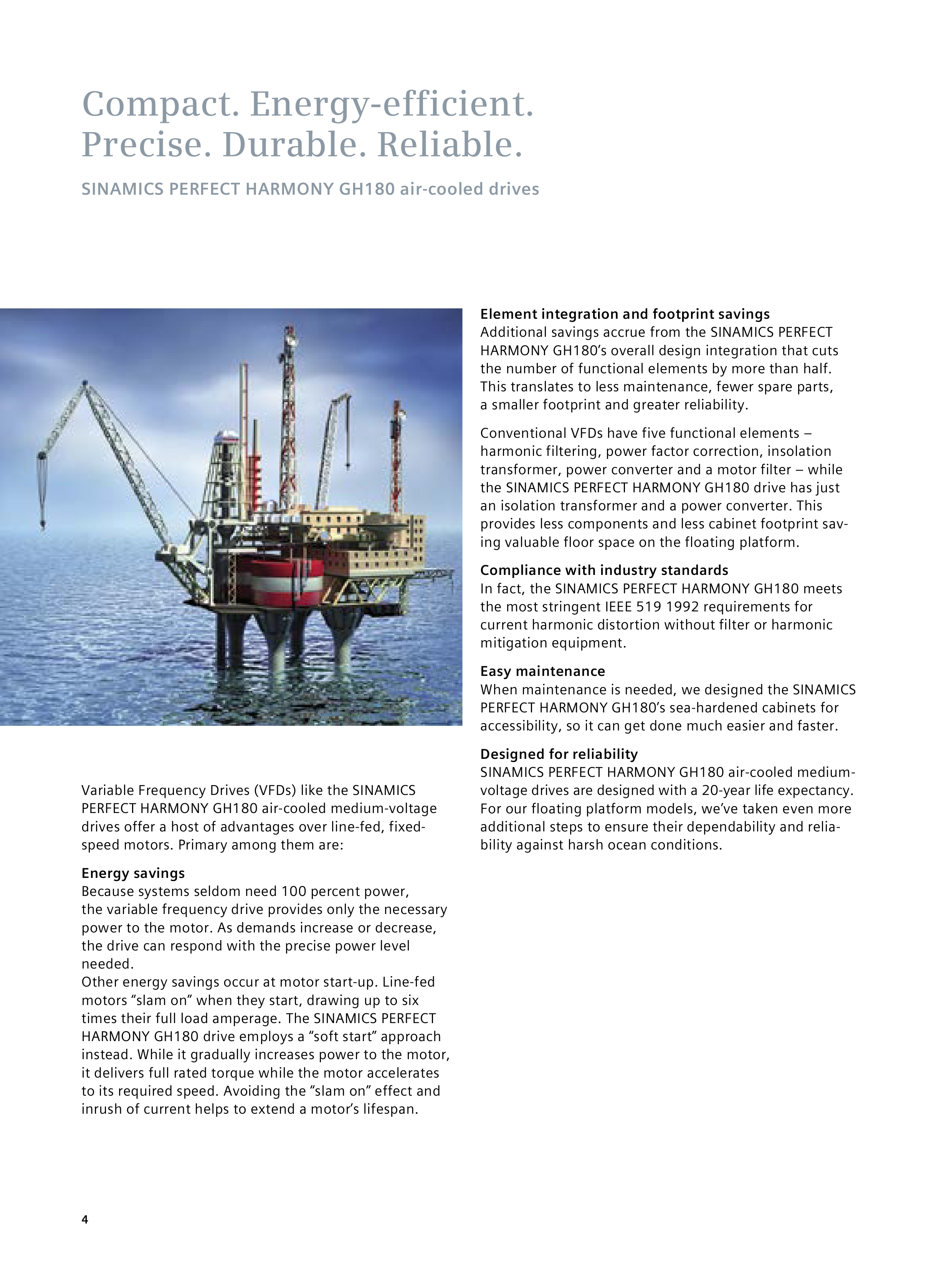

Compact. Energy-efficient.

Precise. Durable. Reliable.

SINAMICS PERFECT HARMONY GH180 air-cooled drives

Element integration and footprint savings

Additional savings accrue from the SINAMICS PERFECT

HARMONY GH180’s overall design integration that cuts

the number of functional elements by more than half.

This translates to less maintenance, fewer spare parts,

a smaller footprint and greater reliability.

Conventional VFDs have five functional elements –

harmonic filtering, power factor correction, insolation

transformer, power converter and a motor filter – while

the SINAMICS PERFECT HARMONY GH180 drive has just

an isolation transformer and a power converter. This

provides less components and less cabinet footprint sav￾ing valuable floor space on the floating platform.

Compliance with industry standards

In fact, the SINAMICS PERFECT HARMONY GH180 meets

the most stringent IEEE 519 1992 requirements for

current harmonic distortion without filter or harmonic

mitigation equipment.

Easy maintenance

When maintenance is needed, we designed the SINAMICS

PERFECT HARMONY GH180’s sea-hardened cabinets for

accessibility, so it can get done much easier and faster.

Designed for reliability

SINAMICS PERFECT HARMONY GH180 air-cooled medium￾Variable Frequency Drives (VFDs) like the SINAMICS voltage drives are designed with a 20-year life expectancy.

PERFECT HARMONY GH180 air-cooled medium-voltage For our floating platform models, we’ve taken even more

drives offer a host of advantages over line-fed, fixed- additional steps to ensure their dependability and relia￾speed motors. Primary among them are: bility against harsh ocean conditions.

Energy savings

Because systems seldom need 100 percent power,

the variable frequency drive provides only the necessary

power to the motor. As demands increase or decrease,

the drive can respond with the precise power level

needed.

Other energy savings occur at motor start-up. Line-fed

motors “slam on” when they start, drawing up to six

times their full load amperage. The SINAMICS PERFECT

HARMONY GH180 drive employs a “soft start” approach

instead. While it gradually increases power to the motor,

it delivers full rated torque while the motor accelerates

to its required speed. Avoiding the “slam on” effect and

inrush of current helps to extend a motor’s lifespan.

4

5

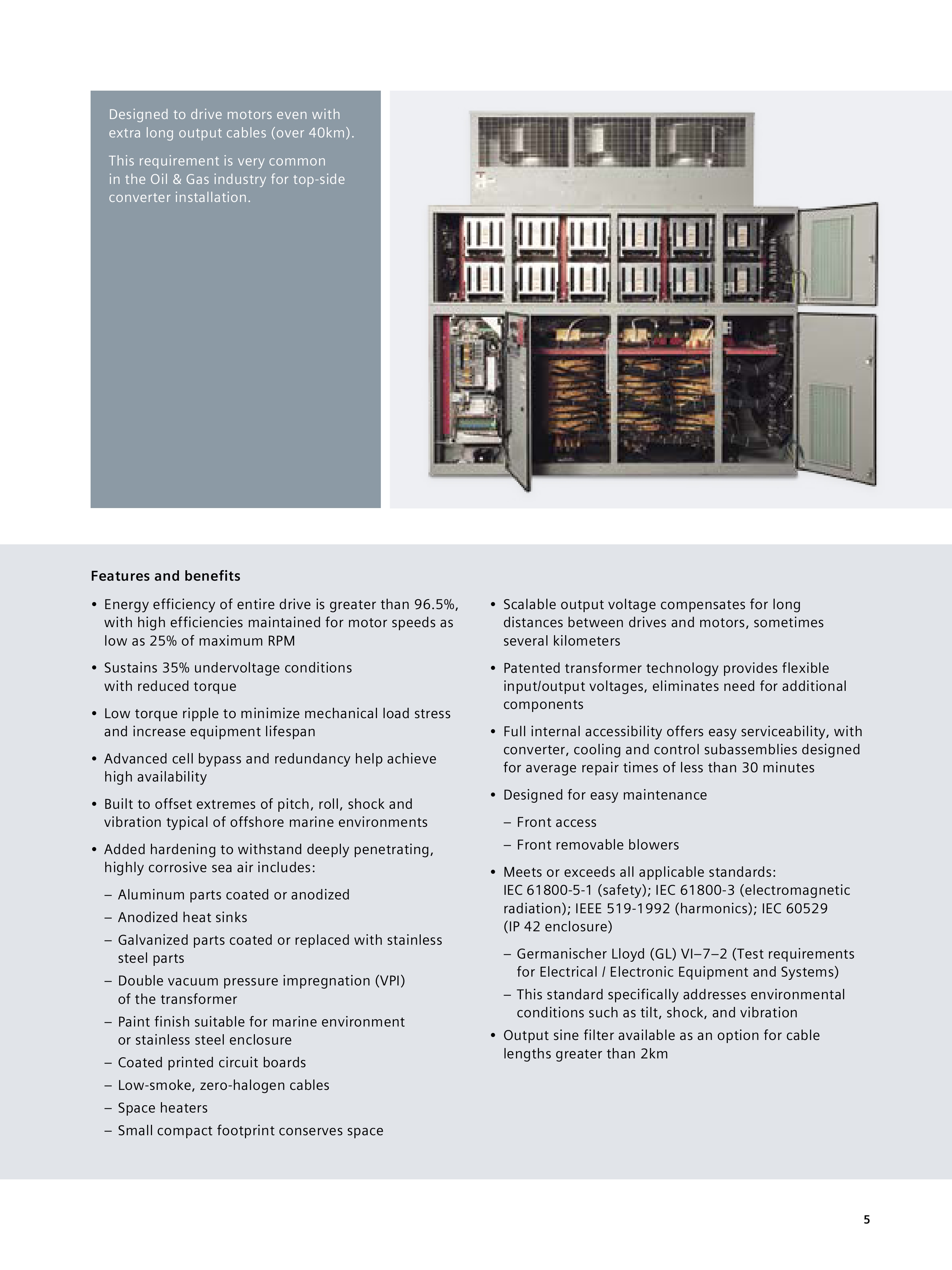

Designed to drive motors even with

extra long output cables (over 40km).

This requirement is very common

in the Oil & Gas industry for top-side

converter installation.

• Energy efficiency of entire drive is greater than 96.5%,

with high efficiencies maintained for motor speeds as

low as 25% of maximum RPM

• Sustains 35% undervoltage conditions

with reduced torque

• Low torque ripple to minimize mechanical load stress

and increase equipment lifespan

• Advanced cell bypass and redundancy help achieve

high availability

• Built to offset extremes of pitch, roll, shock and

vibration typical of offshore marine environments

• Added hardening to withstand deeply penetrating,

highly corrosive sea air includes:

– Aluminum parts coated or anodized

– Anodized heat sinks

– Galvanized parts coated or replaced with stainless

steel parts

– Double vacuum pressure impregnation (VPI)

of the transformer

– Paint finish suitable for marine environment

or stainless steel enclosure

– Coated printed circuit boards

– Low-smoke, zero-halogen cables

– Space heaters

– Small compact footprint conserves space

• Scalable output voltage compensates for long

distances between drives and motors, sometimes

several kilometers

• Patented transformer technology provides flexible

input/output voltages, eliminates need for additional

components

• Full internal accessibility offers easy serviceability, with

converter, cooling and control subassemblies designed

for average repair times of less than 30 minutes

• Designed for easy maintenance

– Front access

– Front removable blowers

• Meets or exceeds all applicable standards:

IEC 61800-5-1 (safety); IEC 61800-3 (electromagnetic

radiation); IEEE 519-1992 (harmonics); IEC 60529

(IP 42 enclosure)

– Germanischer Lloyd (GL) VI–7–2 (Test requirements

for Electrical / Electronic Equipment and Systems)

– This standard specifically addresses environmental

conditions such as tilt, shock, and vibration

• Output sine filter available as an option for cable

lengths greater than 2km

Features and benefits

6

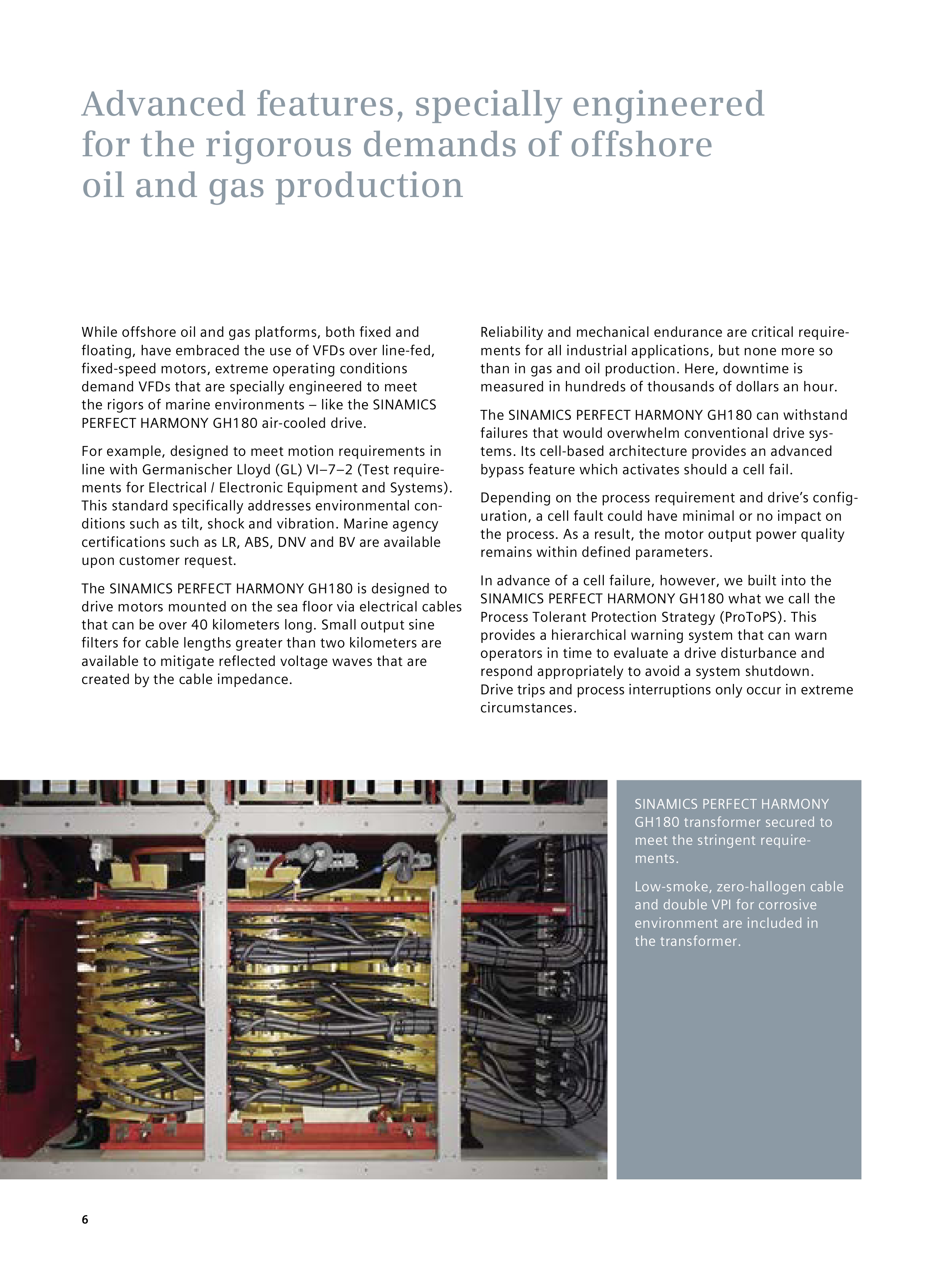

Advanced features, specially engineered

for the rigorous demands of offshore

oil and gas production

While offshore oil and gas platforms, both fixed and

floating, have embraced the use of VFDs over line-fed,

fixed-speed motors, extreme operating conditions

demand VFDs that are specially engineered to meet

the rigors of marine environments – like the SINAMICS

PERFECT HARMONY GH180 air-cooled drive.

For example, designed to meet motion requirements in

line with Germanischer Lloyd (GL) VI–7–2 (Test require￾ments for Electrical / Electronic Equipment and Systems).

This standard specifically addresses environmental con￾ditions such as tilt, shock and vibration. Marine agency

certifications such as LR, ABS, DNV and BV are available

upon customer request.

The SINAMICS PERFECT HARMONY GH180 is designed to

drive motors mounted on the sea floor via electrical cables

that can be over 40 kilometers long. Small output sine

filters for cable lengths greater than two kilometers are

available to mitigate reflected voltage waves that are

created by the cable impedance.

Reliability and mechanical endurance are critical require￾ments for all industrial applications, but none more so

than in gas and oil production. Here, downtime is

measured in hundreds of thousands of dollars an hour.

The SINAMICS PERFECT HARMONY GH180 can withstand

failures that would overwhelm conventional drive sys￾tems. Its cell-based architecture provides an advanced

bypass feature which activates should a cell fail.

Depending on the process requirement and drive’s config￾uration, a cell fault could have minimal or no impact on

the process. As a result, the motor output power quality

remains within defined parameters.

In advance of a cell failure, however, we built into the

SINAMICS PERFECT HARMONY GH180 what we call the

Process Tolerant Protection Strategy (ProToPS). This

provides a hierarchical warning system that can warn

operators in time to evaluate a drive disturbance and

respond appropriately to avoid a system shutdown.

Drive trips and process interruptions only occur in extreme

circumstances.

SINAMICS PERFECT HARMONY

GH180 transformer secured to

meet the stringent require￾ments.

Low-smoke, zero-hallogen cable

and double VPI for corrosive

environment are included in

the transformer.

7

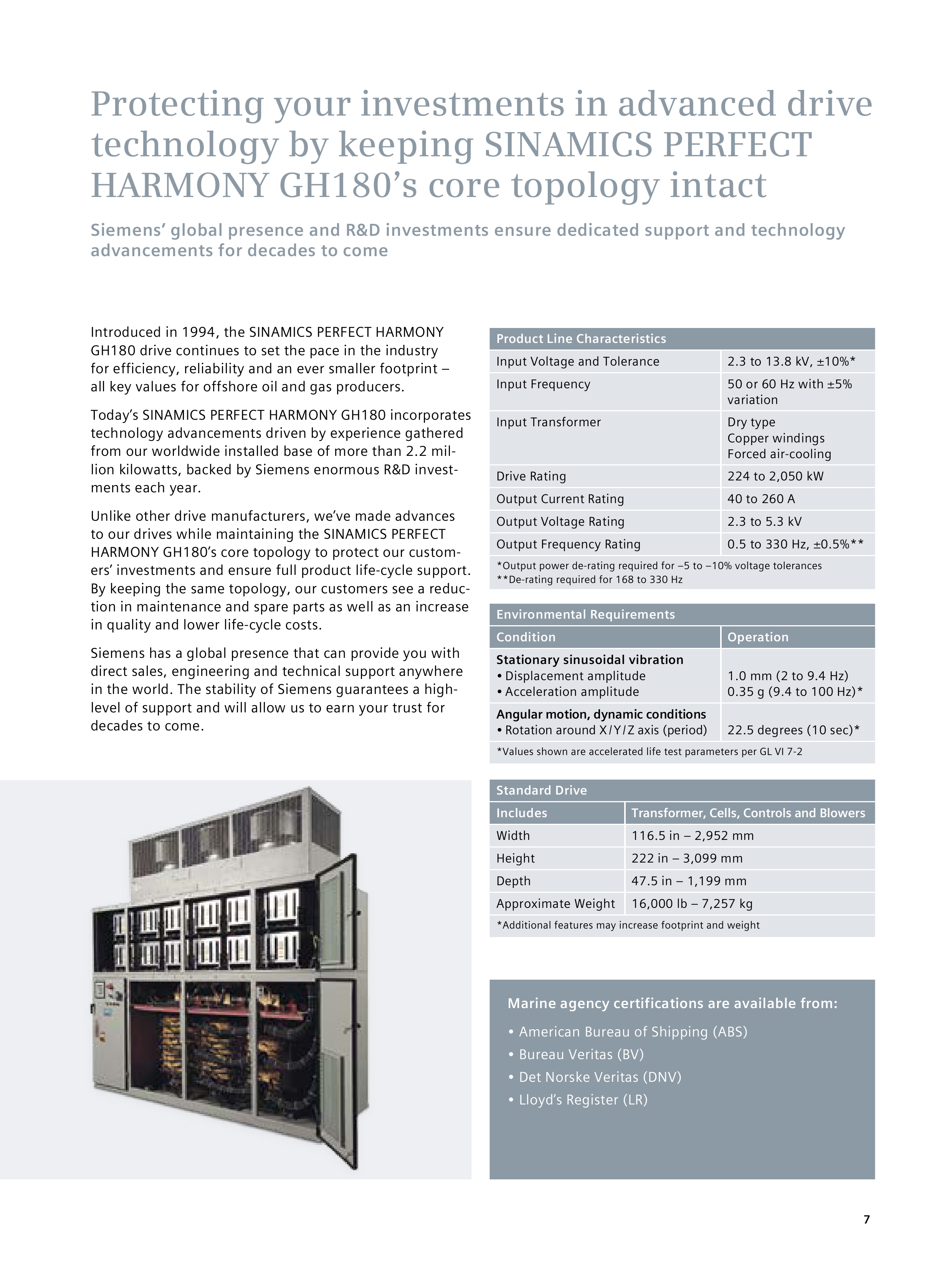

Protecting your investments in advanced drive

technology by keeping SINAMICS PERFECT

HARMONY GH180’s core topology intact

Siemens’ global presence and R&D investments ensure dedicated support and technology

advancements for decades to come

Introduced in 1994, the SINAMICS PERFECT HARMONY

GH180 drive continues to set the pace in the industry

for efficiency, reliability and an ever smaller footprint –

all key values for offshore oil and gas producers.

Today’s SINAMICS PERFECT HARMONY GH180 incorporates

technology advancements driven by experience gathered

from our worldwide installed base of more than 2.2 mil￾lion kilowatts, backed by Siemens enormous R&D invest￾ments each year.

Unlike other drive manufacturers, we’ve made advances

to our drives while maintaining the SINAMICS PERFECT

HARMONY GH180’s core topology to protect our custom￾ers’ investments and ensure full product life-cycle support.

By keeping the same topology, our customers see a reduc￾tion in maintenance and spare parts as well as an increase

in quality and lower life-cycle costs.

Siemens has a global presence that can provide you with

direct sales, engineering and technical support anywhere

in the world. The stability of Siemens guarantees a high￾level of support and will allow us to earn your trust for

decades to come.

Product Line Characteristics

Input Voltage and Tolerance 2.3 to 13.8 kV, ±10%*

Input Frequency 50 or 60 Hz with ±5%

variation

Input Transformer Dry type

Copper windings

Forced air-cooling

Drive Rating 224 to 2,050 kW

Output Current Rating 40 to 260 A

Output Voltage Rating 2.3 to 5.3 kV

Output Frequency Rating 0.5 to 330 Hz, ±0.5%**

*Output power de-rating required for –5 to –10% voltage tolerances

**De-rating required for 168 to 330 Hz

Environmental Requirements

Condition Operation

Stationary sinusoidal vibration

• Displacement amplitude

• Acceleration amplitude

1.0 mm (2 to 9.4 Hz)

0.35 g (9.4 to 100 Hz)*

Angular motion, dynamic conditions

• Rotation around X/Y/Z axis (period) 22.5 degrees (10 sec)*

*Values shown are accelerated life test parameters per GL VI 7-2

Standard Drive

Includes Transformer, Cells, Controls and Blowers

Width 116.5 in – 2,952 mm

Height 222 in – 3,099 mm

Depth 47.5 in – 1,199 mm

Approximate Weight 16,000 lb – 7,257 kg

*Additional features may increase footprint and weight

Marine agency certifications are available from:

• American Bureau of Shipping (ABS)

• Bureau Veritas (BV)

• Det Norske Veritas (DNV)

• Lloyd’s Register (LR)

Siemens AG

Process Industries and Drives

Large Drives

P.O. Box 47 43

90025 Nürnberg

GERMANY

Find out more:

siemens.com/ids

Subject to change without prior notice

Article No.: PDLD-B10011-00-7600

Dispo 21503

WÜ/66747 WS 03150.5

Printed in Germany

© Siemens AG 2015

The information provided in this brochure contains

merely general descriptions or characteristics of

performance which in case of actual use do not

always apply as described or which may change as

a result of further development of the products.

An obligation to provide the respective character￾istics shall only exist if expressly agreed in the

terms of contract.

All product designations may be trademarks

or product names of Siemens AG or supplier com￾panies whose use by third parties for their own

purposes could violate the rights of the owners.

Follow us on:

twitter.com/siemensindustry

youtube.com/siemens

Experience how

Integrated Drive

Systems can boost

the competitiveness

of production plants

and entire companies

in every sector.

The advantages

of Integrated

Drive Systems

at a glance
