SIEMENS PERFECT HARMONY GH180, 6SR5502-2ML48-0BF0-Z, 6SR5502-0DE41-5AJ0-Z, 6SR5502-2ND41-6BH2-Z
SIEMENS PERFECT HARMONY GH180, 6SR5502-2ML48-0BF0-Z, 6SR5502-0DE41-5AJ0-Z, 6SR5502-2ND41-6BH2-Z
6SR5502-2ML48-0BF0-Z D15+D76+G23+G47+K31+K68+K73+M35+M97+N27+N 94+T03+U58+V10

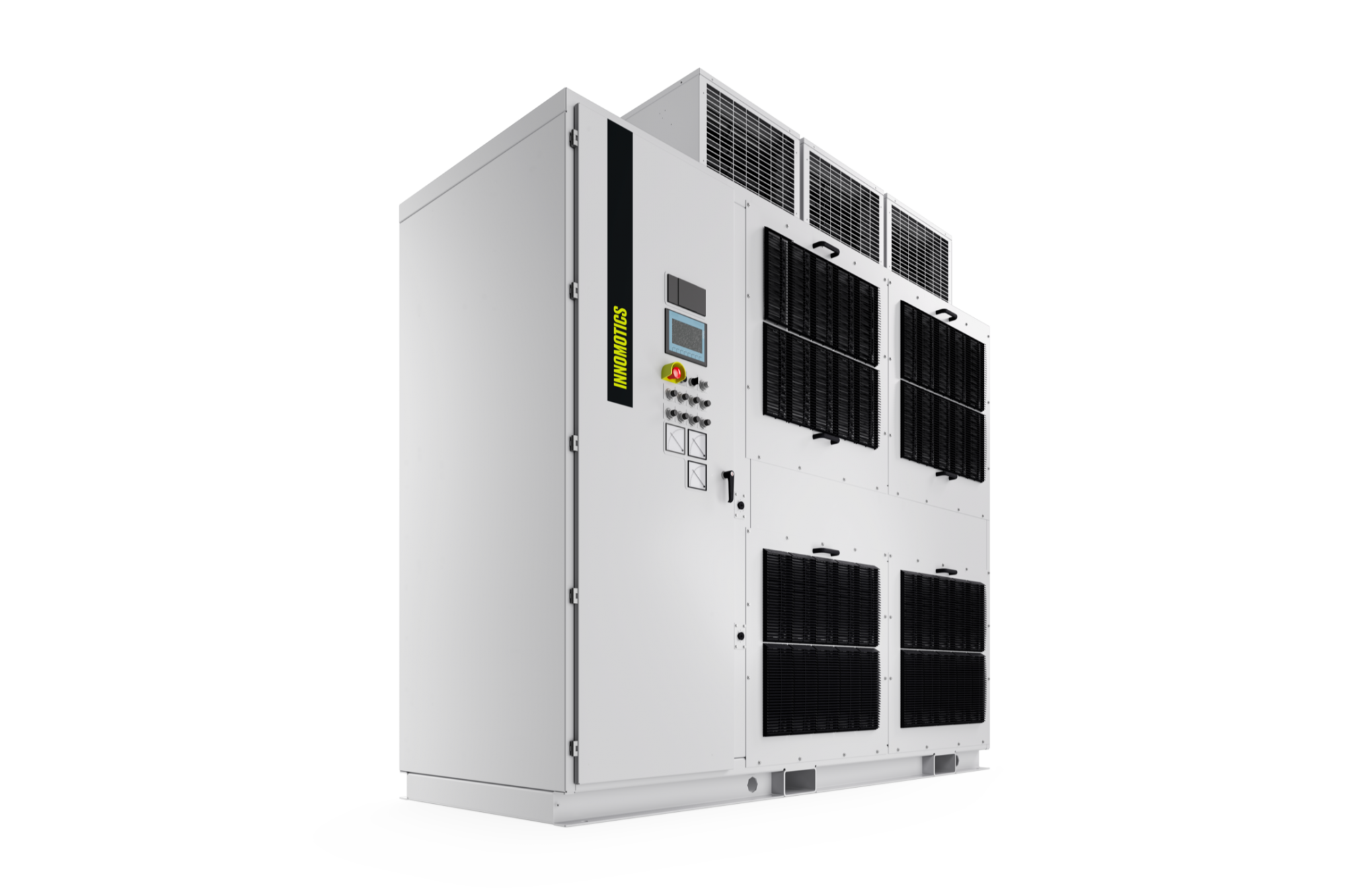

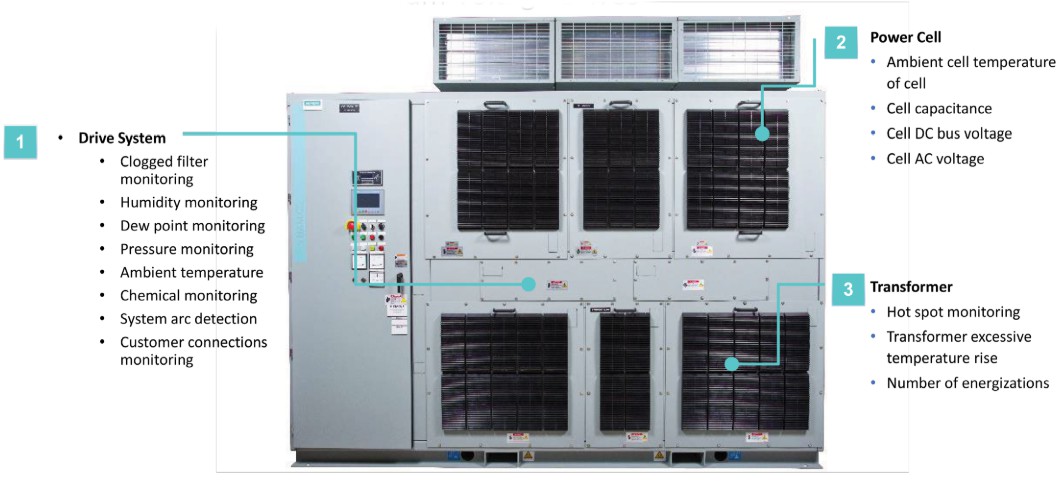

Perfect Harmony GH180
Medium voltage drive, max. 6.9 kV with OM,
750 A cells,
transformer 8000 kVA,
degree of protection IP42 / NEMA 1,
air-cooled.
Input voltage 10000 V 3 AC Transformer configuration 50 Hz, CU Auxiliary voltage 380 V 3 AC, 50/60 Hz
D15=One set of printed documentation (multiple orders possible)
D76=Documentation in English
G23=Devicenet interface, profile 12
G47=Ethernet port connector (mounted on the door)
K31=Off-local-remote selector
K68=Connection for control voltage 220/230 V AC by customer
K73=I/O control voltage 24 V
DC M35=Gland plate, aluminum
M97=Cabinet color: RAL7035
N27=Transformer insulation Class H
N94=Grounding studs
T03=Black letters with white core nameplate
U58=Elevated transformer BIL (Basic Impulse Level) V10=Output voltage 6.0 kV
SIEMENS PERFECT HARMONY GH180
6SR5502-0DE41-5AJ0-Z
D15+D76+G37+G47+K29+K31+K73+L55+M35+M38+M61+M97+N27+N35+N94+Q80+T03+T76+U11+V06+F03+U60+X30
6SR5502-2ND41-6BH2-Z
D15+D76+G91+K20+K33+K68+K73+L50+L55+M35+M42+M64+N27+N32+N35+N94+P31+T76+U11+V12+V50+Y05+X30
Article number structure
1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16 SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0
8th digit: rated max. output voltage
0
4.16 kV 3 AC, 9 cells
5.3 kV 3 AC, 12 cells 1
6.9 kV 3 AC, 15 cells 2
8.0 kV 3 AC, 18 cells 3
11.0 kV 3 AC, 24 cells 5
2.4 kV 3 AC, 9 cells 6
A
9th digit: line voltage
3 AC 2400 V
3 AC 3000 V B
3 AC 3300 V C
3 AC 4160 V D
3 AC 4800 V E
3 AC 6000 V F
3 AC 6300 V G
3 AC 6600 V H
3 AC 6900 V J
3 AC 7200 V K
3 AC 8400 V L
3 AC 10000 V M
3 AC 11000 V N
3 AC 12000 V P
3 AC 12470 V Q
3 AC 13200 V R
3 AC 13800 V S
460 V 3 AC1) T
575 V 3 AC1) U
1) Utilization voltages, system voltages are 480 V or 600 V
1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16 SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0
10th digit: Cell rating AC (2Q)
40 A cell A
70 A cell B
100 A cell C
140 A cell D
200 A cell E
260 A cell F
340 A cell G
430 A cell H
550 A cell J
600 A cell K
720/750 A cell L
Cell rating AC 6-step regen (4Q)
120 A cell D
160 A cell E
325 A cell G
Cell rating WC
880 A cell (regenerative braking only) B
1000 A cell D
1250 A cell (regenerative braking only) C
1375 A cell E
Drive rating: AC - transformer primary2) kVA; WC - drive power HP
150 3 1
200 3 2
300 3 3
400 3 4
500 3 5
600 3 6
700 3 7
800 3 8
900 3 8
1000 4 1
1100 4 1
1250 4 1
1500 4 1
1750 4 1
2000 4 2
2250 4 2
2500 4 2
3000 4 3
3500 4 3
4000 4 4
4500 4 4
5000 4 5
5500 4 5
6000 4 6
6500 4 6
1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16 SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0
0
5
0
5
7
8
0
2
4
6
8
0
2
4
6
8
0
2
4
6
8
0
2
4
6
8
0
2
4
6
8
14th digit: transformer configuration (copper, aluminum)
A
60 Hz, Cu
50 Hz, Cu B
60 Hz, Al E
50 Hz, Al F
60 Hz, Cu, high efficiency L
50 Hz, Cu, high efficiency M
60 Hz, Cu, starting duty N
50 Hz, Cu, starting duty P
60 Hz, Al, starting duty Q
50 Hz, Al, starting duty R
1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16
SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0
15th digit: auxiliary voltage and frequency
A
200 V / 50 Hz
208 V / 50 Hz B
230 V / 60 Hz C
380 V / 50 Hz F
400 V / 50 Hz G
415 V / 50 Hz H
460 V / 60 Hz J
480 V / 60 Hz K
575 V / 60 Hz L
690 V / 50 Hz N
Other voltage and/or frequency combination than above X
2) Represents primary kVA unless option U13 (one redundant cell per phase) is selected
Technical data
General technical data
General technical data
Drive quadrants 2 or 4
Isolation Fiber optic cable
Rated Efficiency 2Q drives Typical 96 to 97 % at full rated power 1)
Rated Efficiency 4Q drives Typical 95 to 96 % at full rated power 1)
Regulation compliances IEEE, ANSI, NEMA, UL, CSA, CE
Cooling 6SR5 series 6SR327 series
Air-cooled Water-cooled
Degree of protection NEMA 1/ IP42 (standard) NEMA 12/ IP54 (standard)
Altitude Ft (m) 0 to 3,300 (1,000) standard, up to 14,763 (4,500) with derating
1) Refer to drive data sheet (see Siemens Product Configurator, page 84) and/or sales proposal for specific system efficency.
Sound pressure level at 3 ft (1 m) 6SR5 6SR5 6SR5 6SR5 6SR5 6SR327
2Q drives 1) 40…70 A 100…140 A 200…260 A 340…430 A 550…750 A 880…1375 A
9 cell (1A, 2A, 3A, 4A, 5A frames) dBA 75 80 82 80 82 76
12 cell (2B, 3B, 4B, 5B frames) dBA 80 80 80 82 82 76
15 cell (2B, 3B, 4B, 5B frames) dBA 80 80 80 82 82 76
18 cell (5C frame) dBA – – – – 82 76
24 cell (2D, 3D, 4D, 5D frames) dBA 82 82 82 82 85 76
4Q drives 1) 6SR5 6SR5
120…160 A 325 A
9 cell (3A, 4A frames) dBA 82 82
15 cell (3B, 4B frames) dBA 80 82
24 cell (3D, 4D frames) dBA 82 82
1) For frame sizes see section "Air-cooled technical data" from page 54.
PE, max. connec- tion cross-section at enclosure with M12 screw preliminary
1) Maximum installable size per phase, shielded cables
2) For frame sizes see section "Air-cooled technical data from page 54.
3) Input voltage 13.8 kV
Auxiliary supply
2Q drives
Auxiliary voltage
Three phase Single phase
Configuration 380 V 460 V 575 V 120 V 220 V
6SR5 9 cell 40-70A K791) A 2.0 2.5 2.0 4.0 2.0
6SR5 9 cell 40-70A K692) A 3.5 4.0 3.0 – –
6SR5 9 cell 100-140A K791) A 3.5 4.0 3.5 4.0 2.0
6SR5 9 cell 100-140A K692) A 5.0 5.5 4.5 – –
6SR5 9 cell 200-260A K791) A 6.5 8.0 6.5 4.0 2.0
6SR5 9 cell 200-260A K692) A 8.0 9.5 7.5 – –
6SR5 9 cell 340-430A K791) A 10.0 11.5 9.5 4.0 2.0
6SR5 9 cell 340-430A K692) A 11.5 12.5 10.5 – –
6SR5 9 cell 550A K68/K791) A 16.0 13.0 9.2 7 3.5
6SR5 9 cell 550A K692) A 18.2 14.8 10.7 – –
6SR5 9 cell 600A K68/K791) A 16.0 15.7 11.8 7 3.5
6SR5 9 cell 600A K692) A 18.2 17.5 13.2 – –
6SR5 9 cell 720A K68/K791) A 18.2 15.7 11.8 7 3.5
6SR5 9 cell 720A K692) A 20.4 17.5 13.2 – –
6SR5 12/15 cell 340-430A K68/ K791) A 16.5 15.0 12.0 4.0 2.0
6SR5 12/15 cell 340-430A K692) A 17.5 16.0 13.0 – –
6SR5 12/15 cell 550A K68/K791) A 26.7 21.7 15.4 7 3.5
6SR5 12/15 cell 550A K692) A 28.9 23.5 16.8 – –
6SR5 12/15 cell 600A K68/K791) A 26.7 27.1 20.5 7 3.5
6SR5 12/15 cell 600A K692) A 28.9 28.9 21.9 – –
6SR5 12/15 cell 750A K68/K791) A 31.0 27.1 20.5 7 3.5
6SR5 12/15 cell 750A K692) A 33.2 28.9 21.9 – –
6SR5 18 cell 550A K68/K791) A 32.0 26.1 18.5 7 3.5
6SR5 18 cell 550A K692) A 34.2 27.8 19.9 – –
6SR5 18 cell 600A K68/K791) A 32.0 31.5 23.6 7 3.5
6SR5 18 cell 600A K692) A 34.2 33.2 25.0 – –
6SR5 18 cell 750A K68/K791) A 36.3 31.5 23.6 7 3.5
6SR5 18 cell 750A K692) A 38.5 33.2 25.0 – –
6SR5 24 cell 40-70A K681) A 11.0 12.4 – – 3.5
6SR5 24 cell 40-70A K692) A 13.0 14.4 – – 3.5
6SR5 24 cell 100-140A K681) A 16.4 19.6 – – 3.5
6SR5 24 cell 100-140A K692) A 18.4 21.6 – – 3.5
6SR5 24 cell 200-260A K681) A 27.8 34.2 – – 3.5
6SR5 24 cell 200-260A K692) A 29.8 36.2 – – 3.5
6SR5 24 cell 550A K68/K791) A 37.3 30.4 21.6 7 3.5
6SR5 24 cell 550A K692) A 39.5 32.2 23.0 – –
6SR5 24 cell 600A K68/K791) A 37.3 38.5 29.2 7 3.5
6SR5 24 cell 600A K692) A 39.5 40.3 30.6 – –
6SR5 24 cell 750A K68/K791) A 43.8 38.5 29.2 7 3.5
6SR5 24 cell 750A K692) A 46.0 40.3 30.6 – –
1) Single phase for NXG control
2) K69 includes CPT: control power transformer
Note: Temporary overcurrent needed for 30 s during precharge for units with 550/600/750 A or 4Q cells; please contact your Siemens sales partner for more details.
Values include cooling blowers; largest unit shown.
Option L55 (anti-condensation heating for cabinet) requires separate source.
Auxiliary voltage
Three phase Single phase
Configuration 380 V 460 V 575 V 120 V 220 V
6SR327 K691) A 1.6 1.3 1.1 – –
6SR327 K691) and W323) A 3.2 2.6 2.2 – –
6SR327 9 cell 880-1375A K792) A 13.4 8.4 6.8 5.0 –
6SR327 9 cell 880-1375A K792) and W323) A 33.1 27.2 21.4 10.0 –
6SR327 12 cell 880-1375A K792) A 14.6 12.7 10.1 – –
6SR327 12 cell 880-1375A K792) and W323) A 34.3 28.4 22.3 10.0 –
6SR327 15 cell 880-1375A K792) A 19.4 16.9 13.5 – –
6SR327 15 cell 880-1375A K792) and W323) A 35.5 29.6 23.3 10.0 –
6SR327 18 cell 880-1375A K792) A 20.6 18.1 14.5 – –
6SR327 18 cell 880-1375A K792) and W323) A 36.7 30.8 24.3 10.0 –
6SR327 24 cell 880-1375A K79 2) A 30.4 26.5 21.2 5.0 –
6SR327 24 cell 880-1375A K792) and W323) A 39.1 33.2 26.2 10.0 –
System pre-charge4) % 0.5 0.5 0.5 – –
1) K69 includes CPT: control power transformer
2) Single phase for NXG control and 120 V AC internal heat exchanger in water-cooled systems
3) Includes cooling pumps; largest unit shown
4) Percentage of transformer kVA
Note: Options A30, A82, A83, and E04 will require slightly more current from the 120 V source.
If either the option cabinet or the exciter cabinet (E01) are present, an additional 2.1 A will be required per cabinet.
4Q drives
Auxiliary voltage
Three phase Single phase
Configuration 380 V 460 V 575 V 120 V 220 V
6SR5 9 cell 120-160A K791) A 6.5 8.0 6.5 4.0 –
6SR5 9 cell 120-160A K692) A 8.0 9.5 7.5 – –
6SR5 9 cell 325A K791) A 10.0 11.5 9.5 4.0 –
6SR5 9 cell 325A K692) A 11.5 12.5 10.5 – –
6SR5 12/15 cell 120-160A K791) A 10.0 11.5 9.5 4.0 –
6SR5 12/15 cell 120-160A K692) A 11.5 12.5 10.5 – –
6SR5 12/15 cell 325A K791) A 18 14 11.5 4.0 –
6SR5 12/15 cell 325A K692) A 22 17 14.5 – –
6SR5 24 cell 120-160A K681) A 27.8 34.2 – – 3.5
6SR5 24 cell 120-160A K692) A 29.8 36.2 – – 3.5
6SR5 24 cell 325A K681) A 23.1 28.3 – – 3.5
6SR5 24 cell 325A K692) A 25.1 30.3 – – 3.5
1) Single phase for NXG control
2) K69 includes CPT: control power transformer
Note: Temporary overcurrent needed for 30 s during precharge; please contact your Siemens sales partner for more details.
Values include cooling blowers; largest unit shown.
Option L55 (anti-condensation heating for cabinet) requires separate source.
Cell overload capability
2Q Drives 6SR5 6SR327
Cell rating [A]
40
70
100
140
200
260
340
430
550
600
720 1)
750 2)
880
1000
1250
1375
110 % overload [A] (1min/10min)
40
70
100
140
200
260
340
430
550
600
655
682
880
909
1250
1250
150 % overload [A] (1min/10min)
29
51
73
103
147
191
249
315
403
440
480
500
667
667
917
917
1) 720 A for 9 cell configurations
2) 750 A for 12 through 24 cell configurations
4Q Drives 6SR5
Cell rating [A]
120
160
325
110 % overload [A] (1min/10min)
120
160
325
150 % overload[A] (1min/10min)
88
117
238
Storage, transportation and operation data
+5 to +40
-25 to +60
1) For water-cooled drives: no cooling water in system
2) For water-cooled drive: maximum 40 °C drive ambient air temperature with maximum 47 °C drive inlet water temperature
3) 50 °C is available with current derating for air-cooled drives; water-cooled drives – maximum 50 °C drive ambient air temperature with maximum
40 °C drive inlet water temperature
4) Siemens equipment meets all 2M2 conditions except free fall and pitch and roll.
5) IEC 60721-3-1; amendment 2, 1987 - 1993
6) IEC 60721-3-2; second edition, 1997/3
7) IEC 60721-3-3; second edition, 1994/12
8) Accumulation of dust, dirt or debris is not permitted. Drives must be installed in a controlled environment and properly maintained according to the
Operating Instructions.
9) With optional NEMA 12/IP54 LV enclosures for water-cooled drives
Air-cooled technical data
2Q drives, 6SR5 40 to 750 A
2.3 kV motor voltage, 9 cell configuration (2Q)
Shaft output
Weight
2.4 kV motor voltage, 9 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
3) Frame 1A not available from China, units are built in frame 2A.
3.0 kV motor voltage, 9 cell configuration (2Q)
Shaft output
Weight
3.3 kV motor voltage, 9 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
3) Frame 1A not available from China, units are built in frame 2A.
4.0 kV motor voltage, 9 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
3) Frame 1A not available from China, units are built in frame 2A.
4.16 kV motor voltage, 9 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
3) Frame 1A not available from China, units are built in frame 2A.
4.8 kV motor voltage, 12 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
6.0 kV motor voltage, 15 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
6.6 kV motor voltage, 15 cell configuration (2Q)
Dimensions
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
6.9 kV motor voltage, 15 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
7.2 kV motor voltage, 18 cell configuration (2Q)
Shaft output
Weight
8.0 kV motor voltage, 18 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
10.0 kV motor voltage, 24 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
3) Rear access required: approx. ≥ 1000 mm / 39.4"
4) Height is without option M61 (redundant blower). With option M61 height will be 3088 mm (121.6 in).
11.0 kV motor voltage, 24 cell configuration (2Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
3) Rear access required: approx. ≥ 1000 mm / 39.4"
4) Height is without option M61 (redundant blower). With option M61 height will be 3088 mm (121.6 in).
4Q drives, 6SR5 120 to 325 A
2.3 kV motor voltage, 9 cell configuration (4Q)
Shaft output
Weight
2.4 kV motor voltage, 9 cell configuration (4Q)
Shaft output
Weight
3.0 kV motor voltage, 9 cell configuration (4Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not
include door components, key interlocks or handles.
3.3 kV motor voltage, 9 cell configuration (4Q)
Shaft output
Weight
4.0 kV motor voltage, 9 cell configuration (4Q)
Shaft output
Weight
4.16 kV motor voltage, 9-cell configuration (4Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
6.0 kV motor voltage, 15 cell configuration (4Q)
Shaft output
Weight
6.6 kV motor voltage, 15 cell configuration (4Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
10.0 kV motor voltage, 24 cell configuration (4Q)
Shaft output
Weight
11.0 kV motor voltage, 24 cell configuration (4Q)
Shaft output
Weight
1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.
2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.
3) Rear access required: approx. ≥ 1000 mm / 39.4"
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR55045.D350..0 | 500 | 373 | 23 |
120 |
205.7×119.7×49.2 |
5226×3040×1250 |
3D 3) | 10783 | 4891 |
6SR55045.D375..0 | 750 | 560 | 35 | 11480 | 5207 | ||||
6SR55045.D410..0 | 1000 | 746 | 46 | 12176 | 5523 | ||||
6SR55045.D412..0 | 1250 | 933 | 58 | 12688 | 5755 | ||||
6SR55045.D415..0 | 1500 | 1119 | 69 | 13201 | 5988 | ||||
6SR55045.D417..0 | 1750 | 1306 | 81 | 13919 | 6314 | ||||
6SR55045.D420..0 | 2000 | 1492 | 92 | 14329 | 6500 | ||||
6SR55045.D422..0 | 2250 | 1679 | 104 | 14737 | 6685 | ||||
6SR55045.E427..0 | 2750 | 2052 | 127 |
160 | 15930 | 7226 | |||
6SR55045.E430..0 | 3000 | 2238 | 138 | 17120 | 7766 | ||||
6SR55045.E432..0 | 3250 | 2425 | 150 | 18478 | 8382 | ||||
6SR55045.G437..0 | 3750 | 2798 | 173 |
325 |
266.5x114.9x56.1 |
6767x2916x1423 |
4D | 28201 | 12793 |
6SR55045.G400..0 | 4000 | 2984 | 185 | 28675 | 13008 | ||||
6SR55045.G442..0 | 4250 | 3171 | 196 | 29160 | 13228 | ||||
6SR55045.G450..0 | 4500 | 3357 | 208 | 29645 | 13448 | ||||
6SR55045.G447..0 | 4750 | 3544 | 219 | 30119 | 13663 | ||||
6SR55045.G450..0 | 5000 | 3730 | 231 | 30813 | 13978 | ||||
6SR55045.G452..0 | 5250 | 3917 | 242 | 31497 | 14288 | ||||
6SR55045.G455..0 | 5500 | 4101 | 250 | 32340 | 14670 | ||||
6SR55045.G457..0 | 5750 | 4290 | 265 | 32875 | 14913 | ||||
6SR55045.G460..0 | 6000 | 4476 | 277 | 33569 | 15228 | ||||
6SR55045.G465..0 | 6500 | 4849 | 300 | 34076 | 15458 | ||||
6SR55045.G470..0 | 7000 | 5222 | 323 | 34605 | 15698 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR55045.D350..0 | 500 | 373 | 25 |
120 |
205.7×119.7×49.2 |
5226×3040×1250 |
3D 3) | 10783 | 4891 |
6SR55045.D375..0 | 750 | 560 | 38 | 11480 | 5207 | ||||
6SR55045.D410..0 | 1000 | 746 | 51 | 12176 | 5523 | ||||
6SR55045.D412..0 | 1250 | 933 | 63 | 12688 | 5755 | ||||
6SR55045.D415..0 | 1500 | 1119 | 76 | 13408 | 6082 | ||||
6SR55045.D417..0 | 1750 | 1306 | 89 | 13919 | 6314 | ||||
6SR55045.D420..0 | 2000 | 1492 | 102 | 14329 | 6500 | ||||
6SR55045.D422..0 | 2250 | 1679 | 114 | 14737 | 6685 | ||||
6SR55045.E427..0 | 2750 | 2052 | 140 |
160 | 15930 | 7226 | |||
6SR55045.E430..0 | 3000 | 2238 | 152 | 17120 | 7766 | ||||
6SR55045.G432..0 | 3250 | 2425 | 165 |
325 |
266.5x114.9x56.1 |
6767x2916x1423 |
4D | 27485 | 12468 |
6SR55045.G437..0 | 3750 | 2798 | 190 | 28201 | 12793 | ||||
6SR55045.G400..0 | 4000 | 2984 | 203 | 28675 | 13008 | ||||
6SR55045.G442..0 | 4250 | 3171 | 216 | 29160 | 13228 | ||||
6SR55045.G450..0 | 4500 | 3357 | 228 | 29645 | 13448 | ||||
6SR55045.G447..0 | 4750 | 3544 | 241 | 30119 | 13663 | ||||
6SR55045.G450..0 | 5000 | 3730 | 254 | 30813 | 13978 | ||||
6SR55045.G452..0 | 5250 | 3917 | 267 | 31497 | 14288 | ||||
6SR55045.G455..0 | 5500 | 4101 | 280 | 32340 | 14670 | ||||
6SR55045.G457..0 | 5750 | 4290 | 292 | 32875 | 14913 | ||||
6SR55045.G460..0 | 6000 | 4476 | 305 | 33569 | 15228 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.042.D330..0 | 300 | 224 | 23 |
120 |
133.9x115.6x47.3 |
3400x2936x1200 |
3B | 8646 | 3922 |
6SR5.042.D340..0 | 400 | 298 | 31 | 8874 | 4026 | ||||
6SR5.042.D350..0 | 500 | 372 | 39 | 9102 | 4129 | ||||
6SR5.042.D360..0 | 600 | 450 | 47 | 9330 | 4233 | ||||
6SR5.042.D370..0 | 700 | 521 | 55 | 9558 | 4336 | ||||
6SR5.042.D380..0 | 800 | 600 | 62 | 9786 | 4439 | ||||
6SR5.042.D387..0 | 900 | 671 | 70 | 10014 | 4543 | ||||
6SR5.042.D410..0 | 1000 | 746 | 78 | 10242 | 4646 | ||||
6SR5.042.D412..0 | 1250 | 932 | 97 | 10812 | 4905 | ||||
6SR5.042.D415..0 | 1500 | 1120 | 117 | 11382 | 5163 | ||||
6SR5.042.E417..0 | 1750 | 1304 | 136 |
160 | 11952 | 5422 | |||
6SR5.042.E420..0 | 2000 | 1491 | 156 | 12522 | 5680 | ||||
6SR5.042.G422..0 | 2250 | 1677 | 175 |
325 |
218.8x114.9x52.1 |
5550x2916x1323 |
4B | 18454 | 8371 |
6SR5.042.G425..0 | 2500 | 1862 | 192 | 19004 | 8621 | ||||
6SR5.042.G427..0 | 2750 | 2051 | 214 | 19266 | 8739 | ||||
6SR5.042.G430..0 | 3000 | 2240 | 234 | 19516 | 8853 | ||||
6SR5.042.G432..0 | 3250 | 2425 | 253 | 20047 | 9094 | ||||
6SR5.042.G435..0 | 3500 | 2611 | 273 | 20647 | 9366 | ||||
6SR5.042.G440..0 | 4000 | 2982 | 308 | 21776 | 9878 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.042.D330..0 | 300 | 224 | 26 |
120 |
133.9x115.6x47.3 |
3400x2936x1200 |
3B | 8646 | 3922 |
6SR5.042.D340..0 | 400 | 298 | 34 | 8874 | 4026 | ||||
6SR5.042.D350..0 | 500 | 372 | 43 | 9102 | 4129 | ||||
6SR5.042.D360..0 | 600 | 450 | 51 | 9330 | 4233 | ||||
6SR5.042.D370..0 | 700 | 521 | 60 | 9558 | 4336 | ||||
6SR5.042.D380..0 | 800 | 600 | 69 | 9786 | 4439 | ||||
6SR5.042.D387..0 | 900 | 671 | 77 | 10014 | 4543 | ||||
6SR5.042.D410..0 | 1000 | 671 | 86 | 10242 | 4646 | ||||
6SR5.042.D412..0 | 1250 | 932 | 107 | 10812 | 4905 | ||||
6SR5.042.E415..0 | 1500 | 1120 | 129 |
160 | 11382 | 5163 | |||
6SR5.042.E417..0 | 1750 | 1304 | 150 | 11952 | 5422 | ||||
6SR5.042.G420..0 | 2000 | 1491 | 171 |
325 |
218.8x114.9x52.1 |
5550x2916x1323 |
4B | 17873 | 8108 |
6SR5.042.G422..0 | 2250 | 1677 | 193 | 18454 | 8371 | ||||
6SR5.042.G425..0 | 2500 | 1862 | 214 | 19004 | 8621 | ||||
6SR5.042.G427..0 | 2750 | 2051 | 236 | 19266 | 8739 | ||||
6SR5.042.G430..0 | 3000 | 2240 | 257 | 19516 | 8853 | ||||
6SR5.042.G432..0 | 3250 | 2425 | 278 | 20047 | 9094 | ||||
6SR5.042.G435..0 | 3500 | 2611 | 300 | 20647 | 9366 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.040.D330..0 | 300 | 224 | 37 |
120 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 4144 | 1880 |
6SR5.040.D340..0 | 400 | 298 | 49 | 4560 | 2069 | ||||
6SR5.040.D350..0 | 500 | 372 | 62 | 4976 | 2258 | ||||
6SR5.040.D360..0 | 600 | 450 | 74 | 5392 | 2446 | ||||
6SR5.040.D370..0 | 700 | 521 | 87 | 5900 | 2677 | ||||
6SR5.040.D380..0 | 800 | 600 | 99 | 6100 | 2767 | ||||
6SR5.040.D387..0 | 900 | 671 | 111 | 6800 | 3085 | ||||
6SR5.040.E410..0 | 1000 | 746 | 124 |
160 | 6900 | 3130 | |||
6SR5.040.E411..0 | 1100 | 820 | 136 | 7400 | 3357 | ||||
6SR5.040.E412..0 | 1250 | 932 | 154 | 8200 | 3720 | ||||
6SR5.040.G415..0 | 1500 | 1120 | 185 |
325 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 12077 | 5479 |
6SR5.040.G417..0 | 1750 | 1304 | 216 | 12577 | 5705 | ||||
6SR5.040.G420..0 | 2000 | 1491 | 247 | 13077 | 5932 | ||||
6SR5.040.G422..0 | 2250 | 1677 | 278 | 13577 | 6159 | ||||
6SR5.040.G425..0 | 2500 | 1862 | 309 | 14577 | 6613 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.040.D330..0 | 300 | 224 | 39 |
120 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 4144 | 1880 |
6SR5.040.D340..0 | 400 | 298 | 51 | 4560 | 2069 | ||||
6SR5.040.D350..0 | 500 | 372 | 64 | 4976 | 2258 | ||||
6SR5.040.D360..0 | 600 | 450 | 78 | 5392 | 2446 | ||||
6SR5.040.D370..0 | 700 | 521 | 90 | 5900 | 2677 | ||||
6SR5.040.D380..0 | 800 | 600 | 103 | 6100 | 2767 | ||||
6SR5.040.D387..0 | 900 | 671 | 116 | 6800 | 3085 | ||||
6SR5.040.E410..0 | 1000 | 746 | 129 |
160 | 6900 | 3130 | |||
6SR5.040.E411..0 | 1100 | 820 | 141 | 7400 | 3357 | ||||
6SR5.040.G412..0 | 1250 | 932 | 161 |
325 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 11577 | 5252 |
6SR5.040.G415..0 | 1500 | 1120 | 193 | 12077 | 5479 | ||||
6SR5.040.G417..0 | 1750 | 1304 | 225 | 12577 | 5705 | ||||
6SR5.040.G420..0 | 2000 | 1491 | 257 | 13077 | 5932 | ||||
6SR5.040.G422..0 | 2250 | 1677 | 286 | 13577 | 6159 | ||||
6SR5.040.G425..0 | 2500 | 1862 | 317 | 14577 | 6613 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.040.D330..0 | 300 | 224 | 47 |
120 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 4144 | 1880 |
6SR5.040.D340..0 | 400 | 298 | 62 | 4560 | 2069 | ||||
6SR5.040.D350..0 | 500 | 372 | 78 | 4976 | 2258 | ||||
6SR5.040.D360..0 | 600 | 450 | 93 | 5392 | 2446 | ||||
6SR5.040.D370..0 | 700 | 521 | 109 | 5900 | 2677 | ||||
6SR5.040.E380..0 | 800 | 600 | 125 |
160 | 6100 | 2767 | |||
6SR5.040.E387..0 | 900 | 671 | 140 | 6800 | 3085 | ||||
6SR5.040.E410..0 | 1000 | 746 | 156 | 6900 | 3130 | ||||
6SR5.040.G412..0 | 1250 | 932 | 192 |
325 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 11577 | 5252 |
6SR5.040.G415..0 | 1500 | 1120 | 234 | 12077 | 5479 | ||||
6SR5.040.G417..0 | 1750 | 1304 | 269 | 12577 | 5705 | ||||
6SR5.040.G420..0 | 2000 | 1491 | 308 | 13077 | 5932 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.040.D330..0 | 300 | 224 | 51 |
120 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 4144 | 1880 |
6SR5.040.D340..0 | 400 | 298 | 69 | 4560 | 2069 | ||||
6SR5.040.D350..0 | 500 | 372 | 86 | 4976 | 2258 | ||||
6SR5.040.D360..0 | 600 | 450 | 103 | 5392 | 2446 | ||||
6SR5.040.D370..0 | 700 | 521 | 120 | 5900 | 2677 | ||||
6SR5.040.E380..0 | 800 | 600 | 137 |
160 | 6100 | 2767 | |||
6SR5.040.E387..0 | 900 | 671 | 154 | 6800 | 3085 | ||||
6SR5.040.G412..0 | 1250 | 932 | 214 |
325 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 11577 | 5252 |
6SR5.040.G415..0 | 1500 | 1120 | 257 | 12077 | 5479 | ||||
6SR5.040.G417..0 | 1750 | 1304 | 300 | 12577 | 5705 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.040.D330..0 | 300 | 224 | 64 |
120 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 4144 | 1880 |
6SR5.040.D340..0 | 400 | 298 | 86 | 4560 | 2069 | ||||
6SR5.040.D350..0 | 500 | 373 | 107 | 4976 | 2258 | ||||
6SR5.040.E360..0 | 600 | 448 | 129 |
160 | 5392 | 2446 | |||
6SR5.040.E370..0 | 700 | 522 | 150 | 5900 | 2677 | ||||
6SR5.040.G412..0 | 1250 | 932 | 264 |
325 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 11577 | 5252 |
6SR5.040.G415..0 | 1500 | 1120 | 321 | 12077 | 5479 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.040.D330..0 | 300 | 224 | 67 |
120 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 4144 | 1880 |
6SR5.040.D340..0 | 400 | 298 | 91 | 4560 | 2069 | ||||
6SR5.040.D350..0 | 500 | 373 | 113 | 4976 | 2258 | ||||
6SR5.040.E360..0 | 600 | 448 | 136 |
160 | 5392 | 2446 | |||
6SR5.040.E370..0 | 700 | 522 | 156 | 5900 | 2677 | ||||
6SR5.040.G410..0 | 1000 | 746 | 221 |
325 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 10911 | 4948 |
6SR5.040.G412..0 | 1250 | 932 | 279 | 11577 | 5252 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR55025.A330..0 | 300 | 224 | 14 |
40 |
93.7x117.6x63.0 |
2380x2988x1600 |
2D 3) | 6075 | 2755 |
6SR55025.A340..0 | 400 | 298 | 19 | 6317 | 2865 | ||||
6SR55025.A350..0 | 500 | 373 | 24 | 6516 | 2955 | ||||
6SR55025.A360..0 | 600 | 448 | 28 | 6780 | 3075 | ||||
6SR55025.A370..0 | 700 | 560 | 33 | 6956 | 3155 | ||||
6SR55025.A380..0 | 800 | 640 | 38 | 7199 | 3265 | ||||
6SR55025.B387..0 | 900 | 720 | 43 |
70 | 7494 | 3399 | |||
6SR55025.B410..0 | 1000 | 800 | 47 | 7648 | 3469 | ||||
6SR55025.B412..0 | 1250 | 1000 | 59 | 8133 | 3689 | ||||
6SR55025.B415..0 | 1500 | 1200 | 70 | 8772 | 3979 | ||||
6SR55025.C417..0 | 1750 | 1400 | 83 |
100 |
93.7x117.6x63.0 |
2380x2988x1600 |
2D 3)4) | 9467 | 4294 |
6SR55025.C420..0 | 2000 | 1600 | 95 | 9731 | 4414 | ||||
6SR55025.D422..0 | 2250 | 1679 | 107 |
140 | 10473 | 4750 | |||
6SR55025.D425..0 | 2500 | 1865 | 118 | 10737 | 4870 | ||||
6SR55025.D427..0 | 2750 | 2052 | 130 | 11068 | 5020 | ||||
6SR55025.D430..0 | 3000 | 2238 | 140 | 11377 | 5160 | ||||
6SR55025.E432..0 | 3250 | 2425 | 154 |
200 |
205.7x119.7x49.2 |
5226x3040x1250 |
3D 3) | 17680 | 8019 |
6SR55025.E435..0 | 3500 | 2611 | 166 | 18187 | 8249 | ||||
6SR55025.E437..0 | 3750 | 2798 | 178 | 18694 | 8479 | ||||
6SR55025.E440..0 | 4000 | 2984 | 189 | 19212 | 8714 | ||||
6SR55025.E442..0 | 4250 | 3171 | 201 | 19730 | 8949 | ||||
6SR55025.F445..0 | 4500 | 3357 | 213 |
260 | 20355 | 9233 | |||
6SR55025.F447..0 | 4750 | 3544 | 225 | 20774 | 9423 | ||||
6SR55025.F450..0 | 5000 | 3730 | 237 | 21281 | 9653 | ||||
6SR55025.F452..0 | 5250 | 3917 | 249 | 21788 | 9883 | ||||
6SR55025.F455..0 | 5500 | 4103 | 260 | 22412 | 10166 | ||||
6SR55025.F457..0 | 5750 | 4290 | 260 | 22979 | 10423 | ||||
6SR5.025.G450..0 | 5000 | 3728 | 231 |
340 |
266.5x114.9x56.1 |
6767x2916x1423 |
4D | 30703 | 13927 |
6SR5.025.G455..0 | 5500 | 4103 | 254 | 32324 | 14662 | ||||
6SR5.025.G460..0 | 6000 | 4476 | 277 | 33175 | 15048 | ||||
6SR5.025.G465..0 | 6500 | 4849 | 300 | 34469 | 15635 | ||||
6SR5.025.G470..0 | 7000 | 5222 | 323 | 35761 | 16221 | ||||
6SR5.025.H475..0 | 7500 | 5595 | 346 |
430 | 37114 | 16835 | |||
6SR5.025.H480..0 | 8000 | 5968 | 369 | 38204 | 17330 | ||||
6SR5.025.H485..0 | 8500 | 6341 | 392 | 39293 | 17824 | ||||
6SR5.025.H487..0 | 9000 | 6714 | 415 | 40382 | 18317 | ||||
6SR5.025.J488..0 | 9500 | 7087 | 438 |
550 |
331.4x128.2x53.9 |
8418x3256x1370 |
5D | 42124 | 18875 |
6SR5.025.J520..0 | 10000 | 7460 | 462 | 42722 | 19419 | ||||
6SR5.025.J521..0 | 10500 | 7833 | 485 | 43321 | 25678 | ||||
6SR5.025.J522..0 | 11000 | 8206 | 508 | 43919 | 25950 | ||||
6SR5.025.J523..0 | 11500 | 8579 | 531 |
363.8x136.1x54.2 |
9238x3453x1370 | 45116 | 26494 | ||
6SR5.025.K524..0 | 12000 | 8952 | 554 |
600 | 45714 | 26766 | |||
6SR5.025.K525..0 | 12500 | 9325 | 577 | 46735 | 27230 | ||||
6SR5.025.K526..0 | 13000 | 9698 | 600 | 48451 | 28010 | ||||
6SR5.025.L527..0 | 13500 | 10071 | 623 |
750 | 50167 | 28790 | |||
6SR5.025.L528..0 | 14000 | 10444 | 646 | 51883 | 29570 | ||||
6SR5.025.L587..0 | 14500 | 10817 | 669 | 53599 | 24363 | ||||
6SR5.025.L530..0 | 15000 | 11190 | 692 | 55315 | 25143 | ||||
6SR5.025.L531..0 | 15500 | 11563 | 715 | 57031 | 25923 | ||||
6SR5.025.L532..0 | 16000 | 11936 | 739 | 58747 | 26703 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR55025.A330..0 | 300 | 224 | 16 |
40 |
93.7x117.6x63.0 |
2380x2988x1600 |
2D 3) | 6075 | 2755 |
6SR55025.A340..0 | 400 | 298 | 21 | 6317 | 2865 | ||||
6SR55025.A350..0 | 500 | 373 | 26 | 6516 | 2955 | ||||
6SR55025.A360..0 | 600 | 448 | 31 | 6780 | 3075 | ||||
6SR55025.A370..0 | 700 | 522 | 36 | 6956 | 3155 | ||||
6SR55025.B380..0 | 800 | 597 | 42 |
70 | 7273 | 3299 | |||
6SR55025.B387..0 | 900 | 671 | 47 | 7494 | 3399 | ||||
6SR55025.B410..0 | 1000 | 746 | 52 | 7648 | 3469 | ||||
6SR55025.B412..0 | 1250 | 933 | 65 | 8133 | 3689 | ||||
6SR55025.C415..0 | 1500 | 1119 | 78 |
100 |
93.7x117.6x63.0 3) |
2380x2988x1600 3) |
2D 3)4) | 9004 | 4084 |
6SR55025.C417..0 | 1750 | 1306 | 91 | 9467 | 4294 | ||||
6SR55025.D420..0 | 2000 | 1492 | 104 |
140 | 9922 | 4500 | |||
6SR55025.D422..0 | 2250 | 1679 | 117 | 10473 | 4750 | ||||
6SR55025.D425..0 | 2500 | 1865 | 130 | 10737 | 4870 | ||||
6SR55025.D427..0 | 2750 | 2052 | 140 | 11068 | 5020 | ||||
6SR55025.E430..0 | 3000 | 2238 | 152 |
200 |
205.7x119.7x49.2 |
5226x3040x1250 |
3D 3) | 16002 | 7258 |
6SR55025.E432..0 | 3250 | 2425 | 165 | 17680 | 8019 | ||||
6SR55025.E435..0 | 3500 | 2611 | 178 | 18187 | 8249 | ||||
6SR55025.E437..0 | 3750 | 2798 | 190 | 18694 | 8479 | ||||
6SR55025.F440..0 | 4000 | 2984 | 203 |
260 | 19418 | 8808 | |||
6SR55025.F442..0 | 4250 | 3171 | 216 | 19936 | 9043 | ||||
6SR55025.F445..0 | 4500 | 3357 | 228 | 20355 | 9233 | ||||
6SR55025.F447..0 | 4750 | 3544 | 241 | 20774 | 9423 | ||||
6SR55025.F450..0 | 5000 | 3730 | 254 | 21281 | 9653 | ||||
6SR55025.F452..0 | 5250 | 3917 | 260 | 21788 | 9883 | ||||
6SR5.025.G450..0 | 5000 | 3730 | 254 |
340 |
266.5x114.9x56.1 |
6767x2916x1423 |
4D | 30703 | 13927 |
6SR5.025.G455..0 | 5500 | 4101 | 279 | 32324 | 14662 | ||||
6SR5.025.G460..0 | 6000 | 4476 | 305 | 33175 | 5048 | ||||
6SR5.025.G465..0 | 6500 | 4849 | 330 | 34469 | 15635 | ||||
6SR5.025.H470..0 | 7000 | 5222 | 355 |
430 | 35761 | 16221 | |||
6SR5.025.H475..0 | 7500 | 5595 | 381 | 37114 | 16835 | ||||
6SR5.025.H480..0 | 8000 | 5968 | 406 | 38204 | 17329 | ||||
6SR5.025.J485..0 | 8500 | 6341 | 432 |
550 |
331.4x128.2x53.9 |
8418x3256x1370 |
5D | 40927 | 18603 |
6SR5.025.J487..0 | 9000 | 6714 | 457 | 41526 | 18875 | ||||
6SR5.025.J488..0 | 9500 | 7087 | 482 | 42124 | 19147 | ||||
6SR5.025.J520..0 | 10000 | 7460 | 508 | 42722 | 19419 | ||||
6SR5.025.J521..0 | 10500 | 7830 | 540 | 43321 | 25678 | ||||
6SR5.025.K522..0 | 11000 | 8206 | 559 |
600 | 43919 | 25950 | |||
6SR5.025.K523..0 | 11500 | 8579 | 584 |
363.8x136.1x53.9 |
9238x3453x1370 | 45116 | 26494 | ||
6SR5.025.L524..0 | 12000 | 8952 | 609 |
750 | 45714 | 26766 | |||
6SR5.025.L525..0 | 12500 | 9325 | 635 | 46735 | 27230 | ||||
6SR5.025.L526..0 | 13000 | 9698 | 660 | 48451 | 28010 | ||||
6SR5.025.L527..0 | 13500 | 10071 | 685 | 50167 | 28790 | ||||
6SR5.025.L528..0 | 14000 | 10444 | 711 | 51883 | 29570 | ||||
6SR5.025.L587..0 | 14500 | 10817 | 736 | 53599 | 24363 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR55025.A330..0 | 300 | 224 | 16 |
40 |
93.7x117.6x63.0 |
2380x2988x1600 |
2D 3) | 6075 | 2755 |
6SR55025.A340..0 | 400 | 298 | 21 | 6317 | 2865 | ||||
6SR55025.A350..0 | 500 | 373 | 26 | 6516 | 2955 | ||||
6SR55025.A360..0 | 600 | 448 | 31 | 6780 | 3075 | ||||
6SR55025.A370..0 | 700 | 522 | 36 | 6956 | 3155 | ||||
6SR55025.B380..0 | 800 | 597 | 42 |
70 | 7273 | 3299 | |||
6SR55025.B387..0 | 900 | 671 | 47 | 7494 | 3399 | ||||
6SR55025.B410..0 | 1000 | 746 | 52 | 7648 | 3469 | ||||
6SR55025.B412..0 | 1250 | 933 | 65 | 8133 | 3689 | ||||
6SR55025.C415..0 | 1500 | 1119 | 78 |
100 |
93.7x117.6x63.0 3) |
2380x2988x1600 3) |
2D 3)4) | 9004 | 4084 |
6SR55025.C417..0 | 1750 | 1306 | 91 | 9467 | 4294 | ||||
6SR55025.D420..0 | 2000 | 1492 | 104 |
140 | 9922 | 4500 | |||
6SR55025.D422..0 | 2250 | 1679 | 117 | 10473 | 4750 | ||||
6SR55025.D425..0 | 2500 | 1865 | 130 | 10737 | 4870 | ||||
6SR55025.D427..0 | 2750 | 2052 | 140 | 11068 | 5020 | ||||
6SR55025.E430..0 | 3000 | 2238 | 152 |
200 |
205.7x119.7x49.2 |
5226x3040x1250 |
3D 3) | 16002 | 7258 |
6SR55025.E432..0 | 3250 | 2425 | 165 | 17680 | 8019 | ||||
6SR55025.E435..0 | 3500 | 2611 | 178 | 18187 | 8249 | ||||
6SR55025.E437..0 | 3750 | 2798 | 190 | 18694 | 8479 | ||||
6SR55025.F440..0 | 4000 | 2984 | 203 |
260 | 19418 | 8808 | |||
6SR55025.F442..0 | 4250 | 3171 | 216 | 19936 | 9043 | ||||
6SR55025.F445..0 | 4500 | 3357 | 228 | 20355 | 9233 | ||||
6SR55025.F447..0 | 4750 | 3544 | 241 | 20774 | 9423 | ||||
6SR55025.F450..0 | 5000 | 3730 | 254 | 21281 | 9653 | ||||
6SR55025.F452..0 | 5250 | 3917 | 260 | 21788 | 9883 | ||||
6SR5.025.G450..0 | 5000 | 3730 | 254 |
340 |
266.5x114.9x56.1 |
6767x2916x1423 |
4D | 30703 | 13927 |
6SR5.025.G455..0 | 5500 | 4101 | 279 | 32324 | 14662 | ||||
6SR5.025.G460..0 | 6000 | 4476 | 305 | 33175 | 5048 | ||||
6SR5.025.G465..0 | 6500 | 4849 | 330 | 34469 | 15635 | ||||
6SR5.025.H470..0 | 7000 | 5222 | 355 |
430 | 35761 | 16221 | |||
6SR5.025.H475..0 | 7500 | 5595 | 381 | 37114 | 16835 | ||||
6SR5.025.H480..0 | 8000 | 5968 | 406 | 38204 | 17329 | ||||
6SR5.025.J485..0 | 8500 | 6341 | 432 |
550 |
331.4x128.2x53.9 |
8418x3256x1370 |
5D | 40927 | 18603 |
6SR5.025.J487..0 | 9000 | 6714 | 457 | 41526 | 18875 | ||||
6SR5.025.J488..0 | 9500 | 7087 | 482 | 42124 | 19147 | ||||
6SR5.025.J520..0 | 10000 | 7460 | 508 | 42722 | 19419 | ||||
6SR5.025.J521..0 | 10500 | 7830 | 540 | 43321 | 25678 | ||||
6SR5.025.K522..0 | 11000 | 8206 | 559 |
600 | 43919 | 25950 | |||
6SR5.025.K523..0 | 11500 | 8579 | 584 |
363.8x136.1x53.9 |
9238x3453x1370 | 45116 | 26494 | ||
6SR5.025.L524..0 | 12000 | 8952 | 609 |
750 | 45714 | 26766 | |||
6SR5.025.L525..0 | 12500 | 9325 | 635 | 46735 | 27230 | ||||
6SR5.025.L526..0 | 13000 | 9698 | 660 | 48451 | 28010 | ||||
6SR5.025.L527..0 | 13500 | 10071 | 685 | 50167 | 28790 | ||||
6SR5.025.L528..0 | 14000 | 10444 | 711 | 51883 | 29570 | ||||
6SR5.025.L587..0 | 14500 | 10817 | 736 | 53599 | 24363 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.023.J440..0 | 4000 | 2984 | 282 |
550 |
281.9x114.9x53.9 |
7159x2916x1370 |
5C | 28435 | 12925 |
6SR5.023.J442..0 | 4250 | 3171 | 300 | 29101 | 13228 | ||||
6SR5.023.J445..0 | 4500 | 3356 | 317 | 29766 | 13530 | ||||
6SR5.023.J447..0 | 4750 | 3544 | 335 | 30432 | 13833 | ||||
6SR5.023.J450..0 | 5000 | 3728 | 353 | 31097 | 14135 | ||||
6SR5.023.J452..0 | 5250 | 3917 | 370 | 31741 | 14428 | ||||
6SR5.023.J455..0 | 5500 | 4101 | 388 | 32384 | 14720 | ||||
6SR5.023.J457..0 | 5750 | 4290 | 405 | 32947 | 14976 | ||||
6SR5.023.J460..0 | 6000 | 4474 | 423 | 33510 | 15232 | ||||
6SR5.023.J465..0 | 6500 | 4847 | 458 | 34639 | 15745 | ||||
6SR5.023.J470..0 | 7000 | 5219 | 494 |
293.7x128.2x53.9 |
7459x3256x1370 | 35094 | 15952 | ||
6SR5.023.J475..0 | 7500 | 5595 | 529 | 35246 | 16021 | ||||
6SR5.023.K480..0 | 8000 | 5968 | 564 |
600 | 35840 | 16291 | |||
6SR5.023.K485..0 | 8500 | 6341 | 599 | 36434 | 16561 | ||||
6SR5.023.L487..0 | 9000 | 6714 | 635 |
750 | 37028 | 16831 | |||
6SR5.023.L488..0 | 9500 | 7087 | 670 | 37622 | 17101 | ||||
6SR5.023.L520..0 | 10000 | 7460 | 705 | 38216 | 17371 | ||||
6SR5.023.L521..0 | 10500 | 7830 | 740 | 326.0x135.9x53.9 | 8279x3453x1370 | 38810 | 17641 | ||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
2) | ||||
Hp | kW | A | A | in | mm | Frame | lb | kg | |
6SR5.022.A330..0 | 300 | 224 | 22 |
40 |
114.2x115.6x42.0 |
2900x2936x1065 |
2B | 5540 | 2513 |
6SR5.022.A340..0 | 400 | 298 | 30 | 5900 | 2677 | ||||
6SR5.022.A350..0 | 500 | 372 | 37 | 6230 | 2826 | ||||
6SR5.022.B360..0 | 600 | 450 | 45 |
70 | 6560 | 2976 | |||
6SR5.022.B370..0 | 700 | 521 | 52 | 6890 | 3126 | ||||
6SR5.022.B380..0 | 800 | 600 | 60 | 7220 | 3275 | ||||
6SR5.022.B387..0 | 900 | 671 | 70 | 7550 | 3425 | ||||
6SR5.022.C410..0 | 1000 | 746 | 75 |
100 | 7900 | 3584 | |||
6SR5.022.C412..0 | 1250 | 932 | 100 | 8730 | 3960 | ||||
6SR5.022.D415..0 | 1500 | 1120 | 112 |
140 | 9550 | 4332 | |||
6SR5.022.D417..0 | 1750 | 1304 | 130 | 10380 | 4709 | ||||
6SR5.022.E420..0 | 2000 | 1491 | 147 |
200 |
133.9x115.6x47.3 |
3400x2936x1200 |
3B | 12320 | 5589 |
6SR5.022.E422..0 | 2250 | 1677 | 166 | 12890 | 5847 | ||||
6SR5.022.E425..0 | 2500 | 1862 | 186 | 13460 | 6106 | ||||
6SR5.022.F427..0 | 2750 | 2051 | 202 |
260 | 14060 | 6378 | |||
6SR5.022.F430..0 | 3000 | 2240 | 221 | 14630 | 6637 | ||||
6SR5.022.F435..0 | 3500 | 2611 | 258 | 15770 | 7170 | ||||
6SR5.022.G440..0 | 4000 | 2982 | 294 |
340 |
218.8x114.9x52.1 |
5550x2916x1323 |
4B | 21226 | 9628 |
6SR5.022.G445..0 | 4500 | 3356 | 331 | 22560 | 10234 | ||||
6SR5.022.H450..0 | 5000 | 3730 | 368 |
430 | 23894 | 10839 | |||
6SR5.022.H455..0 | 5500 | 4101 | 405 | 25183 | 11423 | ||||
6SR5.022.J460..0 | 6000 | 4474 | 442 |
550 |
266.2x114.9x53.9 |
6759x2916x1370 |
5B | 32943 | 14974 |
6SR5.022.J465..0 | 6500 | 4847 | 478 | 34071 | 15487 | ||||
6SR5.022.J470..0 | 7000 | 5219 | 515 |
278.0x128.2x53.9 |
7059x3256x1370 | 34584 | 15720 | ||
6SR5.022.K475..0 | 7500 | 5595 | 552 |
600 | 34797 | 15817 | |||
6SR5.022.K480..0 | 8000 | 5968 | 589 | 35187 | 15994 | ||||
6SR5.022.L485..0 | 8500 | 6341 | 625 |
750 | 35682 | 16219 | |||
6SR5.022.L487..0 | 9000 | 6714 | 662 | 36177 | 16444 | ||||
6SR5.022.L488..0 | 9500 | 7087 | 699 | 36709 | 16686 | ||||
6SR5.022.L520..0 | 10000 | 7460 | 736 | 37241 | 16928 | ||||
Drive series |
Shaft output 1) | Motor current 1) |
Cell rating | 2) WxHxD |
Frame |
Weight 2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.022.A330..0 | 300 | 223 | 24 |
40 |
114.2x115.6x42.0 |
2900x2936x1065 |
2B | 5540 | 2520 |
6SR5.022.A340..0 | 400 | 298 | 31 | 5900 | 2680 | ||||
6SR5.022.A350..0 | 500 | 372 | 39 | 6230 | 2830 | ||||
6SR5.022.B360..0 | 600 | 450 | 47 |
70 | 6560 | 2980 | |||
6SR5.022.B370..0 | 700 | 521 | 55 | 6890 | 3130 | ||||
6SR5.022.B380..0 | 800 | 600 | 62 | 7220 | 3280 | ||||
6SR5.022.C387..0 | 900 | 671 | 70 |
100 | 7550 | 3430 | |||
6SR5.022.C410..0 | 1000 | 746 | 78 | 7900 | 3590 | ||||
6SR5.022.C412..0 | 1250 | 932 | 100 | 9550 | 4340 | ||||
6SR5.022.D415..0 | 1500 | 1120 | 117 |
140 | 10380 | 4720 | |||
6SR5.022.D417..0 | 1750 | 1304 | 138 | 11750 | 5340 | ||||
6SR5.022.E420..0 | 2000 | 1492 | 154 |
200 |
133.9x115.6x47.3 |
3400x2936x1200 |
3B | 12320 | 5600 |
6SR5.022.E422..0 | 2250 | 1679 | 173 | 12890 | 5860 | ||||
6SR5.022.E425..0 | 2500 | 1865 | 192 | 13460 | 6120 | ||||
6SR5.022.F427..0 | 2750 | 2051 | 212 |
260 | 14060 | 6390 | |||
6SR5.022.F430..0 | 3000 | 2238 | 231 | 14630 | 6650 | ||||
6SR5.022.G435..0 | 3500 | 2600 | 296 |
340 |
218.8x114.9x52.1 |
5550x2916x1323 |
4B | 20097 | 9135 |
6SR5.022.G440..0 | 4000 | 2982 | 312 | 25452 | 11569 | ||||
6SR5.022.H445..0 | 4500 | 3356 | 351 |
430 | 26580 | 12082 | |||
6SR5.022.H450..0 | 5000 | 3728 | 389 | 27707 | 12594 | ||||
6SR5.022.H455..0 | 5500 | 4101 | 428 | 29038 | 13199 | ||||
6SR5.022.J457..0 | 5750 | 4290 | 448 |
550 |
266.2x114.9x53.9 |
6759x2916x1370 |
5B | 29704 | 13502 |
6SR5.022.J460..0 | 6000 | 4474 | 467 | 32943 | 14974 | ||||
6SR5.022.J465..0 | 6500 | 4847 | 506 | 34071 | 15487 | ||||
6SR5.022.J470..0 | 7000 | 5219 | 545 |
278.0x128.2x53.9 |
7059x3256x1370 | 34584 | 15720 | ||
6SR5.022.K475..0 | 7500 | 5595 | 584 | 600 | 34797 | 15817 | |||
6SR5.022.L480..0 | 8000 | 5965 | 623 |
750 | 35187 | 15994 | |||
6SR5.022.L485..0 | 8500 | 6341 | 662 | 35682 | 16219 | ||||
6SR5.022.L487..0 | 9000 | 6714 | 701 | 36177 | 16444 | ||||
6SR5.022.L488..0 | 9500 | 7087 | 699 | 36709 | 16686 | ||||
6SR5.022.L520..0 | 10000 | 7460 | 779 | 37241 | 16928 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
2) | ||||
Hp | kW | A | A | in | mm | Frame | lb | kg | |
6SR5.022.A330..0 | 300 | 224 | 26 |
40 |
114.2x115.6x42.0 |
2900x2936x1065 |
2B | 5540 | 2513 |
6SR5.022.A340..0 | 400 | 298 | 34 | 5900 | 2677 | ||||
6SR5.022.B350..0 | 500 | 372 | 43 |
70 | 6230 | 2826 | |||
6SR5.022.B360..0 | 600 | 450 | 51 | 6560 | 2976 | ||||
6SR5.022.B370..0 | 700 | 521 | 60 | 6890 | 3126 | ||||
6SR5.022.B380..0 | 800 | 600 | 69 | 7220 | 3275 | ||||
6SR5.022.C387..0 | 900 | 671 | 77 |
100 | 7550 | 3425 | |||
6SR5.022.C410..0 | 1000 | 746 | 86 | 7900 | 3584 | ||||
6SR5.022.D412..0 | 1250 | 932 | 107 |
140 | 8730 | 3960 | |||
6SR5.022.D415..0 | 1500 | 1120 | 129 | 9550 | 4332 | ||||
6SR5.022.E417..0 | 1750 | 1304 | 150 |
200 |
133.9x115.6x47.3 |
3400x2936x1200 |
3B | 11750 | 5330 |
6SR5.022.E420..0 | 2000 | 1491 | 169 | 12320 | 5589 | ||||
6SR5.022.E422..0 | 2250 | 1677 | 190 | 12890 | 5847 | ||||
6SR5.022.F425..0 | 2500 | 1865 | 212 |
260 | 13460 | 6106 | |||
6SR5.022.F427..0 | 2750 | 2051 | 233 | 14060 | 6378 | ||||
6SR5.022.F430..0 | 3000 | 2240 | 260 | 14630 | 6637 | ||||
6SR5.022.G432..0 | 3250 | 2425 | 278 |
340 |
218.8x114.9x52.1 |
5550x2916x1323 |
4B | 19497 | 8844 |
6SR5.022.G435..0 | 3500 | 2497 | 300 | 20097 | 9116 | ||||
6SR5.022.H440..0 | 4000 | 2982 | 343 |
430 | 21226 | 9628 | |||
6SR5.022.H445..0 | 4500 | 3356 | 386 | 22560 | 10234 | ||||
6SR5.022.H450..0 | 5000 | 3728 | 428 | 23894 | 10839 | ||||
6SR5.022.J452..0 | 5250 | 3917 | 444 |
550 |
266.2x114.9x53.9 |
6759x2916x1370 |
5B | 28373 | 12897 |
6SR5.022.J455..0 | 5500 | 4101 | 465 | 29038 | 13199 | ||||
6SR5.022.J457..0 | 5750 | 4290 | 487 | 29704 | 13502 | ||||
6SR5.022.J460..0 | 6000 | 4474 | 508 | 32943 | 14974 | ||||
6SR5.022.K465..0 | 6500 | 4847 | 550 |
600 | 34071 | 15487 | |||
6SR5.022.K470..0 | 7000 | 5219 | 592 |
278.0x128.2x53.9 |
7059x3256x1370 | 34584 | 15720 | ||
6SR5.022.L475..0 | 7500 | 5595 | 635 |
750 | 34797 | 15817 | |||
6SR5.022.L480..0 | 8000 | 5968 | 677 | 35187 | 15994 | ||||
6SR5.022.L485..0 | 8500 | 6341 | 719 | 35682 | 16219 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
Frame |
2) | |||
Hp | kW | A | A | in | mm | lb | kg | ||
6SR5.021.A330..0 | 300 | 224 | 33 | 40 |
114.2x115.6x42.0 |
2900x2936x1065 |
2B | 5390 | 2450 |
6SR5.021.B340..0 | 400 | 298 | 43 |
70 | 5740 | 2610 | |||
6SR5.021.B350..0 | 500 | 373 | 54 | 6070 | 2760 | ||||
6SR5.021.B360..0 | 600 | 448 | 65 | 6400 | 2910 | ||||
6SR5.021.C370..0 | 700 | 522 | 76 |
100 | 6730 | 3060 | |||
6SR5.021.C380..0 | 800 | 597 | 87 | 7060 | 3210 | ||||
6SR5.021.C387..0 | 900 | 671 | 98 | 7390 | 3360 | ||||
6SR5.021.D410..0 | 1000 | 746 | 108 |
140 | 7740 | 3520 | |||
6SR5.021.D412..0 | 1250 | 933 | 136 | 8580 | 3900 | ||||
6SR5.021.E415..0 | 1500 | 1119 | 159 |
200 |
133.9x115.6x47.3 |
3400x2936x1200 |
3B | 10890 | 4950 |
6SR5.021.E417..0 | 1750 | 1306 | 185 | 11460 | 5210 | ||||
6SR5.021.F420..0 | 2000 | 1492 | 212 |
260 | 12030 | 5470 | |||
6SR5.021.F422..0 | 2250 | 1679 | 238 | 12610 | 5730 | ||||
6SR5.021.G425..0 | 2500 | 1865 | 264 |
340 |
218.8x114.9x52.1 |
5550x2916x1323 |
4B | 17854 | 8115 |
6SR5.021.G427..0 | 2750 | 2052 | 291 | 18116 | 8234 | ||||
6SR5.021.G430..0 | 3000 | 2238 | 317 | 18366 | 8348 | ||||
6SR5.021.H432..0 | 3250 | 2435 | 344 |
430 | 18897 | 8589 | |||
6SR5.021.H435..0 | 3500 | 2611 | 370 | 19497 | 8862 | ||||
6SR5.021.H440..0 | 4000 | 2984 | 423 | 18886 | 8580 | ||||
6SR5.021.J442..0 | 4250 | 3171 | 450 |
550 |
266.2x114.9x53.9 |
6759x2916x1370 |
5B | 27129 | 12331 |
6SR5.021.J445..0 | 4500 | 3356 | 476 | 27794 | 12633 | ||||
6SR5.021.J447..0 | 4750 | 3544 | 502 | 28460 | 12936 | ||||
6SR5.021.J450..0 | 5000 | 3730 | 529 | 29125 | 13238 | ||||
6SR5.021.K452..0 | 5250 | 3917 | 555 |
600 | 29769 | 13531 | |||
6SR5.021.K455..0 | 5500 | 4103 | 582 | 30412 | 13823 | ||||
6SR5.021.L457..0 | 5750 | 4290 | 608 |
750 | 31054 | 14115 | |||
6SR5.021.L460..0 | 6000 | 4476 | 635 | 31699 | 14408 | ||||
6SR5.021.L465..0 | 6500 | 4847 | 688 | 33074 | 15033 | ||||
6SR5.021.L470..0 | 7000 | 5222 | 740 | 278.0x128.2x53.9 | 7059x3256x1370 | 34103 | 15501 | ||
Drive series |
1) | Motor current 1) | Dimensions 2) Cell rating WxHxD |
Frame |
2) | ||||
Hp | kW A A in mm | lb kg | |||||||
6SR5.020.A315..0 | 150 | 112 | 19 |
40 |
48.0x102.0x40.0 |
1219x2591x1016 |
1A 3) | 3300 | 1497 |
6SR5.020.A320..0 | 200 | 149 | 26 | 3700 | 1678 | ||||
6SR5.020.A330..0 | 300 | 224 | 38 | 4100 | 1860 | ||||
6SR5.020.B340..0 | 400 | 298 | 50 |
70 | 4400 | 1996 | |||
6SR5.020.B350..0 | 500 | 373 | 63 | 4700 | 2132 | ||||
6SR5.020.C360..0 | 600 | 448 | 75 |
100 |
60.0x110.0x42.0 |
1524x2794x1067 |
2A | 5500 | 2495 |
6SR5.020.C370..0 | 700 | 522 | 88 | 5800 | 2631 | ||||
6SR5.020.C380..0 | 800 | 597 | 100 | 6100 | 2767 | ||||
6SR5.020.D387..0 | 900 | 671 | 113 |
140 | 6400 | 2903 | |||
6SR5.020.D410..0 | 1000 | 746 | 125 | 6500 | 2948 | ||||
6SR5.020.D411..0 | 1100 | 821 | 138 | 7300 | 3312 | ||||
6SR5.020.E412..0 | 1250 | 933 | 153 |
200 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 8100 | 3674 |
6SR5.020.E415..0 | 1500 | 1119 | 183 | 9300 | 4218 | ||||
6SR5.020.F417..0 | 1750 | 1306 | 214 |
260 | 10500 | 4763 | |||
6SR5.020.F420..0 | 2000 | 1492 | 244 | 11800 | 5352 | ||||
6SR5.020.G422..0 | 2250 | 1679 | 275 |
340 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 13377 | 6068 |
6SR5.020.G425..0 | 2500 | 1865 | 305 | 14377 | 6521 | ||||
6SR5.020.G427..0 | 2750 | 2052 | 336 | 14877 | 6748 | ||||
6SR5.020.H430..0 | 3000 | 2238 | 366 |
430 | 15377 | 6975 | |||
6SR5.020.H432..0 | 3250 | 2425 | 397 | 15877 | 7202 | ||||
6SR5.020.H435..0 | 3500 | 2611 | 427 | 16377 | 7429 | ||||
6SR5.020.J440..0 | 4000 | 2984 | 488 |
550 |
228.4x114.9x53.9 |
5800x2916x1370 |
5A | 23417 | 10644 |
6SR5.020.J442..0 | 4250 | 3171 | 519 | 24082 | 10946 | ||||
6SR5.020.K445..0 | 4500 | 3357 | 549 |
600 | 24748 | 11249 | |||
6SR5.020.K447..0 | 4750 | 3544 | 580 | 25413 | 11551 | ||||
6SR5.020.L450..0 | 5000 | 3730 | 610 |
720 | 26057 | 11844 | |||
6SR5.020.L452..0 | 5250 | 3917 | 641 | 26057 | 11844 | ||||
6SR5.020.L455..0 | 5500 | 4103 | 671 | 26700 | 12136 | ||||
6SR5.020.L457..0 | 5750 | 4290 | 702 | 27349 | 12431 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
2) | ||||
Hp | kW | A | A | in | mm | Frame | lb | kg | |
6SR5.020.A315..0 | 150 | 112 | 19 |
40 |
48.0x102.0x40.0 |
1219x2591x1016 |
1A 3) | 3300 | 1497 |
6SR5.020.A320..0 | 200 | 149 | 26 | 3700 | 1679 | ||||
6SR5.020.A330..0 | 300 | 224 | 39 | 4100 | 1860 | ||||
6SR5.020.B340..0 | 400 | 298 | 51 |
70 | 4400 | 1996 | |||
6SR5.020.B350..0 | 500 | 372 | 64 | 4700 | 2132 | ||||
6SR5.020.C360..0 | 600 | 448 | 77 |
100 |
60.0x110.0x42.0 |
1524x2794x1067 |
2A | 5500 | 2495 |
6SR5.020.C370..0 | 700 | 521 | 90 | 5800 | 2631 | ||||
6SR5.020.D380..0 | 800 | 597 | 103 |
140 | 6100 | 2767 | |||
6SR5.020.D387..0 | 900 | 671 | 116 | 6400 | 2903 | ||||
6SR5.020.D410..0 | 1000 | 746 | 129 | 6500 | 2949 | ||||
6SR5.020.E411..0 | 1100 | 820 | 143 |
200 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 7300 | 3312 |
6SR5.020.E412..0 | 1250 | 932 | 161 | 8100 | 3675 | ||||
6SR5.020.E415..0 | 1500 | 1120 | 190 | 9300 | 4219 | ||||
6SR5.020.F417..0 | 1750 | 1304 | 222 |
260 | 10500 | 4763 | |||
6SR5.020.F420..0 | 2000 | 1491 | 254 | 11800 | 5353 | ||||
6SR5.020.G422..0 | 2250 | 1679 | 286 |
340 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 13377 | 6068 |
6SR5.020.G425..0 | 2500 | 1865 | 317 | 14377 | 6521 | ||||
6SR5.020.H427..0 | 2750 | 2051 | 349 |
430 | 14877 | 6748 | |||
6SR5.020.H430..0 | 3000 | 2240 | 381 | 15377 | 6975 | ||||
6SR5.020.H432..0 | 3250 | 2425 | 413 | 15877 | 7202 | ||||
6SR5.020.J435..0 | 3500 | 2611 | 444 |
550 |
228.4x114.9x53.9 |
5800x2916x1370 |
5A | 22187 | 10085 |
6SR5.020.J437..0 | 3750 | 2798 | 476 | 22751 | 10341 | ||||
6SR5.020.J440..0 | 4000 | 2984 | 508 | 23417 | 10644 | ||||
6SR5.020.J442..0 | 4250 | 3171 | 539 | 24082 | 10946 | ||||
6SR5.020.K445..0 | 4500 | 3356 | 571 | 600 | 24748 | 11249 | |||
6SR5.020.L447..0 | 4750 | 3544 | 603 |
720 | 25413 | 11551 | |||
6SR5.020.L450..0 | 5000 | 3730 | 635 | 26057 | 11844 | ||||
6SR5.020.L452..0 | 5250 | 3917 | 665 | 26057 | 11844 | ||||
6SR5.020.L455..0 | 5500 | 4103 | 698 | 26700 | 12136 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
2) | ||||
Hp | kW | A | A | in | mm | Frame | lb | kg | |
6SR5.020.A315..0 | 150 | 112 | 24 |
40 |
48.0x102.0x40.0 |
1219x2591x1016 |
1A 3) | 3300 | 1497 |
6SR5.020.A320..0 | 200 | 149 | 31 | 3700 | 1679 | ||||
6SR5.020.B330..0 | 300 | 224 | 47 |
70 | 4100 | 1860 | |||
6SR5.020.B340..0 | 400 | 298 | 63 | 4400 | 1996 | ||||
6SR5.020.C350..0 | 500 | 373 | 78 |
100 |
60.0x110.0x42.0 |
1524x2794x1067 |
2A | 5100 | 2313 |
6SR5.020.C360..0 | 600 | 448 | 94 | 5500 | 2495 | ||||
6SR5.020.D370..0 | 700 | 522 | 109 |
140 | 5800 | 2631 | |||
6SR5.020.D380..0 | 800 | 597 | 125 | 6100 | 2767 | ||||
6SR5.020.E387..0 | 900 | 671 | 141 |
200 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 6400 | 2903 |
6SR5.020.E410..0 | 1000 | 746 | 154 | 6800 | 3130 | ||||
6SR5.020.E412..0 | 1250 | 932 | 192 | 8100 | 3674 | ||||
6SR5.020.F415..0 | 1500 | 1118 | 231 | 260 | 9300 | 4218 | |||
6SR5.020.G417..0 | 1750 | 1306 | 269 |
340 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 12377 | 5613 |
6SR5.020.G420..0 | 2000 | 1492 | 308 | 12877 | 5841 | ||||
6SR5.020.H422..0 | 2250 | 1679 | 346 |
430 | 13377 | 6068 | |||
6SR5.020.H425..0 | 2500 | 1865 | 385 | 14377 | 6521 | ||||
6SR5.020.H427..0 | 2750 | 2051 | 423 | 14877 | 6748 | ||||
6SR5.020.J430..0 | 3000 | 2240 | 462 |
550 |
228.4x114.9x53.9 |
5800x2916x1370 |
5A | 20496 | 9316 |
6SR5.020.J432..0 | 3250 | 2425 | 500 | 21624 | 9829 | ||||
6SR5.020.J435..0 | 3500 | 2611 | 538 | 22187 | 10085 | ||||
6SR5.020.K437..0 | 3750 | 2798 | 577 | 600 | 22751 | 10341 | |||
6SR5.020.L440..0 | 4000 | 2984 | 615 |
720 | 23417 | 10644 | |||
6SR5.020.L442..0 | 4250 | 3171 | 654 | 24082 | 10946 | ||||
6SR5.020.L445..0 | 4500 | 3356 | 692 | 24748 | 11249 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
2) | |||||
Hp | kW | A | A | in | mm | Frame | lb | kg | ||
6SR5.020.A315..0 | 150 | 112 | 26 |
40 |
48.0x102.0x40.0 |
1219x2591x1016 |
1A 3) | 3300 | 1497 | |
6SR5.020.A320..0 | 200 | 149 | 34 | 3700 | 1679 | |||||
6SR5.020.B330..0 | 300 | 224 | 51 |
70 | 4100 | 1860 | ||||
6SR5.020.B340..0 | 400 | 298 | 69 | 4400 | 1996 | |||||
6SR5.020.C350..0 | 500 | 372 | 86 | 100 |
60.0x110.0x42.0 |
1524x2794x1067 |
2A | 5100 | 2313 | |
6SR5.020.D360..0 | 600 | 448 | 103 |
140 | 5500 | 2495 | ||||
6SR5.020.D370..0 | 700 | 521 | 120 | 5800 | 2631 | |||||
6SR5.020.D380..0 | 800 | 597 | 139 | 6100 | 2767 | |||||
6SR5.020.E387..0 | 900 | 671 | 156 |
200 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 6400 | 2903 | |
6SR5.020.E410..0 | 1000 | 746 | 169 | 6800 | 3130 | |||||
6SR5.020.E411..0 | 1100 | 820 | 189 | 7300 | 3312 | |||||
6SR5.020.F412..0 | 1250 | 932 | 214 |
260 | 8100 | 3674 | ||||
6SR5.020.F415..0 | 1500 | 1120 | 254 | 9300 | 4218 | |||||
6SR5.020.G417..0 | 1750 | 1306 | 296 |
340 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 12377 | 5613 | |
6SR5.020.G420..0 | 2000 | 1491 | 338 | 12877 | 5841 | |||||
6SR5.020.H422..0 | 2250 | 1679 | 381 |
430 | 13377 | 6068 | ||||
6SR5.020.H425..0 | 2500 | 1865 | 423 | 14377 | 6522 | |||||
6SR5.020.J427..0 | 2750 | 2051 | 465 |
550 |
228.4x114.9x53.9 |
5800x2916x1370 |
5A | 19932 | 9060 | |
6SR5.020.J430..0 | 3000 | 2240 | 508 | 20496 | 9316 | |||||
6SR5.020.J432..0 | 3250 | 2425 | 550 | 21624 | 9829 | |||||
6SR5.020.K435..0 | 3500 | 2611 | 592 | 600 | 22187 | 10085 | ||||
6SR5.020.L437..0 | 3750 | 2798 | 635 |
720 | 22751 | 10341 | ||||
6SR5.020.L440..0 | 4000 | 2984 | 677 | 23417 | 10644 | |||||
6SR5.020.L442..0 | 4250 | 3171 | 719 | 24082 | 10946 | |||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
2) | ||||
Hp | kW | A | A | in | mm | Frame | lb | kg | |
6SR5.020.A315..0 | 150 | 112 | 32 | 40 |
48.0x102.0x40.0 |
1219x2591x1016 |
1A 3) | 3300 | 1497 |
6SR5.020.B320..0 | 200 | 149 | 43 |
70 | 3700 | 1679 | |||
6SR5.020.B330..0 | 300 | 224 | 65 | 4100 | 1860 | ||||
6SR5.020.C340..0 | 400 | 298 | 87 | 100 |
60.0x110.0x42.0 |
1524x2794x1067 |
2A | 4400 | 1996 |
6SR5.020.D350..0 | 500 | 373 | 108 |
140 | 4700 | 2132 | |||
6SR5.020.D360..0 | 600 | 448 | 130 | 5100 | 2313 | ||||
6SR5.020.D370..0 | 700 | 522 | 148 | 5800 | 2631 | ||||
6SR5.020.E380..0 | 800 | 597 | 169 |
200 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 6100 | 2767 |
6SR5.020.E387..0 | 900 | 671 | 190 | 6700 | 3039 | ||||
6SR5.020.F410..0 | 1000 | 746 | 212 |
260 | 6800 | 3130 | |||
6SR5.020.F411..0 | 1100 | 821 | 233 | 7300 | 3312 | ||||
6SR5.020.G412..0 | 1250 | 932 | 264 |
340 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 11377 | 5171 |
6SR5.020.G415..0 | 1500 | 1118 | 317 | 11877 | 5399 | ||||
6SR5.020.H417..0 | 1750 | 1306 | 370 |
430 | 12375 | 5614 | |||
6SR5.020.H420..0 | 2000 | 1492 | 423 | 12877 | 5841 | ||||
6SR5.020.J422..0 | 2250 | 1679 | 476 |
550 |
228.4x114.9x53.9 |
5800x2916x1370 |
5A | 18804 | 8547 |
6SR5.020.J425..0 | 2500 | 1865 | 529 | 19369 | 8804 | ||||
6SR5.020.K427..0 | 2750 | 2051 | 582 | 600 | 19932 | 9060 | |||
6SR5.020.L430..0 | 3000 | 2238 | 635 |
720 | 20496 | 9316 | |||
6SR5.020.L432..0 | 3250 | 2425 | 688 | 21624 | 9829 | ||||
Drive series |
1) | Motor current 1) |
Cell rating | Dimensions 2) WxHxD |
2) | ||||
Hp | kW | A | A | in | mm | Frame | lb | kg | |
6SR5.020.A315..0 | 150 | 112 | 34 | 40 |
48.0x102.0x40.0 |
1219x2591x1016 |
1A 3) | 3300 | 1497 |
6SR5.020.B320..0 | 200 | 149 | 45 |
70 | 3700 | 1679 | |||
6SR5.020.B330..0 | 300 | 224 | 67 | 4100 | 1860 | ||||
6SR5.020.C340..0 | 400 | 298 | 91 | 100 |
60.0x110.0x42.0 |
1524x2794x1067 |
2A | 4400 | 1996 |
6SR5.020.D350..0 | 500 | 372 | 112 |
140 | 4700 | 2132 | |||
6SR5.020.D360..0 | 600 | 450 | 136 | 5100 | 2313 | ||||
6SR5.020.E370..0 | 700 | 522 | 155 |
200 |
75.0x110.0x45.0 |
1905x2794x1143 |
3A | 5800 | 2631 |
6SR5.020.E380..0 | 800 | 597 | 177 | 6100 | 2767 | ||||
6SR5.020.E387..0 | 900 | 671 | 199 | 6700 | 3039 | ||||
6SR5.020.F410..0 | 1000 | 746 | 221 |
260 | 6800 | 3130 | |||
6SR5.020.F411..0 | 1100 | 820 | 246 | 7300 | 3312 | ||||
6SR5.020.G412..0 | 1250 | 932 | 276 |
340 |
133.9x115.6x47.3 |
3400x2936x1200 |
4A | 11377 | 5161 |
6SR5.020.G415..0 | 1500 | 1120 | 331 | 11877 | 5388 | ||||
6SR5.020.H417..0 | 1750 | 1304 | 386 | 430 | 12375 | 5614 | |||
6SR5.020.J420..0 | 2000 | 1491 | 442 |
550 |
228.4x114.9x53.9 |
5800x2916x1370 |
5A | 18241 | 8291 |
6SR5.020.J422..0 | 2250 | 1679 | 497 | 18804 | 8547 | ||||
6SR5.020.K425..0 | 2500 | 1865 | 552 | 600 | 19369 | 8804 | |||
6SR5.020.L427..0 | 2750 | 2052 | 607 |
720 | 19932 | 9060 | |||
6SR5.020.L430..0 | 3000 | 2238 | 662 | 20496 | 9316 | ||||
6SR5.020.L432..0 | 3250 | 2425 | 717 | 21624 | 9829 | ||||
4Q Drives 6SR5 | |||
Cell rating [A] |
120 |
160 |
325 |
110 % overload [A] (1min/10min) |
120 |
160 |
325 |
150 % overload[A] (1min/10min) |
88 |
117 |
238 |
2Q Drives 6SR5 6SR327 | ||||||||||||||||
Cell rating [A] |
40 |
70 |
100 |
140 |
200 |
260 |
340 |
430 |
550 |
600 |
720 1) |
750 2) |
880 |
1000 |
1250 |
1375 |
110 % overload [A] (1min/10min) |
40 |
70 |
100 |
140 |
200 |
260 |
340 |
430 |
550 |
600 |
655 |
682 |
880 |
909 |
1250 |
1250 |
150 % overload [A] (1min/10min) |
29 |
51 |
73 |
103 |
147 |
191 |
249 |
315 |
403 |
440 |
480 |
500 |
667 |
667 |
917 |
917 |
Auxiliary voltage | |||||||
Three phase Single phase | |||||||
Configuration | 380 V 460 V 575 V 120 V 220 V | ||||||
6SR5 9 cell 120-160A K791) | A | 6.5 | 8.0 | 6.5 | 4.0 | – | |
6SR5 9 cell 120-160A K692) | A | 8.0 | 9.5 | 7.5 | – | – | |
6SR5 9 cell 325A K791) | A | 10.0 | 11.5 | 9.5 | 4.0 | – | |
6SR5 9 cell 325A K692) | A | 11.5 | 12.5 | 10.5 | – | – | |
6SR5 12/15 cell 120-160A K791) | A | 10.0 | 11.5 | 9.5 | 4.0 | – | |
6SR5 12/15 cell 120-160A K692) | A | 11.5 | 12.5 | 10.5 | – | – | |
6SR5 12/15 cell 325A K791) | A | 18 | 14 | 11.5 | 4.0 | – | |
6SR5 12/15 cell 325A K692) | A | 22 | 17 | 14.5 | – | – | |
6SR5 24 cell 120-160A K681) | A | 27.8 | 34.2 | – | – | 3.5 | |
6SR5 24 cell 120-160A K692) | A | 29.8 | 36.2 | – | – | 3.5 | |
6SR5 24 cell 325A K681) | A | 23.1 | 28.3 | – | – | 3.5 | |
6SR5 24 cell 325A K692) | A | 25.1 | 30.3 | – | – | 3.5 | |
Auxiliary voltage | |||||||
Three phase Single phase | |||||||
Configuration | 380 V 460 V 575 V 120 V 220 V | ||||||
6SR327 K691) | A | 1.6 | 1.3 | 1.1 | – | – | |
6SR327 K691) and W323) | A | 3.2 | 2.6 | 2.2 | – | – | |
6SR327 9 cell 880-1375A K792) | A | 13.4 | 8.4 | 6.8 | 5.0 | – | |
6SR327 9 cell 880-1375A K792) and W323) | A | 33.1 | 27.2 | 21.4 | 10.0 | – | |
6SR327 12 cell 880-1375A K792) | A | 14.6 | 12.7 | 10.1 | – | – | |
6SR327 12 cell 880-1375A K792) and W323) | A | 34.3 | 28.4 | 22.3 | 10.0 | – | |
6SR327 15 cell 880-1375A K792) | A | 19.4 | 16.9 | 13.5 | – | – | |
6SR327 15 cell 880-1375A K792) and W323) | A | 35.5 | 29.6 | 23.3 | 10.0 | – | |
6SR327 18 cell 880-1375A K792) | A | 20.6 | 18.1 | 14.5 | – | – | |
6SR327 18 cell 880-1375A K792) and W323) | A | 36.7 | 30.8 | 24.3 | 10.0 | – | |
6SR327 24 cell 880-1375A K79 2) | A | 30.4 | 26.5 | 21.2 | 5.0 | – | |
6SR327 24 cell 880-1375A K792) and W323) | A | 39.1 | 33.2 | 26.2 | 10.0 | – | |
System pre-charge4) | % | 0.5 | 0.5 | 0.5 | – | – | |
Auxiliary voltage | |||||||
Three phase Single phase | |||||||
Configuration 380 V 460 V 575 V 120 V 220 V | |||||||
6SR5 9 cell 40-70A K791) | A | 2.0 | 2.5 | 2.0 | 4.0 | 2.0 | |
6SR5 9 cell 40-70A K692) | A | 3.5 | 4.0 | 3.0 | – | – | |
6SR5 9 cell 100-140A K791) | A | 3.5 | 4.0 | 3.5 | 4.0 | 2.0 | |
6SR5 9 cell 100-140A K692) | A | 5.0 | 5.5 | 4.5 | – | – | |
6SR5 9 cell 200-260A K791) | A | 6.5 | 8.0 | 6.5 | 4.0 | 2.0 | |
6SR5 9 cell 200-260A K692) | A | 8.0 | 9.5 | 7.5 | – | – | |
6SR5 9 cell 340-430A K791) | A | 10.0 | 11.5 | 9.5 | 4.0 | 2.0 | |
6SR5 9 cell 340-430A K692) | A | 11.5 | 12.5 | 10.5 | – | – | |
6SR5 9 cell 550A K68/K791) | A | 16.0 | 13.0 | 9.2 | 7 | 3.5 | |
6SR5 9 cell 550A K692) | A | 18.2 | 14.8 | 10.7 | – | – | |
6SR5 9 cell 600A K68/K791) | A | 16.0 | 15.7 | 11.8 | 7 | 3.5 | |
6SR5 9 cell 600A K692) | A | 18.2 | 17.5 | 13.2 | – | – | |
6SR5 9 cell 720A K68/K791) | A | 18.2 | 15.7 | 11.8 | 7 | 3.5 | |
6SR5 9 cell 720A K692) | A | 20.4 | 17.5 | 13.2 | – | – | |
6SR5 12/15 cell 340-430A K68/ K791) | A | 16.5 | 15.0 | 12.0 | 4.0 | 2.0 | |
6SR5 12/15 cell 340-430A K692) | A | 17.5 | 16.0 | 13.0 | – | – | |
6SR5 12/15 cell 550A K68/K791) | A | 26.7 | 21.7 | 15.4 | 7 | 3.5 | |
6SR5 12/15 cell 550A K692) | A | 28.9 | 23.5 | 16.8 | – | – | |
6SR5 12/15 cell 600A K68/K791) | A | 26.7 | 27.1 | 20.5 | 7 | 3.5 | |
6SR5 12/15 cell 600A K692) | A | 28.9 | 28.9 | 21.9 | – | – | |
6SR5 12/15 cell 750A K68/K791) | A | 31.0 | 27.1 | 20.5 | 7 | 3.5 | |
6SR5 12/15 cell 750A K692) | A | 33.2 | 28.9 | 21.9 | – | – | |
6SR5 18 cell 550A K68/K791) | A | 32.0 | 26.1 | 18.5 | 7 | 3.5 | |
6SR5 18 cell 550A K692) | A | 34.2 | 27.8 | 19.9 | – | – | |
6SR5 18 cell 600A K68/K791) | A | 32.0 | 31.5 | 23.6 | 7 | 3.5 | |
6SR5 18 cell 600A K692) | A | 34.2 | 33.2 | 25.0 | – | – | |
6SR5 18 cell 750A K68/K791) | A | 36.3 | 31.5 | 23.6 | 7 | 3.5 | |
6SR5 18 cell 750A K692) | A | 38.5 | 33.2 | 25.0 | – | – | |
6SR5 24 cell 40-70A K681) | A | 11.0 | 12.4 | – | – | 3.5 | |
6SR5 24 cell 40-70A K692) | A | 13.0 | 14.4 | – | – | 3.5 | |
6SR5 24 cell 100-140A K681) | A | 16.4 | 19.6 | – | – | 3.5 | |
6SR5 24 cell 100-140A K692) | A | 18.4 | 21.6 | – | – | 3.5 | |
6SR5 24 cell 200-260A K681) | A | 27.8 | 34.2 | – | – | 3.5 | |
6SR5 24 cell 200-260A K692) | A | 29.8 | 36.2 | – | – | 3.5 | |
6SR5 24 cell 550A K68/K791) | A | 37.3 | 30.4 | 21.6 | 7 | 3.5 | |
6SR5 24 cell 550A K692) | A | 39.5 | 32.2 | 23.0 | – | – | |
6SR5 24 cell 600A K68/K791) | A | 37.3 | 38.5 | 29.2 | 7 | 3.5 | |
6SR5 24 cell 600A K692) | A | 39.5 | 40.3 | 30.6 | – | – | |
6SR5 24 cell 750A K68/K791) | A | 43.8 | 38.5 | 29.2 | 7 | 3.5 | |
6SR5 24 cell 750A K692) | A | 46.0 | 40.3 | 30.6 | – | – | |
Power cabling cross sections 1) Frame 2) | 6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR327 | |
1A 2A 3A 4A 2B, 3B 4B 2D, 3D 4D 5A…5D – | ||
Line-side, max. connectable per phase with M10 (M08 for 40-70A) screw z |
AWG/ MCM |
1 x 350 1 x 350 2 x 350 1 x 500 3) 1 x 500 3) 1 x 500 3) 2 x 350 2 x 350 2 x 500 2 x 350 4 x 500 4 x 350 2 x 1000 |
mm2 | 1 x 185 1 x 185 2 x 185 2 x 185 2 x 185 2 x 240 2 x 185 4 x 240 4 x 185 2 x 500 1 x 240 3) 1 x 240 3) 1 x 240 3) | |
Motor-side, max. connectable per phase with M10 (M08 for 40-70A) screw | AWG/ MCM |
1 x #2 1 x 2/0 1 x 4/0 2 x 350 2 x 350 2 x 350 1 x 500 1 x 500 3 x 350 2 x 1000 |
mm2 |
1 x 35 1 x 75 1 x 95 2 x 185 2 x 185 2 x 185 1 x 240 1 x 240 3 x 185 2 x 500 | |
AWG/ MCM |
2/0 2/0 2/0 2/0 2/0 2/0 2/0 2/0 2 x 350 2 x 1000 | |
mm2 |
75 75 75 75 75 75 75 75 2 x 185 2 x 500 | |
Sound pressure level at 3 ft (1 m) 6SR5 6SR5 6SR5 6SR5 6SR5 6SR327 2Q drives 1) 40…70 A 100…140 A 200…260 A 340…430 A 550…750 A 880…1375 A | ||
9 cell (1A, 2A, 3A, 4A, 5A frames) dBA | 75 80 82 80 82 76 | |
12 cell (2B, 3B, 4B, 5B frames) dBA | 80 80 80 82 82 76 | |
15 cell (2B, 3B, 4B, 5B frames) dBA | 80 80 80 82 82 | 76 |
18 cell (5C frame) dBA | – – – – 82 | 76 |
24 cell (2D, 3D, 4D, 5D frames) dBA | 82 82 82 82 85 | 76 |
4Q drives 1) 6SR5 6SR5 120…160 A 325 A | ||
9 cell (3A, 4A frames) dBA | 82 82 | |
15 cell (3B, 4B frames) dBA | 80 82 | |
24 cell (3D, 4D frames) dBA | 82 82 | |
General technical data | ||
Drive quadrants | 2 or 4 | |
Isolation | Fiber optic cable | |
Rated Efficiency 2Q drives | Typical 96 to 97 % at full rated power 1) | |
Rated Efficiency 4Q drives | Typical 95 to 96 % at full rated power 1) | |
Regulation compliances | IEEE, ANSI, NEMA, UL, CSA, CE | |
Cooling | 6SR5 series | 6SR327 series |
Air-cooled | Water-cooled | |
Degree of protection | NEMA 1/ IP42 (standard) NEMA 12/ IP54 (standard) | |
Altitude Ft (m) | 0 to 3,300 (1,000) standard, up to 14,763 (4,500) with derating | |
Previous : 6SL3352-1AE41-2FA1 1260A, 6SL3353-1AE38-2DA1 820A, 6SL3353-1AE41-2DA1 1200A, 6SL3353-1AE41-7FA0 1700A, 6SL3353-1AE35-5AA0 550A
Next : 6SR5502-4MA38-0FF1-Z, 6SR5502-4MB38-7BF1-Z, 6SR5502-4MC41-7BF1-Z, 6SR5502-2FC38-0FF1-Z, 6SR5502-4MD42-2BF1-Z, 6SR5502-4MB41-0BF1-Z, 6SR5502-4MB41-2BF1-Z, 6SR5502-2HE41-7FG0-Z
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
