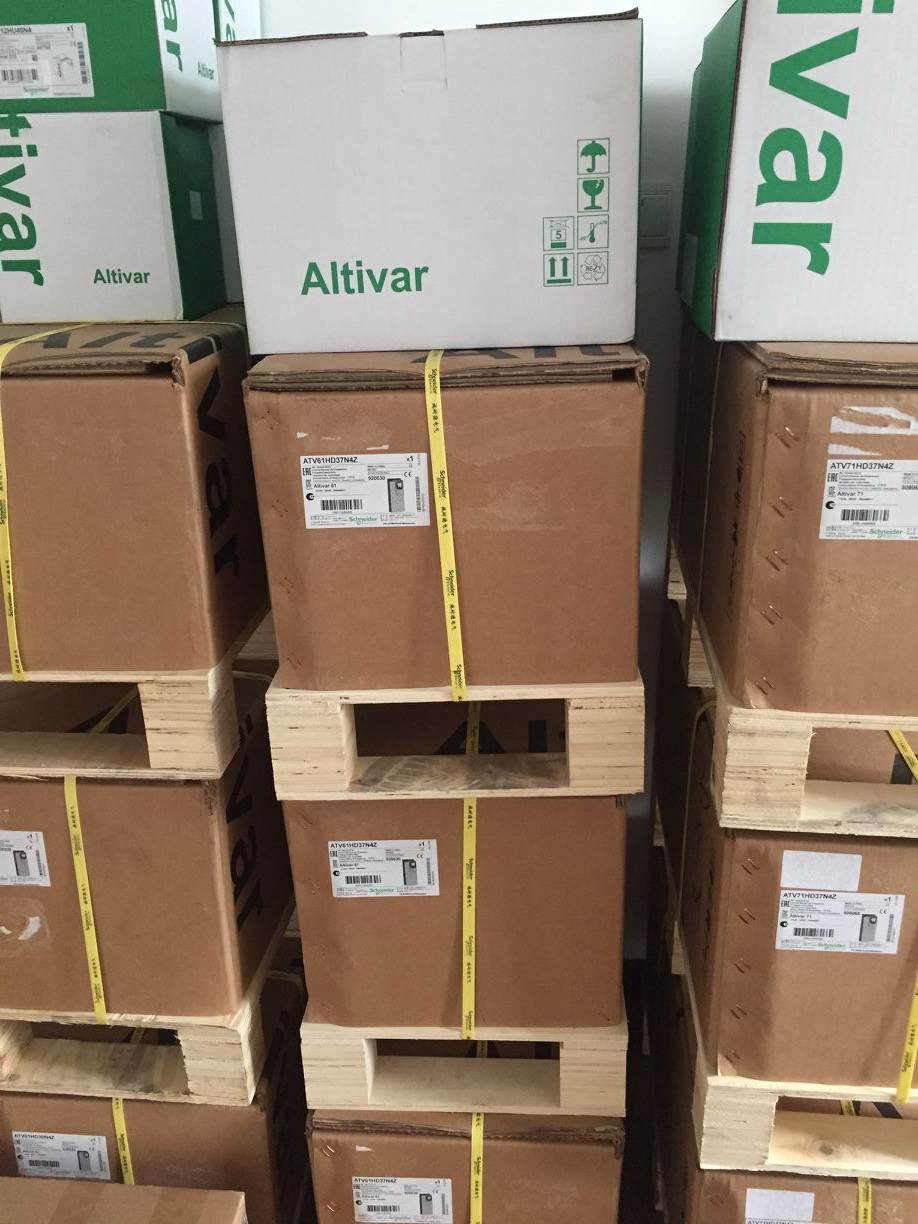

Schneider ATV61HD75N4 75KW, ATV61HD90N4 90KW, ATV61HC11N4 110KW, ATV61HC13N4 132KW, ATV61HC16N4 160KW, ATV61HC22N4 220KW(200KW)

Product Detail

View all Altivar 61 Variable Frequency Drives VFD

Schneider Electric ATV61HC16N4 Picture

SPEED DRIVE 250 HP 460 V ATV61

ATV61HC16N4

Compare

Discontinued on:

17 February 2021

To be end-of-service on:

31 December 2028

Recommended replacement(s)

ATV61HC16N4 is replaced by:

1×

Schneider Electric ATV630C16N4 Picture

Variable speed drive, Altivar Process ATV600, ATV630, 160kW/250 hp, 380...480 V, IP00

ATV630C16N4

Environmental performance of the product Learn more

Sustainable by Design

Green Premium™

Transparency

RoHS/REACh

Contact sales

Contact support

Subscribe to the newsletter

Main documents

Documents

Product Datasheet

User guide

Instruction Sheet

Catalog

Technical Drawing

CAD Document

Environmental Disclosure

See all documents

This product is compatible with

Spare parts

Spare parts (2)

Compatible Software

Schneider Electric PSWSANCZZSPEZZ Picture

PSWSANCZZSPEZZ

Power Monitoring Expert Standard Edition BASE licence (incld 1 Engineering C)

Specifications

Main

Range of Product

Altivar 61

Product or Component Type

Variable speed drive

Product Specific Application

Pumping and ventilation machine

Component name

ATV61

Motor power kW

160 kW, 3 phase 380...480 V

Maximum Horse Power Rating

250 hp, 3 phase 380...480 V

power supply voltage

380...480 V - 15...10 %

supply number of phases

3 phase

Line current

275 A 480 V 3 phase 160 kW / 250 hp

289 A 380 V 3 phase 160 kW / 250 hp

EMC filter

Level 3 EMC filter

Assembly style

With heat sink

Apparent power

190.2 kVA 380 V 3 phase 160 kW / 250 hp

maximum prospective line Isc

50 kA 3 phase

Maximum transient current

376.8 A 60 s, 3 phase

Nominal switching frequency

2.5 kHz

Switching frequency

2...8 kHz adjustable

2.5...8 kHz with derating factor

asynchronous motor control

Voltage/frequency ratio - Energy Saving, quadratic U/f

Voltage/frequency ratio, 5 points

Voltage/frequency ratio, 2 points

Flux vector control without sensor, standard

Synchronous motor control profile

Vector control without sensor, standard

Communication Port Protocol

CANopen

Modbus

Type of polarization

No impedance Modbus

Option card

Communication card APOGEE FLN

Communication card BACnet

Communication card CC-Link

Controller inside programmable card

Communication card DeviceNet

Communication card EtherNet/IP

Communication card Fipio

I/O extension card

Communication card Interbus-S

Communication card LonWorks

Communication card METASYS N2

Communication card Modbus Plus

Communication card Modbus TCP

Communication card Modbus/Uni-Telway

Multi-pump card

Communication card Profibus DP

Communication card Profibus DP V1

Complementary

Product destination

Asynchronous motors

Synchronous motors

power supply voltage limits

323…528 V

power supply frequency

50...60 Hz - 5...5 %

power supply frequency limits

47.5...63 Hz

Continuous output current

314 A 2.5 kHz, 380 V - 3 phase

314 A 2.5 kHz, 460 V - 3 phase

Output frequency

0.1…500 Hz

Speed range

1…100 in open-loop mode, without speed feedback

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback

Torque accuracy

+/- 15 % in open-loop mode, without speed feedback

Transient overtorque

130 % of nominal motor torque +/- 10 % 60 s

Braking torque

<= 125 % with braking resistor

30 % without braking resistor

Regulation loop

Frequency PI regulator

Motor slip compensation

Automatic whatever the load

Can be suppressed

Adjustable

Not available in voltage/frequency ratio (2 or 5 points)

diagnostic

For drive voltage 1 LED (red)

Output voltage

<= power supply voltage

electrical isolation

Between power and control terminals

type of cable for mounting in an enclosure

With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC

With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC

Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC

Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR

Electrical connection

Terminal 2.5 mm² / AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)

Terminal 2 x 120 mm² / 2 x 250 kcmil L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)

Terminal 120 mm² / 250 kcmil PA, PB)

Terminal 2 x 120 mm² / 2 x 250 kcmil PC/-, PO, PA/+)

Tightening torque

5.31 lbf.in (0.6 N.m) AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)

212.42 lbf.in (24 N.m), 212 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)

212.42 lbf.in (24 N.m), 212 lb.in PA, PB)

212.42 lbf.in (24 N.m), 212 lb.in PC/-, PO, PA/+)

Supply

Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC, +/- 5 %, <10 mA overload and short-circuit protection

Internal supply 24 V DC 21…27 V), <200 mA overload and short-circuit protection

External supply 24 V DC 19…30 V)

Analogue input number

Analogue input type

AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign

AI2 software-configurable current 0...20 mA 242 Ohm 11 bits

AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits

sampling time

2 ms +/- 0.5 ms AI1-/Al1+) - analog input

2 ms +/- 0.5 ms Al2) - analog input

2 ms +/- 0.5 ms AO1) - analog output

2 ms +/- 0.5 ms LI1...LI5) - discrete input

2 ms +/- 0.5 ms LI6)if configured as logic input - discrete input

absolute accuracy precision

+/- 0.6 % AI1-/Al1+) for a temperature variation 60 °C

+/- 0.6 % AI2) for a temperature variation 60 °C

+/- 1 % AO1) for a temperature variation 60 °C

Linearity error

+/- 0.15 % of maximum value AI1-/Al1+)

+/- 0.15 % of maximum value AI2)

+/- 0.2 % AO1)

Analogue output number

Analogue output type

AO1 software-configurable current 0...20 mA 500 Ohm 10 bits

AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits

AO1 software-configurable logic output 10 V, 20 mA

Discrete output number

Discrete output type

Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles

Configurable relay logic R2A, R2B) NO - 100000 cycles

maximum response time

<= 100 ms in STO (Safe Torque Off)

R1A, R1B, R1C <= 7 ms +/- 0.5 ms

R2A, R2B <= 7 ms +/- 0.5 ms

Minimum switching current

3 mA 24 V DC configurable relay logic

Maximum switching current

R1, R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms

R1, R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms

R1, R2 5 A 250 V AC resistive, cos phi = 1 0 ms

R1, R2 5 A 30 V DC resistive, cos phi = 1 0 ms

Discrete input number

Discrete input type

Programmable LI1...LI5) 24 V DC <= 30 V)level 1 PLC - 3500 Ohm

Switch-configurable LI6) 24 V DC <= 30 V)level 1 PLC - 3500 Ohm

Switch-configurable PTC probe LI6)0…6 - 1500 Ohm

Safety input PWR) 24 V DC <= 30 V) - 1500 Ohm

Discrete input logic

Negative logic (sink) LI1...LI5), > 16 V, < 10 V

Positive logic (source) LI1...LI5), < 5 V, > 11 V

Negative logic (sink) LI6)if configured as logic input, > 16 V, < 10 V

Positive logic (source) LI6)if configured as logic input, < 5 V, > 11 V

Acceleration and deceleration ramps

S, U or customized

Linear adjustable separately from 0.01 to 9000 s

Automatic adaptation of ramp if braking capacity exceeded, by using resistor

Braking to standstill

By DC injection

Protection type

Against exceeding limit speed drive

Against input phase loss drive

Break on the control circuit drive

Input phase breaks drive

Line supply overvoltage drive

Line supply undervoltage drive

Overcurrent between output phases and earth drive

Overheating protection drive

Overvoltages on the DC bus drive

Power removal drive

Short-circuit between motor phases drive

Thermal protection drive

Motor phase break motor

Power removal motor

Thermal protection motor

Insulation resistance

> 1 mOhm 500 V DC for 1 minute to earth

Frequency resolution

Analog input 0.024/50 Hz

Display unit 0.1 Hz

Connector type

1 RJ45 on front face)Modbus

1 RJ45 on terminal)Modbus

Male SUB-D 9 on RJ45CANopen

Physical interface

2-wire RS 485 Modbus

Transmission frame

RTU Modbus

Transmission rate

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal

9600 bps, 19200 bps Modbus on front face

20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen

Data format

8 bits, 1 stop, even parity Modbus on front face

8 bits, odd even or no configurable parity Modbus on terminal

Number of addresses

1…127 CANopen

1…247 Modbus

Method of access

Slave CANopen

Marking

Operating position

Vertical +/- 10 degree

Product Weight

255.74 lb(US) (116 kg)

Width

13.39 in (340 mm)

Height

46.85 in (1190 mm)

Depth

14.84 in (377 mm)

Environment

Noise level

66 dB 86/188/EEC

Dielectric strength

3535 V DC between earth and power terminals

5092 V DC between control and power terminals

Electromagnetic compatibility

Conducted radio-frequency immunity test level 3 IEC 61000-4-6

Electrical fast transient/burst immunity test level 4 IEC 61000-4-4

Electrostatic discharge immunity test level 3 IEC 61000-4-2

Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3

Voltage dips and interruptions immunity test IEC 61000-4-11

Standards

EN 55011 class A group 2

EN 61800-3 environments 2 category C3

EN 61800-3 environments 1 category C3

UL Type 1

IEC 60721-3-3 class 3C2

EN/IEC 61800-3

EN/IEC 61800-5-1

Product Certifications

GOST

DNV

NOM 117

CSA

C-tick

Pollution degree

3 EN/IEC 61800-5-1

3 UL 840

degree of proctection

IP41 on upper part EN/IEC 60529

IP41 on upper part EN/IEC 61800-5-1

IP54 on lower part EN/IEC 60529

IP54 on lower part EN/IEC 61800-5-1

IP00 EN/IEC 60529

IP00 EN/IEC 61800-5-1

IP30 on side parts EN/IEC 60529

IP30 on side parts EN/IEC 61800-5-1

IP30 on the front panel EN/IEC 60529

IP30 on the front panel EN/IEC 61800-5-1

Vibration resistance

0.6 gn 10…200 Hz)EN/IEC 60068-2-6

1.5 mm peak to peak 3…10 Hz)EN/IEC 60068-2-6

Shock resistance

7 gn 11 ms EN/IEC 60068-2-27

Relative humidity

5…95 % without condensation IEC 60068-2-3

5…95 % without dripping water IEC 60068-2-3

Ambient air temperature for operation

14…113 °F (-10…45 °C) without derating)

113…140 °F (45…60 °C) with derating factor)

Ambient Air Temperature for Storage

-13…158 °F (-25…70 °C)

Operating altitude

<= 3280.84 ft (1000 m) without derating

3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m

Ordering and shipping details

Schneider ATV61HD75N4 75KW, ATV61HD90N4 90KW, ATV61HC11N4 110KW, ATV61HC13N4 132KW, ATV61HC16N4 160KW, ATV61HC22N4 220KW(200KW)

INQUIRY

Inquiry MORE+

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

We are the world's leading supplier of spare parts for medium voltage drives of various brands

GET IN TOUCH

East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong

Call us : +852 5261 7322

Email us : [email protected]

SITEMAP

分类标题

BUSINESS HOURS

Monday to Friday : 9 am to 6 pm

Saturday : 9 am to 12 am

Sunday : Closed Support Hours in 24/7 Everyday

DISCLAIMER:

We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.

Cancel

添加微信好友，详细了解产品

使用企业微信
“扫一扫”加入群聊

复制成功

添加微信好友，详细了解产品

我知道了

Schneider ATV61HD75N4 75KW, ATV61HD90N4 90KW, ATV61HC11N4 110KW, ATV61HC13N4 132KW, ATV61HC16N4 160KW, ATV61HC22N4 220KW(200KW)

Schneider ATV61HD75N4 75KW, ATV61HD90N4 90KW, ATV61HC11N4 110KW, ATV61HC13N4 132KW, ATV61HC16N4 160KW, ATV61HC22N4 220KW(200KW)

分享至微信
