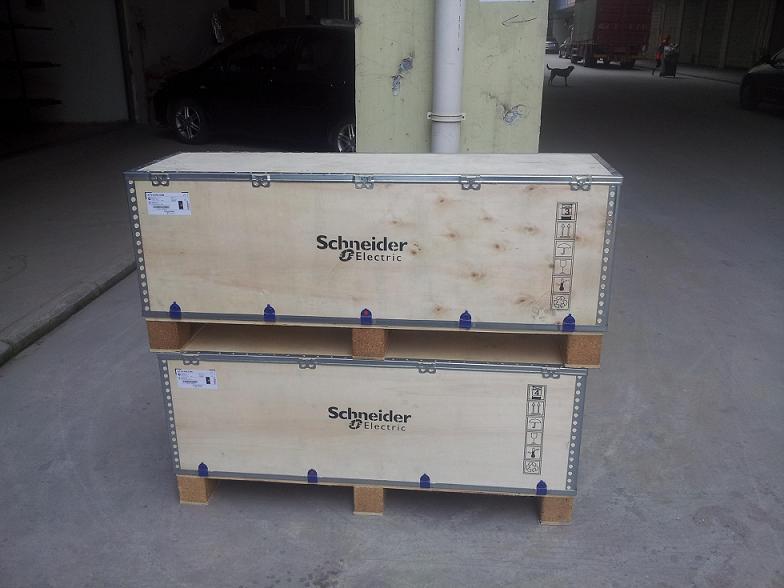

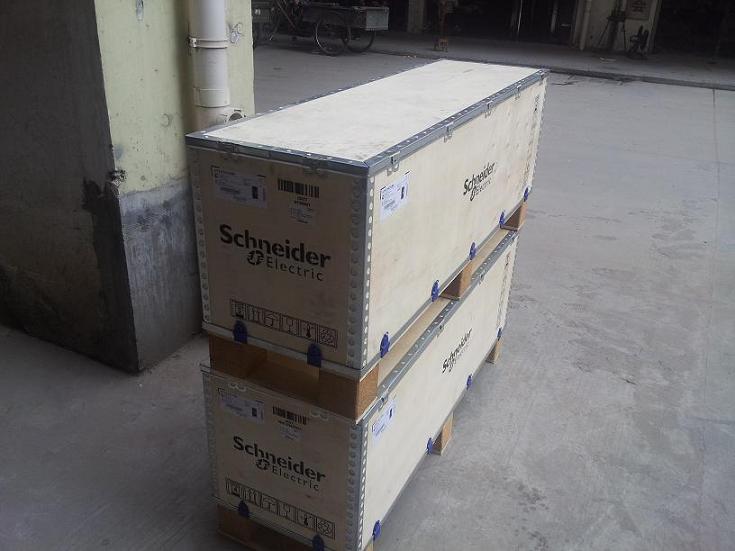

Schneider ATV71HC25N4 220KW(250KW), ATV71HC28N4 280KW, ATV71HC31N4 315KW, ATV71HC40N4 355KW(400KW), ATV71HC50N4 500KW
Schneider ATV71HC25N4 220KW(250KW), ATV71HC28N4 280KW, ATV71HC31N4 315KW, ATV71HC40N4 355KW(400KW), ATV71HC50N4 500KW
Schneider ATV71HC25N4 220KW(250KW), ATV71HC28N4 280KW, ATV71HC31N4 315KW, ATV71HC40N4 355KW(400KW), ATV71HC50N4 500KW
View all Altivar 71
ATV71HC25N4 Product picture Schneider Electric
variable speed drive ATV71 - 250kW-400HP - 480V - EMC filter-graphic terminal
ATV71HC25N4
Compare
Discontinued on:
12 January 2021
To be end-of-service on:
01 January 2026
Recommended replacement(s)
ATV71HC25N4 may be replaced by any of the following products:
1×
ATV930C31N4C Product picture Schneider Electric
variable speed drive - ATV930 - 315kW - 400/480V - w/o braking unit - IP00
ATV930C31N4C
1×
ATV930C31N4F Product picture Schneider Electric
floor standing drive - ATV930 - 315kW - 400/440V- w/o braking unit - IP21
ATV930C31N4F
Environmental performance of the product Learn more
Sustainable by Design
Green Premium™
Transparency
Transparency
RoHS/REACh
RoHS/REACh
Contact Sales
Contact support
Subscribe to the newsletter
Main documents
Documents
Product Datasheet
User guide
Instruction sheet
Catalogue
CAD Document
Environmental disclosure
See all documents
This product is compatible with
Spare parts
Spare parts (2)
Specifications
Main
Range of product
Altivar 71
Product or component type
Variable speed drive
Product specific application
Complex, high-power machines
Component name
ATV71
Motor power kW
220 kW, 3 phases at 380...480 V
250 kW, 3 phases at 380...480 V
Motor power hp
350 hp, 3 phases at 380...480 V
400 hp, 3 phases at 380...480 V
Maximum motor cable length
100 m shielded cable
200 m unshielded cable
power supply voltage
380...480 V - 15...10 %
Network number of phases
3 phases
Line current
320 A for 480 V 3 phases 220 kW / 350 hp
357 A for 480 V 3 phases 250 kW / 400 hp
396 A for 380 V 3 phases 220 kW / 350 hp
444 A for 380 V 3 phases 250 kW / 400 hp
EMC filter
Integrated
Assembly style
With heat sink
Variant
Reinforced version
Apparent power
260.6 kVA at 380 V 3 phases 220 kW / 350 hp
292.2 kVA at 380 V 3 phases 250 kW / 400 hp
Prospective line Isc
50 kA for 3 phases
Nominal output current
427 A at 2.5 kHz 380 V 3 phases 220 kW / 350 hp
427 A at 2.5 kHz 460 V 3 phases 220 kW / 350 hp
481 A at 2.5 kHz 380 V 3 phases 250 kW / 400 hp
481 A at 2.5 kHz 460 V 3 phases 250 kW / 400 hp
Maximum transient current
640 A for 60 s 3 phases 220 kW / 350 hp
704 A for 2 s 3 phases 220 kW / 350 hp
721 A for 60 s 3 phases 250 kW / 400 hp
793 A for 2 s 3 phases 250 kW / 400 hp
Output frequency
0.1…500 Hz
Nominal switching frequency
2.5 kHz
Switching frequency
2.5...8 kHz adjustable
2.5...8 kHz with derating factor
Asynchronous motor control profile
Sensorless flux vector control (SFVC) (voltage or current vector)
Flux vector control (FVC) with sensor (current vector)
Voltage/frequency ratio (2 or 5 points)
ENA (Energy adaptation) system for unbalanced loads
Type of polarization
No impedance for Modbus
Complementary
Product destination
Synchronous motors
Asynchronous motors
power supply voltage limits
323…528 V
power supply frequency
50...60 Hz - 5...5 %
power supply frequency limits
47.5...63 Hz
Speed range
1…100 for asynchronous motor in open-loop mode, without speed feedback
1…1000 for asynchronous motor in closed-loop mode with encoder feedback
1…50 for synchronous motor in open-loop mode, without speed feedback
Speed accuracy
+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn
+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn
Torque accuracy
+/- 15 % in open-loop mode, without speed feedback
+/- 5 % in closed-loop mode with encoder feedback
Transient overtorque
170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes
220 % of nominal motor torque +/- 10 % for 2 s
Braking torque
<= 150 % with braking or hoist resistor
30 % without braking resistor
Synchronous motor control profile
Vector control without speed feedback
Regulation loop
Adjustable PI regulator
Motor slip compensation
Not available in voltage/frequency ratio (2 or 5 points)
Automatic whatever the load
Adjustable
Suppressable
diagnostic
1 LED (red) for drive voltage
Output voltage
<= power supply voltage
insulation
Electrical between power and control
type of cable for mounting in an enclosure
With a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Electrical connection
Terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Terminal, clamping capacity: 4 x 185 mm² (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
Terminal, clamping capacity: 4 x 185 mm² (PC/-, PA/+)
Tightening torque
0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
41 N.m, 360 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
41 N.m, 360 lb.in (PC/-, PA/+)
Supply
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Analogue input number
2
Analogue input type
AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits
input sampling time
2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)
2 ms +/- 0.5 ms (Al2) - analog input(s)
2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)
2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)
Response time
<= 100 ms in STO (Safe Torque Off)
AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)
R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)
R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)
absolute accuracy precision
+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
+/- 0.6 % (AI2) for a temperature variation 60 °C
+/- 1 % (AO1) for a temperature variation 60 °C
Linearity error
+/- 0.15 % of maximum value (AI1-/Al1+, AI2)
+/- 0.2 % (AO1)
Analogue output number
1
Analogue output type
AO1 software-configurable logic output 10 V 20 mA
AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits
AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits
Discrete output number
2
Discrete output type
Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
Configurable relay logic: (R2A, R2B) NO - 100000 cycles
Minimum switching current
3 mA at 24 V DC for configurable relay logic
Maximum switching current
R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
R1, R2: 5 A at 250 V AC resistive load, cos phi = 1
R1, R2: 5 A at 30 V DC resistive load, cos phi = 1
Discrete input number
7
Discrete input type
LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6: switch-configurable PTC probe 0…6, impedance: 1500 Ohm
PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d
Discrete input logic
Negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)
Acceleration and deceleration ramps
Automatic adaptation of ramp if braking capacity exceeded, by using resistor
Linear adjustable separately from 0.01 to 9000 s
S, U or customized
Braking to standstill
By DC injection
Protection type
Against exceeding limit speed: drive
Against input phase loss: drive
Break on the control circuit: drive
Input phase breaks: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Overcurrent between output phases and earth: drive
Overheating protection: drive
Overvoltages on the DC bus: drive
Short-circuit between motor phases: drive
Thermal protection: drive
Motor phase break: motor
Power removal: motor
Thermal protection: motor
Insulation resistance
> 1 mOhm 500 V DC for 1 minute to earth
Frequency resolution
Analog input: 0.024/50 Hz
Display unit: 0.1 Hz
Communication port protocol
CANopen
Modbus
Connector type
1 RJ45 (on front face) for Modbus
1 RJ45 (on terminal) for Modbus
Male SUB-D 9 on RJ45 for CANopen
Physical interface
2-wire RS 485 for Modbus
Transmission frame
RTU for Modbus
Transmission rate
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
9600 bps, 19200 bps for Modbus on front face
20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen
Data format
8 bits, 1 stop, even parity for Modbus on front face
8 bits, odd even or no configurable parity for Modbus on terminal
Number of addresses
1…127 for CANopen
1…247 for Modbus
Method of access
Slave CANopen
Marking
CE
Operating position
Vertical +/- 10 degree
Height
1190 mm
Depth
377 mm
Width
595 mm
Product weight
207 kg
Functionality
Full
Specific application
Other applications
Option card
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Interface card for encoder
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Overhead crane card
Communication card for Profibus DP
Communication card for Profibus DP V1
Environment
Noise level
77 dB conforming to 86/188/EEC
Dielectric strength
3535 V DC between earth and power terminals
5092 V DC between control and power terminals
Electromagnetic compatibility
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Standards
EN/IEC 61800-5-1
UL Type 1
IEC 60721-3-3 class 3C2
EN 61800-3 environments 1 category C3
EN/IEC 61800-3
EN 55011 class A group 2
EN 61800-3 environments 2 category C3
Product certifications
NOM 117
GOST
CSA
C-Tick
UL
Pollution degree
2 conforming to EN/IEC 61800-5-1
3 conforming to UL 840
IP degree of protection
IP20
Vibration resistance
0.6 gn (f= 10…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3…10 Hz) conforming to EN/IEC 60068-2-6
Shock resistance
4 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity
5…95 % without condensation conforming to IEC 60068-2-3
5…95 % without dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation
-10…50 °C (without derating)
Ambient air temperature for storage
-25…70 °C
Operating altitude
<= 1000 m without derating
1000...3000 m with current derating 1 % per 100 m
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
43.0 cm
Package 1 Width
51.0 cm
Package 1 Length
122.5 cm
Package 1 Weight
68.0 kg
Contractual warranty
Warranty
12 months
View all Altivar 71
ATV71HC40N4 Product picture Schneider Electric
variable speed drive ATV71 - 400kW-600HP - 480V - EMC filter-graphic terminal
ATV71HC40N4
Compare
To be discontinued on:
01 January 2026
ATV71HC40N4 has not been replaced. Please contact your customer care centre for more information.
Environmental performance of the product Learn more
Sustainable by Design
Green Premium™
Transparency
Transparency
RoHS/REACh
RoHS/REACh
Sales support
Contact support
Subscribe to the newsletter
Main documents
Documents
Product datasheet
User guide
Instruction sheet
Catalogue
CAD file
Environmental disclosure
See all documents
This product is compatible with
Spare parts
Spare parts (2)
Specifications
Main
Range of product
Altivar 71
Product or component type
Variable speed drive
Product specific application
Complex, high-power machines
Component name
ATV71
Motor power kW
355 kW, 3 phases at 380...480 V
400 kW, 3 phases at 380...480 V
Motor power hp
600 hp, 3 phases at 380...480 V
Maximum motor cable length
100 m shielded cable
200 m unshielded cable
power supply voltage
380...480 V - 15...10 %
Network number of phases
3 phases
Line current
512 A for 480 V 3 phases 355 kW
568 A for 480 V 3 phases 400 kW / 600 hp
637 A for 380 V 3 phases 355 kW
709 A for 380 V 3 phases 400 kW / 600 hp
EMC filter
Integrated
Assembly style
With heat sink
Variant
Reinforced version
Apparent power
419.3 kVA at 380 V 3 phases 355 kW
466.6 kVA at 380 V 3 phases 400 kW / 600 hp
Prospective line Isc
50 kA for 3 phases
Nominal output current
671 A at 2.5 kHz 380 V 3 phases 355 kW
671 A at 2.5 kHz 460 V 3 phases 355 kW
759 A at 2.5 kHz 380 V 3 phases 400 kW / 600 hp
759 A at 2.5 kHz 460 V 3 phases 400 kW / 600 hp
Maximum transient current
1138 A for 60 s 3 phases 400 kW / 600 hp
1252 A for 2 s 3 phases 400 kW / 600 hp
1006 A for 60 s 3 phases 355 kW
1107 A for 2 s 3 phases 355 kW
Output frequency
0.1…500 Hz
Nominal switching frequency
2.5 kHz
Switching frequency
2.5...8 kHz adjustable
2.5...8 kHz with derating factor
Asynchronous motor control profile
ENA (Energy adaptation) system for unbalanced loads
Voltage/frequency ratio (2 or 5 points)
Flux vector control (FVC) with sensor (current vector)
Sensorless flux vector control (SFVC) (voltage or current vector)
Type of polarization
No impedance for Modbus
Complementary
Product destination
Synchronous motors
Asynchronous motors
power supply voltage limits
323…528 V
power supply frequency
50...60 Hz - 5...5 %
power supply frequency limits
47.5...63 Hz
Speed range
1…100 for asynchronous motor in open-loop mode, without speed feedback
1…1000 for asynchronous motor in closed-loop mode with encoder feedback
1…50 for synchronous motor in open-loop mode, without speed feedback
Speed accuracy
+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn
+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn
Torque accuracy
+/- 15 % in open-loop mode, without speed feedback
+/- 5 % in closed-loop mode with encoder feedback
Transient overtorque
170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes
220 % of nominal motor torque +/- 10 % for 2 s
Braking torque
<= 150 % with braking or hoist resistor
30 % without braking resistor
Synchronous motor control profile
Vector control without speed feedback
Regulation loop
Adjustable PI regulator
Motor slip compensation
Not available in voltage/frequency ratio (2 or 5 points)
Suppressable
Automatic whatever the load
Adjustable
diagnostic
1 LED (red) for drive voltage
Output voltage
<= power supply voltage
insulation
Electrical between power and control
type of cable for mounting in an enclosure
With a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Electrical connection
Terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Terminal, clamping capacity: 8 x 185 mm² (PC/-, PA/+)
Terminal, clamping capacity: 2 x 2 x 185 mm² (R/L1.1, S/L2.1, T/L3.1, R/L1.2, S/L2.2, T/L3.2)
Terminal, clamping capacity: 4 x 185 mm² (U/T1, V/T2, W/T3)
Tightening torque
0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
41 N.m, 360 lb.in (PC/-, PA/+)
41 N.m, 360 lb.in (R/L1.1, S/L2.1, T/L3.1, R/L1.2, S/L2.2, T/L3.2)
41 N.m, 360 lb.in (U/T1, V/T2, W/T3)
Supply
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Analogue input number
2
Analogue input type
AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits
input sampling time
2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)
2 ms +/- 0.5 ms (Al2) - analog input(s)
2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)
2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)
Response time
<= 100 ms in STO (Safe Torque Off)
AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)
R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)
R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)
absolute accuracy precision
+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
+/- 0.6 % (AI2) for a temperature variation 60 °C
+/- 1 % (AO1) for a temperature variation 60 °C
Linearity error
+/- 0.15 % of maximum value (AI1-/Al1+, AI2)
+/- 0.2 % (AO1)
Analogue output number
1
Analogue output type
AO1 software-configurable logic output 10 V 20 mA
AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits
AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits
Discrete output number
2
Discrete output type
Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
Configurable relay logic: (R2A, R2B) NO - 100000 cycles
Minimum switching current
3 mA at 24 V DC for configurable relay logic
Maximum switching current
R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
R1, R2: 5 A at 250 V AC resistive load, cos phi = 1
R1, R2: 5 A at 30 V DC resistive load, cos phi = 1
Discrete input number
7
Discrete input type
LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6: switch-configurable PTC probe 0…6, impedance: 1500 Ohm
PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d
Discrete input logic
Negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)
Acceleration and deceleration ramps
Linear adjustable separately from 0.01 to 9000 s
Automatic adaptation of ramp if braking capacity exceeded, by using resistor
S, U or customized
Braking to standstill
By DC injection
Protection type
Against exceeding limit speed: drive
Against input phase loss: drive
Break on the control circuit: drive
Input phase breaks: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Overcurrent between output phases and earth: drive
Overheating protection: drive
Overvoltages on the DC bus: drive
Short-circuit between motor phases: drive
Thermal protection: drive
Motor phase break: motor
Power removal: motor
Thermal protection: motor
Insulation resistance
> 1 mOhm 500 V DC for 1 minute to earth
Frequency resolution
Analog input: 0.024/50 Hz
Display unit: 0.1 Hz
Communication port protocol
Modbus
CANopen
Connector type
1 RJ45 (on front face) for Modbus
1 RJ45 (on terminal) for Modbus
Male SUB-D 9 on RJ45 for CANopen
Physical interface
2-wire RS 485 for Modbus
Transmission frame
RTU for Modbus
Transmission rate
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
9600 bps, 19200 bps for Modbus on front face
20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen
Data format
8 bits, 1 stop, even parity for Modbus on front face
8 bits, odd even or no configurable parity for Modbus on terminal
Number of addresses
1…127 for CANopen
1…247 for Modbus
Method of access
Slave CANopen
Marking
CE
Operating position
Vertical +/- 10 degree
Height
1390 mm
Depth
377 mm
Width
890 mm
Product weight
330 kg
Functionality
Full
Specific application
Other applications
Option card
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Interface card for encoder
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Overhead crane card
Communication card for Profibus DP
Communication card for Profibus DP V1
Environment
Noise level
77 dB conforming to 86/188/EEC
Dielectric strength
3535 V DC between earth and power terminals
5092 V DC between control and power terminals
Electromagnetic compatibility
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Standards
UL Type 1
EN 61800-3 environments 1 category C3
EN/IEC 61800-5-1
IEC 60721-3-3 class 3C2
EN 61800-3 environments 2 category C3
EN 55011 class A group 2
EN/IEC 61800-3
Product certifications
UL
CSA
NOM 117
C-Tick
GOST
Pollution degree
2 conforming to EN/IEC 61800-5-1
3 conforming to UL 840
IP degree of protection
IP20
Vibration resistance
0.6 gn (f= 10…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3…10 Hz) conforming to EN/IEC 60068-2-6
Shock resistance
4 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity
5…95 % without condensation conforming to IEC 60068-2-3
5…95 % without dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation
-10…50 °C (without derating)
Ambient air temperature for storage
-25…70 °C
Operating altitude
<= 1000 m without derating
1000...3000 m with current derating 1 % per 100 m
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
53.0 cm
Package 1 Width
92.0 cm
Package 1 Length
145.0 cm
Package 1 Weight
336.0 kg
Contractual warranty
Warranty
18 months
ATV71H075N4 0.75KW
ATV71HU15N4 1.5KW
ATV71HU22N4 2.2KW
ATV71HU30N4 3.0KW
ATV71HU40N4 4.0KW
ATV71HU55N4 5.5KW
ATV71HU75N4 7.5KW
ATV71HD11N4 11KW
ATV71HD15N4 15KW
ATV71HD18N4 18.5KW
ATV71HD22N4 22KW
ATV71HD30N4 30KW
ATV71HD37N4 37KW
ATV71HD45N4 45KW
ATV71HD55N4 55KW
ATV71HD75N4 75KW
ATV71HD90N4 90KW
ATV71HC11N4 110KW
ATV71HC13N4 132KW
ATV71HC16N4 160KW
ATV71HC20N4 200KW
ATV71HC25N4 220KW(250KW)
ATV71HC28N4 280KW
ATV71HC31N4 315KW
ATV71HC40N4 355（400KW）
ATV71HC50N4 500KW
, ATV61HU15M3S337, ATV61HU22M3S337, ATV61HU30M3S337, ATV61HU40M3S337, ATV61HU55M3S337
, ATV61HU75M3S337, ATV61HD11M3X337, ATV61HD15M3X337, ATV61HD18M3X337, ATV61HD22M3X337
, ATV61HD30M3X337, ATV61HD37M3X337, ATV61HD45M3X337, ATV61H075N4S337, ATV61HU15N4S337
, ATV61HU22N4S337, ATV61HU30N4S337, ATV61HU40N4S337, ATV61HU55N4S337, ATV61HU75N4S337
, ATV61HD11N4S337, ATV61HD15N4S337, ATV61HD18N4S337, ATV61HD22N4S337, ATV61HD30N4S337
, ATV61HD37N4S337, ATV61HD45N4S337, ATV61HD55N4S337, ATV61HD75N4S337, ATV61E5C11N4
, ATV61E5C13N4, ATV61E5C16N4, ATV61E5C22N4, ATV61E5C25N4, ATV61E5C25N4
, ATV71H075N4Z, ATV71HU15N4Z, ATV71HU22N4Z, ATV71HU30N4Z, ATV71HU40N4Z
, ATV71HU55N4Z, ATV71HU75N4Z, ATV71HD11N4Z, ATV71HD15N4Z, ATV71HD18N4, ATV71HD22N4
, ATV71HD30N4, ATV71HD37N4, ATV71HD45N4, ATV71HD55N4, ATV71HD75N4, ATV71HD18N4Z
, ATV71HD22N4Z, ATV71HD30N4Z, ATV71HD37N4Z, ATV71HD45N4Z, ATV71HD55N4Z
, ATV71HD75N4Z, ATV71HD90N4, ATV71HC11N4, ATV71HC13N4, ATV71HC16N4
, ATV71HC20N4, ATV71HC25N4, ATV71H075N4, ATV71HU15N4, ATV71HU22N4
, ATV71HU30N4, ATV71HU40N4, ATV71HU55N4, ATV71HU75N4, ATV71HD11N4
, ATV71HD15N4, ATV71HD90N4D, ATV71HC11N4D, ATV71HC13N4D
, ATV71HC16N4D, ATV71HC20N4D, ATV71HC25N4D, ATV71H075N4S337, ATV71HU15N4S337
, ATV71HU22N4S337, ATV71HU30N4S337, ATV71HU40N4S337, ATV71HU55N4S337, ATV71HU75N4S337
, ATV71HD11N4S337, ATV71HD15N4S337, ATV71HD18N4S337, ATV71HD22N4S337, ATV71HD30N4S337
, ATV71HD37N4S337, ATV71HD45N4S337, ATV71HD55N4S337, ATV71HD75N4S337, ATV71H075M3S337
, ATV71HU15M3S337, ATV71HU22M3S337, ATV71HU30M3S337, ATV71HU40M3S337, ATV71HU55M3S337
, ATV71HU75M3S337, ATV71HD11M3X337, ATV71HD15M3X337, ATV71HD18M3X337, ATV71HD22M3X337
, ATV71HD30M3X337, ATV71HD37M3X337, ATV71HD45M3X337, ATV71HD55M3X337, ATV71HD75M3X337
, ATV71H037M3, ATV71H037M3Z, ATV71H075M3, ATV71H075M3Z, ATV71HU15M3, ATV71HU15M3Z
, ATV71HU22M3, ATV71HU22M3Z, ATV71HU30M3, ATV71HU30M3Z, ATV71HU40M3, ATV71HU40M3Z
, ATV71HU55M3, ATV71HU55M3Z, ATV71HU75M3, ATV71HU75M3Z, ATV71HD11M3X, ATV71HD11M3XZ
, ATV71HD15M3X, ATV71HD15M3XZ, ATV71HD18M3X, ATV71HD22M3X, ATV71HD30M3X, ATV71HD37M3X
, ATV71HD45M3X, ATV71HD55M3X, ATV71HD55M3XD, ATV71HD75M3X, ATV71HD75M3XD, ATV71W075N4
, ATV71WU15N4, ATV71WU22N4, ATV71WU30N4, ATV71WU40N4, ATV71WU55N4, ATV71WU75N4, ATV71WD11N4
, ATV71WD15N4, ATV71WD18N4, ATV71WD22N4, ATV71WD30N4, ATV71WD37N4, ATV71WD45N4, ATV71WD55N4
, ATV71WD75N4, ATV71E5D90N4, ATV71E5C11N4, ATV71E5C13N4, ATV71E5C16N4, ATV71E5C20N4, ATV71E5C25N4
, ATV71E5C20N4F
Previous : Schneider ATV71HD75N4 75KW, ATV71HD90N4 90KW, ATV71HC11N4 110KW, ATV71HC13N4 132KW, ATV71HC16N4 160KW, ATV71HC20N4 200KW
Next : Schneider ATV61HC25N4 250KW, ATV61HC31N4 315KW(280KW), ATV61HC40N4 400KW, ATV61HC50N4 500KW, ATV61HC63N4 630KW
Copy product links
Long by picture save/share
Schneider ATV71HC25N4 220KW(250KW), ATV71HC28N4 280KW, ATV71HC31N4 315KW, ATV71HC40N4 355KW(400KW), ATV71HC50N4 500KW
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
