Siemens Robicon A5E01679468, 6SR4960-0FA05-0AD0, Cell Air Filters, GEN4-PH3; A5E01679467, 6SR4960-0FA04-0AD0, Transformer Air Filters, GEN4-PH3
Siemens Robicon A5E01679468, 6SR4960-0FA05-0AD0, Cell Air Filters, GEN4-PH3; A5E01679467, 6SR4960-0FA04-0AD0, Transformer Air Filters, GEN4-PH3
Siemens Robicon A5E01679468, 6SR4960-0FA05-0AD0, Cell Air Filters, GEN4-PH3; A5E01679467, 6SR4960-0FA04-0AD0, Transformer Air Filters, GEN4-PH3
6SR4960-0FA05-0AD0
Product
Image similar
Air filter for cell door 13.63" x 22" x 1"
List Price Show prices
Customer Price Show prices
Service & Support (Manuals, Certificates, FAQs...) Download
Image gallery and data for M-CAD and E-CAD (1) (1)
Product
Article Number (Market Facing Number) 6SR4960-0FA05-0AD0
Product Description Air filter for cell door 13.63" x 22" x 1"
Product family Not available
Product Lifecycle (PLM) PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group 6ZZ / 6ZZ
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : EAR99I / AL : N
Estimated dispatch time (Working Days) 98 Day/Days
Net Weight (kg) 0,600 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 8421398015
LKZ_FDB/ CatalogID D15.2LDSP
Product Group 3662
Group Code P1S4
Country of origin United States of America
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
SCIP number Not available
Classifications
Not available
6SR4960-0FA04-0AD0
Product
Image similar
Air filter for converter door 22" x 19.50" x 1"
List Price Show prices
Customer Price Show prices
Service & Support (Manuals, Certificates, FAQs...) Download
Image gallery and data for M-CAD and E-CAD (1) (1)
Product
Article Number (Market Facing Number) 6SR4960-0FA04-0AD0
Product Description Air filter for converter door 22" x 19.50" x 1"
Product family Not available
Product Lifecycle (PLM) PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group 6ZZ / 6ZZ
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : EAR99I / AL : N
Estimated dispatch time (Working Days) 98 Day/Days
Net Weight (kg) 0,750 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 8421398015
LKZ_FDB/ CatalogID D15.2LDSP
Product Group 3662
Group Code P1S4
Country of origin United States of America
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
SCIP number Not available
Classifications
Not available
Table 4-1: GenIV Spare Parts (for Drives less than or equal to 140A Output, 4160V Output)
Spare Part |
Item Part Number | ||||
Power Cell* |
40A Cell 10000424.040 |
70A Cell 10000424.070 |
100A Cell 10000424.100 |
140A Cell 10000424.140 | |
Cell CCB Fuse |
1000V, 1A Fuse A1A092604 | ||||
Cell Input Fuses |
Refer to chart in Section | ||||
Transformer Air Filters |
Door Filter A1A11006180.01 | ||||

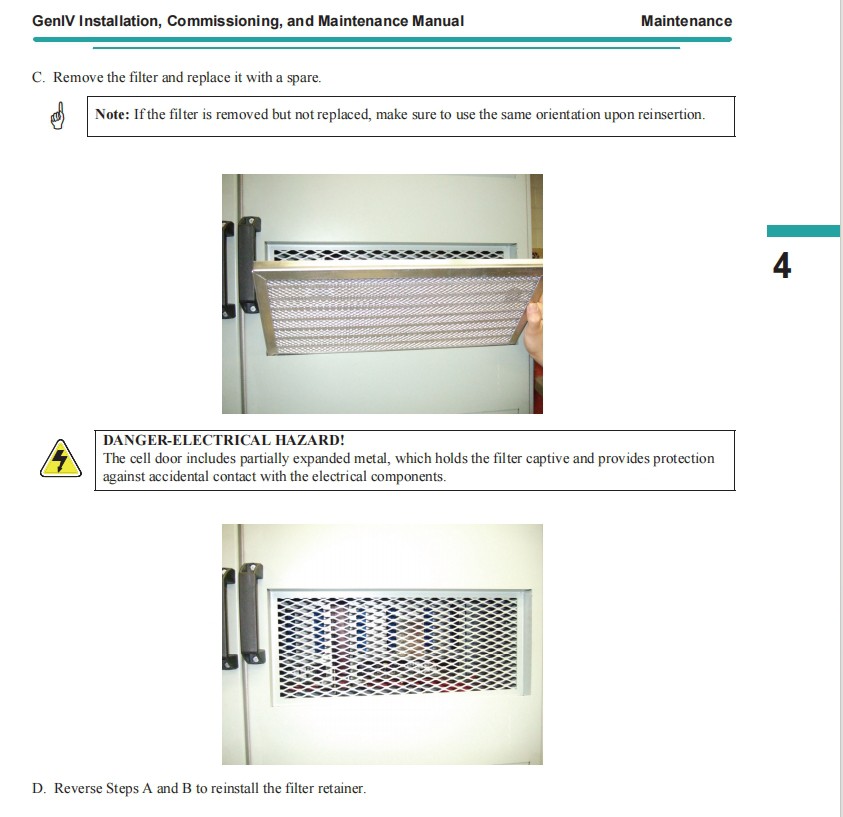

Cell Air Filters |
Door Filter A1A11006180.00 | ||||
NXG |
SBC & Keypad Adapter A1A10000623.000M |
System I/O Board A1A10000423.00 |
BGA Modulator A1A10000350.00M |
I/O Breakout Board |
120V I/O A5E01649325 |
Signal Control Board A1A10000403.01 |
NXGII Power Supply A1A14000461.00 |
Keypad A1A460A68.23 |
24V I/O A5E01649374 | ||
Blower Fuses |
8A, 600V AJT A1A089149 | ||||
Control Transformer Fuse |
Secondary 6A, 600V A1A081099 | ||||
Control Transformer Fuse |
Primary 3A, 600V A1A080752 (480V) |
Primary 3.5A, 600V A1A089205 (400V) | |||
Fiber Optic |
Fiber Optic Link, 2.9M A1A10000614.00 | ||||
Blower |
EC Blower A1A098200 (EBM) | ||||
Cell Bypass |
Bypass Contactor A1A10000539.00 |
Fuse 2A 1200V A1A089592 |
PCA Bypass Control A1A3636601.01M |
Power Supply A1A10000484.00 | |
Communication Network |
Profibus DP A1A252241.155 |
Devicenet Profile12 A1A252241.156 |
Modbus Ethernet A1A252241.157 |
Control Net A1A252241.158 | |
Modbus + A1A252241.159 |
Modbus A1A252241.160 | ||||
GenIV Cell Lifter A1A163496.08 | |||||
Table 4-2: GenIV Spare Parts (for Drives greater than 140A Output, 4160V Output)
Spare Part |
Item Part Number | ||||
Power Cell* |
200A Cell A1A10000424.200 |
260A Cell 10000424.260 | |||
Cell CCB Fuse |
1000V, 1A Fuse A1A092604 | ||||
Cell Input Fuses |
Refer to Table 4-4 | ||||
Transformer Air Filters |
Door Filter (4160V) A1A11006181.01 | ||||
Cell Air Filters |
Door Filter A1A11006181.00 | ||||
NXG |
SBC & Keypad Adapter A1A10000623.000M |
System I/O Board A1A10000423.00M | BGA Modulator A1A10000350.00 M |
I/O Breakout Board |
120V I/O A5E01649325 |
Signal Control Board A1A10000403.01M |
NXGII Power Supply A1A14000461.00M |
Keypad A1A460A26.23 |
24V I/O A5E01649374 | ||
Communications Board A1A363818.00M | |||||
Blower Fuses |
8A, 600V AJT A1A089149 | ||||
Control Transformer Secondary Fuse |
6A, 600V A1A081099 | ||||
Control Transformer Fuse |
480V Primary |
3A, 600V, A1A080752 |
400V Primary |
3.5A, 600V A1A089205 | |
Fiber Optic |
Fiber Optic Link, 3.4m A5E01437712 | ||||
Blower |
EC Blower A1A0100118 | ||||
Cell Bypass |
Bypass Contactor Assembly A1A10000539.00 |
Fuse 2A 1200V A1A089592 |
Bypass Control PCA A1A363662.01M |
Power Supply A1A10000484.00 | |
Spare Part |
Item Part Number | ||||
Communication Network |
Profibus DP A1A252241.155 |
Devicenet Profile12 A1A252241.156 |
Modbus Ethernet A1A252241.157 |
Control Net A1A252241.158 | |
Modbus + A1A252241.159 |
Modbus A1A252241.160 | ||||
Hall Effect |
500A HECT A1A089836 | ||||
Input CT |
CT 50:5 A1A091705 |
CT 75:5 A1A091706 |
CT 100:5 A1A091707 |
CT 150:5 A1A091708 |
CT 200:5 A1A091709 |
CT 250:5 A1A091710 |
CT 300:5 A1A091711 |
CT 400:5 A1A091712 |
CT 500:5 A1A091713 |
CT 600:5 A1A091714 | |
Input Attenuator |
2.4 kV A1A164877.00 |
3.0kV A1A164877.01 |
3.3kV A1A164877.02 |
4.16kV A1A164877.03 | |
4.8 kV A1A164877.04 |
6.0 kV A1A164877.05 |
6.6 kV A1A164877.06 |
6.9 kV A1A164877.07 | ||
7.2 kV A1A164877.08 |
8.4 kV A1A164877.09 |
10.0 kV A1A164877.10 |
11.0 kV A1A164877.11 | ||
12.0 kV A1A164877.12 |
12.5 kV A1A164877.13 |
13.2 kV A1A164877.14 |
13.8 kV A1A164877.15 | ||
Output Attenuator |
4160V A1A164877.03 | ||||
Cell Lifter |
GenIV Cell Lifter A1A163496.08 | ||||
Table 4-3: GenIV Spare Parts (for Drives greater than 140A Output, 6600V Output
Spare Part |
Item Part Number | |||||
Power Cell* |
40A Cell A1A10000424.040 |
70A Cell A1A10000424.070 |
100A Cell 10000424.100 |
140A Cell 10000424.140 |
200A Cell 10000424.200 |
260A Cell 10000424.260 |
Cell CCB Fuse |
1000V, 1A Fuse A1A092604 | |||||
Cell Input Fuses |
Refer to Table 4-4 | |||||
Transformer Air Filters |
Door Filter A5E01679467 | |||||
Cell Air Filters |
Door Filter (6600V) A5E01679468 | |||||
NXGII Control |
SBC & Keypad Adapter A1A10000623.000M |
System I/O Board A1A10000423.00M | BGA Modulator A1A10000350.00 M |
I/O Breakout Board |
120V I/O A5E01649325 | |
Signal Control Board A1A10000403.01M |
Power Supply A1A14000461.00 |
Keypad A1A460A26.23 |
24V I/O A5E01649374 | |||
Communications Board A1A363818.00M |
Fiber-Optic Link Board (FOLB) A1A461D85.00M | |||||
Blower Fuses |
8A, 600V AJT OR 10A, AJT A1A089149A1A089150 | |||||
Blower Circuit Breakers (Optional) |
3P, 10A, 600V A5E01459444 | |||||
Control Transformer Secondary Fuse |
6A, 600V A1A081099 | |||||
Control Transformer Fuse |
480V Primary |
3A, 600V A1A080752 |
400V Primary |
3.5A, 600V A1A089205 | ||
Control Transformer Primary Circuit Breaker (Optional) |
2P, 3A,480V A1A0101400 | |||||
Fiber Optic |
Fiber Optic Link, 10m A1A085868 | |||||
Blower |
60” Transformer Cabinet |
EC Blower A1A098200 |
Cell Section & 80” Transformer Cabinet |
EC Blower A1A0100118 | ||
Cell Bypass |
Bypass Contactor A1A260934.00 |
Fuse 2A 1200V A1A089592 |
Bypass Control PCA A1A363662.01M |
Bypass Power Supply A1A10000484.00 | ||
Communication Network |
Profibus DP A1A252241.155 |
Devicenet Profile12 A1A252241.156 |
Modbus Ethernet A1A252241.157 |
Control Net A1A252241.158 | ||
Modbus + A1A252241.159 |
Modbus A1A252241.160 | |||||
Spare Part |
Item Part Number | |||||
Hall Effect |
200A, HECT A1A089834 |
500A, HECT A1A089836 | ||||
Input CT |
CT 50:5 A1A091705 |
CT 75:5 A1A091706 |
CT 100:5 A1A091707 |
CT 150:5 A1A091708 |
CT 200:5 A1A091709 | |
CT 250:5 A1A091710 |
CT 300:5 A1A091711 |
CT 400:5 A1A091712 |
CT 500:5 A1A091713 |
CT 600:5 A1A091714 | ||
Input Attenuator |
2.4 kV A1A164877.00 |
3.0kV A1A164877.01 |
3.3kV A1A164877.02 |
4.16kV A1A164877.03 | ||
4.8 kV A1A164877.04 |
6.0 kV A1A164877.05 |
6.6 kV A1A164877.06 |
6.9 kV A1A164877.07 | |||
7.2 kV A1A164877.08 |
8.4 kV A1A164877.09 |
10.0 kV A1A164877.10 |
11.0 kV A1A164877.11 | |||
12.0 kV A1A164877.12 |
12.5 kV A1A164877.13 |
13.2 kV A1A164877.14 |
13.8 kV A1A164877.15 | |||
Output Attenuator |
6600V A1A168477.06 | |||||
Cell Lifter |
GenIV Cell Lifter A1A163496.08 | |||||
