Siemens Robicon VFD Power Cell Without Bypass 460F60.04H, Cell Control Board (CCB) 460J45.00, Gate Drive Board (GDB) 460H85.00
Siemens Robicon VFD Power Cell Without Bypass 460F60.04H, Cell Control Board (CCB) 460J45.00, Gate Drive Board (GDB) 460H85.00
Siemens Robicon VFD Power Cell Without Bypass 460F60.04H, Cell Control Board (CCB) 460J45.00, Gate Drive Board (GDB) 460H85.00
Siemens Robicon Micro Processor Board (MB) 469718.00VT, System Module Board (SMB) 362877.01VT, Fiber Optic Hub Board (FOHB) 460B80.00VT
Siemens Robicon Master Link Board (MLB) 469147.04VT, Keypad (KPD) 460A68.00T, Digital Output Module 362871.00VT, Interface Board (IB) 469564.04VT

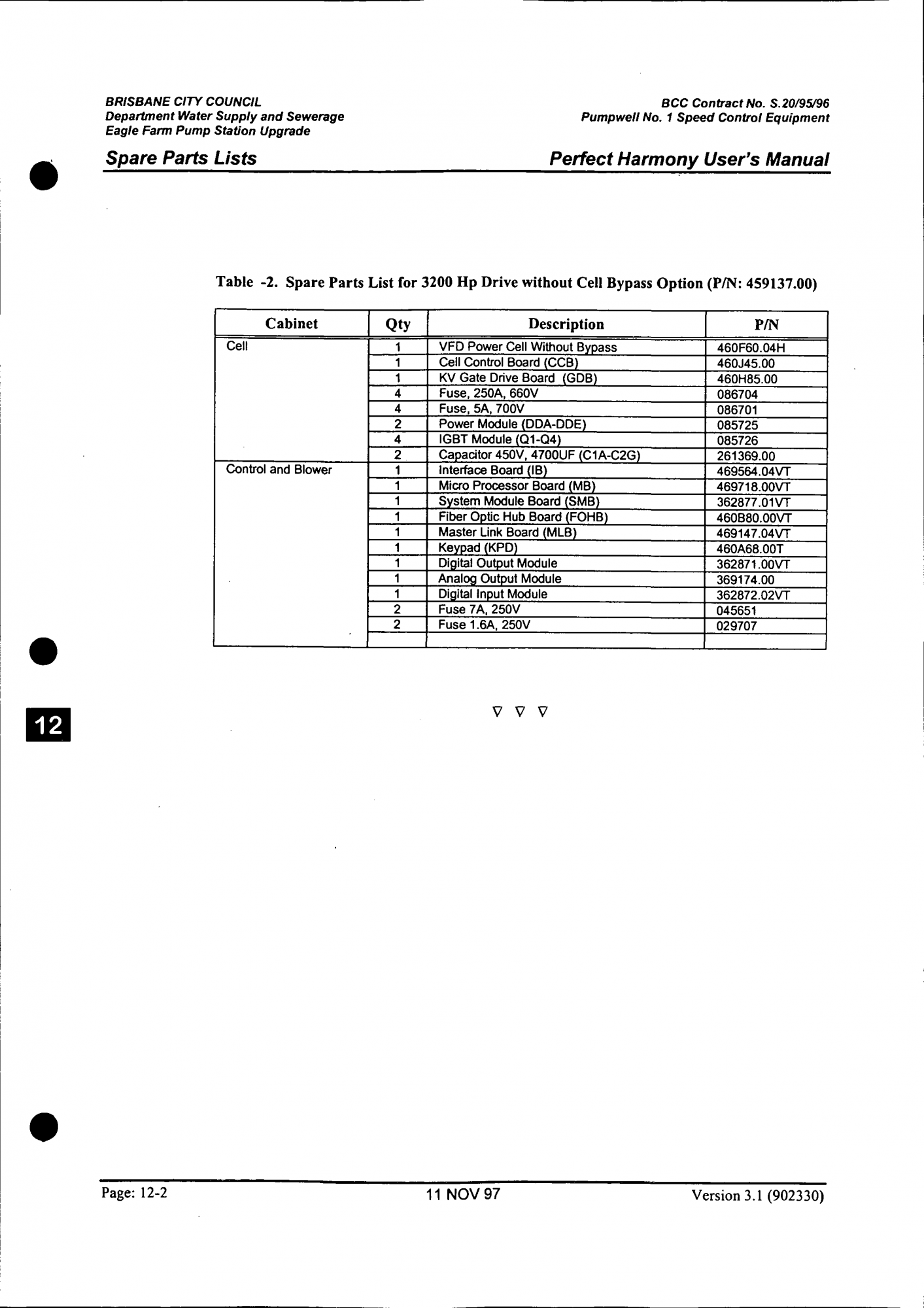

BRISBANE CITY COUNCILDepartment Water Supply and SewerageEagle Farm Pump Station UpgradePerfect Harmony User's ManualBCC Contract No. S.20/95/96Pumpwell No. 1 Speed Control EquipmentSpare Parts ListsCHAPTER 12: SPARE PARTS LISTSIn This Section:Spare parts for 6600V drives 12-1This section contains sample spare parts lists for Perfect Harmony drives. Within each section,the lists are arranged based on horsepower and part number. A base part number is given for eachtable. The part number for each associated spare parts kit is the base part number with the .SPKextension.The spare parts listed in this appendix are for standard drives only. Parts lists for customizeddrives may varyA6. Spare Parts list for 6600V drivesTable -1. Spare Parts List for 2700 Hp Drive without Cell Bypass Option (P/N: 459133.00)Cabinet Qty Description P/NCell 1 VFD Power Cell Without Bypass 460F60.04H 1 Cell Control Board (CCB) 460J45.00 1 KV Gate Drive Board (GDB) 460H85.004 Fuse, 250A, 660V 0867044 Fuse, 5A, 700V 0867012 Power Module (DDA-DDE) 0857254 IGBT Module (Q1-Q4) 0857262 Capacitor 450V, 4700UF (C1A-C2G) 261369.00Control and Blower 1 Interface Board (IB) 469564.04VT1 Micro Processor Board (MB) 469718.00VT1 System Module Board (SMB) 362877.01VT1 Fiber Optic Hub Board (FOHB) 460B80.00VT1 Master Link Board (MLB) 469147.04VT1 Keypad (KPD) 460A68.00T 1 Digital Output Module 362871.00VT 1 Analog Input Module 362153.03 1 Analog Output Module 369174.00 1 Digital Input Module 362872.02VT3 Fuse 3A, 500V 0038782 Fuse 7A, 250V 0456512 Fuse 1.6A, 250V 029707Version 3.1 (902330) 11 NOV 97 Page: 12-1Bunya Street Eagle Farm SPS SP010 Perfect Harmony Drive OM Manual Volume 4 Q-Pulse Id TMS637 Active 29/01/2014 Page 176 of 30912BRISBANE CITY COUNCILDepartment Water Supply and SewerageEagle Farm Pump Station UpgradeSpare Parts ListsBCC Contract No. S.20/95/96Pumpwell No. 1 Speed Control EquipmentPerfect Harmony User's ManualTable -2. Spare Parts List for 3200 Hp Drive without Cell Bypass Option (P/N: 459137.00)Cabinet Qty Description P/NCell 1 VFD Power Cell Without Bypass 460F60.04H 1 Cell Control Board (CCB) 460J45.00 1 KV Gate Drive Board (GDB) 460H85.004 Fuse, 250A, 660V 0867044 Fuse, 5A, 700V 0867012 Power Module (DDA-DDE) 0857254 IGBT Module (Q1-Q4) 0857262 Capacitor 450V, 4700UF (C1A-C2G) 261369.00Control and Blower 1 Interface Board (IB) 469564.04VT 1 Micro Processor Board (MB) 469718.00W 1 System Module Board (SMB) 362877.01VT 1 Fiber Optic Hub Board (FOHB) 460B80.00VT 1 Master Link Board (MLB) 469147.04VT1 Keypad (KPD) 460A68.00T 1 Digital Output Module 362871.00VT 1 Analog Output Module 369174.00 1 Digital Input Module 362872.02VT2 Fuse 7A, 250V 0456512 Fuse 1.6A, 250V 029707V V VPage: 12-2 11 NOV 97 Version 3.1 (902330)Bunya Street Eagle Farm SPS SP010 Perfect Harmony Drive OM Manual Volume 4 Q-Pulse Id TMS637 Active 29/01/2014 Page 177 of 309BRISBANE CITY COUNCILDepartment Water Supply and SewerageEagle Farm Pump Station UpgradePerfect Harmony User's ManualBCC Contract No. S.20/95/96Pumpwell No. 1 Speed Control EquipmentENGINEERING DRAWINGSCHAPTER 13: ENGINEERING DRAWINGS459133 sht 1 SYSTEM OUTLINE2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 2 TRANSFORMER CABINET2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 3 CELL CABINET2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 4 CONTROL CABINET2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 5 SYSTEM POWER SCHEMATIC2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 6 POWER SCHEMATIC2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 7 CONTROL SCHEMATIC2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 8 POWER SCHEMATIC2000KW SR11,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 9 CONTROL SCHEMATIC2000KW SRI 1,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 10 CONTROL SCHEMATIC2000KW SR11 DRIVE6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 11 SYSTEM OUTLINE2000KW SRI I,SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H459133 sht 12 CONTROL SCHEMATIC2000KW SR12, SR13 DRIVES6.6KV/6.6KV, 50Hz, SIZE4H
Previous : Siemens A5E39047787, Siemens A5E38065123
Next : Siemens Robicon Micro Processor Board (MB) 469718.00VT, System Module Board (SMB) 362877.01VT, Fiber Optic Hub Board (FOHB) 460B80.00VT
Copy product links
Long by picture save/share
Siemens Robicon VFD Power Cell Without Bypass 460F60.04H, Cell Control Board (CCB) 460J45.00, Gate Drive Board (GDB) 460H85.00
