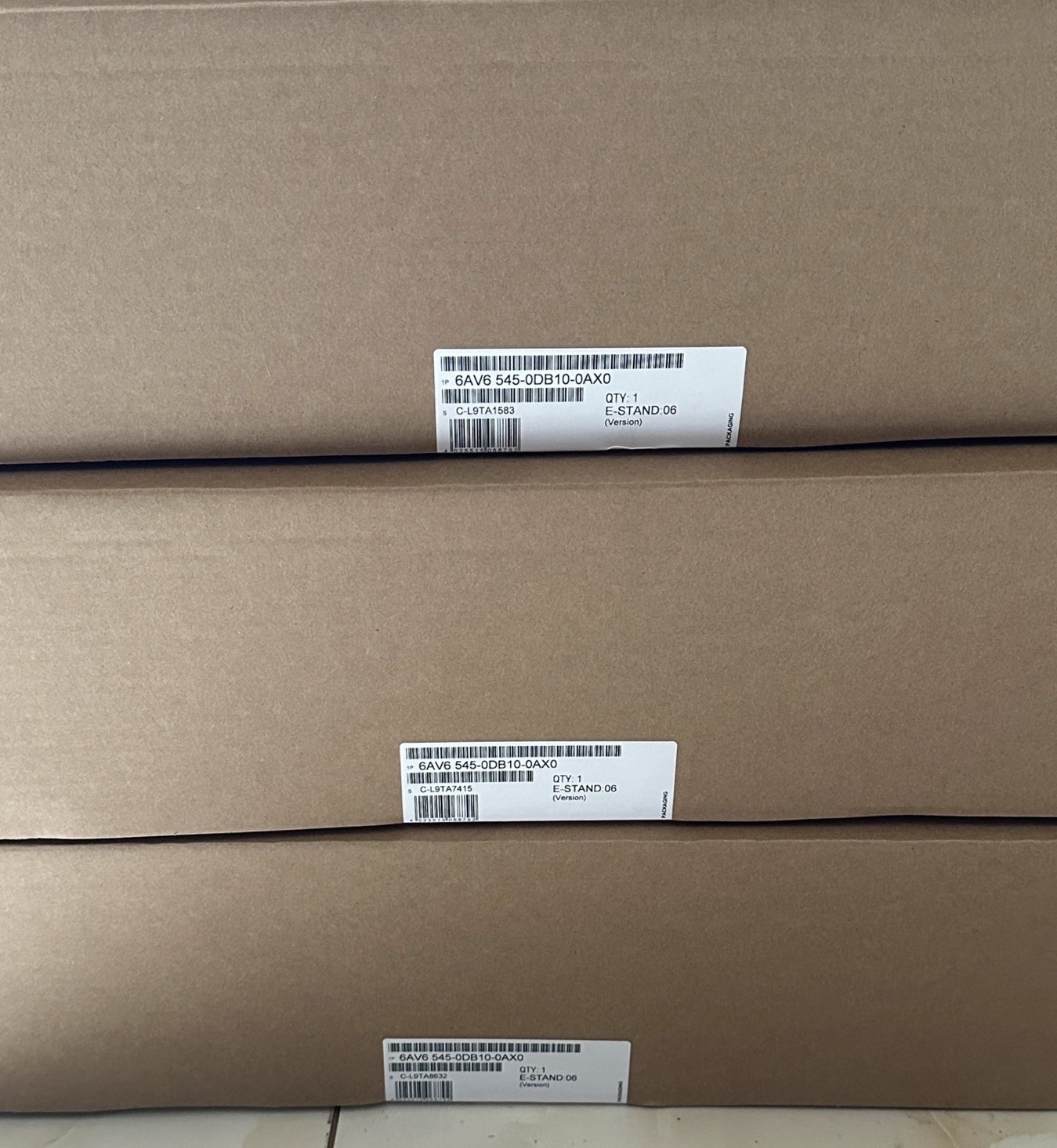

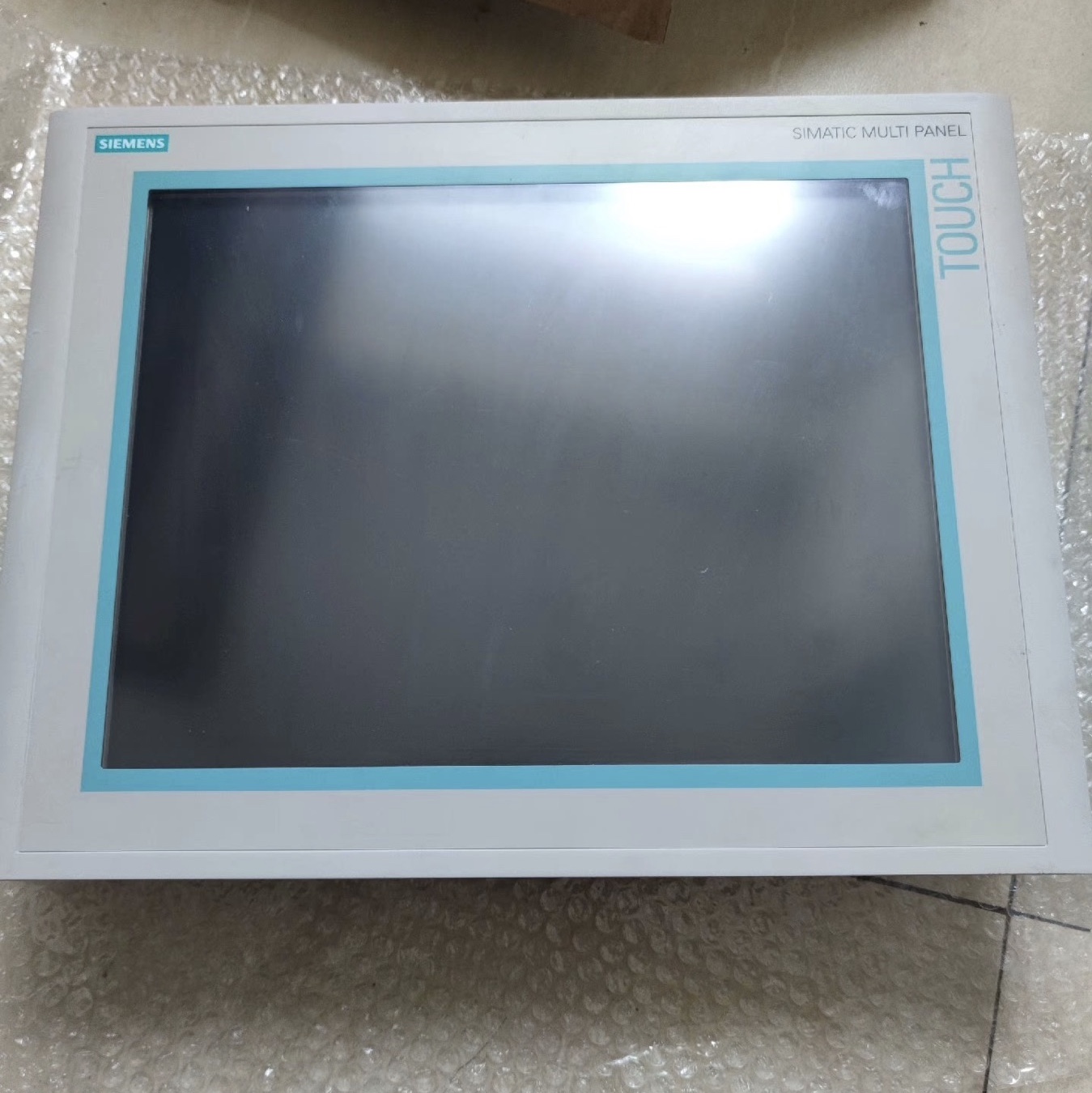

6AV6545-0DB10-0AX0, MP370-15, Siemens SIMATIC Multi Panel MP 370 15" color TFT display, OPERATOR PANEL, DISCONTINUED ***SPARE PART***
6AV6545-0DB10-0AX0, Siemens SIMATIC Multi Panel MP 370 15" color TFT display, OPERATOR PANEL, DISCONTINUED ***SPARE PART***
6AV6545-0DB10-0AX0
No picture available
***Spare part*** SIMATIC Multi Panel MP 370 15" color TFT display, Touch Windows CE 3.0 configurable with ProTool Version V6.0+SP2 or higher
Notes
Product was deleted without replacement
If you need assistance please contact our local Siemens office
List Price Show prices
Customer Price Show prices
Additional Services
For this product we can offer Services like Spare Part Delivery/Repair/Exchange. You have currently no rights to enter the Service Web Shop for that. For further information & to order this service, please contact your local Spares&Repair Partner
Please find an overview our product related services here
DataSheet in PDF Download
Service & Support (Manuals, Certificates, FAQs...) Download
Product
Article Number (Market Facing Number) 6AV6545-0DB10-0AX0
Product Description ***Spare part*** SIMATIC Multi Panel MP 370 15" color TFT display, Touch Windows CE 3.0 configurable with ProTool Version V6.0+SP2 or higher
Product family Not available
Product Lifecycle (PLM) PM500:Discontinued Product or end of PLM & Support
PLM Effective Date End of product lifecycle since: 01/03/20
Notes
Product was deleted without replacement
If you need assistance please contact our local Siemens office
Price data
Price Group / Headquarter Price Group 2ET
List Price Show prices
Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations ECCN : 5D002ENCU / AL : N
Standard lead time ex-works On request
Net Weight (kg) 7.600 Kg
Packaging Dimension 41.00 x 61.00 x 18.00
Package size unit of measure CM
Quantity Unit 0 Piece
Packaging Quantity 1
Additional Product Information
EAN 4025515068792
UPC 662643255898
Commodity Code 85371098
LKZ_FDB/ CatalogID ST80E
Product Group 4351
Group Code R119
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Product is not RoHS-compliant
Product class D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)
Classifications
Not available
Data sheet 6AV6545-0DB10-0AX0 *** SPARE PART*** SIMATIC MULTIPANEL MP370 15" COLOR TFT DISPLAY, TOUCH WINDOWS CE 3.0 CONFIGURABLE W. PROTOOL VERSION V6.0+SP2 AND HIGHER General information Customer-specific configuration No Display Design of display TFT, 256 colors Screen diagonal 15.1 in Resolution (pixels) ● Horizontal image resolution 1 024 Pixel ● Vertical image resolution 768 Pixel Backlighting ● MTBF backlighting (at 25 °C) 50 000 h Control elements Control elements Touch screen Keyboard fonts ● Membrane keyboard No — user-definable label membrane keys No ● Numeric keyboard Yes 6AV6545-0DB10-0AX0 Subject to change without notice Page 1/ 8 08/16/2017 © Copyright Siemens ● alphanumeric keyboard Yes ● hexadecimal keyboard Yes ● Multi-key operation No — Number of multi-key operations 0 Touch operation ● Design as touch screen Yes; analog, resistive Connection type ● Connection for mouse/keyboard/barcode reader USB / USB / USB Special operator controls ● Illuminated pushbutton Yes Installation type/mounting Mounting position vertical maximum permissible angle of inclination without external ventilation 35° Supply voltage Type of supply voltage DC UPS connectable (serial) Yes Input current Current consumption (rated value) 1.8 A Starting current inrush I²t 0.5 A²·s Power Active power input, typ. 41 W Processor Processor type MIPS Drives Diskette drive No CD-ROM No Hard disk No Memory Type of memory Flash / RAM Memory available for user data 7 168 kbyte Battery Backup battery ● Backup battery (optional) Yes; optional 3.6 V ● Backup time, min. 3 y Type of output Info LED No Power LED No 6AV6545-0DB10-0AX0 Subject to change without notice Page 2/ 8 08/16/2017 © Copyright Siemens Error LED No Time of day Clock ● Type Hardware clock, battery backup, synchronizable ● retentive Yes ● synchronizable Yes Interfaces Interfaces/bus type 1 x TTY, 2 x RS232, 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s) Number of RS 485 interfaces 1 ● Transmission rate, max. 12 Mbit/s USB port Yes; 1 x USB PC card slot 1 x PC card slot CF card slot 1 x CF card slot Industrial Ethernet ● Industrial Ethernet interface 1 x Ethernet (RJ45) Degree and class of protection IP (at the front) IP65 IP (rear) IP20 Standards, approvals, certificates Certifications CE, FM Class I Div. 2, cULus, EX Zone 2/22, C-TICK Ambient conditions Ambient temperature during operation ● min. 0 °C ● max. 50 °C Ambient temperature during storage/transportation ● min. -20 °C ● max. 60 °C Relative humidity ● Operation, max. 85 % Operating systems pre-installed operating system Windows CE Configuration Configuration software ● Configuration tool ProTool Version 6 SP 2 or higher, or WinCC flexible Standard Version 2004 or higher (to be ordered separately) Languages Online languages ● Number of online/runtime languages 5 Project languages 6AV6545-0DB10-0AX0 Subject to change without notice Page 3/ 8 08/16/2017 © Copyright Siemens ● Languages per project 32 Functionality under WinCC (TIA Portal) Libraries Yes Number of Visual Basic Scripts ● Debugging in the simulator No Task planner Yes Help system Yes ● Number of characters per info text 70 ● Number of tooltips 0 Message system ● Number of alarm classes 32 ● Number of messages 4 000 ● Bit messages Yes — Number of bit messages 4 000 ● Analog messages Yes — Number of analog messages 4 000 ● Telegram message procedure Alarm S Yes ● System messages HMI Yes ● System messages PLC Yes ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) Yes ● Lines 1 ● Number of characters per message 80 ● Number of process values per message 8 ● Acknowledgment groups Yes ● Message indicator Yes ● acoustic feedback No ● First/last value Yes Recipe management ● Number of recipes 500 ● Data records per recipe 1 000 ● Entries per data record 1 000 ● Recipe memory 128 KB integrated Flash, expandable Variables ● Number of variables per device 2 048 ● Number of variables per screen 400 ● Number of variables 2 000 ● Initial values 2 048 ● Type Date & Time 2 048 ● Limit values Yes ● Multiplexing Yes 6AV6545-0DB10-0AX0 Subject to change without notice Page 4/ 8 08/16/2017 © Copyright Siemens ● Structures Yes Images ● Number of configurable images 500 ● Permanent window/default Yes ● Start screen configurable Yes ● Image selection by PLC Yes ● Image number in the PLC Yes Image objects ● Text objects 30000 text elements ● Number of I/O fields per image 400 ● Number of date/time fields 400 ● Index of screen context No ● Return Yes ● Graphics object Bit maps, icons, vector graphics — Icons 2 000 — Icon (full screen) 0 Complex image objects ● Status/control With SIMATIC S7 ● dynamic objects Diagrams, bar graphs, sliders, analog display, invisible buttons — Number of objects per project 2 000 — Number of curve diagrams per image 20 ● Methods Trend / profile ● Bar graphs — Number of bars per chart 20 ● Sliders — Number of slides per image 20 ● Pointer instruments — Number of analog indicators per image 20 ● Limit value lines Yes ● Number of alphanumerical fields 300 — alphanumeric fields per image 400 ● Number of numerical fields 2 048 — numerical fields per image 400 ● Number of password fields 2 048 ● Number of visible switches per project 400 — visible switches per image 400 — hidden switches per image 400 ● Number of status switches per project 400 — Number of status switches per image 400 ● Number of selector switches per project 400 — Selector switches per image 400 6AV6545-0DB10-0AX0 Subject to change without notice Page 5/ 8 08/16/2017 © Copyright Siemens ● Number of decade switches per project 400 — Decade switches per image 400 ● Number of signal lamps per project 400 — Signal lamps per image 400 Attributes for dynamic objects ● Color change Yes ● X/Y movement Yes ● Hide Yes ● Angle of rotation No Lists ● Number of text lists per project 500 ● Number of text lists per image 400 ● Number of entries per text list 256 ● Number of graphics lists per project 500 ● Number of graphic lists per image 400 ● Number of entries per graphics list 256 Archiving ● Number of archives per device 50 ● Number of measuring points per project 50 ● Number of entries per archive 50 000 ● Message archive Yes ● Process value archive Yes ● Archiving methods Sequence archive, circular log, alarm log, process value archive — Sequential archive Yes — Short-term archive Yes ● Memory location PC card, CF card, Ethernet — PC card Yes — CF card Yes — USB memory No — Ethernet Yes ● Data storage format CSV file, readable, e.g. with MS Excel, MS Access — CSV Yes — TXT No ● external evaluation Readable, e.g. with MS Excel, MS Access, etc. ● Size of archive depending on free memory on ext. card/stick or on free hard disk space via network drive ● Online evaluation via trends — using trend curves Yes Filters ● cyclic Yes ● Tolerance Yes 6AV6545-0DB10-0AX0 Subject to change without notice Page 6/ 8 08/16/2017 © Copyright Siemens ● Change Yes Security ● Number of user groups 50 ● Number of user rights 32 ● Password export/import Yes Data carrier support ● PC card Yes ● CF card Yes ● Diskette drive No ● Hard disk No ● CD-ROM No Logging through printer ● Recording/Printing Alarms, report (shift report), color print, hardcopy Transfer (upload/download) ● Transfer of configuration MPI/PROFIBUS DP, serial, USB, Ethernet, by means of external storage medium, automatic transfer recognition Process coupling ● Connection to controller S5, S7-200, S7- 300/400, TI 505, Win AC, PC (TCP/IP), SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), Telemecanique (ADJUST), OMRON (LINK/Multilink), Modicon (Modbus), for further non-Siemens drivers, see section on "System interfaces" ● S7-200 Yes — PPI (point-to-point) Yes — PPI network Yes — MPI Yes — PROFIBUS DP Yes ● S7-300/400 Yes — MPI Yes — PROFIBUS DP Yes — PROFINET Yes ● S5 Yes — serial Yes — PROFIBUS DP Yes ● TI 505 Yes ● Allen Bradley (DF1) Yes ● Allen Bradley (DF485) Yes ● Mitsubishi (FX) Yes ● Mitsubishi (MP4) Yes ● Telemecanique (ADJUST) Yes ● Telemecanique (Uni-Telway) Yes ● OMRON (LINK/Multilink) Yes 6AV6545-0DB10-0AX0 Subject to change without notice Page 7/ 8 08/16/2017 © Copyright Siemens ● Modicon (Modbus) Yes ● GE-Fanuc (SNP) Yes Functions ● Key repeat No ● TAB sequence Yes ● Calculating functions Yes ● Animate Yes ● Menu tree editor No ● Unit switchover No Service tools/configuration aids ● Clean screen Yes ● Touch calibration Yes ● Backup/Restore manually Yes ● Simulation Yes ● Device switchover Yes ● Delta transfer Yes ● Monitoring function for battery and memory Yes ● Trace (operation archive) No Expandability/openness ● Open Platform Program Yes Peripherals/Options Peripherals Printer, barcode reader ● SIMATIC HMI MM memory card: Multi Media Card No ● SIMATIC HMI SD memory card: Secure Digital memory card No ● USB memory No Dimensions Width of the housing front 400 mm Height of housing front 310 mm Overall depth 69 mm Weights Weight (without packaging) 5.7 kg Other free hotline Yes Warranty period 1 y last modified: 08/12/2017 6AV6545-0DB10-0AX0 Subject to change without notice Page 8/ 8 08/16/2017 © Copyright Siemens
Previous : RESISTORS-SET OF 9 0,295 OHM; 53A; 800W #A5E02950453 (REMPLACEMENT 42-348119-4000086) (SIEMENS)
Next : 6AV6545-0DB10-0AX0, 6AV6643-0DB01-1AX1, 6AV2124-0MC01-0AX0, 6AV2124-1MC01-0AX0 SIMATIC HMI KP1200 Comfort, Comfort Panel
