SIMOTRAS HD
6SG70 Series
Converters for speed control of slipring motors with stator phase-angle control and electronic phase reversal

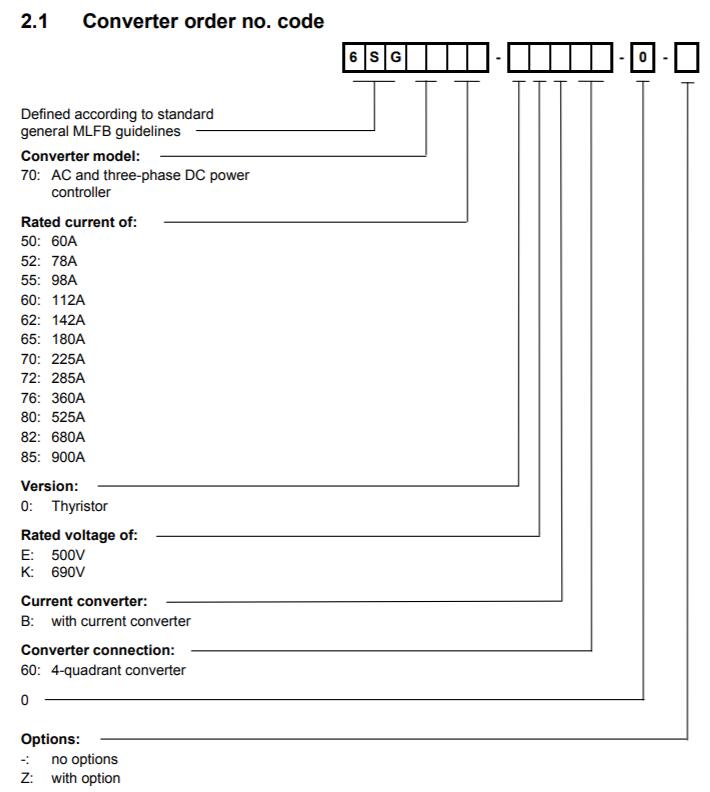

6SG7050 – 0EB60 - 0 D400 / 60 Mre
6SG7052 – 0EB60 - 0 D400 / 78 Mre
6SG7055 – 0EB60 - 0 D400 / 98 Mre
6SG7060 – 0EB60 - 0 D400 / 112 Mre
6SG7062 – 0EB60 - 0 D400 / 142 Mre
6SG7065 – 0EB60 - 0 D400 / 180 Mre
6SG7070 – 0EB60 - 0 D400 / 225 Mre
6SG7072 – 0EB60 - 0 D400 / 285 Mre
6SG7076 – 0EB60 - 0 D400 / 360 Mre
6SG7080 – 0EB60 - 0 D400 / 525 Mre
6SG7082 – 0EB60 - 0 D400 / 680 Mre
6SG7085 – 0EB60 - 0 D400 / 900 Mre
6SG7076 – 0KB60 - 0 D500 / 360 Mre
Artikel Bestell-Nr.
Terminal expansion module (CUD2) 6RX1700-0AK00
DriveMonitor PC - PMU (RS232) connecting cable, 3m 9AK1012-1AA00
Operating instructions in German 6SG7000-0BA00
Operating instructions in English 6SG7000-0BA76
Operating Instructions and DriveMonitor in German and English on DVD-ROM 6SG7000-0CD00
Fuses
For technical data, configuring data and dimension drawings, please refer to Catalog BETA,
Section 4.
Converter
Order No.
Rated current of Line fuses
3
Standard Option H78 Order No. Rated
current/
voltage
A A A / V
6SG7050-0EB60 60 42 3NE1820-0 80 / 690
6SG7052-0EB60 78 55 3NE1021-0 100 / 690
6SG7055-0EB60 98 70 3NE1022-0 125 / 690
6SG7060-0EB60 112 80 3NE1224-0 160 / 690
6SG7062-0EB60 142 100 3NE1224-0 160 / 690
6SG7065-0EB60 180 125 3NE1225-0 200 / 690
6SG7070-0EB60 225 150 3NE1227-0 250 / 690
6SG7072-0EB60 285 200 3NE1331-0 350 / 690
6SG7076-0EB60 360 250 3NE1332-0 400 / 690
6SG7080-0EB60 525 365 3NE1435-0 560 / 690
6SG7082-0EB60 680 475 3NE3340-8 900 / 690
6SG7085-0EB60 900 700 6RY1702-0BA01 1) 1250 / 660
1) Fuses are included in converter, external semiconductor fuses are not needed.
Converter
Order No.
Rated current Line fuses
3
Order No. Rated current/
voltage
A A / V
6SG7076-0KB60 360 3NE1332-0 400 / 690
6SG7076-0KB60
with Option H70
130 3NE1224-0 160 / 690
Servicing / Spare parts 03.2015
SIMOTRAS HD
582 Operating Instructions, 03/2015, A5E35846984A/RS-AA/001;1
Spare part Converter / Order No.
Order No.
(MLFB)
Description
500V/60A
500V/78A
500V/98A
500V/112A
500V/142A
500V/180A
500V/225A
500V/285A
500V/360A*)
500V/525A
500V/680A
500V/900A
690V/360A*)
6SG7050-0EB60-0
6SG7052-0EB60-0
6SG7055-0EB60-0
6SG7060-0EB60-0
6SG7062-0EB60-0
6SG7065-0EB60-0
6SG7070-0EB60-0
6SG7072-0EB60-0
6SG7076-0EB60-0
6SG7080-0EB60-0
6SG7082-0EB60-0
6SG7085-0EB60-0
6SG7076-0KB60-0
Printed circuit boards
6RY1703-0AA01 Electronics + terminals
A7001-L2
1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x
6RY1703-1HD06 Power interface + terminals A7022-L4
1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x
6RY1703-1HD04 Power interface + terminals A7022-L6
1x
6RY1704-0AA00 Operator panel
A7005-L1
1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x
6RY1703-1HD02 Snubber circuit
A7021-L1
1x 1x 1x 1x 1x 1x 1x 1x 1x
6RY1703-1HD03 Snubber circuit
A7011-L7
1x 1x
6RY1703-1HD05 Snubber circuit
A7011-L3
1x
Thyristors
6RY1700-0HD01 W98624-S7000-C2
SKKT72/16E
5x
6RY1700-0AA05 W98624-S1002-C82
SKKT106/18EH1
5x 5x 5x
6SY7010-0AA02 W97020-Z1009—C412
TT162 N16
5x 5x
6RY1700-0AA15 W98624-S7000-C1
MCC170-16 i01
5x
6SY7010-0AA03 W98624-S1002-C8
TT251 N16
5x
6SY7010-0AA05 W98624-S1002-C48
MCC312-16I01
5x
6SY7010-0AA04 W98624-S1002-C39
TT500 N16
5x
6RY1700-0AA04 W98624-S1002-C97
TT570N16
5x
6RY1702-0CA01 Thyristor assembly
C98130-A1256-B320
5x
6SY7010-0AA32 W98624-S1002-C68
TT430 N26 KOF
5x
*) with option H70:
self-ventilated with rated current =130 A
03.2015 Servicing / Spare parts
SIMOTRAS HD
Operating Instructions, 03/2015, A5E35846984A/RS-AA/001;1 583
Spare part Converter / Order No.
Order No.
(MLFB)
Description
500V/60A
500V/78A
500V/98A
500V/112A
500V/142A
500V/180A
500V/225A
500V/285A
500V/360A*)
500V/525A
500V/680A
500V/900A
690V/360A*)
6SG7050-0EB60-0
6SG7052-0EB60-0
6SG7055-0EB60-0
6SG7060-0EB60-0
6SG7062-0EB60-0
6SG7065-0EB60-0
6SG7070-0EB60-0
6SG7072-0EB60-0
6SG7076-0EB60-0
6SG7080-0EB60-0
6SG7082-0EB60-0
6SG7085-0EB60-0
6SG7076-0KB60-0
Other spare parts
6SY7010-6AA01 NTC thermistor
W98628-S1001-C24
1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x 1x
6RY1700-0TF00 NTC thermistor
C98130-A7002-C90
1x
6RY1702-0AA01 Current convertor
C98130-A1023-C751
2x 2x 2x 2x
6RY1702-0AA02 Current convertor
C98130-A1023-C752
2x 2x
6RY1702-0AA03 Current convertor
C98130-A1023-C771
2x 2x 2x
6RY1702-0AA06 Current convertor
C98130-A1023-C850
2x 2x 2x
6RY1702-0AA05 Current convertor
C98130-A1023-C773
2x
6RY1701-0AA07 Fan (complete)
C98130-A1256-C553
2x 2x 2x 2x
• Drive ES Basic Data management in Step 7 projects, drive communications via Profibus or
USS
Order No.: 6SW1700-5JA00-1AA0
• Drive ES Graphic Interconnection of Option S00 free functions blocks using the CFC interconnection editor
Order No.: 6SW1700-5JB00-1AA0
• Drive ES Simatic Provides function blocks for SIMATIC CPUs and sample projects for communication with a SIMOREG (SIMOTRAS) unit
Order No.: 6SW1700-5JC00-1AA0
