Protecting Our Customers’ Investments with Superior Service and Support

Siemens’ service and support

network is never more than a phone

call away. Representatives are ready

24 hours a day, seven days a week,

to assist customers with immediate

technical support geared to handle

every phase of installation, startup,

maintenance and troubleshooting.

Our services include:

• Around-the-clock field service

• Preventative maintenance

• Product refurbishment

• Training

• After-market spare parts

• Upgrades

• Repairs and exchanges

• Specialty services

Our Commitment

Siemens is proud of its reputation for

long-term service of its products, including

the Perfect Harmony. We are committed

to providing complete life-cycle support.

We never relinquish the responsibility

for servicing our products to the full

satisfaction of our customers, regardless

of the age of the product. To extend the

lifespan and increase the functionality

of the drive, the Siemens refurbishment

program provides our customers with

the opportunity to upgrade their Perfect

Harmony drive with new technology as

it becomes available.

Local Convenience

Because we are accustomed to providing

on-site service for all of our customers,

we have the extensive reach of a

dedicated, global service force. Each

of our service representatives is fully

trained in variable frequency drives.

We are committed to growing our sales

and service staff and branching out into

new regions to support the growth of

our installed base.

All Siemens LD-R service representatives are fully trained in medium voltage variable frequency drives, giving Siemens the largest medium

voltage service organization in the world!

13

Maximum output frequency — 330 Hz (with derating). Speed-control range — 1:1000 (with encoder).

2.3 kV 3.3 kV 4.16 kV

Output Output Output Output Output Output

Current kVA Current kVA Current kVA

70 300 70 400 70 500

100 400 100 600 100 700

140 500 140 800 140 1000

200 800 200 1000 200 1500

260 1000 260 1500 260 1750

315 1250 315 1750 315 2000

375 1500 375 2000 375 2500

500 2000 500 2500 500 3500

660 2500 660 3500 660 4500

880 5000 880 6500

1250 7000 1250 9000

6.0 kV 6.6 kV 11 kV

Output Output Output Output Output Output

Current kVA Current kVA Current kVA

70 700 70 800 500 8000

100 1000 100 1000 800 15000

140 1500 140 1500 1400 25000

200 2000 200 2000

260 2500 260 3000

315 3000 315 3500

375 4000 375 4000

500 5000 500 5500

660 7000 660 7500

880 9000 880 9500

1250 13000 1250 14000

13.8 kV

Output Output

Current kVA

500 10000

800 18000

1400 31000

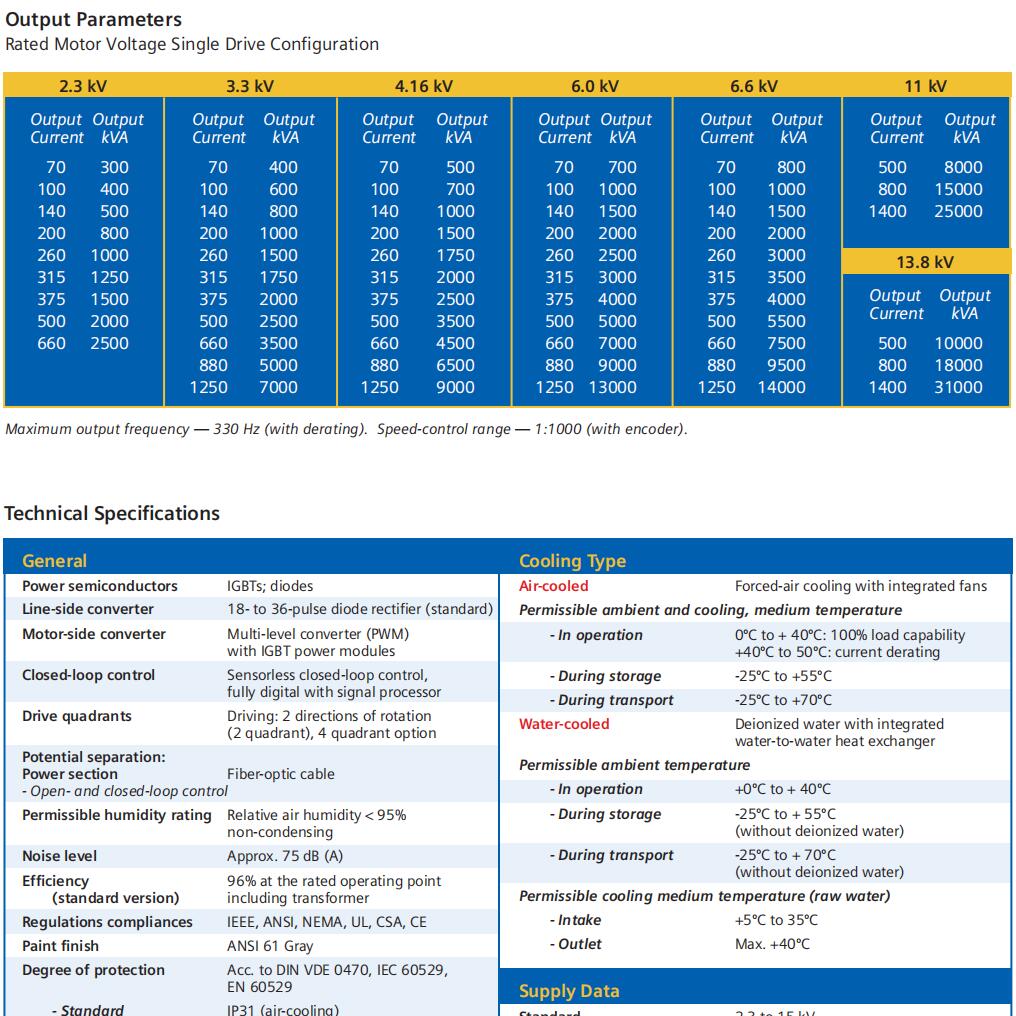

Output Parameters

Rated Motor Voltage Single Drive Configuration

Technical Specifications

General

Power semiconductors IGBTs; diodes

Line-side converter 18- to 36-pulse diode rectifier (standard)

Motor-side converter Multi-level converter (PWM)

with IGBT power modules

Closed-loop control Sensorless closed-loop control,

fully digital with signal processor

Drive quadrants Driving: 2 directions of rotation

(2 quadrant), 4 quadrant option

Potential separation:

Power section Fiber-optic cable

- Open- and closed-loop control

Permissible humidity rating Relative air humidity < 95%

non-condensing

Noise level Approx. 75 dB (A)

Efficiency 96% at the rated operating point

(standard version) including transformer

Regulations compliances IEEE, ANSI, NEMA, UL, CSA, CE

Paint finish ANSI 61 Gray

Degree of protection Acc. to DIN VDE 0470, IEC 60529,

EN 60529

- Standard IP31 (air-cooling)

IP52 (water-cooling)

NEMA 1 (air-cooling)

NEMA 12 (water-cooling)

- Optional IP42 (air-cooling)

Cooling Type

Air-cooled Forced-air cooling with integrated fans

Permissible ambient and cooling, medium temperature

- In operation 0ºC to + 40ºC: 100% load capability

+40ºC to 50ºC: current derating

- During storage -25ºC to +55ºC

- During transport -25ºC to +70ºC

Water-cooled Deionized water with integrated

water-to-water heat exchanger

Permissible ambient temperature

- In operation +0ºC to + 40ºC

- During storage -25ºC to + 55ºC

(without deionized water)

- During transport -25ºC to + 70ºC

(without deionized water)

Permissible cooling medium temperature (raw water)

- Intake +5ºC to 35ºC

- Outlet Max. +40ºC

Supply Data

Standard 2.3 to 15 kV

Special option < 2.3 and > 12 kV

Control voltage 1 Ph, 120 VAC or integrated to

auxiliary supply

Alarms Meanings

Underload Underload alarm

Single-input phasing Loss of one input phase

Ride through Drive in ride-through operation

(input voltage dip)

ProToPSTM Alarm and Trip Examples (All Configurable)

Alarms Meanings

Overspeed Alarm speed threshold reached

Overcurrent Alarm current threshold reached

Motor temperature Alarm motor temperature threshold

reached

Network failure Communication problem

Speed reference signal loss Loss of speed feedback signal


CB42A5E35282720Switch_OVERCURRENT

UPSUPS Pulsar  220VACLDZ10501472UPS 700VA,230V,50/60HZ 6SR0960-0SM01-0AM0
UPS GES-N1KA5E31321302UPS, 1000VA, 220V6SR0900-0KM02-0AM0
UPS A5E35632577POWER_SPLY_UPS6SR5902-0KM00-0AM0
UPS  120VACA5E34166880UPS,700VA,120V,50/60HZ6SR0900-0KM03-0AM0A1A097618/LDZ097618C
CONTACTOR CR2A5E35282647CONTACTOR_COPL

ACC CONTACTOR CR2A5E35328473ACC_CONTACTORS


CB8A5E35282730Switch_OVERCURRENT


E-stop E-STOP BUTTONA5E35334140SWITCH_COMMAND_PRESS6SR0900-0SM10-0AM0

AUX CONTACTORA5E35334106Auxiliary_switch6SR0900-0SM11-0AM0

SHROUNDA5E35334092ACC_PUSH_BUTTON6SR0900-0SM12-0AM0

HOLDERA5E353341726SR0900-0RM03-0AM0 \ACC_SWITCH_BRACKET_P6SR0900-0RM03-0AM0

SW 3POSFIX BRACKETA5E35334172ACC_SWITCH_BRACKET_P6SR0900-0RM03-0AM0

AUX.CONTACTORA5E353341206SR0900-0RM02-0AM0 \Auxiliary_switch6SR0900-0RM02-0AM0

SW OPERATORA5E35334133SWITCH_COMMAND6SR0900-0SM13-0AM0

TRIP MV RELAYRELAYA5E35282660CONTACTOR_COPL


RELAYA5E35282647CONTACTOR_COPL


SUPPRESSORA5E35328473ACC_CONTACTORS


LOW PASS A5E30204948Filter_LOWPASS6SR0900-0KM01-0AM0


LATCHING RELAYLDZ10506452RELAY,LATCHING6SR0900-0PM00-0AM0
LATCHING RELAYLDZ10506414RELAY,LATCHING6SR0900-0PM01-0AM0
FIBER OPTICFIBER OPTIC LINK CABLEA5E45127002FIBER OPTIC ASSY, DUPLEX6SR0960-0LM10-0AM0
FIBER OPTIC LINK CABLEA5E45127003FIBER OPTIC ASSY, DUPLEX6SR0960-0LM11-0AM0
FIBER OPTIC LINK CABLEA5E45127004FIBER OPTIC ASSY, DUPLEX6SR0960-0LM12-0AM0
FIBER OPTIC LINK CABLEA5E45127005FIBER OPTIC ASSY, DUPLEX6SR0960-0LM13-0AM0
FIBER OPTIC LINK CABLEA5E45127014FIBER OPTIC ASSY, DUPLEX6SR0960-0LM13-0AM0
FIBER OPTIC LINK CABLEA5E45127009FIBER OPTIC ASSY, DUPLEX6SR0960-0LM15-0AM0
FIBER OPTIC LINK CABLEA5E45127010FIBER OPTIC ASSY, DUPLEX6SR0960-0LM16-0AM0
FIBER OPTIC LINK CABLELDZ11500211.8FIBER OPTIC ASSY, DUPLEX
LDZ085868C
FIBER OPTIC LINK CABLELDZ11500211.10FIBER OPTIC ASSY, DUPLEX

FIBER OPTIC LINK CABLEA5E03002012FIBER OPTIC ASSY, DUPLEX

FIBER OPTIC LINK CABLEA5E03002015FIBER OPTIC ASSY, DUPLEX

Reactor CabinetBlowerA5E02765231AXIALFAN

Switch_OVERCURRENTA5E36500639Switch_OVERCURRENT

CONTACTORA5E32362953CONTACTOR_AC

SUPPRESSORA5E35328464ACC_CONTACTORS

EMIEMI FILTERLDZ10506412EMI FILTER6SR3900-0KM02-1AM0
TEMP MONITORTEMP MONITORA5E301202954 CHANNEL

TEMP MONITORA5E30120296CONV ACC  4 CHANNLE EXTENTION

TEMP MONITORA5E31243396CONV ACC  8 CHANNLE EXTENTION

TEMP MONITORA5E30241226ModBus_INSIDE

LIFTLIFT TROLLEYA5E37046020 Power Cell Lift Trolley6SR0960-0SM15-0AM0
Voltage
regulator		Voltage regulatorA5E31200088Voltage regulator6SR5902-0SM00-0AM0
CRCCRC CLEANERLDZ10502871CRC electrical cleaner

G3
Power Cell*70 A CellLDZ14501000.070G3 CELL NBH 70A 630V6SR3902-0AB00-0AM0
100 A CellLDZ14501000.100G3 CELL NBH 100A 630V6SR3902-0AC00-0AM0
140 A CellLDZ14501001.140G3 CELL NBH 140A 630V6SR3902-0AD00-0AM0
200 A CellLDZ14501002.200G3 CELL NBH 200A 630V6SR3902-0AE00-0AM0
260 A CellLDZ14501002.260G3 CELL NBH 260A 630V6SR3902-0AF00-0AM0
Cell Input
Fuses		Cell FUSELDZ10501431G3 CELL FUSE6SR3900-0JM41-0AM0
Cell FUSELDZ10501432G3 CELL FUSE6SR3900-0JM42-0AM0
Cell FUSELDZ10501433G3 CELL FUSE6SR3900-0JM43-0AM0
Cell FUSELDZ10501434G3 CELL FUSE6SR3900-0JM44-0AM0
Cell FUSELDZ10501435G3 CELL FUSE6SR3900-0JM40-0AM0
Cell Control
Board		CCBA1A10000432.31MPCA 630/690/750V CELL CONTROL6SR0960-0AM43-0AD0A1A10000432.31
CCBA1A10000432.34MPCA 630/690/750V CELL CONTROL6SR0960-0AM44-0AD0A1A10000432.34
CCBA1A10000432.30MPCA 630/690/750V CELL CONTROL6SR0960-0AM42-0AD0A1A10000432.30
CCBA1A10000432.00MPCA 630/690/750V CELL CONTROL6SR0960-0AM38-0AD0A1A10000432.00/LDZ10000432.00C
CCBA1A10000432.01MPCA 630/690/750V CELL CONTROL6SR0960-0AM40-0AD0A1A10000432.01/LDZ10000432.01C
CCBA1A10000432.02MPCA 630/690/750V CELL CONTROL6SR0960-0AM41-0AD0A1A10000432.02/LDZ10000432.02C
CCBA1A10000432.34MPCA 630/690/750V CELL CONTROL6SR0960-0AM44-0AD010504423
CCBA1A10000432.91MPCA 630/690/750V CELL CONTROL6SR0960-0AM47-0AD010504424
CCBA1A10000432.92MPCA 630/690/750V CELL CONTROL6SR0960-0AM48-0AD010504422
CCBA1A10000432.93MPCA 630/690/750V CELL CONTROL6SR0960-0AM50-0AD010504421
