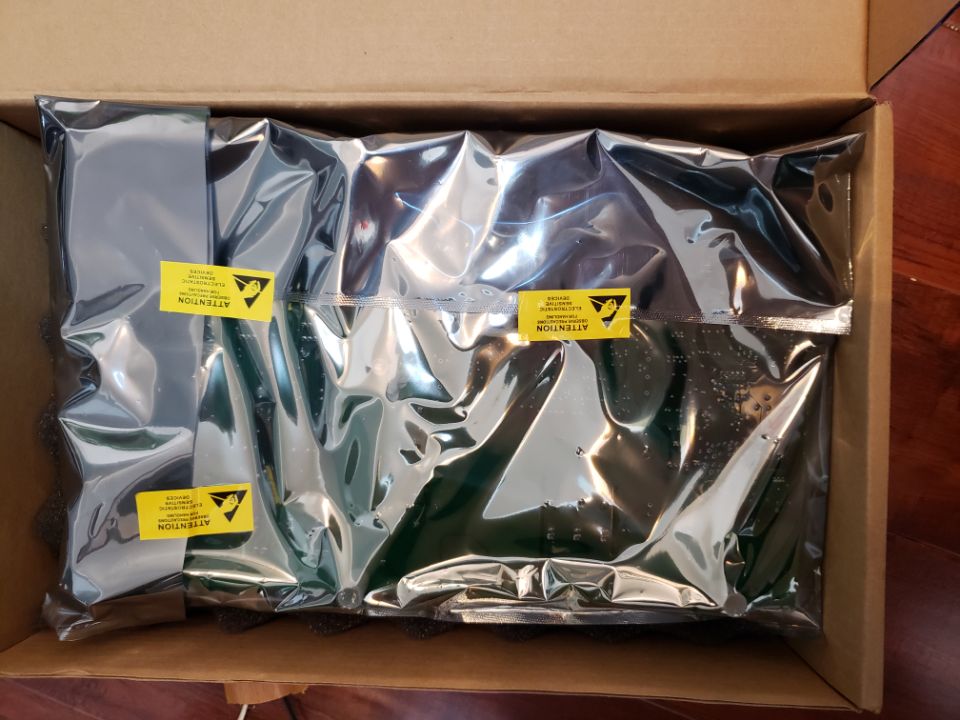

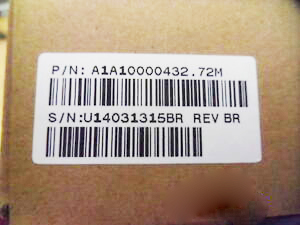

A1A10000432.72M, PCA 630/690/750V, CELL CONTROL Board, CCB, 6SR0960-1BA01-0AA0, A5E34621797072
A1A10000432.72M, PCA 630/690/750V, CELL CONTROL Board, CCB, 6SR0960-1BA01-0AA0, A5E34621797072
A1A10000432.72M, PCA 630/690/750V, CELL CONTROL Board, CCB, 6SR0960-1BA01-0AA0, A5E34621797072
6SR0960-1BA01-0AB0
Product
Image similar
GATE Driver Board
List Price (w/o VAT) Show prices
Customer Price Show prices
Service & Support (Manuals, Certificates, FAQs...) Download
Product
Article Number (Market Facing Number) 6SR0960-1BA01-0AB0
Product Description GATE Driver Board
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group / Headquarter Price Group 6ZZ
List Price (w/o VAT) Show prices
Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations AL : N / ECCN : EAR99H
Factory Production Time 1 Day/Days
Net Weight (kg) 0.906 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 8504906500
LKZ_FDB/ CatalogID D12LD.9SP
Product Group 3662
Group Code P1S4
Country of origin United States of America
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
Classifications
Version Classification
eClass 6 27-02-91-02
eClass 7.1 27-02-91-02
eClass 8 27-02-91-02
eClass 9 27-02-21-91
eClass 9.1 27-02-21-91
ETIM 5 EC001851
ETIM 6 EC001851
ETIM 7 EC001851
ETIM 8 EC001851
Hi guys!
I was looking for new spare cell control boards and I specified Part Number A1A10000432.72M - ( Same as what we have installed in our drives).
Now the supplier has brought me the boards but with Part Numbers A5E34621797072, and he claims that Siemens have recently changed the part numbers.
Just curious whether this information is correct (the boards look similar); and if that is the case, is the said part number the right replacement of the old ones I have i.e. P/N: A1A10000432.72M.
Thanks!
Products SINAMICS Perfect Harmony GH180 6SR\(3/4\)
Medium voltage variable frequency drives product line SINAMICS Perfect Harmony GH180 6SR(3/4)
Most printed circuit board assemblies used in cell control have been replaced with an improved new design. In addition, variations in design such as the extended altitude version have been consolidated into fewer design variations. This reduces the variety needed as spare parts.
The table below is a cross reference between the obsolete Cell Control Board and the replacement Cell control board.
Original article number Original Part Number Used in GH180 Drive Replacement article number Replacement Part Number
6SR0960-0AM42-0AD0 A1A10000432.30M 6SR3….-..E..-….
6SR3….-..F..-…. 6SR0960-0AM84-0AD0 A5E34621797030
6SR0960-0AM43-0AD0 A1A10000432.31M 6SR3….-..B..-….
6SR3….-..C..-… 6SR0960-0AM86-0AD0 A5E34621797031
6SR0960-0AM44-0AD0 A1A10000432.34M 6SR3….-..D..-…. 6SR0960-0AM84-0AD0 A5E34621797030
6SR0960-0AM45-0AD0 A1A10000432.53M 6SR3….-..K..-…. 6SR0960-0AM73-0AD0 A5E34621797053
6SR0960-0AM26-0AD0 A1A10000432.54M 6SR3….-..G..-….
6SR3….-..H..-….
6SR3….-..J..-…. 6SR0960-0AM74-0AD0 A5E34621797054
6SR0960-0AM85-0AD0 A1A10000432.55M 6SR3….-..K..-…. 6SR0960-0AM75-0AD0 A5E34621797055
6SR0960-1BA00-0AA0 A1A10000432.71M1 6SR4….-..A..-….
6SR4….-..B..-….
6SR4….-..C..-….
6SR4….-..D..-…. 6SR0960-0AM71-0AD0 A5E34621797071
6SR0960-1BA01-0AA0 A1A10000432.72M 6SR4….-..E..-….
6SR4….-..E..-…. 6SR0960-0AM72-0AD0 A5E34621797072
6SR0960-0AM51-0AD0 A5E03545931 6SR3….-..K..-…. 6SR0960-0AM73-0AD0 A5E34621797053
6SR0960-0AM52-0AD0 A5E03545933 6SR3….-..G..-….
6SR3….-..H..-….
6SR3….-..J..-…. 6SR0960-0AM74-0AD0 A5E34621797054
A5E03545934 6SR3….-..K..-…. 6SR0960-0AM75-0AD0 A5E34621797055
6SR0960-0AM53-0AD0 A5E03545935 6SR4….-..A..-….
6SR4….-..B..-….
6SR4….-..C..-….
6SR4….-..D..-…. 6SR0960-0AM71-0AD0 A5E34621797071 [1]
6SR0960-0AM54-0AD0 A5E03545936 6SR4….-..E..-….
6SR4….-..F..-…. 6SR0960-0AM72-0AD0 A5E34621797072
6SR4960-0AM00-0AD0 A5E33503006001 6SR4….-..J..-….
6SR4….-..K..-…. 6SR0960-0AM82-0AD0 A5E34621797001
6SR4900-0AM27-0AD0 A5E33503006002 6SR4….-..G..-….
6SR4….-..H..-…. 6SR0960-0AM81-0AD0 A5E34621797002
A5E33503006003 6SR4….-..J..-….
6SR4….-..K..-…. 6SR0960-0AM80-0AD0 A5E34621797003
6SR0960-0AM60-0AD0 A5E34890686001 6SR4….-..J..-….
6SR4….-..K..-…. 6SR0960-0AM82-0AD0 A5E34621797001
6SR0960-0AM61-0AD0 A5E34890686002 6SR4….-..G..-….
6SR4….-..H..-…. 6SR0960-0AM81-0AD0 A5E34621797002
A5E34890686003 6SR4….-..N..-…. 6SR0960-0AM80-0AD0 A5E34621797003
[1] Direct replacement depends upon the specific power semi-conductors used within the cell. Field substitution is not recommended.
Some Cell Control Boards no longer have a direct replacement. These Cell Control Boards will remain available until stock is exhausted. Once stock is exhausted, cells utilizing these specific versions of the cell control board must have the cell power semi-conductors replaced with modern components. The chart below contains a list of these Cell Control Boards.
Article number
Part Number
Used in GH180 Drive
6SR0960-0AM38-0AD0
A1A10000432.00M
6SR3….-..B..-….
6SR0960-0AM40-0AD0
A1A10000432.01M
6SR3….-..C..-….
6SR0960-0AM41-0AD0
A1A10000432.02M
6SR3….-..D..-….
6SR0960-1BA00-0AA0
A1A10000432.71M[2]
6SR4….-..A..-….
6SR4….-..B..-….
6SR4….-..C..-….
6SR4….-..D..-….
6SR0960-0AM47-0AD0
A1A10000432.91M
6SR3.5..-..C..-….
6SR0960-0AM48-0AD0
A1A10000432.92M
6SR3.5..-..D..-….
6SR0960-0AM50-0AD0
A1A10000432.93M
6SR3.5..-..E..-….
6SR3.5..-..F..-….
[2] Direct replacement is available depending upon the power semi-conductors used within the cell. Field replacement is not recommended.
The table below lists Cell Control Boards which will continue to be available.
Article number
Part Number
Used in GH180 Drive
6SR0960-0AM46-0AD0
A1A10000432.73M
6SR4….-..L..-….
6SR0960-0AM56-0AD0
A5E03545937
6SR4….-..L..-….
John Bousfield
Product Manager
