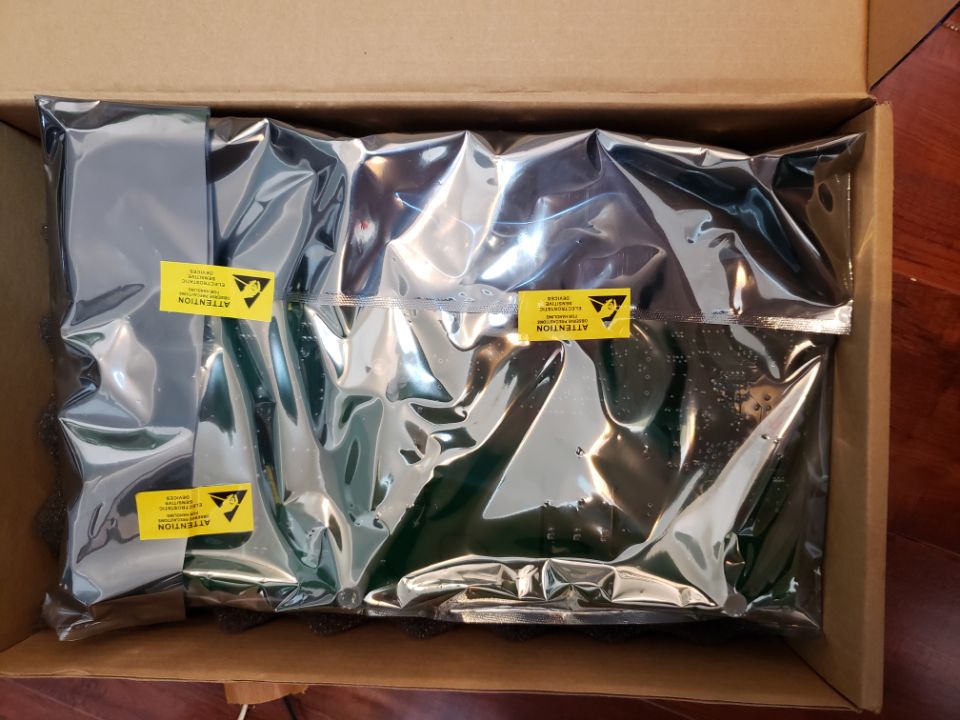

A1A10000432.72M Siemens Robicon Cell Control Board NEW IN BOX. BRAND NEW. WITH ORIGINAL PACKAGE.
A1A10000432.72M Siemens Robicon Cell Control Board NEW IN BOX. BRAND NEW. WITH ORIGINAL PACKAGE.
A1A10000432.72M Siemens Robicon Cell Control Board NEW IN BOX. BRAND NEW. WITH ORIGINAL PACKAGE.
Year-round spot inventory Siemens DC governor 6RA70, 6RA23, 6RA24, 6RA28 series, main board, power trigger board, excitation board, SCR, fan, operation board and other spare parts, large inventory, complete models, welcome to inquire.
6RA70 DC speed regulator accessories:
New version of the motherboard model: C98043-A7001-L2 (CUD1 board)
New version of the motherboard model: C98043-A7001-L1 (CUD1 board)
Reversible power supply board model: C98043-A7002-L4
Irreversible power supply board model: C98043-A7002-L1
6RA28 DC governor accessories:
Motherboard model: C98043-A1660-L1
Reversible power supply board model: C98043-A1663-L4
Irreversible power supply board model: C98043-A1663-L1
6RA24 DC speed regulator accessories:
Motherboard model: C98043-A1600-L1
Reversible power supply board model: C98043-A1601-L4
Irreversible power supply board model: C98043-A1601-L1
6RA23 DC speed regulator accessories:
Motherboard model: C98043-A1660-L1
Reversible power supply board model: C98043-A1663-L4
Irreversible power supply board model: C98043-A1663-L1
DC DS part
Name Current (A)
6RA2818-6DS21 30
6RA2825-6DS21 60
6RA2828-6DS21 90
6RA2831-6DS21 125
6RA2875-6DS21 200
6RA2877-6DS21 250
6RA2881-6DS21 400
6RA2885-6DS21 600
6RA7018-6DS22-0 30
6RA7025-6DS22-0 60
6RA7028-6DS22-0 90
6RA7031-6DS22-0 125
6RA7075-6DS22-0 210
6RA7078-6DS22-0 280
6RA7081-6DS22-0 400
6RA7085-6DS22-0 600
6RA7087-6DS22-0 850
6RA7091-6DS22-0 1200
6RA7093-4DS22-0 1600
6RA7095-6DS22-0 2000
DC DV part
Name Current (A)
6RA2818-6DV61 30
6RA2825-6DV61 60
6RA2830-6DV61 100
6RA2832-6DV61 140
6RA2875-6DV61 200
6RA2877-6DV61 250
6RA2881-6DV61 400
6RA2885-6DV61 600
6RA7013-6DV62-0 15
6RA7018-6DV62-0 30
6RA7025-6DV62-0 60
6RA7028-6DV62-0 90
6RA7031-6DV62-0 125
6RA7075-6DV62-0 210
6RA7078-6DV62-0 280
6RA7081-6DV62-0 400
6RA7085-6DV62-0 600
6RA7087-6DV62-0 850
6RA7091-6DV62-0 1200
6RA7093-4DV62-0 1600
6RA7095-4DV62-0 2000
6RA7025-6DS22-0 60A
6RA7028-6DS22-0 90A
6RA7031-6DS22-0 125A
6RA7075-6DS22-0 210A
6RA7078-6DS22-0 280A
6RA7081-6DS22-0 400A
6RA7085-6DS22-0 600A
6RA7087-6DS22-0 850A
6RA7091-6DS22-0 1200A
6RA7093-4DS22-0 1600A
6RA7095-4DS22-0 2000A
Single quadrant operation rectifier device, rated input voltage 3AC575
Model Specification
6RA7025-6GS22-0 60A
6RA7031-6GS22-0 125A
6RA7075-6GS22-0 210A
6RA7081-6GS22-0 400A
6RA7085-6GS22-0 600A
6RA7087-6GS22-0 800A
6RA7090-6GS22-0 1000A
6RA7093-4GS22-0 1600A
6RA7095-4GS22-0 2000A
6RA7095-4GS22-5 2000A
6RA7095-4GS22-6 2000A
6RA7097-4GS22-0 2600A
6RA7097-4GS22-6 2600A
Single quadrant operation rectifier device, rated input voltage 3AC690
Model Specification 2
6RA7086-6KS22-0 720A
6RA7088-6KS22-0 950A
6RA7093-4KS22-0 1500A
6RA7095-4KS22-0 2000A
6RA7095-4KS22-5 2000A
6RA7095-4KS22-6 2000A
6RA7097-4KS22-0 2600A
6RA7095-4KS22-6 2600A
Single quadrant operation rectifier device, rated input voltage 3AC830
Model Specification
6RA7088-6LS22-0 900A
6RA7093-4LS22-0 1500A
6RA7095-4LS22-0 1900A
Four-quadrant operation rectifier device, rated input voltage 3AC400
Model Specification
6RA7013-6DV62-0 15A
6RA7018-6DV62-0 30A
6RA7025-6DV62-0 60A
6RA7028-6DV62-0 90A
6RA7031-6DV62-0 125A
6RA7075-6DV62-0 210A
6RA7078-6DV62-0 280A
6RA7081-6DV62-0 400A
1P6RA7085-6DV62-0 600A
6RA7087-6DV62-0 850A
6RA7091-6DV62-0 1200A
6RA7093-4DV62-0 1600A
6RA7095-4DV62-0 2000A
6RA7098-4DV62-0 3000A
Four-quadrant operation rectifier, rated input voltage 3AC575
Model Specification
6RA7025-6GV62-0 60A
6RA7031-6GV62-0 125A
6RA7075-6GV62-0 210A
6RA7081-6GV62-0 400A
6RA7085-6GV62-0 600A
6RA7087-6GV62-0 850A
6RA7090-6GV62-0 1100A
6RA7093-4GV62-0 1600A
6RA7095-4GV62-0 2000A
6RA7096-4GV62-0 2200A
6RA7097-4GV62-0 2800A
Four-quadrant operation rectifier device, rated input voltage 3AC690
Model Specification
6RA7086-6KV62-0 760A
6RA7090-6KV62-0 1000A
6RA7093-4KV62-0 1500A
6RA7095-4KV62-0 2000A
6RA7097-4KV62-0 2600A
Four-quadrant operation rectifier device, rated input voltage 3AC830
Model Specification
6RA7088-6LV62-0 950A
6RA7093-4LV62-0 1500A
6RA7095-4LV62-0 1900A
6RY1701-0AA04
6RY1701-0AA07
6RY1701-0AA08
6RY1701-0AA11
6RY1701-0AA12
6RY1702-0AA01
6RY1702-0AA02
6RY1702-0AA03
6RY1702-0AA04
6RY1702-0AA05
6RY1702-0AA06
6RY1702-0AA07
6RY1702-0AA08
6RY1702-0AA10
6RY1702-0BA00
6RY1702-0BA01
6RY1702-0BA02
6RY1702-0BA03
6RY1702-0BA04
6RY1702-0BA05
6RY1702-0BA07
6RY1702-0BA08
6RY1702-0CA00
6RY1702-0CA01
6RY1702-0CA02
6RY1702-0CA03
6RY1702-0CA04
6RY1702-0CA05
6RY1702-0CA06
6RY1702-0CA07
6RY1702-0CA08
6RY1700-0AA01
6RY1700-0AA03
6RY1700-0AA04
6RY1700-0AA05
6RY1700-0AA08
6RY1700-0AA10
6RY1700-0AA11
6RY1700-0AA12
6RY1700-0AA14
6RY1700-0AA15
6RY1700-0AA16
6RY1700-0AA17
6RY1700-0AA18
6RY1700-0BA00
6RY1700-0BA01
6RY1700-0BA03
6RY1700-0BA04
6RY1700-0BA05
6RY1700-0BA06
6RY1700-0BA07
6RY1701-0AA04
6RY1701-0AA07
6RY1701-0AA08
6RY1701-0AA11
6RY1701-0AA12
6RY1702-0AA01
6RY1702-0AA02
6RY1702-0AA03
6RY1702-0AA04
6RY1702-0AA05
6RY1702-0AA06
6RY1702-0AA07
6RY1702-0AA08
6RY1702-0AA10
6RY1702-0BA00
6RY1702-0BA01
6RY1702-0BA02
6RY1702-0BA03
6RY1702-0BA04
6RY1702-0BA05
6RY1702-0BA07
6RY1702-0BA08
6RY1702-0CA00
6RY1702-0CA01
6RY1702-0CA02
6RY1702-0CA03
6RY1702-0CA04
6RY1702-0CA05
6RY1702-0CA06
6RY1702-0CA07
6RY1702-0CA08
DC governor accessories C98043-A1603-L41-05 motherboard
DC governor accessories C98043-A1682-L1-04 power board
DC governor accessories C98043-A7001-L1 excitation board
DC governor accessories C98043-A7002-L1 motherboard
DC governor accessories C98043-A7006-L1 power board
DC governor accessories C98043-A1200 excitation board
DC governor accessories C98043A1204L2 motherboard
DC governor accessories C98043-A7004-L1 power board
DC governor accessories C98043-A7003-L4 excitation board
The armature circuit is a three-phase bridge circuit:
• The power circuit of the single-quadrant working device is a three-phase fully controlled bridge B6C.
• The power part of the four-quadrant working device is two three-phase fully controlled bridges (B6) A,
(B6) C.
The excitation circuit adopts a single-phase half-controlled bridge B2HZ.
For devices with a rated current of 15 ~ 1200 A, the power part of the armature and excitation circuit is
The thyristor module is electrically insulated, so its radiator is not live. For installations with current ≥ 1500 A
Set, the power part of the armature circuit is a flat thyristor. At this time, the radiator is live
of. All the terminals of the power section are on the front.
cool down
Devices with a rated current ≤ 125 A are naturally air-cooled, and devices with a rated current ≥ 210 A
Set to forced air cooling (fan).
Parameter setting unit
Overview
Basic operation panel PMU
All devices have a basic operation panel PMU inside the door. Basic operation panel PMU
5 seven-segment digital tubes and 3 light-emitting diodes for status display, 3 buttons
Used for parameter setting.
In addition, the control panel PMU has an X300 plug, this plug
With RS2 3 2 or
RS485 standard USS interface. The operation can be completed with the aid of the basic operation panel PMU
The setting and adjustment of all required parameters, as well as the display of actual measured values. 3 buttons
It has the following functions.
• Toggle key
Used for the conversion between parameter number and parameter value display, and vice versa, also used for
The fault is reset.
• Increase key
It is used to select a larger parameter number in parameter mode, and in numerical mode
Increase the parameter value set and displayed, in addition, use this key to increase the
The index of the address parameter.
• Decrease key
In parameter mode, it is used to select a smaller parameter number. In numerical mode, it is used
To reduce the set and displayed parameter values and reduce the index with indexed parameters.
• Function of LED
-Preparation: Ready to run. Lit in the "waiting for permission to run" status
－Run: light in the state of "allowed to run"
－ Fault: it lights in the state of "fault signal" and flashes in the "alarm signal"
Five seven-segment digital tubes display the displayed amount in a clear form, for example:
-Percentage of rated value
- gain
- second
-Ampere or
-Volt
Operation panel OP1S
Option OP1S can be installed on the door of the device or outside the device, such as the door of a cabinet
In this case, use a 5 m long cable to connect with OP1S.
If a separate 5 V power supply is used, the wire length can be up to 200 m. Via X300
Plug, OP1S is connected to SIMOREG.
OP1S can be used as an economical speed control cabinet measuring device that alternately displays physical quantities.
On OP1S, there is a 4×16 character LCD to display the parameter name in plain text
Weighed. It can be displayed in English, German, French, Spanish and Italian.
OP1S can store parameter groups, which can be easily transferred to other devices by writing.
Parameter setting unit
Overview
Picture: 1/6
Set parameters via PC
In order to start the device and diagnose through the PC, the corresponding software Drive is provided randomly.
Monitor.
The connection between PC and SIMOREG is realized through the USS interface of the basic device.
The software provides the following functions:
• Parameter access of the menu index
• Parameter group reading and writing
• Copy the existing parameter set to other devices of the same series
• Print parameter group
• Operate through the control word (digital commands, such as on/off commands) and apply to
Value
• Monitor through the status word (feedback signal of the rectifier working status) and read the actual
Intermediate value
• Read fault signal and alarm signal
• Read the contents of the trace buffer memory (oscilloscope function in SIMOREG)
Input switch connector
Number so as to control the serial interface through the digital input
Conversion of parameter groups
The parameters with parameter numbers P100 ~ P599 and several other parameters are divided into 4 groups.
The switch connector can select which group of parameters are valid. So that one device can be handed over
Control 4 different motors alternatively. That is, the transmission conversion is realized. At this time the following functions
The set value can be converted:
• Definition of motor and pulse encoder
• Optimization of the regulation system
• Current and torque limits
• Speed controller — actual value — processing
• Speed regulator
• Excitation current adjustment
• EMF — adjustment
• Ramp function generator
• Speed limit
• Monitoring and limit values
• Digital setpoint
• Process regulator
• Electric potentiometer
• Friction compensation
• Moment of inertia compensation
• Adaptation of speed adjustment
Conversion of BICO data sets
The BICO data group can be converted by the control word (input switch connector). At this moment
You can select which connector or digital connector values are valid at the connection point. This
In this way, the structure of the regulator or the control amount can be flexibly matched.
Electric potentiometer
Electric potentiometer through the control function "increase", "decrease", "clockwise/counter-clockwise
"Needle", "Manual/Automatic" play a role, and its own acceleration and deceleration time can be set separately
And an adjustable arc ramp function generator. Adjust the area through the parameter pair (
Small and output) to set. The control function is applied through the digital connector.
In the automatic state (in the "Auto" position) the input of the electric potentiometer is
Determined by the selected amount (connector number). At this time, you can select the ramp function generator
Whether the time is valid, or whether the input can be directly added to the output.
In the "manual" position, the set value is adjusted with the help of "increase" and "decrease" functions.
In addition, you can also choose whether the output returns to zero or whether the next value is saved when the power is off
Reserve. The output can be used arbitrarily through a connector. For example, given as the main
Value, additional given value or limit value.
Regulating function in the armature circuit
Structure and working method
Speed setpoint
The reference source of the speed reference value and the additional reference value can be freely selected by parameter setting:
• Analog quantity setting 0 ~±10 V
0 ~±20 mA
4 ~ 20 mA
• Set by the built-in electric potentiometer
• Given by a switch connector with fixed setpoint, jog, and crawl functions
• Given through the serial interface of the basic device
• Given by additional board
In general, 100% of the given value (the sum of the main given value and the additional given value) corresponds to
Motor speed.
The given value can be set by the parameter or the connector to limit its value and small value. In addition, soft
There are addition points in the file, for example, in order to be able to input before or after the ramp-function generator
Enter the additional given value. The "setpoint release" function can be selected through the switch connector,
After filtering (PT1-filter) that can be parameterized, the total given value acts on
The set value input terminal of the speed regulator, the ramp function generator is valid at this time.
Actual value of speed
The actual speed value can be selected from any of the following 4 sources:
Siemens 6RA DC plate parts C98043 a large number of stocks
DC governor accessories C98043-A7011-L1 motherboard
DC governor accessories C98040-A7005-C1-4 power board
DC governor accessories C98040-A7009-C1-6 excitation board
DC governor accessories C98043-A7010-L1 motherboard
DC governor accessories C98043-A7020-L4 power board
DC governor accessories C98043-A7002-L4 excitation board
DC governor accessories C98043-A1600-L1-18 motherboard
DC governor accessories C98043-A1630-L1-06 power board
DC governor accessories C98130-A1155-B21 excitation board
DC governor accessories C98043-A1603-L41-05 motherboard
DC governor accessories C98043-A7004-L2 power board
DC governor accessories C98040-A7001-C1-05 excitation board
DC governor accessories C98040-A7002-C1-03 motherboard
DC governor accessories C98040-A7002-C1-5 power board
DC governor accessories C98043-A7001-L2 excitation board
DC governor accessories C98043-A7010-L1 motherboard
DC governor accessories C98043-A7010-L2 power board
DC governor accessories C98043-A7002-L4 excitation board
DC governor accessories C98043-A7003-L1 motherboard
DC governor accessories C98043-A7003-L4 power board
DC governor accessories C98043-A7004-L1 excitation board
DC governor accessories C98043-A7004-L2 motherboard
DC governor accessories C98043-A7004-L1 power board
DC governor accessories C98043-A7014-L2 excitation board
DC governor accessories C98043-A7014-L1 motherboard
Motherboard C98043-A7001-L1/L2 (6RY1703-0AA00)
Power board C98043-A7002-L1 (6RY1703-0DA01)
Power board C98043-A7002-L4 (6RY1703-0DA02)
Communication board C98043-A7006-L1 (6RX1700-0AK00)
Motherboard C98043-A1600-L1
Power board C98043-A1601-L1
Power board C98043-A1601-L4
Driver board C98043-A1603-L4
Siemens Siemens Drive Board DC Speed Controller Accessories C98043-A1616-L1 Power Board
Previous : A1A10000350.00M Robicon Perfect Harmony Siemens Rev Pcb Circuit Board PCA, W/Firmware, Modulator
Next : A5E32539903 Siemens Robicon Power Cell NEW IN BOX. BRAND NEW. WITH ORIGINAL PACKAGE.
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
