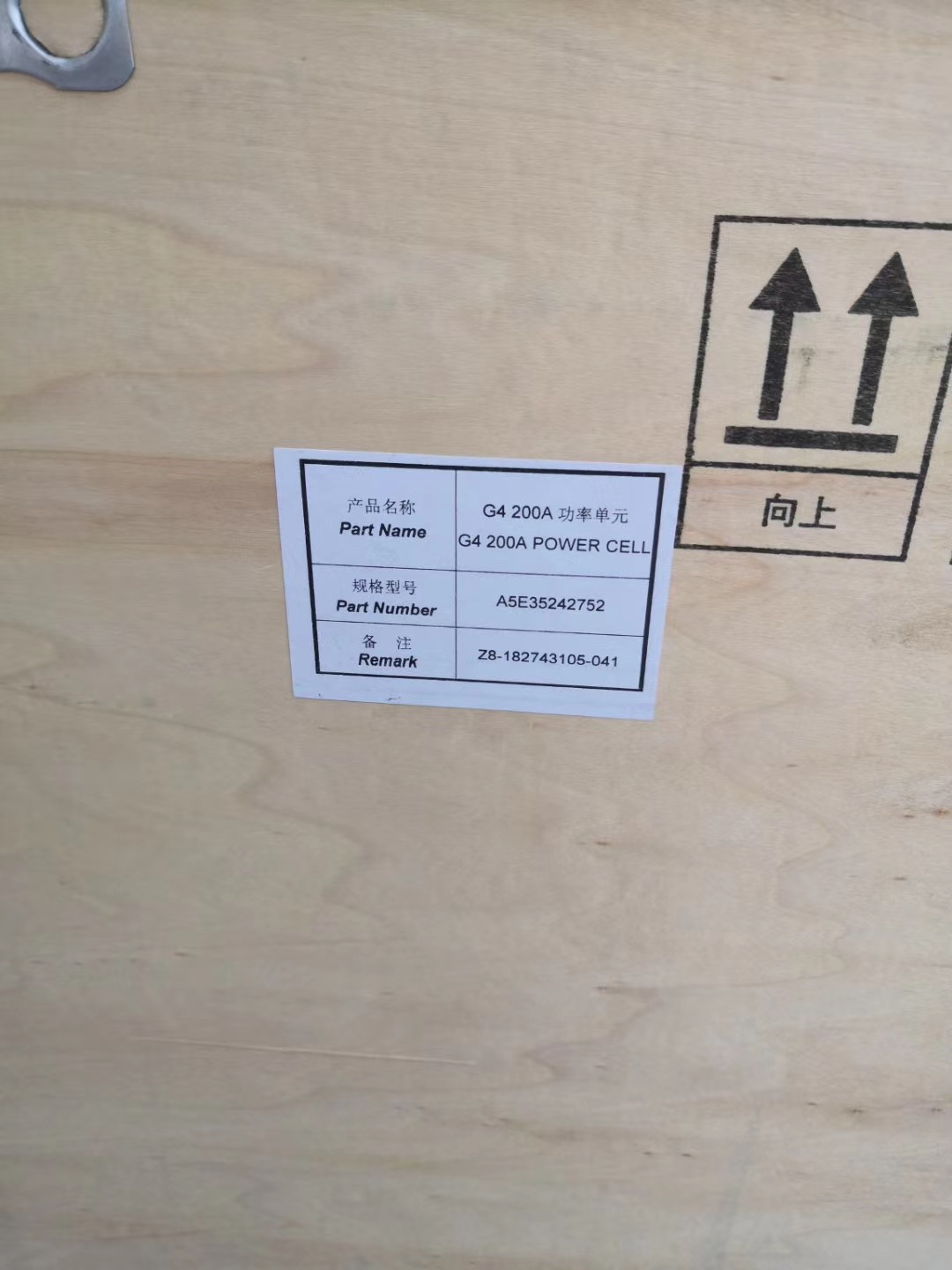

A5E35242752 Siemens Robicon Power Cell NEW IN BOX. BRAND NEW. WITH ORIGINAL PACKAGE.
A5E35242752 Siemens Robicon Power Cell NEW IN BOX. BRAND NEW. WITH ORIGINAL PACKAGE.
A5E35242752 Siemens Robicon Power Cell NEW IN BOX. BRAND NEW. WITH ORIGINAL PACKAGE.
Maintenance (Page 63)
10.1 NXGII Control
Table 10-1 NXGII Control Recommended Spare Parts
Quantity LD P/N Description
1 each A1A098194 PCA, ISA Backplane
1 each A1A10000623.00M PCA, Single Board Computer + Keypad Adapter
1 each A1A10000423.00M PCA, System I/O Board
1 each A1A461D85.00M
1
PCA, Fiber Optic, 12-channel
1 each A1A10000350.00M PCA, Modulator
1 each A5E03407403 PCA, Communications Board
1 each A5E02363383 or
A5E02624585 or
A5E02669557 or
A5E02669580 or
A5E02669582
2
Keypad, Siemens, English
Keypad, Siemens, Chinese
Keypad, Siemens, Portuguese
Keypad, Siemens, Russian
Keypad, Siemens, German
1 each A5E01649325 PCA, System I/O Breakout Board: 120 VAC DIG IN
1 each A5E01708486 PCA, Signal Conditioning Board
2 each A5E02381532 Fan, Axial, 24 VDC
1 each A1A0100275 Power supply, 700 W
1 each A1A094519 or
A1A094518
2
Relay, latching (LFR): 120 VAC coil
Relay, latching (LFR): 24 VDC coil
1
Recommended spare for systems with 15 or more power cells.
2
Verify which P/N is used on the Production Bill of Materials (PBOM) and furnish that one as a spare.
Spare parts
10.1 NXGII Control
WCIII Operating Instructions
120 Manual, AA, A5E32043214A
10.2 Power Cell
Table 10-2 Power Cell Recommended Spare Parts
Cell Rating Quantity LD P/N Description
880 Amp 2 Quadrant 1 each A5E02248613 Cell, 880 A, 2 Quadrant
2 per cell A1A099563 or
A1A099181 or
A1A0100622 or
A5E01521969
1
Film Capacitor, 13500 F, 1300 V
2 per cell A1A099557 or
A1A0100665
2
Fuse, 700 A, 1000 V
880 Amp 4 Quadrant
1 each A5E02248617 Cell, 880 A, 4 Quadrant
2 per cell A1A099563 or
A1A099181 or
A1A0100622 or
A5E01521969
1
Film Capacitor, 13500 F, 1300 V
2 per cell A1A099557 or
A1A0100665
2
Fuse, 700 A, 1000 V
1250 Amp 2 Quadrant
1 each A5E02251463 Cell, 1250 A, 2 Quadrant
3 per cell A1A099563 or
A1A099181 or
A1A0100622 or
A5E01521969
1
Film Capacitor, 13500 F, 1300 V
2 per cell A1A099556 or
A1A0100664
2
Fuse, 1000 A, 1000 V
1250 Amp 4 Quadrant 1 each A5E02200053 Cell, 1250 A, 4 Quadrant
3 per cell A1A099563 or
A1A099181 or
A1A0100622 or
A5E01521969
1
Film Capacitor, 13500 F, 1300 V
2 per cell A1A099556 or
A1A0100664
2
Fuse, 1000 A, 1000 V
1
Medium-Voltage Variable Frequency Drive
ROBlCON Perfect Harmony
WClll Operating lnstructions
Manual A5E32043214
