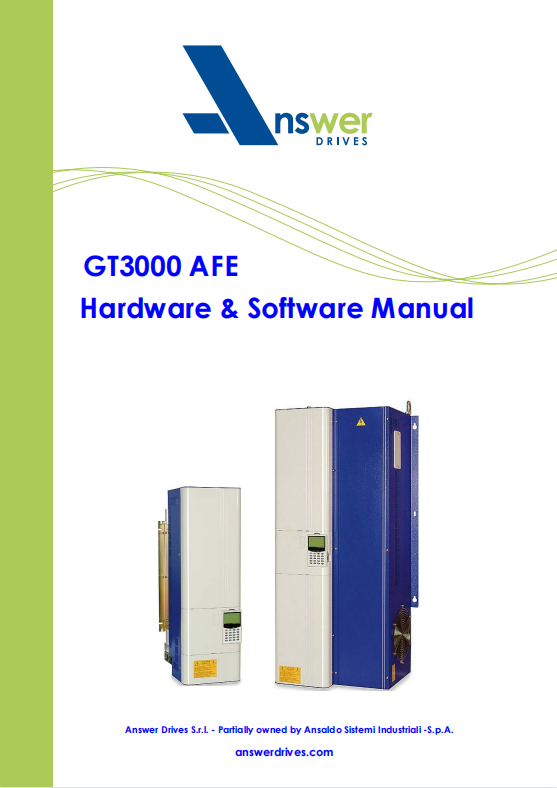

GT3000 AFE Hardware & Software Manual

Answer Drives S.r.l. - Partially owned by Ansaldo Sistemi Industriali -S.p.A.

answerdrives.com




7A SPARE PARTS



Preface



It is compulsory to use only components supplied or suggested from drive manufacturer. The spare parts suggested are pointed out in grey (two-year working).

The numbers show the quantity of components mounted on the inverter.



Report the complete identification code of the drive on the spare request.



GT3000 Sparte Parts OPTIONS

Description

Catalogue No.

Q.ty*

Keypad

SVGTBFK (Base)

ELC481316

1

(only one type per drive)

SVGTHFK (High Features)

ELC481318

1

Communication Boards

SVGTPDP (Kit Profibus SCADAB-SCADAP)

ELC452614

1


SVGTMRTU (Kit Modbus SCADAB-SCADAP)

1000000920

1

I/O Expansion Board (external mounting)

SVSIOS1A

ELC452264

1

Analog 10V/0V/-10V / 0 (4) -20mA Board

SVS2AB

ELC481003

1



GT3000 Spare Parts

SVGT030-166F

Description

Code

30

36

45

53

66

86

108

125

150

166

Q.ty*

Main Control Board

SCADA-PLUS (E)

ELC452613

1

1

1

1

1

1

1

1

1

1


Scheda di Potenza

AC SVGT030 GPS4A

8000000652

1











Power Supply Board

AC SVGT036 GPS4A

8000000651


1











AC SVGT045F GPS5A

8000000654



1










AC SVGT045Y GPS5A

8000000656


1










AC SVGT053F GPS5A

8000000657




1









AC SVGT 053YGPS5A

8000000658




1







1


SK "GALIA" GT5A 062

1000071581





1








SK "GALIA" GT5A 076

1000074478






1







SK "GALIA" GT5A 100

1000074480







1






SK "GALIA" GT5A 121

1000074482








1





SK "GALIA" GT5A 152

1000074485









1

1


Scheda pilotaggi

SK "GPIL40" PIL. GT

1000071636





1







Pilot board

SK "GPIL40" PIL. GT

1000074486






1







SK "GPIL40" PIL. GT

1000074489







1




1


SK "GPIL40" PIL. GT

1000074490








1





SK "GPIL40" PIL. GT

1000074490









1

1


Moduli IGBT

6IGBT 150A 1200V

1000008936





1







IGBT module

6IGBT 225A 1200V

1000008938






1







6IGBT 300A 1200V

1000008939







1






6IGBT 450A 1200V

1000008940








1

1

1


Condensatore

1500MF 450V 45x100 U

1000008933



4








4

Capacitors

2200MF 450V 64.3x105

1000008932



4

6






6


4700MF 450V 76X143

ELC409402






4

4

6

6

6

6

FAN

FAN 24V 170MC

ELC408977

1

1











FAN 24V 247MC D150

1000008928



1

1

1






1


FAN 24V 282MC D171.5

1000008929






1

1






FAN 230V-50HZ 950MC

1000072804








1

1

1


Modulo IGBT freno

1GBT 50A, 1200V

1GBT 75A, 1200V

1GBT 145A, 1200V

1GBT 200A, 1200V

ELC407321

ELC407281

100007195

ELC407284



1









Brake IGBT Module




1

1













1

1




1









1

1

1


CURRENT TRANSDUCER

TA_Lem 200

ELC40991403





2

2

2




1


TA_Lem 300

ELC40991404








2

2

2




* Suggested quantity for single drive
