Catalog D 17 | Global Edition | 12/2023 Table of contents

SINAMICS PERFECT HARMONY GH180 Catalog D 17 3

SINAMICS medium voltage drives...........................................................................................................................4

Overview ..............................................................................................................................................................5

SINAMICS medium voltage drives: always the right solution............................................................................6

SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives....................................................................7

SINAMICS PERFECT HARMONY GH180 benefits.................................................................................................8

SINAMICS PERFECT HARMONY GH180 design..................................................................................................10

PERFECT HARMONY GH180 cell bypass evolution ...........................................................................................12

SINAMICS PERFECT HARMONY GH180 solutions .................................................................................................13

Options...................................................................................................................................................................21

Availability by manufacturing location.............................................................................................................21

Option descriptions ...........................................................................................................................................26

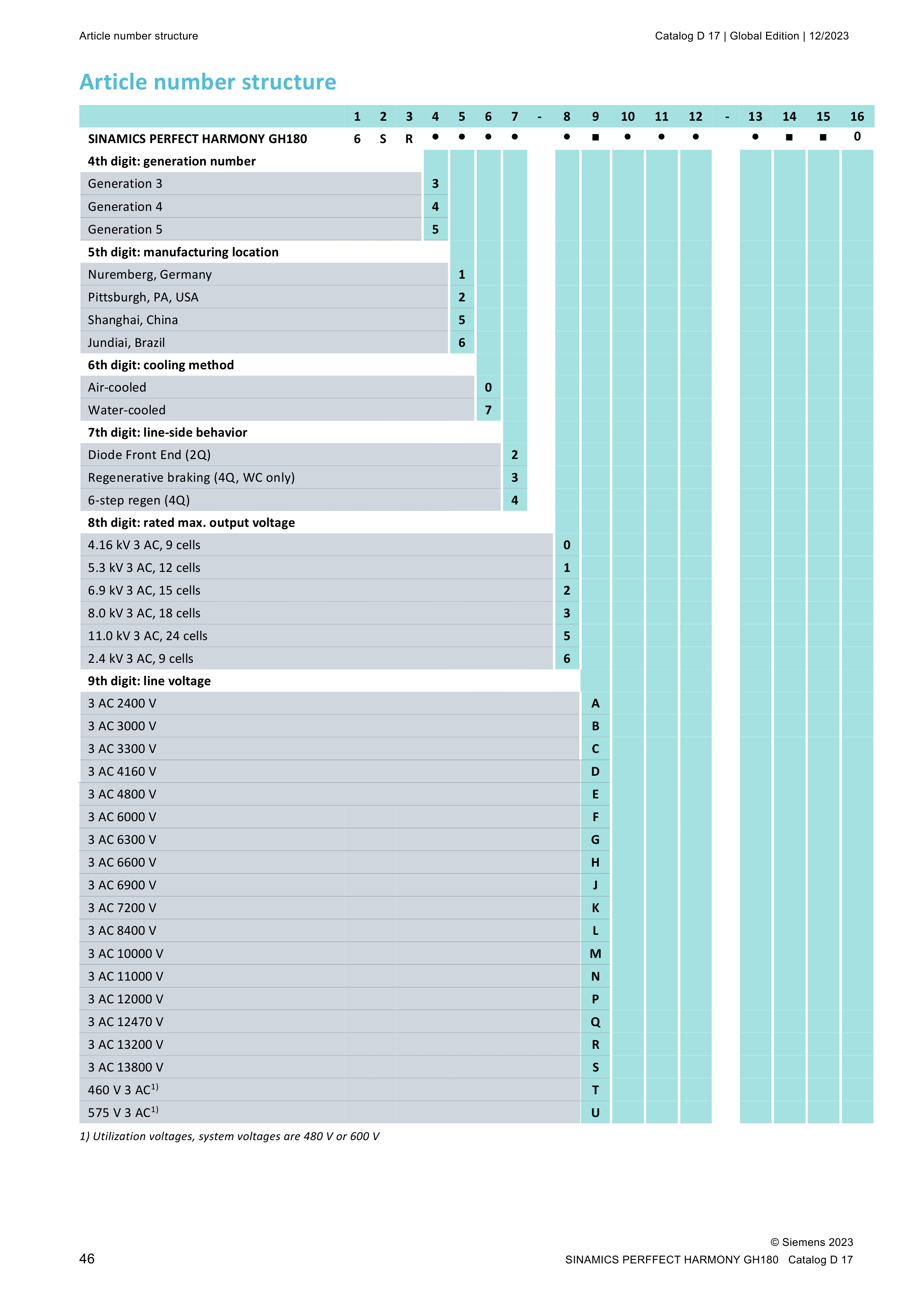

Article number structure .......................................................................................................................................46

Technical data ........................................................................................................................................................50

General technical data.......................................................................................................................................50

Storage, transportation and operation data ....................................................................................................53

Air-cooled technical data...................................................................................................................................54

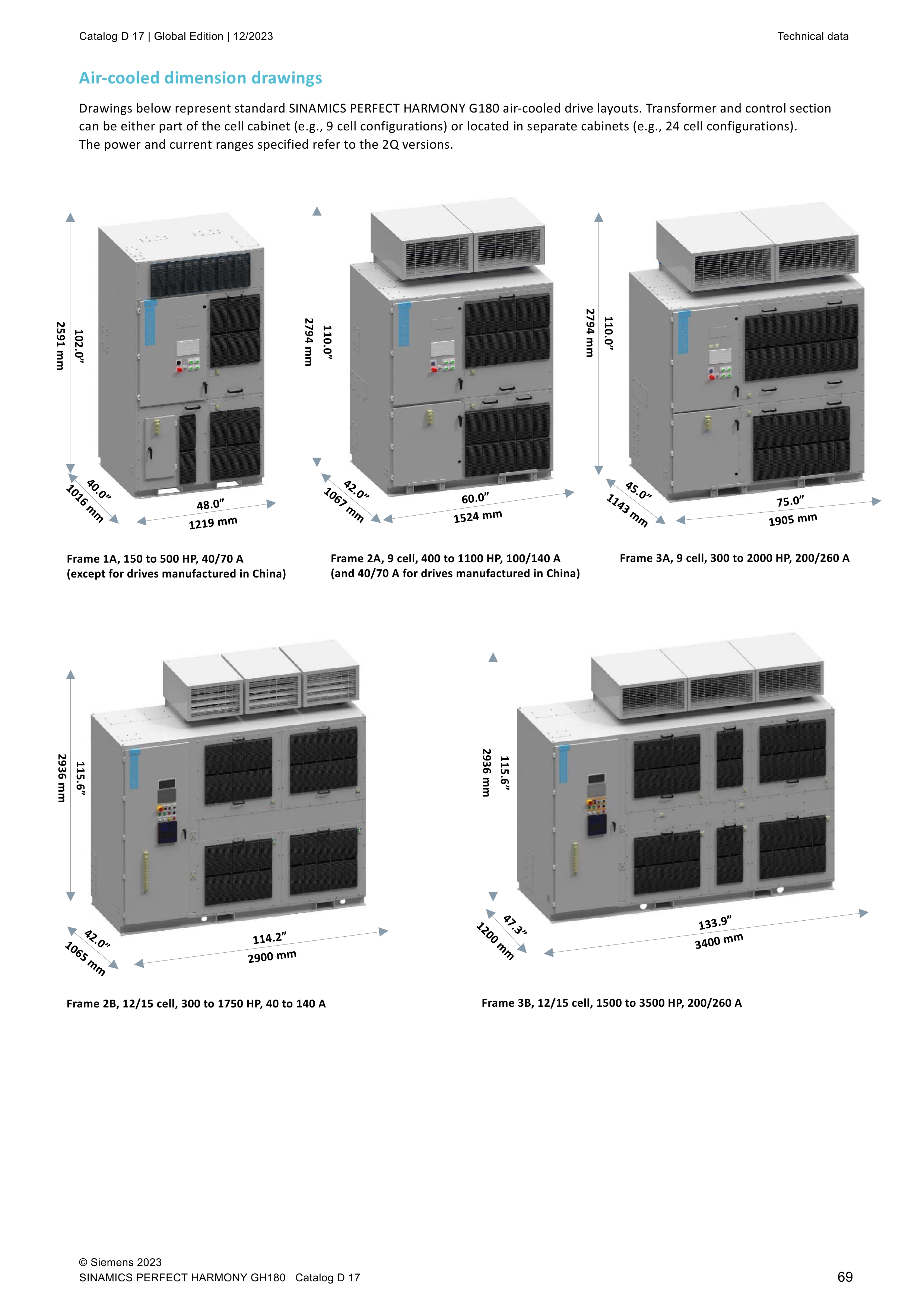

Air-cooled dimension drawings.........................................................................................................................69

Water-cooled technical data .............................................................................................................................73

Water-cooled dimension drawings...................................................................................................................76

Engineering information........................................................................................................................................77

Control performance .........................................................................................................................................77

Protection and monitoring functions................................................................................................................79

Interfaces............................................................................................................................................................80

Air cooling requirements...................................................................................................................................81

Water cooling requirements .............................................................................................................................82

Current product information.............................................................................................................................84

Siemens Product Configurator and other engineering tools............................................................................84

Services for Large Drives Applications..................................................................................................................85

SIDRIVE IQ ..............................................................................................................................................................87

Scope of Supply......................................................................................................................................................88

Recommended List of Spare Parts ........................................................................................................................88

Contents

SINAMICS medium voltage drives Catalog D 17 | Global Edition | 12/2023

4 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

SINAMICS medium voltage drives

One single topology or drive configuration does not fit all applications. This is the reason Siemens offers drives featuring six different

technologies, motor voltage classes from 2.3 kV to 13.8 kV and power ratings from 150 kW to 85 MW. Plus, the drive systems match

perfectly with Siemens high-voltage motors to provide you with unparalleled levels of reliability, availability, flexibility and performance.

SINAMICS PERFECT

HARMONY GH180

SINAMICS PERFECT

HARMONY GH150 SINAMICS GM150 SINAMICS GL150

Technical

Specifications

Type of converter Multi-cell voltage source

inverter featuring

H-Bridge Perfect Harmony

technology

(H-Bridge VSI)

Multi-cell voltage source

inverter featuring

Modular multilevel

converter technology

(M2C VSI)

3-level Neutral Point

Clamped voltage source

inverter with Diode Front

End (3L NPC DFE)

Current Source inverter

with load-commutated

inverter technology

(LCI)

Converter cooling Air (A), water (W) Air (A), water (W) Air (A), water (W) Air (A), water (W)

Power range A: 0.15 to 17 MVA

W: 3.5 to 48.8 MVA

A: 4 to 70 MVA

W: 4 to 47 MVA

A: 1-10.1 MVA

W: 2-24 MVA

A: 1-30 MVA

W: 6-85 MVA

(higher on request)

Transformer Integrated transformer Separate transformer Separate transformer Separate transformer

Rectifier section A: 2Q (DFE), 4Q

W: 2Q (DFE), 4Q 2Q (DFE) 2Q (DFE) 4Q

Output voltage A: 2.3 to 11 kV

W: 2.3 to 11 kV

A: 4 to 13.8 kV

W: 4 to 11 kV

2.3 to 4.16 kV

6.6 kV (tandem)

1.4 to 10.3 kV

SINAMICS SH150 SINAMICS SM150 SINAMICS SL150

Technical

Specifications

Type of converter Multi-cell voltage source inverter

featuring Modular multilevel

converter technology (M2C VSI) with

Active Front End (AFE)

3-level Neutral Point Clamped

voltage source inverter with

Active Front End (3L NPC AFE)

Cycloconverter (CC)

Converter cooling Water (W) Air (A), water (W) Air (A), water (W)

Power range W: 3 to 16 MVA A: 3.4 to 5.8 MVA

W: 4.6 to 31.5 MVA

A: 3 to 18.8 MVA

W: 3 to 40 MVA

Transformer Separate transformer Separate transformer Separate transformer

Rectifier section 2Q (DFE) or 4Q (AFE) 2Q (DFE) or 4Q (AFE) 4Q

Output voltage 3.3 to 7.2 kV IGBT: 3.3 to 4.16 kV

IGCT: 3.3 kV

A: up to 3.3 kV

W: up to 4.0 kV

Catalog D 17 | Global Edition | 12/2023 SINAMICS medium voltage drives

SINAMICS PERFECT HARMONY GH180 Catalog D 17 5

Overview

Siemens has more than four decades of experience manufacturing nearly every type of medium-voltage converter or inverter that exists

today. We have chosen our portfolio of drives to meet your specific needs with the optimal solution for every type of medium-voltage

application:

• Standard applications such as pumps, fans, compressors and conveyors

• Specialized applications such as rolling mills, horizontal mills, shaft generators and high-speed compressors

SINAMICS

PERFECT

HARMONY

GH180

SINAMICS

PERFECT

HARMONY

GH150

SINAMICS

GM150

SINAMICS

GL150

SINAMICS

SH150

SINAMICS

SM150

SINAMICS

SL150

Pumps X X X X

Fans X X X X

Conveyors (downhill) X X X X

Conveyors (uphill) X X X X

Crushers X X

Extruders X X X

Mixers X X

Compressors X X X X X

Excavators X X

Kilns X

High-pressure grinders X X

Vertical mills X X

Horizontal mills (geared) X X X X

Horizontal mills (gearless) X

Existing line motors X X X X

Blast furnace blowers X X X X

Pump storage X X X

Rolling mills X X

Propulsion X X X X

Thrusters X

Mine winders X X

Boiler feed pumps X X X X

Starting generators X

Starting blast furnace blowers X

Onshore power supply X

Test stands X X X X X

Shaft generators X X X

Shaft generator / booster X X

LNG start / helper (all-electric) X X X X

ESP applications X

Permanent magnet motors X X

SINAMICS medium voltage drives Catalog D 17 | Global Edition | 12/2023

6 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

SINAMICS medium voltage drives: always the right solution

SINAMICS frequency converters - drives for every

drive application

Siemens is the leading manufacturer of electric drive

technology. With SINAMICS frequency converter technology,

you can address each and every drive application – whether

low voltage, medium voltage or DC. You can operate

synchronous motors as well as induction motors according to

the characteristics of the machine you are driving. Our variable

frequency drives, electric motors and control systems for the

variable-speed control of machines are perfectly coordinated

with one another and can be very simply integrated into your

existing system and automation landscape.

Discover why no other drive portfolio can match the flexibility

and performance of our SINAMICS medium voltage drives.

With systems in motor voltage classes from 1.4 kV to 13.8 kV,

and power ratings from 100 kW to 85 MW, Siemens drives are

built to provide the reliability, longevity and quality that

modern applications demand – because in today’s competitive

market, downtime is not an option. Due to complex project

requirements, it is always recommended that users contact

their Siemens sales partner for more advanced assistance in

selecting the correct drive for the application. Designed to

save energy, reduce operating costs and reinforce reliability,

SINAMICS VFDs are the industry’s preferred choice in power

conversion:

• Wide range of input voltage capability:

from 480 V to 35 kV

• Wide range of output voltage capability:

from 1.4 to 13.8 kV

• A seamless range of power ratings:

from 100 kW to 85 MW

• Single-motor drives and multi-motor systems

• Oldest motor retrofitted – 1942 (68 years old at time of

retrofitting)

• Motor speeds from 7 to 15,900 rpm

• Operates induction, wound rotor, synchronous, permanent

magnet, slipring and super-conducting motors

Strong foundation

For decades, Siemens has offered our customers medium

voltage drives with the highest degree of reliability and

availability in the world.

More than 50 years of experience, power of innovation and

comprehensive knowledge have enabled Siemens to become

the trusted name in the medium voltage drive arena.

• 1969: Develops variable-speed medium voltage drive

systems with current-source DC link

• 1970: Introduces Cycloconverter for low speed applications

• 1994: Revolutionizes medium voltage drives with cell-based

topology of ROBICON Perfect Harmony

• 1995: Launches SIMOVERT ML for rolling mill applications

• 1998: Pioneered the use of high-voltage IGBTs for medium

voltage drives

• 2003: Produces the highest-rated high-speed drive (LCI) for

an LNG compressor (65 MW)

• 2005: Launches water-cooled 4Q technology

• 2013: Launches SINAMICS SM120 CM – first medium

voltage drive featuring M2C technology

• 2014: Launches SINAMICS GH150 – general purpose

medium voltage drive featuring M2C technology

• 2020: Reaches 20,000+ SINAMICS PERFECT HARMONY

GH180 drives installed worldwide

• 2021: Launches air-cooled 4Q offering

Proven technology

Based on well-proven technological concepts, Siemens is

continually improving our medium voltage drives. The result:

increasingly higher reliability and operational reliability and

safety, more compact types of construction, reduced energy

requirements, lower service and maintenance costs, as well as

simpler handling from engineering through to installation,

integration and commissioning up to operator control. With an

installed base exceeding more than 35 GW worldwide, the

SINAMICS PERFECT HARMONY GH180 is a proven workhorse

that can perform brilliantly for you, too.

Catalog D 17 | Global Edition | 12/2023 SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives

SINAMICS PERFECT HARMONY GH180 Catalog D 17 7

SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives

Technical characteristics

Air-cooled drives Water-cooled drives

The SINAMICS PERFECT HARMONY GH180 drive family consists of core design configurations, where they are functionally identical and

share a common controller. These designs are targeted at distinct output power configurations with little overlap between the frame

sizes. The SINAMICS PERFECT HARMONY GH180 family is summarized in the tables below.

SINAMICS PERFECT HARMONY GH180 characteristics at a glance

Line-side rectifier 6SR5

6SR327

24 to 54 pulse diode rectifier

18 to 48 pulse diode rectifier

Motor-side inverter Multilevel drive (PWM)

Power cells A 6SR5

6SR327

40, 70, 100, 140, 200, 260, 340, 430, 550, 600, 720, 750

880, 1000, 1250, 1375

Input voltage range kV 6SR5

6SR327

480 V to 13.8 (higher input voltage on request)

2.3 to 13.8

Input voltage tolerance +10 %, –10 %1) of nominal rated input voltage

Input overvoltage (swell) +20 %

Input undervoltage (dip or sag) –34 %, continues operation with reduced torque

Medium voltage ride through 500 ms – 2Q only

(30 cycles @ 60 Hz and 25 cycles @ 50 Hz)

Input frequency Hz 50/60 ± 5 %

Input power factor ≥ 0.95 above 10 % load

Input harmonics ≤ 3 % total demand distortion (TDD) 2)

Output voltages kV 6SR5

6SR327

2.3/2.4, 3.3, 4.0/4.16, 4.6/4.8, 6.0, 6.6, 6.9/7.2, 10.0, 11.0

3.3, 4.0/4.16, 4.6/4.8, 6.0, 6.6, 6.9/7.2, 10.0, 11.0

Output frequency and drift Hz 0.5 ... 330 ± 0.5 % (sensor-less or open loop vector control),

or ± 0.1 % with encoder (encoder or closed loop vector control)

Output Torque 100 % from 10 to 167 Hz without derating 3)

Drive quadrants 2 or 4

Power range hp

6SR5

6SR327

150 to 17000 (100 kW to 12.7 MW)

4000 to 33000 (3 to 24.6 MW)

Overload 1min/

10min

6SR5

6SR3274)

110 % built-in, 150 % available as an option, higher on request

Drive Control methods Sensor-less or open loop vector control, encoder or closed loop

vector control, volts-hertz control

Motor control Induction, Synchronous, Permanent magnet motors, and Wound

rotor motors

1) ±10 % of nominal depending on tap. Output power derating required for –5 to –10 % voltage tolerances

2) As measured at the drive input, actual performance at the site will depend on the present harmonic distortion

3) Proper drive sizing is required. When derated properly, the drives are available for low frequency (0.5 to 10 Hz) and high frequency (168 to

330 Hz) with de-rated torque.

4) 6SR327 drives with 1000 and 1375 A are only available with 100 % rated current.

SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives Catalog D 17 | Global Edition | 12/2023

8 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

SINAMICS PERFECT HARMONY GH180 benefits

Clean input power

The SINAMICS PERFECT HARMONY GH180 drive:

• Meets the most stringent IEEE 519-2014 requirements for

voltage and current harmonic distortion, even if the source

capacity is no larger than the drive rating1):

– The SINAMICS PERFECT HARMONY GH180 drive is

supplied with a minimum 18-pulse input with versions

available up to 54-pulse input, resulting in less than

3 percent total voltage distortion and less than 3 percent

total current distortion. It eliminates the need for costly

and inefficient harmonic filters and the associated

resonance problems.

• Protects other online equipment from harmonic

interference (computers, telephones and other power

converters)

Sinusoidal output power (waveforms)

The SINAMICS PERFECT HARMONY GH180 drive:

• Minimizes drive induced torque pulsations and associated

torsional analysis compared to other medium voltage

topologies, by using a motor friendly pulse width

modulation (PWM) output:

– Less than 1 % induced torque ripple for any given

frequency results in no motor heating and no bearing

wear

Note:

For certain motor voltages the torque ripple value can go

up to 3 %, but only at relative speeds above 95 %.

• Eliminates additional losses due to harmonics; thus, it can

be used with new or existing motors without de-rating:

– Depending on configuration generates 13 to 33 level

output waveform line to line

– Small output voltage steps produce no voltage spikes at

the motor which allows the use of a motor with standard

insulation

– No need for filters up to 7500 ft (2.3 km)

– Waveforms remain high quality at lower speeds due to

multi-level PWM output

1) IEEE 519-2014 compliance can only be guaranteed in networks

without prior disturbances or harmonics already present.

Maximized availability

The SINAMICS PERFECT HARMONY GH180 drive:

• Remains operational in the event of a cell failure by using

the cell bypass option which bypasses the faulted cell

• Achieves near 100 percent reliability and 99.99 percent

availability, delivers greater productivity and a significantly

reduced total cost of ownership over the drive’s life cycle

• Offers a Process Tolerant Protection Strategy (ProToPS™).

ProToPS™ protects customer process from faulty sensors or

data. Unlike typical systems that simply trip the drive and

shut down the system due to a malfunction, it offers a

proactive control approach based on a hierarchical warning

system that allows the operator to evaluate the drive and

system condition and respond appropriately or initiate

controlled shutdown.

Extended reliability

The SINAMICS PERFECT HARMONY GH180 drive with an

integrated transformer provides the following advantages:

• Protects drive semiconductors from line transients

• Completely protects the motor in case of a ground fault in

the converter, the motor cabling or insulation

Exceptional input line performance

Robust design provides immunity from most input power

disturbances and interruptions to insure protection of

customer equipment and trip free operation during most

common and frequent power quality issues:

• Best in class input voltage brownout conditions - no trip

down to 66 percent of nominal voltage. Output power is

reduced by limiting the available motor torque, drive can

operate continuously in this mode

• When the line voltage drops below 66 percent, it results in

"Ride Through Mode / Power Loss Ride Through" of up to

500 ms – 30 cycles @ 60 Hz and 25 cycles @ 50 Hz systems.

(Not available for 4Q drives.)

• Built-in input transformer with lightning arrestors to

provide protection from excessive peak voltage

Over 25 years of performance and more

than 21,000 units in operation exceeding

35 million kW installed power worldwide,

Siemens has only one goal in mind:

optimizing customer profitability

Catalog D 17 | Global Edition | 12/2023 SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives

SINAMICS PERFECT HARMONY GH180 Catalog D 17 9

Extensive testing

SINAMICS PERFECT HARMONY GH180 will get your process up

and running because we have the ability to test every product

at full load – prior to delivery:

• At our factory, we test every transformer and power

converter together to ensure performance meets precise

specifications.

• We verify sequence of operation and protection to ensure

that the SINAMICS PERFECT HARMONY GH180 drive

matches your needs.

• As an option, factory testing allows accurate efficiency

measurements if customer requests it.

SINAMICS PERFERCT HARMONY GH180 –

The most proven medium-voltage drive

on the market today with a cell-based

design perfect for meeting high efficiency

and availability application requirements.

Ease of installation and maintenance

SINAMICS PERFECT HARMONY GH180 drives are easy to install

and maintain:

• Customer provides three cables in and three cables out.

There is no customer site cabling required to connect the

drive sections.

• Power cells can be removed easily for maintenance due to

their reduced weight and front accessible connections.

• With optional Advanced Cell Bypass a faulty cell can be

changed out at a later date in 30 minutes or less.

• Sophisticated microprocessor-based diagnostics pinpoint

the location of any defects

SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives Catalog D 17 | Global Edition | 12/2023

10 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

SINAMICS PERFECT HARMONY GH180 design

Drive topology

The SINAMICS PERFECT HARMONY GH180 series drives achieve

an uncompromising performance by employing well-proven

technology in a modular configuration, as shown in Figure 1.

Medium voltage levels are obtained by adding together the

outputs of multiple power cells. The power cells are simplified

variations of standard 2-level PWM low voltage drives, which

have been built in high volume for many years.

Figure 1: Topology of SINAMICS PERFECT HARMONY GH180 drive

(3 cells per phase)

For higher output voltage capabilities, the SINAMICS PERFECT

HARMONY GH180 topology can be extended up to eight power

cells in series in each phase, with additional secondary

windings (number of secondaries equals number of power

cells) on the integral isolation transformer.

Transformer

Since the early 1990s, Siemens has collaborated extensively

with transformer suppliers to perfect the design of the

transformers used in each SINAMICS PERFECT HARMONY

GH180 drive. The patented design provides several benefits

in the drive topology, including the adaptability to input

voltage, a multi-pulse input, and a reduction in common

mode voltage.

The transformers used in the SINAMICS PERFECT HARMONY

GH180 are VPI dry-type, forced-air or water- cooled. They are

designed specifically for use with a particular SINAMICS

PERFECT HARMONY GH180 drive configuration and have 9 to

24 extended delta secondaries.

The SINAMICS PERFECT HARMONY GH180 transformers are

designed, constructed, and tested as per IEC 60076-11

standard. The transformer is an integral part of the drive that

cannot be specified or obtained externally to Siemens.

Proven IGBTs

Low voltage Insulated Gate Bipolar Transistors (IGBTs) form

the backbone of the SINAMICS PERFECT HARMONY GH180

drive. Built in high volumes and serving as a proven power

device across the industrial power control industry, IGBT

technology has been in existence for more than two decades.

The stability and availability of IGBTs give reliable, long-term,

lifecycle confidence.

Linked power cells

In the SINAMICS PERFECT HARMONY GH180, power cells (see

Figure 2) are linked together in series to build the medium

voltage power output (see Figure 1) of the drive system. This

modular configuration gives the SINAMICS PERFECT HARMONY

GH180 many advantages when it comes to maintenance,

power quality and reliability. It also provides the basis for one

of its most important advantages – increased availability

through the advanced cell bypass option.

Figure 2: Schematic of a typical power cell

Advanced cell bypass

The SINAMICS PERFECT HARMONY GH180 is designed to

withstand failures that would overwhelm conventional drives

because redundancy options are added into the system. The

patented, cell-based configuration maximizes uptime and

simplifies modifications.

Through a redundant bypass control that is completely

separated from each power cell, SINAMICS PERFECT

HARMONY GH180 ensures automatic bypass of a failed power

cell in 250 ms. The mechanical cell bypass option is

implemented by providing a contactor at the output of each

cell. One of the many benefits of mechanical cell bypass

includes the ability to be tested during customer factory

acceptance test.

Since the cells in each phase are in series, bypassing a cell has

no effect on the current capability of the drive, but the voltage

capability will be reduced. Usually the required motor voltage

is roughly proportional to frequency (speed). With a power cell

or cells in bypass, the maximum speed the motor can operate

at may be reduced approximately in line with the reduced

voltage. The reduction in speed is somewhat load dependent.

Catalog D 17 | Global Edition | 12/2023 SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives

SINAMICS PERFECT HARMONY GH180 Catalog D 17 11

It is important to maximize the motor voltage available after

one or more cells have been bypassed. The following figures

illustrate the voltage available from a SINAMICS PERFECT

HARMONY GH180 drive, where the cells, represented by

circles, are shown as simple voltage sources. Figure 3 shows a

15-cell drive in which no cells are bypassed. With 100 % of the

cells in use, 100 % of the original voltage is available. The

voltage commands to the three phase groups of cells will have

phase A displaced from phase B by 120°, and from phase C by

120°.

Figure 3: Simplified diagram of a 15 cell drive

When two cells are bypassed in phase A, the output voltage

will tend to become unbalanced, as illustrated in Figure 4 and

not suitable for operating a motor.

Figure 4: Drive output with 2 cells bypassed in phase A

One possible remedy is to bypass an equal number of cells in

all three phases, even though some may not have faulted.

Figure 5 illustrates this approach.

Obviously, this method prevents unbalance but sacrifices

possible voltage capability. In this figure, 87 % of the cells are

functional, but only 60 % are in use, and only 60 % of full

voltage is available.

A better approach is illustrated in figure 6. This method takes

advantage of the fact that the star-point of the cells is

floating and is not connected to the ground. Therefore, the

star-point can be shifted away from the motor neutral, and

the phase angles of the cell voltages can be adjusted, so that

a balanced set of motor voltages is obtained even though the

cell group voltages are not balanced. Siemens calls this

approach Neutral Shift (Siemens patented technology).

Figure 5: Drive output rebalanced by bypassing functional cells

In figure 6, the full remaining 87 % of functional cells are in

use, and 80 % of the original voltage is available. The phase

angles of the cell voltages have been adjusted so that phase A

is displaced from phase B and from phase C by 132.5°, instead

of the normal 120°.

Figure 6: Drive output rebalanced by adjusting phase angles

(Neutral Shift)

The figure 7 below demonstrates the available output voltage

after one cell is bypassed based on number of cells in

configuration and bypass method used. For example,

SINAMICS PERFECT HARMONY GH180 (3 cells per phase) with

neutral point shift is capable to provide 83 % of output voltage

compared to below 70 % for the drive with the same number

of cell but without neutral point shift capability.

Figure 7: Available output voltages after bypass

SINAMICS PERFECT HARMONY GH180 air- and water-cooled drives Catalog D 17 | Global Edition | 12/2023

12 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

PERFECT HARMONY GH180 cell bypass evolution

The SINAMICS PERFECT HARMONY GH180 has revolutionized

medium voltage power conversion. Perfect Harmony

multilevel topology was invented by Robicon (now Siemens) in

1994. Siemens continues to be the technology leader for

multilevel topology inverters and has over 50 unique patents

and 100 international patents filed around Perfect Harmony

topology. In 2017 Siemens began releasing its 5th generation of

SINAMICS PERFECT HARMONY GH180. The complete 5th

generation air-cooled range was released in 2021.

The SINAMICS PERFECT HARMONY GH180 drive continues to

set industry standards for reliability and innovation. Siemens

improves each generation in three key areas: increased

reliability and availability, increased efficiency, and a smaller

drive footprint. The innovation includes further improving cell

bypass technology: evolving from an electronic thyristor based

bypass (SCR) integrated to each cell to a mechanical bypass

totally independent of the cell.

Cell bypass evolution

In the original concept as implemented 25 years ago, each cell

contained a single phase rectifier bridge with a thyristor. The

AC inputs of this rectifier bridge were connected to the cell

output terminals. In the event of the failure bypass SCR is

shorted effectively disconnecting the cell from the input

power. Although this approach was effective under certain

failure conditions, it had several drawbacks:

• Since cell and bypass share fiber optic communication, if it

is lost, then the bypass can not be engaged because the

control can not activate cell bypass due to the failed

communications. Therefore, this bypass system is less

effective and less reliable.

• If there is any component failure in the cell such as IGBT,

gate drive, cell control board power supply that may lead to

bypass control malfunction resulting in the loss of the

bypass functionality.

• To protect cell from exposure to fault current bypass

circuitry had built-in fuse, that would automatically blow

when cell bypass is engaged. If it was a nuisance trip

customer could not automatically reset it which required a

new cell for replacement.

In 2000, to overcome these difficulties, bypass was changed to

an external mechanical contactor supplied from a completely

independent power source and controlled by a separate

control means. This contactor does not have to interrupt

current, so it doesn’t need arc control measures. The contactor

is a single pole double throw arrangement so that it can

disconnect the cell from the output string and apply a shorted

contact in place of the cell. With this bypass, the cells do not

have to function at all for bypass to work.

Advantages of the mechanical cell bypass

• The SINAMICS PERFECT HARMONY GH180 bypass is based

on traction DC contactor – proven and trusted technology!

• It does not matter which of the components has failed

within the cell. In fact, even a failure in the fiber optic link

that communicates to the cell can be detected and

bypassed. This approach protects against the failure of any

component in the power circuits or in the communications

circuits, rather than protecting the drive against power

semiconductor failure only.

• Mechanical bypass has separate communication with the

drive control and independent regulated power supply to

ensure maximum availability.

• In the instance of a nuisance trip customer can

automatically reset bypass and continue the operation.

• During the fault, drive control performs a quick check to

verify if the motor output voltage can be supported by the

functional cells before a cell is bypassed. This voltage can be

near the drive rated output voltage for a few seconds

before dropping over time. If a cell is bypassed too fast, the

remaining cells may not be able to support this voltage and

leading to cells malfunction. SINAMICS PERFECT HARMONY

GH180 has built-in control function to perform all necessary

checks to ensure safe and reliable operation.

• When a cell is bypassed, it allows for process ride through

with an interruption of only 250 ms or less.

Catalog D 17 | Global Edition | 12/2023 SINAMICS PERFECT HARMONY GH180 solutions

SINAMICS PERFECT HARMONY GH180 Catalog D 17 13

SINAMICS PERFECT HARMONY GH180 solutions

Drive heat load management

During operation, every drive generates heat that needs to be

removed from the room to avoid equipment overheating. In

many installations, it is very common to use air-conditioning to

reduce the heat in the control room. The amount of heat

dissipated into the room by the drive depends on the drive

size, its running load, cooling method and efficiency. Other

equipment located in the same space may also have losses

requiring cooling.

The more heat rejected into the room, the higher operational

cost and total costs of ownership of the drive are. The drive

typical losses are 3.0 to 3.5 % of the motor rating when

operating at full load (losses reduce as load reduces). Aircooled drives usually dissipate heat directly into the room and

require additional measures to keep operating within the

manufacturer specified range; while water-cooled drives reject

most of the losses into the water, less than 5% of losses are

rejected into the room.

The difference in cooling requirements for installations where

heat rejected directly into the room could be 20 times higher

compared to solution where losses are ducted outside the

room. For example, 4000 Hp (3000 kW) drive losses in the

room are 96 kW while the same drive with ducted air outside

or heat exchanger (air-to-air or air-to-water), has only 4.8 kW

losses resulting in significant reduction in cooling

requirements. In this case heat losses in the room are similar

to water-cooled drive performance. In order to reduce the

requirement for air-conditioning of a control room, it is worth

evaluating various heat management options available for aircooled drives:

• The air can be ducted directly outside (options M64 or

M68)

• Air-to-air heat exchanger (option W41)

• Liquid-to-air heat exchanger

Each approach has its own advantages and limitations and

each case should be evaluated based on customer application,

site conditions, availability of water, etc. Below are highlights

of each option.

Ducting hot air outside is one of the most economical

implementations but it does require upfront engineering from

a customer. Engineering is required to design proper air flow in

the room to avoid creating a vacuum or wind tunnel effect in

the room. The air can be drawn either from outside with

proper filtration to meet drive installation requirements or in

some cases, HVAC is capable of supporting the necessary

airflow. It is critical to design the solution properly to prevent

unnecessary trips due to lack of air. The regular maintenance

of outside filters is required to ensure that no contaminates

get into the drive.

Utilization of heat exchangers creates close loop cooling

systems. In close loop systems air is drawn through ventilation

openings at the bottom or the front of the drive, depending on

the product line, then circulated through the transformer and

power cell sections and exhausted through the back of the

drive enclosure. Warm air is cooled via the heat exchanger and

circulated back to the drive. The hot and cooled air is

transferred to the heat exchanger by duct work through the

control room or power distribution center exterior wall. In case

of liquid-to-air heat exchangers, heat is removed from the hot

air and transferred to the customers' water system.

There are two possible ways to implement this configuration

the first one is similar to air-to-air heat exchanger set up where

heat exchanger itself located outside and the hot air from the

drive ducted. The second one is when the VFD blower cage

assembly is replaced with the heat exchanger assembly. This

solution does not require ducting work done to the building

thus reducing additional engineering effort.

The heat exchanger option (either air-to-air or air-to-water) is

a self-contained solution that does not require additional

engineering on the customer's behalf. Compared to open loop

systems, this solution provides higher degree of contamination

protection due to the two separate airflow design, which keeps

dirt, moisture, and other elements from getting into the

equipment.

Heat exchangers might require higher initial investment

compared to open loop system or HVAC solution, it typically

has the lowest total cost of ownership compared to traditional

HVAC and a pay back of 2 to 3 years depending on size of the

drive or solution saving operators cost of electricity for the

next 17 years of the drive life.

Figure 8 Installation with air-to-air heat exchangers and two drives in

the building

Not only this solution reduces overall cost of drive operation,

the heat exchanger is also about 5 to 10 % more reliable

compared to industrial redundant HVAC systems and about 20

to 30 % more reliable compared to commercial HVAC systems.

This reliability improvement is due to fewer components in the

heat exchanger compared to HVAC system which consists of

compressors, fans, belts, valves, etc. The above figures are

based on the data collected by our field support team over

past 10 years.

The air-to-air heat exchanger solution has built-in fan

redundancy and comes complete with heat exchanger

controls. It is rated for ambient temperatures from 32º F to

104º F (0º C to 40º C). When required, they can be equipped

with options to meet –40º F (–40º C) including space heaters,

louvers and snow hoods for cold environments.

SINAMICS PERFECT HARMONY GH180 solutions Catalog D 17 | Global Edition | 12/2023

14 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Bidirectional synchronous transfer

There are two primary applications that require synchronous

transfer:

• The first one is a drive used as a soft-starter to reduce

stress from starting motors directly on line.

• The second one is used for process/flow control: starting up

multiple motors and synchronizing them to the line

according to process specifications.

The key difference between these applications is sizing of the

drive. When variable frequency drive (VFD) is used to start

the motor in an unloaded condition, the VFD does not have

to match the full rating of the motor. For example, a

20,000HP motor may be started by a 5000HP VFD if the drive

output can provide sufficient output current and develop

enough motor torque to accelerate the motor up to full

speed. In this instance, the VFD is at full power only for a very

short period of time. The drive transfers a motor across the

line after the motor is at full speed. In all cases the motor is

started in either unloaded or partially loaded condition.

The drive is often used in this application when incoming line

is soft and cannot support the inrush current of the motor

during starting. Sometimes, the incoming line is even too

weak to support a reduced-voltage start even though inrush

current is less it is still about 250% to 300% of the motor full

load current rating. Starting motors with VFDs have the

following benefits:

• Multiple starts per day

• Draws minimal inrush currents while starting, minimizing

voltage drop and system electrical stress

• Reduces mechanical shock (starting torque is controlled at

nominal levels)

For such applications the SINAMICS PERFECT HARMONY

GH180 has a function for single motor synchronous transfer

option (L29) that does not require any PLC, it is done by the

drive’s control and in most cases without need for an output

reactor.

For the second option, the drive is sized to run the motor full

time. In a pumping station, the demand can change

significantly within a day for the water and wastewater

industry and seasonally for oil pipelines. One variable

frequency drive can be used in combination with multiple

motors to adjust the flow to meet the demand. In this case,

the last pump is always run by VFD for flow and pressure

control.

Siemens can design your sync transfer system to suit your

application. With standard, pre-configured systems that

utilize our best-in-class VFD and motor control products,

Siemens can provide a full spectrum of standard and flexible

options.

Once the sync transfer system has been completely

assembled, Siemens performs full power testing to ensure

seamless integration and operation. Components are

assembled and tested. The Sync Transfer Control System

(STC) supports transfer of two to eight motors directly to or

from a line source of power. The system is designed to handle

induction motors or synchronous motors and connection of

motors to a source the same as the drive or to an alternate

source.

Figure 9: Switchgear and reactor lineup for 3 motor synchronous

transfer application (for drive manufactured in the USA only)

Optimized synchronous transfer

The traditional synchronous transfer option uses output

reactor for a bump-less closed transfer (figure 10).

Connecting voltage source VFDs to a motor in parallel to the

line (closed transfer) can result in excessive currents. The

solution used to prevent such excessive currents has always

been to add a reactor between the VFD output and the

motor.

Figure 10: Typical multi-motor synchronous transfer application with

reactor

The advantage of this implementation is the ability to operate

for periods of time in parallel with the line. This makes the

transfer from the line to the VFD as smooth as possible. The

limitation of this solution is higher initial capital cost, increase

of the losses within the drive system and reduced output

voltage capability of the drive system. While the losses and

voltage drop are negligible with regards to motor operation,

the reactor losses require additional cooling. The cooling of

these losses is either can be done by placing the reactor

outside or increasing the HVAC capability of the cooling

system. Regardless, the capital cost of including a reactor is

considerable.

Due to increases in drive control processing power

synchronous transfer can be optimized to eliminate the use of

an output reactor. This optimized synchronous transfer can be

applied to most motor drive applications.

Catalog D 17 | Global Edition | 12/2023 SINAMICS PERFECT HARMONY GH180 solutions

SINAMICS PERFECT HARMONY GH180 Catalog D 17 15

Figure 11: Optimized multi-motor synchronous transfer

The benefit of this approach is the ability to remove the

reactor between the VFD and the motor, and the associated

motor line contactor feedback to the SINAMICS PERFECT

HARMONY GH180 VFD. Synchronous transfer of the motor to

the line remains as a closed bump-less transfer.

The optimized synchronous transfer does differ during "down"

transfer. When the motor is transferred from the line back to

VFD while it is still closed transfer, it will result in a step torque

change to the motor but it has minimal impact on process.

The magnitude of this step change is limited to the allowable

torque.

Optimized synchronous transfer of motor to line

(up transfer)

Optimized synchronous transfer operates in the same manner

as the traditional GH180 transfer operation with regards to

"up" transfer so the same operational logic and application

methods apply. The graph below shows the motor operation

during an "up" transfer:

• The magenta waveform is the voltage magnitude as seen by

the motor.

• The blue waveform is the output voltage of the VFD.

• The green waveform is motor current

• The red waveform is the control voltage for the VFD’s

output contactor

Figure 12: Optimized synchronous up transfer

As shown in the graph, there is no observable change in motor

voltage or current. This means that there is no meaningful

change in motor torque during an "up" transfer, and it is

synchronized with the line phase and frequency.

Optimized synchronous transfer of motor to the VFD

(down transfer)

Optimized synchronous transfer of the motor to the VFD

operates almost identically to the traditional SINAMICS

PERFECT HARMONY GH180 "down" transfer method. All

existing logic which was used previously can be applied to the

optimized synchronous transfer.

The VFD output is connected in parallel with the motor. When

the VFD senses the voltage on the output, it synchronizes with

this voltage. Once synchronized, the VFD signals to open the

motor’s line contactor. Once the motor’s line contactor opens,

the VFD starts operation without waiting for the line contactor

open signal.

The chart below is a capture of an optimized synchronous

"down" transfer:

• The magenta waveform is the motor voltage magnitude

• The red waveform is the VFD output current

• The blue waveform is VFD/Motor voltage

Figure 13: Optimized synchronous down transfer

The graph shows negligible effect of the zero torque state.

During the time between the opening of the motor’s line

contactor and the VFD starts operating the torque of the

motor will be zero. During "down" transfer the SINAMICS

PERFECT HARMONY GH180 uses sophisticated sensing to

determine the state of the line contactor. This sensing will

adapt automatically to the application. This approach prevents

timing issues and greatly reduces the process impact caused by

the brief zero torque state.

Additional considerations

There are a few rare cases that require additional analysis

before using optimized synchronous transfer solution:

• excessive system short circuit current ratings:

– for smaller drives (40 to 70 A), the short circuit current at

the drive’s input should not excessed 35 kA,

– the short circuit current should not exceed 200 times of

the drive’s rated output current.

– In these cases, a 1 % reactor is required.

• excessive torque variations during steady state operation,

and

• extremely low motor/load inertia, for example electrical

submersible pump application.

SINAMICS PERFECT HARMONY GH180 solutions Catalog D 17 | Global Edition | 12/2023

16 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

If your site or load falls into this category, the optimized

synchronous transfer may be modified to fit your application.

If this is not possible, the traditional synchronous transfer

remains available to ensure all applications have the

opportunity to use synchronous transfer for bypass operation.

Summary

The optimized synchronous transfer system allows for bypass

operation without the need for an output reactor.

• Optimized and traditional synchronous "up" transfers are

equivalent with no interruption of motor torque.

• Optimized synchronous transfer has a brief torque

interruption during "down" transfer operation -

interruption is kept brief by an adaptive algorithm which

senses contactor status via motor behavior

When selecting the synchronous transfer option, Siemens

recommends that customers install motor protection relay

(MPR). Once the motor is transferred directly on line, it is no

longer protected by the VFD. In case of the multi motor

synchronous transfer option (N18), Siemens integrates an MPR

with associated CTs and PTs into the switchgear line-up. If

switchgear is supplied by the customer (L20), it is customer

responsibility to install the MPR.

For both options, Siemens provides a synchronous transfer

controller with predefined and tested logic up to 8 motors and

built-in HMI for display. The controller can be installed as a

part of the line-up or separate in a control room depending on

customer requirements. Siemens solution is the most flexible

and provides support for the customers’ selection of

switchgear and motor protection relay to ensure the best fit

for their site and application.

Catalog D 17 | Global Edition | 12/2023 SINAMICS PERFECT HARMONY GH180 solutions

SINAMICS PERFECT HARMONY GH180 Catalog D 17 17

Electrical Submersible Pump Application

Approximately 90% of all oil wells require some form of

artificial lift to improve oil flow. Electrical Submersible Pump

(ESP) is one of several methods used in the industry. Once the

oil reservoir stops producing oil under free flow, electrical

submersible pumps are used to pump the oil to the surface.

Historically, low voltage drives have dominated in ESP

applications, but recently more and more end-users are

considering and using medium voltage drives. An ESP is a

centrifugal pump that is driven by a medium voltage electric

motor that ranges from 1000 V to 6600 V.

More often than not, ESPs are installed in remote locations.

The power is more susceptible to disruptions from outages,

poor voltage regulation, and transient voltage conditions. The

design, operational and site constraints make these motors

sensitive to the following conditions:

• Input line overvoltage and transient spikes

• High inrush torques

• High dv/dt

• Torque pulsations

One of the most common ESP motor and cable failures is

short-circuited motors and cables. The reason for short circuit

events is insulation break down. The LV drive solution, if not

properly selected and engineered, may produce high output

voltage spikes that lead to insulation break down of both cable

and motor. The ESP failures have a very high cost. The total

cost to an end-user of one ESP failure is about $154K. Below is

the breakdown of the average cost associated with the

onshore ESP operation:

• Average loss of revenue $60x200x7=$84K based on:

– Price per barrel - $60 (can be as high as $100 depends on

market conditions); average oil production per well: 200

bopd (barrels of oil per day) and average workover &

waiting time: 7 days

– Average intervention cost is $20K (maybe higher

depending on a cost and availability of a rig) and average

equipment cost of $50K

SINAMICS PERFECT HARMONY GH180 provides the best

solution for this application. Siemens has over 1000 units

installed globally in this application alone. It offers inherent

almost sinusoidal output voltage waveform, low harmonics

and negligible torque pulsations:

• Less than 1% VFD induced torque ripple for any given

frequency: no motor heating and no bearing wear

• 13 level output waveform line to line and small output

voltage steps (1.3kV): no voltage spikes at the motor

• No need for filters up to 7500ft (2.3km)

• Waveforms remain high quality at lower speeds

Figure 14: Output waveform

SINAMICS PERFECT HARMONY GH180 input configuration

waveform:

• Meets the most stringent requirements for voltage and

current harmonic distortion, even if the source capacity is

no larger than the drive rating

• Less than 3 % total voltage distortion

• Less than 3 % total current distortion

Figure 15: GH180 input waveform (9-cell, 54-pulse)

In addition, the SINAMICS PERFECT HARMONY GH180 provides

the following benefits compared to a LV solution:

• No step-up transformer needed, the drive has direct

feedback from the motor – output voltage ranging from

1.8 kV up to 6.6 kV.

• No restriction on starting torque – 100 % of torque is

available at 1.6 Hz speed – this would significantly reduce

motor stress compared to kick start of LV drive.

• When pump gets stuck due to sediment collection, the

drive can produce 150 % of rated torque required to free

the motor or if additional effort is needed drive can engage

"rocking" function to free the pump.

• In locations that have frequent lightning storms, the drive

offers standard distribution arrestors to provide protection

to drive, cables and motor.

• Flexibility with simplified and optimized input voltages from

480 V up to 13.8 kV (higher input voltages on request).

SINAMICS PERFECT HARMONY GH180 solutions Catalog D 17 | Global Edition | 12/2023

18 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Torque during ride-through

ESP applications typically operate in regions where momentary

power interruptions occur. These momentary power

interruptions cause a loss of input power feeding the drive.

The drive will respond by entering a mode called ride-through.

The VFD performance during the voltage sag tolerance and

ride-through of momentary power loss depend on the amount

of capacitance available in the DC link. The tolerance level

varies from manufacturer to manufacturer and ranges from

90% to 75% of nominal input voltage.

At full speed, the SINAMICS PERFECT HARMONY GH180

provides regular operation for dips down to 90% of nominal

voltage. After that the drive output power is rolled-back

linearly from 100% power at 90% of input voltage down to 50%

power at 66% of nominal input voltage. Output power is

reduced by limiting the available motor torque. The VFD can

operate continuously in this mode. When the input voltage

falls below 66%, then the power is quickly reduced to a slightly

negative value (regenerative limit) (figure16). This limit forces

the drive to absorb power from the motor and maintain the DC

bus voltages in case the input voltage recovers during MV ridethrough.

This typical ride-through action is the most effective drive

response for most applications. However, some applications

with very low system inertia and high loads are willing to

sacrifice ride-through duration to maintain enough torque to

prevent stopping the process.

Figure 16: GH180 torque during input voltage sag and ride-through

ESPs have low system inertia and a high load. Losing torque,

even for a short time, will cause the flow to stop and reverse

direction. At this point, one must wait for the column of fluid

to drain back through the pump and sediment to settle before

restarting the pump. Once started, one must refill the column

of fluid before production is restored. This all wastes energy

and time resulting in less revenue.

Given the cost of time and energy to restore production in ESP

applications, it is more important to maintain the process

through application of torque during a short power

interruption than the ability to instantly reapply torque after

an extended power interruption.

Solution

For applications such as ESPs, SINAMICS PERFECT HARMONY

GH180 drives implement a scheme which allows to maintain

some torque for a short time during ride-through. The power

for this torque is the power stored within the DC filter banks of

the power cells.

During ride-through, drive will provide torque to hold a preset

speed for up to 100 milliseconds (5 cycles). After this period,

the drive returns to the original ride-through algorithm where

a slight regenerative torque is applied, and motor flux is

maintained until DC power is exhausted or line voltage returns.

Figure 17: Typical pump speed response during extended torque ridethrough

Summary

Extended torque ride through uses the energy stored in the DC

filter capacitors to extend the torque available from the drive

when a brief power interruption occurs. The benefits are:

• Enough torque is supplied to maintain minimum flow to

prevent pump cavitation

• No reverse flow following momentary power outages

• No waiting for the column of fluid to drain sediment to

settle before restarting

• No wasted energy refilling the column of fluid before

production begins

Time

100

(%)

Erms

Pump Speed(%)

100ms

Catalog D 17 | Global Edition | 12/2023 SINAMICS PERFECT HARMONY GH180 solutions

SINAMICS PERFECT HARMONY GH180 Catalog D 17 19

SINAMICS PERFECT HARMONY GH180 54-pulse solution

IEEE 519-2014, "Recommended Practices and Requirements

for Harmonic Control in Electric Power Systems", is the

standard for input harmonics in North America. It

recommends limits for individual harmonics and total

distortion. The goal is to limit harmonics at Point on a Public

Power Supply System Coupling (Point of Common Coupling),

defined as the utility/customer connection point, focusing on

current distortion limits for the user and on voltage distortion

limits for the supplying utility.

The primary reason for harmonic distortion is non-linear

loads including but not limited to VFD. Such loads draw nonsinusoidal currents from the power supply which, in turn,

causes distortion in the voltage waveform at the point-ofcommon coupling. This distortion may impact other

customers by reducing system efficiency or adding additional

stress for equipment connected to the same power supply.

Siemens traditional implementation has a proven record that

the performance of an 18-pulse drive is within the limits of

IEEE 519. Typically, a VFD with 9 cell configuration lowers

harmonic distortion at its input by phase shifting its

transformer windings. The windings (one per each phase) are

shifted 20° apart to achieve 18 pulse. As shown in Figure 18,

with an 18-pulse VFD input, the current THD is 3.5% — well

below the 5% limit set forth by IEEE 519. Telephone

Interference Factor (TIF) is 114.

Figure 18: Input current harmonics with an 18-pulse VFD

As Siemens continue to improve performance of the

SINAMICS PERFECT HARMONY GH180, we further reduce

input harmonics with the same number of windings. Siemens

new standard solution is 54-pulse 9-cell configuration. Each

cell in SINAMICS PERFECT HARMONY GH180 has 6 pulse

rectifier that in the past was shifted in the group of three (see

figure 19). In the new configuration each individual cell

winding is shifted 6.6° apart (see figure 19) to achieve 54

pulse rectification without additional hardware and does not

affect the drive footprint. The new design offers more than

15 % improvement in current distortion and more than 30 %

in TIF compared to 18-pulse configuration.

Figure 19: Example of transformer winding phase shifting

Example of harmonic spectrum of 54 pulse is represented in

Figure 20, the data show THD of the current is 2.9 % and the

TIF is 77.

Figure 20: Input current harmonics with an 54-pulse VFD

IEEE 519-2014 defines levels for Total Current Demand

Distortion (TDD(I)). Most manufacturers measure and show

cumulative amount of harmonic distortion or Total Harmonic

Current Distortion (THD(I)). IEEE requires distortion measured

at 100% load, at this point THD(I) equals to TDD(I). The

improvement in current waveforms is shown in Figure 21.

Figure 21: Input line current waveforms

An additional benefit of 54-pulse solution compared to 18-

and 24-pulse configurations is cancellation of higher order of

harmonics. Typical harmonic cancelation based on number of

pulses:

18-pulse: 5, 7, 11, and 13

24-pulse: 5, 7, 11, 13, 17 and 19

54-pulse: 5, 7, 11, 13, 17, 19, 23, 25, 29, 31…, 47 and 49

The harmonics measurements mentioned in this discussion

are based on ideal steady state operation of the drive and

assuming the power supply network is symmetrical and free

from harmonics. In real world conditions, the supply

networks or connected equipment never follow the ideal

environment and therefore, the actual measured harmonics

would not be exactly as calculated or simulated. Our

theoretical analysis and simulations for 54 pulse design were

completed and verified by actual field testing and data.

IEEE 519 Limit

Input Line Current 18-Pulse

Input Line Current 54-Pulse

SINAMICS PERFECT HARMONY GH180 solutions Catalog D 17 | Global Edition | 12/2023

20 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

SINAMICS PERFECT HARMONY GH180 water-cooled drive

SINAMICS PERFECT HARMONY GH180 water-cooled drives

are designed to provide output power from 4,000 HP to

33,000 HP (3 to 24.6 MW) in a single channel and output

voltages from 3.3 kV to 11.0 kV. The GH180 water-cooled

drives are approved for manufacturing only from the USA

(New Kensington) location.

To support critical high power applications, Siemens

redesigned its SINAMICS PERFECT HARMONY GH180 watercooled drive to be 20 % more compact and more powerful

with cell current rating of 1375 A. The streamlined design

offers the same proven reliability and performance as before,

but within a smaller footprint and additional configuration

flexibility that makes it even more versatile.

The result is a simplified system that’s composed solely of a

transformer cabinet, cell cabinet and cooling cabinet. There’s

less programming needed, and fewer components with fewer

connections means maintenance time is minimized, too.

Reliability is improved by reducing the number of threaded

fittings on the water-cooled VFDs and replacing long hoses

with copper pipe. Every aspect of the drive is optimized to fit

small spaces while remaining compatible with — and

delivering superior reliability to — virtually every application.

Built-in safety

The inherent benefit of the distributed power structure of the

PERFECT HARMONY multi cell topology results in significantly

reduced fault energy stored in the inverter section (equivalent

of the low voltage drive) as compared to other available

technologies. To provide additional protection, every

SINAMICS PERFECT HARMONY GH180 water-cooled drive

includes the Arc Detection System as a standard feature in

power cells since its design in 2006.

The inverter section consists of cells equipped with arc

detection sensors and the control to communicate with the

drive system. This communication is supported by the

Advanced Protocol software. In the rare event of cell arcing,

the Advanced Protocol will initiate the shutdown of the

inverter within 20ms and the drive control will issue a trip

signal to an external breaker.

When combined with suitable fast acting circuit breakers on

the input and output circuits, the SINAMICS PERFECT

HARMONY GH180 VFD can be effectively disconnected from

the input line and the motor in a short duration.

Recommended total opening time of the circuit breaker must

not exceed 80. The drive monitors the total opening time.

The purpose of Arc-Fault Detection is to minimize the impact

of the arc by reducing the time needed to trip the circuit

breaker and interrupt the fault.

Advanced cooling cabinet option

Customers that require high level of monitoring and

redundancy will benefit from advanced cooling cabinet option

(W32). This option offers a larger cabinet to provide easier

access to components and for easier maintenance. To support

maintenance, the cabinet has a built-in hoist and rail system

for changing the pumps. The pumps are equipped with two

low-voltage variable speed drives for better motor control of

the pumps which, in turn, increases the reliability, efficiency

and life of the pumps. Automatic switchover between pumps

will occur in the event of one of the pumps failure or loss of

flow. The customer has the freedom to program pump cycling

based on their system requirements. The advanced cabinet

supports both air-to-water and liquid-to-liquid heat

exchangers.

There are several signals available for remote monitoring

through customer SCADA or plant HMI to provide timely

feedback on performance of the entire cooling system

including external heat exchanger. Increased monitoring

allows for advanced indication of coolant system issues

before the drive control issues an alarm or trip. These signals

include:

• water level

• flow

• conductivity

• pressure and temperature

• In addition to pump status, pump VFD status is also

available for remote monitoring

• individual fan monitoring/status of the external liquid-to-air

heat exchanger.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 21

Options

Availability by manufacturing location

X Option is available

E Engineering is required; not configurable in the tools

– Option is not available

AC Air-cooled only option

WC Water-cooled only option

Options

Location

China Germany USA Brazil

A30 Touchscreen with standard cable (HMI) E – E E

A34 Input and output thermal temperature monitoring X E AC E

A59 PEXTRON RTD monitor – – – X

A60 TEC system 8 channel RTD monitor X – – X

A76 System arc detection X E AC E

A80 TEC System 12 channel RTD monitor X X AC X

A82 SEL 710 motor protection relay E E AC E

A83 Multilin 869 motor protection relay E X X X

A95 Environmental condition monitoring X E AC E

B09 ESP application E E E E

B43 Production schedule: one issue X X X X

B44 Production schedule: updated at 2-week intervals E X X X

B45 Production schedule: updated once per month E X X X

B49 Manufacturer data book – X – X

C68 SINAMICS CONNNECT 500 X X X X

D00 Documentation in German X X X X

D02 Circuit diagrams, terminal diagrams and dimension drawings in DXF format X X X X

D15 One set of printed documentation X X X X

D54 Documentation in Czech E E E E

D55 Documentation in Polish E E E E

D56 Documentation in Russian X X X X

D57 Documentation in Japanese E E E E

D62 Documentation in Danish E E E E

D71 Documentation in Romanian E E E E

D72 Documentation in Italian E E E E

D73 Documentation in Finnish E E E E

D74 Documentation in Dutch E E E E

D75 Documentation in Turkish X X E E

D76 Documentation in English X X X X

D77 Documentation in French X X E E

D78 Documentation in Spanish X X E X

D79 Documentation in Portuguese X X X X

D80 Documentation in Bulgarian E E E E

D81 Documentation in Norwegian E E E E

D82 Documentation in Hungarian E E E E

D83 Documentation in Swedish E E E E

D84 Documentation in Chinese X X X E

D85 Documentation in Slovenian E E E E

D86 Documentation in Greek E E E E

D87 Documentation in Slovakian E E E E

Options Catalog D 17 | Global Edition | 12/2023

22 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Options

Location

China Germany USA Brazil

D88 Documentation in Estonian E E E E

D89 Documentation in Latvian E E E E

D90 Documentation in Lithuanian E E E E

E00 Motor static excited furnished by customer E – E E

E01 Motor static exciter furnished by Siemens – – WC –

E03 Control of permanently excited motor E E E E

E04 Additional customer analog, digital inputs and outputs (I/O) modules X X X X

E06 Additional customer analog, digital inputs and outputs (I/O) modules – – – E

F03 Visual acceptance of the drive E X – X

F73 Functional acceptance of the drive with inductive load X X – X

F77 Acceptance test of the insulation of the drive E X – X

F79 Interface check with customer equipment (5 hours, on request) E X – E

F97 Customer-specific acceptance E X – X

F02 Class 1 witness west – – X E

F94 Class 2 witness test – – X E

F95 Class 3 witness test – – X E

G22 Modbus RTU interface, network X X X X

G23 DeviceNet profile 12 interface, network 1 X X X X

G28 Modbus Ethernet interface, network 1 X X X X

G32 Modbus RTU interface, network 2 X X X X

G34 PROFINET, network 1 X X AC X

G37 EtherNet/IP interface, network 1 X X AC X

G38 Modbus Ethernet interface, network 2 X X X X

G39 EtherNet/IP interface, network 2 X X AC X

G41 Ethernet network switch without fiber optic port E – E X

G42 Ethernet network switch with fiber optic port X – X X

G43 DeviceNet profile 12 interface, network 2 X X X X

G47 Ethernet port connector mounted on the door X X X X

G89 Digital relay contactor control of external auxiliaries – – WC –

G91 PROFIBUS DP interface, network 1 X X X X

G93 PROFIBUS DP interface, network 2 X X X X

H03 1000 mm option cabinet X – – –

K20 Signal lamp on the cabinet door E X AC X

K21 Display instruments for voltage, current and speed E X AC X

K29 Pushbutton / potentiometer kit E X AC X

K31 Off-Local-Remote selector switch X X X X

K32 Off-Hand-Auto selector X X AC X

K33 Keyed Off-Local-Remote selector X X X X

K34 Keyed Off-Hand-Auto selector X X AC X

K50 Closed loop vector control with provision for speed encoder E E E X

K68 Control voltage 220V AC by customer. X X X X

K69 Control voltage by Siemens X X X X

K73 I/O signal voltage 24 V DC X X X X

K79 Control voltage 120 V AC by customer – X X X

K86 Safe Torque Off (STO) X X AC X

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 23

Options

Location

China Germany USA Brazil

L03 EMC filter X X X X

L09 Output reactor E E E E

L20 Bidirectional synchronized transfer of multiple motors, switchgear provided by customer E E E E

L29 Bidirectional synchronized transfer X X X E

L33 Regenerative braking – – WC –

L36 Input snubber E E X 1) X

L50 Cabinet lighting and service socket outlet E X E X

L53 UPS for power supply of the control X X X X

L55 Anti-condensation heating for cabinet X X X X

L81 2 x 2 thermistor protection relays E X – E

L82 3 x 2 thermistor protection relays E X – E

L85 Redundant control power – – WC E

L89 Pt100 evaluation unit with 6 inputs for ex-proof motors, 6 analog outputs E X – E

L91 2 Pt100 evaluation units with 3 inputs each E X – E

L93 Pt100 evaluation unit with 6 inputs and 2 analog outputs E X – E

M08 Superior – mechanical door interlocks E E X X

M09 Kirk – mechanical door interlocks E E X X

M10 Castell – mechanical door interlocks E X E E

M12 Electrical door interlocks E E – E

M29 Painted steel gland plates X X AC X

M35 Aluminum gland plates X X AC X

M36 Brass gland plates X X X X

M37 Stainless steel gland plates X X X X

M38 Fortress – mechanical door interlocks E E – E

M42 IP42 degree of protection X X AC X

M46 INDAC – mechanical door interlocks – – – X

M53 24" option cabinet E X X X

M57 Arc resistant design 40 A to 430 A X – AC –

M61 Redundant blower X X AC X

M64/M68 Drive prepared for duct flange connection in front/rear X X AC X

M88 Premium corrosion protection – – WC –

M92 Munsell N6.5 – – – X

M97 RAL 7035 X X E X

M98 ANSI 61 E E AC X

N02 Interface with customer circuit breaker – DC rated dry contacts – – WC –

N03 Interface with customer circuit breaker – AC rated dry contacts – – WC –

N10 Prepared for input contactor E AC E AC E AC E AC

N13 Prepared for input circuit breaker E AC E AC E AC E AC

N17 Bidirectional synchronized transfer of one motor, switchgear provided by Siemens – – E AC E AC

N18 Bidirectional synchronized transfer of multiple motors, switchgear provided by Siemens – – E AC E AC

N26 Synchronized pre-charge and pre-magnetization of transformer E AC E AC WC

E AC E AC

N30 Controlled 3-phase outgoing auxiliary feeder max. 4.8 kW E – AC X

N31 Controlled 3-phase outgoing auxiliary feeder max. 8 kW E – AC X

N32 Controlled 3-phase outgoing auxiliary feeder max. 12.7 kW E – AC X

N33 Controlled 3-phase outgoing auxiliary feeder max. 17.5 kW E – AC X

N35 Controlled outgoing feeder for auxiliaries max. 1.2 kW X X AC X

N36 Controlled outgoing feeder for auxiliaries max. 2.2 kW X X AC X

N37 Controlled outgoing feeder for auxiliaries max. 3.5 kW X X AC X

N38 Controlled outgoing feeder for auxiliaries max. 4.5 kW X X AC X

N40 Internal control cabling with SIS (Synthetic Insulated Switchboard) wire – – E –

N44 Make-proof grounding switch at drive input E X E E

N45 Make-proof grounding switch at drive output E X E E

Options Catalog D 17 | Global Edition | 12/2023

24 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Options

Location

China Germany USA Brazil

N50 Internal cabling with halogen-free cables E X E E

N75 Power supply for external devices 24 V – – – E

N77 18-pulse transformer (9-cell drives only) X – – E

N94 Grounding studs X X X X

P30 No approval; full release to manufacturing (A0) X X X X

P31 Control I/O approval only; full release to manufacturing (A1) X X X X

P33 Full drawing approval; all drawings provided in advance; hold point (A3) – X X X

P40 Transformer assembly lift points outside on cabinet roof – – WC –

Q78 3 months extension to a total of 15 months from delivery X – – –

Q79 6 months extension to a total of 18 months from delivery X – – –

Q80 12 months extension to a total of 24 months from delivery X X X X

Q81 18 months extension to a total of 30 months from delivery X X X X

Q82 24 months extension to a total of 36 months from delivery X X X X

Q83 30 months extension to a total of 42 months from delivery X X X X

Q84 36 months extension to a total of 48 months from delivery X X X X

Q85 48 months extension to a total of 60 months from delivery X X X X

T03 White phenolic nameplate with black letters X X X X

T04 Stainless steel nameplate X X X X

T09 Nameplate, warning labels in English / Danish E E E E

T12 Nameplate, warning labels in English / Romanian E E E E

T13 Nameplate, warning labels in English / Bulgarian E E E E

T14 Nameplate, warning labels in English / Turkish E E E E

T15 Nameplate, warning labels in English / Greek E E E E

T16 Nameplate, warning labels in English / Dutch E E E E

T17 Nameplate, warning labels in English / Estonian E E E E

T18 Nameplate, warning labels in English / Latvian E E E E

T19 Nameplate, warning labels in English / Lithuanian E E E E

T20 Nameplate, warning labels in English / Slovakian E E E E

T21 Nameplate, warning labels in English / Finnish E E E E

T22 Nameplate, warning labels in English / Slovenian E E E E

T23 Nameplate, warning labels in English / Norwegian E E E E

T24 Nameplate, warning labels in English / Swedish E E E E

T25 Nameplate, warning labels in English / Czech E E E E

T26 Nameplate, warning labels in English / Hungarian E E E E

T58 Nameplate, warning labels in English / French E E E E

T60 Nameplate, warning labels in English / Spanish E E E X

T74 Nameplate, warning labels in English / German X X X E

T76 Nameplate, warning labels in English X X X X

T80 Nameplate, warning labels in English / Italian E E E E

T82 Nameplate, warning labels in English / Portuguese X X X X

T85 Nameplate, warning labels in English / Russian X X X E

T86 Nameplate, warning labels in English / Polish E E E E

T90 Nameplate, warning labels in English / Japanese E E E E

T91 Nameplate, warning labels in English / Chinese X X X E

U01 Version with UL listing – – X –

U02 Version with CE conformance X X X X

U03 Version with CSA conformance – – X –

U04 EAC certificate X E E E

U05 NBR compliance for Brazil – – – X

U08 Version with UKCA conformance X X X X

U10 Process Tolerant Protection Strategy - ProToPS™ X E E X

U11 Advanced cell bypass X X X X

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 25

Options

Location

China Germany USA Brazil

U13 One redundant cell per phase – E AC E X

U21 N+1 cell redundancy – – WC –

U22 N+2 cell redundancy – – WC –

U57 High temperature E E X X

U58 Elevated BIL X E E E

U60 High altitude ≤ 1500 m (5000 ft) at 40 °C X X X X

U61 High altitude ≤ 2000 m (6600 ft) at 40 °C X X X X

U62 High altitude ≤ 2500 m (8200 ft) at 40 °C E E E E

U63 High altitude ≤ 3000 m (10000 ft) at 40 °C E E E E

U64 High altitude ≤ 3500 m (12000 ft) at 40 °C E E E E

U65 High altitude ≤ 4000 m (13300 ft) at 40 °C E E E E

V01 2.3 kV motor voltage X – AC X

V02 2.4 kV motor voltage X – AC X

V03 3.0 kV motor voltage X – AC X

V04 3.3 kV motor voltage X – X X

V05 4.0 kV motor voltage X – X X

V06 4.16 kV motor voltage X – X X

V07 4.8 kV motor voltage X – X X

V08 5.0 kV motor voltage X – X X

V09 5.5 kV motor voltage X – X X

V10 6.0 kV motor voltage X X X X

V11 6.3 kV motor voltage X X X X

V12 6.6 kV Motor Voltage X X X X

V13 6.9 kV motor voltage X X X X

V14 7.2 kV motor voltage X X X X

V15 8.0 kV motor voltage – – X –

V18 10.0 kV motor voltage X – X –

V19 11.0 kV motor voltage X – X –

V26 9.8 kV motor voltage X – X –

W03 Bottom entry of coolant piping – – WC –

W05 Coolant cabinet high capacity expansion tank – – WC –

W32 Advanced cooling cabinet – – WC –

W35 Liquid-to-air heat exchanger control panel mounted on outside of the cooling cabinet – – WC –

W41 Drive prepared for air-to-air heat exchanger – – AC E –

W51 Mechanical two-way inlet water temperature regulating valve – – WC –

W52 Mechanical three-way inlet water temperature regulating valve – – WC –

W55 Prepared for inlet water filter for low-quality water – – WC –

W71 Deionized water provided by Siemens – – WC –

W72 Propylene glycol provided by Siemens – – WC –

Y05 Customer-specific nameplate X X E X

Y09 Paint finish other than standard X X E X

Y10 Circuit diagrams with customer-specific description field. X X E X

Y15 Output filter E E E E

Y18 Automatic restart – – E E

Y19 Automatic and remote fault reset – – E E

Y36 Customer-specific cabinet labels – X X X

1) For drives manufactured in the USA, the input snubber (L36) is standard for input voltages above 10 kV

Options Catalog D 17 | Global Edition | 12/2023

26 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Option descriptions

Availability options

Cell redundancy

Processes that cannot tolerate a reduction in drive power

when one or more cells are in bypass should select the cell

redundancy option. This option significantly increases drive

availability when long intervals between services are required.

This option is scalable depending on your process

requirements. Cell Redundancy options require cell bypass.

Option Description

U13 One redundant cell per phase (for air cooling only)

Option U13 provides full output power with a bypassed

cell in each phase. This option adds extra three cells to

the drive (i.e. one cell per phase).

Note: Option U13 requires cell bypass (U11) and redundant

blower (M61).

Not available for output voltages 6.6, 6.9, 7.2, 11 kV.

U21 N+1 cell redundancy (for water cooling only)

Option U21 provides rated power operation with one

cell bypassed.

Note: Option U21 requires cell bypass option (U11) and

redundant pump. Not available with all output

voltages. For details, please contact your Siemens sales

partner.

U22 N+2 cell redundancy (for water cooling only)

Option U22 provides rated power operation with two

cells bypassed.

Note: Option U22 requires cell bypass option (U11) and

redundant pump. Not available with all output voltages.

For details, please contact your Siemens sales partner.

Option Description

U11 Advanced cell bypass

Cell bypass provides a higher level of system

availability and process reliability. In less than a

quarter of a second (250 ms), the drive can bypass

failed cells and maintain a balanced output voltage.

With one cell in bypass, the drive still produces

sufficient voltage to allow the process to continue

uninterrupted, and the quality of the voltage and the

waveform remain virtually unchanged.

To ensure the most reliability and availability, the VFD

is equipped with mechanical cell bypass with

independent power supply and control

communication. This cell bypass can be tested and

demonstrated during witness testing.

Loss of cells reduces the drive’s power capability;

torque is reduced only when the drive’s power

capability exceeds the designed limit. Faulted cells

can be replaced at a convenient planned maintenance

window.

For some applications with low load inertia, such as

an ESP, during the cell bypass the speed may rapidly

decelerate. In such applications where a process trip

may be issued by the system control, use of manual

cell bypass is recommended.

Manual cell bypass is configured in the drive

operating system. When a cell fault occurs, the drive

will trip on the cell fault. The user can reset the fault,

which triggers a cell bypass, and can then proceed to

re-start the drive. The reset can be done through

plant HMI or SCADA.

Option Description

U10 Process Tolerant Protection Strategy - ProToPS™

With a proven record of 99.99 percent process uptime,

ProToPS™ protects the customer process from faulty

sensors or data. ProToPS™ offers a proactive control

strategy for applications where failure avoidance is

critical. It provides a hierarchical system of warnings in

advance of potential drive system trip. This control

strategy allows time for the operator to evaluate the

situation and respond appropriately to avoid a system

shutdown.

This option requires advanced cell bypass (option U11)

and redundant blower (option M61) for maximum

performance.

Option Description

M61 Redundant blower

To improve system availability, an additional blower is

added to the air-cooled drive. If a blower fails, the

cooling system is automatic switched over to

redundant blower to ensure uninterrupted drive

operation. A fan alarm fault will be annunciated. This

prevents production down time or disruptions.

Option Description

L53 UPS for power supply of the control

In the instances where UPS back up for low voltage

network is not available on site, the drive can be

equipped with a UPS to maximize up time during low

voltage power interruptions. The UPS provides back

up power for the drive control and is configured for a

buffer time of up to 8 min.

Note: Option L53 is available for 120 V or 220 V AC only.

Option Description

L85 Redundant control power (for water cooling only)

This option provides a second low voltage network

control input with automatic switch over to prevent

unnecessary interruptions and down time in case the

first low voltage supply fails. This option includes UPS.

Note: Option L85 is available for water-cooled drives only and

requires an additional cabinet.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 27

Safety options

Option Description

K86 Safe Torque Off (STO)

The option K86 provides an efficient electronically

based "Safe Torque Off" (STO) sub function which can

be easily integrated into a completed machine's Safe

Torque Off safety function.

The safety related STO function is a mechanism for

preventing the drive from unexpectedly starting

according to EN 60204-1:2006/A1:2009, Section 5.4.

The function is integrated in the drive and is

independent of the converter operating functions. It

is used in conjunction with a machine function – or in

the case of a fault – to disconnect the torquegenerating energy feed to the motor in a safetyrelated fashion.

There are two independent switch-off signal paths,

which are both failsafe (low-active). This ensures that

when a component fails or a cable is interrupted, the

system always goes into the safe state.

The following points apply when the STO function is

selected:

• The motor cannot inadvertently start.

• The torque-generating energy feed to the motor is

safely interrupted because of the safety-related pulse

cancellation.

• VFD output is not electrically disconnected.

The STO function is certified in accordance with

IEC 61800-5-2 with a safety integrity level (SIL) of up

to 3 with a hardware fault tolerance (HFT) of 1 as

defined in IEC 61508. STO meets EN ISO 13849-1:2015

Safety Category 3 Performance Level e.

Option Description

A76 System arc detection

To provide additional protection, the SINAMICS

PERFECT HARMONY GH180 IQ drive has the arc

detection system option. Optical arc flash detection

sensors are located in each power cell and transformer

cabinet. In the rare arc fault event, the signal will be

sent directly to the upstream protection device and

the drive will de-energize as quickly as possible.

Option Description

M57 Arc resistant design 40 A to 430 A

Arc resistant option is designed to help minimize the

risks associated with an arcing fault and provides

increased protection of customers' personnel and

equipment.

The equipment is designed to withstand or mitigate

the effects of an internal arcing fault as indicated by

an appropriate label meeting the test requirements of

the following:

• IEC 62477-2

• Associated protection required (fuses)

• The details regarding associated protection used shall

be provided by the manufacturer in the

documentation.

This product successfully passed the following testing

criteria:

• Type Accessibility – Type 2A

• Classified sides of the enclosure – Front (F), Lateral

(L), Rear (R)

• Rated arc fault current (IA) – 50 kA up to 13.8 kV

• Rated arc fault duration (tA) – 500 ms

• Frequency – 50/60 Hz

Associated protection: External fuses; general purpose

current-limiting fuses. The customer is responsible for

procuring and installing fuses based on Siemens

requirements.

Note: Available for 6SR52, 40-260A (Phase 1A, 2A, 3A, 2B

and 3B) and 340-430A Phase 4A). Not available if input

fuses are > 450E. For other ratings, please contact

your Siemens sales partner. Option M57 is only

available for air-cooled drives.

Options Catalog D 17 | Global Edition | 12/2023

28 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Door interlocks

SINAMICS PERFECT HARMONY GH180, 6SR5 drives are

designed with bolted covers as a standard option. For

customers that would like to have keyed access, there are

4 types of mechanical interlocks available depending on

customer preference. Safety closing/interlocking system is

based on the key transfer system.

Typically, the circuit breaker is opened, and a feeder earthed

to release a key to the drive key exchange unit which in turn

releases the keys to the cabinet bolted covers of the power

section(s). This ensures that the drive is isolated from the

input medium voltage and that the medium voltage is no

longer present. The number of keys will depend on the

number of cabinets.

Option Description

M08 Superior - mechanical door interlocks

M09 Kirk - mechanical door interlocks

M10 Castell - mechanical door interlocks

M38 Fortress - mechanical door interlocks

M46 INDAC - mechanical door interlocks

M12 Electrical door interlocks

The electrical door interlock system prevents access to

the energized sections in the drive as long as

hazardous voltages are present. This system also

prevents the drive from being switched on until all

doors of the energized sections in the drive are closed.

Note: GH180 air-cooled as a default is supplied with M09,

Kirk key interlocks in North America or M12 electrical

door interlocks in Europe and China.

Option Description

N10 Prepared for input contactor

Input contactor allows customers to isolate medium

voltage drive for maintenance or repairs purposes

without disconnecting primary protection. This option

is recommended when multiple medium voltage drives

are installed at the single site connected to common

upstream protection. The benefit of an input contactor

is that it is capable to break full current while input

disconnect only can be opened after primary

protection is opened.

Selecting this option will add switchgear to the drive

on the side. When option N10 is chosen, the

appropriate switchgear sizing is automatically selected

based on the other drive parameters.

Note: The input contactor option is available when the

primary input voltage is less than 7.2 kV.

Option Description

N13 Prepared for input circuit breaker

Input contactors are only available for input voltage up

to 7200V. When input voltage exceeds this, a circuit

breaker is an appropriate solution.

Selecting this option will add switchgear to the drive on

the side. When option N13 is chosen, the appropriate

switchgear sizing is automatically selected based on

the other drive parameters.

Option Description

N94 Grounding studs

This option provides protective grounds to create an

electrically safe work condition during maintenance.

The ground studs will be installed in the following

locations: Input and output power terminations and

ground pads. The terminations will be equipped with a

ball type ground stud.

Note: Grounding cable and/or clamps are not included

Option Description

N44 Make-proof grounding switch at drive input

With option N44, a grounding switch is installed at the

drive input. The switch connects each phase to ground

to prevent unexpected reconnections during

maintenance.

For safety reasons, the drive control locks the ground

switch open (OFF) using electromagnetic interlocks

until the drive input voltage is removed (OFF) and

10 min have passed to allow the power cell capacitors

to discharge; only then can the ground switch be

closed (ON). The control is integrated into the

protection and monitoring circuit of the drive.

In the event of maintenance work on the drive, it must

be ensured on the plant side that there is no external

voltage present, e.g. auxiliary voltage for blowers, the

cooling system, controller and closed-loop control and

any external drive outputs.

Note: This option for 9 cell air-cooled configuration requires

an additional cabinet

Option Description

N45 Make-proof grounding switch at drive output

With option N45, a grounding switch is installed at the

drive output. Some applications (ex: gas turbines or

permanent magnet motor) may regenerate and feed

energy back to the drive. In such instances, a makeproof grounding switch is recommended. The switch

connects each phase to ground to prevent unexpected

voltage during maintenance.

For safety reasons, the drive control locks the ground

switch open (OFF) using electromagnetic interlocks

until the drive input voltage is removed (OFF) and

10 min have passed to allow the power cell capacitors

to discharge; only then can the ground switch be

closed (ON). The control is integrated into the

protection and monitoring circuit of the drive.

Note: This option for 9 cell air-cooled configuration requires

an additional cabinet

Options N44 and/or N45 are recommended for

applications within Europe.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 29

Control and display Instruments

Option Description

A30 Touchscreen with standard cable

Standard Siemens touchscreen with standard

Ethernet cable will be provided on the door of the

drive. Standard HMI shall be loaded with ToolSuite

software only.

Note: Air-cooled 9-cell configuration and all water-cooled

drives require an additional cabinet

Control selector switches and push buttons

These switches provide the operator with the flexibility to

select preferred drive control mode: local through keypad,

remote/auto control through digital inputs or serial

communication.

Option Description

K29 Pushbutton / Potentiometer kit

With option K29, a pushbutton kit is located on the

control door. It includes

• a start and a stop pushbutton

• a fault reset button and a manual speed

potentiometer

Emergency Stop pushbutton is standard.

K31 Off-Local-Remote selector switch

Option K31 provides the ability to choose between

off, local control and remote control of the three

position selector switch mounted on the control

door.

K32 Off-Hand-Auto selector

A three-position selector switch mounted on the

control door.

K33 Keyed Off-Local-Remote selector

It offers the same functionality as option K31 but

this option provides additional protection as it

requires keys (password) to change the position.

K34 Keyed Off-Hand-Auto selector

It offers the same functionality as option K32 but

this option provides additional protection as it

requires keys (password) to change the position.

Note: Option K31 is the default configuration.

Option Description

L50 Cabinet lighting and service socket outlet

This option includes a universal lamp and a service

socket outlet (Schuko version) installed in the

control cabinet. The voltage supply for the cabinet

lighting and socket outlet (on terminal block) is

provided externally. The cabinet lighting is switched

on manually via a switch.

Note: This option for 9 cell air-cooled configuration

requires an additional cabinet. Air-cooled option

only.

Auxiliary and control voltage supply

Option Description

K69 Control voltage by Siemens

This option provides control voltage that is generated

internally from the auxiliary supply.

K68 Control voltage 220/230/240V AC by customer

Using option K68, the customer will supply control

voltage to the drive. Typical current consumption is 8

A. The internal control voltage will be 120 V AC in any

case. For water-cooled drives, it requires an

additional cabinet.

K73 I/O signal voltage 24 V DC

This option provides 24 V DC that is available as I/O

control signals.

K79 Control voltage 120 V AC by customer

The customer will provide control voltage to the drive

Signal lamp and display instruments

Signal lamps and display instruments are hardwired options

that provide quick visual display of drive performance and

health. The same parameters are also available through the

drive HMI.

Option Description

K20 Signal lamp in the cabinet door

With option K20, five signal lamps that display the

operating status of the drive are provided in the cabinet

door of the control section.

• Fault (red)

• Alarm (yellow)

• Operation (green)

• Drive ready (white)

• Local operation (white)

K21 Display instruments for voltage, current and speed

For display of process variables, analog display

instruments are installed in the cabinet door indicating

the measured value in %:

• Motor current (0 to +120 %)

• Motor speed (–120 % … 0 … +120 %)

• Motor voltage (0 to +120 %)

Note: For manufacturing location USA, K21 option requires

additional cabinet.

Options Catalog D 17 | Global Edition | 12/2023

30 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Controlled outgoing feeder for auxiliaries

This option provides a control of outgoing feeder for the

operation of external auxiliary equipment, e.g. separate

blowers on the motor, anti-condensation heating for the

motor or pump/oil supplies. It is controlled and protected by

motor circuit-breakers. The contactor is switched on with the

ON command at the drive and switched off with the OFF

command. Should local regulations require earth leakage

protection then that is done from the external feeder supply.

Option Description

N30 Controlled outgoing feeder for auxiliaries

400 V 3 AC, 50 Hz, max. 4 kW

469 V / 480 V 3 AC, 60 Hz, max. 4.8 kW

(cos φ = 0.8; setting range of motor circuit-breaker

from 9 A to 12.5 A).

N31 Controlled outgoing feeder for auxiliaries

400 V 3 AC, 50 Hz, max. 7 kW

469 V / 480 V 3 AC, 60 Hz, max. 8 kW

(cos φ = 0.8; setting range of motor circuit-breaker

from 14 A to 20 A).

N32 Controlled outgoing feeder for auxiliaries

400 V 3 AC, 50 Hz, max. 11 kW

469 V / 480 V 3 AC, 60 Hz, max. 12.7 kW

(cos φ = 0.8; setting range of motor circuit-breaker

from 18 A to 25 A).

N33 Controlled outgoing feeder for auxiliaries

400V, 3Φ AC, 50Hz, max. 15kW

469 V / 480 V, 3 AC, 60 Hz, max. 17.5 kW

(cos φ = 0.8; setting range of motor circuit-breaker

from 28 A to 40 A).

N35 Controlled outgoing feeder for auxiliaries

110/120 or 220/240 V 1 AC, max. 1.2 kW

N36 Controlled outgoing feeder for auxiliaries

110/120 or 220/240 V 1 AC, max. 2.2 kW

N37 Controlled outgoing feeder for auxiliaries

110/120 or 220/240 V 1 AC, max. 3.5 kW

N38 Controlled outgoing feeder for auxiliaries

110/120 or 220/240 V 1 AC, max. 4.5 kW

Note: These options for 9 cell air-cooled configuration

require an additional cabinet.

Option Description

N75 Power supply for external devices 24 V DC

With option N75 the drive is delivered with a power

supply unit for 24 V DC auxiliaries. It provides 6 output

terminals each for +24 V and 0 V. The total power consumption across all output terminals is limited to 2.5 A.

Option Description

L55 Anti-condensation heating for cabinet

Anti-condensation heaters are recommended at low

ambient temperatures and high levels of humidity to

prevent condensation. The number of cabinet

heaters fitted depends on the number of cabinet

panels. The anti-condensation heaters are controlled

with a thermostat.

Note: This option includes over-temperature protection.

The supply voltage for the anti-condensation heating

(110/120 or 220/240 V AC) must be supplied

externally.

Should local regulation require earth leakage

protection then that is done from the external feeder

supply.

If drives are placed in storage for any period of time,

Siemens recommends anti-condensation heaters.

The number of heaters depends on the size and

quantity of cabinets in the drive.

Heat management options

Option Description

W41 Drive prepared for air-to-air heat exchanger

When this option is purchased, the drive is equipped

with necessary plenums to ensure proper drive

airflow when connected to the heat exchanger. The

drive comes with the heat exchanger control box.

All heat exchanger fan motors are wired to the

control box and can be either mounted on the side

of the drive or outside on the heat exchanger itself

in the NEMA 4 enclosure.

Note: The heat exchanger is standalone equipment

specified and provided by Siemens. It is enclosed in

polycoated housing with fans for N+1 redundancy.

The enclosure includes a top hat that directs the

outside air horizontally out of the top of the unit.

The top contains louvers to prevent a draft when the

fans are not running. The heat exchanger requires

outdoor installation by others.

The heat exchanger can include optional provisions,

such as integral space heaters and motor/fan

assemblies designed for low ambient operation at

up to -40º C.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 31

Option Description

M64

M68

Drive prepared for duct flange connection in

front/rear

With these options, the drive is prepared for

connection to an external exhaust air system, which

shall connect to the front (M64) of the blower

assembly or to the rear (M68) of it. Only one of the

options per drive.

These options are applicable when the customer is

providing external exhaust ducting to carry the hot

air blowing out of the drive cabinet outside the

room.

When configuring the exhaust air ducts for the drive

ventilation system, it is essential to ensure that the

air flow rates stipulated in the drive data sheets or

drawings are observed. The pressure drop between

the air inlet and the air outlet of the drive is

different for different configurations.

Note: The following requirements shall be met when

connecting to external air duct:

• Provide openings in the air duct to allow for the

blowers’ maintenance.

• After fitting the air duct, the cabinet doors must

still be able to be opened and closed for

maintenance purposes.

This option can affect the values for sound pressure

level depending on the design of the exhaust air

system. For more details, please contact your

Siemens sales partner.

Synchronous transfer options

Option Description

L29 Bidirectional synchronized transfer

Option L29 provides the capability for synchronized,

seamless transfer of the one motor to the line and takeover of the motor from the line. Before connecting the

motor to the line, the converter synchronizes the motor

to the supply/utility voltage phase, frequency and

amplitude. Most applications do not require output

reactor.

Output reactor should be considered when the

following conditions are present:

• Excessive system short circuit current ratings

• Excessive torque variations during steady state

operation, and

• Extremely low motor/load inertia

Note: The circuit-breakers/contactors are not included in the

scope of delivery. A motor protection relay should also

be considered in the bypass circuit by the customer.

Option Description

N17 Bidirectional synchronized transfer of one motor,

switchgear provided by Siemens

Selecting this option, in addition to synchronous transfer

control function, it will add switchgear to the drive

lineup. The appropriate switchgear is selected and

sized automatically based on the drive parameters.

Note: Reactor-less bidirectional synchronized transfer is

default. Option L09 must be selected if requested by

the customer.

A motor protection relay (MPR) is part of the scope

and installed in the bypass circuit. Siemens integrates

an MPR with associated CTs and PTs into the

switchgear line-up. Customer is responsible for

programing the MPR.

Option Description

L09 Output reactor

Depending upon the installation or application an

output reactor may be required for bidirectional

synchronized transfer. The output reactor decouples

the converter output during the transfer process.

For air-cooled drives the output reactor cabinet can

be ether included in the drive lineup with the same

degree of protection as the drive or housed in a

separate NEMA 3R/IP14 cabinet designed for outdoor

installation.

For water-cooled units, the water-cooled reactor

cabinet will be included in the drive lineup with IP

protection same as power section of the drive.

Option Description

N18 Bidirectional synchronized transfer of multiple

motors, switchgear provided by Siemens

With this option in addition to the Sync Transfer

Control system, Siemens will add switchgear to the

drive based on the number of motors handled by the

drive and system setup. When option N18 is

selected, the appropriate switchgear sizing is

automatically selected based on the drive

parameters. Siemens can provide switchgear based

on the customer preferred manufacturer.

Note: When a customer selects synchronous transfer

option Siemens recommends customers to install a

MPR. This option integrates an MPR with associated

CTs and PTs into the switchgear line-up. Customer is

responsible for programing the MPR.

Options Catalog D 17 | Global Edition | 12/2023

32 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Option Description

L20 Bidirectional synchronized transfer of multiple

motors, switchgear provided by customer

In the cases where the customer either has already

all required switchgear or prefers to procure their

own equipment, Siemens offers just the Sync Transfer

Control system (STC) which provides for the

synchronous transfer of two to eight motors directly

to or from a line source of power. The system is

designed to handle induction motors or synchronous

motors and connection of motors to a source the

same as the drive or to an alternate source. The STC

has a local color HMI to support the configuration

and status of the system. The STC can be mounted in

the options cabinet, switchgear (if space available) or

a separate enclosure. The synchronous transfer

control logic can be demonstrated during the witness

test.

Note: When customers select synchronous transfer option

Siemens recommends customers to install motor

protection relay (MPR). Once a motor is transferred

directly on line it is no longer protected by the VFD.

When switchgear is supplied by a customer, it is the

customer responsibility to install and program the

MPR.

Motor protection, monitoring and meters

Motor temperature monitoring and protection

systems by other manufacturers

Option Description

A59 PEXTRON 8 channel RTD monitor

A device installed in the drive to monitor motor

temperature in windings and/or bearings. Basic 8-

channel RTD monitor includes Modbus RTU

communication protocol.

A60 TEC System 8 channel RTD monitor

A device installed in the drive to monitor motor

temperature in windings and/or bearings. Basic 8-

channel RTD monitor.

A80 TEC System 12 channel RTD monitor

A device installed in the drive to monitor motor

temperature in windings and/or bearings. Basic 12-

channel RTD monitor.

Communication Protocol:

None (default)

RS 485 Modbus (option)

Note: Customer is responsible for RTD programing. If other

protocols are required, please contact your Siemens

sales partner..

Option Description

L81 2 x 2 thermistor protection relays

Option L81 includes four thermistor protection

relays for PTC thermistors (type A) for alarm and trip.

The power supply for the relay and the evaluation is

provided in the drive.

L82 3 x 2 thermistor protection relays

Option L82 includes six thermistor protection relays

for PTC thermistors (type A) for alarm and trip. The

power supply for the relay and the evaluation is

provided in the drive.

L89 Pt100 evaluation unit with 6 inputs for ex-proof

motors and 6 analog outputs

For use in explosion-proof motors, Zone 2, Zone 22

(non-conductive dusts) Div. 2, and nonhazardous

zones, six evaluation units are available.

Marking, explosion protection:

II (1) GD (Eex ia) IIC/IIB and II 3 G Eex nAC II T4.

L91 2 Pt100 evaluation units with 3 inputs each

Each Pt100 unit can monitor up to three

sensors. For all three sensors, the limits for

alarm and trip must be set centrally. The

output relays are integrated into the internal

fault and shutdown circuit of the drive.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 33

Option Description

L93 Pt100 evaluation unit with 6 inputs and 2

analog outputs

The Pt100 evaluation unit can monitor up to

six sensors. The limit values can be

programmed by the user for each channel. In

the standard setting, the measuring channels

are divided into two groups of three channels

each. With motors, for example, three Pt100

can be monitored in the stator windings and

two Pt100 in the motor bearings. Channels

that are not used can be suppressed using

appropriate parameter settings.

The output relays are integrated into the

internal fault and shutdown circuit of the

drive. There are two programmable analog

outputs available (0/4 mA to 20 mA and 0/2 V

to 10 V).

Option Description

A82 SEL 710 motor protection relay

Full featured high-end motor

protection/management relay with miscellaneous

sensors monitoring capability installed.

Communication Protocol:

• none (default)

• RS 485 Modbus (option)

Includes output phase CTs and PTs.

A83 Multilin 869 motor protection relay

Full featured high-end motor

protection/management relay with miscellaneous

sensors monitoring capability installed.

Communication Protocol:

• None (default)

• RS 485 Modbus (option)

Includes output phase CTs and PTs.

Note: These options for 9-cell air-cooled configuration and

water-cooled drives require an additional cabinet.

Customer communication, interface and

control software options

Communication options

As a default the SINAMICS PERFECT HARMONY GH180 drive

provides an interface for our ToolSuite software that allows

monitoring and configuring of the drive from a PC running

windows operating system. Serial communication protocols

and network communication are offered as options.

SINAMICS PERFECT HARMONY GH180 provides a wide range

of protocols to meet customer requirements. As an option,

customers may select an additional independent fieldbus as a

backup (two networks maximum) in case the first

communication network fails to avoid unnecessary

interruptions.

The supported fieldbus protocols and drive control provide

the capability to monitor up to 64 different drive and motor

parameters according to the customers’ application and

specification. They can select from more than 200 parameters

and variables available in the system.

Serial communication

Option Description

G22 Modbus RTU interface, network 1 RS 485

G23 DeviceNet profile 12 interface, network 1

G28 Modbus Ethernet interface, network 1

G91 PROFIBUS DP interface, network 1

G37 EtherNet/IP interface, network 1

G32 Modbus RTU interface, network 2

G34 PROFINET, network 1

G38 Modbus Ethernet interface, network 2

G39 EtherNet/IP interface, network 2

G43 DeviceNet profile 12 interface, network 2

G93 PROFIBUS DP interface, network 2

Network communications

Option Description

G41 Ethernet network switch without fiber optic port

G42 Ethernet network switch with fiber optic port

G47 Ethernet port connector mounted on the door

This port is used in conjunction with our ToolSuite

software that allows one to monitor and configure

the drive from a PC running windows operating

system.

Options Catalog D 17 | Global Edition | 12/2023

34 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Monitoring options

Option Description

A34 Input and output thermal temperature monitoring

Thermal monitoring of the drive's input and output

connections ensures that in rare case that the

connection(s) becomes loose or becomes too hot for

other reasons, the operator can initiate a

maintenance check to prevent any damage to the

equipment.

Following features are included:

• Monitor and compare temperature trends

• Set up an alarm and trip levels

This feature eliminates need for infrared windows and

manual measurements.

Option Description

A95 Environmental condition monitoring

Preventive maintenance is an established routine of

regularly inspecting equipment to look for and fix

issues before they turn into major problems.

Siemens offers the environmental condition

monitoring functionality to ensure the drive operates

within design parameters. This option will alert the

user of potential issues causing operation outside the

normal conditions and the risk of a potential failure.

PERFECT HARMONY IQ power cells are included and

offer the following features.

• Ambient temperature

• Cell capacitance

• Humidity monitoring

• Dew point calculation

• Pressure monitoring

Benefits:

• Replaces pre-defined time-based maintenance with

specialized condition-based maintenance

• Provides early detection and warning of abnormal

operating conditions

• Reduces planned downtimes based on real-time

drive and process data

• Extends service life of components and machines

• Increases system availability

• Protects total solution in the environment

This feature is available through SIDRIVE IQ

(option C68).

Option Description

C68 SINAMICS CONNECT 500

Using SIDRIVE IQ, the relevant data of the drive systems can be easily accessed at any time and from

anywhere, to be digitally monitored, analyzed and

optimized. As a consequence, the status and operating data of the drive components are transparent;

maintenance requirements and optimization potential can be identified.

To use SIDRIVE IQ, MV drives and HV motors must

be equipped with the SINAMICS CONNECT 500 or

SIMOTICS CONNECT 600 connectivity modules.

For SINAMICS PERFECT HARMONY GH180, in the

standard version, the matching SINAMICS

CONNECT 500 connectivity is integrated in the

closed-loop control section via the already preselected option C68. Important operating parameters

of the closed-loop converter control – for example

that indicate the state, the temperature, the load

and the status messages – are transferred to the

SIDRIVE IQ digital platform for analysis via a secure,

encrypted data link.

SINAMICS CONNECT 500 provides the basis to

establish a link with the SIDRIVE IQ digital platform

to be able to utilize the many associated

advantages!

Additional information on SIDRIVE IQ is provided in

the Internet at innomotics.com/sidrive-iq.

Option Description

K50 Closed loop vector control with provision for speed

encoder

This option allows for integration of an encoder

signal feedback into the drive control through I/O. It

is used in applications that require accurate speed

control, especially at low speeds. Speed accuracy is

up to 0.1 % rated speed. Power to the encoder is

supplied by the VFD. To accomplish an optically

isolated encoder design, the customer must install

additional components provided by Siemens.

Note: It is not available for Permanent Magnet Motors.

Encoder itself is not part of the scope of supply.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 35

Customer interface

Option Description

E04 Additional customer analog, digital inputs/outputs

(I/O) modules

Drive has predefined analog and digital I/O

associated with drive operation. Option E04 is

offered when the customer process requires

additional inputs and outputs. Below are the

additional I/O that available with this option:

• 4 digital inputs

• 4 digital outputs

• 2 analog inputs

• 2 analog outputs

Note: For 9-cell air-cooled and water-cooled drives, this

option requires an additional cabinet. This option is

mutually exclusive with option E06.

E06 Additional customer analog, digital inputs/outputs

(I/O) modules

Drive has predefined analog and digital I/O

associated with drive operation. Option E06 is

offered when the customer process requires

additional inputs and outputs. Below are the

additional I/O that available with this option:

• 8 digital inputs

• 8 digital outputs

• 4 analog inputs

• 4 analog outputs

Note: This option is mutually exclusive with option E04.

Control software options

Option Description

E03 Control of Permanently Excited Motor

With this option permanent magnet motor (PMM)

control feature is enabled to ensure proper starting

sequence.

In addition to special starting requirements, the

SINAMICS PERFECT HARMONY GH180 control

scheme offers additional capabilities on request:

• Ability to control motor power factor

• Ability to provide overspeed operation when

required

Note: Danger, high voltage may be present that

could cause injury or death

Due to the use of a rotor with permanent magnets

any rotation of the shaft will induce voltage on the

motor terminals. This has several implications:

• Precautions must be taken to ensure there is no

voltage induced on the motor terminals.

• Equipment such as Variable Frequency Drives (VFD)

must be applied such that power flow back from

the motor will not damage equipment.

• The selected VFD must be able to tolerate the

highest possible voltage which could be generated

by a spinning PM motor. This is especially

important for ESPs which may backspin after

shutdown or motors operated in overspeed

Output contactor may be required.

Options Catalog D 17 | Global Edition | 12/2023

36 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Option Description

Y18 Automatic restart

After the ride-through interval is over (500 ms with

all cells functioning and 100 ms with cell in bypass),

automatic restart option switches the drive on again

when the medium voltage is restored. The drive

then ramps up the motor to the current speed

setpoint. The control power has UPS back up

supplied by the customer. If UPS back up is not

available, L53 options can be provided by Siemens.

With this option drive will have the following control

logic: if medium voltage is gone during drive

operation and returns within 10 minutes the drive

will automatically restart.

For the drives:

• Without pre-charge: once the cell diagnostics is

completed, and no other faults were found the

drive will restart.

• With pre-charge: customer is required to provide

status of MV availability

• Automatic restart will not get engaged if power is

not available for longer than 10 minutes.

This option shall be hard-key or password protected

to avoid unwanted changes by unauthorized

personnel.

Y19 Automatic and remote fault reset

This option includes the following features

Automatic and Remote fault reset option will

allow customer either automatically or remotely

reset to certain non-critical drive internal faults

and safely restart the drive. This option provides

customer with fault classification based on their

severity. The following information will be

available to a customer:

• Local display and classification of faults and

alarms.

• If a drive experienced the fault and it was reset

automatically.

• If there is a fault and it is safe to reset remotely.

• Or it is recommended to go to the site for

inspection prior to fault reset

Restart must be initiated by the customer, the

drive will accept up to 3 attempts for remote

restart within a 5-minute interval, manual

intervention is required after that.

Option Description

B09 ESP Application

Drive controls configured for Electric Submersible Pump (ESP) applications. Specific drive

parameterization for:

• Backspin detection

• Stalled motor detection

• Underload protection

• Short-circuit protection

• Stuck pump and motor release ("rocking"

function)

• Extended torque power loss ride through

(5 cycle – 100 ms)

Note If the cable length is longer than 2.3 km the

output filter parameters are calculated and

loaded as filter data (inductance and

capacitance) into the drive parameter set.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 37

Mechanical options

Option Description

M42 IP42 degree of protection

As standard, all 6SR5 drives are supplied with IP42

degree of protection. For all other air-cooled drives

IP42 is an option.

M53 24" option cabinet

24" cabinet attached to the side of the drive for

housing additional hardware as needed.

H03 1000 mm option cabinet

1000 mm cabinet attached to the side of the drive

for housing additional hardware as needed.

Gland plates

Gland plates provide access for customer connections to and

from the drive. As standard, the gland plates are aluminum.

Option Description

M29 Painted steel gland plates

M35 Aluminum gland plates

M36 Brass gland plates

M37 Stainless steel gland plates

Cabinet paint options

Option Description

M92 Munsell N6.5

M97 RAL 7035

M98 ANSI 61

Y09 Paint finish other than standard

A special color must be specified in plain text when

ordering

The cover of the filter mats will have the standard

color even though the cabinet has a special paint

finish.

Altitude, ambient condition, and transformer options

Option Description

U57 High temperature

Temperatures up to and including 50°C

U58 Elevated BIL

Elevated transformer BIL (basic impulse level). This is

the next level up from the default BIL value.

Due to reduced air density at high altitudes, the VFD requires

additional considerations to ensure that it works as designed.

Both power section and transformer deratings are required.

GH180 can meet these requirements without output voltage

compromise – 100 % of voltage available without step up

transformer. Our cell boards are designed and tested to

operate up to 4000 m.

Option Description

U60 High altitude ≤ 1500 m (5000 ft) @ 40 °C

U61 High altitude ≤ 2000 m (6600 ft) @ 40 °C

U62 High altitude ≤ 2500 m (8200 ft) @ 40 °C

U63 High altitude ≤ 3000 m (10000 ft) @ 40 °C

U64 High altitude ≤ 3500 m (12000 ft) @ 40 °C

U65 High altitude ≤ 4000 m (13300 ft) @ 40 °C

Options Catalog D 17 | Global Edition | 12/2023

38 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Option Description

N26 Synchronized pre-charge and transformer premagnetization

Remote locations with such weak lines where starting

a large VFD can cause a voltage dip, synchronized precharge and pre-magnetization of transformer option

is recommended. The inrush current is reduced to

only 1 to 2 per unit.

With option N26, the synchronized pre-charge option

is configured and installed. It allows precharge of not

only the DC-link capacitors in all power cells, but in

addition, to build-up the input transformer flux in

close phase relation with the incoming medium

voltage feed; hence, minimizing the transformer

inrush currents when the circuit-breaker is closed.

When the synchronous pre-charge option is selected,

a separate auxiliary voltage supply is required by

others.

This option is only available for water-cooled drives.

Note: It is the responsibility of the supplier of the auxiliary

feed to ensure the voltage phase difference between

the medium voltage feed and the auxiliary feed are

within the +/-15 degrees tolerance and that there is

the same frequency between the medium voltage

input and precharge to allow proper operation of the

synchronous precharge.

N77 18-pulse transformer (9-cell drives only)

With option N77 an 18-pulse drive transformer is

provided for 9-cell drives (standard: 54-pulse).

Option Description

L36 Input snubber

Siemens recommends for the customer to provide a

snubber on their existing input breaker to prevent

high transients caused by the breaker following IEEE

C57.142.

If the customer cannot provide an input snubber

Siemens can offer it as an option.

Note: For drives manufactured in the USA, the input

snubber is standard for input voltages above 10 kV.

Cable options

Option Description

N50 Internal cabling with halogen-free cables

With option N50, only halogen-free cables are used

for cabling inside the drive. The insulating materials

and color coding are in compliance with IEC

standards (IEC 62103 and IEC 60204-1).

Note: Halogen-free cables are only used on units

manufactured in Nuremberg, Germany.

Option Description

N40 Internal control cabling with synthetic insulated

switchboard (SIS) wire

SIS wire is provided for the control section and

blower control of the drive. It is traditionally used in

the environments that require higher level of

coating. It has thermosetting insulation which is

usually heat resistant, moisture-resistant, and flameretarding grade. It consists of a stranded copper

conductor that is coated with XLP (cross-linked

polyethylene) insulation.

Note: The standard EPDM (ethylene propylene

dienemonomer) cable is replaced with SIS wires in

the following parts of the drive: the drive control

and blower/pump control sections. DCR rack, cell

and bypass pre-manufactured harnessed cables

along with power cables are excluded from this

option. This is air-cooled drive option only

Nameplate options

Unless specified otherwise, standard is black phenolic

nameplate with white letters. Use the following option codes

to specify a nameplate other than the standard offering.

Option Description

T03 White phenolic nameplate with black letters

T04 Stainless steel nameplate

Nameplate, keypad and warning label languages

The options below specify the primary languages used for the

drive nameplate, warning labels and keypad selection

buttons. The secondary language – always English – is used

only on the nameplate and warning labels. It provides an

English translation of the information listed.

The respective option has to be selected (mandatory option)

if the country of the end customer is an EU country or Turkey.

Option Description

T09 Nameplate, warning labels in English/Danish

Operator panel language in English

T12 Nameplate, warning labels in English/Romanian

Operator panel language in English

T13 Nameplate, warning labels in English/Bulgarian

Operator panel language in English

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 39

Option Description

T14 Nameplate, warning labels in English/Turkish

Operator panel language in English

T15 Nameplate, warning labels in English/Greek

Operator panel language in English

T16 Nameplate, warning labels in English/Dutch

Operator panel language in English

T17 Nameplate, warning labels in English/Estonian

Operator panel language in English

T18 Nameplate, warning labels in English/Latvian

Operator panel language in English

T19 Nameplate, warning labels in English/Lithuanian

Operator panel language in English

T20 Nameplate, warning labels in English/Slovakian

Operator panel language in English

T21 Nameplate, warning labels in English / Finnish

Operator panel language in English

T22 Nameplate, warning labels in English/Slovenian

Operator panel language in English

T23 Nameplate, warning labels in English/Norwegian

Operator panel language in English

T24 Nameplate, warning labels in English/Swedish

Operator panel language in English

T25 Nameplate, warning labels in English/Czech

Operator panel language in English

T26 Nameplate, warning labels in English/Hungarian

Operator panel language in English

T58 Nameplate, warning labels in English/French

Operator panel language in English

T60 Nameplate, warning labels in English/Spanish

Operator panel language in English

T74 Nameplate, warning labels in English/German

Operator panel language in English

An operator panel in German is only available in

conjunction with option D00 (documentation in

German).

T76 Nameplate, warning labels in English

Operator panel language in English

T80 Nameplate, warning labels in English/Italian

Operator panel language in English

T82 Nameplate, warning labels in English/Portuguese

Operator panel language in Portuguese

T85 Nameplate, warning labels in English/Russian

Operator panel language in Russian

T86 Nameplate, warning labels in English/Polish

Operator panel language in English

T90 Nameplate, warning labels in English/Japanese

Operator panel language in English

T91 Nameplate, warning labels in English/Chinese

Operator panel language in Chinese

Note: Please contact your Siemens sales partner for

languages different from the ones specified above.

Compliance options

Option Description

L03 EMC filter

CE mark drives require an EMC line filter. With

option L03, the filter will be installed downstream

from the 3-phase control power disconnect switch.

Note: Option L03 is required for the CE mark and is

included in option U02.

Option Description

U01 Version with UL listing (for core drive only)

With option U01, a drive version for the North

American market is supplied. It is approved and

listed by the Underwriter Laboratories (UL).

It includes option M08 (mechanical door interlocks –

Superior). It requires shielded cable and stress cones

and 36” transition cabinet.

U02 Version with CE conformance

With option U02, a drive version with CE conformity

is supplied.

Note: Drives manufactured in Nuremberg, Germany are

supplied with CE conformance

U03 Version with CSA conformance

With option U03, a drive version certified by the

Canadian Standards Association (CSA) is supplied.

Option U03 includes option M08 (mechanical door

interlocks – Superior).

U04 EAC certificate

With option U04, a drive version in conformance

with EAC is supplied.

U08 Version with UKCA conformance

With option U08, a drive version in conformance

with UKCA is supplied (United Kingdom Conformity

Assessed).

Options Catalog D 17 | Global Edition | 12/2023

40 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Documentation options

The standard documentation is supplied in English. The

circuit diagrams / terminal diagrams are available only in

English.

If option D00 or one of the options D54 to D95 is ordered,

the operating instructions, and safety notes on the drive are

delivered according to the ordered language option. The

respective option has to be selected (mandatory option) if

the country of the end customer is an EU country or Turkey.

The quality documents (e.g. approval, certificates, etc) and

the technical documents (e.g. circuit diagrams, dimensional

drawings, etc) are only available in English or German.

Supplementary documentation for the components installed

in the drive (provided by the manufacturers of these

components) is included on the CD-ROM in English/German.

For technical reasons, it is not possible to provide this

supplementary documentation for only the options that the

customer has ordered.

Please contact your Siemens sales partner for documentation

in a language different from the ones specified below.

On customer request, Siemens will provide documentation in

the language required as an option.

Note: The documentation is supplied electronically in the

respective option code language. Language options are

mutually exclusive, but can be combined with option D76 as a

second documentation language. An additional CD-ROM with

documentation in English as second documentation language

will be issued. To get printed documentation in English, select

option D15.

Option Description

D02 Circuit diagrams, terminal diagrams and dimension

drawings in DXF format (English only)

Documents such as circuit diagrams, terminal

diagrams, the arrangement diagram and the

dimension drawing can be ordered with order code

D02 in DXF format, e.g. for use in AutoCAD systems.

D15 One set of printed documentation

If documentation is also required on paper, this must

be ordered using order code D15. Multiple quantities

are possible.

D00 Documentation in German

D54 Documentation in Czech

D55 Documentation In Polish

D56 Documentation in Russian

D57 Documentation in Japanese

D62 Documentation in Danish

D71 Documentation in Romanian

D72 Documentation in Italian

D73 Documentation in Finnish

D74 Documentation in Dutch

D75 Documentation In Turkish

D76 Documentation in English

D77 Documentation in French

D78 Documentation in Spanish

D79 Documentation in Portuguese (Brazil)

D80 Documentation in Bulgarian

D81 Documentation in Norwegian

D82 Documentation in Hungarian

D83 Documentation in Swedish

D84 Documentation in Chinese

D85 Documentation in Slovenian

D86 Documentation In Greek

D87 Documentation in Slovakian

D88 Documentation in Estonian

D89 Documentation in Latvian

D90 Documentation in Lithuanian

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 41

Production Schedules

The options B43 to B45 provide production schedule

documents. These are sent via e-mail as PDF file in English

after order clarification.

Option Description

B43 Production schedule: one issue

B44 Production schedule: updated at 2-week intervals

B45 Production schedule: updated once per month

B49 Manufacturer data book

Customer approval drawings

Siemens offers several levels of customer drawings

depending on customer needs and requirements. The

approval ranges from simple interface drawing approval to

complex full drawing approval from the customer. Details of

approval would vary by product line and location, please,

contact your Siemens sales partner for more details.

Option Description

P30 Full release to manufacturing

P31 I/O interface approval

Drawing showing customer I/O interface points will be

provided for approval. All other material will be

released to manufacturing.

P33 Full drawing approval

All customer drawings (general arrangement / outlines

and schematics) will be provided for approval.

Additional engineering documents (preliminary factory

acceptance test, system operating description, component data sheets / checklists, preliminary harmonic

analysis, and preliminary operation manuals) will be

provided at the request of the customer. All material

will be held from manufacturing until full approval is

received from customer.

Options Requiring Customer Specific Input

Option Description

Y05 Customer-specific nameplate

As standard the nameplate shows the rated data of

the drive under nominal conditions.

If data on the nameplate should be adapted to

special ambient conditions (temperature, altitude)

or should reflect special load conditions (e.g.

derating because of operation at low frequency) the

option Y05 must be selected.

Information to be supplied:

• Altitude

• Coolant temperature

• Rated voltages

• Rated current

• Rated power

Y10 Circuit diagrams with customer-specific description

field

The circuit diagrams are given customer-specific

headers. The data for the header must be specified

in plain text (up to three lines of 45 characters per

line).

Y15 Output filter

The filter is typically required when cable lengths at

the drive output exceed 2.3 km (7500 ft). At such

long distances, the effective switching frequency

harmonics and sidebands may excite a cable

resonance resulting in transmission line

overvoltages at the motor terminals.

This option may also be used to address EMI or

dV/dt requirements. The filter effectively removes

all frequency components above 2000 Hz in the

drive output voltage. Because SINAMICS PERFECT

HARMONY GH180 is already free of low-order

output harmonics, the result is a nearly perfect

sinusoidal output waveform.

Depending on the drive configuration, the filter may

be located in transition cabinets. The filter

components are dimensioned based on the

continuous current rating of the power cells and

maximum drive voltage.

For more detailed information, please contact your

Siemens sales partner.

Y36 Customer-specific cabinet labels

Labels with customer-specific information are

attached to the drive cabinets according to Siemens

standard. The text and quantity of these labels need

to be specified as plain text. As standard, the labels

will be manufactured out of Formica, using black

letters on a white background.

Options Catalog D 17 | Global Edition | 12/2023

42 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Output voltage

Option Description

V01 1) 2.3 kV Motor Voltage

V02 1) 2.4 kV Motor Voltage

V03 1) 3.0 kV Motor Voltage

V04 3.3 kV Motor Voltage

V05 4.0 kV Motor Voltage

V06 4.16 kV Motor Voltage

V07 4.8 kV Motor Voltage

V08 5.0 kV Motor Voltage

V09 5.5 kV Motor Voltage

V10 6.0 kV Motor Voltage

V11 6.3 kV Motor Voltage

V12 6.6 kV Motor Voltage

V13 6.9 kV Motor Voltage

V14 7.2 kV Motor Voltage

V15 8.0 kV Motor Voltage

V18 10.0 kV Motor Voltage

V19 11.0 kV Motor Voltage

V26 9.8 kV Motor Voltage

1) Only available for air-cooled drives

Extension of liability for defects on drives

Siemens provides customer with the option of extending

existing liability for defect periods beyond the standard ones.

The liability for defect period listed in our standard terms and

conditions is 12 months. The USA factory offers 24 months as

a standard. Details and conditions will vary by location. This

can be extended as follows:

Option Description

Q78 3 months extension to a total of 15 months from

delivery (only for drives manufactured in China)

Q79 6 months extension to a total of 18 months from

delivery (only for drives manufactured in China)

Q80 12 months extension to a total of 24 months from

delivery

Q81 18 months extension to a total of 30 months from

delivery

Q82 24 months extension to a total of 36 months from

delivery

Q83 30 months extension to a total of 42 months from

delivery

Q84 36 months extension to a total of 48 months from

delivery

Q85 48 months extension to a total of 60 months from

delivery

Customer acceptance tests

Siemens performs rigorous factory acceptance test on all

drives. Additional testing both witnessed and un-witnessed

are available, please contact your Siemens sales partner for

any questions or inquiries. Below is the example of some of

the test available:

Option Description

F03 Visual acceptance of the drive

Open doors/panels; inspection of drive before

shipping

F73 Functional acceptance of the drive with inductive

load

Visual acceptance; functional test with inductive

load, cooling system test.

Option F73 includes option F03 (visual acceptance).

F77 Acceptance test of the insulation of the drive

The following is included in the scope of the

acceptance tests:

– High-voltage test

– The insulation resistance is measured

F79 Interface check with customer equipment (5 hours,

on request)

For details, please contact your Siemens sales

partner.

F97 Customer-specific acceptance

For details, please contact your Siemens sales

partner.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 43

Witness tests

Witness test set up will vary by customer and factory

location. Below is an example of witness test offered at our

USA factory. For details contact your Siemens sales partner.

Witness tests may include:

• A copy of the factory acceptance test plan for each

attendee. Final certified copies of this data are published

approximately two weeks after all testing is completed and

shipment has occurred.

• Required PPE (Non-Prescription Safety Glasses with Side

shields, Arc Flash retardant clothing, and hearing protection

available upon request).

• Customer must provide their own EH rated safety shoes as

required per Siemens Safety

Option Description

F02 Class 1 witness test

Witnessed testing of a VFD will consist of tests that

are part of the Siemens standard factory acceptance test defined herein for two attendees.

Defined witnessed tests include visual inspection

and operational overview.

Operational test includes the following:

• Input protection fault simulation

• Precharge sequence and fault check

• Motor space heater control (if purchased)

• Blower cycling

• Loss of flow protection (WC)

• Local/Remote control

• Emergency Stop local/remote

• Motor Logic

• Customer control interface (excludes customer

supplied equipment)

• Thermal sensors

• Cell bypass operation (if purchased)

• Spinning load

• VFD run (unloaded)

F94 Class 2 witness test

Witnessed testing of a VFD will consist of tests that

are part of the Siemens standard standard factory

acceptance test defined herein for five attendees

In addition to the test mentioned in Class 1,

witness test class 2 offers:

• Up to 1-hour VFD current run on a dyno motor or

load reactor at 60 Hz

F95 Class 3 witness test

Witnessed testing of a VFD will consist of tests that

are part of the Siemens standard factory acceptance test defined herein for up to ten attendees.

In addition to the test mentioned in Class 1 and 2,

witness test class 3 offers:

• Efficiency, power factor and harmonics tests

demonstrated at defined points on a loaded VFD

Water-cooled specific options

Option Description

E00 Motor static exciter furnished by Customer

For synchronous motor applications the static

exciter cabinet will be provided by Customer

independent of the drive lineup.

E01 Motor static exciter furnished by Siemens

For synchronous motor applications the static

exciter cabinet will be provided by Siemens as part

of the drive lineup with the same degree of

protection as the drive.

Note: Please contact your Siemens sales partner for

technical requirements when controlling

synchronous motors.

Option Description

G89 Digital relay contactor control of external auxiliaries

This option provides the ability to control the external

motor space heaters via digital relay contact. When

the motor is not energized the drive activates the

space heaters to maintain motor internal air

temperature above the dewpoint during shutdown.

Note: This option requires an additional cabinet.

Option Description

L33 Regenerative braking

For the applications that require intermittent

regenerative operation for controlled or quick stop,

the drive is equipped with regenerative cells to

support this option.

Note: Available for 880 A and 1250 A. This option does not

support continued operation.

Option Description

N02 Interface with customer circuit breaker – DC rated

dry contacts

These contacts are used for the drive trip signal and

the close signal.

These relays are rated at: 125 V DC, 20 A

Minimum: 12 V DC 1 A

N03 Interface with customer circuit breaker – AC rated

dry contacts

These contacts are used for the drive trip signal and

the close signal.

These relays are rated at:

240 VAC 25 A, 277 V AC 20 A and 600 V AC 10 A

Minimum: 12 V AC 1 A.

Note: Option N02 is a default setting.

Options Catalog D 17 | Global Edition | 12/2023

44 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Option Description

M88 Premium corrosion protection

The water-cooled drive is by design a self-contained

configuration, so it is less affected by

environmental contamination compared to an aircooled solution. If the environment requires

additional corrosion protection above the standard,

the drive incorporates upgraded finishes &

hardware to reduce the effects of this environment

on the drive components. These additional

measures include:

• Premium anti-corrosion cabinet paint capable of

withstanding a maximum salt spray resistance of

5000 hours

• Coated printed circuit boards

• Plated bus

• External stainless steel hardware

• Stainless steel gland plates

Note: Option M88 is only available for water-cooled

drives.

Option Description

P40 Transformer assembly lift points outside on cabinet

roof

External lift points for overseas transportation are

added to reduce potential for damage during

overseas ship transportation.

Option Description

W03 Bottom entry of coolant piping

When option W32 is selected, the customer-provided

coolant piping is to enter from the top of the

advanced cooling cabinet (option W32). With Option

W03, the coolant piping is modified to allow the

customer-provided coolant piping to enter from the

bottom of the advanced cooling cabinet.

Note: Option W03 requires that option W32 (advanced

cooling cabinet) is simultaneously ordered.

W05 Cooling cabinet high capacity expansion tank

A drive in a system with a total volume between 250

to 500 U.S. gallons requires one high capacity coolant

expansion tank.

Option Description

W32 Drive prepared for liquid-to-air heat exchanger

(includes advanced cooling cabinet)

Compared to the standard cooling cabinet, this option

provides customer additional features and sensors:

• Advanced control

• Additional sensors

• Monitoring of expansion tank level of 4 to 20 mA

sensors – the signal level is available via PLC

communication

• PLC for monitoring / control

• Dual auxiliary voltage feed available for easy

installation

• Dual deionizer tanks, active & spare, in separate

section at front of cabinet

• VFD driven pumps

• Built in lift system (hoist) for changing pumps

• Drive can be combined with an external liquid-to-air

heat exchanger.

Control of the external liquid-to-air heat exchanger:

up to 12 external heat exchanger fans cycled in pairs

(multi-stage cycling)

In addition, the deinoized water cooling circuit is

designed for the use of a glycol mixture up to a

percentage of 60 % glycol. The amount of glycol will

depend on the freezing point of the respective plant

site. No current derating is required.

Note: This advanced cooling cabinet is 60" (1522 mm) wide;

it will add 23" (584 mm) to the drive length (incl.

additional control box).

W35 Liquid-to-air heat exchanger control panel mounted

on outside of the cooling cabinet

W51 Mechanical two-way inlet water temperature

regulating valve

With option W51 Mechanical on/off valve is supplied.

A mechanical on/off valve is recommended when

cooling water is supplied from well or tap.

W52 Mechanical three-way inlet water temperature

regulating valve

With option W52, a mechanical three-way valve is

supplied. A three-way valve is recommended in the

following cases:

• A constant flow is available.

• Water is supplied directly from river or lake.

• One cooling system for both drive and motor.

Note: Option W51 is a default setting.

Catalog D 17 | Global Edition | 12/2023 Options

SINAMICS PERFECT HARMONY GH180 Catalog D 17 45

Option Description

W55 Prepared for inlet water filter for low-quality water

With option W55, an inlet water filter is supplied.

The filter protects liquid-to-liquid heat exchanger

from clogging and fouling. It prevents blockages in

the cooling water system by removing debris and

marine life. The filter is automatically backflushed at

regular intervals to keep it clean.

Automatic flushing is carried out at regular intervals

without interrupting the filtering process. This filter

reduces the need for redundant liquid-to-liquid heat

exchanger.

Note: It is a drop ship option. Unit will be installed by the

customer upstream of the heat exchanger and

outside of the drive.

Example of installation with W32 option (advanced cooling cabinet):

There are two water-cooled drives in the building

Option Description

W71 Deionized water provided by Siemens

Siemens will provide the required amount of deionized

water for the inner closed loop cooling system.

W72 Propylene glycol provided by Siemens

Siemens will provide the required amount of glycol

for the inner closed-loop cooling system.

Article number structure Catalog D 17 | Global Edition | 12/2023

46 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Article number structure

1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16

SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0

4th digit: generation number

Generation 3 3

Generation 4 4

Generation 5 5

5th digit: manufacturing location

Nuremberg, Germany 1

Pittsburgh, PA, USA 2

Shanghai, China 5

Jundiai, Brazil 6

6th digit: cooling method

Air-cooled 0

Water-cooled 7

7th digit: line-side behavior

Diode Front End (2Q) 2

Regenerative braking (4Q, WC only) 3

6-step regen (4Q) 4

8th digit: rated max. output voltage

4.16 kV 3 AC, 9 cells 0

5.3 kV 3 AC, 12 cells 1

6.9 kV 3 AC, 15 cells 2

8.0 kV 3 AC, 18 cells 3

11.0 kV 3 AC, 24 cells 5

2.4 kV 3 AC, 9 cells 6

9th digit: line voltage

3 AC 2400 V A

3 AC 3000 V B

3 AC 3300 V C

3 AC 4160 V D

3 AC 4800 V E

3 AC 6000 V F

3 AC 6300 V G

3 AC 6600 V H

3 AC 6900 V J

3 AC 7200 V K

3 AC 8400 V L

3 AC 10000 V M

3 AC 11000 V N

3 AC 12000 V P

3 AC 12470 V Q

3 AC 13200 V R

3 AC 13800 V S

460 V 3 AC1) T

575 V 3 AC1) U

1) Utilization voltages, system voltages are 480 V or 600 V

Catalog D 17 | Global Edition | 12/2023 Article number structure

SINAMICS PERFECT HARMONY GH180 Catalog D 17 47

1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16

SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0

10th digit: Cell rating AC (2Q)

40 A cell A

70 A cell B

100 A cell C

140 A cell D

200 A cell E

260 A cell F

340 A cell G

430 A cell H

550 A cell J

600 A cell K

720/750 A cell L

Cell rating AC 6-step regen (4Q)

120 A cell D

160 A cell E

325 A cell G

Cell rating WC

880 A cell (regenerative braking only) B

1000 A cell D

1250 A cell (regenerative braking only) C

1375 A cell E

Drive rating: AC - transformer primary2) kVA; WC - drive power HP

150 3 1 5

200 3 2 0

300 3 3 0

400 3 4 0

500 3 5 0

600 3 6 0

700 3 7 0

800 3 8 0

900 3 8 7

1000 4 1 0

1100 4 1 1

1250 4 1 2

1500 4 1 5

1750 4 1 7

2000 4 2 0

2250 4 2 2

2500 4 2 5

3000 4 3 0

3500 4 3 5

4000 4 4 0

4500 4 4 5

5000 4 5 0

5500 4 5 5

6000 4 6 0

6500 4 6 5

Article number structure Catalog D 17 | Global Edition | 12/2023

48 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16

SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0

7000 4 7 0

7500 4 7 5

8000 4 8 0

8500 4 8 5

9000 4 8 7

9500 4 8 8

10000 5 2 0

11000 5 2 2

12000 5 2 4

13000 5 2 6

14000 5 2 8

15000 5 3 0

16000 5 3 2

17000 5 3 4

18000 5 3 6

19000 5 3 8

20000 5 4 0

21000 5 4 2

22000 5 4 4

23000 5 4 6

24000 5 4 8

25000 5 5 0

26000 5 5 2

27000 5 5 4

28000 5 5 6

29000 5 5 8

30000 5 6 0

31000 5 6 2

32000 5 6 4

33000 5 6 6

34000 5 6 8

14th digit: transformer configuration (copper, aluminum)

60 Hz, Cu A

50 Hz, Cu B

60 Hz, Al E

50 Hz, Al F

60 Hz, Cu, high efficiency L

50 Hz, Cu, high efficiency M

60 Hz, Cu, starting duty N

50 Hz, Cu, starting duty P

60 Hz, Al, starting duty Q

50 Hz, Al, starting duty R

Catalog D 17 | Global Edition | 12/2023 Article number structure

SINAMICS PERFECT HARMONY GH180 Catalog D 17 49

1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16

SINAMICS PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0

15th digit: auxiliary voltage and frequency

200 V / 50 Hz A

208 V / 50 Hz B

230 V / 60 Hz C

380 V / 50 Hz F

400 V / 50 Hz G

415 V / 50 Hz H

460 V / 60 Hz J

480 V / 60 Hz K

575 V / 60 Hz L

690 V / 50 Hz N

Other voltage and/or frequency combination than above X

2) Represents primary kVA unless option U13 (one redundant cell per phase) is selected

Technical data Catalog D 17 | Global Edition | 12/2023

50 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Technical data

General technical data

Drive quadrants 2 or 4

Isolation Fiber optic cable

Rated Efficiency 2Q drives Typical 96 to 97 % at full rated power 1)

Rated Efficiency 4Q drives Typical 95 to 96 % at full rated power 1)

Regulation compliances IEEE, ANSI, NEMA, UL, CSA, CE

Cooling

6SR5 series 6SR327 series

Air-cooled Water-cooled

Degree of protection NEMA 1/ IP42 (standard) NEMA 12/ IP54 (standard)

Altitude Ft (m) 0 to 3,300 (1,000) standard, up to 14,763 (4,500) with derating

1) Refer to drive data sheet (see Siemens Product Configurator, page 84) and/or sales proposal for specific system efficency.

Sound pressure level at 3 ft (1 m) 6SR5 6SR5 6SR5 6SR5 6SR5 6SR327

2Q drives 1) 40…70 A 100…140 A 200…260 A 340…430 A 550…750 A 880…1375 A

9 cell (1A, 2A, 3A, 4A, 5A frames) dBA 75 80 82 80 82 76

12 cell (2B, 3B, 4B, 5B frames) dBA 80 80 80 82 82 76

15 cell (2B, 3B, 4B, 5B frames) dBA 80 80 80 82 82 76

18 cell (5C frame) dBA – – – – 82 76

24 cell (2D, 3D, 4D, 5D frames) dBA 82 82 82 82 85 76

4Q drives 1) 6SR5 6SR5

120…160 A 325 A

9 cell (3A, 4A frames) dBA 82 82

15 cell (3B, 4B frames) dBA 80 82

24 cell (3D, 4D frames) dBA 82 82

1) For frame sizes see section "Air-cooled technical data" from page 54.

Power cabling

cross sections 1) Frame 2)

6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR5 6SR327

1A 2A 3A 4A 2B, 3B 4B 2D, 3D 4D 5A…5D –

Line-side, max.

connectable per

phase with M10

(M08 for 40-70A)

screw z

AWG/

MCM

1 x 350

1 x 500 3)

1 x 350

1 x 500 3)

2 x 350

1 x 500 3) 2 x 350 2 x 350 2 x 500 2 x 350 4 x 500 4 x 350 2 x 1000

mm2 1 x 185

1 x 240 3)

1 x 185

1 x 240 3)

2 x 185

1 x 240 3) 2 x 185 2 x 185 2 x 240 2 x 185 4 x 240 4 x 185 2 x 500

Motor-side, max.

connectable per

phase with M10

(M08 for 40-70A)

screw

AWG/

MCM 1 x #2 1 x 2/0 1 x 4/0 2 x 350 2 x 350 2 x 350 1 x 500 1 x 500 3 x 350 2 x 1000

mm2 1 x 35 1 x 75 1 x 95 2 x 185 2 x 185 2 x 185 1 x 240 1 x 240 3 x 185 2 x 500

PE, max. connection cross-section

at enclosure with

M12 screw

preliminary

AWG/

MCM 2/0 2/0 2/0 2/0 2/0 2/0 2/0 2/0 2 x 350 2 x 1000

mm2 75 75 75 75 75 75 75 75 2 x 185 2 x 500

1) Maximum installable size per phase, shielded cables

2) For frame sizes see section "Air-cooled technical data from page 54.

3) Input voltage 13.8 kV

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 51

Auxiliary supply

2Q drives

Auxiliary voltage

Three phase Single phase

Configuration 380 V 460 V 575 V 120 V 220 V

6SR5 9 cell 40-70A K791) A 2.0 2.5 2.0 4.0 2.0

6SR5 9 cell 40-70A K692) A 3.5 4.0 3.0 – –

6SR5 9 cell 100-140A K791) A 3.5 4.0 3.5 4.0 2.0

6SR5 9 cell 100-140A K692) A 5.0 5.5 4.5 – –

6SR5 9 cell 200-260A K791) A 6.5 8.0 6.5 4.0 2.0

6SR5 9 cell 200-260A K692) A 8.0 9.5 7.5 – –

6SR5 9 cell 340-430A K791) A 10.0 11.5 9.5 4.0 2.0

6SR5 9 cell 340-430A K692) A 11.5 12.5 10.5 – –

6SR5 9 cell 550A K68/K791) A 16.0 13.0 9.2 7 3.5

6SR5 9 cell 550A K692) A 18.2 14.8 10.7 – –

6SR5 9 cell 600A K68/K791) A 16.0 15.7 11.8 7 3.5

6SR5 9 cell 600A K692) A 18.2 17.5 13.2 – –

6SR5 9 cell 720A K68/K791) A 18.2 15.7 11.8 7 3.5

6SR5 9 cell 720A K692) A 20.4 17.5 13.2 – –

6SR5 12/15 cell 340-430A K68/ K791) A 16.5 15.0 12.0 4.0 2.0

6SR5 12/15 cell 340-430A K692) A 17.5 16.0 13.0 – –

6SR5 12/15 cell 550A K68/K791) A 26.7 21.7 15.4 7 3.5

6SR5 12/15 cell 550A K692) A 28.9 23.5 16.8 – –

6SR5 12/15 cell 600A K68/K791) A 26.7 27.1 20.5 7 3.5

6SR5 12/15 cell 600A K692) A 28.9 28.9 21.9 – –

6SR5 12/15 cell 750A K68/K791) A 31.0 27.1 20.5 7 3.5

6SR5 12/15 cell 750A K692) A 33.2 28.9 21.9 – –

6SR5 18 cell 550A K68/K791) A 32.0 26.1 18.5 7 3.5

6SR5 18 cell 550A K692) A 34.2 27.8 19.9 – –

6SR5 18 cell 600A K68/K791) A 32.0 31.5 23.6 7 3.5

6SR5 18 cell 600A K692) A 34.2 33.2 25.0 – –

6SR5 18 cell 750A K68/K791) A 36.3 31.5 23.6 7 3.5

6SR5 18 cell 750A K692) A 38.5 33.2 25.0 – –

6SR5 24 cell 40-70A K681) A 11.0 12.4 – – 3.5

6SR5 24 cell 40-70A K692) A 13.0 14.4 – – 3.5

6SR5 24 cell 100-140A K681) A 16.4 19.6 – – 3.5

6SR5 24 cell 100-140A K692) A 18.4 21.6 – – 3.5

6SR5 24 cell 200-260A K681) A 27.8 34.2 – – 3.5

6SR5 24 cell 200-260A K692) A 29.8 36.2 – – 3.5

6SR5 24 cell 550A K68/K791) A 37.3 30.4 21.6 7 3.5

6SR5 24 cell 550A K692) A 39.5 32.2 23.0 – –

6SR5 24 cell 600A K68/K791) A 37.3 38.5 29.2 7 3.5

6SR5 24 cell 600A K692) A 39.5 40.3 30.6 – –

6SR5 24 cell 750A K68/K791) A 43.8 38.5 29.2 7 3.5

6SR5 24 cell 750A K692) A 46.0 40.3 30.6 – –

1) Single phase for NXG control

2) K69 includes CPT: control power transformer

Note: Temporary overcurrent needed for 30 s during precharge for units with 550/600/750 A or 4Q cells; please contact your Siemens sales

partner for more details.

Values include cooling blowers; largest unit shown.

Option L55 (anti-condensation heating for cabinet) requires separate source.

Technical data Catalog D 17 | Global Edition | 12/2023

52 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Auxiliary voltage

Three phase Single phase

Configuration 380 V 460 V 575 V 120 V 220 V

6SR327 K691) A 1.6 1.3 1.1 – –

6SR327 K691) and W323) A 3.2 2.6 2.2 – –

6SR327 9 cell 880-1375A K792) A 13.4 8.4 6.8 5.0 –

6SR327 9 cell 880-1375A K792) and W323) A 33.1 27.2 21.4 10.0 –

6SR327 12 cell 880-1375A K792) A 14.6 12.7 10.1 – –

6SR327 12 cell 880-1375A K792) and W323) A 34.3 28.4 22.3 10.0 –

6SR327 15 cell 880-1375A K792) A 19.4 16.9 13.5 – –

6SR327 15 cell 880-1375A K792) and W323) A 35.5 29.6 23.3 10.0 –

6SR327 18 cell 880-1375A K792) A 20.6 18.1 14.5 – –

6SR327 18 cell 880-1375A K792) and W323) A 36.7 30.8 24.3 10.0 –

6SR327 24 cell 880-1375A K79 2) A 30.4 26.5 21.2 5.0 –

6SR327 24 cell 880-1375A K792) and W323) A 39.1 33.2 26.2 10.0 –

System pre-charge4) % 0.5 0.5 0.5 – –

1) K69 includes CPT: control power transformer

2) Single phase for NXG control and 120 V AC internal heat exchanger in water-cooled systems

3) Includes cooling pumps; largest unit shown

4) Percentage of transformer kVA

Note: Options A30, A82, A83, and E04 will require slightly more current from the 120 V source.

If either the option cabinet or the exciter cabinet (E01) are present, an additional 2.1 A will be required per cabinet.

4Q drives

Auxiliary voltage

Three phase Single phase

Configuration 380 V 460 V 575 V 120 V 220 V

6SR5 9 cell 120-160A K791) A 6.5 8.0 6.5 4.0 –

6SR5 9 cell 120-160A K692) A 8.0 9.5 7.5 – –

6SR5 9 cell 325A K791) A 10.0 11.5 9.5 4.0 –

6SR5 9 cell 325A K692) A 11.5 12.5 10.5 – –

6SR5 12/15 cell 120-160A K791) A 10.0 11.5 9.5 4.0 –

6SR5 12/15 cell 120-160A K692) A 11.5 12.5 10.5 – –

6SR5 12/15 cell 325A K791) A 18 14 11.5 4.0 –

6SR5 12/15 cell 325A K692) A 22 17 14.5 – –

6SR5 24 cell 120-160A K681) A 27.8 34.2 – – 3.5

6SR5 24 cell 120-160A K692) A 29.8 36.2 – – 3.5

6SR5 24 cell 325A K681) A 23.1 28.3 – – 3.5

6SR5 24 cell 325A K692) A 25.1 30.3 – – 3.5

1) Single phase for NXG control

2) K69 includes CPT: control power transformer

Note: Temporary overcurrent needed for 30 s during precharge; please contact your Siemens sales partner for more details.

Values include cooling blowers; largest unit shown.

Option L55 (anti-condensation heating for cabinet) requires separate source.

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 53

Cell overload capability

2Q Drives 6SR5 6SR327

Cell rating [A] 40 70 100 140 200 260 340 430 550 600 720 1) 750 2) 880 1000 1250 1375

110 % overload [A]

(1min/10min) 40 70 100 140 200 260 340 430 550 600 655 682 880 909 1250 1250

150 % overload [A]

(1min/10min) 29 51 73 103 147 191 249 315 403 440 480 500 667 667 917 917

1) 720 A for 9 cell configurations

2) 750 A for 12 through 24 cell configurations

4Q Drives 6SR5

Cell rating [A] 120 160 325

110 % overload [A]

(1min/10min) 120 160 325

150 % overload[A]

(1min/10min) 88 117 238

Storage, transportation and operation data

Storage Transport Operation

Climatic environmental conditions

Ambient temperature

Outdoor Type 4

°C +5 to +40 1) -25 to +60 1) +5 to +40 2)

+5 to +50 3)

–45 to +45

Relative air humidity < 95 %

(only slight condensation

permitted; drive must be

completely dry before

commissioning)

< 95 %

(only slight condensation

permitted; drive must be

completely dry before

commissioning)

< 95 %

(condensation not

permitted)

Other climatic conditions in

accordance with class

1K3, 1Z2 in acc. with

IEC 60721-3-1 5)

2K2 in acc. with

IEC 60721-3-2 6)

3K3 in acc. with

IEC 60721-3-3 7)

Degree of pollution 2

without significant conductive or corrosive dust/gases

in acc. with IEC 61800-5-1

without significant conductive or corrosive dust/gases

in acc. with IEC 61800-5-1

without significant conductive or corrosive dust/gases

in acc. with IEC 61800-5-1

Mechanical environmental conditions

Stationary vibration,

sinusoidal

• Displacement mm 1.5 (2 to 9 Hz) 3.5 (2 to 9 Hz) 0.3 (2 to 9 Hz)

• Acceleration m/s 5 (9 to 200 Hz) 10 (9 to 200 Hz) 1 (9 to 200 Hz)

m/s 15 (200 to 500 Hz)

Other mechanical conditions

in accordance with class

1M2 in acc. with

IEC 60721-3-1 5)

2M2 in acc. with

IEC 60721-3-2 4)

3M1 in acc. with

IEC 60721-3-3 7)

Other environmental conditions

Biological ambient conditions

in accordance with class

1B1 in acc. with

IEC 60721-3-1 5)

2B1 in acc. with

IEC 60721-3-2 6)

3B1 in acc. with

IEC 60721-3-3 7)

Chemical active substances

in accordance with class

1C1 in acc. with

IEC 60721-3-1 5)

2C1 in acc. with

IEC 60721-3-2 6)

3C1 in acc. with

IEC 60721-3-3 7) 8)

Mechanical active substances

in accordance with class

1S1 in acc. with

IEC 60721-3-1 5)

2S1 in acc. with

IEC 60721-3-2 6)

3S1 in acc. with

IEC 60721-3-3 7) 9)

1) For water-cooled drives: no cooling water in system

2) For water-cooled drive: maximum 40 °C drive ambient air temperature with maximum 47 °C drive inlet water temperature

3) 50 °C is available with current derating for air-cooled drives; water-cooled drives – maximum 50 °C drive ambient air temperature with maximum

40 °C drive inlet water temperature

4) Siemens equipment meets all 2M2 conditions except free fall and pitch and roll.

5) IEC 60721-3-1; amendment 2, 1987 - 1993

6) IEC 60721-3-2; second edition, 1997/3

7) IEC 60721-3-3; second edition, 1994/12

8) Accumulation of dust, dirt or debris is not permitted. Drives must be installed in a controlled environment and properly maintained according to the

Operating Instructions.

9) With optional NEMA 12/IP54 LV enclosures for water-cooled drives

Technical data Catalog D 17 | Global Edition | 12/2023

54 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Air-cooled technical data

2Q drives, 6SR5 40 to 750 A

2.3 kV motor voltage, 9 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.020.A315..0 150 112 34 40

48.0x102.0x40.0 1219x2591x1016 1A 3)

3300 1497

6SR5.020.B320..0 200 149 45 70 3700 1679

6SR5.020.B330..0 300 224 67 4100 1860

6SR5.020.C340..0 400 298 91 100

60.0x110.0x42.0 1524x2794x1067 2A

4400 1996

6SR5.020.D350..0 500 372 112 140 4700 2132

6SR5.020.D360..0 600 450 136 5100 2313

6SR5.020.E370..0 700 522 155

200

75.0x110.0x45.0 1905x2794x1143 3A

5800 2631

6SR5.020.E380..0 800 597 177 6100 2767

6SR5.020.E387..0 900 671 199 6700 3039

6SR5.020.F410..0 1000 746 221 260 6800 3130

6SR5.020.F411..0 1100 820 246 7300 3312

6SR5.020.G412..0 1250 932 276 340 133.9x115.6x47.3 3400x2936x1200 4A

11377 5161

6SR5.020.G415..0 1500 1120 331 11877 5388

6SR5.020.H417..0 1750 1304 386 430 12375 5614

6SR5.020.J420..0 2000 1491 442 550

228.4x114.9x53.9 5800x2916x1370 5A

18241 8291

6SR5.020.J422..0 2250 1679 497 18804 8547

6SR5.020.K425..0 2500 1865 552 600 19369 8804

6SR5.020.L427..0 2750 2052 607

720

19932 9060

6SR5.020.L430..0 3000 2238 662 20496 9316

6SR5.020.L432..0 3250 2425 717 21624 9829

2.4 kV motor voltage, 9 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.020.A315..0 150 112 32 40

48.0x102.0x40.0 1219x2591x1016 1A 3)

3300 1497

6SR5.020.B320..0 200 149 43 70 3700 1679

6SR5.020.B330..0 300 224 65 4100 1860

6SR5.020.C340..0 400 298 87 100

60.0x110.0x42.0 1524x2794x1067 2A

4400 1996

6SR5.020.D350..0 500 373 108

140

4700 2132

6SR5.020.D360..0 600 448 130 5100 2313

6SR5.020.D370..0 700 522 148 5800 2631

6SR5.020.E380..0 800 597 169 200

75.0x110.0x45.0 1905x2794x1143 3A

6100 2767

6SR5.020.E387..0 900 671 190 6700 3039

6SR5.020.F410..0 1000 746 212 260 6800 3130

6SR5.020.F411..0 1100 821 233 7300 3312

6SR5.020.G412..0 1250 932 264 340

133.9x115.6x47.3 3400x2936x1200 4A

11377 5171

6SR5.020.G415..0 1500 1118 317 11877 5399

6SR5.020.H417..0 1750 1306 370 430 12375 5614

6SR5.020.H420..0 2000 1492 423 12877 5841

6SR5.020.J422..0 2250 1679 476 550

228.4x114.9x53.9 5800x2916x1370 5A

18804 8547

6SR5.020.J425..0 2500 1865 529 19369 8804

6SR5.020.K427..0 2750 2051 582 600 19932 9060

6SR5.020.L430..0 3000 2238 635 720 20496 9316

6SR5.020.L432..0 3250 2425 688 21624 9829

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for

shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.

3) Frame 1A not available from China, units are built in frame 2A.

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 55

3.0 kV motor voltage, 9 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.020.A315..0 150 112 26 40

48.0x102.0x40.0 1219x2591x1016 1A 3)

3300 1497

6SR5.020.A320..0 200 149 34 3700 1679

6SR5.020.B330..0 300 224 51 70 4100 1860

6SR5.020.B340..0 400 298 69 4400 1996

6SR5.020.C350..0 500 372 86 100

60.0x110.0x42.0 1524x2794x1067 2A

5100 2313

6SR5.020.D360..0 600 448 103

140

5500 2495

6SR5.020.D370..0 700 521 120 5800 2631

6SR5.020.D380..0 800 597 139 6100 2767

6SR5.020.E387..0 900 671 156

200

75.0x110.0x45.0 1905x2794x1143 3A

6400 2903

6SR5.020.E410..0 1000 746 169 6800 3130

6SR5.020.E411..0 1100 820 189 7300 3312

6SR5.020.F412..0 1250 932 214 260 8100 3674

6SR5.020.F415..0 1500 1120 254 9300 4218

6SR5.020.G417..0 1750 1306 296 340

133.9x115.6x47.3 3400x2936x1200 4A

12377 5613

6SR5.020.G420..0 2000 1491 338 12877 5841

6SR5.020.H422..0 2250 1679 381 430 13377 6068

6SR5.020.H425..0 2500 1865 423 14377 6522

6SR5.020.J427..0 2750 2051 465

550

228.4x114.9x53.9 5800x2916x1370 5A

19932 9060

6SR5.020.J430..0 3000 2240 508 20496 9316

6SR5.020.J432..0 3250 2425 550 21624 9829

6SR5.020.K435..0 3500 2611 592 600 22187 10085

6SR5.020.L437..0 3750 2798 635

720

22751 10341

6SR5.020.L440..0 4000 2984 677 23417 10644

6SR5.020.L442..0 4250 3171 719 24082 10946

3.3 kV motor voltage, 9 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.020.A315..0 150 112 24

48.0x102.0x40.0 1219x2591x1016 1A 3)

3300 1497

6SR5.020.A320..0 200 149 31 3700 1679

6SR5.020.B330..0 300 224 47

4100 1860

6SR5.020.B340..0 400 298 63 4400 1996

6SR5.020.C350..0 500 373 78

100

60.0x110.0x42.0 1524x2794x1067 2A

5100 2313

6SR5.020.C360..0 600 448 94 5500 2495

6SR5.020.D370..0 700 522 109

140

5800 2631

6SR5.020.D380..0 800 597 125 6100 2767

6SR5.020.E387..0 900 671 141

200

75.0x110.0x45.0 1905x2794x1143 3A

6400 2903

6SR5.020.E410..0 1000 746 154 6800 3130

6SR5.020.E412..0 1250 932 192 8100 3674

6SR5.020.F415..0 1500 1118 231 260 9300 4218

6SR5.020.G417..0 1750 1306 269

340

133.9x115.6x47.3 3400x2936x1200 4A

12377 5613

6SR5.020.G420..0 2000 1492 308 12877 5841

6SR5.020.H422..0 2250 1679 346

430

13377 6068

6SR5.020.H425..0 2500 1865 385 14377 6521

6SR5.020.H427..0 2750 2051 423 14877 6748

6SR5.020.J430..0 3000 2240 462

550

228.4x114.9x53.9 5800x2916x1370 5A

20496 9316

6SR5.020.J432..0 3250 2425 500 21624 9829

6SR5.020.J435..0 3500 2611 538 22187 10085

6SR5.020.K437..0 3750 2798 577 600 22751 10341

6SR5.020.L440..0 4000 2984 615

720

23417 10644

6SR5.020.L442..0 4250 3171 654 24082 10946

6SR5.020.L445..0 4500 3356 692 24748 11249

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for

shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.

3) Frame 1A not available from China, units are built in frame 2A.

Technical data Catalog D 17 | Global Edition | 12/2023

56 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

4.0 kV motor voltage, 9 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.020.A315..0 150 112 19

48.0x102.0x40.0 1219x2591x1016 1A 3)

3300 1497

6SR5.020.A320..0 200 149 26 3700 1679

6SR5.020.A330..0 300 224 39 4100 1860

6SR5.020.B340..0 400 298 51 70 4400 1996

6SR5.020.B350..0 500 372 64 4700 2132

6SR5.020.C360..0 600 448 77 100

60.0x110.0x42.0 1524x2794x1067 2A

5500 2495

6SR5.020.C370..0 700 521 90 5800 2631

6SR5.020.D380..0 800 597 103

140

6100 2767

6SR5.020.D387..0 900 671 116 6400 2903

6SR5.020.D410..0 1000 746 129 6500 2949

6SR5.020.E411..0 1100 820 143

200

75.0x110.0x45.0 1905x2794x1143 3A

7300 3312

6SR5.020.E412..0 1250 932 161 8100 3675

6SR5.020.E415..0 1500 1120 190 9300 4219

6SR5.020.F417..0 1750 1304 222 260 10500 4763

6SR5.020.F420..0 2000 1491 254 11800 5353

6SR5.020.G422..0 2250 1679 286 340

133.9x115.6x47.3 3400x2936x1200 4A

13377 6068

6SR5.020.G425..0 2500 1865 317 14377 6521

6SR5.020.H427..0 2750 2051 349

430

14877 6748

6SR5.020.H430..0 3000 2240 381 15377 6975

6SR5.020.H432..0 3250 2425 413 15877 7202

6SR5.020.J435..0 3500 2611 444

550

228.4x114.9x53.9 5800x2916x1370 5A

22187 10085

6SR5.020.J437..0 3750 2798 476 22751 10341

6SR5.020.J440..0 4000 2984 508 23417 10644

6SR5.020.J442..0 4250 3171 539 24082 10946

6SR5.020.K445..0 4500 3356 571 600 24748 11249

6SR5.020.L447..0 4750 3544 603

720

25413 11551

6SR5.020.L450..0 5000 3730 635 26057 11844

6SR5.020.L452..0 5250 3917 665 26057 11844

6SR5.020.L455..0 5500 4103 698 26700 12136

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for

shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.

3) Frame 1A not available from China, units are built in frame 2A.

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 57

4.16 kV motor voltage, 9 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.020.A315..0 150 112 19

48.0x102.0x40.0 1219x2591x1016 1A 3)

3300 1497

6SR5.020.A320..0 200 149 26 3700 1678

6SR5.020.A330..0 300 224 38 4100 1860

6SR5.020.B340..0 400 298 50 70 4400 1996

6SR5.020.B350..0 500 373 63 4700 2132

6SR5.020.C360..0 600 448 75

100

60.0x110.0x42.0 1524x2794x1067 2A

5500 2495

6SR5.020.C370..0 700 522 88 5800 2631

6SR5.020.C380..0 800 597 100 6100 2767

6SR5.020.D387..0 900 671 113

140

6400 2903

6SR5.020.D410..0 1000 746 125 6500 2948

6SR5.020.D411..0 1100 821 138 7300 3312

6SR5.020.E412..0 1250 933 153 200

75.0x110.0x45.0 1905x2794x1143 3A

8100 3674

6SR5.020.E415..0 1500 1119 183 9300 4218

6SR5.020.F417..0 1750 1306 214 260 10500 4763

6SR5.020.F420..0 2000 1492 244 11800 5352

6SR5.020.G422..0 2250 1679 275

340

133.9x115.6x47.3 3400x2936x1200 4A

13377 6068

6SR5.020.G425..0 2500 1865 305 14377 6521

6SR5.020.G427..0 2750 2052 336 14877 6748

6SR5.020.H430..0 3000 2238 366

430

15377 6975

6SR5.020.H432..0 3250 2425 397 15877 7202

6SR5.020.H435..0 3500 2611 427 16377 7429

6SR5.020.J440..0 4000 2984 488 550

228.4x114.9x53.9 5800x2916x1370 5A

23417 10644

6SR5.020.J442..0 4250 3171 519 24082 10946

6SR5.020.K445..0 4500 3357 549 600 24748 11249

6SR5.020.K447..0 4750 3544 580 25413 11551

6SR5.020.L450..0 5000 3730 610

720

26057 11844

6SR5.020.L452..0 5250 3917 641 26057 11844

6SR5.020.L455..0 5500 4103 671 26700 12136

6SR5.020.L457..0 5750 4290 702 27349 12431

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; 40 to 70 A frame 1A configuration blowers are part of a cabinet, other configurations blowers are removed for

shipping. Certain options might change drive dimensions and weights. Depth does not include door components, key interlocks or handles.

3) Frame 1A not available from China, units are built in frame 2A.

Technical data Catalog D 17 | Global Edition | 12/2023

58 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

4.8 kV motor voltage, 12 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.021.A330..0 300 224 33 40

114.2x115.6x42.0 2900x2936x1065 2B

5390 2450

6SR5.021.B340..0 400 298 43

5740 2610

6SR5.021.B350..0 500 373 54 6070 2760

6SR5.021.B360..0 600 448 65 6400 2910

6SR5.021.C370..0 700 522 76

100

6730 3060

6SR5.021.C380..0 800 597 87 7060 3210

6SR5.021.C387..0 900 671 98 7390 3360

6SR5.021.D410..0 1000 746 108 140 7740 3520

6SR5.021.D412..0 1250 933 136 8580 3900

6SR5.021.E415..0 1500 1119 159 200

133.9x115.6x47.3 3400x2936x1200 3B

10890 4950

6SR5.021.E417..0 1750 1306 185 11460 5210

6SR5.021.F420..0 2000 1492 212 260 12030 5470

6SR5.021.F422..0 2250 1679 238 12610 5730

6SR5.021.G425..0 2500 1865 264

340

218.8x114.9x52.1 5550x2916x1323 4B

17854 8115

6SR5.021.G427..0 2750 2052 291 18116 8234

6SR5.021.G430..0 3000 2238 317 18366 8348

6SR5.021.H432..0 3250 2435 344

430

18897 8589

6SR5.021.H435..0 3500 2611 370 19497 8862

6SR5.021.H440..0 4000 2984 423 18886 8580

6SR5.021.J442..0 4250 3171 450

550

266.2x114.9x53.9 6759x2916x1370

27129 12331

6SR5.021.J445..0 4500 3356 476 27794 12633

6SR5.021.J447..0 4750 3544 502 28460 12936

6SR5.021.J450..0 5000 3730 529 29125 13238

6SR5.021.K452..0 5250 3917 555 600 29769 13531

6SR5.021.K455..0 5500 4103 582 30412 13823

6SR5.021.L457..0 5750 4290 608

750

31054 14115

6SR5.021.L460..0 6000 4476 635 31699 14408

6SR5.021.L465..0 6500 4847 688 33074 15033

6SR5.021.L470..0 7000 5222 740 278.0x128.2x53.9 7059x3256x1370 34103 15501

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 59

6.0 kV motor voltage, 15 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.022.A330..0 300 224 26 40

114.2x115.6x42.0 2900x2936x1065 2B

5540 2513

6SR5.022.A340..0 400 298 34 5900 2677

6SR5.022.B350..0 500 372 43

6230 2826

6SR5.022.B360..0 600 450 51 6560 2976

6SR5.022.B370..0 700 521 60 6890 3126

6SR5.022.B380..0 800 600 69 7220 3275

6SR5.022.C387..0 900 671 77 100 7550 3425

6SR5.022.C410..0 1000 746 86 7900 3584

6SR5.022.D412..0 1250 932 107 140 8730 3960

6SR5.022.D415..0 1500 1120 129 9550 4332

6SR5.022.E417..0 1750 1304 150

200

133.9x115.6x47.3 3400x2936x1200 3B

11750 5330

6SR5.022.E420..0 2000 1491 169 12320 5589

6SR5.022.E422..0 2250 1677 190 12890 5847

6SR5.022.F425..0 2500 1865 212

260

13460 6106

6SR5.022.F427..0 2750 2051 233 14060 6378

6SR5.022.F430..0 3000 2240 260 14630 6637

6SR5.022.G432..0 3250 2425 278 340

218.8x114.9x52.1 5550x2916x1323 4B

19497 8844

6SR5.022.G435..0 3500 2497 300 20097 9116

6SR5.022.H440..0 4000 2982 343

430

21226 9628

6SR5.022.H445..0 4500 3356 386 22560 10234

6SR5.022.H450..0 5000 3728 428 23894 10839

6SR5.022.J452..0 5250 3917 444

550 266.2x114.9x53.9 6759x2916x1370

28373 12897

6SR5.022.J455..0 5500 4101 465 29038 13199

6SR5.022.J457..0 5750 4290 487 29704 13502

6SR5.022.J460..0 6000 4474 508 32943 14974

6SR5.022.K465..0 6500 4847 550 600 34071 15487

6SR5.022.K470..0 7000 5219 592

278.0x128.2x53.9 7059x3256x1370

34584 15720

6SR5.022.L475..0 7500 5595 635

750

34797 15817

6SR5.022.L480..0 8000 5968 677 35187 15994

6SR5.022.L485..0 8500 6341 719 35682 16219

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Technical data Catalog D 17 | Global Edition | 12/2023

60 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

6.6 kV motor voltage, 15 cell configuration (2Q)

Drive series

Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.022.A330..0 300 223 24

114.2x115.6x42.0 2900x2936x1065 2B

5540 2520

6SR5.022.A340..0 400 298 31 5900 2680

6SR5.022.A350..0 500 372 39 6230 2830

6SR5.022.B360..0 600 450 47

6560 2980

6SR5.022.B370..0 700 521 55 6890 3130

6SR5.022.B380..0 800 600 62 7220 3280

6SR5.022.C387..0 900 671 70

100

7550 3430

6SR5.022.C410..0 1000 746 78 7900 3590

6SR5.022.C412..0 1250 932 100 9550 4340

6SR5.022.D415..0 1500 1120 117 140 10380 4720

6SR5.022.D417..0 1750 1304 138 11750 5340

6SR5.022.E420..0 2000 1492 154

200

133.9x115.6x47.3 3400x2936x1200 3B

12320 5600

6SR5.022.E422..0 2250 1679 173 12890 5860

6SR5.022.E425..0 2500 1865 192 13460 6120

6SR5.022.F427..0 2750 2051 212 260 14060 6390

6SR5.022.F430..0 3000 2238 231 14630 6650

6SR5.022.G435..0 3500 2600 296 340

218.8x114.9x52.1 5550x2916x1323 4B

20097 9135

6SR5.022.G440..0 4000 2982 312 25452 11569

6SR5.022.H445..0 4500 3356 351

430

26580 12082

6SR5.022.H450..0 5000 3728 389 27707 12594

6SR5.022.H455..0 5500 4101 428 29038 13199

6SR5.022.J457..0 5750 4290 448

550 266.2x114.9x53.9 6759x2916x1370

29704 13502

6SR5.022.J460..0 6000 4474 467 32943 14974

6SR5.022.J465..0 6500 4847 506 34071 15487

6SR5.022.J470..0 7000 5219 545

278.0x128.2x53.9 7059x3256x1370

34584 15720

6SR5.022.K475..0 7500 5595 584 600 34797 15817

6SR5.022.L480..0 8000 5965 623

750

35187 15994

6SR5.022.L485..0 8500 6341 662 35682 16219

6SR5.022.L487..0 9000 6714 701 36177 16444

6SR5.022.L488..0 9500 7087 699 36709 16686

6SR5.022.L520..0 10000 7460 779 37241 16928

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 61

6.9 kV motor voltage, 15 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.022.A330..0 300 224 22

114.2x115.6x42.0 2900x2936x1065 2B

5540 2513

6SR5.022.A340..0 400 298 30 5900 2677

6SR5.022.A350..0 500 372 37 6230 2826

6SR5.022.B360..0 600 450 45

6560 2976

6SR5.022.B370..0 700 521 52 6890 3126

6SR5.022.B380..0 800 600 60 7220 3275

6SR5.022.B387..0 900 671 70 7550 3425

6SR5.022.C410..0 1000 746 75

100

7900 3584

6SR5.022.C412..0 1250 932 100 8730 3960

6SR5.022.D415..0 1500 1120 112

140

9550 4332

6SR5.022.D417..0 1750 1304 130 10380 4709

6SR5.022.E420..0 2000 1491 147

200

133.9x115.6x47.3 3400x2936x1200 3B

12320 5589

6SR5.022.E422..0 2250 1677 166 12890 5847

6SR5.022.E425..0 2500 1862 186 13460 6106

6SR5.022.F427..0 2750 2051 202

260

14060 6378

6SR5.022.F430..0 3000 2240 221 14630 6637

6SR5.022.F435..0 3500 2611 258 15770 7170

6SR5.022.G440..0 4000 2982 294

340

218.8x114.9x52.1 5550x2916x1323 4B

21226 9628

6SR5.022.G445..0 4500 3356 331 22560 10234

6SR5.022.H450..0 5000 3730 368

430

23894 10839

6SR5.022.H455..0 5500 4101 405 25183 11423

6SR5.022.J460..0 6000 4474 442

550

266.2x114.9x53.9 6759x2916x1370

32943 14974

6SR5.022.J465..0 6500 4847 478 34071 15487

6SR5.022.J470..0 7000 5219 515

278.0x128.2x53.9 7059x3256x1370

34584 15720

6SR5.022.K475..0 7500 5595 552

600

34797 15817

6SR5.022.K480..0 8000 5968 589 35187 15994

6SR5.022.L485..0 8500 6341 625

750

35682 16219

6SR5.022.L487..0 9000 6714 662 36177 16444

6SR5.022.L488..0 9500 7087 699 36709 16686

6SR5.022.L520..0 10000 7460 736 37241 16928

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Technical data Catalog D 17 | Global Edition | 12/2023

62 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

7.2 kV motor voltage, 18 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.023.J440..0 4000 2984 282

550

281.9x114.9x53.9 7159x2916x1370

28435 12925

6SR5.023.J442..0 4250 3171 300 29101 13228

6SR5.023.J445..0 4500 3356 317 29766 13530

6SR5.023.J447..0 4750 3544 335 30432 13833

6SR5.023.J450..0 5000 3728 353 31097 14135

6SR5.023.J452..0 5250 3917 370 31741 14428

6SR5.023.J455..0 5500 4101 388 32384 14720

6SR5.023.J457..0 5750 4290 405 32947 14976

6SR5.023.J460..0 6000 4474 423 33510 15232

6SR5.023.J465..0 6500 4847 458 34639 15745

6SR5.023.J470..0 7000 5219 494

293.7x128.2x53.9 7459x3256x1370

35094 15952

6SR5.023.J475..0 7500 5595 529 35246 16021

6SR5.023.K480..0 8000 5968 564 600 35840 16291

6SR5.023.K485..0 8500 6341 599 36434 16561

6SR5.023.L487..0 9000 6714 635

750

37028 16831

6SR5.023.L488..0 9500 7087 670 37622 17101

6SR5.023.L520..0 10000 7460 705 38216 17371

6SR5.023.L521..0 10500 7830 740 326.0x135.9x53.9 8279x3453x1370 38810 17641

8.0 kV motor voltage, 18 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Weight 2)

Hp kW A A in mm Frame lb kg

6SR5.023.J440..0 4000 2982 254

550

281.9x114.9x53.9 7159x2916x1370

28435 12925

6SR5.023.J442..0 4250 3171 270 29101 13228

6SR5.023.J445..0 4500 3356 286 29766 13530

6SR5.023.J447..0 4750 3544 301 30432 13833

6SR5.023.J450..0 5000 3728 317 31097 14135

6SR5.023.J452..0 5250 3917 333 31741 14428

6SR5.023.J455..0 5500 4101 349 32384 14720

6SR5.023.J457..0 5750 4290 365 32947 14976

6SR5.023.J460..0 6000 4474 381 33510 15232

6SR5.023.J465..0 6500 4847 413 34639 15745

6SR5.023.J470..0 7000 5219 444

293.7x128.2x53.9 7459x3256x1370

35094 15952

6SR5.023.J475..0 7500 5595 476 35246 16021

6SR5.023.J480..0 8000 5965 508 35840 16291

6SR5.023.J485..0 8500 6341 539 36434 16561

6SR5.023.K487..0 9000 6714 571 600 37028 16831

6SR5.023.L488..0 9500 7087 603

750

37622 17101

6SR5.023.L520..0 10000 7460 635 38216 17371

6SR5.023.L521..0 10500 7833 667

326.0x135.9x53.9 8279x3453x1370

38810 17641

6SR5.023.L522..0 11000 8206 698 39404 17911

6SR5.023.L523..0 11500 8579 730 40596 18453

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 63

10.0 kV motor voltage, 24 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR55025.A330..0 300 224 16

93.7x117.6x63.0 2380x2988x1600 2D 3)

6075 2755

6SR55025.A340..0 400 298 21 6317 2865

6SR55025.A350..0 500 373 26 6516 2955

6SR55025.A360..0 600 448 31 6780 3075

6SR55025.A370..0 700 522 36 6956 3155

6SR55025.B380..0 800 597 42

7273 3299

6SR55025.B387..0 900 671 47 7494 3399

6SR55025.B410..0 1000 746 52 7648 3469

6SR55025.B412..0 1250 933 65 8133 3689

6SR55025.C415..0 1500 1119 78 100

93.7x117.6x63.0 3) 2380x2988x1600 3) 2D 3)4)

9004 4084

6SR55025.C417..0 1750 1306 91 9467 4294

6SR55025.D420..0 2000 1492 104

140

9922 4500

6SR55025.D422..0 2250 1679 117 10473 4750

6SR55025.D425..0 2500 1865 130 10737 4870

6SR55025.D427..0 2750 2052 140 11068 5020

6SR55025.E430..0 3000 2238 152

200

205.7x119.7x49.2 5226x3040x1250 3D 3)

16002 7258

6SR55025.E432..0 3250 2425 165 17680 8019

6SR55025.E435..0 3500 2611 178 18187 8249

6SR55025.E437..0 3750 2798 190 18694 8479

6SR55025.F440..0 4000 2984 203

260

19418 8808

6SR55025.F442..0 4250 3171 216 19936 9043

6SR55025.F445..0 4500 3357 228 20355 9233

6SR55025.F447..0 4750 3544 241 20774 9423

6SR55025.F450..0 5000 3730 254 21281 9653

6SR55025.F452..0 5250 3917 260 21788 9883

6SR5.025.G450..0 5000 3730 254

340

266.5x114.9x56.1 6767x2916x1423 4D

30703 13927

6SR5.025.G455..0 5500 4101 279 32324 14662

6SR5.025.G460..0 6000 4476 305 33175 5048

6SR5.025.G465..0 6500 4849 330 34469 15635

6SR5.025.H470..0 7000 5222 355

430

35761 16221

6SR5.025.H475..0 7500 5595 381 37114 16835

6SR5.025.H480..0 8000 5968 406 38204 17329

6SR5.025.J485..0 8500 6341 432

550 331.4x128.2x53.9 8418x3256x1370

40927 18603

6SR5.025.J487..0 9000 6714 457 41526 18875

6SR5.025.J488..0 9500 7087 482 42124 19147

6SR5.025.J520..0 10000 7460 508 42722 19419

6SR5.025.J521..0 10500 7830 540 43321 25678

6SR5.025.K522..0 11000 8206 559 600 43919 25950

6SR5.025.K523..0 11500 8579 584

363.8x136.1x53.9 9238x3453x1370

45116 26494

6SR5.025.L524..0 12000 8952 609

750

45714 26766

6SR5.025.L525..0 12500 9325 635 46735 27230

6SR5.025.L526..0 13000 9698 660 48451 28010

6SR5.025.L527..0 13500 10071 685 50167 28790

6SR5.025.L528..0 14000 10444 711 51883 29570

6SR5.025.L587..0 14500 10817 736 53599 24363

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

3) Rear access required: approx. ≥ 1000 mm / 39.4"

4) Height is without option M61 (redundant blower). With option M61 height will be 3088 mm (121.6 in).

Technical data Catalog D 17 | Global Edition | 12/2023

64 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

11.0 kV motor voltage, 24 cell configuration (2Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR55025.A330..0 300 224 14

93.7x117.6x63.0 2380x2988x1600 2D 3)

6075 2755

6SR55025.A340..0 400 298 19 6317 2865

6SR55025.A350..0 500 373 24 6516 2955

6SR55025.A360..0 600 448 28 6780 3075

6SR55025.A370..0 700 560 33 6956 3155

6SR55025.A380..0 800 640 38 7199 3265

6SR55025.B387..0 900 720 43

7494 3399

6SR55025.B410..0 1000 800 47 7648 3469

6SR55025.B412..0 1250 1000 59 8133 3689

6SR55025.B415..0 1500 1200 70 8772 3979

6SR55025.C417..0 1750 1400 83 100

93.7x117.6x63.0 2380x2988x1600 2D 3)4)

9467 4294

6SR55025.C420..0 2000 1600 95 9731 4414

6SR55025.D422..0 2250 1679 107

140

10473 4750

6SR55025.D425..0 2500 1865 118 10737 4870

6SR55025.D427..0 2750 2052 130 11068 5020

6SR55025.D430..0 3000 2238 140 11377 5160

6SR55025.E432..0 3250 2425 154

200

205.7x119.7x49.2 5226x3040x1250 3D 3)

17680 8019

6SR55025.E435..0 3500 2611 166 18187 8249

6SR55025.E437..0 3750 2798 178 18694 8479

6SR55025.E440..0 4000 2984 189 19212 8714

6SR55025.E442..0 4250 3171 201 19730 8949

6SR55025.F445..0 4500 3357 213

260

20355 9233

6SR55025.F447..0 4750 3544 225 20774 9423

6SR55025.F450..0 5000 3730 237 21281 9653

6SR55025.F452..0 5250 3917 249 21788 9883

6SR55025.F455..0 5500 4103 260 22412 10166

6SR55025.F457..0 5750 4290 260 22979 10423

6SR5.025.G450..0 5000 3728 231

340

266.5x114.9x56.1 6767x2916x1423 4D

30703 13927

6SR5.025.G455..0 5500 4103 254 32324 14662

6SR5.025.G460..0 6000 4476 277 33175 15048

6SR5.025.G465..0 6500 4849 300 34469 15635

6SR5.025.G470..0 7000 5222 323 35761 16221

6SR5.025.H475..0 7500 5595 346

430

37114 16835

6SR5.025.H480..0 8000 5968 369 38204 17330

6SR5.025.H485..0 8500 6341 392 39293 17824

6SR5.025.H487..0 9000 6714 415 40382 18317

6SR5.025.J488..0 9500 7087 438

550 331.4x128.2x53.9 8418x3256x1370

42124 18875

6SR5.025.J520..0 10000 7460 462 42722 19419

6SR5.025.J521..0 10500 7833 485 43321 25678

6SR5.025.J522..0 11000 8206 508 43919 25950

6SR5.025.J523..0 11500 8579 531

363.8x136.1x54.2 9238x3453x1370

45116 26494

6SR5.025.K524..0 12000 8952 554

600

45714 26766

6SR5.025.K525..0 12500 9325 577 46735 27230

6SR5.025.K526..0 13000 9698 600 48451 28010

6SR5.025.L527..0 13500 10071 623

750

50167 28790

6SR5.025.L528..0 14000 10444 646 51883 29570

6SR5.025.L587..0 14500 10817 669 53599 24363

6SR5.025.L530..0 15000 11190 692 55315 25143

6SR5.025.L531..0 15500 11563 715 57031 25923

6SR5.025.L532..0 16000 11936 739 58747 26703

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

3) Rear access required: approx. ≥ 1000 mm / 39.4"

4) Height is without option M61 (redundant blower). With option M61 height will be 3088 mm (121.6 in).

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 65

4Q drives, 6SR5 120 to 325 A

2.3 kV motor voltage, 9 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.040.D330..0 300 224 67

120

75.0x110.0x45.0 1905x2794x1143 3A

4144 1880

6SR5.040.D340..0 400 298 91 4560 2069

6SR5.040.D350..0 500 373 113 4976 2258

6SR5.040.E360..0 600 448 136 160 5392 2446

6SR5.040.E370..0 700 522 156 5900 2677

6SR5.040.G410..0 1000 746 221 325 133.9x115.6x47.3 3400x2936x1200 4A 10911 4948

6SR5.040.G412..0 1250 932 279 11577 5252

2.4 kV motor voltage, 9 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.040.D330..0 300 224 64

120

75.0x110.0x45.0 1905x2794x1143 3A

4144 1880

6SR5.040.D340..0 400 298 86 4560 2069

6SR5.040.D350..0 500 373 107 4976 2258

6SR5.040.E360..0 600 448 129 160 5392 2446

6SR5.040.E370..0 700 522 150 5900 2677

6SR5.040.G412..0 1250 932 264 325 133.9x115.6x47.3 3400x2936x1200 4A 11577 5252

6SR5.040.G415..0 1500 1120 321 12077 5479

3.0 kV motor voltage, 9 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.040.D330..0 300 224 51

120

75.0x110.0x45.0 1905x2794x1143 3A

4144 1880

6SR5.040.D340..0 400 298 69 4560 2069

6SR5.040.D350..0 500 372 86 4976 2258

6SR5.040.D360..0 600 450 103 5392 2446

6SR5.040.D370..0 700 521 120 5900 2677

6SR5.040.E380..0 800 600 137 160 6100 2767

6SR5.040.E387..0 900 671 154 6800 3085

6SR5.040.G412..0 1250 932 214

325 133.9x115.6x47.3 3400x2936x1200 4A

11577 5252

6SR5.040.G415..0 1500 1120 257 12077 5479

6SR5.040.G417..0 1750 1304 300 12577 5705

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Technical data Catalog D 17 | Global Edition | 12/2023

66 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

3.3 kV motor voltage, 9 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.040.D330..0 300 224 47

120

75.0x110.0x45.0 1905x2794x1143 3A

4144 1880

6SR5.040.D340..0 400 298 62 4560 2069

6SR5.040.D350..0 500 372 78 4976 2258

6SR5.040.D360..0 600 450 93 5392 2446

6SR5.040.D370..0 700 521 109 5900 2677

6SR5.040.E380..0 800 600 125

160

6100 2767

6SR5.040.E387..0 900 671 140 6800 3085

6SR5.040.E410..0 1000 746 156 6900 3130

6SR5.040.G412..0 1250 932 192

325 133.9x115.6x47.3 3400x2936x1200 4A

11577 5252

6SR5.040.G415..0 1500 1120 234 12077 5479

6SR5.040.G417..0 1750 1304 269 12577 5705

6SR5.040.G420..0 2000 1491 308 13077 5932

4.0 kV motor voltage, 9 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.040.D330..0 300 224 39

120

75.0x110.0x45.0 1905x2794x1143 3A

4144 1880

6SR5.040.D340..0 400 298 51 4560 2069

6SR5.040.D350..0 500 372 64 4976 2258

6SR5.040.D360..0 600 450 78 5392 2446

6SR5.040.D370..0 700 521 90 5900 2677

6SR5.040.D380..0 800 600 103 6100 2767

6SR5.040.D387..0 900 671 116 6800 3085

6SR5.040.E410..0 1000 746 129 160 6900 3130

6SR5.040.E411..0 1100 820 141 7400 3357

6SR5.040.G412..0 1250 932 161

325 133.9x115.6x47.3 3400x2936x1200 4A

11577 5252

6SR5.040.G415..0 1500 1120 193 12077 5479

6SR5.040.G417..0 1750 1304 225 12577 5705

6SR5.040.G420..0 2000 1491 257 13077 5932

6SR5.040.G422..0 2250 1677 286 13577 6159

6SR5.040.G425..0 2500 1862 317 14577 6613

4.16 kV motor voltage, 9-cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.040.D330..0 300 224 37

120

75.0x110.0x45.0 1905x2794x1143 3A

4144 1880

6SR5.040.D340..0 400 298 49 4560 2069

6SR5.040.D350..0 500 372 62 4976 2258

6SR5.040.D360..0 600 450 74 5392 2446

6SR5.040.D370..0 700 521 87 5900 2677

6SR5.040.D380..0 800 600 99 6100 2767

6SR5.040.D387..0 900 671 111 6800 3085

6SR5.040.E410..0 1000 746 124

160

6900 3130

6SR5.040.E411..0 1100 820 136 7400 3357

6SR5.040.E412..0 1250 932 154 8200 3720

6SR5.040.G415..0 1500 1120 185

325 133.9x115.6x47.3 3400x2936x1200 4A

12077 5479

6SR5.040.G417..0 1750 1304 216 12577 5705

6SR5.040.G420..0 2000 1491 247 13077 5932

6SR5.040.G422..0 2250 1677 278 13577 6159

6SR5.040.G425..0 2500 1862 309 14577 6613

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 67

6.0 kV motor voltage, 15 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.042.D330..0 300 224 26

120

133.9x115.6x47.3 3400x2936x1200 3B

8646 3922

6SR5.042.D340..0 400 298 34 8874 4026

6SR5.042.D350..0 500 372 43 9102 4129

6SR5.042.D360..0 600 450 51 9330 4233

6SR5.042.D370..0 700 521 60 9558 4336

6SR5.042.D380..0 800 600 69 9786 4439

6SR5.042.D387..0 900 671 77 10014 4543

6SR5.042.D410..0 1000 671 86 10242 4646

6SR5.042.D412..0 1250 932 107 10812 4905

6SR5.042.E415..0 1500 1120 129 160 11382 5163

6SR5.042.E417..0 1750 1304 150 11952 5422

6SR5.042.G420..0 2000 1491 171

325 218.8x114.9x52.1 5550x2916x1323 4B

17873 8108

6SR5.042.G422..0 2250 1677 193 18454 8371

6SR5.042.G425..0 2500 1862 214 19004 8621

6SR5.042.G427..0 2750 2051 236 19266 8739

6SR5.042.G430..0 3000 2240 257 19516 8853

6SR5.042.G432..0 3250 2425 278 20047 9094

6SR5.042.G435..0 3500 2611 300 20647 9366

6.6 kV motor voltage, 15 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR5.042.D330..0 300 224 23

120

133.9x115.6x47.3 3400x2936x1200 3B

8646 3922

6SR5.042.D340..0 400 298 31 8874 4026

6SR5.042.D350..0 500 372 39 9102 4129

6SR5.042.D360..0 600 450 47 9330 4233

6SR5.042.D370..0 700 521 55 9558 4336

6SR5.042.D380..0 800 600 62 9786 4439

6SR5.042.D387..0 900 671 70 10014 4543

6SR5.042.D410..0 1000 746 78 10242 4646

6SR5.042.D412..0 1250 932 97 10812 4905

6SR5.042.D415..0 1500 1120 117 11382 5163

6SR5.042.E417..0 1750 1304 136 160 11952 5422

6SR5.042.E420..0 2000 1491 156 12522 5680

6SR5.042.G422..0 2250 1677 175

325 218.8x114.9x52.1 5550x2916x1323 4B

18454 8371

6SR5.042.G425..0 2500 1862 192 19004 8621

6SR5.042.G427..0 2750 2051 214 19266 8739

6SR5.042.G430..0 3000 2240 234 19516 8853

6SR5.042.G432..0 3250 2425 253 20047 9094

6SR5.042.G435..0 3500 2611 273 20647 9366

6SR5.042.G440..0 4000 2982 308 21776 9878

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

Technical data Catalog D 17 | Global Edition | 12/2023

68 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

10.0 kV motor voltage, 24 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR55045.D350..0 500 373 25

120

205.7×119.7×49.2 5226×3040×1250 3D 3)

10783 4891

6SR55045.D375..0 750 560 38 11480 5207

6SR55045.D410..0 1000 746 51 12176 5523

6SR55045.D412..0 1250 933 63 12688 5755

6SR55045.D415..0 1500 1119 76 13408 6082

6SR55045.D417..0 1750 1306 89 13919 6314

6SR55045.D420..0 2000 1492 102 14329 6500

6SR55045.D422..0 2250 1679 114 14737 6685

6SR55045.E427..0 2750 2052 140 160 15930 7226

6SR55045.E430..0 3000 2238 152 17120 7766

6SR55045.G432..0 3250 2425 165

325 266.5x114.9x56.1 6767x2916x1423 4D

27485 12468

6SR55045.G437..0 3750 2798 190 28201 12793

6SR55045.G400..0 4000 2984 203 28675 13008

6SR55045.G442..0 4250 3171 216 29160 13228

6SR55045.G450..0 4500 3357 228 29645 13448

6SR55045.G447..0 4750 3544 241 30119 13663

6SR55045.G450..0 5000 3730 254 30813 13978

6SR55045.G452..0 5250 3917 267 31497 14288

6SR55045.G455..0 5500 4101 280 32340 14670

6SR55045.G457..0 5750 4290 292 32875 14913

6SR55045.G460..0 6000 4476 305 33569 15228

11.0 kV motor voltage, 24 cell configuration (4Q)

Drive series Shaft output 1) Motor

current 1) Cell rating Dimensions 2)

WxHxD Frame Weight 2)

Hp kW A A in mm lb kg

6SR55045.D350..0 500 373 23

120

205.7×119.7×49.2 5226×3040×1250 3D 3)

10783 4891

6SR55045.D375..0 750 560 35 11480 5207

6SR55045.D410..0 1000 746 46 12176 5523

6SR55045.D412..0 1250 933 58 12688 5755

6SR55045.D415..0 1500 1119 69 13201 5988

6SR55045.D417..0 1750 1306 81 13919 6314

6SR55045.D420..0 2000 1492 92 14329 6500

6SR55045.D422..0 2250 1679 104 14737 6685

6SR55045.E427..0 2750 2052 127

160

15930 7226

6SR55045.E430..0 3000 2238 138 17120 7766

6SR55045.E432..0 3250 2425 150 18478 8382

6SR55045.G437..0 3750 2798 173

325 266.5x114.9x56.1 6767x2916x1423 4D

28201 12793

6SR55045.G400..0 4000 2984 185 28675 13008

6SR55045.G442..0 4250 3171 196 29160 13228

6SR55045.G450..0 4500 3357 208 29645 13448

6SR55045.G447..0 4750 3544 219 30119 13663

6SR55045.G450..0 5000 3730 231 30813 13978

6SR55045.G452..0 5250 3917 242 31497 14288

6SR55045.G455..0 5500 4101 250 32340 14670

6SR55045.G457..0 5750 4290 265 32875 14913

6SR55045.G460..0 6000 4476 277 33569 15228

6SR55045.G465..0 6500 4849 300 34076 15458

6SR55045.G470..0 7000 5222 323 34605 15698

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88 % and motor efficiency of 94.0 % if motor current ≤ 140 A or 96.4 % if motor current > 140 A.

2) Height includes blower cage; blowers are removed for shipping. Certain options might change drive dimensions and weights. Depth does not

include door components, key interlocks or handles.

3) Rear access required: approx. ≥ 1000 mm / 39.4"

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 69

Air-cooled dimension drawings

Drawings below represent standard SINAMICS PERFECT HARMONY G180 air-cooled drive layouts. Transformer and control section

can be either part of the cell cabinet (e.g., 9 cell configurations) or located in separate cabinets (e.g., 24 cell configurations).

The power and current ranges specified refer to the 2Q versions.

Frame 1A, 150 to 500 HP, 40/70 A

(except for drives manufactured in China)

Frame 2A, 9 cell, 400 to 1100 HP, 100/140 A

(and 40/70 A for drives manufactured in China)

Frame 3A, 9 cell, 300 to 2000 HP, 200/260 A

Frame 2B, 12/15 cell, 300 to 1750 HP, 40 to 140 A Frame 3B, 12/15 cell, 1500 to 3500 HP, 200/260 A 102.0”

2591 mm

110.0”

2794 mm

110.0”

2794 mm

115.6”

2936 mm

115.6”

2936 mm

Technical data Catalog D 17 | Global Edition | 12/2023

70 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Frame 4A, 9 cell, 1250 to 3500 HP, 340/430 A Frame 4B, 12/15 cell, 2500 to 5500 HP, 340/430 A

Frame 2D, 24 cell, 300 to 3000 HP, 40 to 140 A 2)

Frame 3D, 24 cell, 1750 to 5750 HP, 200/260 A 2)

1) Height with option M61 (redundant blower): 3088 mm / 121.6"

2) Rear access required: approx. ≥ 1000 mm / 39.4" 115.6”

2936 mm

114.9”

2916 mm

119.7”

3040 mm

117.6” 1)

2988 mm 1)

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 71

Frame 4D, 24 cell, 5000 to 9000 HP, 340/430A

Frame 5A, 9 cell, 2000 to 5750 HP, 550/600/720 A

Frame 5D, 24 cell, 8500 to 16000 HP, 550/600/750 A 114.9”

2916 mm

114.9”

2916 mm

128.2/136.1”

3256/3453 mm

Technical data Catalog D 17 | Global Edition | 12/2023

72 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Air-cooled dimension drawings with options

There are options that will impact the dimensions of the

SINAMICS PERFECT HARMONY GH180 air-cooled 9 cell drive

as well as air-cooled 500 to 750 A configurations. The list of

options for 9 cell 40 to 260 A configuration is:

• N44 Make-proof grounding switch at the drive input

• N45 Make-proof grounding switch at the drive output

• A30 Touchscreen with standard cable (HMI)

• K20 Signal lamp in the cabinet door

• K21 Display instruments for voltage, current and speed

• E04 Aadditional customer analog, digital inputs and outputs

(I/O) modules

• L50 Cabinet lighting and service socket outlet

• L36 Input snubber

• A82 SEL 710 motor protection relay standalone option

• A83 Multilin 869 motor protection relay standalone option

• Input voltage greater than 7.2 k V:

8.4 kV to13.8 kV input voltage

• Low voltage input 460 V for 300 HP and above

• Low voltage input 575 V for 400 HP and above

Note:

For the above, option M53 (24" option cabinet) will be

required for drives manufactured in USA or option H03

(1000 mm option cabinet) for China.

6SR5 9 cell 40 to 70 A drawing with option cabinet

(example only, 100 to 140 and 200 to 260 A cabinets will be bigger)

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 73

Water-cooled technical data

3.3 kV motor voltage, 9 cell configuration

Drive Series

Shaft Output1) Motor

Current1)

Cell

Rating

Dimensions2,3)

WxHxD

Weight

Hp kW A A in mm lb kg

6SR32720.D440..0 4000 2984 623 1000

305x115x70 7747x2921x1778 M

35659 16175

6SR32720.D450..0 5000 3730 779 1000 37920 17200

6SR32720.D460..0 6000 4476 935 1000 40869 18538

6SR32720.C465..0 6500 4849 1013 1250 40869 18538

6SR32720.C470..0 7000 5222 1091 1250 41830 18974

6SR32720.C475..0 7500 5595 1168 1250 42755 19393

6SR32720.C480..0 8000 5968 1246 1250 43649 19799

6SR32720.E485..0 8500 6341 1324 1375 43742 19841

4.16 kV motor voltage, 9 cell configuration

1) The typical motor current and the power data are approximate values only; these have been calculated for operation with induction motors and

for typical power factor cos φ of 88% and motor efficiency of 95.2%

2) Outline Drawing number

3) Certain options will change drive dimensions, for more details see outline page

Drive Series

Shaft Output1) Motor

Current1)

Cell

Rating

Dimensions2,3)

WxHxD

Weight

Hp kW A A in mm lb kg

6SR32720.D440..0 4000 2984 494 1000

305x115x70 7747x2921x1778 M

35266 15996

6SR32720.D450..0 5000 3730 634 1000 37419 16973

6SR32720.D460..0 6000 4476 742 1000 39370 17858

6SR32720.D465..0 6500 4849 803 1000 39370 17858

6SR32720.D470..0 7000 5222 865 1000 40285 18273

6SR32720.D475..0 7500 5595 926 1000 42067 19081

6SR32720.D480..0 8000 5968 989 1000 42242 19161

6SR32720.C485..0 8500 6341 1050 1250 43742 19841

6SR32720.C490..0 9000 6714 1112 1250 44541 20203

6SR32720.C495..0 9500 7087 1174 1250 44541 20203

6SR32720.C520..0 10000 7460 1235 1250 45317 20555

6SR32720.E522..0 11000 8206 1359 1375 46808 21232

Technical data Catalog D 17 | Global Edition | 12/2023

74 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

4.8 kV motor voltage, 12 cell configuration

6.6/6.9 kV motor voltage, 15 cell configuration

1) The typical motor current and the power data in hp and KW are approximate values only; these have been calculated for operation with induction

motors and for typical power factor cos φ of 88% and motor efficiency of 95.2%

2) Outline Drawing number

3) Certain options will change drive dimensions, for more details see outline page

Drive Series

Shaft Output1) Motor

Current1)

Cell

Rating

Dimensions2,3)

WxHxD Weight

Hp kW A A in mm lb kg

6SR32721.D440..0 4000 2984 428 1000

331x115x70 8395x2921x1778 M

38647 17530

6SR32721.D450..0 5000 3730 536 1000 40823 18517

6SR32721.D460..0 6000 4476 643 1000 42793 19411

6SR32721.D465..0 6500 4849 696 1000 42793 19411

6SR32721.D470..0 7000 5222 750 1000 43718 19830

6SR32721.D475..0 7500 5595 803 1000 44608 20234

6SR32721.D480..0 8000 5968 857 1000 45468 20624

6SR32721.D485..0 8500 6341 910 1000 47500 21546

6SR32721.D487..0 9000 6714 964 1000 48307 21912

6SR32721.C488..0 9500 7087 1017 1250 48307 21912

6SR32721.C520..0 10000 7460 1071 1250 49091 22267

6SR32721.C522..0 11000 8206 1178 1250 50598 22951

6SR32721.E524..0 12000 8952 1285 1375 52032 23601

Drive Series

Shaft Output1) Motor

Current1)

Cell

Rating

Dimensions2,3)

WxHxD Weight

Hp kW A A in mm lb kg

6SR32722.D460..0 6000 4474 468 1000

356x115x70 9043x2921x1778 M

46214 20962

6SR32722.D470..0 7000 5219 545 1000 47148 21386

6SR32722.D480..0 8000 5968 623 1000 48916 22188

6SR32722.D485..0 8500 6341 662 1000 49756 22569

6SR32722.D487..0 9000 6714 701 1000 50571 22939

6SR32722.D488..0 9500 7087 740 1000 50571 22939

6SR32722.D520..0 10000 7460 779 1000 51363 23298

6SR32722.D522..0 11000 8206 857 1000 52884 23988

6SR32722.D524..0 12000 8952 935 1000 55833 25325

6SR32722.C526..0 13000 9698 1013 1250 57219 25954

6SR32722.C528..0 14000 10444 1091 1250 57890 26258

6SR32722.C530..0 15000 11190 1169 1250 59195 26850

6SR32722.C532..0 16000 11936 1246 1250 60453 27421

6SR32722.E534..0 17000 12682 1324 1375 61669 27973

6SR32722.E536..0 18000 13428 1341 1375 62885 28524

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 75

7.2/8.0 kV motor voltage, 18 cell configuration

Drive Series Shaft Output1) Motor

Current1)

Cell

Rating

Dimensions2,3)

WxHxD Weight

Hp kW A A in mm lb kg

6SR32723.D480..0 8000 5968 571 1000

382x115x70 9690x2921x1778 M

52361 23751

6SR32723.D485..0 8500 6341 607 1000 53209 24135

6SR32723.D487..0 9000 6714 643 1000 54032 24508

6SR32723.D488..0 9500 7087 678 1000 54032 24508

6SR32723.D520..0 10000 7460 714 1000 54832 24871

6SR32723.D522..0 11000 8206 786 1000 56731 25733

6SR32723.D524..0 12000 8952 857 1000 57831 26232

6SR32723.D526..0 13000 9698 928 1000 61030 27683

6SR32723.D528..0 14000 10444 1000 1000 386x125x76 9792x3175x1930 M 61708 27990

6SR32723.C530..0 15000 11190 1071 1250

394x140x84 9995x3556x2134 M

63026 28588

6SR32723.C532..0 16000 11936 1143 1250 64296 29164

6SR32723.C534..0 17000 12682 1214 1250 65524 29721

6SR32723.E536..0 18000 13428 1285 1375 66713 30260

6SR32723.E538..0 19000 14174 1357 1375 67295 30524

6SR32723.E540..0 20000 14920 1285 1375 67876 30788

10/11 kV motor voltage, 24 cell configuration

Drive Series Shaft Output1) Motor

Current1)

Cell

Rating

Dimensions2,3)

WxHxD Weight

Hp kW A A in mm lb kg

6SR32725.D520..0 10000 7460 514 1000

437x125x76 11100x3175x1931 N

61763 28015

6SR32725.D522..0 11000 8206 566 1000 63328 28725

6SR32725.D524..0 12000 8952 617 1000 64819 29401

6SR32725.D526..0 13000 9698 668 1000 66244 30048

6SR32725.D528..0 14000 10444 720 1000 66936 30362

6SR32725.D530..0 15000 11190 771 1000

445x140x84 11303x3556x2134 N

68278 30970

6SR32725.D532..0 16000 11936 823 1000 69573 31558

6SR32725.D534..0 17000 12682 874 1000 70824 32125

6SR32725.D536..0 18000 13428 925 1000 74437 33764

6SR32725.D538..0 19000 14174 977 1000 75030 34033

6SR32725.C540..0 20000 14920 1028 1250

450x154x90 11430x3912x2286 N

76190 34559

6SR32725.C542..0 21000 15666 1080 1250 77319 35071

6SR32725.C544..0 22000 16412 1131 1250 78420 35571

6SR32725.C546..0 23000 17158 1183 1250 79493 36057

6SR32725.C548..0 24000 17904 1234 1250 80542 36533

6SR32725.E550..0 25000 18650 1285 1375 81658 37899

6SR32725.C552..0 26000 19396 1215 1250 82573 38355

6SR32725.C554..0 27000 20142 1261 1375 83557 38801

6SR32725.C556..0 28000 20888 1243 1250 83557 38801

6SR32725.E558..0 29000 21634 1288 1375 84522 39239

6SR32725.E562..0 31000 23126 1251 1375 4) 4)

6SR32725.E566..0 33000 24618 1332 1375 4) 4)

6SR32725.E568..0 34000 25354 1372 1375 4) 4)

1) The specifications for the typical motor current and the power data are approximate values only; these have been calculated for operation with

induction motors and for typical power factor cos φ of 88% and motor efficiency of 95.2% , power 28,000 HP and above is calculated for

synchronous motor with typical power factor cos φ of 100% and motor efficiency of 97%

2) Outline Drawing number

3) Certain options will change drive dimensions, for more details see outline page

4) Please contact your Siemens sales partner.

Technical data Catalog D 17 | Global Edition | 12/2023

76 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Water-cooled dimension drawings

Drawing M represents a standard SINAMICS PERFECT HARMONY GH180 water-cooled drive layout: transformer cabinet, followed by

cell cabinet, control section, output section and 48” standard cooling cabinet. The only difference will be number of cells: the

drawing below shows 15 cell drive with 5 sections; 9 cell drive will only have 3 sections while 24 cell configuration will have 8

sections in the cell cabinet.

There are options that will impact the dimensions of the GH180 water-cooled. The list of options includes:

• A30 touchscreen with standard cable (HMI)

• A80 12 channel RTD

• E01 Exciter furnished by Siemens

• K20 signal lamp in the cabinet door

• K21 display instruments for voltage, current and speed

• G89 controlled outgoing feeder for auxiliaries (3-phase)

• A83 Multilin 869 motor protection relay standalone option

• A82 SEL 710 motor protection relay standalone option

• E04 additional customer analog, digital inputs and outputs

(I/O) modules

• L09 Output Reactor where needed

• L53 UPS

• L85 redundant control power

• W32 advanced cooling cabinet

1) Note: The standard configuration uses an 48" cooling cabinet. With option W32 (60" advanced cooling cabinet), add 23" to the overall cabinet

width incl. additional 11" control box on the side.

Frame M, 9 to 18 cell, 4000 to 20000 HP, 1000 to 1375 A

Frame M, 9 to 18 cell, 4000 to 20000 HP, 1000 to 1375 A (example with 36" option cabinet)

Frame N, 24 cell, 10000 to 33000 HP, 1000 to 1375 A (example with 36" option cabinet, 60" cooling cabinet and control box of the external

liquid-to-air heat exchanger)

115 to 140”

2921 to 3556 mm

115 to 140”

2921 to 3556 mm

125 to 154”

3175 to 3912 mm

Catalog D 17 | Global Edition | 12/2023 Technical data

SINAMICS PERFECT HARMONY GH180 Catalog D 17 77

Engineering information

Control performance

Speed and torque control

Feature

Speed range

(for 100 % torque and 150 % starting torque)

V/Hz control Open-loop vector control Closed-loop vector control

40:1 100:1 200:1

Torque regulation (% of rated) n/a ±2 % ±2 %

Torque linearity (% of rated) n/a ±5 % < ±5 %

Torque response 1) n/a > 750 rad/s > 750 rad/s

Speed regulation (% of rated) Motor slip ±0.5 % 2) ±0.1 % 3,4)

Speed response 5) 20 rad/s 20 rad/s > 20 rad/s 6)

1) Torque response values are valid for drive without an output filter. Tuning may be required to achieve these values.

2) Approx. 0.3 % speed error is typical. Worst-case speed error is equal to approximately 30 % of rated motor slip.

3) 0.1 % can be achieved with a 1024 PPR encoder. Speed accuracy depends on the encoder PPR.

4) For specific applications, 0.01 % accuracy can be achieved – contact your Siemens sales partner.

5) Speed response numbers apply as long as torque limit is not reached.

6) Testing is required to determine exact value.

Note: Applications that require lower than 1 % speed operation under high load torque should use the CLVC mode. In such cases it

is preferable to select a motor that has high full-load slip (> 1.0 %) and high breakdown torque.

Voltage sag, undervoltage conditions and interruptions performance

At full speed, SINAMICS PERFECT HARMONY GH180 provides

regular operation for dips down to 90% of nominal voltage.

After that the drive output power is rolled-back linearly from

100 % power at 90 % of input voltage down to 50 % power at

66 % of nominal input voltage. Output power is reduced by

limiting the available motor torque. The drive can operate

continuously in this mode.

When the input voltage falls below 66 %, then the power is

quickly reduced to a slightly negative value (regenerative

limit, see Figure 22). This limit forces the drive to absorb

power from the motor and maintain the DC bus voltages in

case the input voltage recovers during medium voltage ridethrough. The limit is implemented as an inverse function of

speed in order to maintain constant power flow to the DCbus.

Figure 22: Drive power (Pmax) as a function of input voltage

magnitude (Erms)

When the input voltage falls below 66 % (or other limit

defined by manufacturer), the drive will ride-through without

tripping up to 500 milliseconds with all cells functioning and

100 milliseconds with cells in bypass. During ride-through

the motor voltage is maintained but no torque is produced

until the input voltage is re-established. The drive provides

only magnetizing current to a motor leaving energy stored in

the DC link to generate output voltage. Automatic restart

into spinning load is possible with no load or line disturbance

as long as the motor flux is present.

SINAMICS PERFECT HARMONY GH180 requires a separate low

voltage input for control and auxiliaries provided by the

customer that is typically backed up by UPS. In the case

where a UPS is not available the GH180 drive has the option

to incorporate a UPS into the drive design to ensure smooth

performance during voltage sag and undervoltage conditions

for low voltage network. Without UPS, the SINAMICS

PERFECT HARMONY GH180 control ride-through is 5 cycles.

Applications with very low inertia like ESP might come to a

complete stop during power loss ride-through and require

either automatic or manual restart depending on operator

preferences.

Engineering information Catalog D 17 | Global Edition | 12/2023

78 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

NXGPro/NXGPro+ ToolSuite

The NXGPro/NXGPro+ ToolSuite is a PC-based high-level

Graphical User Interface application that integrates various

software tools used for NXGPro/NXGPro+ based drives.

ToolSuite, equipped with the Microsoft Windows Operating

System, allows navigation through a drive’s features by using

a PC or by using a touch- screen allowing customer to

monitor and control drive’s functions quickly and easily.

ToolSuite contains the following tools: Drive Tool, Debug Tool,

and SOP Utilities.

Configuration

• Multilevel password to limit access: the same password

used as in drive

• Folders for each drive configuration category (i.e., VFD

menu system)

– Icon colors to indicate default and modified parameter

values

– On screen parameter identifier (matches operator panel

IDs for speed menus)

– Parameter editing assisted by minimum/maximum limits

and defaults

• Ability to upload logs, parameters, system program

• Ability to download system program and/or configuration

data files

Graphing

• Adjustable time scale

• Predefined variable list to select variable to be graphed

• Graph up to 10 variables

• Individual variable offsets

• Customizable graphics: fonts, color, styles

• Freeze graphics

• Freeze graph on fault

• Freeze on selectable trigger

• Zoom graph

• Printable and exportable graphics

Status

• Programmable display variables

• Pick list selectable variables, same as drive operator panel

display list. The drive control provides the capability to

monitor up to 64 different drive and motor parameters

according to customer application and specification. They

can be selected from more than 200 parameters and

variables available in the system. The table below shows

some of the parameters available.

• First 4 synchronized to operator panel display

• Fault and alarm indicators (traffic lights: red = fault,

yellow = alarm, green = none)

Drive Tool

Its purpose is to manage all of the drive features and provide

the user with a user-friendly view of the drive. The Drive

Tool's main features include:

• Drive configuration

• Drive variable graphing

• Drive status (provides real time status of various

parameters, measured values, and calculations)

Debug Tool

This application provides a remote graphical user interface.

With the Debug Tool, the user can examine drive variables

using a PC in a simple and quick manner. The debug utility is

intended for use during test, commissioning, and

troubleshooting of the drive.

SOP Utilities

The System Operating Program (SOP) is the logic that maps

the internal and external I/O into the functionality of the

drive. In its simplest form, it just maps internal states to

external points. It performs most of the functionality on the

PC running the ToolSuite, it also offers serial communications

capability for uploading and downloading the System

Program directly to the drive via an Ethernet interface

between the drive and the PC.

Input parameters Motor parameters Drive parameters

Input voltage Output power (kW) Transformer overload

Input voltage harmonics (one at a time) Output energy kW-Hr VFD efficiency

Input current Output current – RMS Drive State

Input current harmonics (one at a time) Output voltage – RMS Drive Internal Losses

Input power factor Motor torque Power Cell Status

Input power (kW) Motor speed (RPM) Bypass status

Input reactive power (kVAR) Motor slip (%) Auxiliary Demand

Input kW-Hr Drive output frequency (Hz) Output of energy saver

Input phase sequence Magnetizing current High starting torque mode state

Loss of phase Torque current Drive neutral voltage

Low voltage Motor flux Max available output voltage

Stator resistance Synchronous transfer state

Full load speed Critical speed avoidance output

Catalog D 17 | Global Edition | 12/2023 Engineering information

SINAMICS PERFECT HARMONY GH180 Catalog D 17 79

Protection and monitoring functions

Vector control The drive can be controlled by means of vector control algorithm without an encoder: open-loop

control (standard) or with it: closed-loop control (option).

Auto tuning Auto tuning is available to optimize the control performance of the drive.

Automatic restart Automatic restart is a custom feature used to purposely restart and restore the drive operation

after a power failure or power removal. When Automatic Restart function is specified by the

customer, qualified Siemens personnel must configure and ensure the function executes as

specified.

Energy saver Energy saver control allows the reduction of motor losses, and improves overall efficiency, when

the demanded motor load is low. Depending on the motor load, the control will reduce motor

flux.

As motor load increases, the control will increase motor flux.

Flying restart The flying restart function permits smooth connection of the drive to a rotating motor.

Diagnostics functions • Self-diagnosis of control hardware

• Non-volatile memory for reliable diagnosis when the power supply fails

• Monitoring of IGBTs with individual messages for each cell

• User-friendly local operator panel with plain text messages

• The alarm/fault log consists of a circular buffer that records up to 256 faults or alarms, so that

customer can access the most recent faults and/or alarms that have been detected

• The historic log records operating data of the drive and is frozen upon detection of a fault

User configurable digital

meters

The user can select indication of speed, voltage, current, input/output power, and efficiency on

the operator panel.

Operating hours and

switching cycle counter

The amount of time that the drive was operational since it was commissioned can be displayed.

The switching cycle counter can be generated by means of an event log from the drive controller.

Detection of actual motor

speed

The control algorithm calculates actual motor speed from currents and voltages measured at the

drive output.

Emergency stop button The drives are equipped as standard with an Emergency Stop button (red mushroom button with

yellow collar) which is fitted in the cabinet door. The contacts of the pushbutton are connected

in parallel to the terminal block so they can be integrated in a protection concept on the plant

side.

Ground fault protection An optional output signal can be provided to operate the customer protection.

I/O monitoring I/O signals allow user customization of the system and they can be monitored remotely or by

using the operator panel display.

Thermal overload protection Based on the output signals of the drive, the thermal motor model is calculated. The motor

thermal overload protection algorithm prevents the motor from being exposed to excessive

temperatures.

Engineering information Catalog D 17 | Global Edition | 12/2023

80 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Interfaces

Air-Cooled SINAMICS PERFECT HARMONY GH180 drives offer digital and analog input and output capabilities. Please note, for

specific options and applications additional input and output modules can be added (Option E04 or E06).

The following tables provide an overview of the pre-assignment function of interfaces in the standard versions of the air-cooled

drives.

Signal type Total

Quantity

Configuration

Digital inputs 20 24 V DC or 120 V AC

Digital outputs 16 Dry form C contacts, rated 250 V AC at 1 A or 30 V DC at 1 A

Analog inputs 3 4 ... 20 mA or 0 ... 10 V DC

Analog outputs 2 4 ... 20 mA

Digital inputs

0a Remote inhibit (NC)

1a Remote start

2a Remote stop (NC)

3a Fault reset

0b Off select

1b Remote or auto select (K31-34)

2b Start push b(K29)

3b Stop push button (K29)

0c Output reactor over-temperature alarm or MPM alarm (if option selected) (l09)

1c Reactor over-temperature trip alarm or MPM trip (if option selected)

2c Aux voltage monitor relay feedback – loss of 3Ø control

3c Transformer over-temperature alarm (NC)

0d Transformer over-temperature trip alarm (NC)

1d Blower 1 TOL feedback O.K.

2d Blower 2 TOL feedback O.K.

3d Blower 3 TOL feedback O.K.

0e Blower 4 TOL feedback O.K.

1e Blower 5 TOL feedback O.K.

2e Blower 6 TOL feedback O.K.

3e Latch fault relay feedback

Digital outputs

0 Drive control in local at VFD

1 Drive ready to run

2 Drive running

3 Drive alarm

4 Drive fault (NO)

5 ProToPS process alarm active (if option selected)

6 ProToPS trip alarm active (if option selected)

7 Motor heater control

8 Blower 1 starter

9 Blower 2 starter

10 Blower 3 starter

11 Blower 4 starter

12 Blower 5 starter

13 Blower 6 starter

14 Reserved

15 Latch fault relay set output

Analog inputs

1 Speed reference (default), 4 … 20 mA

2 Auxiliary speed reference (default)

3 Reserved (default)

Analog outputs

1 Motor speed (default)

2 Motor torque (default)

Catalog D 17 | Global Edition | 12/2023 Engineering information

SINAMICS PERFECT HARMONY GH180 Catalog D 17 81

Air cooling requirements

Power losses of drive system

Traditional way to publish heat losses for a VFD is based on the drive's efficiency – heat rejection of the drive itself or

kW.PowerLoss = (100 % – DriveEfficiency) x kW.DrivePower

The limitation of this approach is incorrect sizing of the VFD at full load resulting in less current required by the motor – potentially

starving the motor at full load. That is why Siemens uses system approach and includes not only VFD efficiency but also motor

efficiency when calculating losses for the drive:

kW.PowerLoss = kW.Input – kW.Output

This ensures that a customer can not only get properly size HVAC but also properly sized drive. Typical motor efficiency used to

calculate heat losses in the tables below is 95.2 %.

Air-cooled drives rely on circulating air to cool the components within the drive. The amount of heat generated is equivalent to the

drive losses. As the drives take in as much air as is output, no building make-up air is required unless the drive has the option "drive

prepared for duct flange connection" (M64 or M68), in this instance depending on your site and building configuration, Siemens will

provide the required airflow and pressure drop to ensure proper drive function.

Drive series Shaft output w/ copper transformer w/ aluminum transformer 1)

hp kW kW BTU/h kW BTU/h

6SR5 150 112 4.3 14,541 4.9 16,705

6SR5 200 149 5.7 19,388 6.5 22,273

6SR5 300 224 8.5 29,081 9.8 33,409

6SR5 400 298 11.4 38,775 13.1 44,545

6SR5 500 373 14.2 48,469 16.3 55,682

6SR5 600 447 17.0 58,163 19.6 66,818

6SR5 700 522 19.9 67,857 22.8 77,954

6SR5 800 597 22.7 77,551 26.1 89,091

6SR5 900 671 25.6 87,244 29.4 100,227

6SR5 1000 746 28.4 96,938 32.6 111,364

6SR5 1100 820 31.3 106,632 35.9 122,500

6SR5 1250 932 35.5 121,173 40.8 139,204

6SR5 1500 1119 42.6 145,407 49.0 167,045

6SR5 1750 1305 49.7 169,642 57.1 194,886

6SR5 2000 1491 56.8 193,876 65.3 222,727

6SR5 2250 1678 63.9 218,111 73.4 250,568

6SR5 2500 1864 71.0 242,346 81.6 278,409

6SR5 3000 2237 85.2 290,815 97.9 334,091

6SR5 3500 2610 99.4 339,284 114.2 389,772

6SR5 4000 2983 113.6 387,753 130.5 445,454

6SR5 4500 3356 127.8 436,222 146.9 501,136

6SR5 5000 3729 142.0 484,691 163.2 556,818

6SR5 5500 4101 156.3 533,160 179.5 612,500

6SR5 6000 4474 170.5 581,629 195.8 668,181

6SR5 6500 4847 184.7 630,098 212.1 723,863

6SR5 7000 5220 169.6 578,631 198.9 678,568

6SR5 8000 5966 193.8 661,293 227.3 775,506

6SR5 9000 6711 218.0 743,954 255.7 872,444

6SR5 10000 7457 242.3 826,616 284.1 969,382

6SR5 11000 8203 266.5 909,278 312.5 1,066,320

6SR5 12000 8948 290.7 991,939 340.9 1,163,259

6SR5 13000 9694 314.9 1,074,601 369.3 1,260,197

6SR5 14000 10440 339.2 1,157,262 397.7 1,357,135

6SR5 15000 11186 363.4 1,239,924 426.1 1,454,073

6SR5 16000 11931 387.6 1,322,586 454.6 1,551,011

6SR5 17000 12677 411.8 1,405,247 483.0 1,647,950

1) Transformer efficiency at 4500 hp and above is the same for both copper and aluminum transformers

Engineering information Catalog D 17 | Global Edition | 12/2023

82 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Water cooling requirements

Drive with integral liquid-to-liquid heat exchanger

SINAMICS PERFECT HARMONY GH180 6SR327 as a default is

offered with an integral plate and frame heat exchanger. This

heat exchanger consists of a series of thin, corrugated plates,

spaced with rubber gaskets, to transfer heat between two

fluids. This type of heat exchanger is very efficient because

the fluids are exposed to the entire surface area of the plates.

This is the best option if customer has water available on site.

Liquid-to-liquid heat exchanger data:

• Made of stainless steel alloy 304 or 316.

• Customer inlet water temperature: 32 - 104F (0-40C)

• Heat exchanger design pressure – 150 psi (1034.2 kPa)

The raw water must be chemically neutral, clean and free of

solids. Additional specifications relating to the quality of the

raw water are listed in the following table.

In case of deviations it is recommended to carry out an

analysis of the water in order to ensure the heat exchanger's

endurance strength. If the water is supplied from a lake or

river, W55 option is recommended for 6SR327 – prepare for

inlet water filter or specify a shell and tube heat exchanger.

This is a drop ship option.

Customer Water Connections Interface: customer is

responsible for water connection to the drive:

• SINAMICS PERFECT HARMONY GH180 6SR327 - 2” ANSI

flange (DIN 50 flange)

Cold Side Flow Requirements for GH180 6SR327 with integral

liquid-to-liquid heat exchanger:

• 9 cell – 100 GPM (378.5 LPM)

• 12 cell – 150 GPM (567.8 LPM)

• 15 cell – 200 GPM (757.1 LPM)

• 18 cell – 225 GPM (851.7 LPM)

• 24 cell – 275 GPM (1,041 LPM)

Example of an integral liquid-to-liquid heat exchanger:

Variable Specified value

Grain size of any entrained

parts

< 0.5 mm

pH value 6.5 to 8.0

Carbonate hardness < 0.9 mMol/l (5 °dH)

Total hardness < 1.7 mMol/l (9.5 °dH)

Chlorides < 60 mg/l

Sulfates < 80 mg/l

Nitrates < 10 mg/l

Iron (Fe) < 0.2 mg/l

Ammonia < 10 mg/l

Dissolved substances < 3.4 mMol/l (340 ppm)

Below is an example of the flow diagram:

Catalog D 17 | Global Edition | 12/2023 Engineering information

SINAMICS PERFECT HARMONY GH180 Catalog D 17 83

Drive prepared for liquid-to-air heat exchanger

When water is not available on site SINAMICS PERFECT

HARMONY GH180 6SR327 has an option to be installed with

external liquid-to-air heat exchanger (W32). In this case,

integral heat exchanger is removed from the circuit and

replace with set up to directly connect to external heat

exchanger.

In this set up the coolant flows through the system, collecting

the heat that has dissipated from the power cells and

transformer, and then exits the drive, passing through the

heat exchanger. As the coolant passes through the external

tubing (coil) of the heat exchanger, it is cooled by a network

of blowers, blowing cooler air onto the coils and reducing its

temperature by means of forced convection.

Each heat exchanger fan motor has a non-fused disconnect

mounted on the heat exchanger unit. The contactors for each

of the fans are located inside the converter heat exchanger

control panel. A separate auxiliary feed is required to the

converter that powers all of the contactors.

The heat exchanger is designed to operate with standard

capacity fans. There are several options available for heat

exchanger: additional capacity (N+1) as an option and the

heat exchanger copper coil can be coated with Heresite to

protect the cooling coils from corrosion. It can be designed to

be vertical or horizontal air flow. Shown below is a horizontal

heat exchanger design and its installation.

Below is an example of the flow diagram:

6SR327 with W32 Option flow requirement:

The flow rate depends on customer site and conditions - it is

impacted by installation distance, size of the pipe and other

conditions. As long as the pressure drop external to the VFD

coolant cabinet is less than 15 psi (103.4 kPA) and the heat

exchanger is at or below the VFD elevation, the coolant

system should operate as designed.

Customer Water Connections Interface: customer is

responsible for water connection to the drive

• GH180 6SR327 W32 – 3" ANSI flange (DIN 80 flange)

When installing external heat exchanger, it is recommended

to evaluate if you need freeze protection. When freeze

protection is not required 100 % deionized water is

recommended. If freeze protection is required glycol should

be limited to the range of 25 to 60 % by volume.

Freezing point of coolant % Propylene glycol by

volume (by mass)

+10 °F / –12.2 °C 25 (25)

0 °F / –17.8 °C 32 (33)

–10 °F / –23.3 °C 39 (40)

–20 °F / –28.9 °C 44 (45)

–30 °F / –34.4 °C 48 (49)

–40 °F / –40.0 °C 52 (53)

–50 °F / –45.6 °C 55 (56)

–55 °F / –48.0 °C 60 (62)

The volume of coolant required for the drive is approximately

100 U.S gallons. To determine the total system volume, the

volume in the piping to and from the main heat exchanger

and the volume of the main heat exchanger must be

determined by the customer. A drive in the system with total

volume < 250 U.S. gallons can operate with one coolant

expansion tank. A drive in a system with total volume

between 250 and 500 U.S. gallons requires one high capacity

coolant expansion tank.

Engineering information Catalog D 17 | Global Edition | 12/2023

84 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Current product information

You can find current information on SINAMICS PERFECT HARMONY GH180 in the Portal: portal.innomotics.com

Siemens Product Configurator and other engineering tools

The Drives Technology Configurator is the entry point when it comes to configuring high-voltage motors and medium-voltage

converters. It supports you when selecting options and provides all of the relevant technical data sheets and dimension drawings.

Tools information and access

• Siemens Product Configurator: siemens.com/spc

• Selection and Configuration website : innomotics.com/en/services/selection-configuration

Catalog D 17 | Global Edition | 12/2023 SIDRIVE IQ

SINAMICS PERFECT HARMONY GH180 Catalog D 17 85

Services

Keep your business running and shape your digital

future – with Services for Large Drives Applications

Optimizing the productivity of your equipment and operations can be a challenge, especially with constantly changing

market conditions. Working with our service experts makes it

easier. We understand your industry's unique processes and

provide the services needed so that you can better achieve

your business goals.

You can count on us to maximize your uptime and minimize

your downtime, increasing your operations' productivity and

reliability. When your operations have to be changed quickly

to meet a new demand or business opportunity, our services

give you the flexibility to adapt.

We assist in keeping your operations as energy and resource

efficient as possible and reducing your total cost of ownership. As a trendsetter, we ensure that you can capitalize on

the opportunities of digitalization and by applying data analytics to enhance decision making: You can be sure that your

plant reaches its full potential and retains this over the longer

lifespan.

You can rely on our highly dedicated team of engineers, technicians and specialists to deliver the services you need –

safely, professionally and in compliance with all regulations.

We are there for you, where you need us, when you need us.

innomotics.com/services

Portfolio overview

Our LDA Portal delivers comprehensive information, application examples, FAQs and support requests:

portal.innomotics.com

Technical Support and Diagnostic: Advice and answers for all

inquiries about functionality, handling, and fault clearance.

A worldwide network of specially trained service personnel

provides you with a highly quality service and an optimized

commissioning time. By making use of a regular inspection

and health check, you can maximize the availability of your

plant and optimize your production processes.

Repair Services are offered on-site and in regional repair

centers for fast restoration of faulty devices' functionality.

Also available are extended repair services, which include

additional diagnostic and repair measures, as well as

emergency services.

Services Catalog D 17 | Global Edition | 12/2023

86 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Spare Parts Services are available worldwide for smooth and

fast supply of spare parts – and thus optimal plant availability. Genuine spare parts are available for up to ten years. Logistic experts take care of procurement, transport, custom

clearance, storage and order management. Reliable logistics

processes ensure that components reach their destination as

fast as needed.

Since not all spare parts can be kept in stock at all times,

Siemens offers a preventive measure for spare parts provisioning on the customer's premises with optimized Spare

Parts Packages for individual products, custom-assembled

drive components and entire integrated drive trains – including risk consulting.

From the basics and advanced to specialist skills, LDA training

courses provide expertise right from the manufacturer – and

encompass the entire spectrum of Siemens LDA products and

systems for the industry. Courses are offered at various

locations as well as online.

Use Siemens Retrofit Services to extend the lifetime of your

machinery and plants. Optimize the availability, reliability and

energy efficiency of your installed motors and drives by

retrofitting existing products and systems.

To provide you with optimum support in your work, we have

put together two digital service packages as part of our digital offering SIDRIVE IQ. The first package, SIDRIVE IQ Rapid

Response, is all about getting your equipment up and

running again as quickly as possible. The second package,

SIDRIVE IQ Guided Supervision, is a service package

specifically for continuous monitoring.

A Service Agreement enables you to easily bundle a wide

range of services into a single annual or multiyear agreement.

You pick the services you need to match your unique requirements or fill gaps in your organization’s maintenance capabilities. Programs and agreements can be customized as KPIbased and/or performance-based contracts.

Catalog D 17 | Global Edition | 12/2023 SIDRIVE IQ

SINAMICS PERFECT HARMONY GH180 Catalog D 17 87

SIDRIVE IQ

Drive systems play a key role in countless production

processes and are ultimately what keeps the entire

production going. Faults or failures involving components like

motors and drives have costly consequences. Avoiding these

faults by taking timely and deliberate action requires

intelligent transparency – which allows for measures like

targeted, proactive, and well-timed maintenance.

The future is digital – especially in the industrial sector.

Thanks to digitalization and networked processes, companies

can produce more flexibly and reliably, and they can respond

to events more rapidly. Digitally enhanced drive components

are an important step toward digitalized automation. With

SIDRIVE IQ, you can now benefit from an Industrial Internet

of Things (IIoT) digitalization solution for drive systems. Take

advantage of digitalization to enter a new dimension of

availability, serviceability, productivity and efficiency.

Reap the fruits of digitalization for medium voltage drives

and high voltage motors with SIDRIVE IQ. The trinity of smart

products, optimized plant designs and services provides you,

with the insights you need, to make proactive choices you

can trust – every single time.

With our smart products and systems with edge-capability

you are able to make drive systems an “Industrial IoT

platform device” for interoperability with automation and

application.

Our digital platform gives you the perfect integration in IoT

ecosystems through modularity, scalability and connectivity

with data model and processing libraries and functional user

interaction and experience. Increase availability, optimize

your asset management and processes for faster decisionmaking and a boost of productivity.

Digital Services by SIDRIVE IQ is the cloud-based approach for

the next generation of remote and condition monitoring

services. With SIDRIVE IQ, condition data from the drive train

components is transferred to the cloud and analyzed by our

service experts.

SIDRIVE IQ – our holistic solution and service to IIoT for your

drive systems.

innomotics.com/sidrive-iq

Catalog D 17 | Global Edition | 12/2023

88 SINAMICS PERFFECT HARMONY GH180 Catalog D 17

Scope of supply

The standard scope of delivery of the SINAMICS PERFECT

HARMONY GH180 includes:

• Input section

• Transformer section

• Cell section

• Control section

• Output section

The basic unit of each SINAMICS PERFECT HARMONY GH180

Water-cooled product line consists of the following:

• Input section

• Transformer cabinet section

• Cell cabinet section

• Control section

• Output section

• If liquid-to-liquid heat exchanger is selected: coolant

cabinet section comes with integral water-to-water heat

exchanger

SINAMICS PERFECT HARMONY GH180 6SR327 liquid-to-air

heat exchanger is delivered and located separately.

The water-cooled drive coolant cabinet is delivered without

deionized water.

The necessary pipes and connection pieces from converter

coolant system to raw-water supply on the plant side are not

included in the scope of supply.

Input and output cables are not included in the scope of

supply.

Accessories

Cell lifter

The power cells of SINAMICS PERFECT HARMONY GH180

drives can be replaced as a unit. To replace, the entire power

cell must be removed from the drive and transported on a

cell lifter. Appropriate cell lifters are available.

Some cell lifters can be used to replace blowers as well.

Please, contact your Siemens sales partner for more details.

Recommended list of spare parts

Spare Part Packages ensure that a customer has necessary

components to deal with emergencies. These packages are

recommended but not required. The components within the

kits will vary depending on drive generation and cooling

method.

Each manufacturing location identifies components that

meet their customers base requirements. For more details

about available spares contact your Siemens Service

Representative.

Below is the list of spare part packages recommended for

GH180:

Basic spare parts package list

Description Quantity

Power Cell 1

NXG Control Box (DCR) 1

System Interface Board 1

User I/O Board 1

Cell Fiber Optic Kit 1

Below is an example of the advanced spare parts package

with some of the components included in it. This package is

typically sold after the equipment is commissioned or at any

time during drive operating life. For more complete list

contact your Siemens Service Representative.

Air-cooled advanced spare parts package list

Description Quantity

Control (NXG) Power Supply 1

Keypad 1

Fuses

Blower and Blower Accessories 1

Bypass Contactor 1

Bypass Power Supply Fuse 1

Bypass Control Board 1

Water-cooled advanced package spare parts list

Description Quantity

Control (NXG) Power Supply 1

Keypad 1

Fuses

Pump and Pump Accesories 1

Bypass Contactor 1

Bypass Power Supply Fuse 1

Bypass Control Board 1

Get more information

SINAMICS Drives:

siemens.com/sinamics

SINAMICS PERFECT HARMONY GH180:

innomotics.com/sinamics-perfect-harmony-gh180

Published by

Innomotics GmbH

Vogelweiherstr. 1-15

90441 Nuernberg

Germany

Produced in Germany

Subject to changes and errors. The information given in this

document only contains general descriptions and/or performance

features which may not always specifically reflect those described, or

which may undergo modification in the course of further development

of the products. The requested performance features are binding only

when they are expressly agreed upon in the concluded contract.

All product designations may be trademarks or other rights of

Siemens AG, its affiliated companies or other companies whose use

by third parties for their own purposes could violate the rights of the

respective owner.

Security information

Siemens provides products and solutions with industrial

security functions that support the secure operation of

plants, systems, machines and networks.

In order to protect plants, systems, machines and

networks against cyber threats, it is necessary to

implement – and continuously maintain – a holistic, stateof-the-art industrial security concept. Siemens’ products

and solutions constitute one element of such a concept.

Customers are responsible for preventing unauthorized

access to their plants, systems, machines and networks.

Such systems, machines and components should only be

connected to an enterprise network or the internet if and to

the extent such a connection is necessary and only when

appropriate security measures (e.g. firewalls and/or network segmentation) are in place.

For additional information on industrial security measures

that may be implemented, please visit

https://www.siemens.com/industrialsecurity

Siemens’ products and solutions undergo continuous

development to make them more secure. Siemens

strongly recommends that product updates are applied as

soon as they are available and that the latest product

versions are used. Use of product versions that are no

longer supported, and failure to apply the latest updates

may increase customer’s exposure to cyber threats.

To stay informed about product updates, subscribe to the

Siemens Industrial Security RSS Feed under

https://www.siemens.com/cert

INNOMOTICS A Siemens Business Medium Voltage Drives SINAMICS PERFECT HARMONY GH180 Catalog 12/2023

分享至微信
