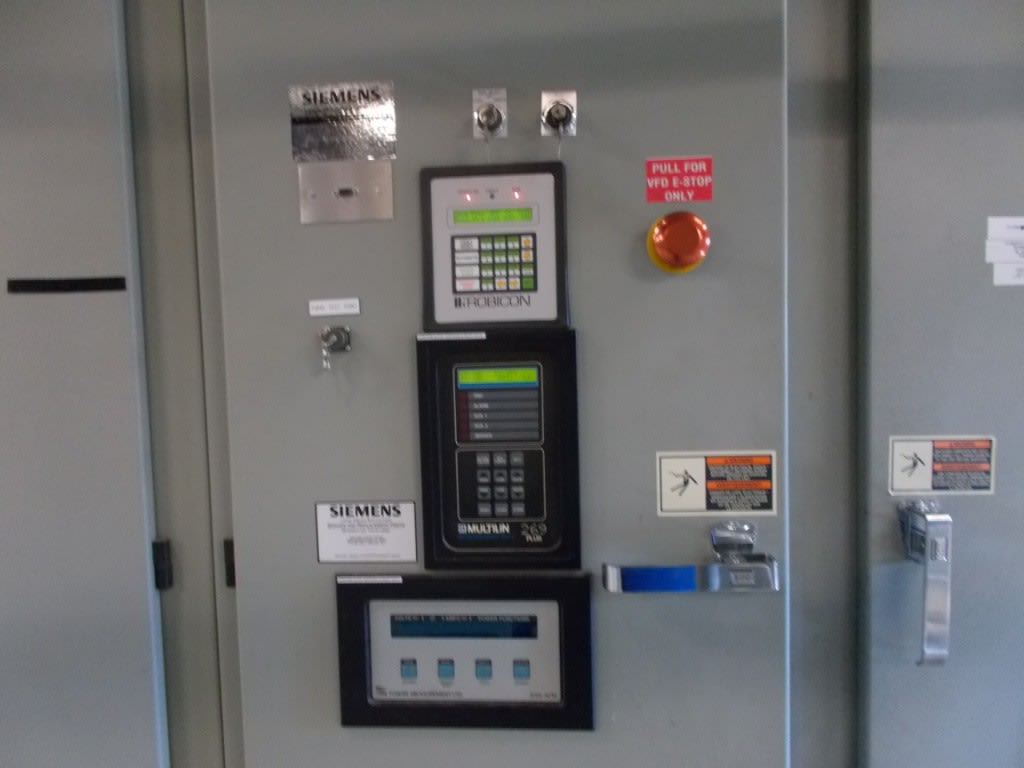

Robicon Perfect Harmony SIEMENS LEGACY VFD, A1A469718.00HRM Micro Processor Board, A1A460T46.01T Power Interface Board(PIB)
Robicon Perfect Harmony SIEMENS LEGACY VFD, A1A469718.00HRM Micro Processor Board, A1A460T46.01T Power Interface Board(PIB)
Robicon Perfect Harmony SIEMENS LEGACY VFD, A1A469718.00HRM Micro Processor Board, A1A460T46.01T Power Interface Board(PIB)

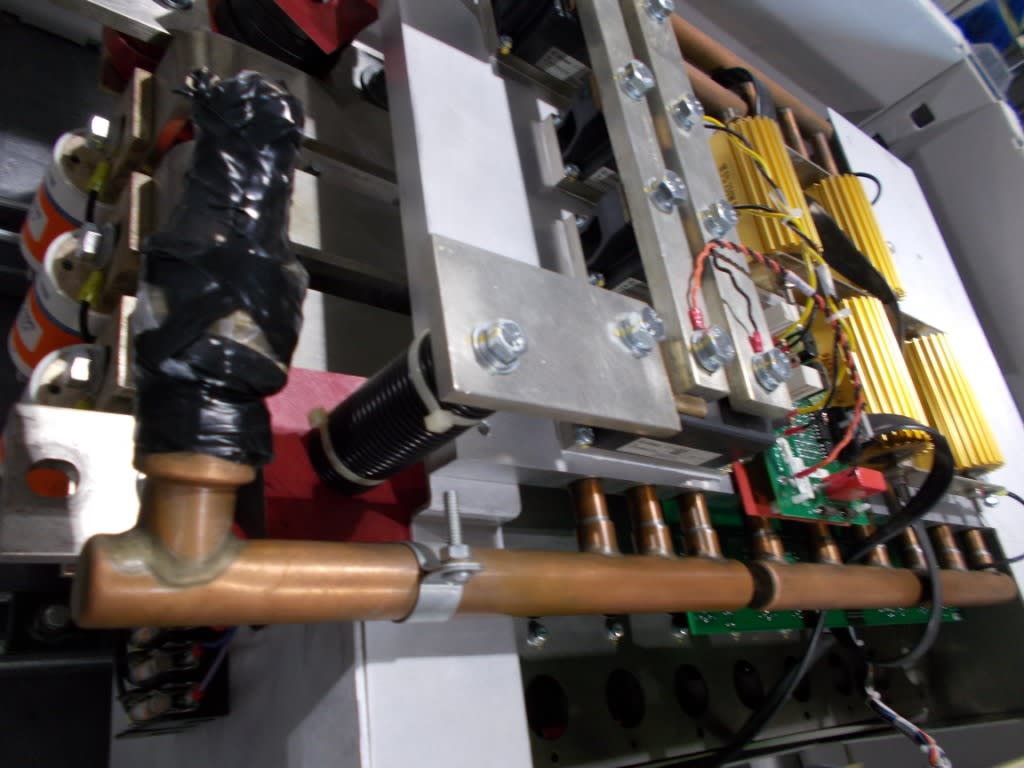

15 POWER CELLS Drive Section.
SPARE PARTS KITS
8 SPARE POWER CELLS
BOARD, SYSTEM MODULE,362877.01HRM, ROBICON BOARD, SINGLE, MODBUS,84895, ROBICON
BOARD, POWER INTERFACE,460T46.01T, ROBICON BOARD, MODEM,86576, ROBICON
BOARD, MICROPROCESSOR,469718.00HRM BOARD, LINK,460K78.01T, ROBICON
Add the following:
Material Name
Material Number
Qty/Cell
Qty req.
Box
O-rings 1"
A5E02194961
2
0
PWR MODULE DIODE
RJD:083519
5
4
In Boxes Marked 2 of 3
PTC_WPP4001_100R_250R/80°C_30V_RED
RJD:094595
1
4
In Boxes Marked 2 of 3
THERMAL SWITCH, NC, OPEN 90C
RJD:161025.03
1
4
In Boxes Marked 2 of 3
Gate driver board
RJD:460F42.00M
1
4
In Boxes Marked 2 of 3
ASSEMBLY,COATED,GATE DRIVER
RJD:460F42.01M
1
4
In Boxes Marked 2 of 3
ASSY,SNUBBER
RJD:363581.03
12
0
THYRISTOR MODULE,1200V,400A
RJD:080566
2
4
In Boxes Marked 3 of 3
CABLE ASS'Y 10" LG TW(O/BK)
RJD:260760.25
1
4
In Boxes Marked 2 of 3
CABLE ASSY REF DWG 260816 SH 2
RJD:260816.02
2
4
In Boxes Marked 2 of 3
STANDOFF,FG POLY 2.0D,2.0H,1/2
RJD:001078
8
4
In Boxes Marked 3 of 3
JACKETED RIBBON CABLE ASSY,14
RJD:260763.02
1
4
In Boxes Marked 2 of 3
WIRING HARNESS SIZE 5-7 W/BP
RJD:460C32.00
1
4
In Boxes Marked 2 of 3
FUSEBLOCK,3POLE, 30A, 600V
RJD:261073.02
1
4
In Boxes Marked 2 of 3
DUAL IGBT MODULE, 600 AMPS, 120
RJD:087965
6
4
In Boxes Marked 3 of 3
CAP EL TC CPR GR 6300uF 400V
RJD:096865
60
0
ASSY,COATED,CELL BYPASS DRIVER
RJD:363612.00M
1
4
In Boxes Marked 2 of 3
PCA,CELL CONTROL BOARD 460V LONG RODS
A5E03409689
1
8
In Boxes Marked 1 of 3 and one larger box
FUSE,SEMICND W/IND 1000A, 700V
RJD:082823
1
0
CAP,MTLZD,POLPRP, 1.0uF,1200VD
RJD:083478
6
0
SWITCH,BLOWN FUSE REPLACES MS
RJD:065037
1
4
In Boxes Marked 2 of 3
FUSE,CLASS L 800A, 600V
RJD:090554
3
4
In Stand Alone Boxes
FUSE,SMALL DIM, 1A, 500V
RJD:003869
3
4
In Boxes Marked 2 of 3
WIRE HARNESS CELL CONTROL BD
RJD:460N25.00
1
4
In Boxes Marked 2 of 3
SPACER,BRS,6-32,1/4D,1.00 L,H
RJD:066553
4
4
In Boxes Marked 2 of 3
RIBBON CABLE ASSY, 20 COND
RJD:260772.00
1
4
In Boxes Marked 2 of 3
Additional Items Found
L Brackets - Type 1
RJD:285612
6
4
In Boxes Marked 2 of 3
L Brackets - Type 2
RJD:285613
6
4
In Boxes Marked 2 of 3
IGBT De-Coupling Snubber Caps
RJD:260617.00
6
4
In Boxes Marked 3 of 3
Bypass Fuse Microswitch ASSY Kit - 3V Microswitch
A5E34997547
1
4
In Boxes Marked 3 of 3
Bypass Fuse Microswitch ASSY Kit - 700VAC 1250 Fuse
A070VD33I1250
1
4
In Boxes Marked 3 of 3
1109683 RELAY,D15CR22AB,CUTLER L 1 EA
1107089 DISPLAY,ASSEMBLY,06205,THORNTON L 1 EA
1109685 RELAY,C320KGT15,CUTLER L 1 EA
1106737 ETHYLENE GLYCOL,60/40,205L,DR,UNIVAR L 6 EA 275 Gallons required 275 x 4.54 = 1248.5 litres = 6.09 Drums
1109252 BOARD,POWER INTERFACE,460T46.01T,ROBICON R 1 EA
1109260 BOARD,ADAPTER,MODBUS,363358.11T,ROBICON R 1 EA Communications Adaptor Board - Modubs
1109157 BREAKER,30A,S3N030TW,ABB L 1 EA
1109158 BLOCK,OVERLOAD,TA25-DU-19,ABB L 1 EA
1109246 RELAY,MK2P-I,OMRON L 1 EA
1109249 KEYPAD,(DPD),A1A460A68.20M,ROBICON R 1 EA
1109250 FUSE,2A,250V,3859,ROBICON L 1 EA
1109253 BOARD,MICROPROCESSOR,469718.00HRM R 1 EA
1109254 BOARD,HUB,460B80.00T,ROBICON R 1 EA
1109255 BOARD,LINK,460K78.01T,ROBICON R 1 EA
1109257 MODULE,DIGITAL INPUT,362872.02T,ROBICON R 1 EA
1109258 MODULE,DIGITAL OUTPUT,362871.00T,ROBICON R 1 EA
1109259 MODULE,ANALOG OUTPUT,369174.00T,ROBICON R 1 EA
1109261 BOARD,SINGLE,MODBUS,84895,ROBICON R 1 EA Single Modbus Board
1109262 BOARD,ADAPTER,MODEM,363358.06T,ROBICON R 1 EA Communications Adaptor Board - Modem
1109263 BOARD,MODEM,86576,ROBICON R 1 EA
1109266 FUSE,1A,125/250V,GDL1,SHAWMUT L 1 EA
1109271 FUSE,15A,600V,81334,ROBICON L 1 EA
1109272 BOARD,SYSTEM MODULE,362877.01HRM,ROBICON R 1 EA
1109680 CONTACT,CURRENT,150VCP-W750,CUTLER R 1 EA
1109684 RELAY,C320TP1,CUTLER L 1 EA
1408814 MODULE,LOGO DM8 230R,6ED10551FB000BA1 L 1 EA
1409544 INTERFACE,CORD,LOGO,6ED1-057-1AA01-0BA0 L 1 EA
1409545 CONTROLLER,LOGO,6ED1052-1FB00-OBA6 L 1 EA
1419969 SOLENOID,QR-3T,120V,60HZ,.5,QR-37,GOULD L 1 EA
1431223 METER,MN-BSB150GM-16-32V1.0-AINU L 1 EA
