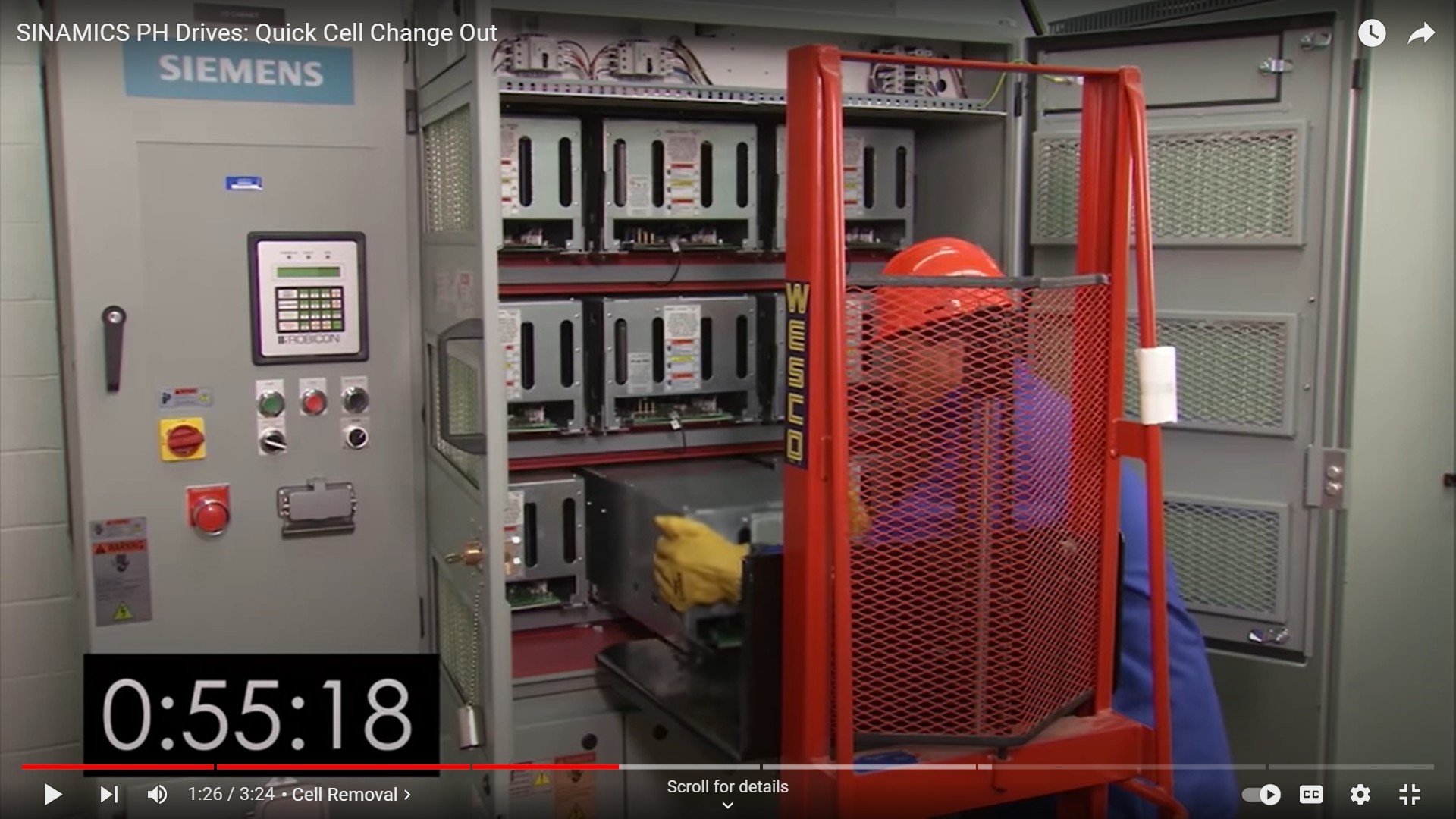

Siemens A1A163496.05 HARM CELL LIFTER (WCIII), A1A163496.08 GenlV Cell Lifter
Siemens A1A163496.05 HARM CELL LIFTER (WCIII), A1A163496.08 GenlV Cell Lifter
Siemens A1A163496.05 HARM CELL LIFTER (WCIII), A1A163496.08 GenlV Cell Lifter
6SR0960-0SA02-0AC0 HARM CELL LIFTER GEN3E
6SR0960-0SA00-0AD0 PH cell filter for GEN4
6SR0960-0SA02-0AD0 PH cell filter for GEN3E
6SR0960-0SA05-0AD0 PH cell filter for WC3, SPECIAL
6SR0960-0SA30-0AA0 PH cell filter (from DE with CE)
6SR0960-0SA02-0AC0
No picture available
HARM CELL LIFTER GEN3E
Notes
Product is no longer available. Successor:
6SR0960-0SA02-0AD0 Compare Products
List Price (w/o VAT) Show prices
Customer Price Show prices
Service & Support (Manuals, Certificates, FAQs...) Download
Product
Article Number (Market Facing Number) 6SR0960-0SA02-0AC0
Product Description HARM CELL LIFTER GEN3E
Product family Not available
Product Lifecycle (PLM) PM500:Discontinued Product or end of PLM & Support
PLM Effective Date End of product lifecycle since: 2011.12.05
Notes
Product is no longer available. Successor:
6SR0960-0SA02-0AD0 Compare Products
Successor information
Successor 6SR0960-0SA02-0AD0
Successor Description GH180 cell lifter for GEN4/4E/3E
Price data
Price Group / Headquarter Price Group 6ZZ
List Price (w/o VAT) Show prices
Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations ECCN : EAR99H / AL : N
Factory Production Time On request
Net Weight (kg) 0.001 Kg
Package size unit of measure Not available
Quantity Unit 0 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 8427900000
LKZ_FDB/ CatalogID D12LD.9SP
Product Group 3646
Group Code P1S3
Country of origin United States of America
Compliance with the substance restrictions according to RoHS directive not available
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation -
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
SCIP number Not available
Classifications
Not available
6SR0960-0SA02-0AD0
Product
Image similar
GH180 cell lifter for GEN4/4E/3E
List Price (w/o VAT) Show prices
Customer Price Show prices
Service & Support (Manuals, Certificates, FAQs...) Download
Product
Article Number (Market Facing Number) 6SR0960-0SA02-0AD0
Product Description GH180 cell lifter for GEN4/4E/3E
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group / Headquarter Price Group 6ZZ
List Price (w/o VAT) Show prices
Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations AL : N / ECCN : EAR99
Factory Production Time 98 Day/Days
Net Weight (kg) 352.000 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 8427900000
LKZ_FDB/ CatalogID D15.2LDSP
Product Group 3662
Group Code P1S4
Country of origin United States of America
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation -
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
SCIP number Not available
Classifications
Version Classification
eClass 12 27-15-06-91
eClass 14 27-15-06-91
eClass 6 27-15-06-91
eClass 7.1 27-15-06-91
eClass 8 27-15-06-91
eClass 9 27-15-06-91
eClass 9.1 27-15-06-91
Which cell lifter / service lifter do I need for my air-cooled or water-cooled GH180 drive?
FAQ for “Cell- & Service-Lift-Trolleys for air cooled GH180”
V1.4 Dec-2023 Page 1 of 3
FAQ: SINAMICS Perfect Harmony GH180 AC –
What type of Cell- or Service-Lift-Trolleys do I need
for my drive?
Figure 1: Example of the Cell- / Service-Lifter
FAQ for “Cell- & Service-Lift-Trolleys for air cooled GH180”
V1.4 Dec-2023 Page 2 of 3
1. General safety instructions
Before working on the drive, you must pay attention to the 5 safety rules!
1. Switch off
2. Lock against reclosing
3. Check that lines and equipment is dead
4. Ground and short circuit phases
5. Cover partition or screen of adjacent line sections
(Please make familiar with country specific regulations!)
2. Scope of this document
This document is an overview of the SINAMICS Perfect Harmony GH180 AC
Cell- & Service-Lifter with their related MLFB and is orderable through PMD.
FAQ for “Cell- & Service-Lift-Trolleys for air cooled GH180”
V1.4 Dec-2023 Page 3 of 3
3. Overview of the Cell- & Service–Lift–Trolleys for AC
For questions or if additional support is required, please follow the below link to our
Innomotics portal and create a new service request with the drive details and a
description of the issue you have.
https://www.portal.innomotics.com/
Drive Type
(Cell size) MLFB No. CE NOTES
GH180 - 6SR3 - Gen 3
(200A - 260A) 6SR4900-0SM02-0AD0 No
GH180 - 6SR3 - Gen 3 E
GH180 - 6SR4 - Gen 4
GH180 - 6SR4 - Gen 4 E
6SR0960-0SA02-0AD0 No
GH180 - 6SR3 - Gen 3 E
GH180 - 6SR4 - Gen 4
GH180 - 6SR4 - Gen 4 E
6SR0960-0SA30-0AA0 Yes CE certified cell lifter
GH180 - 6SR3 - Gen 3 E
GH180 - 6SR4 - Gen 4
GH180 - 6SR4 - Gen 4 E
6SR0960-0SM15-0AM0 No
GH180- 6SR5 - Gen 5 / Phase1
(40A - 70A) 6SR5900-0SM30-0AD0 No
GH180- 6SR5 - Gen 5 / Phase2
(100A - 140A) 6SR5900-0SM31-0AD0 No
GH180- 6SR5 - Gen 5 / Phase3
(200A - 260A & 120A - 160A "4Q-Cells") 6SR5900-0SM32-0AD0 No
GH180- 6SR5 - Gen 5 / Phase4
(340A - 430A) 6SR5900-0SM33-0AD0 No
GH180- 6SR5 - Gen 5 / Phase5
(550A - 750A) 6SR5900-0SM34-0AD0 No Stabilizing brackets are already delivered with this lifter. Spare
stabilizing brackets can be ordered with the MLFB 9LD9000-0AG00-
0AA0.
GH180- 6SR5 - Gen 5
(all sizes) 9LD9000-0AH66-0AA0 Yes CE certified cell lifter
GH180- 6SR5 - Gen 5
(< 550A) 6SR0960-0SM15-0AM0 No
GH180- 6SR5 - Gen 5(550A - 750A) 9LD9000-0AE86-0AA0 No
6SR5... - SERVICE LIFTERS - SEDS / China
SINAMICS PERFECT HARMONY GH180 "AirCooled" - CELL & SERVICE LIFT TROLLEYS
6SR5... - SERVICE LIFTERS - NUE / Germany
6SR3... - CELL LIFTERS - NKN / USA
6SR3… + 6SR4... - SERVICE LIFTERS - NKN / USA
6SR5... - SERVICE LIFTERS - NKN / USA
6SR3… + 6SR4... - SERVICE LIFTERS - NUE / Germany
6SR3… + 6SR4... - SERVICE LIFTERS - SEDS / China
Question?
I have Water cooled GH180, which cell lifter do I need for my Drive?
The answer is depending on which the type of drive you have. Below is list of all the cell lifters
available for GH180 water cooled drives. Please note all the cell lifter below have been built to
American standard ANSI B56.10.
Please note it is regions responsibility to check if ANSI B56.10 meets the local lifting
regulations.
Water Cooled Drives
GH180 WC2 Cell Lifter
Cell Size MLFB No. Additional comments:
All Sizes 6SR3950-0SM81-0AD0 WCII, Cell Lifter (On-shore)
All Sizes 6SR3950-0SM82-0AD0 Lifter Specs WCII Marine (Off-shore)
GH180 WC3 Cell Lifter
Cell Size MLFB No. Additional comments:
All Sizes 6SR3950-0SM10-1AD0 Standard height cabinet 68”
All Sizes 6SR3950-0SM80-0AD0 Extended height cabinet 80”
Cell Lifter for Drives that are P.M 490 or P.M 500
GH180 WC1 Cell Lifter
Cell Size MLFB No. Additional comments:
All Sizes N/A Standard height cabinet 68”
GH180 HV Cell Lifter
Cell Size MLFB No. Additional comments:
All Sizes N/A Standard height cabinet 68”
For questions or if additional support is required, please follow the below link to
our Innomotics portal and create a new service request with the drive details and
a description of the issue you have.
https://www.portal.innomotics.com/
Please note: *For all the above P.M 490 or P.M 500 drives, a quote will need to be requested to check the
availability of the above cell lifters. Kindly use the Innomotics portal above to request a quote.
