Siemens Perfect Harmony Drive 6SR450
Siemens Perfect Harmony Drive 6SR450
Siemens Perfect Harmony Drive 6SR450
Input: 6600V, 3PH, 50Hz, 454A
Output: 0-6600V, 3PH, 0-50Hz, 454A
Control: 400V, 3PH, 50Hz, 20A
Airflow: 850.0 m3/min Temperature range: 5-40℃
S.O.: 3004742272
Order Number: 6SR4502-2HJ45-5BG1-Z
Siemens Perfect Harmony Drive 6SR450
Input: 6600V, 3PH, 50Hz, 168A
Output: 0-6600V, 3PH, 0-50Hz, 165A
Control: 400V, 3PH, 50Hz, 20A
Airflow: 392.0 m3/min Temperature range: 5-40℃
S.O.: 3004742272
Order Number: 6SR4502-2HE42-0BG1-Z
Siemens Perfect Harmony Drive 6SR450
Input: 6600V, 3PH, 50Hz, 274A
Output: 0-6600V, 3PH, 0-50Hz, 260A
Control: 400V, 3PH, 50Hz, 20A
Airflow: 392.0 m3/min Temperature range: 5-40℃
S.O.: 3004742272
Order Number: 6SR4502-2HF43-2BG1-Z

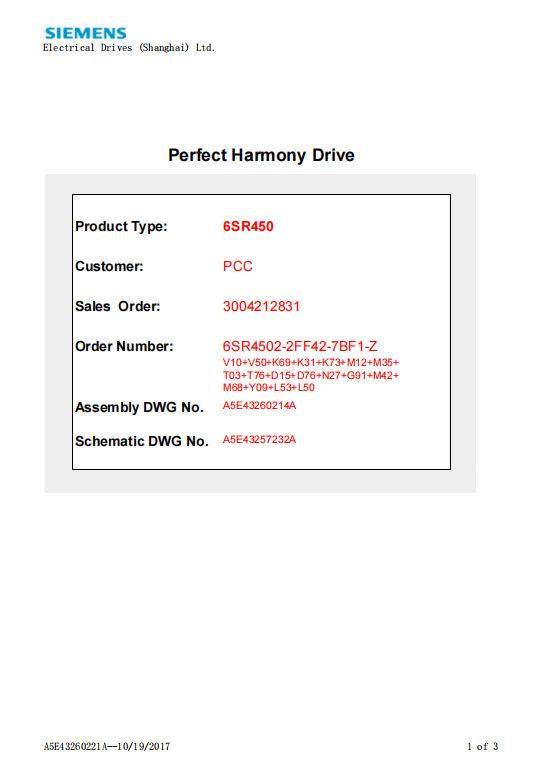

Electrical Drives (Shanghai) Ltd.
Product Type: 6SR450
Customer: PCC
Sales Order:
Order Number: 6SR4502-2FF42-7BF1-Z
Assembly DWG No.
Perfect Harmony Drive
3004212831
V10+V50+K69+K31+K73+M12+M35+
T03+T76+D15+D76+N27+G91+M42+
M68+Y09+L53+L50
A5E43260214A
Schematic DWG No. A5E43257232A
A5E43260221A--10/19/2017 1 of 3
Electrical Drives (Shanghai) Ltd.
Specific data of the Perfect Harmony Drive
Power unit input (grid side)
3AC
6000 V
50 Hz
255 A
Power unit output (motor side)
3AC
0-6000 V
0-50 Hz 0-50
250 A
0 0- 250 2?F42-7 1
2750 kVA
260 A
88 kW
4
I , continuously
M , motor
3.5
Auxiliary voltage supply 3 AC
380 V
50 Hz
approx. 20 A
U_nom..+10%/-5%,50/60Hz ±5%
- Supply……………………………………………………………………………………
- Rated input voltage………………………………………………………………………………
- Rated input frequency………………………………………………………………………………
- Rated input current………………………………………………………………………………
- Supply……………………………………………………………………………………
- Output voltage range………………………………………………………………………………
- Output frequency range………………………………………………………………………………
- Rated output current………………………………………………………………………………
Main transformer capacity………………………………………………………………………………
Cell size………………………………………………………………………………
Power losses………………………………………………………………………………
Duty class / operating mode………………………………………………………………………………
Type of load………………………………………………………………………………
- Supply voltage………………………………………………………………………………
- Rated input frequency………………………………………………………………………………
- Current consumption………………………………………………………………………………
Other Parameter
Tolerance of the connection voltage………………………………………………………………………………
Protective class……………………………………………………………………………… Class 1 acc. to IEC 60204-11
Forced air cooling
392.0 m³/min
IP42
RAL7032
Dimensions 4730 1250 2280
4730 x 1250 x 2280
468
Ambient Conditions
Operation +5 - +40 ºC, rel. humidity < 95 %, 3K3 corres. to IEC 60721-3-3 (condensation not permitted).
Installation altitude
Protective class………………………………………………………………………………
<1000m above sea level
Cooling Type………………………………………………………………………………
Air flow………………………………………………………………………………
Degree of protection………………………………………………………………………………
Paint finish………………………………………………………………………………
Width x Depth x Height (mm x mm x mm)…………………………………….
Blower Height (mm)………………………………………………………………………..
A5E43260221A--10/19/2017 2 of 3
Electrical Drives (Shanghai) Ltd.
Cabinet weight
Overall……………………………………………………........................................... 7300 Kg
XFMR cabinet……………………………........................................……………………… 5837 Kg
Cell cabinet……………………………………………………........................................... 1463 Kg
输入柜……………………………........................................... 0 Kg
Main components specification
Main transformer capacity (T1)………………………………………….........................……… 2750 KVA
Rated primary voltage…………………………………………………………………. 6000 V
Rated secondary voltage…………………………………………………………………. 750 V
Input attenuator resistors (IATTA,IATTB,IATTC)………………………… 4.2 Mohm
Output attenuator resistors (OATTA,OATTB,OATTC)……………………………………… 4.2 Mohm
Burden resistors (Rb1,Rb2)…………………………………………………………………… 34 ohm
Input current transformers (CT1,CT2)……………………………………………. 300:5
Hall effect sensors (HEB,HEC)…………………………………………………………………. LF510
Control transformer output voltage (T5)…………………………………….. 220 V
XFMR cabinet blower (TBLW)..........………………………................................................... RHA500
Cell cabinet blower (CBLW)…………………………………………………………………. RHA560
Blower control circuit - breaker rated current(CB1,CB2)………............…………. 2.8-4A 3P
Blower control circuit - breaker rated current (CB3)………...………….4.5-6.3A 3P
Control transformer input side - breaker rated current(CB21)…………............................ 1.8-2.5A 3P
Control transformer output side - breaker rated current(CB41)…………............................. 4A 1P
Power supply G1 input side - breaker rated current(CB42)…………........ 1A 1P
Magnetic lock control circuit - breaker rated current(CB10)……….. 1A 1P
Magnetlock Control Circuit-Wago Relay coil rated voltage(CR51)……….. +24V
UPS output - breaker rated current (CB8)…………...............……………………….............. 4A 1P
Blower control circuit - contactor coil rated voltage (BM1-BM3)………….……….…. 220VAC
MV breaker enable - relay coil rated voltage(CR1)…………………………………. 220VAC
Control power normal feedback - relay coil rated voltage(CR2)………………………………………… 220VAC
Power Supply - Digital Input(G1) ………………………………………………………………. +24V
Power Supply - Digital Input(G3) ……………………….........................…………………………………. +24V
Medium voltage cables specification - Internal cables
Input terminals L1,L2,L3 to Transfomer primary side terminals H1,H2,H3……………. JGG 95mm2
Transfomer secondary side to Cell input side…………………...……………………….. JGG 50mm2
Cell output side to Output terminals T1,T2,T3…………………………………………………YJV70mm2
A5E43260221A--10/19/2017 3 of 3
