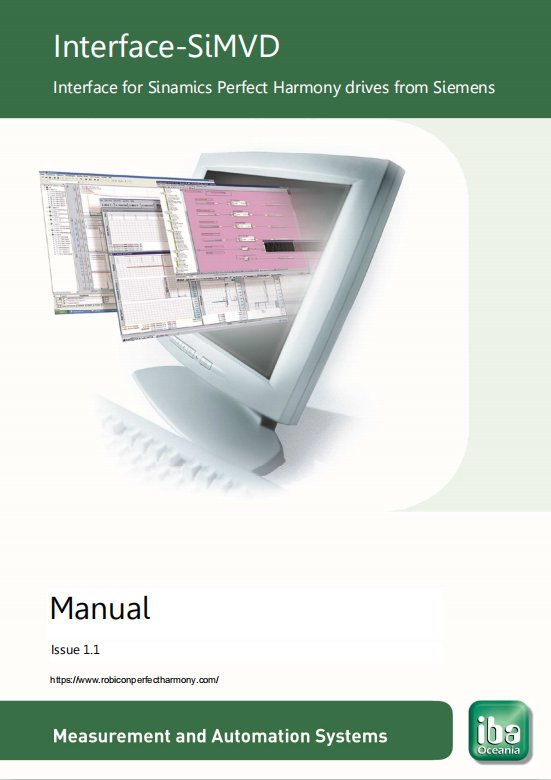

Interface-SiMVD
Interface for Sinamics Perfect Harmony drives from Siemens
Manual
Issue 1.1
https://www.robiconperfectharmony.com/
Manufacturer
iba Oceania Systems Pty Limited
14 Laverick Avenue
2322 Tomago (NSW)
Australia
Contacts
Main office +61 2 49648548
Fax +61 2 49648877
Support +61 2 49648548
Engineering +61 2 49648548
E-Mail [email protected]
Web http://www.iba-oceania.com
This manual must not be circulated or copied, or its contents utilized and disseminated,
without our express written permission. Any breach or infringement of this provision will
result in liability for damages.
©iba Oceania Systems Pty Limited 2016, All Rights Reserved
The content of this publication has been checked for compliance with the described
hardware and software. Nevertheless, deviations cannot be excluded completely so
that the full compliance is not guaranteed. However, the information in this publication
is updated regularly. Required corrections are contained in the following regulations or
can be downloaded on the Internet.
The current version is available for download on our web site:
http://www.iba-oceania.com.
Issue Date Revision Author Version SW
1.1 29.09.2016 Updated name EW 1.0
Windows® is a label and registered trademark of the Microsoft Corporation. Other
product and company names mentioned in this manual can be labels or registered
trademarks of the corresponding owners.
Sinamics Perfect Harmony® are labels and registered trademarks of Siemens AG
Interface-SiMVD Manual
Issue 1.1 3
Table of Contents
1 About this manual.............................................................................................4
1.1 Target group and previous knowledge .............................................................4
1.2 Notations .........................................................................................................4
1.3 Used symbols ..................................................................................................5
2 System Requirements ......................................................................................6
2.1 Siemens Hardware ..........................................................................................6
3 Sinamics Perfect Harmony Data Interface......................................................7
3.1 General Information.........................................................................................7
3.2 System Topologies...........................................................................................8
3.3 Installation and Startup ....................................................................................8
3.4 Configuration and Engineering ibaSiMVD........................................................8
3.5 Configuration and Engineering ibaPDA..........................................................10
3.6 User Interface................................................................................................12
4 Diagnostics......................................................................................................13
4.1 License Check ...............................................................................................13
4.2 Log Files........................................................................................................13
4.3 Connection Issues .........................................................................................13
4.3.1 Drive will not connect to the Sinamics Perfect Harmony Connection tool.......13
4.3.2 Module connections are not active (Green) in ibaPDA with active connections
listed in the Interface. ..................................................................................................13
4.3.3 Drive has a yellow row in ibaSiMVD and is listed as unrecognized. ...............14
5 Support and Contact.......................................................................................15
Manual Interface-SiMVD
4 Issue 1.1
1 About this manual
In this documentation you find information about the way the Interface-SiMVD software
interface functions and can be applied.
This documentation is a supplement to the ibaPDA manual. Information about all the
other characteristcis and functions of ibaPDA may be found in the ibaPDA manual or in
the online help.
1.1 Target group and previous knowledge
This documentation addresses qualified professionals, who are familiar with handling
electrical and electronic modules as a well as communication and measurement
technology. A person is regarded as professional if he/she is capable of assessing the
work assigned to him/her and recognising possible risks on the basis of his/her
specialist training, knowledge and experience and knowledge of the standard
regulations.
1.2 Notations
The following designations are used in this manual:
Action Designations
Menu command Menu „Logic diagram“
Call of menu command „Step 1 – Step 2 – Step 3 – Step x”
Example:
Select menu „Logic diagram – Add – New logic
diagram ”
Keys
Example:
Press keys simultaneously
Example:
Buttons
Example:
File names, Paths „File name“, „Path”
Example:
„Test.doc“
Interface-SiMVD Manual
1.3 Used symbols
If safety instructions or other notes are used in this manual, they mean:
The non-observance of this safety information may result in an imminent risk of death or
severe injury:
By an electric shock!
Due to the improper handling of software products which are coupled to input and
output procedures with control function!
If you do not observe the safety instructions regarding the process and the system or
machine to be controlled, there is a risk of death or severe injury!
The non-observance of this safety information may result in a potential risk of death or
severe injury!
The non-observance of this safety information may result in a potential risk of injury or
material damage!
Note
A note specifies special requirements or actions to be observed.
Important note
Note if some special features must be observed, for example exceptions from the rule.
Tip
Tip or example as a helpful note or insider tip to make the work a little bit easier.
Other documentation
Reference to additional documentation or further reading.
Issue 1.1 5
Manual Interface-SiMVD
6 Issue 1.1
2 System Requirements
The following system requirements are necessary for the use of the Sinamics Perfect
Harmony data interface:
Basic license for ibaPDA
ibaPDA version 6.17.0 or higher
License for ibaPDA-Interface-Generic-UDP
License for Interface-SiMVD
Network connection 10/100 Mbits
For more requirements on the PC hadrware used and the supported operating
systems, see the ibaPDA documentation.
Note
It is highly recommended to operate the communication on a separate network segment
to exclude a mutual influence by other network components.
Note
When operated on a virtual machine, a dongle with a valid license must be plugged on
the host for each virtual machine. The USB ports used are assigned explicitly to the
respective virtual machines.
Licenses
Order No. Product designation Description
80.004180 Interface ibaSiMVD Extension license for an ibaPDA
system providing an additional
Sinamics Perfect Harmony
Number of connections: 4
2.1 Siemens Hardware
The following hardware has been tested with the ibaSiMVD Connection Tool
1. NXGII Control System
Interface-SiMVD Manual
3 Sinamics Perfect Harmony Data Interface
3.1 General Information
The connection tool is a piece of software designed to interface ibaPDA with up to 4
Sinamics Perfect Harmony drives through UDP generic protocols.
This manual only describes the usage of this tool to link with both ibaPDA and a
Sinamics Perfect Harmony drive.
References
Reference to additional documentation or further literature.
ibaPDA-V6 manual (http://www.iba-oceania.com/) ibaPDA-Interface-Generic-UDP manual (http://www.ibaoceania.com/)
The Sinamics Perfect Harmony Connection Tool can be used by any computer with
ibaPDA UDP Generic license and networked to a Sinamics Perfect Harmony drive
compatible with the NXG Debug Tool.
The tool can connect and pool data from up to four Sinamics Perfect Harmony drives.
This data is wrapped up in a UDP packet compatible with ibaPDA and sent directly to
the interface through a loop back IP address and does not leave the host computer.
The UDP messages are IP Unicast messages sent to user specified ports that must be
reserved by ibaPDA generic interface.
Following drawing gives an overview of a possible configuration where 4 drives are
connected and transmitting UDP messages to 1 ibaPDA system through the
Connection Tool
Each UDP connection is uniquely identified within the connection tool by the ibaPDA
port number, drive IP address and drive name.
Issue 1.1 7
Manual Interface-SiMVD
8 Issue 1.1
Interface-SiMVD Connection Tool specific limitations
The maximum amount of connected drives at one time is four.
The drives must be compatible with NXG Debug Tool
Host computer must have both the Connection Tool and ibaPDA installed and
additionally must be networked to the drives.
The Generic UDP ports specified in the tool must be unused in ibaPDA (default
5010 – 5020 for UPD Generic) prior to configuring ibaPDA with the tool.
3.2 System Topologies
The connections to the drives can be established via the computer's standard Ethernet
ports.
Note
It is recommended carrying out the communication on a separate network segment to
exclude a mutual influence by other network components.
3.3 Installation and Startup
If there is a previous version of ibaSiMVD please uninstall it by means of the Windows
control panel software control.
If you have a zip-file of the new ibaSiMVD version available, e. g. after a download,
unpack it into a (temporary) folder of your choice.
1. Run SiMVBSetup.MSI which will install both the ibaSiMVD service and the
ibaSiMVD interface. e. g. by double-click on the filename in the Windows
Explorer. Follow the instructions of the installation wizard.
2. At the end of the installation both the service and the interface will be installed
AND running.
Important note
While installing a windows warning will pop-up asking for administrative permissions
with an unknown publisher listed. This is a standard pop-up and administrative
permissions must be given in order to install ibaSiMVD.
3.4 Configuration and Engineering ibaSiMVD
To add a Sinamics Perfect Harmony drive, the following must be entered into one of the
drive list rows;
1. enter a drive name,
2. the drives IP address,
3. desired UDP port into the tool
Interface-SiMVD Manual
Issue 1.1 9
4. click the associated
Note
The drives must be on the same network and subnet as the ibaPDA server hosting the
configuration.
An example of this step is indicated in the screenshot below.
Once the drive is added the row will change colour and prevent further editing of the
data entry fields.
A gray row indicates that the drive currently is not connected while a green row
indicates that a connection is established to the drive and the data streams are
available to ibaPDA. The associated
If the row is yellow, and is listed as unrecognized, this indicates the drive listed is
incompatible with ibaSiMVD, see Section 4.3.3 for more detail.
Each additional drive must be given a unique name, IP address and UDP Port.
The
including its information in the Drive List and change back to an
for a new drive to be added.
At the top of the interface is a menu, its functions are covered in section 3.6.
Manual Interface-SiMVD
3.5 Configuration and Engineering ibaPDA
To build a custom ibaPDA I/O configuration file click the
ibaSiMVD interface. This will open a new dialog where you can select which of the
current drives to include into the configuration. Clicking
configuration in a text file that is populated with the selected drives.
Important note
When adding new modules to ibaPDA it is possible to add the same drive twice. This
could happen when generating and importing an already imported drive.
Ensure that the drives selected when generating an import file do not already have a
module listed in ibaPDA or remove the modules in ibaPDA already associated with the
drive before importing.
Within ibaPDA navigate to the I/O Manager and click import configuration from text file
and navigate to the configuration text file generated from the ibaSiMVD connection tool
to import.
If other modules are already installed a popup might inform you that the module
number imported is used. Select the option that suggests the next free module number.
These can always be changed later.
10 Issue 1.1
Interface-SiMVD Manual
This configuration file will map ibaPDA data labels to the associated drives data sent
from ibaSiMVD.
The figure below demonstrates iba I/O manager once the configuration file has been
imported; in this case one drive was imported and no other modules were already
installed in ibaPDA
Issue 1.1 11
Manual Interface-SiMVD
Note
The source IP address column will always display 127.0.0.1 and will not display the
drive IP address. It is important to know which ibaPDA port is assigned to each
Sinamics Perfect Harmony drive by looking at the respective Drive name / port in the
ibaSiMVD Connection Tool.
3.6 User Interface
The ibaSiMVD connection tool has the ability to save the current configuration of drives
to a file. This feature is accessed through
under
Saved configurations can be loaded into ibaSiMVD through the
option also found under
The last option under File is
Under
firmware, licensed dongle number and version numbers. Additionally there is a information for iba support… > menu option which will prompt you for a directory to place a zipped diagnostic report. Lastly selecting support will display a page of contact information. 12 Issue 1.1 Interface-SiMVD Manual 4 Diagnostics 4.1 License Check Each copy of ibaSiMVD is licensed and linked to a unique iba dongle, for this reason the correct iba dongle must be inserted into the machine in order for the services to operate properly. The dongle number of the dongle licensed for a particular copy of ibaSiMVD can be found in the about screen of the ibaSiMVD interface. 4.2 Log Files ibaSiMVD keeps a log of all drives connected to the service and user interactions with the service including: Addition of drives. Removal of drives. Starting and stopping of interface application. Any miscellaneous errors such as a dropped connection. The log is available through the interface under available within windows event viewer. To collect information into a diagnostic report including information from the logs and ibaSiMVD application for support and debugging select the menu option information for iba support…> under file to the selected directory. 4.3 Connection Issues 4.3.1 Drive will not connect to the Sinamics Perfect Harmony Connection tool. Check that the drive can be accessed using the default NXG debug tool on the same computer as the connection tool. If the connection is not possible with the NXG debug tool check the drive is properly setup on the same network as the computer. This can be checked by simply trying to ping the IP associated with the drive through command prompt. 4.3.2 Module connections are not active (Green) in ibaPDA with active connections listed in the Interface. Check the UDP generic port range covers the desired UDP ports. The port range can be found under Manager. Ensure that the destination UDP ports listed in the ibaSiMVD interface match up with the ports within ibaPDA. The UDP port is listed as destination port under the general tab when the module is selected in ibaPDA I/O Manager. One solution is to remove all the associated modules by right clicking them, in the I/O manager, and selecting as per section 3.5 to add the modules back with the correct ports. Additionally add the above ports as exceptions in Windows Firewall settings. Issue 1.1 13 Manual Interface-SiMVD 14 Issue 1.1 4.3.3 Drive has a yellow row in ibaSiMVD and is listed as unrecognized. This indicates that the current drive is using an unsupported firmware version and will not be useable with the current version of ibaSiMVD. Create a support zip file by finding the menu strip. Send the created .zip to iba-Oceania support to indicate that you have compatibility issues with ibaSiMVD. The support files will accelerate the ibaSiMVD compatibility development process for your unsupported drive. Tip To add a port to the exceptions list : 1. Open Windows Firewall. 2. Click the Exceptions tab, and then click Add Port. 3. In Name, type a name for the port exception. This name will appear in the exceptions list. 4. In Port Number, type the number of the port that you want to add to the exceptions list. 5. Click UDP and then click OK. For more details about the windows firewall settings see http://support.microsoft.com/kb/875357 Interface-SiMVD Manual 5 Support and Contact Support Phone: +61 2 49648548 Fax: +61 2 49648877 E-Mail: [email protected] Note If you require support, specify the serial number (iba-S/N) of the product. Contact Headquarters iba Oceania Systems Pty Limited 14 Laverick Avenue 2322 Tomago (NSW) Australia Phone: +61 2 49648548 Fax: +61 2 49648877 E-Mail: iba@iba- oceania.com Contact: Mr. Fritz Woller Regional and Worldwide For contact data of your regional iba office or representative please refer to our web site www.iba-oceania.com Issue 1.1 15
Previous : Siemens Robicon SCR Power Controls 3PCI Series 25A through 1200A Operation Manual
Next : NXG NXGpro Communications Manual For Siemens SINAMICS Robicon Perfect Harmony Drives A5E02924901A
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
