INSTALLATION MANUAL FOR AIR COOLED PERFECT HARMONY GENIII/E SERIES Adjustable Speed AC Motor Drives with Next Generation Control
Table 2-4. 3,300 VAC GENIII Cell Specifications: 9 Cells Total, 3 (630 VAC) Cells in Series ...........2-10
Table 2-5. 4,160 VAC GENIII Cell Specifications: 12 Cells Total, 4 (630 VAC) Cells in Series .........2-11
Table 2-6. 6,600 VAC GENIII Cell Specifications: 18 Cells Total, 6 (630 VAC) Cells in Series .........2-11
Table 2-7. 2,300 VAC GENIIIe Cell Specifications: 6 Cells Total, 2 (690 VAC) Cells in Series .........2-11
Table 2-8. 3,300 VAC GENIIIe Cell Specifications: 9 Cells Total, 3 (690 VAC) Cells in Series .........2-11
Table 2-9. 4,160 VAC GENIIIe Cell Specifications: 12 Cells Total, 4 (690 VAC) Cells in Series .......2-12
Table 2-10. 6,000 VAC GENIIIe Cell Specifications: 15 Cells Total, 5 (690 VAC) Cells in Series .....2-12
Table 2-11. 6,600 VAC GENIIIe Cell Specifications: 18 Cells Total, 6 (690 VAC) Cells in Series .....2-12
Table 1-1. Common Specifications for Standard Perfect Harmony Systems
Item Description
hp range GEN III: Up to 3,000 hp at 6,300V
GEN IIIe: Up to 8000hp at 6,600V
Input line voltages 2.2 kV, 3.0 kV, 3.3 kV, 4.1 kV, 4.8 kV, 6.0 kV, 6.6 kV, 6.9 kV, 7.2 kV, 8.4 kV,
10.0 kV, 11.0 kV, 12.0 kV, 12.5 kV, 13.2 kV, and 13.8 kV.
Input voltage tolerance +10%, -5% from nominal 3-phase at rated output
Input power factor 0.95 above 10% load
Output line voltages 2.4 kV, 3.3 kV, 4.16 kV, 4.8 kV, 6.0 kV, 6.6 kV, 6.9 kV, and 7.2 kV.
Output frequency drift ±0.5%
Speed range 0.5-330 Hz (motor dependent)
Overload capability A function of the installed type of cell.
Accel/decel time range 0.5-3,200 sec (load dependent)
Output torque 15-139 Hz rated torque; 3-14 Hz and 140-330 Hz derated torque
Enclosure NEMA 1 ventilated, IP31
Ambient temperature 0-40°C
Storage Temperature
(System w/o Cells)
-40 to 70°C
Storage Temperature
(Cells*)
-55 to 45°C
Humidity 95% non-condensing
Altitude Up to 3,300 feet. Above 3,300 feet require derating.
Dust contamination <100 micron @ 6.5 mg/cu. ft.
Gas contamination <4 PPB reactive halides and sulfides
*Non-energized cells should not be stored at more than 45°C to preserve reliability of Filter Capacitors.
Non-energized cells stored for more than two (2) years should be reformed per procedure indicated in
Section 3-12 of this manual.
Table 2-2. GENIII Cell Specification Details
Output
Cells Per
Phase
Line-to-line
Voltages (VAC)
Cells in Drive
(Without Spares)
hp Range Available Cell Sizes
3 3,300 9 up to 1500 70A, 100A, 140A, 200A, 260A
4 4,160 12 up to 2000 70A, 100A, 140A, 200A, 260A
6 6,600 18 up to 3000 70A, 100A, 140A, 200A, 260A
Version 1.1 (19000403) ASIRobicon 2-7
Bunya Street Eagle Farm SPS SP010 Dry Well 1 Siemens Perfect Harmony Drives Gen 3 and E Installation Manual Q-Pulse Id TMS815 Active 17/06/2014 Page 25 of 74
HARDWARE COMPONENTS Perfect Harmony GENIII/e Installation Manual

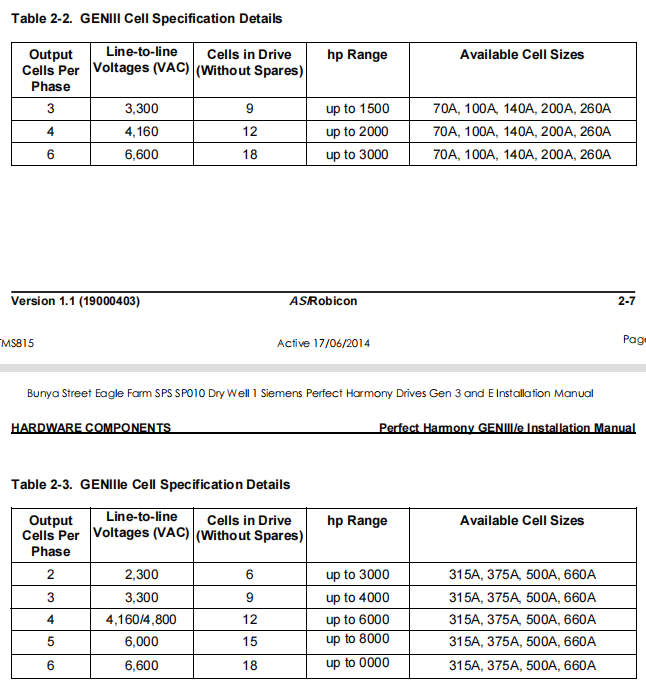

Table 2-3. GENIIIe Cell Specification Details
Output
Cells Per
Phase
Line-to-line
Voltages (VAC)
Cells in Drive
(Without Spares)
hp Range Available Cell Sizes
2 2,300 6 up to 3000 315A, 375A, 500A, 660A
3 3,300 9 up to 4000 315A, 375A, 500A, 660A
4 4,160/4,800 12 up to 6000 315A, 375A, 500A, 660A
5 6,000 15 up to 8000 315A, 375A, 500A, 660A
6 6,600 18 up to 0000 315A, 375A, 500A, 660A
Table 2-4. 3,300 VAC GENIII Cell Specifications: 9 Cells Total, 3 (630 VAC) Cells in SeriesHp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 200 33 70 20,000 4,400 100 4,800 70300 49 70 30,000 4,400 100 4,800 70400 64 70 40,000 4,400 100 5,600 70500 80 100 50,000 4,400 100 6,200 100600 96 100 60,000 4,400 100 6,200 100700 112 140 70,000 4,400 100 7,500 140800 128 140 80,000 4,400 100 7,500 140900 145 200 90,000 8,800 123 7,500 2001000 162 200 100,000 8,800 123 8,000 2001250 202 260 125,000 8,800 137 8,500 2601500 242 260 150,000 8,800 137 9,000 2602-10 ASIRobicon Version 1.1 (19000403)Bunya Street Eagle Farm SPS SP010 Dry Well 1 Siemens Perfect Harmony Drives Gen 3 and E Installation Manual Q-Pulse Id TMS815 Active 17/06/2014 Page 28 of 74Perfect Harmony GENIII/e Installation Manual HARDWARE COMPONENTS Table 2-5. 4,160 VAC GENIII Cell Specifications: 12 Cells Total, 4 (630 VAC) Cells in Series2Hp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 300 38 70 30,000 4,400 100 5,100 70400 51 70 40,000 4,400 100 5,100 70500 63 70 50,000 4,400 100 5,800 70600 75 100 60,000 4,400 100 6,600 100700 89 100 70,000 4,400 100 6,600 100800 101 140 80,000 4,400 100 7,700 140900 114 140 90,000 4,400 100 7,700 1401000 126 140 100,000 4,400 100 7,700 1401250 160 200 125,000 8,800 137 9,500 2001500 192 200 150,000 8,800 137 9,500 2001750 224 260 175,000 8,800 137 10,000 2602000 256 260 200,000 8,800 137 11,000 260Table 2-6. 6,600 VAC GENIII Cell Specifications: 18 Cells Total, 6 (630 VAC) Cells in SeriesHp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 600 48 70 60,000 8,800 137 7,700 70700 56 70 70,000 8,800 137 9,000 70800 64 70 80,000 8,800 137 9,000 70900 72 100 90,000 8,800 137 9,000 1001000 80 100 100,000 8,800 137 10,400 1001250 100 100 125,000 8,800 137 10,400 1001500 120 140 150,000 8,800 137 12,300 1401750 140 140 175,000 8,800 137 12,300 1401750 141 200 175,000 13,200 172 12,500 2002000 162 200 200,000 13,200 192 13,000 2002250 182 200 225,000 13,200 192 13,000 2002500 202 260 250,000 13,200 192 13,500 2602750 222 260 275,000 13,200 192 14,000 2603000 242 260 300,000 13,200 192 14,000 260Table 2-7. 2,300 VAC GENIIIe Cell Specifications: 6 Cells Total, 2 (690 VAC) Cells in SeriesHp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 1500 324 375 114,000 8,800 172 7,450 375H1750 378 375 133,000 8,800 172 8,200 375H2000 432 500 152,000 8,800 172 8,800 500H2250 486 500 171,000 8,800 172 9,500 500H2500 540 660 190,000 8,800 172 10,200 660H3000 648 660 228,000 8,800 188 11,500 660HTable 2-8. 3,300 VAC GENIIIe Cell Specifications: 9 Cells Total, 3 (690 VAC) Cells in SeriesHp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 1750 264 315 133,000 15,000 172 9,700 315H2000 301 315 152,000 15,000 172 11,200 315H2250 339 375 171,000 15,000 172 11,200 375HVersion 1.1 (19000403) ASIRobicon 2-11Bunya Street Eagle Farm SPS SP010 Dry Well 1 Siemens Perfect Harmony Drives Gen 3 and E Installation Manual Q-Pulse Id TMS815 Active 17/06/2014 Page 29 of 74HARDWARE COMPONENTS Perfect Harmony GENIII/e Installation Manual 2Hp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 2500 377 375 190,000 15,000 172 12,000 375H3000 452 500 228,000 15,000 188 13,400 500H3500 527 660 266,000 15,000 188 14,900 660H4000 603 660 304,000 15,000 188 16,400 660HTable 2-9. 4,160 VAC GENIIIe Cell Specifications: 12 Cells Total, 4 (690 VAC) Cells in SeriesHp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 2250 269 315 171,000 18,000 192 13,800 315H2500 299 315 190,000 18,000 192 14,600 315H3000 359 375 228,000 18,000 208 16,200 375H3500 418 500 266,000 18,000 208 17,900 500H4000 487 500 304,000 18,000 208 19,100 500H5000 598 660 380,000 18,000 232 22,800 660HTable 2-10. 6,000 VAC GENIIIe Cell Specifications: 15 Cells Total, 5 (690 VAC) Cells in SeriesHp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 3500 290 315 266,000 25,000 248 20,100 315H4000 331 375 304,000 25,000 272 21,900 375H5000 414 500 380,000 25,000 272 25,500 500H6000 497 500 450,000 25,000 272 29,100 500H7000 580 660 532,000 25,000 272 32,700 660HTable 2-11. 6,600 VAC GENIIIe Cell Specifications: 18 Cells Total, 6 (690 VAC) Cells in SeriesHp1 Amps In2 Amps Out3 Losses4 Ventilation5 Length6 Weight7 Size8 3500 264 315 266,000 28,000 248 21,900 315H4000 301 315 304,000 28,000 272 23,800 315H5000 377 375 380,000 28,000 272 27,700 375H6000 452 500 450,000 28,000 272 31,600 500H7000 527 660 532,000 28,000 272 35,500 660H8000 603 660 608,000 28,000 272 39,400 660H1 Motor nameplate hp may not exceed the drive rated hp.
