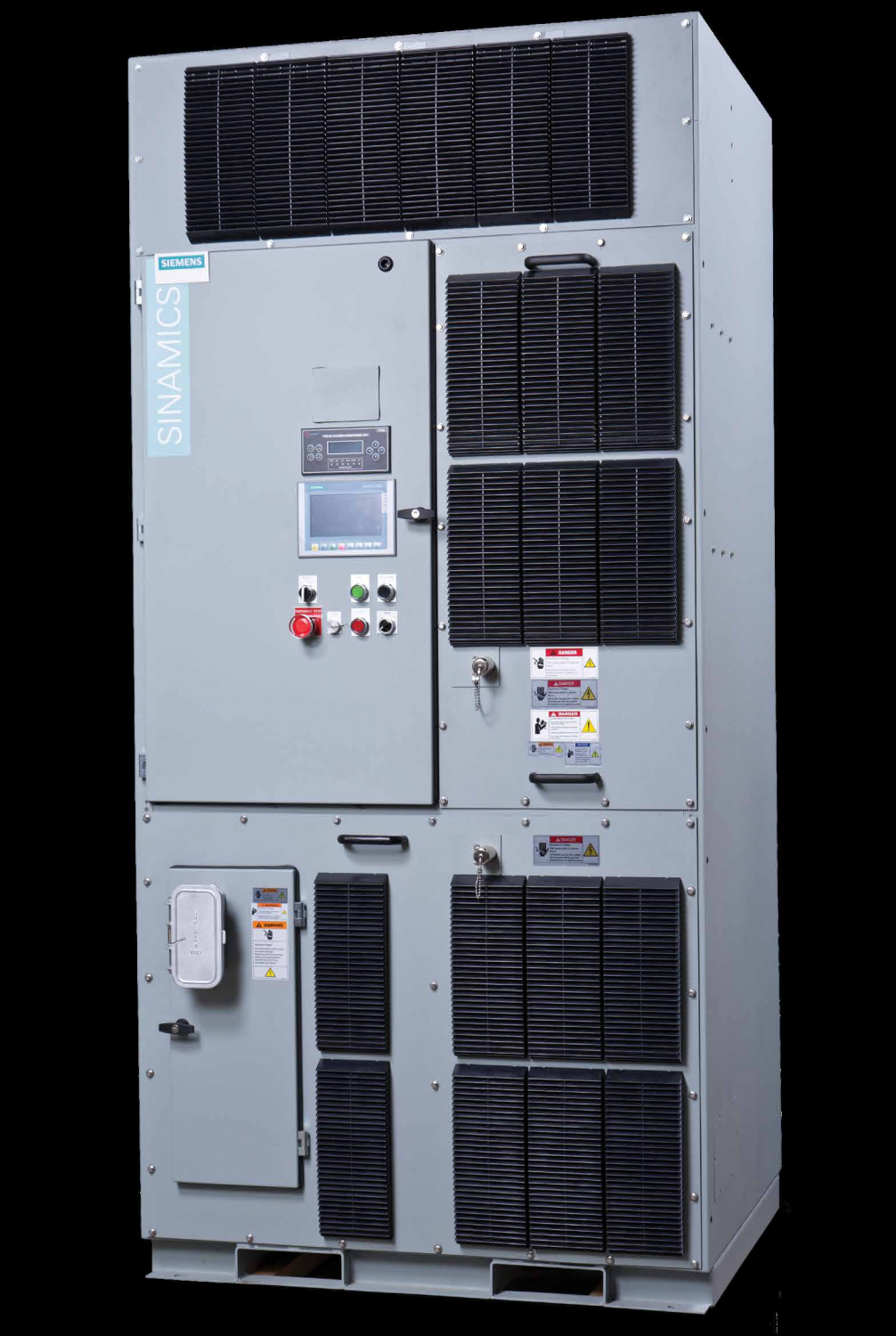

Siemens SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
Siemens SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
AIR-COOLED DRIVES
SINAMICS PERFECT
HARMONY GH180
usa.siemens.com/perfectharmony
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
When reliability is all
you have room for.
When it comes to improving throughput, increasing efficiency and
standardizing solutions, operating conditions will never be perfect –
but at least your drives can be. Whether square footage is at a premium or
downtime is not an option, reliability is something you can’t stand to spare.
Siemens developed a drive to fit virtually anywhere – perfectly.
SINAMICS PERFECT
HARMONY GH180 is:
• Highly Reliable
Provides fault tolerance via
Advanced Cell Bypass
• Energy-Efficient
Increases process control
to improve throughput and
reduce energy waste
• Line-Friendly
Achieves a near-unity power
factor by eliminating harmonic
voltage and current distortion
• Motor-Friendly
Eliminates harmonic heating
and insulation stress
• Load-Friendly
Eliminates significant
torque pulsations
• Process-Focused
Prevents system shutdown
by proactively warning the
operator of any issues
A highly efficient solution for low power applications
The SINAMICS PERFECT HARMONY GH180 air-cooled drive delivers optimal power and protection.
Siemens power cell design allows for less maintenance and greater availability. And when combined with
up to 90% savings on cable costs, the result is a significantly lower total cost of ownership over the drive’s
lifecycle. No other drive offers the savings and reliability that the SINAMICS PERFECT HARMONY GH180 does,
making it the ideal solution for low power applications — especially those requiring cable lengths over
200 feet. Now you can retrofit your medium-voltage soft starter systems to achieve improved efficiency
and process control.
2
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
A drive that's sized for
what's essential.
Compact Footprint
Upgrade your drive without giving up critical space. The SINAMICS PERFECT HARMONY GH180 drive fits easily
into retrofits and other applications where space is at a premium.
Fast & Simple Commissioning
The SINAMICS PERFECT HARMONY GH180 drive offers a simplified system, with enhanced serviceability and
reduced commissioning. In some instances, commissioning time is as little as 1-2 days!
Low Voltage Compatibility
The SINAMICS PERFECT HARMONY GH180 drive supports 480V or 600V input voltages up to 1500 HP –
making this drive ideal for new or retrofit applications.
Common Design
The SINAMICS PERFECT HARMONY drive family offers a consistent design with common spares, which can
allow for a reduction in parts inventory.
Significant Savings
With the SINAMICS PERFECT HARMONY GH180 drive, you will realize tremendous savings on cables and conduit.
Savings on installation and lifetime operating costs will also be realized, thanks to infrequent maintenance needs.
Ease of Use
The SINAMICS PERFECT HARMONY drive features enhancements including the
Siemens SIMATICS HMI, low weight power cells, front access blowers with
a common service lifter for cell and blower removal. In addition,
the new louver design provides users with unparalleled ease of use.
Energy Efficiency
SINAMICS PERFECT HARMONY drives offer up to
96.5% energy efficiency through the speed range.
Compatible with Any Motor Type
SINAMICS PERFECT HARMONY GH180 drives
are compatible with any motor type including
induction, synchronous, permanent magnet,
and round rotor motors.
3
The perfect solution for
imperfect conditions.
As the demand for power and raw
materials continues to grow, U.S.
manufacturers are faced with an
increasing number of operational
challenges. For some, it’s the remote
location of their plants; others have
harsh environments to consider.
But although operating conditions
are never perfect, your process
has to be — because in today’s
competitive market, downtime
is not an option. That’s why there’s
SINAMICS PERFECT HARMONY.
Every element of the SINAMICS PERFECT HARMONY
GH180 drive is engineered to maximize productivity
and protect your process in a way that other drives
can’t. Designed in compact air-cooled Configurations,
the SINAMICS PERFECT HARMONY drive deliver
superior versatility, efficiency and process
availability for the most demanding applications.
And because reliability is a paramount concern
for today’s manufacturers, Siemens equipped
the SINAMICS PERFECT HARMONY drive with
50+ patented technologies proven to increase
the dependability of critical processes. The
drive’s modularity provides a scalable solution
that achieves near-100% reliability and 99.99%
availability, resulting in a significantly reduced
total cost of ownership over the drive’s lifecycle.
A series cell configuration even allows the drive
to withstand failures that would overwhelm
conventional drives and shut down the
plant process.
Unparalleled Benefits:
• Impressive potential 3 year pay back on fan
and pump applications
• Up to 4% improved efficiency on low power
applications when compared to high-lowhigh solutions
• Incredible flexibility to suit virtually
any application
• Fast lead time to meet even the most
demanding schedules
• Optimized at low horsepower ratings
4
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
Advanced Cell Bypass
In less than a quarter of a second, the SINAMICS PERFECT
HARMONY GH180 drive can bypass multiple failed cells to
maintain a balanced output voltage. With one cell in bypass,
the drive still produces sufficient voltage to allow the process
to continue uninterrupted, and the quality of the voltage and
waveform remain virtually unchanged.
Clean Power Input
SINAMICS PERFECT HARMONY drives meet the most stringent
IEEE 519-2014 requirements for voltage and current harmonic
distortion. An integrated sinusoidal converter not only
eliminates the need for harmonic filters, power factor
correction capacitors or extra bus capacity, but also protects
other online equipment from harmonic disturbances.
Superior reliability and
enhanced performance.
High-Quality Output
No drive offers a higher-quality waveform output than
SINAMICS PERFECT HARMONY. With 13 levels of non-harmonic
output voltage, it accommodates any standard motor without
requiring additional output or dv / dt filters — which can
reduce efficiency and reliability — and it provides the lowest
peak voltage to the motor windings to help extend motor life.
Environmental Tolerance
Only SINAMICS PERFECT HARMONY drives are engineered to
operate reliably in environments with ambient temperatures
ranging from -40° C to +50° C. No other drive can tolerate
such a broad range of extreme conditions. An optional PDC
allows the drive to withstand even the harshest outdoor
conditions, from tropical environments to frozen tundras.
5
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
Efficiency
• Typical power converter: 99%
• Typical total drive system: 96.5%
Input Transformer
• Aluminum or copper windings, forced-air cooling
Line Supply Connection
• Input voltage and voltage tolerance: 480V–7.2 kV, ±10%
8.4kV–13.8kV*, ±10%
• Input frequency: 50 or 60 Hz, ±5%
• Input power factor: ≥ 0.95 above 10% load
Motor-Side Inverter
• Multilevel drive PWM topology
• IGBT power modules
Motor Control
• Induction motors
• Synchronous motors
• Permanent magnet motors
• Wound rotor motors
Motor Insulation Requirement
• All standard motor insulations with no filters
Output Torque
• Rated torque (2Q) available from 10–167 Hz
• Optional: 4Q up to 500A at 50-60Hz
Control
• Vector control
Input Current Harmonics
• ≤ 5% TDD (total demand distortion)
• Meets or exceeds IEEE-519-2014
Ride-Through
• Minimum of five cycles after loss of input medium voltage without tripping
Output Frequency and Drift
0.5–330 Hz, ±0.5%
Output Voltage Harmonics (THDi)
2.0%–2.5%
Enclosure
NEMA 1; IP42 standard
* Certain HPs require a 24" cabinet for input voltages >7.2kV
Technical data at a glance.
6
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives

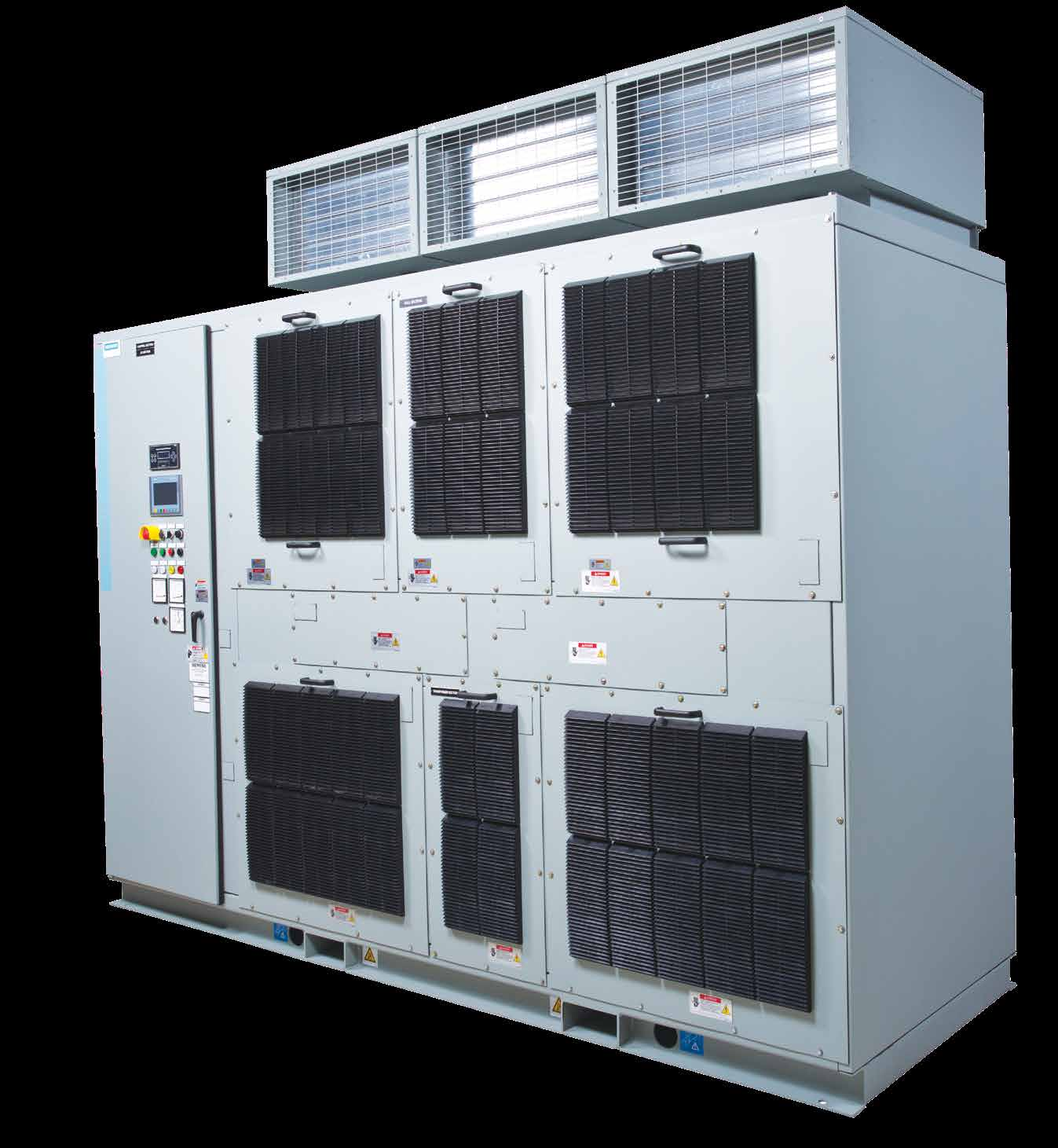

SINAMICS PERFECT HARMONY
GH180 Air-Cooled Drive
7
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
SIDRIVE IQ –
our holistic solution
and service to lloT
for drive systems
SIDRIVE IQ is an integral component of SINAMICS drives.
SINAMICS drives are equipped with a connectivity module
(SINAMICS CONNECT 500) so that they can be easily
integrated into our digital, cloud-based solution.
Condition data such as drive information, historic logs,
parameters and fault logs are evaluated, processed and
sent to our cloud for analysis. In addition to that, it can
be analyzed with our digital platform SIDRIVE IQ Suite.
With SIDRIVE IQ Suite, users can track and visualize
various drive system conditions, show trends, error
messages and generate reports.
The goal of SIDRIVE IQ is to:
• Boost your productivity
• Reduce service and maintenance costs
• Increase availability
• Shorten unplanned downtimes
SIDRIVE IQ – the holistic solution and service to IIoT for
your drive system
Siemens.com/sidrive-iq
SERENITY, SECURITY, SIDRIVE IQ
Trust every choice.
9

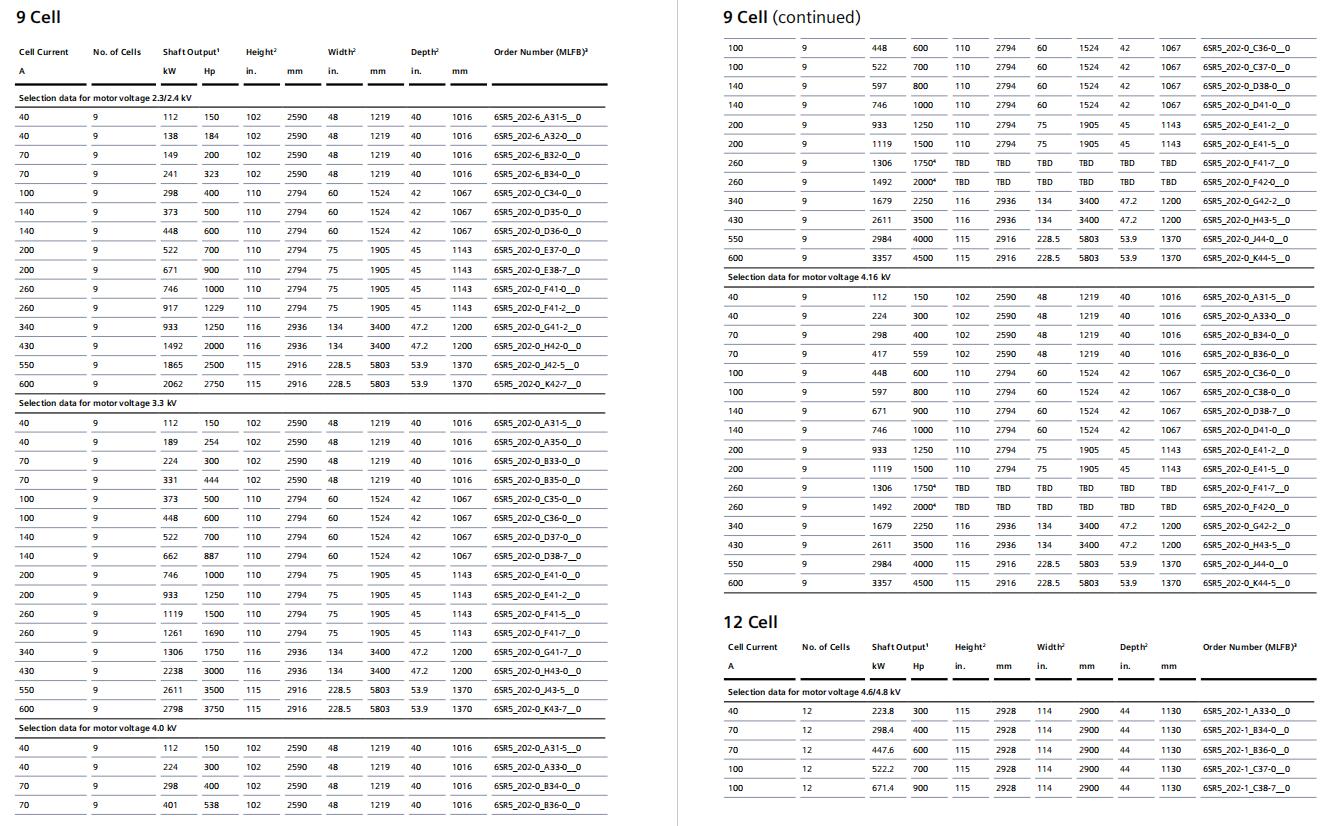

9 Cell
Cell Current No. of Cells Shaft Output1 Height2 Width2 Depth2 Order Number (MLFB)3 A kW Hp in. mm in. mm in. mm
Selection data for motor voltage 2.3/2.4 kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5_202-6_A31-5__0
40 9 138 184 102 2590 48 1219 40 1016 6SR5_202-6_A32-0__0
70 9 149 200 102 2590 48 1219 40 1016 6SR5_202-6_B32-0__0
70 9 241 323 102 2590 48 1219 40 1016 6SR5_202-6_B34-0__0
100 9 298 400 110 2794 60 1524 42 1067 6SR5_202-0_C34-0__0
140 9 373 500 110 2794 60 1524 42 1067 6SR5_202-0_D35-0__0
140 9 448 600 110 2794 60 1524 42 1067 6SR5_202-0_D36-0__0
200 9 522 700 110 2794 75 1905 45 1143 6SR5_202-0_E37-0__0
200 9 671 900 110 2794 75 1905 45 1143 6SR5_202-0_E38-7__0
260 9 746 1000 110 2794 75 1905 45 1143 6SR5_202-0_F41-0__0
260 9 917 1229 110 2794 75 1905 45 1143 6SR5_202-0_F41-2__0
340 9 933 1250 116 2936 134 3400 47.2 1200 6SR5_202-0_G41-2__0
430 9 1492 2000 116 2936 134 3400 47.2 1200 6SR5_202-0_H42-0__0
550 9 1865 2500 115 2916 228.5 5803 53.9 1370 6SR5_202-0_J42-5__0
600 9 2062 2750 115 2916 228.5 5803 53.9 1370 65R5_202-0_K42-7__0
Selection data for motor voltage 3.3 kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5_202-0_A31-5__0
40 9 189 254 102 2590 48 1219 40 1016 6SR5_202-0_A35-0__0
70 9 224 300 102 2590 48 1219 40 1016 6SR5_202-0_B33-0__0
70 9 331 444 102 2590 48 1219 40 1016 6SR5_202-0_B35-0__0
100 9 373 500 110 2794 60 1524 42 1067 6SR5_202-0_C35-0__0
100 9 448 600 110 2794 60 1524 42 1067 6SR5_202-0_C36-0__0
140 9 522 700 110 2794 60 1524 42 1067 6SR5_202-0_D37-0__0
140 9 662 887 110 2794 60 1524 42 1067 6SR5_202-0_D38-7__0
200 9 746 1000 110 2794 75 1905 45 1143 6SR5_202-0_E41-0__0
200 9 933 1250 110 2794 75 1905 45 1143 6SR5_202-0_E41-2__0
260 9 1119 1500 110 2794 75 1905 45 1143 6SR5_202-0_F41-5__0
260 9 1261 1690 110 2794 75 1905 45 1143 6SR5_202-0_F41-7__0
340 9 1306 1750 116 2936 134 3400 47.2 1200 6SR5_202-0_G41-7__0
430 9 2238 3000 116 2936 134 3400 47.2 1200 6SR5_202-0_H43-0__0
550 9 2611 3500 115 2916 228.5 5803 53.9 1370 6SR5_202-0_J43-5__0
600 9 2798 3750 115 2916 228.5 5803 53.9 1370 6SR5_202-0_K43-7__0
Selection data for motor voltage 4.0 kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5_202-0_A31-5__0
40 9 224 300 102 2590 48 1219 40 1016 6SR5_202-0_A33-0__0
70 9 298 400 102 2590 48 1219 40 1016 6SR5_202-0_B34-0__0
70 9 401 538 102 2590 48 1219 40 1016 6SR5_202-0_B36-0__0
9
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
9 Cell (continued)
12 Cell
Cell Current No. of Cells Shaft Output1 Height2 Width2 Depth2 Order Number (MLFB)3 A kW Hp in. mm in. mm in. mm
Selection data for motor voltage 4.6/4.8 kV
40 12 223.8 300 115 2928 114 2900 44 1130 6SR5_202-1_A33-0__0
70 12 298.4 400 115 2928 114 2900 44 1130 6SR5_202-1_B34-0__0
70 12 447.6 600 115 2928 114 2900 44 1130 6SR5_202-1_B36-0__0
100 12 522.2 700 115 2928 114 2900 44 1130 6SR5_202-1_C37-0__0
100 12 671.4 900 115 2928 114 2900 44 1130 6SR5_202-1_C38-7__0
100 9 448 600 110 2794 60 1524 42 1067 6SR5_202-0_C36-0__0
100 9 522 700 110 2794 60 1524 42 1067 6SR5_202-0_C37-0__0
140 9 597 800 110 2794 60 1524 42 1067 6SR5_202-0_D38-0__0
140 9 746 1000 110 2794 60 1524 42 1067 6SR5_202-0_D41-0__0
200 9 933 1250 110 2794 75 1905 45 1143 6SR5_202-0_E41-2__0
200 9 1119 1500 110 2794 75 1905 45 1143 6SR5_202-0_E41-5__0
260 9 1306 17504 TBD TBD TBD TBD TBD TBD 6SR5_202-0_F41-7__0
260 9 1492 20004 TBD TBD TBD TBD TBD TBD 6SR5_202-0_F42-0__0
340 9 1679 2250 116 2936 134 3400 47.2 1200 6SR5_202-0_G42-2__0
430 9 2611 3500 116 2936 134 3400 47.2 1200 6SR5_202-0_H43-5__0
550 9 2984 4000 115 2916 228.5 5803 53.9 1370 6SR5_202-0_J44-0__0
600 9 3357 4500 115 2916 228.5 5803 53.9 1370 6SR5_202-0_K44-5__0
Selection data for motor voltage 4.16 kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5_202-0_A31-5__0
40 9 224 300 102 2590 48 1219 40 1016 6SR5_202-0_A33-0__0
70 9 298 400 102 2590 48 1219 40 1016 6SR5_202-0_B34-0__0
70 9 417 559 102 2590 48 1219 40 1016 6SR5_202-0_B36-0__0
100 9 448 600 110 2794 60 1524 42 1067 6SR5_202-0_C36-0__0
100 9 597 800 110 2794 60 1524 42 1067 6SR5_202-0_C38-0__0
140 9 671 900 110 2794 60 1524 42 1067 6SR5_202-0_D38-7__0
140 9 746 1000 110 2794 60 1524 42 1067 6SR5_202-0_D41-0__0
200 9 933 1250 110 2794 75 1905 45 1143 6SR5_202-0_E41-2__0
200 9 1119 1500 110 2794 75 1905 45 1143 6SR5_202-0_E41-5__0
260 9 1306 17504 TBD TBD TBD TBD TBD TBD 6SR5_202-0_F41-7__0
260 9 1492 20004 TBD TBD TBD TBD TBD TBD 6SR5_202-0_F42-0__0
340 9 1679 2250 116 2936 134 3400 47.2 1200 6SR5_202-0_G42-2__0
430 9 2611 3500 116 2936 134 3400 47.2 1200 6SR5_202-0_H43-5__0
550 9 2984 4000 115 2916 228.5 5803 53.9 1370 6SR5_202-0_J44-0__0
600 9 3357 4500 115 2916 228.5 5803 53.9 1370 6SR5_202-0_K44-5__0
10
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives

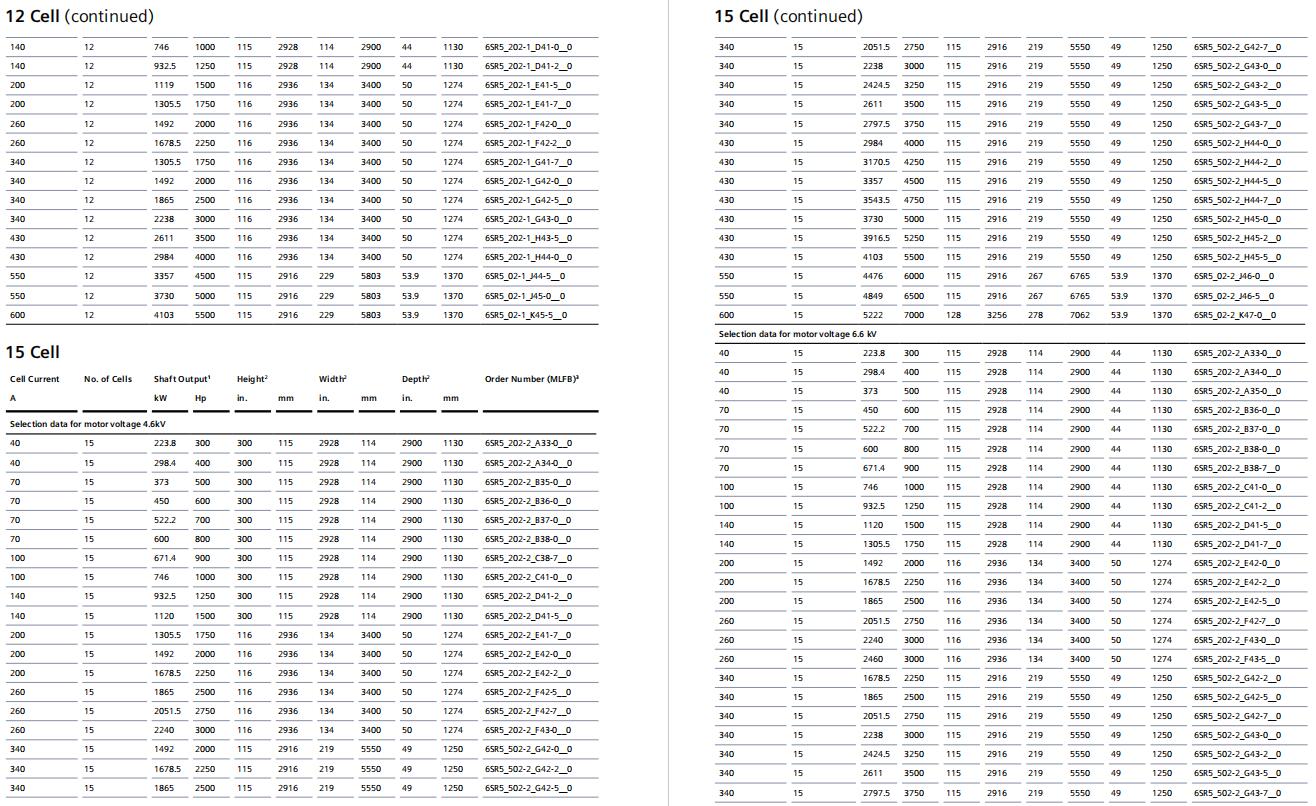

12 Cell (continued)
140 12 746 1000 115 2928 114 2900 44 1130 6SR5_202-1_D41-0__0
140 12 932.5 1250 115 2928 114 2900 44 1130 6SR5_202-1_D41-2__0
200 12 1119 1500 116 2936 134 3400 50 1274 6SR5_202-1_E41-5__0
200 12 1305.5 1750 116 2936 134 3400 50 1274 6SR5_202-1_E41-7__0
260 12 1492 2000 116 2936 134 3400 50 1274 6SR5_202-1_F42-0__0
260 12 1678.5 2250 116 2936 134 3400 50 1274 6SR5_202-1_F42-2__0
340 12 1305.5 1750 116 2936 134 3400 50 1274 6SR5_202-1_G41-7__0
340 12 1492 2000 116 2936 134 3400 50 1274 6SR5_202-1_G42-0__0
340 12 1865 2500 116 2936 134 3400 50 1274 6SR5_202-1_G42-5__0
340 12 2238 3000 116 2936 134 3400 50 1274 6SR5_202-1_G43-0__0
430 12 2611 3500 116 2936 134 3400 50 1274 6SR5_202-1_H43-5__0
430 12 2984 4000 116 2936 134 3400 50 1274 6SR5_202-1_H44-0__0
550 12 3357 4500 115 2916 229 5803 53.9 1370 6SR5_02-1_J44-5__0
550 12 3730 5000 115 2916 229 5803 53.9 1370 6SR5_02-1_J45-0__0
600 12 4103 5500 115 2916 229 5803 53.9 1370 6SR5_02-1_K45-5__0
15 Cell
Cell Current No. of Cells Shaft Output1 Height2 Width2 Depth2 Order Number (MLFB)3 A kW Hp in. mm in. mm in. mm
Selection data for motor voltage 4.6kV
40 15 223.8 300 300 115 2928 114 2900 1130 6SR5_202-2_A33-0__0
40 15 298.4 400 300 115 2928 114 2900 1130 6SR5_202-2_A34-0__0
70 15 373 500 300 115 2928 114 2900 1130 6SR5_202-2_B35-0__0
70 15 450 600 300 115 2928 114 2900 1130 6SR5_202-2_B36-0__0
70 15 522.2 700 300 115 2928 114 2900 1130 6SR5_202-2_B37-0__0
70 15 600 800 300 115 2928 114 2900 1130 6SR5_202-2_B38-0__0
100 15 671.4 900 300 115 2928 114 2900 1130 6SR5_202-2_C38-7__0
100 15 746 1000 300 115 2928 114 2900 1130 6SR5_202-2_C41-0__0
140 15 932.5 1250 300 115 2928 114 2900 1130 6SR5_202-2_D41-2__0
140 15 1120 1500 300 115 2928 114 2900 1130 6SR5_202-2_D41-5__0
200 15 1305.5 1750 116 2936 134 3400 50 1274 6SR5_202-2_E41-7__0
200 15 1492 2000 116 2936 134 3400 50 1274 6SR5_202-2_E42-0__0
200 15 1678.5 2250 116 2936 134 3400 50 1274 6SR5_202-2_E42-2__0
260 15 1865 2500 116 2936 134 3400 50 1274 6SR5_202-2_F42-5__0
260 15 2051.5 2750 116 2936 134 3400 50 1274 6SR5_202-2_F42-7__0
260 15 2240 3000 116 2936 134 3400 50 1274 6SR5_202-2_F43-0__0
340 15 1492 2000 115 2916 219 5550 49 1250 6SR5_502-2_G42-0__0
340 15 1678.5 2250 115 2916 219 5550 49 1250 6SR5_502-2_G42-2__0
340 15 1865 2500 115 2916 219 5550 49 1250 6SR5_502-2_G42-5__0
11
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
340 15 2051.5 2750 115 2916 219 5550 49 1250 6SR5_502-2_G42-7__0
340 15 2238 3000 115 2916 219 5550 49 1250 6SR5_502-2_G43-0__0
340 15 2424.5 3250 115 2916 219 5550 49 1250 6SR5_502-2_G43-2__0
340 15 2611 3500 115 2916 219 5550 49 1250 6SR5_502-2_G43-5__0
340 15 2797.5 3750 115 2916 219 5550 49 1250 6SR5_502-2_G43-7__0
430 15 2984 4000 115 2916 219 5550 49 1250 6SR5_502-2_H44-0__0
430 15 3170.5 4250 115 2916 219 5550 49 1250 6SR5_502-2_H44-2__0
430 15 3357 4500 115 2916 219 5550 49 1250 6SR5_502-2_H44-5__0
430 15 3543.5 4750 115 2916 219 5550 49 1250 6SR5_502-2_H44-7__0
430 15 3730 5000 115 2916 219 5550 49 1250 6SR5_502-2_H45-0__0
430 15 3916.5 5250 115 2916 219 5550 49 1250 6SR5_502-2_H45-2__0
430 15 4103 5500 115 2916 219 5550 49 1250 6SR5_502-2_H45-5__0
550 15 4476 6000 115 2916 267 6765 53.9 1370 6SR5_02-2_J46-0__0
550 15 4849 6500 115 2916 267 6765 53.9 1370 6SR5_02-2_J46-5__0
600 15 5222 7000 128 3256 278 7062 53.9 1370 6SR5_02-2_K47-0__0
Selection data for motor voltage 6.6 kV
40 15 223.8 300 115 2928 114 2900 44 1130 6SR5_202-2_A33-0__0
40 15 298.4 400 115 2928 114 2900 44 1130 6SR5_202-2_A34-0__0
40 15 373 500 115 2928 114 2900 44 1130 6SR5_202-2_A35-0__0
70 15 450 600 115 2928 114 2900 44 1130 6SR5_202-2_B36-0__0
70 15 522.2 700 115 2928 114 2900 44 1130 6SR5_202-2_B37-0__0
70 15 600 800 115 2928 114 2900 44 1130 6SR5_202-2_B38-0__0
70 15 671.4 900 115 2928 114 2900 44 1130 6SR5_202-2_B38-7__0
100 15 746 1000 115 2928 114 2900 44 1130 6SR5_202-2_C41-0__0
100 15 932.5 1250 115 2928 114 2900 44 1130 6SR5_202-2_C41-2__0
140 15 1120 1500 115 2928 114 2900 44 1130 6SR5_202-2_D41-5__0
140 15 1305.5 1750 115 2928 114 2900 44 1130 6SR5_202-2_D41-7__0
200 15 1492 2000 116 2936 134 3400 50 1274 6SR5_202-2_E42-0__0
200 15 1678.5 2250 116 2936 134 3400 50 1274 6SR5_202-2_E42-2__0
200 15 1865 2500 116 2936 134 3400 50 1274 6SR5_202-2_E42-5__0
260 15 2051.5 2750 116 2936 134 3400 50 1274 6SR5_202-2_F42-7__0
260 15 2240 3000 116 2936 134 3400 50 1274 6SR5_202-2_F43-0__0
260 15 2460 3000 116 2936 134 3400 50 1274 6SR5_202-2_F43-5__0
340 15 1678.5 2250 115 2916 219 5550 49 1250 6SR5_502-2_G42-2__0
340 15 1865 2500 115 2916 219 5550 49 1250 6SR5_502-2_G42-5__0
340 15 2051.5 2750 115 2916 219 5550 49 1250 6SR5_502-2_G42-7__0
340 15 2238 3000 115 2916 219 5550 49 1250 6SR5_502-2_G43-0__0
340 15 2424.5 3250 115 2916 219 5550 49 1250 6SR5_502-2_G43-2__0
340 15 2611 3500 115 2916 219 5550 49 1250 6SR5_502-2_G43-5__0
340 15 2797.5 3750 115 2916 219 5550 49 1250 6SR5_502-2_G43-7__0
15 Cell (continued)
12
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives

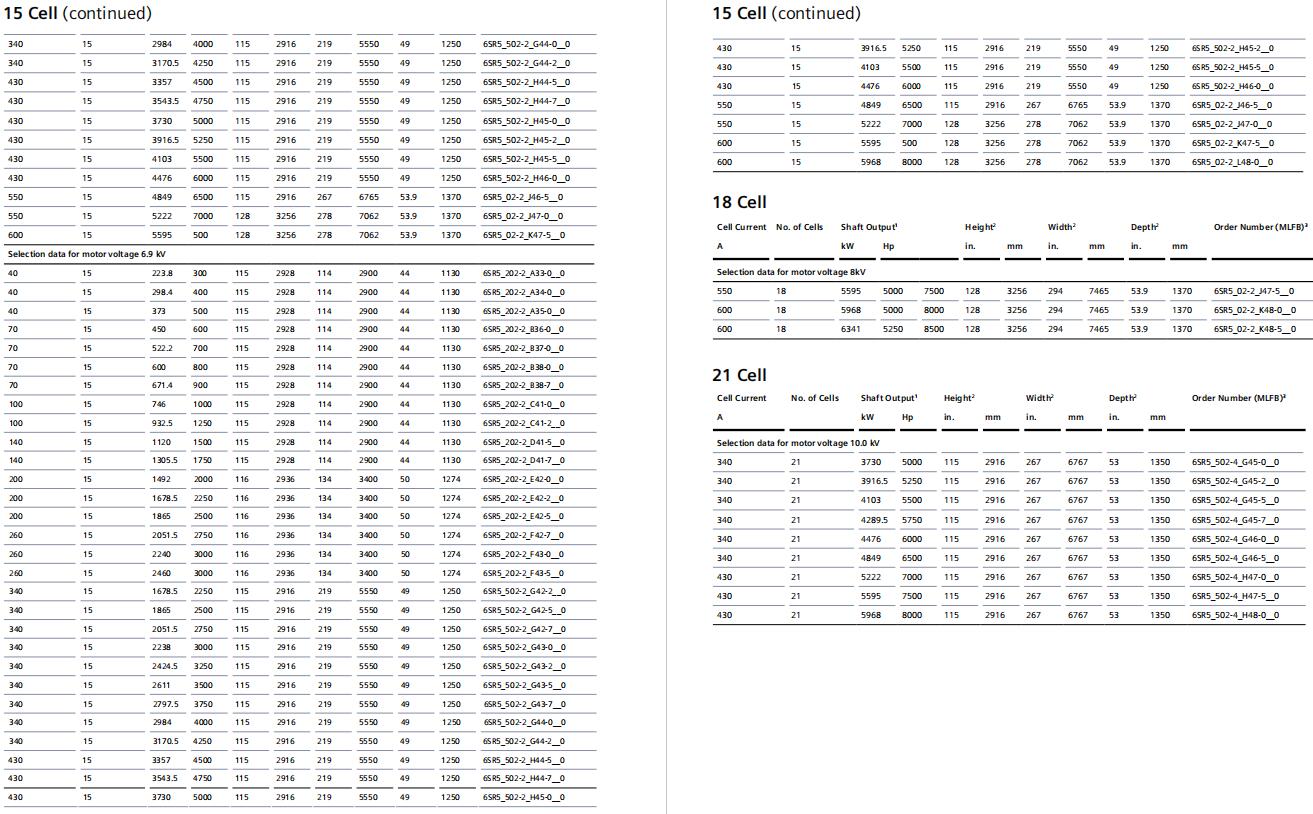

340 15 2984 4000 115 2916 219 5550 49 1250 6SR5_502-2_G44-0__0
340 15 3170.5 4250 115 2916 219 5550 49 1250 6SR5_502-2_G44-2__0
430 15 3357 4500 115 2916 219 5550 49 1250 6SR5_502-2_H44-5__0
430 15 3543.5 4750 115 2916 219 5550 49 1250 6SR5_502-2_H44-7__0
430 15 3730 5000 115 2916 219 5550 49 1250 6SR5_502-2_H45-0__0
430 15 3916.5 5250 115 2916 219 5550 49 1250 6SR5_502-2_H45-2__0
430 15 4103 5500 115 2916 219 5550 49 1250 6SR5_502-2_H45-5__0
430 15 4476 6000 115 2916 219 5550 49 1250 6SR5_502-2_H46-0__0
550 15 4849 6500 115 2916 267 6765 53.9 1370 6SR5_02-2_J46-5__0
550 15 5222 7000 128 3256 278 7062 53.9 1370 6SR5_02-2_J47-0__0
600 15 5595 500 128 3256 278 7062 53.9 1370 6SR5_02-2_K47-5__0
Selection data for motor voltage 6.9 kV
40 15 223.8 300 115 2928 114 2900 44 1130 6SR5_202-2_A33-0__0
40 15 298.4 400 115 2928 114 2900 44 1130 6SR5_202-2_A34-0__0
40 15 373 500 115 2928 114 2900 44 1130 6SR5_202-2_A35-0__0
70 15 450 600 115 2928 114 2900 44 1130 6SR5_202-2_B36-0__0
70 15 522.2 700 115 2928 114 2900 44 1130 6SR5_202-2_B37-0__0
70 15 600 800 115 2928 114 2900 44 1130 6SR5_202-2_B38-0__0
70 15 671.4 900 115 2928 114 2900 44 1130 6SR5_202-2_B38-7__0
100 15 746 1000 115 2928 114 2900 44 1130 6SR5_202-2_C41-0__0
100 15 932.5 1250 115 2928 114 2900 44 1130 6SR5_202-2_C41-2__0
140 15 1120 1500 115 2928 114 2900 44 1130 6SR5_202-2_D41-5__0
140 15 1305.5 1750 115 2928 114 2900 44 1130 6SR5_202-2_D41-7__0
200 15 1492 2000 116 2936 134 3400 50 1274 6SR5_202-2_E42-0__0
200 15 1678.5 2250 116 2936 134 3400 50 1274 6SR5_202-2_E42-2__0
200 15 1865 2500 116 2936 134 3400 50 1274 6SR5_202-2_E42-5__0
260 15 2051.5 2750 116 2936 134 3400 50 1274 6SR5_202-2_F42-7__0
260 15 2240 3000 116 2936 134 3400 50 1274 6SR5_202-2_F43-0__0
260 15 2460 3000 116 2936 134 3400 50 1274 6SR5_202-2_F43-5__0
340 15 1678.5 2250 115 2916 219 5550 49 1250 6SR5_502-2_G42-2__0
340 15 1865 2500 115 2916 219 5550 49 1250 6SR5_502-2_G42-5__0
340 15 2051.5 2750 115 2916 219 5550 49 1250 6SR5_502-2_G42-7__0
340 15 2238 3000 115 2916 219 5550 49 1250 6SR5_502-2_G43-0__0
340 15 2424.5 3250 115 2916 219 5550 49 1250 6SR5_502-2_G43-2__0
340 15 2611 3500 115 2916 219 5550 49 1250 6SR5_502-2_G43-5__0
340 15 2797.5 3750 115 2916 219 5550 49 1250 6SR5_502-2_G43-7__0
340 15 2984 4000 115 2916 219 5550 49 1250 6SR5_502-2_G44-0__0
340 15 3170.5 4250 115 2916 219 5550 49 1250 6SR5_502-2_G44-2__0
430 15 3357 4500 115 2916 219 5550 49 1250 6SR5_502-2_H44-5__0
430 15 3543.5 4750 115 2916 219 5550 49 1250 6SR5_502-2_H44-7__0
430 15 3730 5000 115 2916 219 5550 49 1250 6SR5_502-2_H45-0__0
15 Cell (continued)
13
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
430 15 3916.5 5250 115 2916 219 5550 49 1250 6SR5_502-2_H45-2__0
430 15 4103 5500 115 2916 219 5550 49 1250 6SR5_502-2_H45-5__0
430 15 4476 6000 115 2916 219 5550 49 1250 6SR5_502-2_H46-0__0
550 15 4849 6500 115 2916 267 6765 53.9 1370 6SR5_02-2_J46-5__0
550 15 5222 7000 128 3256 278 7062 53.9 1370 6SR5_02-2_J47-0__0
600 15 5595 500 128 3256 278 7062 53.9 1370 6SR5_02-2_K47-5__0
600 15 5968 8000 128 3256 278 7062 53.9 1370 6SR5_02-2_L48-0__0
15 Cell (continued)
Cell Current No. of Cells Shaft Output1 Height2 Width2 Depth2 Order Number (MLFB)3 A kW Hp in. mm in. mm in. mm
Selection data for motor voltage 8kV
550 18 5595 5000 7500 128 3256 294 7465 53.9 1370 6SR5_02-2_J47-5__0
600 18 5968 5000 8000 128 3256 294 7465 53.9 1370 6SR5_02-2_K48-0__0
600 18 6341 5250 8500 128 3256 294 7465 53.9 1370 6SR5_02-2_K48-5__0
18 Cell
Cell Current No. of Cells Shaft Output1 Height2 Width2 Depth2 Order Number (MLFB)3 A kW Hp in. mm in. mm in. mm
Selection data for motor voltage 10.0 kV
340 21 3730 5000 115 2916 267 6767 53 1350 6SR5_502-4_G45-0__0
340 21 3916.5 5250 115 2916 267 6767 53 1350 6SR5_502-4_G45-2__0
340 21 4103 5500 115 2916 267 6767 53 1350 6SR5_502-4_G45-5__0
340 21 4289.5 5750 115 2916 267 6767 53 1350 6SR5_502-4_G45-7__0
340 21 4476 6000 115 2916 267 6767 53 1350 6SR5_502-4_G46-0__0
340 21 4849 6500 115 2916 267 6767 53 1350 6SR5_502-4_G46-5__0
430 21 5222 7000 115 2916 267 6767 53 1350 6SR5_502-4_H47-0__0
430 21 5595 7500 115 2916 267 6767 53 1350 6SR5_502-4_H47-5__0
430 21 5968 8000 115 2916 267 6767 53 1350 6SR5_502-4_H48-0__0
21 Cell
14
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives

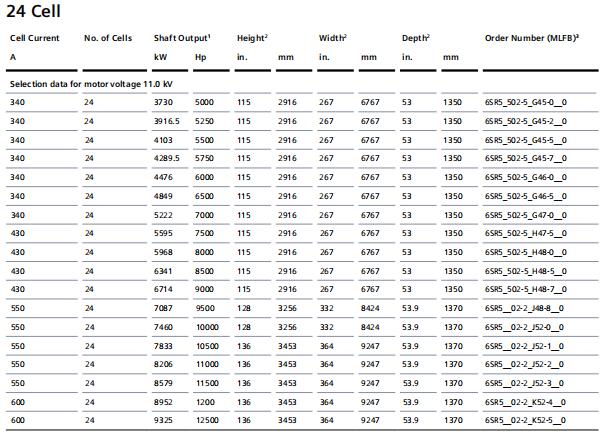

Cell Current No. of Cells Shaft Output1 Height2 Width2 Depth2 Order Number (MLFB)3 A kW Hp in. mm in. mm in. mm
Selection data for motor voltage 11.0 kV
340 24 3730 5000 115 2916 267 6767 53 1350 6SR5_502-5_G45-0__0
340 24 3916.5 5250 115 2916 267 6767 53 1350 6SR5_502-5_G45-2__0
340 24 4103 5500 115 2916 267 6767 53 1350 6SR5_502-5_G45-5__0
340 24 4289.5 5750 115 2916 267 6767 53 1350 6SR5_502-5_G45-7__0
340 24 4476 6000 115 2916 267 6767 53 1350 6SR5_502-5_G46-0__0
340 24 4849 6500 115 2916 267 6767 53 1350 6SR5_502-5_G46-5__0
340 24 5222 7000 115 2916 267 6767 53 1350 6SR5_502-5_G47-0__0
430 24 5595 7500 115 2916 267 6767 53 1350 6SR5_502-5_H47-5__0
430 24 5968 8000 115 2916 267 6767 53 1350 6SR5_502-5_H48-0__0
430 24 6341 8500 115 2916 267 6767 53 1350 6SR5_502-5_H48-5__0
430 24 6714 9000 115 2916 267 6767 53 1350 6SR5_502-5_H48-7__0
550 24 7087 9500 128 3256 332 8424 53.9 1370 6SR5__02-2_J48-8__0
550 24 7460 10000 128 3256 332 8424 53.9 1370 6SR5__02-2_J52-0__0
550 24 7833 10500 136 3453 364 9247 53.9 1370 6SR5__02-2_J52-1__0
550 24 8206 11000 136 3453 364 9247 53.9 1370 6SR5__02-2_J52-2__0
550 24 8579 11500 136 3453 364 9247 53.9 1370 6SR5__02-2_J52-3__0
600 24 8952 1200 136 3453 364 9247 53.9 1370 6SR5__02-2_K52-4__0
600 24 9325 12500 136 3453 364 9247 53.9 1370 6SR5__02-2_K52-5__0
24 Cell
1 Typical output value provided; output power may change based on the type or size of motor.
2 Reflects typical output power; motor type or size may affect actual output power. 8.4kV to 13.8kV requires additional 24” cabinet.
3 Brackets denote additional digits to be determined based on order detail.
4 Contact Siemens engineering for more information if the input voltage is greater than 7.2kV.
15
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drives
© 2021 by Siemens Industry, Inc.
Legal Manufacturer
Siemens Industry, Inc.
100 Technology Drive
Alpharetta, GA 30005
United States of America
Telephone: +1 (800) 333-7421
usa.siemens.com/perfectharmony
Order No: LABR-04100-0621
Siemens provides products and solutions with industrial security functions that support the secure
operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is necessary to
implement – and continuously maintain – a holistic, state-of-the-art industrial security concept.
Siemens’ products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems, machines and
networks. Such systems, machines and components should only be connected to an enterprise network
or the internet if and to the extent such a connection is necessary and only when appropriate security
measures (e.g. firewalls and/or network segmentation) are in place.
For additional information on industrial security measures that may be implemented, please visit
https://www.siemens.com/industrialsecurity.
Siemens’ products and solutions undergo continuous development to make them more secure. Siemens
strongly recommends that product updates are applied as soon as they are available and that the latest
product versions are used. Use of product versions that are no longer supported, and failure to apply
the latest updates may increase customer’s exposure to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS Feed under
https://www.siemens.com/industrialsecurity. This document contains a general description of available
technical options only, and its effectiveness will be subject to specific variables including field
conditions and project parameters. Siemens does not make representations, warranties, or assurances
as to the accuracy or completeness of the content contained herein. Siemens reserves the right to
modify the technology and product specifications in its sole discretion without advance notice.
Previous : Siemens Robicon CAPACITOR, CAP, A5E32573147, A5E35399008, A5E36104642, LDZ10501951, LDZ10501952
Next : A1A10000423.00M, A5E01708486, A1A10000432.72M, A1A10000432.71M, A1A10000350.00M, A1A10000432.02M
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
