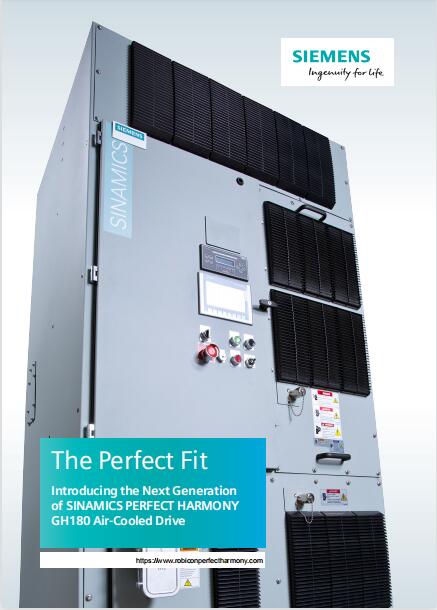

The Perfect Fit
Introducing the Next Generation
of SINAMICS PERFECT HARMONY
GH180 Air-Cooled Drive
https://www.robiconperfectharmony.com
When reliability is all
you have room for.
When it comes to improving throughput, increasing efficiency and
standardizing solutions, operating conditions will never be perfect –
but at least your drives can be. Whether square footage is at a premium
or downtime is not an option, reliability is something you can’t stand to
spare. Siemens developed a drive to fit virtually anywhere — perfectly.
A highly efficient solution for low power applications
The new SINAMICS PERFECT HARMONY GH180 air-cooled
drive delivers optimal power and protection in a simpler,
more compact package than ever.
Siemens power cell design allows for less maintenance and
greater availability. And when combined with up to 90%
savings on cable costs, the result is a significantly lower
total cost of ownership over the drive’s lifecycle. No other
drive offers the savings and reliability that the SINAMICS
PERFECT HARMONY GH180 does, making it the ideal
solution for low power applications — especially those
requiring cable lengths over 200 feet. Now you can retrofit
your medium-voltage soft starter systems to achieve
improved efficiency and process control.
SINAMICS PERFECT
HARMONY GH180 is:
• Highly Reliable
Provides fault tolerance via
Advanced Cell Bypass
• Energy-Efficient
Increases process control
to improve throughput and
reduce energy waste
• Line-Friendly
Achieves a near-unity
power factor by eliminating
harmonic voltage and
current distortion
• Motor-Friendly
Eliminates harmonic heating
and insulation stress
• Load-Friendly
Eliminates significant
torque pulsations
• Process-Focused
Prevents system shutdown
by proactively warning the
operator of any issues
2
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
A drive that’s sized
for what’s essential.

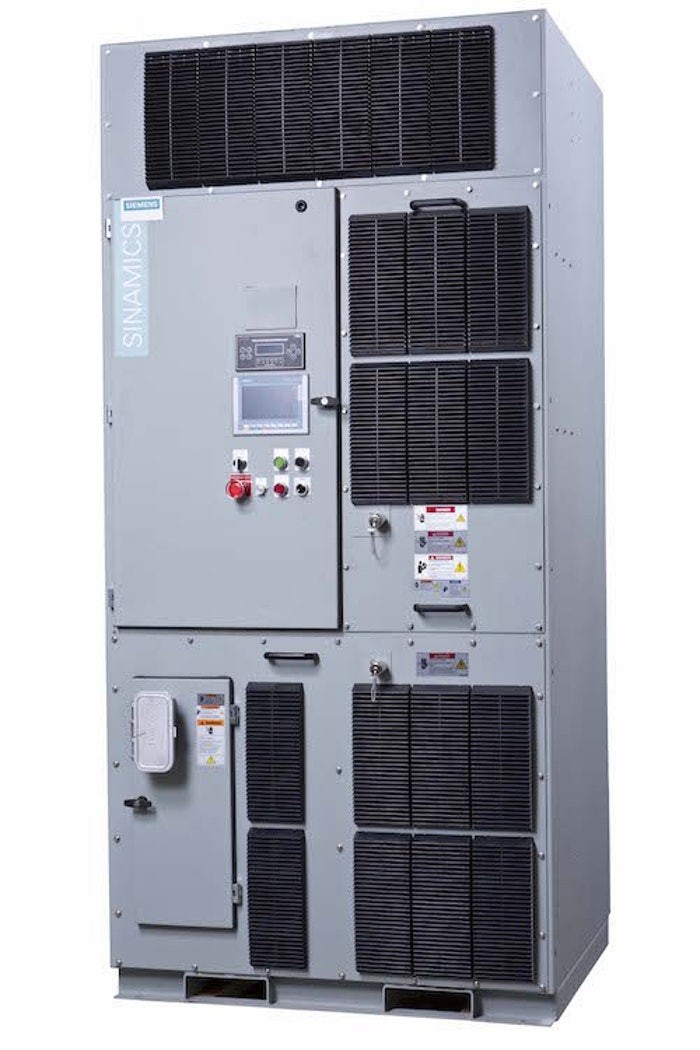

Compact Footprint
Upgrade your drive without giving up critical space.
The SINAMICS PERFECT HARMONY GH180 drive fits
easily into retrofits and other applications where space
is at a premium.
Fast & Simple Commissioning
The SINAMICS PERFECT HARMONY GH180 drive offers
a simplified system, with enhanced serviceability
and reduced commissioning. In some instances
commissioning time is as little as 1-2 days!
Low Voltage Compatibility
The SINAMICS PERFECT HARMONY GH180 drive supports
480V or 600V input voltages up to 400A - making this
drive ideal for new or retrofit applications.
Significant Savings
With the SINAMICS PERFECT HARMONY GH180 drive, you
will realize tremendous savings on cables and conduit.
Savings on installation and lifetime operating costs will
also be realized, thanks to infrequent maintenance needs.

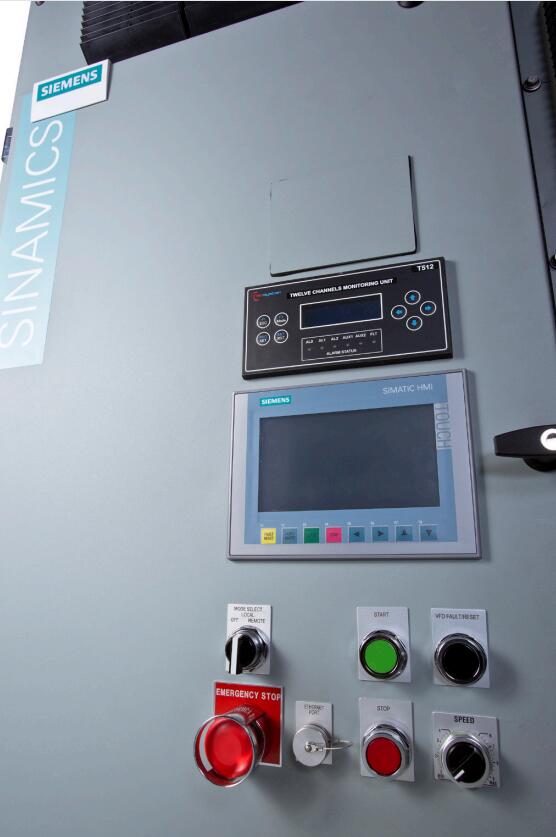

Ease of Use
The SINAMICS PERFECT HARMONY drive features
enhancements including the Siemens SIMATICS HMI, low
weight power cells, front access blowers and new louver
design to provide users with unparalleled ease of use.
Energy Efficiency
SINAMICS PERFECT HARMONY drives offer up to 96.5%
energy efficiency through the speed range.
Compatible with Any Motor Type
SINAMICS PERFECT HARMONY GH180 drives are compatible
with any motor type including induction, synchronous,
permanent magnet, and round rotor motors.
3
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
The Perfect Solution for
Imperfect Conditions
HARMONY drive with 50+ patented technologies proven to
increase the dependability of critical processes. The drive’s
modularity provides a scalable solution that achieves
near-100 percent reliability and 99.99 percent availability,
resulting in a significantly reduced total cost of ownership
over the drive’s lifecycle. A series cell configuration even
allows the drive to withstand failures that would overwhelm
conventional drives and shut down the plant process.
Unparalleled Benefits:
• Impressive potential 3 year pay back on fan and
pump applications
• Up to 4% improved efficiency on low power applications
when compared to high-low-high solutions
• Incredible flexibility to suit virtually any application
• Fast lead time to meet even the most demanding schedules
As the demand for power and raw materials continues to
grow, U.S. manufacturers are faced with an increasing
number of operational challenges. For some, it’s the remote
location of their plants; others have harsh environments
to consider. But although operating conditions are never
perfect, your process has to be — because in today’s
competitive market, downtime is not an option.
That’s why there’s SINAMICS PERFECT HARMONY.
Every element of the new SINAMICS PERFECT HARMONY
GH180 drive is engineered to maximize productivity and
protect your process in a way that other drives can’t.
Designed in compact air-cooled configurations, the next
generation SINAMICS PERFECT HARMONY drives deliver
superior versatility, efficiency and process availability for
the most demanding applications.
And because reliability is a paramount concern for today’s
manufacturers, Siemens equipped the SINAMICS PERFECT
4
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
Superior reliability, perfected for
small spaces.
Advanced Cell Bypass
In less than a quarter of a second, the
SINAMICS PERFECT HARMONY GH180
drive can bypass multiple failed cells to
maintain a balanced output voltage.
With one cell in bypass, the drive still
produces sufficient voltage to allow the
process to continue uninterrupted, and
the quality of the voltage and waveform
remain virtually unchanged.
Clean Power Input
SINAMICS PERFECT HARMONY drives
meet the most stringent IEEE 519-2014
requirements for voltage and current
harmonic distortion. An integrated
sinusoidal converter not only eliminates
the need for harmonic filters, power
factor correction capacitors or extra bus
capacity, but also protects other online
equipment from harmonic disturbances.
High-Quality Output
No drive offers a higher-quality
waveform output than SINAMICS
PERFECT HARMONY. With 13 levels of
non-harmonic output voltage, it
accommodates any standard motor
without requiring additional output or
dv / dt filters — which can reduce
efficiency and reliability — and it
provides the lowest peak voltage to
the motor windings to help extend
motor life.
Environmental Tolerance
Only SINAMICS PERFECT HARMONY
drives are engineered to operate reliably
in environments with ambient
temperatures ranging from -40° C to
+50° C. No other drive can tolerate such
a broad range of extreme conditions.
An optional PDC allows the drive to
withstand even the harshest outdoor
conditions, from tropical environments
to frozen tundras.
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
5
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
Technical
data at
a glance
Efficiency
• Typical power converter: 99%
• Typical total drive system: 96.5%
Input Transformer
• Aluminum or copper windings,
forced-air cooling
Line Supply Connection
• Input voltage and
voltage tolerance:
480V–7.2 kV, ±10%*
• Input frequency:
50 or 60 Hz, ±5%
• Input power factor:
≥ 0.95 above 10% load
Motor-Side Inverter
• Multilevel drive PWM topology
• IGBT power modules
Motor Control
• Induction motors
• Synchronous motors
• Permanent magnet motors
• Wound rotor motors
Motor Insulation Requirement
• All standard motor insulations with
no filters
Output Torque
• Rated torque (2Q) available from
10–167 Hz
Control
• Vector control
Input Current Harmonics
• ≤ 5% TDD
(total demand distortion)
• Meets or exceeds
IEEE-519-2014
Ride-Through
• Minimum of five cycles
after loss of input
medium voltage
without tripping
Output Frequency and Drift
• 0.5–330 Hz, ±0.5%
Output Voltage Harmonics (THDi)
• 2.0%–2.5%
Enclosure
• NEMA 1; IP42 standard * 480v-600v input is only available on 40-70A range.
6
SINAMICS PERFECT HARMONY GH180 air-cooled drive specifications
Cell Current No. of Cells Shaft Output* Height** Width** Depth** Order Number (MLFB)***
A kW Hp in. mm in. mm in. mm
Selection data for motor voltage 2.3/2.4 kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5202-6_A31-5__0
40 9 138 184 102 2590 48 1219 40 1016 6SR5202-6_A32-0__0
70 9 149 200 102 2590 48 1219 40 1016 6SR5202-6_B32-0__0
70 9 224 300 102 2590 48 1219 40 1016 6SR5202-6_B33-0__0
70 9 241 323 102 2590 48 1219 40 1016 6SR5202-6_B34-0__0
100 9 298 400 110 2794 60 1524 42 1067 6SR5202-0_C34-0__0
140 9 373 500 110 2794 60 1524 42 1067 6SR5202-0_D35-0__0
140 9 448 600 110 2794 60 1524 42 1067 6SR5202-0_D36-0__0
200 9 522 700 110 2794 75 1905 45 1143 6SR5202-0_E37-0__0
200 9 597 800 110 2794 75 1905 45 1143 6SR5202-0_E38-0__0
200 9 671 900 110 2794 75 1905 45 1143 6SR5202-0_E38-7__0
260 9 746 1000 110 2794 75 1905 45 1143 6SR5202-0_F41-0__0
260 9 821 1100 110 2794 75 1905 45 1143 6SR5202-0_F41-1__0
260 9 917 1229 110 2794 75 1905 45 1143 6SR5202-0_F41-2__0
Selection data for motor voltage 3.3 kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5202-0_A31-5__0
40 9 149 200 102 2590 48 1219 40 1016 6SR5202-0_A32-0__0
40 9 189 254 102 2590 48 1219 40 1016 6SR5202-0_A35-0__0
70 9 224 300 102 2590 48 1219 40 1016 6SR5202-0_B33-0__0
70 9 298 400 102 2590 48 1219 40 1016 6SR5202-0_B34-0__0
70 9 331 444 102 2590 48 1219 40 1016 6SR5202-0_B35-0__0
100 9 373 500 110 2794 60 1524 42 1067 6SR5202-0_C35-0__0
100 9 448 600 110 2794 60 1524 42 1067 6SR5202-0_C36-0__0
140 9 522 700 110 2794 60 1524 42 1067 6SR5202-0_D37-0__0
140 9 597 800 110 2794 60 1524 42 1067 6SR5202-0_D38-0__0
140 9 662 887 110 2794 60 1524 42 1067 6SR5202-0_D38-7__0
200 9 746 1000 110 2794 75 1905 45 1143 6SR5202-0_E41-0__0
200 9 821 1100 110 2794 75 1905 45 1143 6SR5202-0_E41-0__0
200 9 933 1250 110 2794 75 1905 45 1143 6SR5202-0_E41-2__0
260 9 1119 1500 110 2794 75 1905 45 1143 6SR5202-0_F41-5__0
260 9 1261 1690 110 2794 75 1905 45 1143 6SR5202-0_F41-7__0
Selection data for motor voltage 4.0kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5202-0_A31-5__0
40 9 149 200 102 2590 48 1219 40 1016 6SR5202-0_A32-0__0
40 9 224 300 102 2590 48 1219 40 1016 6SR5202-0_A33-0__0
70 9 298 400 102 2590 48 1219 40 1016 6SR5202-0_B34-0__0
70 9 336 450 102 2590 48 1219 40 1016 6SR5202-0_B34-5__0
70 9 373 500 102 2590 48 1219 40 1016 6SR5202-0_B35-0__0
70 9 401 538 102 2590 48 1219 40 1016 6SR5202-0_B36-0__0
100 9 448 600 110 2794 60 1524 42 1067 6SR5202-0_C36-0__0
100 9 522 700 110 2794 60 1524 42 1067 6SR5202-0_C37-0__0
140 9 597 800 110 2794 60 1524 42 1067 6SR5202-0_D38-0__0
140 9 671 900 110 2794 60 1524 42 1067 6SR5202-0_D38-7__0
140 9 746 1000 110 2794 60 1524 42 1067 6SR5202-0_D41-0__0
140 9 805 1079 110 2794 60 1524 42 1067 6SR5202-0_D41-1__0
200 9 933 1250 110 2794 75 1905 45 1143 6SR5202-0_E41-2__0
200 9 1119 1500 110 2794 75 1905 45 1143 6SR5202-0_E41-5__0
260 9 1306 1750 110 2794 75 1905 45 1143 6SR5202-0_F41-7__0
260 9 1492 2000 110 2794 75 1905 45 1143 6SR5202-0_F42-0__0
Selection data for motor voltage 4.16 kV
40 9 112 150 102 2590 48 1219 40 1016 6SR5202-0_A31-5__0
40 9 149 200 102 2590 48 1219 40 1016 6SR5202-0_A32-0__0
40 9 224 300 102 2590 48 1219 40 1016 6SR5202-0_A33-0__0
70 9 298 400 102 2590 48 1219 40 1016 6SR5202-0_B34-0__0
70 9 373 500 102 2590 48 1219 40 1016 6SR5202-0_B35-0__0
70 9 417 559 102 2590 48 1219 40 1016 6SR5202-0_B36-0__0
100 9 448 600 110 2794 60 1524 42 1067 6SR5202-0_C36-0__0
100 9 522 700 110 2794 60 1524 42 1067 6SR5202-0_C37-0__0
100 9 597 800 110 2794 60 1524 42 1067 6SR5202-0_C38-0__0
140 9 671 900 110 2794 60 1524 42 1067 6SR5202-0_D38-7__0
140 9 746 1000 110 2794 60 1524 42 1067 6SR5202-0_D41-0__0
140 9 821 1100 110 2794 60 1524 42 1067 6SR5202-0_D41-1__0
200 9 933 1250 110 2794 75 1905 45 1143 6SR5202-0_E41-2__0
200 9 1119 1500 110 2794 75 1905 45 1143 6SR5202-0_E41-5__0
260 9 1306 1750 110 2794 75 1905 45 1143 6SR5202-0_F41-7__0
260 9 1492 2000 110 2794 75 1905 45 1143 6SR5202-0_F42-0__0
Typical output value provided; output power may change based on the type or size of motor.
Reflects typical output power; motor type or size may affect actual output power.
Brackets denote additional digits to be determined based on order detail.
*
**
***
7
SINAMICS PERFECT HARMONY GH180 Air-Cooled Drive
Published by
Siemens Industry, Inc. 2017
Siemens Process Industries and Drives
100 Technology Drive
Alpharetta, GA 30005
For more information
please contact
Phone: (800)365-8766
E-mail: [email protected]
Order No: LABR-02800-0817
Printed in USA
The technical data presented in this document is based
on an actual case or on as-designed parameters, and
therefore should not be relied upon for any specific
application and does not constitute a performance
guarantee for any projects. Actual results are dependent
on variable conditions. Accordingly, Siemens does not
make representations, warranties, or assurances as to
the accuracy, currency or completeness of the content
contained herein. If requested, we will provide specific
technical data or specifications with respect to any
customer’s particular applications. Our company is
constantly involved in engineering and development.
For that reason, we reserve the right to modify, at any time,
the technology and product specifications contained herein.
ONY GH180 KEY/TOUCH OPERTAION, 7"TFT DISPALY HMI, 6SR4900-0SM00-0AM0
Previous : A5E39206479, 6AV2143-6GA00-0SN0, 6AV2143-6GA00-0SN0, KTP700 HMI, 6SR4900-0SM00-0AM0
Next : LDZ10506536, A1A099718, A1A099719, A1A099720, A1A0100502, A1A0100505, A1A099725, A1A099726
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
