GenIII Product User Manual Spare Parts
9 Spare Parts
Table 9-1: Spare Parts List
Spare Part | Control Voltage | Item Part Number | |||

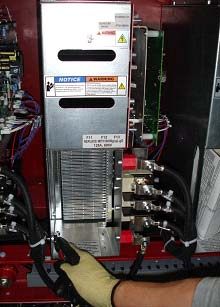

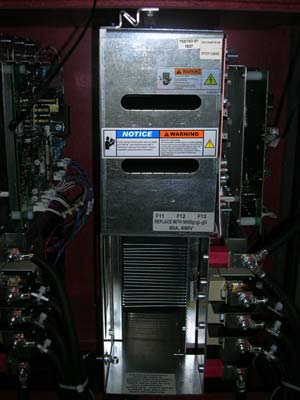

Power Cell* Qty: 1 | 70A Cell A1A460Y83.070 | 100A Cell A1A460Y83.100 | 140A Cell A1A4608C0.140 | ||
200A Cell A1A461D63.200 | 260A Cell A1A461D63.260 | ||||
Cell Input Fuses Qty: 3 per cell | 70A Cell A1A093503 | 100A Cell A1A093502 | 140A Cell A1A090391 | ||
200A Cell A1A093504 | 260A Cell A1A093505 | ||||

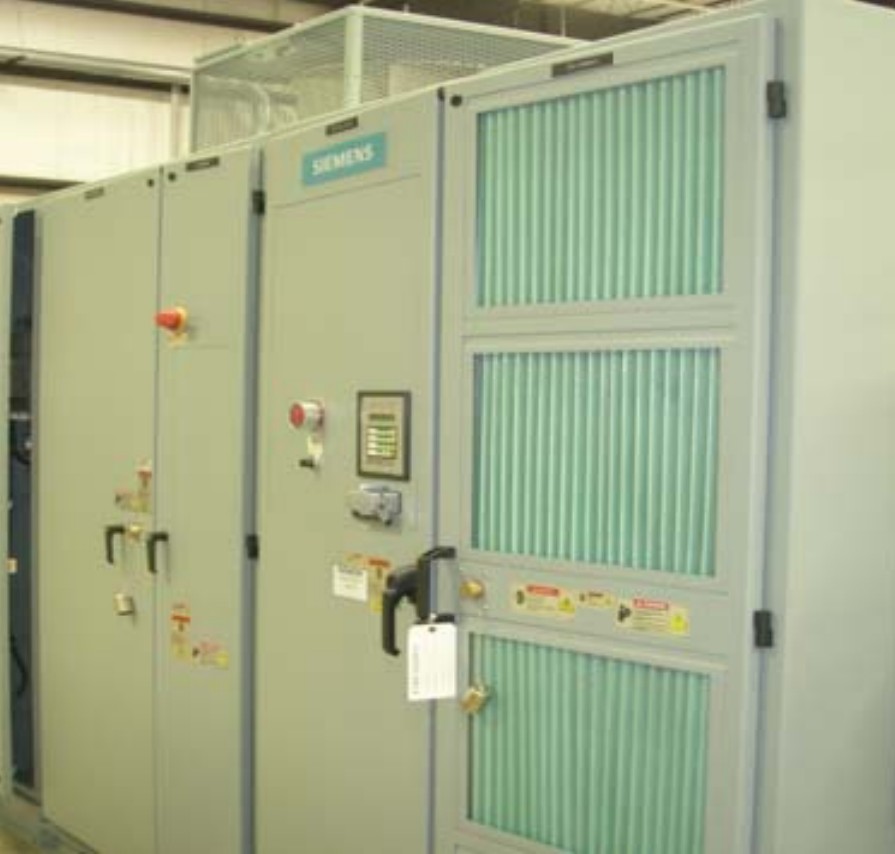

Transformer Cabinet Air Filters | 46” Cabinet, A1A090335, Qty 3 60” Cabinet, A1A090053, Qty. 3 80” Cabinet, A1A091389, Qty. 3 | ||||
Cell Cabinet Air Filters | 77” Cabinet A1A090335 Qty:8 | 54” and 112” Cabinets A1A090053 Qty: 4 for 54” Cabinet and 6 for 112” Cabinet | |||
NXGII Qty: 1 | SBC and Keypad Adapter A1A10000623.00M | System I/O Board A1A10000423.00M | BGA Modulator A1A10000350.00M | I/O Breakout Board 120V I/O A5E01649325 | |
Communications Board A1A363818.00M | NXGII Power Supply A1A14000461.00 | Signal Control Board A5E01708486 | I/O Breakout Board 24V I/O A5E01649374 | ||
Backplane A1A363628.00 | Fiber Optic Link board** A1A461D85.00 | Keypad A1A460A68.23 | |||
WAGO I/O Modules Qty: 1 | 1–2 Channel Digital Input, 120 VAC A1A091537 | 1– 4 Channel Digital Input, 24 VDC A1A090789 | |||
1– 2 Channel Analog Input, 4-20mA A1A091113 | 1– 2 Channel Analog Input, 0-10V A1A092745 | ||||
1– 2 Channel Relay Output, 120Vac or 24 VDC A1A092363 | 1– 2 Channel Analog Output, 4-20mA A1A091539 | ||||
Field bus coupler A1A091143 | |||||
A5E03723047A Version AB 9-1
GenIII Product User Manual
Spare Part | Control Voltage | Item Part Number | |||
Control Transformer Fuses | 575V Control | Primary Fuse 2.5A, 600 VAC A1AH024968 Qty: 2 | Secondary Fuse 6A, 600 VAC A1A081099 Qty: 1 | ||
480V Control | Primary Fuse 3.0A, 600 VAC A1A080752 Qty: 2 | ||||
415V Control | Primary Fuse 3.5A, 600 VAC A1A089205 Qty: 2 | ||||
200V Control | Primary Fuse 4.0A, 600 VAC A1A081097 Qty: 2 | ||||
Input CT Qty: 2 | CT, 50:5 A1A091705 | CT, 75:5 A1A091706 | CT, 100:5 A1A091707 | CT, 150:5 A1A091708 | |
CT, 200:5 A1A091709 | CT, 250:5 A1A091710 | CT, 300:5 A1A091711 | CT, 400:5 A1A091712 | ||
CT, 500:5 A1A091713 | CT, 600:5 A1A091714 | CT, 750:5 A1A091715 | CT, 800:5 A1A091716 | ||
CT, 1000:5 A1A091717 | CT, 200:5 A1A096254 | CT, 3000:5 A1A096255 | |||
Communicati ons Network Qty: 1 | Profibus DP A1A252241.155 | Devicenet Profile 12 A1A2252241.156 | Modbus Ethernet A1A252241.157 | ||
Control Net A1A252241.158 | Modbus + A1A252241.159 | ||||
Input Voltage Attenuator Qty: 3 | 2 4 kV A1A164877.00 | 3.0 kV A1A164877.01 | 3.3 kV A1A164877.02 | 4.16 kV A1A164877.03 | |
4.8 kV A1A164877.04 | 6.0 kV A1A164877.05 | 6.6 kV A1A164877.06 | 6.9 kV A1A164877.07 | ||
7.2 kV A1A164877.08 | 8.4 kV A1A164877.09 | 10 kV A1A164877.10 | 11 kV A1A164877.11 | ||
12 kV A1A164877.12 | 12.5 kV A1A164877.13 | 13.2 kV A1A164877.14 | 13.8 kV A1A164877.15 | ||
Output Voltage Attenuator Qty: 3 | 2 4 kV A1A164877.00 | 3.0 kV A1A164877.01 | 3.3 kV A1A164877.02 | 4.16 kV A1A164877.03 | |
4.8 kV A1A164877.04 | 6.0 kV A1A164877.05 | 6.6 kV A1A164877.06 | 6.9 kV A1A164877.07 | ||
7.2 kV A1A164877.08 | |||||
9-2 A5E03723047A Version AB
Spare Part | Control Voltage | Item Part Number | |||
Cell Bypass | Bypass Contactor A1A252090.776 Qty: 1 per cell | Bypass Control PCA A1A363662.01M Qty: 1 | |||
For 630V Secondaries Bypass Power Supply A5A363549.00 Qty: 1 Bypass Power Supply Fuse A1A090674 Qty: 2 | |||||
Blower Qty: 1 | EBM RH56 Blower (46” / 60” / 80” Transformer Cabinet) | EBM RH50 Blower (77” Cell Cabinet) | EBM RH71 Blower (112” Cell Cabinet) | ||
Other than 575V | A1A089659 | A1A090428 | A1A089659 | ||
575V | A1A090215 | A1A091243 | A1A090215 | ||

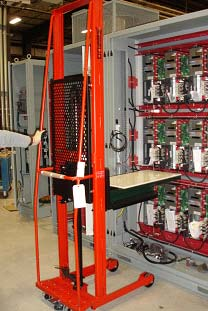

Cell Lifter Qty: 1 |
A1A163496.04 | ||||
*Customer may request IGBTs, diode rectifiers, and Cell Control Boards rather than a complete spare cell. Contact Siemens for further information regarding individual cell P/Ns. **Used if more than 12 cells. | |||||
Table 9-2: 120 VAC and 24 VDC Transformer/Cell Blower Fuse Control Voltages
Line-up | 200V/50Hz | 230V/60Hz | 380V/50Hz | 415V/50Hz | 460V/60Hz | 575V/60Hz |
Transformer/Cell Blower Fuses (120 VAC), Qty: 3 | ||||||
46/54 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V, A1A090711 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 3A, 600V A1A090206 | Fuse Class J, 2.25A, 600V A1A090712 |
46/77 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 |
Fuse Class J, 2.25A, 600V A1A090712 Fuse Class J, 4A, 600V A1A090207 |
Fuse Class J, 3A, 600V A1A090206 Fuse Class J, 5A, 600V A1A090211 |
A5E03723047A Version AB 9-3
Line-up | 200V/50Hz | 230V/60Hz | 380V/50Hz | 415V/50Hz | 460V/60Hz | 575V/60Hz |
60/54 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 3A, 600V A1A090206 | Fuse Class J, 2.25A, 600V A1A090712 |
60/54 R | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 3A, 600V A1A090206 | Fuse Class J, 2.25A, 600V A1A090712 |
60/77 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4A, 600V A1A090207 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 5A, 600V A1A090211 |
60/77 R | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 8A, 600V A1A089149 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5A, 600V A1A090211 | Fuse Class J, 2.5A, 600V A1A090714 and Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2A, 600V A1A090715 and Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
60/112 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
60/112 R | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
9-4 A5E03723047A Version AB
Line-up | 200V/50Hz | 230V/60Hz | 380V/50Hz | 415V/50Hz | 460V/60Hz | 575V/60Hz |
80/77 | Fuse Class J, 7A, 600V A1A090069 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 7A, 600V A1A090069 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 5A, 600V A1A090211 and Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 4A, 600V A1A090207 and Fuse Class J, 4.5A, 600V A1A089637 |
80/77 R | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 8A, 600V A1A089149 | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 8A, 600V A1A089149 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5A, 600V, A1A090211 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5A, 600V A1A090211 | Fuse Class J, 2.5A, 600V A1A090714 and Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2A, 600V A1A090715 and Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
80/112 | Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 4.5A, 600V A1A089637 |
80/112 R | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
Transformer/Cell Blower Fuses (24 VDC), Qty: 3 | ||||||
46/54 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 4.5A 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 3A, 600V A1A090206 | Fuse Class J, 2.25A, 600V A1A090712 |
46/77 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4A, 600V A1A090207 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 5A, 600V A1A090211 |
A5E03723047A Version AB 9-5
Line-up | 200V/50Hz | 230V/60Hz | 380V/50Hz | 415V/50Hz | 460V/60Hz | 575V/60Hz |
60/54 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 3A, 600V A1A090206 | Fuse Class J, 2.25A, 600V A1A090712 |
60/54 R | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 2.8A, 600V A1A090711 | Fuse Class J, 3A, 600V A1A090206 | Fuse Class J, 2.25A, 600V A1A090712 |
60/77 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4A, 600V A1A090207 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 5A, 600V A1A090211 |
60/77 R | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 7A, 600V A1A090069 | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 8A, 600V A1A089149 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5A, 600V A1A090211 | Fuse Class J, 2.5A, 600V A1A090714 and Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2A, 600V A1A090715 and Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
60/112 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A08133 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
60/112 R |
Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 |
Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 2A, 600V A1A090715 and Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 | Fuse Class J, 2A, 600V A1A090715 and Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 6A, 600V A1A089148 |
Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
9-6 A5E03723047A Version AB
Line-up | 200V/50Hz | 230V/60Hz | 380V/50Hz | 415V/50Hz | 460V/60Hz | 575V/60Hz |
80/77 | Fuse Class J, 7A, 600V A1A090069 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 7A, 600V A1A090069 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 5A, 600V A1A090211 and Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 4A, 600V A1A090207 and Fuse Class J, 4.5A, 600V A1A089637 |
80/77 R | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 8A, 600V A1A089149 | Fuse Class J, 3.5A, 600V A1A090713 and Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 8A, 600V A1A089149 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5A, 600V A1A090211 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5A, 600V A1A090211 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2A, 600V A1A090715 and Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
80/112 | Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 4.5A, 600V, A1A089637 |
80/112 R | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 4.5A, 600V A1A089637 and Fuse Class J, 9A, 600V A1A081333 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 2.8A, 600V A1A090711 and Fuse Class J, 5.6A, 600V A1A090716 | Fuse Class J, 3A, 600V A1A090206 and Fuse Class J, 6A, 600V A1A089148 | Fuse Class J, 2.25A, 600V A1A090712 and Fuse Class J, 4.5A, 600V A1A089637 |
