SINAMICS PERFECT HARMONY GH180 air-cooled 6SR4_0 Drive 12 cell design and increased the structural and mechanical properties to meet stringent environmental conditions

SIEMENS Large Drives Industrial Applications (LD AP) is expanding the medium voltage air-cooled Drive product line by offering the new SINAMICS PERFECT HARMONY GH180 air-cooled 6SR460 Floating Platform (FP) Drive.  This will be available as a standard option code effective November 2014.  With decades of experience and a large number of installed Drives at customer sites, the SINAMICS PERFECT HARMONY GH180 air-cooled 6SR460 Floating Platform Drive is specifically designed for floating platform applications in the offshore oil and gas industry.

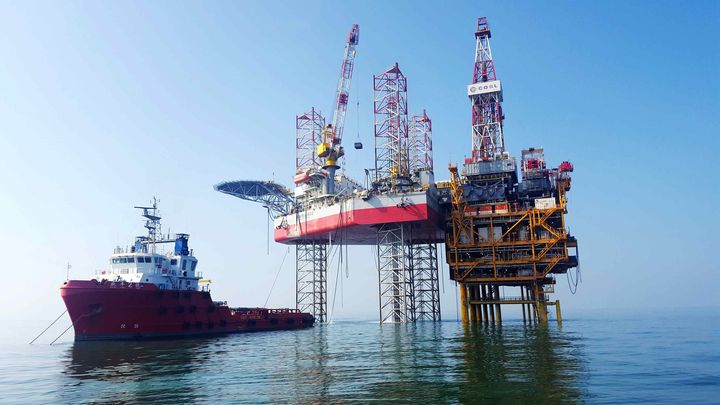

Few industrial operating environments are as hostile and unforgiving as offshore oil and gas production. Equipment must withstand stringent motion requirements and harsh ambient conditions with space constraints. All this is especially true for floating platforms, which are also subject to the nonstop pitch and roll from the surrounding seas. Extreme waves and ocean currents cause significant lateral and vertical forces that on-board machinery must be able to withstand.

Some of the most common applications on Floating Platforms are electrical submersible pumps (ESP) which are located at the sea bottom.  ESP applications have extremely long cables lengths between the Drives and sea-floor motors which introduce challenges that can be minimized by using the new SINAMICS PERFECT HARMONY GH180 Floating Platform Drive.

SIEMENS used the proven SINAMICS PERFECT HARMONY GH180 air-cooled 6SR4_0 Drive 12 cell design and increased the structural and mechanical properties to meet stringent environmental conditions.  SIEMENS continues the innovation of the medium voltage Drive product line to offer greater versatility and handle unique applications.

Product Description

The SINAMICS PERFECT HARMONY GH180 air-cooled 6SR460 (FP) uses the standard GH180 air-cooled Drive with 12 cells and 750 V power cells.

All products of the SINAMICS PERFECT HARMONY GH180 product line share the same high performance characteristics however the GH180 air-cooled 6SR460 (FP) Drive provides additional features.

Option Code M66 contains the following features:

M67 - Harsh Environment Package with

Stainless Steel Hardware

Anodized Aluminum Heat Sinks

Double VPI transformer copper windings

Special Paint

Robust construction for heavy duty operation

N50 - Low Smoke, Zero Halogen internal wiring

M42 - Air ducting, IP42 rating and space heaters as standard

Output sine wave filter for cable lengths greater than 2 km (6562 ft.)

L55 – Anti-condensation heaters

T04 – Stainless steel nameplates

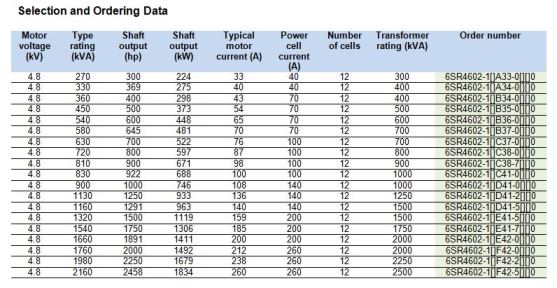

Selection and Ordering Data

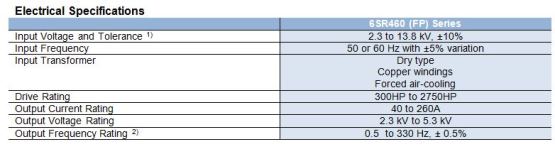

Technical Data

 Notes:

1) Output power de-rating required for -5 to -10% voltage tolerances

2) De-rating required for 168 to 330 Hz

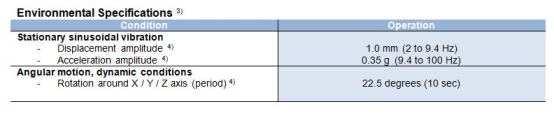

3)   The GH180 air-cooled 6SR460 (FP) Drive was designed to meet motion requirements in line with German Lloyd (GL) VI-7-2, “Test Requirements for Electrical/Electronic Equipment and Systems”.

4) Values shown are accelerated life test parameters per (GL) VI-7-2

Classification Organizations

These organizations establish and apply technical standards in relation to the design, construction and survey of marine related facilities including ship and offshore structures. The drive complies with the following societies:

ABS: American Bureau of Shipping (USA)

BV: Bureau Veritas (France)

DNV: Det Norske Veritas (Norway)

LR: Lloyd’s Register of Shipping (UK)

Delivery Milestones

Sales release (Q.PM280)   October 2014

Release for delivery (Q.PM300)   December 2014
