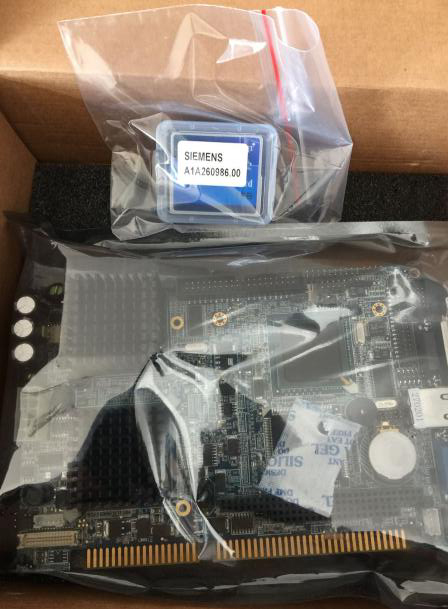

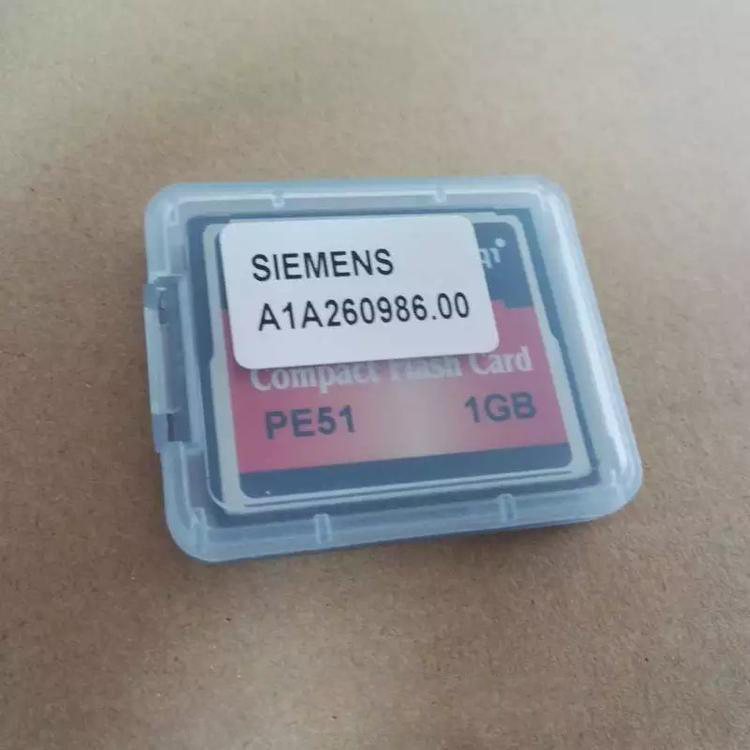

A1A260986.00, Siemens CF Card for CPU BOARD, 6SR0960-0CB11-0AD

A1A260986.00, Siemens CF Card for CPU BOARD, 6SR0960-0CB11-0AD

A1A260986.00, Siemens CF Card for CPU BOARD, 6SR0960-0CB11-0AD

Dear sir

I got fault massage "Drive not Communicate" ,when I was trying to install a New spare DCR box .

Steps fallowed by :

* First I removed the OLD DCR box with SMPS .

* removed the CF card .

* mounted the new DCR box and put the OLD CF card .

after that  when switched on the control power , it was shown error "Drive not Communicate "  .

* Then I removed the new microprocessor board / CPU board and put the old CPU board and the OLD cf card .

after that  when switched on the control power , it was normal . there was no fault .

Drive Data:

P/N no:-A5E03678318 , S/O: 3001521032 and

Order no:- 6SR4502-5ND42-5BH0-Z .

GEN IV, air cool,750V, 24 cell,140A

____

Data of OLD CUP BOARD:

M118B9400145

PROX-H472LF-PU-062L1-G1B

A1A0100521 REV.BA

E41-11900021

--------

Data old CF CARD:

A1A260986.00

 -----

Data of NEW CUP BOARD:

P/N :-A1A0100521

S/N:-E64-15200083 BA

--------

Data New CF CARD:

siemens nxg software standard v 5.3.1

2-20-2015

A1A260986.00

---------------

* Is there Any problem in CPU board ?

 * Is there any firmware version problem ? bcz when drive start  , it shows "perfect harmony 5.2.2" .

* How can i update the  NXG software  5.2.2 to 5.3.1 ??

__________________________

Please help me about this matter . The error/fault was shown at the time of NXG software loading (5.5.2) / drive software loading (firmware 5.5.2)  .

Hi

Drive not communicate is coming where on drive display screen!

Can you try with old flash and new CPU whether error is coming.

Firmware should not be an issue within the drive from CPU to drive HMI screen. If you are connecting a laptop with tool suite to drive then while going ONLINE it pops up message " Drive installed software and tool suite version mismatch"

To upgrade NXG there is procedure and you need Tool suite installed laptop and flash card reader.

Regards,

Vijay

Sir, thanks for your supervision .

Yes, it (fault:-drive not communicate ) was coming on Keypard Display. As you said, there is  no problem in firmware . I removed the RAM and Battery of the CPU then again connected it properly with OLD CF card. Now there is no issues But sometime same problem has occurred while connecting my laptop through ethernet cable . This error massage is not logged in "event log" and "fault log" . NXG software installed 5.2.1 on drive and tool suite Version 5.2.2.1 on laptop.

HI

While connecting Laptop with tool suite to drive SW version mismatch, no issue a pop up message will come and just acknowledge it. It will go ONLINE then.

Or you can tick the option don't ask , on the tool suite screen.

Thanks

Vijay

Hi,

I got two cases with Drive Not Communicate fault.

1. Problem was in wrong soft at CF. I ve asked it on the factory, then i download it correctly.

2. Problem gone after CF changing.

NXGIICPU KitA1A10000623.00MPCA, SBC, HARMONY NXGII6SR0900-0CB00-0AM0LDZ10000623.00C / A1A10000623.00

CPU BoardA1A0100521CPU board6SR0960-0CD03-0AD0

Keypad adapter boardA1A10000283.01MKeypad adapter board6SR0960-0SM23-0AD0

CFA1A260986.00Compact flash card inside CPU6SR0960-0CB11-0AD0

System I/O BoardA1A10000423.00MPCA, W/FIRMARE,NXG SYSTEM I/O6SR0960-0CB02-0AD0LDZ10000423.00C

BGA ModulatorA1A10000350.00MPCA, W/FIRMWARE, MODULATOR,6SR0960-0CB03-0AD0LDZ10000225.00C

BackplaneA1A098194PCA, COATED, ISA BACKPLANE, 8 SLOT6SR0960-0CB01-0AA0

Communications BoardA5E03407403PCA, COMM BOARD6SR3960-0CD02-0AD0LDZ363818.00C /A1A363818.00M/461F11.00

FOHB KitA1A252241.55SFOHB Kit6SR0900-0CD00-0AM0LDZ252241.55SC

FLAT CABLEA1A260901.00FLAT LINK CABLE BETWEEN MB AND FOHB6SR0960-0QM07-0AD0

Fiber Optic Link boardA1A461D85.00MPCA, FIBER OPTIC, 12 CHANNEL6SR3900-0LM00-1AD0LDZ461D85.00C/A1A461D85.00

Signal Control BoardA5E01708486PCA, SIGNAL CONDITIONING BOARD6SR0960-0CB14-0AD0LDZ01708486C/LDZ10000403.01C/363633.00

KEYPADA5E39206479DEV_CONTROL_SIMATIC HMI, KTP700 BASIC D6SR4900-0SM00-0AM0

CABLE ASSY FOR 37BINA1A10000163.00CABLE ASSY,ANALOG I/O,37 PIN ON I/O BOARD6SR0960-0QM08-0AD0

CABLE ASSY FOR 50BINA1A10000162.00CABLE ASSY, DIGITAL I/O,50 PIN ON I/O BOARD6SR0960-0QM00-0AD0

CABLE ASSY FOR 10BINA1A10000540.00RIBBON CABLE ASSY, 10 PIN6SR3900-0QA00-0AM0

I/O Breakout Board  120 V I/OA5E01649325PCA, I/O BREAKOUT BOARD,120VAC6SR0960-0CB07-1AD0LDZ01649325C

I/O Breakout Board  24 V I/OA5E01649374PCA COATED 24VDC INPUTS SYS I/O BRKOUT6SR0960-0CB07-2AD0LDZ01649374C

NXGII Power SupplyA1A0100275POWER SUPPLY6SR0960-0CD01-1AD0

NXGII Power SupplyA1A14000461.00POWER SUPPLY KIT


NXGII Power Supply U55A5E31055176POWER_SPLY6SR0960-0EM02-0AD0

DB37 PIN cableA1A096535DB37 PIN cable BETWEEN SCB IO BREAKOUT AND DCR6SR0960-0QM01-0AD0LDZ10504750

DB50 PIN cableA5E00993969DB 50 PIN cable BETWEEN DCR AND IO BREAKOUT6SR0960-0QA02-0AA0

DCR FANA5E30653347AXIALFAN6SR0960-0GM02-0AD0A5E02381532/LDZ092828
NXG DCRNXG DCRA1A461R57.00NXG DCR
LDZ461R57.00C
NXGCPU KitA1A10000623.00MPCA, SBC, HARMONY NXGII6SR0900-0CB00-0AM0LDZ10000623.00C / A1A10000623.00

CPU BoardA1A0100521CPU board6SR0960-0CD03-0AD0

Keypad adapter boardA1A10000283.01MKeypad adapter board6SR0960-0SM23-0AD0

CFA1A260986.00Compact flash card inside CPU6SR0960-0CB11-0AD0

System I/O BoardA1A10000423.00MPCA, W/FIRMARE,NXG SYSTEM I/O6SR0960-0CB02-0AD0

BGA ModulatorA1A10000350.00MPCA, W/FIRMWARE, MODULATOR,6SR0960-0CB03-0AD0

BackplaneA1A363628.00MPCA, COATED, ISA BACKPLANE, 14SLOT6SR3960-0CD01-0AD0LDZ363628.00C

Communications BoardA5E03407403PCA, COMM BOARD6SR3960-0CD02-0AD0LDZ363818.00C /A1A363818.00M

CABLE ASSY FOR 10BINA1A10000540.00RIBBON CABLE ASSY, 10 PIN CABLE BETWEEN MB AND I/O6SR3900-0QA00-0AM0

NXG Power SupplyLDZ10501382Power Supply6SR3900-0KA00-0AM0
Communications NetworkPROFIBUS DPA1A252241.155SCOMM. KIT,ANYBUS Profibus-DP6SR0960-0CD00-0AM0LDZ252241.155SC

DEVICENET PROFILE12A1A252241.156SCOMM. KIT,ANYBUS DeviceNet6SR0960-0DA01-0AD0LDZ252241.156SC

MODBUS ETHERNET TCPA1A252241.157COMM. KIT,ANYBUS ModbusTCP/Eth6SR0960-0DA02-0AD0LDZ252241.157SC

CONTROL NETA1A252241.158COMM KIT,ANYBUS ControlNet6SR0960-0DA03-0AD0LDZ252241.158SC

MODBUS +A1A252241.159COMM. KIT,ANYBUS Modbus Plus6SR0960-0DA04-0AD0LDZ252241.159SC

GATAWAYA5E33654250COMM. KIT,GATAWAY, Modbus ethnet to IP ethnet6SR0960-0CD01-0AM0

MODBUS RTUA1A252241.160COMM. KIT, MODBUS6SR0960-0DA06-0AD0
WAGO I/O ModulesField Bus CouplerA5E43665372750-316，WAGO FIELD BUS COUPLER6SR0960-0RA03-0AD0LDZ10501502

Power supply moduleLDZ10501501750-612，WAGO POWER SUPPLY MODULE6SR0960-0RA36-0AD0

Analog Output, 4-20mALDZ10501504750-554, WAGO ANOLOG OUTPUT MO6SR0960-0RA05-0AD0

Analog Input, 4-20mALDZ10501505750-452, WAGO ANOLOG INPUT MOD6SR0960-0RA02-0AD0

Analog Input, 0-10VLDZ10501491750-467,WAGO ANOLOG INPUT MODULE,0-10V6SR3960-0RA05-0AM0LDZ092745C

4 Channel Digital Input,  24VDCLDZ10501500750-402, WAGO DI MOD,24V,4 CH6SR0960-0RA30-0AD0

2 Channel Digital Input, 120VacLDZ10501507750-406,WAGO DI MODULE,120V6SR3960-0RA03-0AM0

2 Channel Digital Input, 230VacLDZ10501508750-405 WAGODI MODULE,230V6SR3960-0RA02-0AM0

2 Channel Relay OutputLDZ10501506750-517, WAGO DIGITAL OUTPUT MODULE6SR0960-0RA38-0AD0

END MODULELDZ10501503750-600WAGO END MODULE6SR0960-0RA01-0AD0

9 Pin cableLDZ105047519 PIN cable between CPU baord and WAGO field bus coupler6SR3960-0QA00-0AM0

Hall effect power supplyLDZ10501526POWER SUPPLY
A5E33980468
