Siemens Robicon 6SR0960-0EM07-0AD0 Siemens SINAMICS PERFECT HARMONY GH180 Bypass Contactor Assy., 400a
Siemens Robicon 6SR0960-0EM08-0AD0 Siemens SINAMICS PERFECT HARMONY GH180 PCA,w/firmware, Bypass, 24 Cell, 400 A
Siemens Robicon 6SR0960-0EM11-0AD0 Cell Bypass Master Link Nbh
Siemens Robicon 6SR0960-0EM12-0AD0 Cell Bypass Master Link Hbh
Siemens Robicon 6SR0960-0EM13-0AD0 Power Supply 125vdc 9a
Siemens Robicon 6SR0960-0EM14-0AD0 Power Supply 24vdc 3a, 48vdc 5a
Siemens Robicon 6SR0960-0EM15-0AD0 Power Supply 24vdc, 10a
Siemens Robicon 6SR0960-0EM16-0AD0 Bypass Contactor Bus
Siemens Robicon 6SR0960-0EM17-0AD0 Power Supply Asm_sud850_850va_510w_120vac
Siemens Robicon 6SR0960-0FM00-0AD0 Filter Viledon 11.5x16.88x1
Siemens Robicon 6SR0960-0FM01-0AD0 Filter Viledon 18x20.5
Siemens Robicon 6SR0960-0FM02-0AD0 Filter Viledon 18x21x1
Siemens Robicon 6SR0960-0FM03-0AD0 Filter Viledon 18.56x18.38x1
Siemens Robicon 6SR0960-0FM04-0AD0 Air Filter Wc3 Ha, Fpc, Stainless Stl
Siemens Robicon 6SR0960-0FM05-0AD0 Viledon Filter Transition Cabinet
Siemens Robicon 6SR0960-0FM06-0AD0 Filter Cabinet Filter Media
Siemens Robicon 6SR0960-0FM07-0AD0 Air Filter - Large 23.84" X 23.84" X 1"
Siemens Robicon 6SR0960-0GM00-0AD0 Axialfan Dc_24v_18w, 241.3cfm
Siemens Robicon 6SR0960-0GM02-0AD0 Axial Fan Fad1_24vdc_2.88w_3800rpm
Siemens Robicon 6SR0960-0GM03-0AD0 Siemens SINAMICS Ph GH180 Axial Fan Rh63v 230/400vd/y 50hz 1,2kw
Siemens Robicon 6SR0960-0GM04-0AD0 Axial Fan Rh63v-6dk.6n.1r 575v
Siemens Robicon 6SR0960-0GM06-0AD0 Fan Assembly Acc Guard_series W2e200
Siemens Robicon 6SR0960-0GM07-0AD0 Fan 606cfm, 230v, 80w
Siemens Robicon 6SR0960-0GM08-0AD0 Axialfan 5908_ac_115v_50/60hz_17w
Siemens Robicon 6SR0960-0HA0 0-0AD0 Current Transformer Model 300, 50:5a
Siemens Robicon 6SR0960-0HA0 0-0AM0 Current Transducer 50:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 1-0AA0 Input CT 75:5
Siemens Robicon 6SR0960-0HA0 1-0AD0 Current Transformer Model 300, 75:5a
Siemens Robicon 6SR0960-0HA0 1-0AM0 Current Transducer 75:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 2-0AD0 Current Transformer Model 300, 100:5a
Siemens Robicon 6SR0960-0HA0 2-0AM0 Current Transducer 100:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 3-0AD0 Current Transformer Model 300, 150:5a
Siemens Robicon 6SR0960-0HA0 3-0AM0 Current Transducer 150:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 4-0AA0 Input CT 200:5
Siemens Robicon 6SR0960-0HA0 4-0AD0 Current Transformer Model 300, 200:5a
Siemens Robicon 6SR0960-0HA0 4-0AM0 Current Transducer 200:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 5-0AD0 Current Transformer Model 300, 250:5a
Siemens Robicon 6SR0960-0HA0 5-0AM0 Current Transducer 250:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 6-0AD0 Current Transformer Model 300, 400:5a
Siemens Robicon 6SR0960-0HA0 6-0AM0 Current Transducer 400:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 7-0AD0 Current Transformer Model 300, 300:5a
Siemens Robicon 6SR0960-0HA0 7-0AM0 Current Transducer 300:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA0 8-0AD0 Current Transformer Model 300, 500:5a
Siemens Robicon 6SR0960-0HA10-0AD0 Current Transformer Model 300, 600:5a
Siemens Robicon 6SR0960-0HA10-0AM0 Current Transducer 600:5a, Lms-0.66-d87
Siemens Robicon 6SR0960-0HA11-0AA0 Current Transformer 750:5a
Siemens Robicon 6SR0960-0HM00-0AD0 Current Transformer 100:5a
Siemens Robicon 6SR0960-0HM01-0AD0 Current Transformer 600:5a
Siemens Robicon 6SR0960-0HM02-0AD0 Current Transformer 100:5a
Siemens Robicon 6SR0960-0HM03-0AD0 Mpm Output CT Kit
Siemens Robicon 6SR0960-0HM04-0AD0 Mpm Output CT Kit
Siemens Robicon 6SR0960-0HM05-0AD0 Current Transducer Closed Loop 300a
Siemens Robicon 6SR0960-0HM06-0AD0 Current Transducer Closed Loop 100a
Siemens Robicon 6SR0960-0HM07-0AD0 Current Transformer 1200v 5a
Siemens Robicon 6SR0960-0HM08-0AD0 Current Transducer Closed Loop, 2000a
Siemens Robicon 6SR0960-0HM10-0AD0 Current Transformer Model 66,50:5
Siemens Robicon 6SR0960-0HM11-0AD0 Input Current Transformer Kit
Siemens Robicon 6SR0960-0HM12-0AD0 Input Cpt
Siemens Robicon 6SR0960-0HM14-0AD0 Potential Transformer 12000/120,100:1
Siemens Robicon 6SR0960-0JA00-0AA0 Fuse 3a; 600v
Siemens Robicon 6SR0960-0JA00-0AD0 Fuse Small Dim, 1a, 600v
Siemens Robicon 6SR0960-0JA00-0AD1 Cell Bypass
Siemens Robicon 6SR0960-0JA01-0AD0 Fuse Small Dim, 2a ,600v
Siemens Robicon 6SR0960-0JA01-2AD0 Fuse Small Dim, 6a,600v
Siemens Robicon 6SR0960-0JA01-2AM0 Fuse 6a, 600v, Atqr6
Siemens Robicon 6SR0960-0JA02-0AA0 Fuse Ajt, 8a; 600v
Siemens Robicon 6SR0960-0JA02-0AD0 Fuse Class J, 8a, 600v
Siemens Robicon 6SR0960-0JA02-0AM0 Fuse 8a, 600v, Ajt8
Siemens Robicon 6SR0960-0JA03-0AA0 Fuse 3.5a; 600v
Siemens Robicon 6SR0960-0JA03-0AD0 Fuse Class Cc, 3.5a, 600v
Siemens Robicon 6SR0960-0JA03-0AM0 Fuse 3.5a, 600v, Atqr3-1/2
Siemens Robicon 6SR0960-0JA04-0AA0 Fuse 2a 1200v
Siemens Robicon 6SR0960-0JA04-0AD0 Fuse Semiconductor 2a, 1200v Ac
Siemens Robicon 6SR0960-0JA04-1AD0 Fuse 2a,250v
Siemens Robicon 6SR0960-0JA04-1AM0 Fuse 2a, 250v
Siemens Robicon 6SR0960-0JA05-0AA0 Fuse 1a, 1000v
Siemens Robicon 6SR0960-0JA05-0AD0 Transformer Blower Fuses For 24 Vdc Starter Kits
Siemens Robicon 6SR0960-0JA05-0AM0 Fuse 5a, 600v
Siemens Robicon 6SR0960-0JA05-1AD0 Fuse 1000v 1a Pcb Mount
Siemens Robicon 6SR0960-0JA05-1AM0 Fuse 1000v 1a Pcb Mount
Siemens Robicon 6SR0960-0JA06-0AA0 Fuse Nh00-din 80mm, 1kv, 125a Ar For 40a Ph Power Cell
Siemens Robicon 6SR0960-0JA06-0AB0 Fuse 0.5a, 5.5kv
Siemens Robicon 6SR0960-0JA07-0AA0 Fuse Nh00-din 80mm, 1kv, 200a Ar For 70a Ph Power Cell
Siemens Robicon 6SR0960-0JA07-0AB0 Fuse Sqb1, 1.25kv, 450a, Ar For 200a Ph Power Cell
Siemens Robicon 6SR0960-0JA08-0AA0 Fuse Nh00-din 80mm, 1kv, 224a Ar For 100a Ph Power Cell
Siemens Robicon 6SR0960-0JA08-0AB0 Fuse Nh Sqb1, 1.25kv, 500a, Ar For 260a Ph Power Cell
Siemens Robicon 6SR0960-0JA10-0AA0 Fuse Nh00-din 80mm, 1kv, 280a Ar For 140a Ph Power Cell
Siemens Robicon 6SR0960-0JA10-0AD0 Fuse 3a, 600v Rejection Type
Siemens Robicon 6SR0960-0JA10-0AM0 Fuse 3a, 600v, Atqr3
Siemens Robicon 6SR0960-0JA11-0AD0 Transformer Cell Blower Fuses For 24 Vdc/120 Vac Starter Kits
Siemens Robicon 6SR0960-0JA11-0AM0 Fuse 10a, 600v
Siemens Robicon 6SR0960-0JA13-0AD0 Fuse Small Dim, 10a, 600v
Siemens Robicon 6SR0960-0JA14-0AD0 Fuse A100x500-4ti 500a
Siemens Robicon 6SR0960-0JA15-0AD0 Fuse A100x400-4ti 400a
Siemens Robicon 6SR0960-0JM00-0AD0 Resistor Type Nh1, 160a, 690v
Siemens Robicon 6SR0960-0JM01-0AD0 Fuse Type Nh1, 200a, 690v
Siemens Robicon 6SR0960-0JM02-0AD0 Fuse Small Dim, 5a, 600v
Siemens Robicon 6SR0960-0JM03-0AD0 Fuse 14 X 51mm, 2a, 690v
Siemens Robicon 6SR0960-0JM04-0AD0 Fuse 6a, 2100vac
Siemens Robicon 6SR0960-0JM05-0AD0 Fuse Small Dim 10a, 32v
Siemens Robicon 6SR0960-0JM06-0AD0 Fuse Mdl_device_7a_250v_1/4x1 1/4"
Siemens Robicon 6SR0960-0JM07-0AD0 Fuse Class J, 15a, 600v
Siemens Robicon 6SR0960-0JM08-0AD0 Fuse Device_500v_4 Amp_w/o Indicator
Siemens Robicon 6SR0960-0JM10-0AD0 Fuse Device_690v_4a_w/o Indicator
Siemens Robicon 6SR0960-0JM11-0AD0 Fuse Device_690v_10amp_with Striker
Siemens Robicon 6SR0960-0JM12-0AD0 Fuse Device_690v_4 Amp_with Striker
Siemens Robicon 6SR0960-0JM13-0AD0 Fuse Device_690v_63 Amp_with Striker
Siemens Robicon 6SR0960-0JM14-0AD0 Fuse Device_10x38_2a_500v_gg_w/o-ind
Siemens Robicon 6SR0960-0JM15-0AD0 Fuse Device_500v_25 A_w/o Indicator
Siemens Robicon 6SR0960-0JM16-0AD0 Fuse Device_500v_2amp_w/o Indicator
Siemens Robicon 6SR0960-0JM17-0AD0 Fuse Device_500v_4amp_w/o Indicator
Siemens Robicon 6SR0960-0JM18-0AD0 Fuse Class J, 15a, 600v
Siemens Robicon 6SR0960-0JM20-0AD0 Fuse Device_690v_50amp_with Striker
Siemens Robicon 6SR0960-0JM21-0AD0 Fuse Device_690v_200 Amp_with Strike
Siemens Robicon 6SR0960-0JM22-0AD0 Fuse Holder, 2p,700v
Siemens Robicon 6SR0960-0JM23-0AD0 Fuse Small Dim, 25a, 600v
Siemens Robicon 6SR0960-0JM24-0AD0 Fuse Small Dim, 1/4a,600v
Siemens Robicon 6SR0960-0JM25-0AD0 Fuse Small Dim, 1/2a, 600v
Siemens Robicon 6SR0960-0JM26-0AD0 Fuse Small Dim, 1 1/2a, 600v
Siemens Robicon 6SR0960-0JM27-0AD0 Fuse Class J, 15a, 600v
Siemens Robicon 6SR0960-0JM28-0AD0 Fuse Dev_a240t_2a_2.4kv_4.5/8x13/16"
Siemens Robicon 6SR0960-0JM30-0AD0 Fuse Device_23.0kv_2.2inch
Siemens Robicon 6SR0960-0JM31-0AD0 Fuseholder 30a,600v,blown
Siemens Robicon 6SR0960-0JM32-0AD0 Fuseblock 3pole 160a 690v Ul
Siemens Robicon 6SR0960-0JM33-0AD0 Fuse 80amp
Siemens Robicon 6SR0960-0JM34-0AD0 Fuseblock 3 Pole, 250a, 690v
Siemens Robicon 6SR0960-0JM35-0AD0 Mould Fuse Block M10
Siemens Robicon 6SR0960-0JM36-0AD0 Fuse 8a, 600v
Siemens Robicon 6SR0960-0JM37-0AD0 Fuseholder Midget, Blown
Siemens Robicon 6SR0960-0JM38-0AD0 Mould Fuse Block M8
Siemens Robicon 6SR0960-0JM40-0AD0 Fuse Holder 6 Pole M10 Ss
Siemens Robicon 6SR0960-0JM41-0AD0 Fuse Pt,4800v,e Rated,curr Lim
Siemens Robicon 6SR0960-0JM42-0AD0 Fuse Class J, 35a, 600v
Siemens Robicon 6SR0960-0JM43-0AD0 Fuse Class Cc, 15a, 600v
Siemens Robicon 6SR0960-0JM44-0AD0 Fuse Small Dim,20a,600v
Siemens Robicon 6SR0960-0JM45-0AD0 Fuse 12a,600v,rejection Type
Siemens Robicon 6SR0960-0JM46-0AD0 Fuse 690v,4a
Siemens Robicon 6SR0960-0JM47-0AD0 Fuse Small Dimension, 2a, 250v
Siemens Robicon 6SR0960-0JM48-0AD0 Fuse Small Dimension, 6a, 250v
Siemens Robicon 6SR0960-0JM50-0AD0 Fuseblock 1pole,form A120x
Siemens Robicon 6SR0960-0JM51-0AD0 Siemens SINAMICS Ph GH180 Fuse Semiconductor 100a, 1000v
Siemens Robicon 6SR0960-0JM52-0AD0 Siemens SINAMICS Ph GH180 Fuse Semiconductor 160a, 1000v
Siemens Robicon 6SR0960-0KA0 0-0AA0 Transformer For Auxiliary Voltage 200-690v/115-230v, 500va
Siemens Robicon 6SR0960-0KA0 1-0AA0 Emc-filter
Siemens Robicon 6SR0960-0KA0 2-0AA0 Emc-filter 16a
Siemens Robicon 6SR0960-0KA0 2-0AD0 Emi Filter Kit
Siemens Robicon 6SR0960-0KA0 2-0AM0 Filter Non_radio_fn258_690v_16a
Siemens Robicon 6SR0960-0KA0 3-0AA0 Power Supply For Encoder
Siemens Robicon 6SR0960-0KA0 4-0AA0 Emc-filter 16a For It-net
Siemens Robicon 6SR0960-0KA0 5-0AA0 Emi-filter Fn 258hvit 29 690v
Siemens Robicon 6SR0960-0KB00-0AA0 Power Switch For Auxiliary Voltage
Siemens Robicon 6SR0960-0KB01-0AA0 Auxiliary Switch For Power Switch
Siemens Robicon 6SR0960-0KB02-0AA0 Handle Power Switch Auxiliary Voltage
Siemens Robicon 6SR0960-0KB03-0AA0 Shaft For Power Switch Auxiliary Voltage
Siemens Robicon 6SR0960-0KM00-0AD0 Circuit Breaker 600v,40a,3p,25kaic
Siemens Robicon 6SR0960-0KM02-0AD0 Starter 3p 480v,20a,120v,ul/cs
Siemens Robicon 6SR0960-0KM04-0AD0 Switch Ot,3 Pos,blk,maint,30mm
Siemens Robicon 6SR0960-0KM05-0AD0 Filter 1ph, 250 V Ac, 50/60 Hz,25 A
Siemens Robicon 6SR0960-0KM10-0AD0 Switch Power_slide Ced6_100a_500vdc
Siemens Robicon 6SR0960-0KM12-0AD0 Transformer Potent,20va,480-120v,1ph
Siemens Robicon 6SR0960-0KM13-0AD0 Transformer Pt,33kv/120v,50hz,1200va
Siemens Robicon 6SR0960-0KM14-0AD0 Transformer Mach Tool,50va,120/24v
Siemens Robicon 6SR0960-0KM15-0AD0 Control Transformer 690v/120v,1000va,1ph,50hz
Siemens Robicon 6SR0960-0KM16-0AD0 Control Transformer 690v/120v,500va,1ph,50hz
Siemens Robicon 6SR0960-0KM17-0AD0 Transformer 1ph_480v_24v_240v_12v_100va

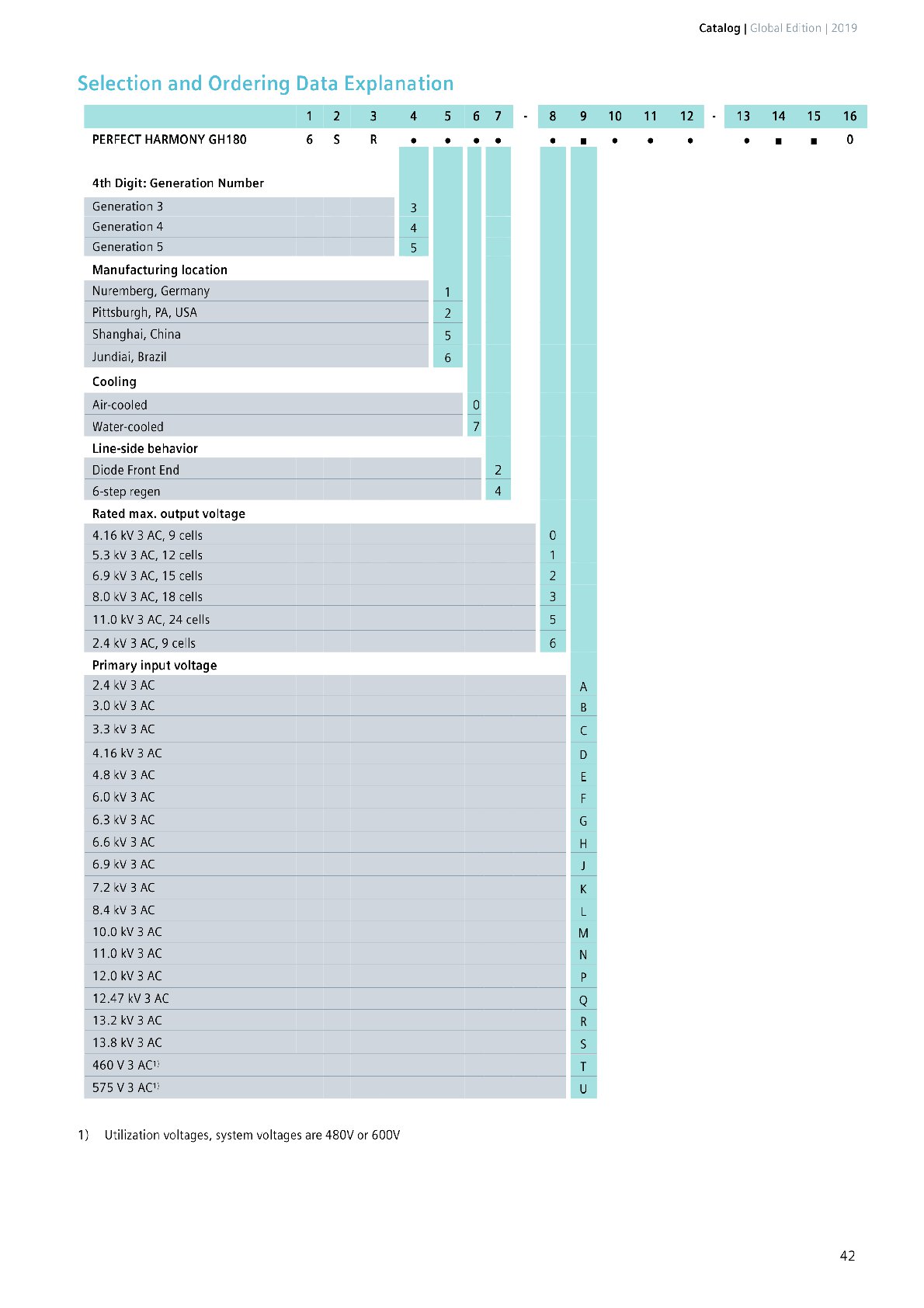

Selection and Ordering Data Explanation
1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16
PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0
4th Digit: Generation Number
Generation 3 3
Generation 4 4
Generation 5 5
Manufacturing location
Nuremberg, Germany 1
Pittsburgh, PA, USA 2
Shanghai, China 5
Jundiai, Brazil 6
Cooling
Air-cooled 0
Water-cooled 7
Line-side behavior
Diode Front End 2 6-step regen 4
Rated max. output voltage
4.16 kV 3 AC, 9 cells 0
5.3 kV 3 AC, 12 cells 1
6.9 kV 3 AC, 15 cells 2
8.0 kV 3 AC, 18 cells 3
11.0 kV 3 AC, 24 cells 5
2.4 kV 3 AC, 9 cells 6
Primary input voltage
2.4 kV 3 AC A
3.0 kV 3 AC B
3.3 kV 3 AC C
4.16 kV 3 AC D
4.8 kV 3 AC E
6.0 kV 3 AC F
6.3 kV 3 AC G
6.6 kV 3 AC H
6.9 kV 3 AC J
7.2 kV 3 AC K
8.4 kV 3 AC L
10.0 kV 3 AC M
11.0 kV 3 AC N
12.0 kV 3 AC P
12.47 kV 3 AC Q
13.2 kV 3 AC R
13.8 kV 3 AC S
460 V 3 AC1) T
575 V 3 AC1) U
1) Utilization voltages, system voltages are 480V or 600V
43
Catalog | Global Edition | 2019
Selection and Ordering Data Explanation
1 2 3 4 5 6 7 - 8 9 10 11 12 - 13 14 15 16
PERFECT HARMONY GH180 6 S R ● ● ● ● ● ■ ● ● ● ● ■ ■ 0
Cell rating AC
40 A
70 B
100 C
140 D
200 E
260 F
340 G
430 H
500 J
660 K
750 N
Cell rating WC
880 Regenerative breaking only B
1000 D
1250 C
1375 E
Drive Rating: AC - Transformer Primary kVA; WC - Drive Power (HP)
150 3 1 5
…. … … …
800 3 8 0
900 3 8 7
1000 4 1 0
1500 4 1 5
….. … … …
3000 4 3 0
4000 4 4 0
…. … … …
9000 4 8 7
10000 5 2 0
…. … … …
15000 5 3 0
20000 5 4 0
33000 5 5 8
Transformer configuration
60 Hz, Cu A
50 Hz, Cu B
60 Hz, Al E
50 Hz, Al F
Auxiliary voltage
380 V 3 AC, 50/60 Hz F
400 V 3 AC, 50/60 Hz G
415 V 3 AC, 50/60 Hz H
460 V 3 AC, 50/60 Hz J
575 V 3 AC, 50/60 Hz L
44
Catalog | Global Edition | 2019
SINAMICS PERFECT HARMONY GH180 Technical Data
General Technical Data
General Technical Data
Drive quadrants 2 or 4
Isolation Fiber optic cable
Rated Efficiency
Cu Typical 97.0 % including transformer, 96.5% guaranteed across whole product range
Al Typical 96.5 % including transformer, 96% guaranteed across whole product range
Regulation compliances IEEE, ANSI, NEMA, UL, CSA, CE
Cooling 6SR5 Series 6SR4 Series 6SR327 Series
Air-cooled Air-cooled Water-cooled
Degree of Protection1) NEMA 1/ IP42 (standard) NEMA 1/ IP21 (standard) NEMA 12/ IP54 (standard)
Altitude Ft (m) 0…3,300 (1,000) standard, Up to 14,763 (4,500) with de-rating
Sound Pressure Level at 3ft (1m) 6SR5 6SR5 6SR5 6SR5 6SR4 6SR4 6SR327
40-70A 100-140A 200-260A 340-430A 315-375A 500-750A 880-1375A
9 cell configuration dBA 75 80 82 82 80 76
12 cell configuration dBA 80 80 80 82 80 76
15 cell configuration dBA 80 80 80 80 80 76
18 cell configuration dBA 80 76
24 cell configuration dBA 76
Power Cabling Cross Sections2) 6SR5 6SR5 6SR5 6SR5 6SR5 6SR4 6SR327
40-70A 100-140A 200-260A 315-375A 340-430A 500-750A 880-1375A
Line-side, max.
connectable per
phase with M10
(M08 for 40-70A)
screw preliminary
AWG/MCM
(NEC, CEC)
1 x 350
MCM
1 x 4/0
AWG
1 x 500
MCM
2 x 2/0 AWG
2 x 500
MCM
2 x 500
MCM
2 x 1000
MCM
2 x 1000
MCM
mm2
(DIN VDE) 1 x 185 1 x 95 1 x 240
2 x 70 2 x 240 2 x 240 2 x 500 2 x 500
Motor-side, max.
connectable per
phase with M10
(M08 for 40-70A)
screw preliminary
AWG/MCM
(NEC, CEC)
1 x #2
AWG
1 x 2/0
AWG 1 x 4/0 AWG 1 x 500
MCM
1 x 500
MCM
2 x 1000
MCM
2 x 1000
MCM
mm2
(DIN VDE) 1 x 35 1 x 70 1 x 95 1 x 240 1 x 240 2 x 500 2 x 500
PE (protective earth)
connection, max.
connection crosssection at enclosure
with M12 screw
preliminary
AWG/MCM
(NEC, CEC)
2/0
AWG 2/0 AWG 2/0 AWG 2/0 AWG 2/0 AWG 1000
MCM
2 x 1000
MCM
mm2
(DIN VDE) 70 70 70 70 70 500 2 x 500
1) According to IEC 60529
2) Maximum installable size per phase, shielded cables
Cell Overload Capability
6SR5 6SR4 6SR327
Cell Rating 40 70 100 140 200 260 340 430 315 375 500 660 750 880 1000 1250 1375
Maximum cell
continuous current 44 77 110 154 220 286 374 473 346 412 550 726 750 880 1000 1250 1375
110% Overload
(1min/ 10min) 40 70 100 140 200 260 340 430 315 375 500 660 682 880 909 1250 1250
150% Overload
(1min/ 10min) 29 51 73 103 147 191 249 315 231 275 367 484 500 667 667 917 917
45
Catalog | Global Edition | 2019
Auxiliary Supply
Control Voltage
Configuration
Three Phase Single Phase
380 V 460 V 575 V 120 V
6SR5 40-70A K791) A 2.0 2.5 2.0 4.0
6SR5 40-70A K692) A 3.5 4.0 3.0
6SR5 100-140A K791) A 3.5 4.0 3.5 4.0
6SR5 100-140A K692) A 5.0 5.5 4.5
6SR5 200-260A K791) A 6.5 8.0 6.5 4.0
6SR5 200-260A K692) A 8.0 9.5 7.5
6SR5 340-430A K791) A 10.0 11.5 9.5 4.0
6SR5 340-430A K692) A 11.5 12.5 10.5
6SR4 500-750A K791)
9/12 cell up to 4000 Hp A 12.5 11.5 9.0 4.5
6SR4 500-750A K692)
9/12 cell up to 4000 Hp A 15.0 13.5 11.0
6SR4 500-750A K791)
9/12 cell 4500 to 6000 Hp A 15.5 14.5 11.5 4.5
6SR4 500-750A K692) 9/12 cell 4500 to 6000 Hp A 18.5 16.5 13.0
6SR4 500-750A K791)
15/18 cell up to 4000 Hp A 15.5 14.5 11.5 4.5
6SR4 500-750A K692)
15/18 cell up to 4000 Hp A 18.5 16.5 13.0
6SR4 500-750A K791)
15/18 cell 4500 to 6000 Hp A 18.5 17.0 13.5 4.5
6SR4 500-750A K692)
15/18 cell 4500 to 6000 Hp A 21.5 19.0 15.5
6SR4 500-750A K791)
15/18 cell 6500-8000 Hp A 18.5 17.0 13.5 4.5
6SR4 500-750A K692)
15/18 cell 6500-8000 Hp A 21.5 19.0 15.5
6SR4 500-750A K791)
15/18 cell 9000 Hp A 18.5 20.0 16.0 4.5
6SR4 500-750A K692)
15/18 cell 9000 Hp A 20.0 21.0 17.0
1) Single phase for NXG control
2) K69 includes CPT: Control power transformer
3) Includes cooling blowers; largest unit shown.
4) Drive space heater option (L55) requires separate source
Control Voltage
Configuration Three Phase Single Phase
380 V 460 V 575 V 120 V
6SR327 K691) with CPT A 1.6 1.3 1.1
6SR327 K69 with CPT and W04 option A 3.2 2.6 2.2
6SR327 880-1375A 9 cell K792) A 13.4 8.4 6.8 5.0
6SR327 880-1375A 9 cell K792) and W043)
A 33.1 27.2 21.4 10.0
6SR327 880-1375A 12 cell K792) A 14.6 12.7 10.1 5.0
6SR327 880-1375A 12 cell K792) and W043)
A 34.3 28.4 22.3 10.0
6SR327 880-1375A 15 cell K792) A 19.4 16.9 13.5 5.0
6SR327 880-1375A 15 cell K792) and W044)
A 35.5 29.6 23.3 10.0
6SR327 880-1375A 18 cell K792) A 20.6 18.1 14.5 5.0
6SR327 880-1375A 18 cell K792) and W043)
A 36.7 30.8 24.3 10.0
6SR327 880-1375A 24 cell K79 2) A 30.4 26.5 21.2 5.0
6SR327 880-1375A 24 cell K792) and W043)
A 39.1 33.2 26.2 10.0
System pre-charge4) % 0.5 0.5 0.5
1) K69 includes CPT (Control power transformer) current requirements, for full current requirement, with or without W04 for total A required
for K69 Option
2) Single phase for NXG control and 120 V AC internal heat exchanger in water-cooled systems
3) Includes cooling pumps; largest unit shown.
4) Percentage of transformer kVA
Note: Options A30, A82, A83, and E04 will require slightly more current from the 120V source.
If either the Option Cabinet or the Exciter Cabinet (E01) are present, an additional 2.1 Amps will be required per cabinet.
Previous : A5E37764770 Siemens Robicon NXGpro DCR 21 Cell GH180 NXGpro controller 21 cell
Next : Siemens SIMOREG DC MASTER Digital Chassis Converters 2006 North America DC Drives Catalog
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
