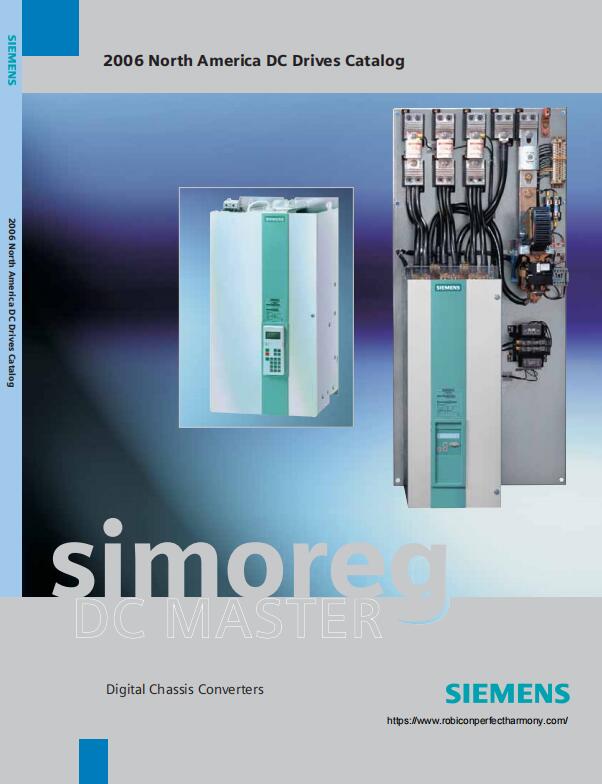

Siemens SIMOREG DC MASTER Digital Chassis Converters 2006 North America DC Drives Catalog
Siemens SIMOREG DC MASTER Digital Chassis Converters 2006 North America DC Drives Catalog
Siemens SIMOREG DC MASTER Digital Chassis Converters 2006 North America DC Drives Catalog
SIMOREG 6RA70 DC MASTER
Overview
1
6RA70
DC MASTER SIEMENS Family of Applied Drives
The Siemens Family
of Applied Drives
From stand-alone drives to
the most challenging applications Siemens applied
series drives offer a truly
integrated family of high
performance drives that
are unmatched from one
continent to the next.
SIMOREG 6RA70
DC MASTER
7.5 HP – 1000 HP at
500 V DC
Extended designs also
available up to 8 000 HP
SIMOVERT™
MASTERDRIVES VC
AC Series of Vector Control
1 HP to 5 000 HP
Customer-specific, integral
solutions are available for
the most varied of applications in all industrial sectors.
SIMOVERT
MASTERDRIVES MC
Motion Control Series
0.5 HP to 355 HP
Siemens DC Drives Catalog · 2006 1/11
SIMOREG 6RA70 DC MASTER
Overview
1
6RA70
DC MASTER SIMOREG History
1971
SIMOREG 6RA21
Analog DC Drive
The SIMOREG name is born
out of the Siemens line of DC
products
1986
3rd Generation SIMOREG
Among the first digital DC
drives in the market
1994
SIMOREG 6RA24
Known throughout
the industry as
“The Workhorse“
Now with:
•More performance
•More HP selections
and extended
ranges
•More application
flexibility
•More communication
choices
•More favorably priced
solutions
2000
SIMOREG 6RA70
DC MASTER
Giving DC a new lease on
life for the next millennium
Siemens DC Drives Catalog · 2006 1/12
SIMOREG 6RA70 DC MASTER
Overview
1
6RA70
DC MASTER
The SIMOREG 6RA70 converters are specifically designed
to provide precise DC motor
speed control over a wide
range of machine parameters
and load conditions. The
modular design that allows
them to be tailored exactly to
the application at hand also
lends them well to many nonstandard DC applications.
From a package drive to an
integral solution of the most
sophisticated project the
SIMOREG 6RA70 has proven
itself time and time again in
industries including:
• Metals
• Paper
• Textile
• Rubber
• Plastics
• Extruding
• Lifting, etc.
In addition to increased performance and extended
capabilities added into the
new SIMOREG 6RA70 the
standard model offerings
have been increased and extended up to 1000 HP at 500 V
DC in the compact unit design. With the paralleling capabilities and high HP
designs extended ranges up
■Selection and ordering data
Power module
Single quadrant, non-regenerative
Horsepower
240 V DC 500 V DC
Rated Armature
A
Rated Field
A
Catalog No. 1)2)4) 3 HP 7.5 HP 15 A DC 5 A DC 6RA7018-6FS22-0Z+X01
7.5 HP 15 HP 30 A DC 10 A DC 6RA7025-6FS22-0Z+X01
15 HP 30 HP 60 A DC 10 A DC 6RA7028-6FS22-0Z+X01
25 HP 60 HP 100 A DC 10 A DC 6RA7031-6FS22-0Z+X01
40 HP 75 HP 140 A DC 15 A DC 6RA7075-6FS22-0Z+X01
60 HP 125 HP 210 A DC 15 A DC 6RA7078-6FS22-0Z+X01
75 HP 150 HP 255 A DC 25 A DC 6RA7082-6FS22-0Z+X01
125 HP 250 HP 430 A DC 25 A DC 6RA7085-6FS22-0Z+X01
150 HP 300 HP 510 A DC 30 A DC 6RA7087-6FS22-0Z+X01
250 HP 500 HP 850 A DC 30 A DC 6RA7091-6FS22-0Z+X01
350 HP 700 HP 1180 A DC 40 A DC 6RA7093-4GS22-0Z+X01
500 HP 1000 HP 1660 A DC 40 A DC 6RA7095-4GS22-0Z+X01
500 HP 1000 HP 1680 A DC 85 A DC 6RA7096-4GS22-0Z+X01
Power module
Four quadrant, regenerative 3)
Horsepower
240 V DC 500 V DC
Rated Armature
A
Rated Field
A
Catalog No. 1)2)4) 3 HP 7.5 HP 15 A DC 5 A DC 6RA7018-6FV62-0Z+X01
7.5 HP 15 HP 30 A DC 10 A DC 6RA7025-6FV62-0Z+X01
15 HP 30 HP 60 A DC 10 A DC 6RA7028-6FV62-0Z+X01
25 HP 60 HP 100 A DC 10 A DC 6RA7031-6FV62-0Z+X01
40 HP 75 HP 140 A DC 15 A DC 6RA7075-6FV62-0Z+X01
60 HP 125 HP 210 A DC 15 A DC 6RA7078-6FV62-0Z+X01
75 HP 150 HP 255 A DC 25 A DC 6RA7082-6FV62-0Z+X01
125 HP 250 HP 430 A DC 25 A DC 6RA7085-6FV62-0Z+X01
150 HP 300 HP 510 A DC 30 A DC 6RA7087-6FV62-0Z+X01
250 HP 500 HP 850 A DC 30 A DC 6RA7091-6FV62-0Z+X01
350 HP 700 HP 1180 A DC 40 A DC 6RA7093-4GV62-0Z+X01
500 HP 1000 HP 1660 A DC 40 A DC 6RA7095-4GV62-0Z+X01
500 HP 1000 HP 1680 A DC 85 A DC 6RA7096-4GV62-0Z+X01
Power module selection
Selection & Ordering Data
1)SIMOREG drive controllers will
be shipped without options
installed.
2)DC motor, drive enclosure,
contactor, most fuses, and
control transformer not included.
3)Designed for operation with
straight shunt wound motors.
4)Model numbers in this section
come equipped with the S00
extended technology function
enabled.
Siemens DC Drives Catalog · 2006 3/6
SIMOREG 6RA70 DC MASTER
3
6RA70
DC MASTER
■Base drive panel models
Base drive panel models are
available in single and four
quadrant designs from 15 A to
1660 A ratings. These models
feature the 6RA70 power
module, line fuses, contactor,
control transformer, and connections mounted on a back
panel.
Drive packages consisting of a
base drive controller and motor
along with drive enclosures are
also available. Consult factory
for details and pricing.
Fig. 3/2
Base drive panel examples of 15 A, 210 A and 510 A models
Base drive panel selection
Selection & Ordering Data
Siemens DC Drives Catalog · 2006 3/7
SIMOREG 6RA70 DC MASTER
3
6RA70
DC MASTER Base drive panel selection
■Selection and ordering data
Base drive panel
Single quadrant, non-regenerative
Horsepower
240 V DC 1) 500 V DC
Rated Armature
A
Catalog No. 2)3) 3 HP 7.5 HP 15 A DC 6RA7013-2FS22-0
7.5 HP 15 HP 30 A DC 6RA7018-2FS22-0
15 HP 30 HP 60 A DC 6RA7025-2FS22-0
25 HP 60 HP 100 A DC 6RA7030-2FS22-0
40 HP 75 HP 140 A DC 6RA7072-2FS22-0
60 HP 125 HP 210 A DC 6RA7075-2FS22-0
75 HP 150 HP 255 A DC 6RA7077-2FS22-0
125 HP 250 HP 430 A DC 6RA7082-2FS22-0
150 HP 300 HP 510 A DC 6RA7083-2FS22-0
250 HP 500 HP 850 A DC 6RA7087-2FS22-0
350 HP 700 HP 1180 A DC 6RA7091-2FS22-0
500 HP 1000 HP 1660 A DC 6RA7094-2FS22-0
Base drive panel
Four quadrant, regenerative 4)
Horsepower
240 V DC 1) 500 V DC
Rated Armature
A
Catalog No. 2)3) 3 HP 7.5 HP 15 A DC 6RA7013-2FV62-0
7.5 HP 15 HP 30 A DC 6RA7018-2FV62-0
15 HP 30 HP 60 A DC 6RA7025-2FV62-0
25 HP 60 HP 100 A DC 6RA7030-2FV62-0
40 HP 75 HP 140 A DC 6RA7072-2FV62-0
60 HP 125 HP 210 A DC 6RA7075-2FV62-0
75 HP 150 HP 255 A DC 6RA7077-2FV62-0
125 HP 250 HP 430 A DC 6RA7082-2FV62-0
150 HP 300 HP 510 A DC 6RA7083-2FV62-0
250 HP 500 HP 850 A DC 6RA7087-2FV62-0
350 HP 700 HP 1180 A DC 6RA7091-2FV62-0
500 HP 1000 HP 1660 A DC 6RA7094-2FV62-0
Selection and ordering data
Description Catalog No.
T400 Technology board
w/Axial winder software SPW 420 6DD1-842-0AA0
Winder software on floppy (no manual) 6DD1-843-0AA0
Winder instructions/manual 6DD1-903-0AA0
T400 Technology board
w/Angular synchronous control SPA 440 6DD1-842-0AB0
Angular asynchr. software on floppy (no manual) 6DD1-843-0AB0
Angular synchr. instructions/manual 6DD1-903-0BB0
T400 Technology board, without software 6DD1-606-0AD0
Description Catalog No.
SLB SIMOLINK Board (11 MBaud Peer-to-Peer) 6SX7010-0FJ00 1)
SIMOLINK fiber optic cable kit 328 ft (100 m), plastic, with 20 connectors 6SX7010-0FJ50
SIMOLINK fiber optic cable kit 9.8 ft (3 m), plastic, with 2 connectors 6SY7000-0AD15
Description Catalog No.
CBP2 Communication board (PROFIBUS-DP/12 m Baud) 6SX7010-0FF05
PROFIBUS-DP cable (per meter ... min. 20 m/max. 100 m) 6XV1830-0AH10
PROFIBUS-DP interface connector 6ES7972-0BB20-0XA0
Description Catalog No.
CBC Communication board (CAN Bus) 6SX7010-0FG00
Description Supplied loose
Catalog No.
CBD DeviceNet board 6SX7010-0FK00
Instruction manual Included in above
Description Order No.: Weight
(approx.)
lb
kg
Dimensions
W x H x D
in x in x in
mm x mm x mm
SCB1 Interface board with
fiber-optic cable connection
supplied unassembled incl. 3.28 ft
(10 m) FO cable
6SE7090-0XX84-0BC0 1.1
(0.5)
0.98 x 9.25 x 4.9
(25 x 235 x 125)
Serial communication converter Catalog No.
DTU-3006 DTU-3006
MD-3006 MD-3006
DN-3006 DN-3006
PD-3006 PD-3006
SCI-PU A1-101-037-811
Scope of supply Order No.: Type of delivery Documentation
Drive ES software packages · For installation as an integral option of STEP 7 Versions ≥ V 5.3
Drive ES Basic V 5.3 1) single-user license 6SW1700-5JA00-3AA0 CD-ROM, 1 unit 5 standard languages
Drive ES Basic Upgrade
V 5.2 V → 5.3 single-user license
6SW1700-5JA00-3AA4 CD-ROM, 1 unit 5 standard languages
Drive ES Graphic V 6.0 single-user license 6SW1700-6JB00-0AA0 CD-ROM, 1 unit 5 standard languages
Drive ES Graphic Upgrade
V 5.2 → V 6.0 single-user license
6SW1700-6JB00-0AA4 CD-ROM, 1 unit 5 standard languages
Drive ES SIMATIC V 5.3 single-user license 6SW1700-5JC00-3AA0 CD-ROM, 1 unit 5 standard languages
Drive ES SIMATIC Upgrade
V 5.1 → V 5.3 single-user license
6SW1700-5JC00-3AA4 CD-ROM, 1 unit 5 standard languages
Drive ES SIMATIC
copy/runtime license
6SW1700-5JC00-1AC0 Only product certificate (without software and
documentation)
5 standard languages
Drive ES PCS7 V 6.0 single-user license 6SW1700-6JD00-0AA0 CD-ROM, 1 unit 5 standard languages
Drive ES PCS7
copy/runtime license
6SW1700-5JD00-1AC0 Only product certificate (without software and
documentation)
Scope of supply Order No.:
Software update service
Drive ES Basic 6SW1700-0JA00-0AB2
Drive ES Graphic 6SW1700-0JB00-0AB2
Drive ES SIMATIC 6SW1700-0JC00-0AB2
Drive ES PCS7 6SW1700-0JD00-0AB2
Description Connection Cable length Order No.:
ft (m)
Preassembled ribbon cable set
2 off 26-core ribbon cable, shielded
2 off 10-core ribbon cable, shielded
1 off 20-core ribbon cable, shielded
From X21A, X22A on FBG -A7042- to X21A, X22A on FBG -A7043-
From XS20, XS21 on FBG -A7042- to XS20, XS21 on FBG -A7044-
From X102 on FBG -A7042- to X102 on FBG -A7044-
9.84 (3)
32.8 (10)
6RY1707-0CM01
6RY1707-0CM02
Preassembled cable set for current
transformer
2 off 2-core twisted-pair cable From X3 on FBG -A7042- to the current transformers 6.56 (2)
32.8 (10
6RY1707-0CM03
6RY1707-0CM04
Preassembled cable set for heat sink
temperature sensing
1 off 2-core shielded cable From X6 and X7 on FBG -A7042- to temperature sensor on KK 32.8 (10) 6RY1707-0CM05
Preassembled cable set for firing pulse
cables
Bridging set for 12 off 2-core twisted-pair
cable
From XIMP11 through XIMP16 and XIMP21 through XIMP26
to the thyristors
9.84 (3) 6RY1707-0CM06
Preassembled cable set for the fuse
monitoring system
6 off 2-core twisted-pair cable From XS1_. through XS12_. (according to the voltage: 85 V,
250 V, 575 V or 1000 V) to the fuses
32.8 (10) 6RY1707-0CM07
Preassembled cable set for voltage
measurement
1 off 3-core twisted-pair cable U-V-W
1 off 2-core twisted-pair cable C-D
From XU., XV., XW. (according to the voltage: 85 V, 250 V,
575 V or 1000 V) to the supply voltage terminals
From XC., XD. (according to the voltage: 85 V, 250 V,
575 V or 1000 V) to the armature voltage terminals
9.84 (3) 6RY1707-0CM08
Preassembled cable set for activation
of the firing pulse transver devices
12 off 2-core twisted-pair cable
2 off 12-core shielded cable
From XIMP1, XIMP4 or XIMP2, XIMP5 or XIMP3, XIMP6
on FBG through A7043- (side panels) on the firing pulse
transfer modules (single boards) with Terminals X11 through
X16 and X21 through X26
From XIMP1, XIMP4 and/or XIMP2, XIMP5 and/or XIMP3, XIMP6
on FBG -A7043- to external firing pulse transfer devices
3.28 (1)
32.8 (10)
6RY1707-0CM09
6RY1707-0CM10
Preassembled cable set for cradle
in-line mounting
2 off 26-core ribbon cable
2 off 10-core ribbon cable
1 off 20-core ribbon cable
From X21A, X22A on FBG -A7042- to X21A, X22A on FBG -A7043-
From XS20, XS21 on FBG -A7042- to XS20, XS21 on FBG -A7044-
From X102 on FBG -A7042- to X102 on FBG -A7044-
– 6RY1707-0CM11
Appendix
A
6RA70
DC MASTER
Rated
supply
voltage 1)
Type IEC
Rated
DC current 2)
US
Rated
DC current 3)
Rated
DC voltage
Rated
DC current
field 4) V A A V A
AC 400 6RA7018-6DS22-0 Z+X01 30 25 DC 485 5
6RA7025-6DS22-0 Z+X01 60 51 10
6RA7028-6DS22-0 Z+X01 90 74 10
6RA7031-6DS22-0 Z+X01 125 106 10
6RA7075-6DS22-0 Z+X01 210 158 15
6RA7078-6DS22-0 Z+X01 280 216 15
6RA7081-6DS22-0 Z+X01 400 278 25
6RA7085-6DS22-0 Z+X01 600 443 25
6RA7087-6DS22-0 Z+X01 850 620 30
6RA7091-6DS22-0 Z+X01 1200 843 30
6RA7093-4DS22-0 Z+X01 1600 1190 40
6RA7095-4DS22-0 Z+X01 2000 1439 40
6RA7098-4DS22-0 Z+X01 3000 2179 85
AC 460 6RA7018-6FS22-0 Z+X01 30 15 DC 550 5
6RA7025-6FS22-0 Z+X01 60 30 10
6RA7028-6FS22-0 Z+X01 90 60 10
6RA7031-6FS22-0 Z+X01 125 100 10
6RA7075-6FS22-0 Z+X01 210 140 15
6RA7078-6FS22-0 Z+X01 280 210 15
6RA7082-6FS22-0 Z+X01 450 255 25
6RA7085-6FS22-0 Z+X01 600 430 25
6RA7087-6FS22-0 Z+X01 850 510 30
6RA7091-6FS22-0 Z+X01 1200 850 30
AC 575 6RA7025-6GS22-0 Z+X01 60 51 DC 690 10
6RA7031-6GS22-0 Z+X01 125 106 10
6RA7075-6GS22-0 Z+X01 210 158 15
6RA7081-6GS22-0 Z+X01 400 278 25
6RA7085-6GS22-0 Z+X01 600 443 25
6RA7087-6GS22-0 Z+X01 800 578 30
6RA7090-6GS22-0 Z+X01 1000 700 30
6RA7093-4GS22-0 Z+X01 1600 1190 40
6RA7095-4GS22-0 Z+X01 2000 1660 40
6RA7096-4GS22-0 Z+X01 2200 1680 85
6RA7097-4GS22-0 Z+X01 2800 2024 85
AC 690 6RA7086-6KS22-0 Z+X01 720 526 DC 830 30
6RA7088-6KS22-0 Z+X01 950 668 30
6RA7093-4KS22-0 Z+X01 1500 1102 40
6RA7095-4KS22-0 Z+X01 2000 1504 40
6RA7097-4KS22-0 Z+X01 2600 1877 85
AC 830 6RA7088-6LS22-0 Z+X01 900 634 DC 1000 30
6RA7093-4LS22-0 Z+X01 1500 1102 40
6RA7095-4LS22-0 Z+X01 1900 1414 40
AC 950 6RA7096-4MS22-0 Z+X01 2200 1588 DC 1140 85
Note:
All units are 3-phase self-adapting to 50/60 Hz
supplies. Z+X01 extension includes English
manual and S00 technology functions.
1) 50/60 Hz.
2) IEC armature rating is a continuous current
rating. Operating continuously at this rating
with 40 °C ambient there is no overload capacity.
3) US armature rating allows a 150 % overload for
60 seconds with a 45 °C ambient.
4) All units contain an internal single-phase field
supply. Consult manual for field voltage ratings.
Universal single quadrant
power modules
Siemens DC Drives Catalog · 2006 A/5
SIMOREG 6RA70 DC MASTER
Appendix
A
6RA70
DC MASTER
Rated
supply
voltage 1)
Type IEC
Rated
DC current 2)
US
Rated
DC current 3)
Rated
DC voltage
Rated
DC current
field 4) V A A V A
AC 400 6RA7013-6DV62-0 Z+X01 15 14 DC 420 3
6RA7018-6DV62-0 Z+X01 30 25 5
6RA7025-6DV62-0 Z+X01 60 53 10
6RA7028-6DV62-0 Z+X01 90 78 10
6RA7031-6DV62-0 Z+X01 125 106 10
6RA7075-6DV62-0 Z+X01 210 158 15
6RA7078-6DV62-0 Z+X01 280 216 15
6RA7081-6DV62-0 Z+X01 400 286 25
6RA7085-6DV62-0 Z+X01 600 450 25
6RA7087-6DV62-0 Z+X01 850 626 30
6RA7091-6DV62-0 Z+X01 1200 842 30
6RA7093-4DV62-0 Z+X01 1600 1190 40
6RA7095-4DV62-0 Z+X01 2000 1405 40
6RA7098-4DV62-0 Z+X01 3000 2179 85
AC 460 6RA7018-6FV62-0 Z+X01 30 15 DC 500 5
6RA7025-6FV62-0 Z+X01 60 30 10
6RA7028-6FV62-0 Z+X01 90 60 10
6RA7031-6FV62-0 Z+X01 125 100 10
6RA7075-6FV62-0 Z+X01 210 140 15
6RA7078-6FV62-0 Z+X01 280 210 15
6RA7082-6FV62-0 Z+X01 450 255 25
6RA7085-6FV62-0 Z+X01 600 430 25
6RA7087-6FV62-0 Z+X01 850 510 30
6RA7091-6FV62-0 Z+X01 1200 850 30
AC 575 6RA7025-6GV62-0 Z+X01 60 53 DC 600 10
6RA7031-6GV62-0 Z+X01 125 106 10
6RA7075-6GV62-0 Z+X01 210 158 15
6RA7081-6GV62-0 Z+X01 400 286 25
6RA7085-6GV62-0 Z+X01 600 450 25
6RA7087-6GV62-0 Z+X01 850 626 30
6RA7090-6GV62-0 Z+X01 1100 767 30
6RA7093-4GV62-0 Z+X01 1600 1190 40
6RA7095-4GV62-0 Z+X01 2000 1660 40
6RA7096-4GV62-0 Z+X01 2200 1680 85
6RA7097-4GV62-0 Z+X01 2800 2024 85
AC 690 6RA7086-6KV62-0 Z+X01 760 569 DC 725 30
6RA7090-6KV62-0 Z+X01 1000 702 30
6RA7093-4KV62-0 Z+X01 1500 1116 40
6RA7095-4KV62-0 Z+X01 2000 1405 40
6RA7097-4KV62-0 Z+X01 2600 1877 85
AC 830 6RA7088-6LV62-0 Z+X01 950 668 DC 875 30
6RA7093-4LV62-0 Z+X01 1500 1116 40
6RA7095-4LV62-0 Z+X01 1900 1414 40
AC 950 6RA7096-4MV62-0 Z+X01 2200 1588 DC 1000 85
Previous : GH180 Made in Nuremberg, Germany 1 Pittsburgh, PA, USA 2 Shanghai, China 5 Jundiai, Brazil 6
Next : A1A0100275, A1A14000461.00 Robicon Perfect Harmony SIEMENS GH180 DCR Power Supply 700W
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
