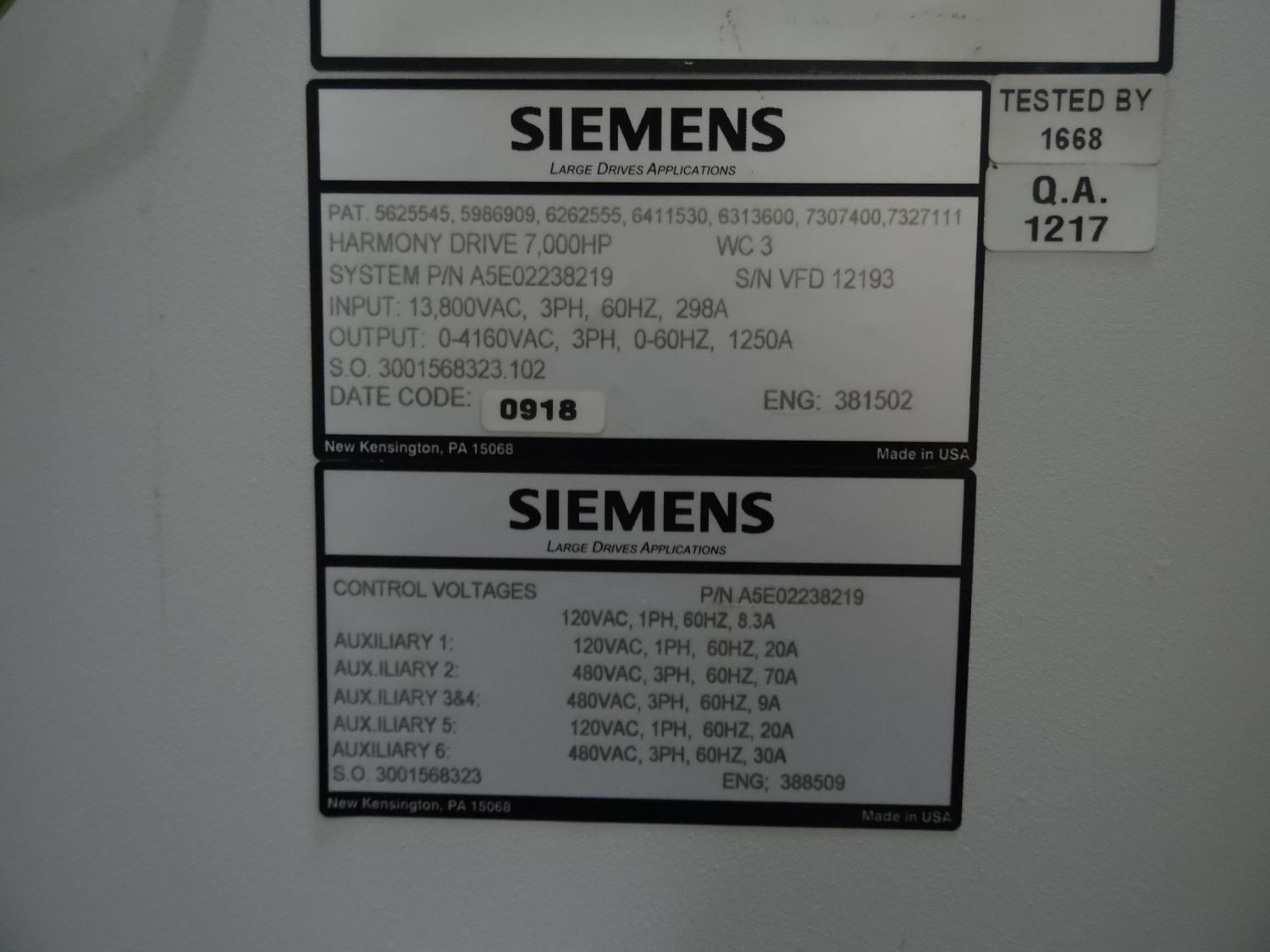

ROBICON Perfect Harmony - Medium voltage converters Parameter Dump
ROBICON Perfect Harmony - Medium voltage converters Parameter Dump
Customer order number: 3002308054
Customer drive number: 2622752
Comments: After fixing load sharing issues.
______________________________________________________________________________________________________________
P865A - Parameter Dump June 21, 2012 4:49 P.M.
Drive Software - Version 5.0.0 8-18-09 Drive Host - Version 1.15.0.2
Description ID Lvl RH
______________________________________________________________________________________________________________
Main - Sec. level: 7 5 0 00
Motor 1 0 00
Motor parameter 1000 0 00
Motor frequency = 50.0 Hz *1020 5 10
Full load speed = 980 rpm *1030 5 10
Motor voltage = 6600 V *1040 5 10
Full load current = 132.0 A *1050 5 10
No load current = 28.5 % *1060 5 00
Motor kW Rating = 1250.0 kW *1010 5 10
Leakage inductance = 21.1 % *1070 5 00
Stator resistance = 0.96 % *1080 5 00
Inertia = 116.0 Kgm2 *1090 5 00
Limits 1120 5 00
Overload select = Inv Time w/ derate 1130 5 00
Overload Pending = 100.0 % *1139 5 00
Overload = 100.0 % *1140 5 00
Overload timeout = 5.0 sec 1150 5 00
Speed Derate Curve 1151 5 00
0 Percent Break Point = 0.0 % 1152 5 00
10 Percent Break Point = 31.6 % 1153 5 00
17 Percent Break Point = 41.2 % 1154 5 00
25 Percent Break Point = 50.0 % 1155 5 00
50 Percent Break Point = 70.7 % 1156 5 00
100 Percent Break Point = 100.0 % 1157 5 00
Motor trip volts = 7500 V *1160 5 00
Maximum Motor Inertia = 0.0 Kgm2 1159 5 10
Overspeed = 120.0 % 1170 5 00
Underload enable = Disable 1180 5 00
I underload = 10.0 % 1182 5 00
Under load timeout = 10.0 sec 1186 5 00
Motor torque limit 1 = 100.0 % 1190 5 00
Regen torque limit 1 = -0.50 % *1200 5 00
Motor torque limit 2 = 100.0 % 1210 7 00
Regen torque limit 2 = -0.25 % 1220 7 00
Motor torque limit 3 = 100.0 % 1230 7 00
Regen torque limit 3 = -0.25 % 1240 7 00
Phase Imbalance Limit = 40.0 % 1244 5 00
Ground Fault Limit = 5.0 % 1245 5 00
Ground Fault Time Const = 0.017 sec 1246 5 00
H/W Ground Fault Enable = Yes 1247 7 10
Peak Reduction Enable = VFD volt rating 1248 7 00
Loss of field level = 40.0 % 1141 7 00
Loss of field timeout = 10.0 sec 1142 7 00
Encoder 1280 0 00
Encoder 1 PPR = 720 1290 5 10
Encoder filter gain = 0.7500 1300 7 00
Encoder loss threshold = 5.0 % 1310 7 00
Encoder loss response = stop (fault) 1320 7 00
Low speed operation = Disable 1330 7 00
Drive 2 0 00
Drive parameters 2000 0 00
Rated input voltage = 6600 V *2010 7 10
Rated input current = 136.0 A *2020 7 10
Rated output voltage = 6600 V *2030 7 10
Rated output current = 140.0 A *2040 7 10
Control loop type = OLVC 2050 7 10
Parallel system = Disable 2051 0 00
Speed setup 2060 0 00
Ratio control = 100.0 % 2070 5 00
Speed fwd max limit 1 = 100.0 % 2080 5 00
Speed fwd min limit 1 = 0.0 % 2090 5 00
Speed fwd max limit 2 = 100.0 % 2100 7 00
Speed fwd min limit 2 = 0.0 % 2110 7 00
Speed fwd max limit 3 = 100.0 % 2120 7 00
Speed fwd min limit 3 = 0.0 % 2130 7 00
Speed rev max limit 1 = 0.0 % *2140 5 00
Speed rev min limit 1 = 0.0 % 2150 5 00
Speed rev max limit 2 = -100.0 % 2160 7 00
Speed rev min limit 2 = 0.0 % 2170 7 00
Speed rev max limit 3 = -100.0 % 2180 7 00
Speed rev min limit 3 = 0.0 % 2190 7 00
Zero speed = 0.0 % 2200 5 00
Torque reference 2210 0 00
Sop / Menu control = Sop flag 2211 5 00
Torque setpoint = 0.0 % 2220 5 00
Holding torque = 0.0 % 2230 5 00
Torque ramp increase = 1.00 sec 2240 5 00
Torque ramp decrease = 1.00 sec 2250 5 00
Torque command scalar = 1.00 2242 5 00
Speed ramp setup 2260 0 00
Accel time 1 = 30.0 sec *2270 5 00
Decel time 1 = 45.0 sec *2280 5 00
Accel time 2 = 5.0 sec 2290 7 00
Decel time 2 = 5.0 sec 2300 7 00
Accel time 3 = 5.0 sec 2310 7 00
Decel time 3 = 5.0 sec 2320 7 00
Jerk rate = 3.0 *2330 7 10
Critical freq 2340 5 00
Skip center freq 1 = 15.0 Hz 2350 5 00
Skip center freq 2 = 30.0 Hz 2360 5 00
Skip center freq 3 = 45.0 Hz 2370 5 00
Skip bandwidth 1 = 0.0 Hz 2380 5 00
Skip bandwidth 2 = 0.0 Hz 2390 5 00
Skip bandwidth 3 = 0.0 Hz 2400 5 00
Spinning load 2420 0 00
Spinning load mode = Off 2430 5 00
Scan end threshold = 10.0 % *2440 5 00
Current Level SetPoint = 25.0 % *2450 5 00
Current ramp = 0.01 sec 2460 5 00
Max current = 50.0 % 2470 5 00
Frequency scan rate = 3.00 sec 2480 5 00
Cond time setup 2490 0 00
Cond stop timer = 0.8 sec 2500 5 00
Cond run timer = 0.8 sec 2510 5 00
Cells 2520 0 00
Installed cells/phase = 5 *2530 5 10
Min cell count (n/3) = 5 *2540 5 10
Cell voltage = 750 Gen IV *2550 5 10
Thermistor warn level = 20.0 % 2560 5 10
Bypass type = None *2590 7 10
Neutral connection = T2 2630 7 10
Precharge Enable = Off 2635 7 10
Sync transfer 2700 7 00
Phase I gain = 2.0 2710 7 00
Phase P gain = 4.0 2720 7 00
Phase offset = 2.00 deg 2730 7 00
Phase error threshold = 1.50 deg 2740 7 00
Frequency offset = 0.5 % 2750 7 00
Up transfer timeout = 0.0 sec 2760 7 00
Down transfer timeout = 0.0 sec 2770 7 00
External I/O 2800 5 00
Analog inputs = 0 2810 5 10
Analog outputs = 0 2820 5 10
Digital inputs = 0 2830 5 10
Digital outputs = 0 2840 5 10
Wago timeout = 10.0 sec 2850 5 10
Internal I/O 2805 5 00
Int Analog In1 2815 5 00
Hardware Zero = -50 *2817 5 00
Hardware Span = 1.0600 *2818 5 00
Int Analog In2 2825 5 00
Type = 4 - 20ma 2826 5 10
Hardware Zero = -35 *2827 5 00
Hardware Span = 1.0850 *2828 5 00
Int Analog In3 2835 5 00
Type = 4 - 20ma 2836 5 10
Hardware Zero = -55 *2837 5 00
Hardware Span = 1.0520 *2838 5 00
Int Analog Out1 2845 5 00
Analog variable = Motor Speed *2846 5 00
Output Mode = 4-20 mA 2848 5 00
Output Min = 0.0 % 2841 5 00
Output Max = 100.0 % 2842 5 00
Hardware Zero = -5 *2843 5 00
Hardware Span = 1.0225 *2844 5 00
Int Analog Out2 2855 5 00
Analog variable = Motor Torque *2856 5 00
Output Mode = 4-20 mA 2858 5 00
Output Min = 0.0 % 2851 5 00
Output Max = 100.0 % 2852 5 00
Hardware Zero = -5 *2853 5 00
Hardware Span = 1.0235 *2854 5 00
Int Test Point #28 2860 5 00
Analog variable = None 2861 5 00
TP 28 Scaler = 0.00 2862 5 00
Int Test Point #29 2865 5 00
Analog variable = None 2866 5 00
TP 29 Scaler = 0.00 2867 5 00
Int Test Point #31 2870 5 00
Analog variable = None 2871 5 00
TP 31 Scaler = 0.00 2872 5 00
Int Test Point #24 2875 5 00
Analog variable = None 2876 5 00
TP 24 Scaler = 0.00 2877 5 00
Int Test Point #25 2880 5 00
Analog variable = None 2881 5 00
TP 25 Scaler = 0.00 2882 5 00
Int Test Point #26 2885 5 00
Analog variable = None 2886 5 00
TP 26 Scaler = 0.00 2887 5 00
Output Connection 2900 0 00
Filter CT sec turns = 0 2910 5 10
Filter inductance = 0.0 % 2920 5 00
Filter capacitance = 0.0 % 2930 5 00
Cable resistance = 0.0 % 2940 5 00
Cable inductance = 0.0 % 2941 5 00
Filter damping gain = 0.50 2950 5 00
High starting Torque 2960 7 00
Enable high torque = Disable 2961 7 10
Torque current = 50.0 % 2962 5 00
Current ramp time = 0.5 sec 2963 5 00
PLL Acq time = 2.0 sec 2964 5 00
Watchdog 2970 7 00
Enable watchdog = Enable 2971 7 00
Stability 3 0 00
Input processing 3000 7 00
PLL prop gain = 70.0 3010 7 00
PLL integral gain = 3840.00 3020 7 00
Input current scaler = 1.000000 3030 7 10
CT secondary turns = 150 *3035 7 10
Input voltage scaler = 1.000000 3040 7 10
PT secondary turns = 1 3011 7 10
Input Attenuator Sum = 4800 kOhm *3045 7 10
Output processing 3050 7 00
Low freq comp 3060 7 00
Low Freq Wo = 12.566 Rad 3070 7 10
Low freq com gain = 1.00 3080 7 00
S/W compensator pole = 2.000 3090 7 00
Flux control 3100 7 00
Flux reg prop gain = 1.651 *3110 7 00
Flux reg integral gain = 3.018 *3120 7 00
Flux filter time const = 0.03296 *3130 7 00
Flux demand = 1.00 3150 7 00
Flux ramp rate = 0.500 sec 3160 7 00
Energy saver min flux = 100.0 3170 7 00
Flux droop = 0.0 % 3195 7 00
Speed loop 3200 7 00
Speed reg prop gain = 0.013 *3210 7 00
Speed reg integral gain = 0.028 *3220 7 00
Speed reg Kf gain = 0.600 3230 7 00
Speed filter time const = 0.08062 *3240 7 00
Droop in % @ FL current = 3.4 % *3245 7 00
Current loop 3250 7 00
Current reg prop gain = 0.710 *3260 7 00
Current reg integ gain = 31.518 *3270 7 00
Prop gain during brake = 0.142 *3280 7 00
Integ gain during brake = 6.304 *3290 7 00
Stator resis est 3300 7 00
Stator resistance est = Off 3310 7 10
Stator resis filter gain = 0.0 3320 7 00
Stator resis integ gain = 0.00200 3330 7 00
Braking 3350 7 00
Enable braking = Off 3360 7 00
Pulsation frequency = 264.6 Hz *3370 7 00
Brake power loss = 0.3 % 3390 7 00
VD Loss Max = 0.250 3400 7 00
Braking constant = 1.05 3410 7 00
Output current scaler = 1.000000 3440 7 00
Output voltage scaler = 1.000000 3450 7 00
Output Attenuator Sum = 4800 kOhm *3455 7 10
Control loop test 3460 7 00
Test type = Speed 3470 7 00
Test positive = 30.0 % 3480 7 00
Test negative = -30.0 % 3490 7 00
Test time = 30.1 sec 3500 7 00
Dead time comp = 16.0000 usec 3550 7 10
Feed forward constant = 0.0000 3560 7 10
Sampling Delay Comp = 0.0 % 3570 7 00
Carrier frequency = 396.8 Hz *3580 7 10
Auto 4 5 00
Speed profile 4000 5 00
Entry point = 0.0 % 4010 5 00
Exit point = 150.0 % 4020 5 00
Entry speed = 0.0 % 4030 5 00
Exit speed = 150.0 % 4040 5 00
Auto off = 0.0 % 4050 5 00
Delay off = 0.5 sec 4060 5 00
Auto on = 0.0 % 4070 5 00
Delay on = 0.5 sec 4080 5 00
Analog inputs 4090 5 00
Analog input #1 4100 5 00
Source = Int AI1 *4105 5 10
Type = 4 - 20ma 4110 5 10
Min input = 0.0 % 4120 5 10
Max input = 100.0 % 4130 5 10
Loss point threshold = 0.0 % *4140 5 10
Loss of signal action = Preset 4150 5 10
Loss of signal setpoint = 0.0 % *4160 5 00
Analog input #2 4170 5 00
Source = Off 4175 5 10
Type = 4 - 20ma 4180 5 10
Min input = 0.0 % 4190 5 10
Max input = 100.0 % 4200 5 10
Loss point threshold = 15.0 % 4210 5 10
Loss of signal action = Preset 4220 5 10
Loss of signal setpoint = 20.0 % 4230 5 00
Analog input #3 4232 5 00
Source = Off 4233 5 10
Type = 4 - 20ma 4234 5 10
Min input = 0.0 % 4235 5 10
Max input = 100.0 % 4236 5 10
Loss point threshold = 15.0 % 4237 5 10
Loss of signal action = Preset 4238 5 10
Loss of signal setpoint = 20.0 % 4239 5 00
Analog input #4 4332 5 00
Source = Off 4333 5 10
Type = 4 - 20ma 4334 5 10
Min input = 0.0 % 4335 5 10
Max input = 100.0 % 4336 5 10
Loss point threshold = 15.0 % 4337 5 10
Loss of signal action = Preset 4338 5 10
Loss of signal setpoint = 20.0 % 4339 5 00
Analog input #5 4341 5 00
Source = Off 4342 5 10
Type = 4 - 20ma 4343 5 10
Min input = 0.0 % 4344 5 10
Max input = 100.0 % 4345 5 10
Loss point threshold = 15.0 % 4346 5 10
Loss of signal action = Preset 4347 5 10
Loss of signal setpoint = 20.0 % 4348 5 00
Auxillary input #1 4500 5 00
Source = Off 4510 5 10
Type = 4 - 20ma 4520 5 10
Min input = 0.0 % 4530 5 10
Max input = 100.0 % 4540 5 10
Loss point threshold = 15.0 % 4550 5 10
Loss of signal action = Preset 4560 5 10
Loss of signal setpoint = 20.0 % 4570 5 00
Auxillary input #2 4580 5 00
Source = Off 4590 5 10
Type = 4 - 20ma 4600 5 10
Min input = 0.0 % 4610 5 10
Max input = 100.0 % 4620 5 10
Loss point threshold = 15.0 % 4630 5 10
Loss of signal action = Preset 4640 5 10
Loss of signal setpoint = 20.0 % 4650 5 00
Speed setpoints 4240 5 00
Speed setpoint 1 = 0 rpm 4250 5 00
Speed setpoint 2 = 0 rpm 4260 5 00
Speed setpoint 3 = 0 rpm 4270 5 00
Speed setpoint 4 = 0 rpm 4280 5 00
Speed setpoint 5 = 0 rpm 4290 5 00
Speed setpoint 6 = 0 rpm 4300 5 00
Speed setpoint 7 = 0 rpm 4310 5 00
Speed setpoint 8 = 0 rpm 4320 5 00
Jog speed = 0 rpm 4330 5 00
Safety setpoint = 0 rpm 4340 5 00
Incremental speed setup 4970 7 00
Speed increment 1 = 1.00 % 4971 7 00
Speed decrement 1 = 1.00 % 4972 7 00
Speed increment 2 = 5.00 % 4973 7 00
Speed decrement 2 = 5.00 % 4974 7 00
Speed increment 3 = 10.00 % 4975 7 00
Speed decrement 3 = 10.00 % 4976 7 00
PID select 4350 5 00
Prop gain = 0.390 4360 5 00
Integral gain = 0.390 4370 5 00
Diff gain = 0.000 4380 5 00
Min clamp = 0.0 % 4390 5 00
Max clamp = 100.0 % 4400 5 00
Setpoint = 0.0 % 4410 5 00
Comparator setup 4800 5 00
Comparator 1 setup 4810 5 00
Comp 1 A in variable = Manual value 4811 5 10
Comp 1 B in variable = Manual value 4812 5 10
Comp 1 manual value = 0.000 % 4813 5 00
Compare 1 type = Off 4815 5 10
Comparator 2 setup 4820 5 00
Comp 2 A in variable = Manual value 4821 5 10
Comp 2 B in variable = Manual value 4822 5 10
Comp 2 manual value = 0.000 % 4823 5 00
Compare 2 type = Off 4825 5 10
Comparator 3 setup 4830 5 00
Comp 3 A in variable = Manual value 4831 5 10
Comp 3 B in variable = Manual value 4832 5 10
Comp 3 manual value = 0.000 % 4833 5 00
Compare 3 type = Off 4835 5 10
Comparator 4 setup 4840 5 00
Comp 4 A in variable = Manual value 4841 5 10
Comp 4 B in variable = Manual value 4842 5 10
Comp 4 manual value = 0.000 % 4843 5 00
Compare 4 type = Off 4845 5 10
Comparator 5 setup 4850 5 00
Comp 5 A in variable = Manual value 4851 5 10
Comp 5 B in variable = Manual value 4852 5 10
Comp 5 manual value = 0.000 % 4853 5 00
Compare 5 type = Off 4855 5 10
Comparator 6 setup 4860 5 00
Comp 6 A in variable = Manual value 4861 5 10
Comp 6 B in variable = Manual value 4862 5 10
Comp 6 manual value = 0.000 % 4863 5 00
Compare 6 type = Off 4865 5 10
Comparator 7 setup 4870 5 00
Comp 7 A in variable = Manual value 4871 5 10
Comp 7 B in variable = Manual value 4872 5 10
Comp 7 manual value = 0.000 % 4873 5 00
Compare 7 type = Off 4875 5 10
Comparator 8 setup 4880 5 00
Comp 8 A in variable = Manual value 4881 5 10
Comp 8 B in variable = Manual value 4882 5 10
Comp 8 manual value = 0.000 % 4883 5 00
Compare 8 type = Off 4885 5 10
Comparator 9 setup 4890 5 00
Comp 9 A in variable = Manual value 4891 5 10
Comp 9 B in variable = Manual value 4892 5 10
Comp 9 manual value = 0.000 % 4893 5 00
Compare 9 type = Off 4895 5 10
Comparator 10 setup 4900 5 00
Comp 10 A in variable = Manual value 4901 5 10
Comp 10 B in variable = Manual value 4902 5 10
Comp 10 manual value = 0.000 % 4903 5 00
Compare 10 type = Off 4905 5 10
Comparator 11 setup 4910 5 00
Comp 11 A in variable = Manual value 4911 5 10
Comp 11 B in variable = Manual value 4912 5 10
Comp 11 manual value = 0.000 % 4913 5 00
Compare 11 type = Off 4915 5 10
Comparator 12 setup 4920 5 00
Comp 12 A in variable = Manual value 4921 5 10
Comp 12 B in variable = Manual value 4922 5 10
Comp 12 manual value = 0.000 % 4923 5 00
Compare 12 type = Off 4925 5 10
Comparator 13 setup 4930 5 00
Comp 13 A in variable = Manual value 4931 5 10
Comp 13 B in variable = Manual value 4932 5 10
Comp 13 manual value = 0.000 % 4933 5 00
Compare 13 type = Off 4935 5 10
Comparator 14 setup 4940 5 00
Comp 14 A in variable = Manual value 4941 5 10
Comp 14 B in variable = Manual value 4942 5 10
Comp 14 manual value = 0.000 % 4943 5 00
Compare 14 type = Off 4945 5 10
Comparator 15 setup 4950 5 00
Comp 15 A in variable = Manual value 4951 5 10
Comp 15 B in variable = Manual value 4952 5 10
Comp 15 manual value = 0.000 % 4953 5 00
Compare 15 type = Off 4955 5 10
Comparator 16 setup 4960 5 00
Comp 16 A in variable = Manual value 4961 5 10
Comp 16 B in variable = Manual value 4962 5 10
Comp 16 manual value = 0.000 % 4963 5 00
Compare 16 type = Off 4965 5 10
Comparator 17 setup 4411 5 00
Comp 17 A in variable = Manual value 4412 5 10
Comp 17 B in variable = Manual value 4413 5 10
Comp 17 manual value = 0.000 % 4414 5 00
Compare 17 type = Off 4416 5 10
Comparator 18 setup 4417 5 00
Comp 18 A in variable = Manual value 4418 5 10
Comp 18 B in variable = Manual value 4419 5 10
Comp 18 manual value = 0.000 % 4420 5 00
Compare 18 type = Off 4422 5 10
Comparator 19 setup 4423 5 00
Comp 19 A in variable = Manual value 4424 5 10
Comp 19 B in variable = Manual value 4425 5 10
Comp 19 manual value = 0.000 % 4426 5 00
Compare 19 type = Off 4428 5 10
Comparator 20 setup 4429 5 00
Comp 20 A in variable = Manual value 4430 5 10
Comp 20 B in variable = Manual value 4431 5 10
Comp 20 manual value = 0.000 % 4432 5 00
Compare 20 type = Off 4434 5 10
Comparator 21 setup 4435 5 00
Comp 21 A in variable = Manual value 4436 5 10
Comp 21 B in variable = Manual value 4437 5 10
Comp 21 manual value = 0.000 % 4438 5 00
Compare 21 type = Off 4440 5 10
Comparator 22 setup 4441 5 00
Comp 22 A in variable = Manual value 4442 5 10
Comp 22 B in variable = Manual value 4443 5 10
Comp 22 manual value = 0.000 % 4444 5 00
Compare 22 type = Off 4446 5 10
Comparator 23 setup 4447 5 00
Comp 23 A in variable = Manual value 4448 5 10
Comp 23 B in variable = Manual value 4449 5 10
Comp 23 manual value = 0.000 % 4450 5 00
Compare 23 type = Off 4452 5 10
Comparator 24 setup 4453 5 00
Comp 24 A in variable = Manual value 4454 5 10
Comp 24 B in variable = Manual value 4455 5 10
Comp 24 manual value = 0.000 % 4456 5 00
Compare 24 type = Off 4458 5 10
Comparator 25 setup 4459 5 00
Comp 25 A in variable = Manual value 4460 5 10
Comp 25 B in variable = Manual value 4461 5 10
Comp 25 manual value = 0.000 % 4462 5 00
Compare 25 type = Off 4464 5 10
Comparator 26 setup 4465 5 00
Comp 26 A in variable = Manual value 4466 5 10
Comp 26 B in variable = Manual value 4467 5 10
Comp 26 manual value = 0.000 % 4468 5 00
Compare 26 type = Off 4470 5 10
Comparator 27 setup 4471 5 00
Comp 27 A in variable = Manual value 4472 5 10
Comp 27 B in variable = Manual value 4473 5 10
Comp 27 manual value = 0.000 % 4474 5 00
Compare 27 type = Off 4476 5 10
Comparator 28 setup 4477 5 00
Comp 28 A in variable = Manual value 4478 5 10
Comp 28 B in variable = Manual value 4479 5 10
Comp 28 manual value = 0.000 % 4480 5 00
Compare 28 type = Off 4482 5 10
Comparator 29 setup 4483 5 00
Comp 29 A in variable = Manual value 4484 5 10
Comp 29 B in variable = Manual value 4485 5 10
Comp 29 manual value = 0.000 % 4486 5 00
Compare 29 type = Off 4488 5 10
Comparator 30 setup 4489 5 00
Comp 30 A in variable = Manual value 4490 5 10
Comp 30 B in variable = Manual value 4491 5 10
Comp 30 manual value = 0.000 % 4492 5 00
Compare 30 type = Off 4494 5 10
Comparator 31 setup 4496 5 00
Comp 31 A in variable = Manual value 4497 5 10
Comp 31 B in variable = Manual value 4498 5 10
Comp 31 manual value = 0.000 % 4499 5 00
Compare 31 type = Off 4501 5 10
Comparator 32 setup 4502 5 00
Comp 32 A in variable = Manual value 4503 5 10
Comp 32 B in variable = Manual value 4504 5 10
Comp 32 manual value = 0.000 % 4505 5 00
Compare 32 type = Off 4507 5 10
Logs 6 0 00
Historic log 6250 0 00
Store in Event Log = On 6255 7 00
Historic log variable 1 = Mtr Speed 6260 5 00
Historic log variable 2 = Spd Dmd 6270 5 00
Historic log variable 3 = Trq I Cmd 6280 5 00
Historic log variable 4 = Trq I Fdbk 6290 5 00
Historic log variable 5 = I Total Out 6300 5 00
Historic log variable 6 = Mag I Fdbk 6310 5 00
Historic log variable 7 = Mtr Flux 6320 5 00
Drive protect 7 0 00
Input protection 7000 0 00
Single phasing 7010 0 00
SPD prop gain = 0.0 7020 7 00
SPD integral gain = 0.0010 7030 7 00
SPD threshold = 50.0 % 7040 7 00
Undervoltage prop gain = 0.0 7060 7 00
Undervoltage integ gain = 0.001 7070 7 00
1 Cyc Protect integ gain = 0.0025 7080 7 00
1 Cycle Protect Limit = 50.0 % 7081 7 00
Excess Loss Idle = 5.0 % 7084 7 00
Excess Loss Running = 7.0 % 7086 7 00
Xformer tap setting = 0 % 7050 7 10
Xformer thermal gain = 0.0133 7090 7 00
Xformer protection const = 0.500 7100 7 00
Phase Imbalance Limit = 40.0 % 7105 7 00
Ground Fault Limit = 40.0 % 7106 7 00
Ground Fault Time Const = 0.200 sec 7107 7 00
Drive IOC setpoint = 150.0 % 7110 7 00
Cell Overload Level = 100.0 % 7112 7 00
Auto reset enable = No 7120 7 00
Auto reset time = 1 sec 7130 5 00
Auto reset attempts = 4 7140 5 00
Auto reset memory time = 10 sec 7150 5 00
Meter 8 0 00
Display params 8000 0 00
Status variable 1 = DEMD 8001 0 00
Status variable 2 = RPM 8002 0 00
Status variable 3 = %TRQ *8003 0 00
Status variable 4 = ITOT 8004 0 00
Status variable 5 = IMRF 8005 0 00
Status variable 6 = IMRF 8006 0 00
Status variable 7 = ITRQ *8007 0 00
Input harmonics 8140 0 00
Selection for HA = IA 8150 0 00
Harmonics order = 1.0 8160 0 00
Harmonics integral gain = 0.001 8170 0 00
Customer order = 3002308054 *8101 0 00
Customer drive = 2622752 *8110 0 00
Communications 9 0 00
Serial port setup 9010 0 00
Serial port use = Local 9020 5 10
Flow Control = Xon/Xoff 9030 5 10
Baud rate = 9600 9040 5 10
Network Control 9943 7 00
Net Control Type = Fixed *9944 7 10
Start Stop Control = Maintained 9945 7 10
Network 1 Configure 9900 7 00
Network 1 Type = DeviceNet *9901 7 10
Config Parameters 9902 7 00
DeviceNet Baud Rate = 500K *9905 7 00
DeviceNet Address = 1 *9908 7 00
Velocity Units = % 9080 7 10
Demand Scalar = 100 % 9912 7 10
Aux Demand Scalar = 100 % 9913 7 10
Network 1 I/O Size = 16 Bytes *9951 7 10
Register Data From Drive 9400 7 00
Data From Drive 01 = General Status 9401 7 00
Data From Drive 02 = Motor Speed 9402 7 00
Data From Drive 03 = Total Current *9403 7 00
Data From Drive 04 = Net1 Out Reg 1 *9404 7 00
Data From Drive 05 = Motor Torque *9405 7 00
Data From Drive 06 = Spd Droop *9406 7 00
Data From Drive 07 = Net1 Out Reg 2 *9407 7 00
Data From Drive 08 = Man Id - 2120 9408 7 00
Data From Drive 09 = Man Id - 2250 9409 7 00
Data From Drive 10 = Man Id - 2140 9410 7 00
Data From Drive 11 = Man Id - 2150 9411 7 00
Data From Drive 12 = Man Id - 2190 9412 7 00
Data From Drive 13 = Man Id - 2100 9413 7 00
Data From Drive 14 = Man Id - 2230 9414 7 00
Data From Drive 15 = Man Id - 2040 9415 7 00
Data From Drive 16 = Man Id - 2020 9416 7 00
Data From Drive 17 = Man Id - 4000 9417 7 00
Data From Drive 18 = Man Id - 4010 9418 7 00
Data From Drive 19 = Man Id - 4020 9419 7 00
Data From Drive 20 = Man Id - 4030 9420 7 00
Data From Drive 21 = Man Id - 4040 9421 7 00
Data From Drive 22 = Man Id - 4050 9422 7 00
Data From Drive 23 = Man Id - 2017 9423 7 00
Data From Drive 24 = None 9424 7 00
Data From Drive 25 = None 9425 7 00
Data From Drive 26 = None 9426 7 00
Data From Drive 27 = None 9427 7 00
Data From Drive 28 = None 9428 7 00
Data From Drive 29 = Net1 Out Reg 1 9429 7 00
Data From Drive 30 = Net1 Out Reg 2 9430 7 00
Data From Drive 31 = Net1 Out Reg 3 9431 7 00
Data From Drive 32 = Net1 Out Reg 4 9432 7 00
Data From Drive 33 = Mux1 Echo 9433 7 00
Data From Drive 34 = Mux1 Data 9434 7 00
Data From Drive 35 = Mux2 Echo 9435 7 00
Data From Drive 36 = Mux2 Data 9436 7 00
Data From Drive 37 = Mux3 Echo 9437 7 00
Data From Drive 38 = Mux3 Data 9438 7 00
Data From Drive 39 = Mux4 Echo 9439 7 00
Data From Drive 40 = Mux4 Data 9440 7 00
Data From Drive 41 = Mux5 Echo 9441 7 00
Data From Drive 42 = Mux5 Data 9442 7 00
Data From Drive 43 = Mux6 Echo 9443 7 00
Data From Drive 44 = Mux6 Data 9444 7 00
Data From Drive 45 = Mux7 Echo 9445 7 00
Data From Drive 46 = Mux7 Data 9446 7 00
Data From Drive 47 = Mux8 Echo 9447 7 00
Data From Drive 48 = Mux8 Data 9448 7 00
Data From Drive 49 = None 9449 7 00
Data From Drive 50 = None 9450 7 00
Data From Drive 51 = None 9451 7 00
Data From Drive 52 = None 9452 7 00
Data From Drive 53 = None 9453 7 00
Data From Drive 54 = None 9454 7 00
Data From Drive 55 = None 9455 7 00
Data From Drive 56 = None 9456 7 00
Data From Drive 57 = None 9457 7 00
Data From Drive 58 = None 9458 7 00
Data From Drive 59 = None 9459 7 00
Data From Drive 60 = None 9460 7 00
Data From Drive 61 = None 9461 7 00
Data From Drive 62 = None 9462 7 00
Data From Drive 63 = None 9463 7 00
Data From Drive 64 = None 9464 7 00
Register Data To Drive 9600 7 00
Data To Drive Reg 01 = Fixed Reg Bits 9601 7 10
Data To Drive Reg 02 = Velocity Demand 9602 7 10
Data To Drive Reg 03 = Net Input Flag 1 *9603 7 00
Data To Drive Reg 04 = Ratio *9604 7 00
Data To Drive Reg 05 = Net Input Flag 2 9605 7 00
Data To Drive Reg 06 = Net Input Flag 3 9606 7 00
Data To Drive Reg 07 = Net Input Flag 4 9607 7 00
Data To Drive Reg 08 = None 9608 7 00
Data To Drive Reg 09 = None 9609 7 00
Data To Drive Reg 10 = None 9610 7 00
Data To Drive Reg 11 = None 9611 7 00
Data To Drive Reg 12 = None 9612 7 00
Data To Drive Reg 13 = None 9613 7 00
Data To Drive Reg 14 = None 9614 7 00
Data To Drive Reg 15 = None 9615 7 00
Data To Drive Reg 16 = None 9616 7 00
Data To Drive Reg 17 = Mux1 Id 9617 7 00
Data To Drive Reg 18 = Mux2 Id 9618 7 00
Data To Drive Reg 19 = Mux3 Id 9619 7 00
Data To Drive Reg 20 = Mux4 Id 9620 7 00
Data To Drive Reg 21 = Mux5 Id 9621 7 00
Data To Drive Reg 22 = Mux6 Id 9622 7 00
Data To Drive Reg 23 = Mux7 Id 9623 7 00
Data To Drive Reg 24 = Mux8 Id 9624 7 00
Data To Drive Reg 25 = None 9625 7 00
Data To Drive Reg 26 = None 9626 7 00
Data To Drive Reg 27 = None 9627 7 00
Data To Drive Reg 28 = None 9628 7 00
Data To Drive Reg 29 = None 9629 7 00
Data To Drive Reg 30 = None 9630 7 00
Data To Drive Reg 31 = None 9631 7 00
Data To Drive Reg 32 = None 9632 7 00
Data To Drive Reg 33 = None 9633 7 00
Data To Drive Reg 34 = None 9634 7 00
Data To Drive Reg 35 = None 9635 7 00
Data To Drive Reg 36 = None 9636 7 00
Data To Drive Reg 37 = None 9637 7 00
Data To Drive Reg 38 = None 9638 7 00
Data To Drive Reg 39 = None 9639 7 00
Data To Drive Reg 40 = None 9640 7 00
Data To Drive Reg 41 = None 9641 7 00
Data To Drive Reg 42 = None 9642 7 00
Data To Drive Reg 43 = None 9643 7 00
Data To Drive Reg 44 = None 9644 7 00
Data To Drive Reg 45 = None 9645 7 00
Data To Drive Reg 46 = None 9646 7 00
Data To Drive Reg 47 = None 9647 7 00
Data To Drive Reg 48 = None 9648 7 00
Data To Drive Reg 49 = None 9649 7 00
Data To Drive Reg 50 = None 9650 7 00
Data To Drive Reg 51 = None 9651 7 00
Data To Drive Reg 52 = None 9652 7 00
Data To Drive Reg 53 = None 9653 7 00
Data To Drive Reg 54 = None 9654 7 00
Data To Drive Reg 55 = None 9655 7 00
Data To Drive Reg 56 = None 9656 7 00
Data To Drive Reg 57 = None 9657 7 00
Data To Drive Reg 58 = None 9658 7 00
Data To Drive Reg 59 = None 9659 7 00
Data To Drive Reg 60 = None 9660 7 00
Data To Drive Reg 61 = None 9661 7 00
Data To Drive Reg 62 = None 9662 7 00
Data To Drive Reg 63 = None 9663 7 00
Data To Drive Reg 64 = None 9664 7 00
Network 2 Configure 9914 7 00
Network 2 Type = None 9915 7 00
SOP & serial functions 9110 0 00
Menu based Timer setup 9111 7 00
MenuTimer1 = 30.0 sec *9112 7 00
MenuTimer2 = 10.0 sec *9113 7 00
MenuTimer3 = 10.0 sec *9114 7 00
MenuTimer4 = 30.0 sec *9115 7 00
MenuTimer5 = 30.0 sec *9116 7 00
MenuTimer6 = 2.0 sec *9117 7 00
MenuTimer7 = 2.0 sec *9118 7 00
MenuTimer8 = 0.0 sec 9119 7 00
MenuTimer9 = 0.0 sec 9121 7 00
MenuTimer10 = 0.0 sec 9122 7 00
MenuTimer11 = 0.0 sec 9123 7 00
MenuTimer12 = 0.0 sec 9124 7 00
MenuTimer13 = 0.0 sec 9125 7 00
MenuTimer14 = 0.0 sec 9126 7 00
MenuTimer15 = 0.0 sec 9127 7 00
MenuTimer16 = 0.0 sec 9128 7 00
Select system program = 2622752D.HEX *9146 7 10
Multiple config files = OFF 9185 5 10
TCP/IP server name = 10.98.34.2 *9000 0 00
Graphing 10 0 00
Time scale = 10.00 sec 10000 0 00
Variable 1 10010 0 00
Graph variable = Spd ref 10020 0 00
Offset = 0.00 10030 0 00
Scale factor = 1.20 10040 0 00
Variable 2 10050 0 00
Graph variable = Mtr speed 10060 0 00
Offset = 0.00 10070 0 00
Scale factor = 1.20 10080 0 00
Variable 3 10090 0 00
Graph variable = Flux ref 10100 0 00
Offset = 0.00 10110 0 00
Scale factor = 1.25 10120 0 00
Variable 4 10130 0 00
Graph variable = Flux DS 10140 0 00
Offset = 0.00 10150 0 00
Scale factor = 1.25 10160 0 00
Variable 5 10170 0 00
Graph variable = Ids ref 10180 0 00
Offset = 0.00 10190 0 00
Scale factor = 1.00 10200 0 00
Variable 6 10210 0 00
Graph variable = Ids 10220 0 00
Offset = 0.00 10230 0 00
Scale factor = 1.00 10240 0 00
Variable 7 10250 0 00
Graph variable = Iqs ref 10260 0 00
Offset = 0.00 10270 0 00
Scale factor = 1.00 10280 0 00
Variable 8 10290 0 00
Graph variable = Iqs 10300 0 00
Offset = 0.00 10310 0 00
Scale factor = 1.00 10320 0 00
Variable 9 10330 0 00
Graph variable = Drv State 10340 0 00
Offset = 0.00 10350 0 00
Scale factor = 1.00 10360 0 00
Variable 10 10370 0 00
Graph variable = PreChrg St 10380 0 00
Offset = 0.00 10390 0 00
Scale factor = 1.00 10400 0 00
Select language = English 5081 0 00
Previous : Robicon Corporation Medium-Voltage Perfect Harmony Drives Data Compilation
Next : SINAMICS PERFECT HARMONY GH180 GenI/GenII/GenIII/GenIV/6SR5, Power cell 260 A Debug Tools v 5.4.0.1
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
