Siemens 3TL6123-0BF4 Vacuum Contactor 450A 7.2kV 3TL6123-3BG4Z

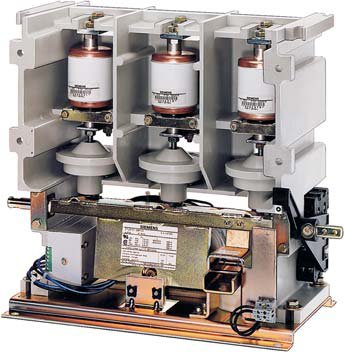

Siemens 3TL6123-0BF4 Vacuum Contactor 450A 7.2kV
3TL6123-0BF4
No picture available
Vacuum Contactor 450A 7.2kV central terminal strip 6NO+5NC without additional modules operating voltage DC 110V
Notes
This product is a Spare Part, please visit the Spares & Service section for more information
If you need assistance please contact our local Siemens office
List Price Show prices
Customer Price Show prices
Service & Support (Manuals, Certificates, FAQs...) Download
Product
Article Number (Market Facing Number) 3TL6123-0BF4
Product Description Vacuum Contactor 450A 7.2kV central terminal strip 6NO+5NC without additional modules operating voltage DC 110V
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 15.09.2020
Notes
This product is a Spare Part, please visit the Spares & Service section for more information
If you need assistance please contact our local Siemens office
Price data
Price Group 15U
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : N / AL : N
Standard lead time ex-works 40 Day/Days
Net Weight (kg) 30,000 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension Not available
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 85359000
LKZ_FDB/ CatalogID HG11.21
Product Group 3177
Group Code U292
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
Classifications
Not available
www.siemens.com/3TL
3TL Vacuum Contactors
Selection and Ordering Data
Medium-Voltage Equipment · Catalog HG 11.21 · 2014
Answers for infrastructure and cities.
Siemens HG 11.21 · 2014 2
3TL Vacuum Contactors
R-HG11-343.psd
Siemens HG 11.21 · 2014 3
3TL Vacuum Contactors
1234
Description 5
General 6
Construction and mode of operation 7
Switching duties 11
Standards and tests 14
Ambient conditions and dielectric strength 15
Comparison of contactors 16
Equipment Selection 17
Ordering data and confi guration example 18
Selection of 3TL6 19
Selection of 3TL7 23
Selection of 3TL8 26
Accessories and spare parts 29
Technical Data 33
Electrical data, dimensions and weights 34
Dimension drawings 37
Circuit diagrams 39
Transport dimensions and weights 43
Annex 45
Inquiry form 46
Confi guration instructions 47
Confi guration aid Foldout page
Contents Page
3TL Vacuum Contactors
Medium-Voltage Equipment
Catalog HG 11.21 · 2014
Invalid:
Catalog HG 11.21 · 2007
Catalog HG 11.21 · 2008 (only PDF version)
Contents
The products and systems described in this catalog
are manufactured and sold according to a certifi ed
management system (acc. to ISO 9001, ISO 14001
and BS OHSAS 18001).
Siemens HG 11.21 · 2014 4
3TL Vacuum Contactors
R_HG11_173.tif
Siemens HG 11.21 · 2014 5
3TL Vacuum Contactors
1
Description
Contents
Description 5
General 6
Application 7
Switching medium 7
Construction 7
Design 7
3TL6 vacuum contactor
Mode of operation 8
Mechanical closing latch 8
Mechanical closing lockout 8
Built-on components 8
Installation position 8
Adjustment to the site altitude 9
3TL7 vacuum contactor
Mode of operation 9
Built-on components 9
Installation position 9
Adjustment to the site altitude 9
3TL8 vacuum contactor
Mode of operation 10
Mechanical closing latch 10
Built-on components 10
Installation position 10
Adjustment to the site altitude 10
Switching duties
Utilization categories 11
Application examples 11
Switching of motors 12
Switching of transformers 12
Switching of capacitors 12
Surge protection via limiters 12
Short-circuit protection 12
Short-circuit protection via HV HRC fuses 13
Short-circuit protection via circuit-breakers 14
Standards and tests 14
Ambient conditions 15
Dielectric strength 15
Comparison of contactors 16
Contactor-fuse combinations 3TL62 / 63 / 66 16
Contents Page
Industrial application: Refi nery
R-HG11-174.tif
Siemens HG 11.21 · 2014 6
3TL Vacuum Contactors
1
3TL vacuum contactors – The Untiring
3TL vacuum contactors are three-pole contactors with
electromagnetic operating mechanism for medium-voltage
switchgear. They are load breaking devices with a limited
short-circuit making and breaking capacity for applications
Description
General
3TL7/3TL8 vacuum contactors – The Slim 3TL6 vacuum contactor – The Compact
with high switching rates of up to 1 million electrical
operating cycles or 3 million mechanical operating cycles.
As the operating mechanism is located at the rear, 3TL6
vacuum contactors have a very compact design. This arrangement also enables front access to the main conductor
terminals as well as very variable installation options.
In 3TL7 (bottom-right illustration) / 3TL8 (top-right illustration) contactors, the assemblies of the low-voltage part and
of the medium-voltage part are not arranged one behind the
other (3TL6), but one above the other. This provides a slim
design which can easily be mounted on the different switchgear and frame structures.
R-HG11-221.eps R-HG11-119.eps
R-HG11-220.tif
Siemens HG 11.21 · 2014 7
3TL Vacuum Contactors
1
Application
The vacuum contactors are suitable for operational switching
of alternating current consumers.
The contactors are used in conveying and elevator systems,
pumping stations, air conditioning systems, as well as in
systems for reactive power compensation, and can therefore
be found in almost every industrial sector.
Switching medium
The vacuum switching technology, proven and fully
developed for more than 40 years, serves as arc-quenching
principle by using vacuum interrupters.
Construction
3TL vacuum contactors consist of a medium-voltage and a
low-voltage part. Together with the main conductor terminals, the vacuum interrupters constitute the medium-voltage
part. All components required to operate the vacuum interrupter, such as the operating mechanism, closing latch and
control unit make up the low-voltage part. These assemblies
can be arranged either one behind the other (3TL6) or one
above the other (3TL7 and 3TL8).
Design
3TL vacuum contactors are designed as an open construction, with degree of protection IP00 according to
DIN EN 60529 and IEC 60529.
Description
Construction and mode of operation
3TL6 vacuum contactor
3TL7 vacuum contactor
3TL8 vacuum contactor
Siemens HG 11.21 · 2014 8
3TL Vacuum Contactors
1
Description
Construction and mode of operation
3TL6 vacuum contactor
Mode of operation
The atmospheric pressure exerts a force on the metal
bellows of the vacuum interrupter. Without the infl uence of
the operating mechanism, this would close the contact gap.
The opening springs (6) keep the moving interrupter contact
in open position via the integral rocker (10). To close the
vacuum contactor, the compressive force of the opening
springs (6) is overcome by the magnet system (2). The
magnet armature (4) is attracted, thus moving the integral
rocker (10), which closes the interrupter contact. The integral rocker (10) compresses the contact pressure springs
(16), thus generating the necessary contact force. When the
magnetic excitation is de-energized, the opening springs (6)
open the contact gap via the integral rocker (10) and the
moving interrupter contact. The DC magnet system operates
as an economy circuit, providing a high mechanical
endurance and a low holding power.
Mechanical closing latch
When the magnet system is energized, the integral rocker
is latched mechanically in the “CLOSED“ position through
a lever and roller system.
The latch (7) holds the vacuum contactor in closed position
even without excitation of the magnet system. The vacuum
contactor is released electrically by means of a latch release
solenoid (9) or mechanically by the tripping bolt (8)
(customer-side control).
Mechanical closing lockout
The mechanical closing lockout (5) prevents unintentional
closing of the vacuum contactor, e.g. due to vibrations or
while racking the withdrawable part. During operational
switching, the closing lockout is inactive.
Built-on components
To interlock two contactors mutually for reversing duty, a
mechanically operating blocking element is available on
request (for 3TL61 only). The blocking element is fi xed
between the two contactors, blocking the movement of the
operating rocker of the two contactors alternatively. This
excludes a phase short circuit that could occur when the
two senses of rotation are activated simultaneously as a
result of mechanical impacts and electrical maloperation.
Installation position
3TL6 vacuum contactors can be installed in different positions. Besides wall mounting (vertical arrangement), they
can also be mounted on the fl oor (horizontal arrangement).
Low-voltage
part
Medium-voltage
part
Construction of the 3TL6 vacuum contactor
(front view)
Construction of the 3TL6 vacuum contactor in
“OPEN“ position,
side view from the left (section).
The arrows show the moving direction for “CLOSE“.
1 Operating mechanism box
2 Magnet system (magnet coil) with
rectifi er and economy resistor
3 Terminal strip
4 Magnet armature
5 Mechanical closing latch
6 Opening spring
7 Latch
8 Tripping bolt
9 Latch release solenoid with
rectifi er and varistor module
10 Integral rocker
11 Position indicator O - I
12 Upper main conductor terminal
13 Vacuum interrupter
14 Lower main conductor terminal
15 Molded-plastic housing
16 Contact pressure spring
Wall mounting Floor mounting
Vertical Vertical Horizontal
arrangement arrangement arrangement
(turned by 180°)
The arrow shows the arrangement of the terminal strip
Legend
HG11-2629_en eps
Siemens HG 11.21 · 2014 9
3TL Vacuum Contactors
1
3TL6 vacuum contactor (continuation)
Adjustment to the site altitude
At the factory, the vacuum contactor is adjusted to a site
altitude of – 200 m to + 1250 m above sea level. For other
site altitudes, the contactor must be adapted to the corresponding site altitude range by means of adjusters located
on the rear side of the device (see illustration on the right).
3TL7 vacuum contactor
Mode of operation
The mode of operation of the 3TL7 is comparable to the
mode of operation of the 3TL6. Instead of the integral rocker,
the interrupters are operated via a linear mechanical connection (7). Due to the use of a special double coil, the magnetic
drive is designed for the closing and holding process.
Built-on components
To implement a mechanical interlocking between the withdrawable part of the switchgear and the vacuum contactor,
there is a lug (11) available on the operating shaft which
transfers the signaling commands.
Installation position
Contrary to the 3TL6, the 3TL7 can only be installed in
vertical position.
Adjustment to the site altitude
On the 3TL7, the site altitude is selected directly at the 14th
position of the order number. The standard site altitude is
between – 50 m and + 1250 m.
Setting ranges above sea level:
1. + 1250 m to + 2500 m
2. – 200 m to + 1250 m
3. – 1250 m to + 200 m
Legend
1 Pole half-shell
2 Vacuum interrupter
3 Mechanism section
4 Auxiliary plug connector
5 Upper main conductor
terminal
6 Lower main conductor
terminal
7 Mechanical connection
between medium-voltage
and low-voltage part
8 Operating shaft
9 Auxiliary switch block
10 Magnet system
(magnet coil)
11 Lug for mechanical interlocking in the switchgear
Description
Construction and mode of operation
Adjusters (on the rear side of the device)
to adapt the site altitude
Construction of the 3TL7 vacuum contactor
(front view)
3TL7, side view from the left
(section)
HG11-2632_en eps
Low-voltage
part
Medium-voltage
part
R-HG11-224.eps
Siemens HG 11.21 · 2014 10
3TL Vacuum Contactors
1
3TL8 vacuum contactor
Mode of operation
The mode of operation of the 3TL8 is comparable to the
mode of operation of the 3TL6. Due to the use of an electronic module (12), the magnet system (11) is to a large
extent independent of the voltage type and level. The electronic module also takes over the economy circuit.
Mechanical closing latch
The mechanical closing latch (6) holds the vacuum contactor in closed position even without excitation of the magnet
system (11). The latching module of the mechanical closing
latch (6) is accommodated in the mechanism section.
The vacuum contactor is released electrically by means of
a latch release solenoid or mechanically by a tripping lever
(customer control required).
Built-on components
For no-force components, a long operating shaft (4) is
optionally available.
Installation position
3TL8 vacuum contactors can be installed in different positions. Besides wall mounting (vertical arrangement), they
can also be mounted on the fl oor (vertical or horizontal
arrangement).
Adjustment to the site altitude
The standard site altitude of the 3TL8 is between – 500 m
and + 2000 m, and can be specifi ed up to + 4000 m at the 7th
position of the order number.
Construction of the 3TL8 vacuum contactor
(front view)
Legend
1 Molded-plastic housing
2 Vacuum interrupter
3 Position indicator O - I
4 Operating shaft
(short or long version)
5 Drive lever
6 Mechanical closing latch
with rectifi er module for
AC operation
7 Terminal strip
8 Upper main conductor
terminal
9 Lower main conductor
terminal
10 Mechanical connection
between medium-voltage
and low-voltage part
11 Magnet system
(magnet coil)
12 Electronic module
(electronic economy circuit)
with connection terminals
Adjusters (on the rear side of the device)
to adapt the site altitude
3TL8, side view from the left
(section)
Description
Construction and mode of operation
Wall mounting Floor mounting
Vertical Vertical Horizontal
arrangement arrangement arrangement
The arrow shows the arrangement of the terminal strip
HG11-2634_en eps Low-voltage part Medium-voltage part
Siemens HG 11.21 · 2014 11
3TL Vacuum Contactors
1
Utilization categories
In IEC 62271-106, power contactors are divided into
different utilization categories. According to these categories, 3TL vacuum contactors are dimensioned for different
electrical consumers and operating conditions. The opposite
table shows typical applications in accordance with the
respective utilization category.
Application examples
3TL vacuum contactors are three-pole contactors with electromagnetic operating mechanism for medium-voltage
switchgear. They are load breaking devices with a limited
short-circuit making and breaking capacity, and are used for
high switching rates (> 10,000 operating cycles).
The vacuum contactors are suitable for operational switching
of alternating current consumers in indoor switchgear, and
can be used, e.g., for the following switching duties:
• Three-phase motor starting
• Plugging or reversing the direction of rotation of motors
• Switching of three-phase motors in AC-3 and AC-4
operation
• Switching of transformers
• Switching of reactors
• Switching of resistive consumers such as electrical
furnaces
• Switching of capacitors.
In contactor-type reversing starter combinations (reversing
duty), only one contactor is required for each direction of
rotation if HV HRC fuses are used for short-circuit protection.
Description
Switching duties
Utilization categories Typical applications
AC-1 Non-inductive or slightly
inductive loads,
resistance furnaces
AC-2 Slip-ring motors:
Starting, switching off
AC-3 Squirrel-cage motors:
Starting, switching off
during running
AC-4 Squirrel-cage motors:
Starting, plugging 1), reversing 1),
inching 2)
Application,
switching of
consumers
Symbols Application examples
Medium voltage
three-phase motors
Conveyor and
elevator systems,
compressors,
ventilation and
heating
Transformers Ring-main units,
industrial system
distributions
Reactors Industrial system
distributions, DC-link
reactors, reactive power
compensation systems
Resistive
consumers
Heating resistors,
electric furnaces
Capacitors Reactive power
compensation systems,
capacitor banks
1) By plugging or reversing is understood stopping or reversing the
motor rapidly by reversing motor primary connections while the
motor is running
2) By inching is understood energizing a motor once or repeatedly for
short periods to obtain small movements of the driven mechanism
Siemens HG 11.21 · 2014 12
3TL Vacuum Contactors
1
Switching of motors
3TL vacuum contactors are especially suitable for frequent
operation of motors. As the chopping currents of the contactors are ≤ 5 A, no unpermissibly high overvoltages are produced when accelerated motors are switched during normal
operation. However, when high-voltage motors with starting
currents of ≤ 600 A are stopped during start-up, switching
overvoltages may arise. The magnitude of these overvoltages
can be reduced to harmless values by means of special surge
limiters.
Switching of transformers
When inductive currents are interrupted, current chopping
can produce overvoltages at the contact gap. As the chopping current of the Siemens vacuum contactor is less than
5 A, no dangerous overvoltages are produced when the
unloaded transformer is switched off.
Switching of capacitors
3TL vacuum contactors can interrupt capacitive currents up
to 400 A up to the rated voltage of 24 kV without restrikes,
and thus without overvoltages.
Surge protection via limiters
Overvoltages can arise as a consequence of multiple restrikes or by virtual current chopping, e.g. when motors are
switched in braked condition or during start-up. Motors with
a starting current ≤ 600 A are endangered. Safe protection
against overvoltages is ensured by surge limiters 3EF. These
can be arranged in parallel to the cable sealing ends, preferably in the cable compartment. The surge limiters consist of
non-linear resistors (metal-oxide varistors SIOV) and a seriesconnected spark gap. During installation it must be observed
that the surge limiter is fl exibly mounted on one side for
mechanical reasons.
Short-circuit protection
3TL vacuum contactors are not designed to switch shortcircuit currents. It is therefore absolutely essential to provide
short-circuit protection. The best protection is provided by
HV HRC fuses, but circuit-breakers can also be used for this
purpose.
Description
Switching duties
Circuit diagram Mode of operation
Switching of accelerated
motors
Occasional switching
of just accelerated
motors in case of fault 1)
Frequent switching in
AC-4 operation 1)
Circuit examples for surge protection of three-phase motors
with a starting current ≤ 600 A
1) With surge limiter
Switching devices in combination with a vacuum contactor
HV HRC
fuses
Circuitbreaker
Switchdisconnector
with
HV HRC
fuses
Vacuum contactor
Consumer
Surge limiter
or or
HG11-2279d_en eps
Siemens HG 11.21 · 2014 13
3TL Vacuum Contactors
1
Short-circuit protection via HV HRC fuses
At high short-circuit currents, HV HRC fuses have a currentlimiting effect, i.e. the fuse limits the short-circuit current to
the let-through current. When selecting the fuses, the type
of consumer must be observed, e.g. motor, transformer,
capacitor.
The opposite diagram shows an example for the coordination
of a HV HRC fuse with an overcurrent-time protection.
Coordinating the components of the motor circuit:
• The time-current characteristic must be located on the
right of the motor starting current (point A).
• The rated current of the HV HRC fuse-link must exceed the
normal current of the motor.
• The current corresponding to the intersection B of the
HV HRC fuse-link characteristic and the characteristic of the
overcurrent-time protection must be higher than the minimum breaking current of the HV HRC fuse-link.
• If this is not feasible, it must be ensured that overload currents that are smaller than the minimum breaking current of
the HV HRC fuse-link are interrupted by the switching device
via the striker. This prevents thermal overloading of the
HV HRC fuse-link, which would otherwise be destroyed.
• The selected HV HRC fuse-link limits the sustained symmetrical short-circuit current Ik to the let-through current ID
shown in the diagram for the current-limiting characteristics
(ID as a function of IK for HV HRC fuse-links with different
rated currents). The maximum permissible let-through current is ID = 50 kA, however, only at 7.2 kV.
Requirements
• The let-through current ID must not exceed 50 kA at 7.2 kV.
• In case of low-voltage supply via a control transformer,
short-circuit currents ranging above the limit breaking capacity must be interrupted within 80 ms. This requirement does
not apply if
– a mechanical latch is provided, or
– the opening times have been extended so much that – in
the a.m. current range – the contactor can only open when
the fuse has interrupted the current.
• Due to the arising motor starting current, the instant when
the motor starts represents the maximum stress for the HV
HRC fuse. This stress must neither operate nor pre-damage
the fuse-link.
• Other factors of infl uence on the stress of the HV HRC
fuses are the starting time and the starting frequency of the
motors.
Description
Switching duties
Example for the coordination of a HV HRC fuse characteristic
125 A with a motor characteristic
1 Characteristic of the HV HRC fuse (e.g. type 3GD2)
2 Characteristic of the overcurrent-time protection
3 Motor starting time
4 Motor starting current
Sustained symmetrical short-circuit current (r.m.s. value)
HG12-2106_en eps
Time
Siemens HG 11.21 · 2014 14
3TL Vacuum Contactors
1
Short-circuit protection for “class E2 controllers“
according to UL 347/CSA C22.2
For using 3TL6 and 3TL8 vacuum contactors as “class E2
controllers“ for 7.2 kV, Siemens fuses of type 3GD2 150-4D
(7.2 kV/250 A) or other fuses with a comparable current-time
characteristic are specifi ed for short-circuit protection. If two
fuse-links are connected in parallel, the symmetrical shortcircuit current determined has to be divided by two, and
the associated let-through current for one fuse-link must be
stated. This value must then be multiplied by two in order to
obtain the total let-through current, which must not exceed
the permissible value for the vacuum contactor. The parallel
connection should ensure that the resistance values in the
two branches are almost the same. When the fuses operate,
the vacuum contactor must be switched off. A suitable device, actuated by the striker of the HV HRC fuse-link, has to
be provided.
Fuse monitoring
To prevent a three-phase load (e.g. a motor) from being
supplied only by two phases when a fuse has operated, the
fuse-bases can be equipped with a “fuse trip indicator“. This
device can be used either to energize a warning signal or to
switch off the vacuum contactor.
Short-circuit protection via circuit-breakers
Consumers for which no suitable fuses are available can
also be protected by circuit-breakers. Due to the longer break
time of the circuit-breakers (max. permissible 120 ms), the
symmetrical short-circuit current must not exceed the
maximum permissible value (e.g. 20 kA at 7.2 kV for 3TL6
vacuum contactors). As a consequence of the longer break
time, the interrupters should be replaced immediately by
new ones after carrying the maximum permissible symmetrical short-circuit current, as their service life has been
considerably reduced.
Overload protection
For protecting high-voltage motors against overload, it is
possible to use thermally delayed overcurrent relays with
suitable current transformers.
Trip-free mechanism
All contacts of the vacuum contactors are trip-free. The
“OPEN“ command interrupts the “CLOSE“ command, i.e. the
instant of the “OPEN“ command determines whether the
contacts will close or not.
Description
Switching duties, standards and tests
Standards
3TL vacuum contactors are designed in open construction,
with degree of protection IP00 according to IEC 60529 and
DIN EN 60529. They conform to the standards for highvoltage alternating current contactors:
• IEC 62271-106
• UL Standard 347 (up to 15 kV)
• CSA C22.2 (up to 7.2 kV contactor).
Tests
For the development and type testing of power switching
devices according to relevant standards, we have accredited
testing laboratories at our disposal:
• Testing laboratories with a high electrical testing capacity
• Testing laboratories to prove the following features:
– Mechanical operation
– Reliability
– Dielectric strength
– Temperature-rise performance
– Climatic resistance.
To obtain secure results, comprehensive test series are
performed for the type tests defi ned in the standards.
Siemens HG 11.21 · 2014 15
3TL Vacuum Contactors
1
Ambient conditions
The vacuum contactors are designed for the normal
operating conditions defi ned in the standards.
Condensation can occasionally occur under the ambient
conditions shown. Vacuum contactors are suitable for use in
the following climatic classes according to IEC 60721:
Climatic ambient conditions: Class 3K4 1)
Class 3K6 2)
Class 3Z2
Class 3Z5
Biological ambient conditions: Class 3B1
Mechanical ambient conditions: Class 3M2
Chemically-active substances: Class 3C2 3)
Mechanically-active substances Class 3S2 4)
1) Low temperature limit: – 25 °C (– 40 °C for 3TL7)
2) Without icing and wind-driven precipitation
3) Without appearance of saline fog and simultaneous condensation
4) Restriction: Clean insulation parts
Dielectric strength
The dielectric strength of air insulation decreases with
increasing altitude due to low air density. According to
IEC 62271-1, the values of the rated lightning impulse withstand voltage and the rated short-duration power-frequency
withstand voltage specifi ed in the chapter “Technical Data“
apply to a site altitude of 1000 m above sea level. For an altitude above 1000 m, the insulation level must be corrected
according to the opposite diagram.
The characteristic shown applies to both rated withstand
voltages.
To select the devices, the following applies:
U ≥ U0 x Ka
U Rated withstand voltage under reference atmosphere
U0 Rated withstand voltage requested for the place of installation
Ka Altitude correction factor according to the opposite diagram
Example
For a requested rated lightning impulse withstand voltage of
60 kV at an altitude of 2500 m, an insulation level of 72 kV
under reference atmosphere is required as a minimum:
72 kV ≥ 60 kV x 1.2
Description
Ambient conditions and dielectric strength
max. 95% per day
max. 90% per month
see
table
Site altitude H
......
Temperature
value For vacuum contactor
3TL6 3TL7 3TL8
Maximum value + 80 °C + 55 °C + 65 °C
Maximum
24-hour mean
value
+ 75 °C + 50 °C + 60 °C
Minimum value – 25 °C – 40 °C – 25 °C HG11-2636_en eps Altitude correction factor Ka HG11-2517d_en ai
Siemens HG 11.21 · 2014 16
3TL Vacuum Contactors
1
Description
Comparison of contactors
Comparison of contactors
Comparison of
contactors 3TL61 3TL65 3TL68 3TL71 3TL81
Rated voltage 7.2 kV 12 kV 15 kV 24 kV 7.2 kV
Rated normal current 450 A 400 A 320 A 800 A 400 A
Thermal current 450 A 400 A 320 A 800 A 400 A
Rated operational current 450 A 400 A 320 A 450 A 400 A
Switching rate 1200 operating cycles/h 600 operating cycles/h 600 operating cycles/h 60 operating cycles/h 1200 operating cycles/h
Endurance
- Contactor
- Vacuum interrupter
Operating cycles
Mech. endurance 3 mio.
Mech. endurance 2 mio.
Electr. endurance 1 mio.
Operating cycles
Mech. endurance 1 mio.
Mech. endurance 1 mio.
Electr. endurance 0.5 mio.
Operating cycles
Mech. endurance 1 mio.
Mech. endurance 1 mio.
Electr. endurance 0.25 mio.
Operating cycles
Mech. endurance 1 mio.
Mech. endurance 1 mio.
Electr. endurance 0.5 mio.
Operating cycles
Mech. endurance 1 mio.
Mech. endurance 0.25 mio.
Electr. endurance 0.25 mio.
Chopping current < 5 A < 5 A < 5 A < 5 A ≤ 0.6 A
Economy circuit Via economy resistor Via economy resistor Via economy resistor Via automatic
coil changeover
Integrated in
electronic module
Auxiliary contacts Positively driven
auxiliary switch
8 NO, 7 NC
Positively driven
auxiliary contacts
8 NO, 7 NC
Positively driven
auxiliary contacts
8 NO, 7 NC
Positively driven
auxiliary contacts
8 NO, 7 NC
Positively driven
auxiliary contacts
4 NO, 4 NC
Operating mechanism At the rear of the
vacuum interrupters
At the rear of the
vacuum interrupters
At the rear of the
vacuum interrupters
Below the
vacuum interrupters
Below the
vacuum interrupters
Type of construction Compact Compact Compact Slim Slim
Main conductor terminals At the front of the
vacuum interrupters
At the front of the
vacuum interrupters
At the front of the
vacuum interrupters
At the rear of the
vacuum interrupters
At the rear of the
vacuum interrupters
Auxiliary conductor
terminals
Terminal strip with
testing possibilities
in built-in condition
(optionally withdrawable
terminal strip)
Terminal strip with
testing possibilities
in built-in condition
(optionally withdrawable
terminal strip)
Terminal strip with
testing possibilities
in built-in condition
(optionally withdrawable
terminal strip)
Wiring of
auxiliary contacts to
central auxiliary plug
connector
Direct tapping at the
terminals (optionally
wiring of auxiliary
contacts to central
terminal strip)
Additional components Mechanical
closing latch 1),
mechanical
closing lockout,
extension or
reduction of
opening time
Mechanical
closing latch 1),
mechanical
closing lockout,
extension or
reduction of
opening time
Mechanical
closing latch 1),
mechanical
closing lockout,
extension or
reduction of
opening time
Reduction of
opening time
Mechanical
closing latch 1),
long operating shaft
for non-force external
components, reduction
of opening time
1) For operating voltages of the mechanical closing latch below 110 V, a stable voltage supply must be observed
The contactor-fuse combinations 3TL62 / 63 / 66 are
type-tested units of the 3TL6 contactors and HV HRC fuses.
A fuse holder for one or two fuses per phase and optionally
a control transformer for power supply have been integrated.
The type-tested unit enables frequent switching of high normal
currents in a compact space.
The arrangement of the components on the base plate ensures optimum ventilation and thus a high normal current.
This is supported by the specially designed fuse holder,
which ensures uniform current distribution. Even a high
dielectric strength as required in countries such as China are
fulfi lled with this construction. The 3TL6 fuse-link combination is suitable for applications in withdrawable modules
and for fi xed mounting. Bushings and different widths across
fl ats are available for easy integration.
For selection, please use catalog HG 11.22 “Contactor-Fuse
Combinations 3TL62/63/66“.
Contactor-fuse combinations 3TL62 /63/66
R-HG11.22.tif
Siemens HG 11.21 · 2014 17
3TL Vacuum Contactors
2
Equipment Selection 17
Ordering data and confi guration example 18
Selection of 3TL6
Voltage level 7.2 kV 19
Voltage level 12 kV 19
Voltage level 15 kV 19
Terminal strip, auxiliary contacts 19
Additional components 20
Mode of operation for magnet system 21
Operating voltage for magnet system 21
Additional equipment 22
Selection of 3TL7
Voltage level 24 kV 23
Auxiliary switch 23
Mode of operation for magnet coil 23
Operating voltage for magnet coil 23
Language of operating instructions 24
Type of construction 24
Site altitude 24
Additional equipment 25
Selection of 3TL8
Voltage level 7.2 kV 26
Design 26
Auxiliary switch, wiring 26
Operating voltage for magnet coil 27
Operating voltage for closing latch 27
Opening time 27
Language of operating instructions /
routine test certifi cate 28
Additional equipment 28
Accessories and spare parts 29
Contents Page
3TL6 vacuum contactor
3TL8 vacuum contactor
Equipment Selection
Contents
R-HG11-220.tif R-HG11-221.tif
Siemens HG 11.21 · 2014 18
3TL Vacuum Contactors
2
Equipment Selection
Order number structure, confi guration example
Order number structure
The vacuum contactors consist of a medium-voltage and
a low-voltage part. The relevant data make up the 12 to
14-digit order number. The medium-voltage part covers the
main electrical data of the poles. The low-voltage part covers
all auxiliary devices which are necessary for operating and
controlling the contactor.
Order codes
Individual equipment versions are explained more in detail
by a 3-digit order code. Several order codes can be added
to the order number in succession and in any sequence.
Special versions ()
In case of special versions, “-Z“ is added to the order number and a descriptive order code follows. If several special
versions are required, the suffi x “-Z“ is listed only once. If a
requested special version is not in the catalog and can therefore not be ordered via order code, it has to be identifi ed
with Y 9 9 after consultation. The agreement hereto is made
directly between your responsible sales partner and the order
processing department in the Switchgear Factory Berlin.
a: alphabetical n: numerical
Position: 1 2 3 4 5 6 7 – 8 9 10 11 12 – 13 14 Order codes
Order No.: 3TL nnnn–naann–na–
Medium-voltage part
1st position Superior group
Switching devices
2nd position Main group
Contactors
3rd position Subgroup
Vacuum contactors
4th to 6th position 1) Basic equipment
Design and ratings
of medium-voltage part
Low-voltage part
7th to 14th position 1) Secondary equipment
Operating voltages,
auxiliary equipment
Order codes
Groups of 3 after the Order No.
Format: a n a
Special versions ()
Initiated with “-Z“
Groups of 3 after the Order No.
Format: a n n
Confi guration example
In order to simplify the selection of the correct order number
for the requested contactor, you will fi nd a confi guration example on each page of the chapter “Equipment Selection“.
This example is continued, so that at the end of the equipment
selection of a product group (pages 22, 25 and 28) a
completely confi gured contactor results as an example.
On the foldout page we offer a confi guring aid.
Here you can fi ll in the order number you have
determined for your contactor.
Example for Order No.: 3TL6525– –
Order codes:
1) Deviation in the distribution for the
different contactors
Siemens HG 11.21 · 2014 19
3TL Vacuum Contactors
2
Example for Order No.: 3TL6535– – Z
Order codes: E13
Equipment Selection
Selection of 3TL6
7.2 kV Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 Order codes
50/60 Hz 3TL6 – – Ur Up Up Ud Ud Ir
kV kV kV kV kV A
7.2 60 40 20 20 450 3TL61 3
Special version
Ud = 32 kV Ud = 20 kV – Z E16
12 kV
50/60 Hz
Ur Up Up Ud Ud Ir
kV kV kV kV kV A
12 75 60 28 28 400 3TL65 5
Special version
Ud = 42 kV Ud = 42 kV –Z E13
Up = 85 kV –Z E 8 5
15 kV
50/60 Hz
Ur Up Up Ud Ud Ir
kV kV kV kV kV A
15 75 60 38 38 320 3TL68 5 6th position
Terminal strip, auxiliary contacts
Terminal strip Auxiliary contacts
Central 4 NO + 3 NC 1
Central 6 NO + 5 NC 2
Withdrawable 1) 6 NO + 5 NC 3
Central 8 NO + 7 NC 2) 8
Confi guration example
3TL6 vacuum contactor 3TL6
Rated voltage Ur = 12 kV
Rated lightning impulse withstand voltage Up (to earth) = 75 kV
Rated lightning impulse withstand voltage Up (open contact gap) = 60 kV
Rated short-duration power-frequency withstand voltage Ud (to earth) = 28 kV
Rated normal current Ir = 400 A 5 5
Terminal strip, withdrawable, auxiliary contacts 6 NO + 5 NC 3
Special version Ud (to earth) = 42 kV –Z E13
1) Attention!
In 3TL6133 contactors (can optionally be ordered with screwed contact via
addition B36) and 3TL6135 contactors (with withdrawable terminal strip),
the current must be deactivated externally via the unlatching coil.
2) 4th auxiliary contact block with pulled out wiring. Rated lightning impulse withstand voltage, to earth Rated short-duration power-frequency withstand voltage, to earth
Rated short-duration
power-frequency withstand voltage,
open contact gap
Rated voltage
Rated lightning impulse
withstand voltage,
open contact gap
Rated normal current
See page 20
See page 21
See page 21
See page 21
See page 22
Siemens HG 11.21 · 2014 20
3TL Vacuum Contactors
2
Example for Order No.: 3TL6535–2 – Z
Order codes: E13
Equipment Selection
Selection of 3TL6
8th position Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 Order codes
Additional components 3TL6 – –
Closing latch 1) Closing lockout Shunt release
– –– 0
x –– 1
– x– 2
x x – 3
x –x 4
x xx 5
Confi guration example
3TL6 vacuum contactor 3TL6
(Ur = 12 kV, Up (to earth) = 75 kV, Up (open contact gap) = 60 kV,
Ud = 28 kV, Ir = 400 A) 535–
With mechanical closing lockout 2
1) 1 NO assigned
Note on opening times:
With latching (special wiring G01 – G08 is not possible) 50 to 75 ms
Without latching 75 to 100 ms
With special wiring G01 ≤ 50 ms
With special wiring G02 100 to 180 ms
With special wiring G03 180 to 320 ms
With special wiring G08 Reconnectable: 100 to 180 ms and 50 to 75 ms
See page 21
See page 21
See page 21
See page 22
Siemens HG 11.21 · 2014 21
3TL Vacuum Contactors
2
Example for Order No.: 3TL6535–2BE4 –Z
Order codes: E13
9th / 10th / 11th position Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 Order codes
Mode of operation and operating voltage 3TL6 – –
for magnet system and closing latch
DC operation
with voltage
AC operation
with voltage
24 V DC 1) BB4
30 V DC 1) BC4
48 V DC 1) BW4
60 V DC 1) BE4
110 V DC BF4
125 V DC BG4
220 V DC BM4
100 V AC, 50 / 60 Hz AF2
110 V AC, 50 / 60 Hz AG2
115 V AC, 50 / 60 Hz AJ2
120 V AC, 50 / 60 Hz AK2
230 V AC, 50 / 60 Hz AL2
240 V AC, 50 / 60 Hz AP2
Voltage different from operating voltage
for closing latch and shunt release
DC operation
with voltage
AC operation
with voltage
24 V DC –Z G60
30 V DC –Z G61
48 V DC –Z G62
60 V DC –Z G63
110 V DC –Z G64
125 V DC –Z G65
220 V DC –Z G66
100 V AC, 50 / 60 Hz –Z G67
110 V AC, 50 / 60 Hz –Z G68
115 V AC, 50 / 60 Hz –Z G69
120 V AC, 50 / 60 Hz –Z G70
230 V AC, 50 / 60 Hz –Z G71
240 V AC, 50 / 60 Hz –Z G72
Confi guration example
3TL6 vacuum contactor 3TL6
(Ur = 12 kV, Up (to earth) = 75 kV, Up (open contact gap) = 60 kV,
Ud = 28 kV, Ir = 400 A) 535–2
Mode of operation DC operation
for magnet system and closing latch B
Operating voltage 60 V DC E 4
1) For operating voltages of the mechanical closing latch below 100 kV,
a stable voltage supply must be observed
Equipment Selection
Selection of 3TL6 See page 22
Siemens HG 11.21 · 2014 22
3TL Vacuum Contactors
2
Equipment Selection
Selection of 3TL6
Additional equipment Position: 1 2 3 4 5 6 7 – 8 9 10 11 Order codes
Order No.: 3TL6 – –
Options
Surge protection circuit in secondary circuit
with varistor module for DC voltage 3AX1526-0F –Z A00
Surge protection circuit in secondary circuit
with rectifi er module for AC voltage 3AX1525-1F –Z A01
Wiring, halogen-free and fl ame-retardant –Z A10
Wiring cables, tinned –Z A12
Silicone-free design (according QPA-QPN 0071) –Z A31
Additional rating plate, loose delivery –Z B00
Cable harness 2000 mm, pulled out –Z B03
Terminal strip with screwed contacts –Z B36
Cable harness with fl exible tube –Z B58
Special circuit diagram –Z B99
3TL61 with rating plate 6 kA instead of 5 kA, and 3.3 kV instead of 7.2 kV –Z E06
Rated short-duration power-frequency withstand voltage 42 kV (for 12 kV) –Z E13
Rated short-duration power-frequency withstand voltage 32 kV (for 7.2 kV) –Z E16
Rated lightning impulse withstand voltage 85 kV (for 12 kV) –Z E85
Seaworthy packing inside Germany –Z F02
Routine test certifi cate in English enclosed –Z F 20
Routine test certifi cate to orderer –Z F 23
Routine test certifi cate in German enclosed –Z F24
Routine test certifi cate in French enclosed –Z F25
Routine test certifi cate in Spanish enclosed –Z F 26
Customer acceptance test –Z F 50
Special wiring G01 for opening time ≤ 50 ms 1) –Z G01
Special wiring G02 for opening time 100 to 180 ms 1) –Z G02
Special wiring G03 for opening time 180 to 320 ms 1) –Z G03
Special wiring G08 for opening time, reconnectable:
100 to 180 ms and 50 to 75 ms 1) –Z G08
Operating instructions in French / Spanish –Z L 01
Operating instructions in German/Russian –Z L 02
Site altitude 2500 – 4000 meters (on request) –Z R54
Site altitude 4000 – 5000 meters –Z R55
Confi guration example
3TL6 vacuum contactor 3TL6
Rated voltage Ur = 12 kV
Rated lightning impulse withstand voltage Up (to earth) = 75 kV
Rated lightning impulse withstand voltage Up (open contact gap) = 60 kV
Rated short-duration power-frequency withstand voltage Ud (to earth) = 28 kV
Rated normal current Ir = 400 A 5 5
Terminal strip, withdrawable, auxiliary contacts 6 NO + 5 NC 3
Special version Ud (to earth) = 42 kV –Z E13
With mechanical closing lockout – 2
Mode of operation DC operation
for magnet system and closing latch B
Operating voltage 60 V DC
for magnet system and closing latch E 4
Wiring, halogen-free and fl ame-retardant –Z A10
Customer acceptance test –Z F50
Operating instructions in French / Spanish –Z L01
1) Opening times cannot be combined with the mechanical closing latch
Example for Order No.: 3TL6535–2BE4 –Z
Order codes: E13+A10+F50+L01
Siemens HG 11.21 · 2014 23
3TL Vacuum Contactors
2
Example for Order No.: 3 T L 7128–0AG2 –
Order codes:
Equipment Selection
Selection of 3TL7
24 kV Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 12 – 13 14 Order codes
50/60 Hz 3TL7 – – – Ur Up Up Ud Ir
kV kV kV kV A
24 125 95 50 800 3TL712
7th position
Auxiliary switch
Options
4 NO + 4 NC available for customer with 24-pole plug 5
8 NO + 8 NC available for customer with 64-pole plug 8 8th / 9th / 10th / 11th position
Mode of operation and operating voltage for magnet coil
DC operation
with voltage
AC operation
with voltage
110 V DC 0BF4
120 V – 125 V DC 0BG4
220 V DC 0 BM4
110 V AC, 50 / 60 Hz 0AG2
120 V AC, 50 / 60 Hz 0AK2
230 V AC, 50 / 60 Hz 0AL2
Confi guration example
3TL7 vacuum contactor 3TL7
Rated voltage Ur = 24 kV
Rated lightning impulse withstand voltage Up (to earth) = 125 kV
Rated lightning impulse withstand voltage Up (open contact gap) = 95 kV
Rated short-duration power-frequency withstand voltage Ud = 50 kV
Rated normal current Ir = 800 A 1 2
Auxiliary switch 8 NO + 8 NC 8 –
Mode of operation AC operation for magnet coil 0 A
Operating voltage 110 V AC for magnet coil G 2
Other auxiliary voltages on request Rated voltage Rated lightning impulse withstand voltage, to earth
Rated lightning impulse
withstand voltage,
open contact gap
Rated short-duration
power-frequency
withstand voltage
Rated normal current
See page 24
See page 24
See page 24
See page 25
Siemens HG 11.21 · 2014 24
3TL Vacuum Contactors
2
Equipment Selection
Selection of 3TL7
12th position Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 12 – 13 14 Order codes
Language of operating instructions 3TL7 – – –
Option
German/English 0
13th position
Type of construction
Options
Version standard/industry (interrupters in vertical position) 0
Version with insulating plate (interrupters in vertical position) 1
14th position
Site altitude
Options
Site altitude –50 – 1250 m A
Site altitude 1250 – 2500 m B
Site altitude 2500 – 4000 m D
Site altitude 4000 – 5000 m C
Confi guration example
3TL7 vacuum contactor 3TL7
(Ur = 24 kV, Up (to earth) = 125 kV, Up (open contact gap) = 95 kV,
Ud = 50 kV, Ir = 800 A) 128–0AG2
Language of operating instructions German/English 0 –
Type of construction, version with insulating plate (interrupters in vertical position) 1
Site altitude 0 – 1250 m A
Example for Order No.: 3 T L 7128–0AG20–1A
Order codes:
See page 25
Siemens HG 11.21 · 2014 25
3TL Vacuum Contactors
2
Additional equipment Position: 1 2 3 4 5 6 7 – 8 9 10 11 12 – 13 14 Order codes
Order No.: 3TL7 – – –
Options
Wiring, halogen-free and fl ame-retardant –Z A10
Wiring cables, tinned –Z A12
Additional rating plate, loose delivery –Z B00
Silver-plated connecting surfaces –Z D09
Seaworthy packing inside Germany –Z F02
Routine test certifi cate in English enclosed –Z F 20
Routine test certifi cate in German enclosed –Z F24
Routine test certifi cate in French enclosed –Z F25
Routine test certifi cate in Spanish enclosed –Z F 26
Customer acceptance test –Z F 50
Special wiring for opening time ≤ 50 ms –Z G01
Confi guration example
3TL7 vacuum contactor 3TL7
Rated voltage Ur = 24 kV
Rated lightning impulse withstand voltage Up (to earth) = 125 kV
Rated lightning impulse withstand voltage Up (open contact gap) = 95 kV
Rated power-frequency withstand voltage Ud = 50 kV
Rated normal current Ir = 800 A 1 2
Auxiliary switch 8 NO + 8 NC 8 –
Mode of operation AC operation for magnet coil 0 A
Operating voltage 110 V AC for magnet coil G 2
Language of operating instructions German/English 0 –
Type of construction, version with insulating plate (interrupters in vertical position) 1
Site altitude 0 – 1250 m A
Additional rating plate, loose delivery – Z B00
Note on opening times:
Standard 50 to 100 ms
With special wiring G01 ≤ 50 ms
Example for Order No.: 3 T L 7128–0AG20–1A–Z
Order codes: B00
Equipment Selection
Selection of 3TL7
Siemens HG 11.21 · 2014 26
3TL Vacuum Contactors
2
Equipment Selection
Selection of 3TL8
Example for Order No.: 3TL8100–1
Order codes:
7.2 kV Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 12 Order codes
50/60 Hz 3TL8 – – Ur Up Up Ud Ir
kV kV kV kV A
7.2 60 40 20 400 3TL810
7th position
Design
Options Site altitude
Short operating shaft – 500 m to 2000 m 0
Long operating shaft 1)
for external non-force components – 500 m to 2000 m 1
Short operating shaft 2000 m to 4100 m 3
Long operating shaft 1)
for external non-force components 2000 m to 4100 m 4 8th position
Auxiliary switch, wiring
Auxiliary
switch Additional components Wiring
2 NO + 2 NC – Auxiliary switch not wired 0
4 NO + 4 NC – Auxiliary switch not wired 1
4 NO + 4 NC Closing latch 1) Auxiliary switch not wired 2
4 NO + 4 NC – Auxiliary switch
wired to terminal strip 5
4 NO + 4 NC Closing latch 1) Auxiliary switch
wired to terminal strip 3
4 NO + 4 NC – Cable harness 700 mm
pulled out 6
4 NO + 4 NC Closing latch 1) Cable harness 700 mm
pulled out 7
Confi guration example
3TL8 vacuum contactor 3TL8
Rated voltage Ur = 7.2 kV
Rated lightning impulse withstand voltage Up (to earth) = 60 kV
Rated lightning impulse withstand voltage Up (open contact gap) = 40 kV
Rated short-duration power-frequency withstand voltage Ud = 20 kV
Rated normal current Ir = 400 A 1 0
Design with short operating shaft 0 –
Auxiliary switch 4 NO + 4 NC without additional components 1
1) The selection of a mechanical closing latch absolutely requires the selection
of an operating voltage (10th position), and of an opening time with latching
(11th position)
1) See photo on page 33 Rated voltage Rated lightning impulse withstand voltage,
to earth
Rated lightning impulse
withstand voltage,
open contact gap
Rated short-duration
power-frequency
withstand voltage
Rated normal current
See page 27
See page 27
See page 27
See page 28
See page 28
Siemens HG 11.21 · 2014 27
3TL Vacuum Contactors
2
Equipment Selection
Selection of 3TL8
Example for Order No.: 3TL8100–1BA0
Order codes:
9th position Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 12 Order codes
Operating voltage for magnet coil 3TL8 – –
Voltage
110 V to 250 V AC / DC B
10th position
Operating voltage for closing latch
DC voltage AC voltage
Without mechanical closing latch 1) A
24 V DC 2) B
30 V DC C
48 V DC 2) D
60 V DC 2) E
110 V DC F
125 V DC G
220 V to 250 V DC H
110 V – 115 V AC 50 / 60 Hz L
120 V – 127 V AC 50 / 60 Hz M
220 V – 240 V AC 50 / 60 Hz N
11th position
Opening time
Time Remark
250 ms to 400 ms Without mechanical
closing latch 1) 0
≤ 50 ms 3) Without mechanical
closing latch 1) 2
30 ms to 50 ms With mechanical
closing latch 5
Confi guration example
3TL8 vacuum contactor 3TL8
(Ur = 7.5 kV, Up (to earth) = 60 kV, Up (open contact gap) = 40 kV,
Ud = 20 kV, Ir = 400 A) 100–1
Operating voltage of the magnet coil 110 to 250 V AC / DC B
Without mechanical closing latch A
Opening time 325 ms ± 75 ms without mechanical closing latch 0
Other voltages on request
1) “Without mechanical closing latch“ can only be selected if no latching option
was selected at the 8th position either (0, 1, 5 or 6)
2) For operating voltages of the mechanical closing latch below 100 V,
a stable voltage supply must be observed
3) Implementation by external circuit (see page 42)
See page 28
See page 28
Siemens HG 11.21 · 2014 28
3TL Vacuum Contactors
2
Equipment Selection
Selection of 3TL8
Example for Order No.: 3TL8100–1BA01
Order codes:
12th position Position:
Order No.:
1 2 3 4 5 6 7 – 8 9 10 11 12 Order codes
3TL8 – –
Operating instructions Routine test certifi cate
German/English Without certifi cate 0
French / S panish Without certifi cate 1
German/English German 4
German/English English 5
French/ S panish French 6
French/ S panish Spanish 7
Additional equipment
Options
Wiring, halogen-free and fl ame-retardant –Z A10
Wiring cables, tinned –Z A12
Additional rating plate, loose delivery –Z B00
Cable harness with fl exible tube –Z B58
Seaworthy packing inside Germany –Z F02
Routine test certifi cate (supplied with the delivery) –Z F20
Routine test certifi cate (to orderer) –Z F23
Customer acceptance test –Z F50
Confi guration example
3TL8 vacuum contactor 3TL8
Rated voltage Ur = 7.2 kV
Rated lightning impulse withstand voltage Up (to earth) = 60 kV
Rated lightning impulse withstand voltage Up (open contact gap) = 40 kV
Rated short-duration power-frecuency withstand voltage Ud = 20 kV
Rated normal current Ir = 400 A 1 0
Design with short operating shaft 0 –
Auxiliary switch 4 NO + 4 NC without additional components 1
Operating voltage of the magnet coil 110 to 250 V AC / DC B
Without mechanical closing latch A
Opening time 325 ms ± 75 ms without mechanical closing latch 0
Operating instructions in French / Spanish, without routine test certifi cate 1
Language of the operating instructions /
routine test certifi cate
Siemens HG 11.21 · 2014 29
3TL Vacuum Contactors
2
Remark for orders
The order numbers are applicable to contactors of current
manufacture. When mounting parts or spare parts are being
ordered for an existing vacuum contactor, always quote the
Equipment Selection
Accessories and spare parts
Designation Remark Operating voltage Order No.
Auxiliary switch block For 3TL6
Left 2 NO + 2 NC 1) 3TY7 561-1NA0
Left 3 NO + 3 NC 1) 3TY7 561-1QA0
Left 7 NO + 7 NC 1) 3TY7 561-1SA0
Right 2 NO + 2 NC 1) 3TY7 561-1PA0
Right 3 NO + 3 NC 1) 3TY7 561-1RA0
Right 7 NO + 7 NC 1) 3TY7 561-1TA0
For 3TL7
4 NO + 4 NC 3SV9 894-2AA0
8 NO + 8 NC 3SV9 896-2AA0
For 3TL8
Top 2 NO + 2 NC 3TY7 561-1SA0
Bottom 2 NO + 2 NC 3TY7 561-1NA0
Magnet coil For 3TL6 100 V AC, 50 / 60 Hz 3TY5 651-0AF2
(from year of manufact. 10 / 90, from serial no. 31 375 035) 110 /115 V AC, 50 / 60 Hz 3TY5 651-0AG7
120 V AC, 50 / 60 Hz 3TY5 651-0AL7
125 / 127 V AC, 50 Hz 3TY5 651-0AL7
220 V AC, 50 / 60 Hz 3TY5 651-0AN2
230 / 240 V AC, 50 / 60 Hz 3TY5 651-0AN7
24 V DC 3TY5 651-0BB4
30 V DC 3TY5 651-0BC4
48 V DC 3TY5 651-0BW4
60 V DC 3TY5 651-0BE4
110 V DC 3TY5 651-0BF4
125 V DC 3TY5 651-0BG4
220 V DC 3TY5 651-0BM4
For 3TL7 110 V AC, 50 / 60 Hz 3TY5 741-0AG2
120 V AC, 50 / 60 Hz 3TY5 741-0AK2
230 / 240 V AC, 50 / 60 Hz 3TY5 741-0AL2
110 V DC 3TY5 741-0BF4
120/125 V DC 3TY5 741-0BG4
220 V DC 3TY5 741-0BM4
For 3TL8 110 V – 250 V AC / DC 3TY5 811-0BA0
Resistor for economy circuit For 3TL6 100 V AC, 50 / 60 Hz 3TY5 664-1NA0
(from year of manuf. 10/ 90, from serial no. 31 375 035) 110 /115 V AC 3TY5 664-1DA0
120 / 125 / 127 V AC 3TY5 664-1EA0
220 V AC 3TY5 664-1FA0
230 / 240 V AC 3TY5 664-1GA0
24 V DC 3TY5 664-0AA0
30 V DC 3TY5 664-0BA0
48 V DC 3TY5 664-0WA0
60 V DC 3TY5 664-0CA0
110 V DC 3TY5 664-0DA0
125 V DC 3TY5 664-0EA0
220 V DC 3TY5 664-0FA0
1) The information left / right applies when the vacuum interrupters are observed with the rocker at the top
type designation, serial number and the year of manufacture
of the contactor to be sure to get the correct delivery.
This data is given on the rating plate.
Siemens HG 11.21 · 2014 30
3TL Vacuum Contactors
2
Designation Remark Operating voltage Order No.
Electronic module For 3TL8 110 V – 250 V AC/DC 3TY5 812-0BA0
for economy circuit
Auxiliary contactor For 3TL6 (for economy circuit and closing latch) 24 V DC 3TY5 662-0BB4
30 V DC 3TY5 662-0BC4
48 V DC 3TY5 662-0BW4
60 V DC 3TY5 662-0BE4
110 V DC 3TY5 662-0BF4
125 V DC 3TY5 662-0BG4
220 V DC 3TY5 662-0BM4
100 V AC, 50/60 Hz 3TY5 662-0AF2
110 V AC, 50/60 Hz 3TY5 662-0AG2
115 V AC, 50/60 Hz 3TY5 662-0AJ2
120 V AC, 50/60 Hz 3TY5 662-0AK2
230 V AC, 50/60 Hz 3TY5 662-0AL2
240 V AC, 50/60 Hz 3TY5 662-0AP2
For 3TL7 110 V DC 3RT1 526-1BF40
120 V – 125 V DC 3RT1 325-1BG40
220 V DC 3RT1 517-1BM40
110 / 120 V AC, 50 / 60 Hz 3RT1 325-1AG40
230 V AC, 50 / 60 Hz 3RT1 517-1AP00
Mechanical closing latch For 3TL6 110 / 115 V AC, 50 / 60 Hz 3TY5 692-0AG7
120 / 125 / 127 V AC, 50 / 60 Hz 3TY5 692-0AL7
220 / 230 / 240 V AC, 50 / 60 Hz 3TY5 692-0AN2
24 V DC 3TY5 692-0BB4
30 V DC 3TY5 692-0BC4
48 V DC 3TY5 692-0BW4
60 V DC 3TY5 692-0BE4
110 V DC 3TY5 692-0BF4
125 V DC 3TY5 692-0BG4
220/250 V DC 3TY5 692-0BM4
For 3TL8 110 V – 115 V AC, 50 / 60 Hz 3TY5 892-0AG7
120 V – 127 V AC, 50 / 60 Hz 3TY5 892-0AL7
220 V – 240 V AC, 50 / 60 Hz 3TY5 892-0AN7
24 V DC 3TY5 892-0BB4
30 V DC 3TY5 892-0BC4
48 V DC 3TY5 892-0BD4
60 V DC 3TY5 892-0BE4
110 V DC 3TY5 892-0BF4
125 V DC 3TY5 892-0BG4
220 V – 250 V DC 3TY5 892-0BM4
Mechanical closing lockout For 3TL6 3TY5 693-0AA0
Blocking element For 3TL61 for mechanical interlocking of two contactors 110 /115 V AC, 50 / 60 Hz 3TX5 111-0AA0
Semiconductor components Remark
Rectifi ers For 3TL6 contactor coil 3TL6 3TY5 694-2AA0
Varistor module For overvoltage protection in DC secondary circuit 3TL6/3TL7 3TL6, 3TL7 3AX15 26-0F
Rectifi er element For overvoltage protection in AC secondary circuit 3TL6/3TL7 3TL6, 3TL7 3AX15 25-1F
Adjustment parts To replace 3TL50 and 3TL51 contactors by 3TL60 and
3TL61 (this does not apply to 8BD3 switchgear) 3TY5 610-1AA0
Equipment Selection
Accessories and spare parts
Siemens HG 11.21 · 2014 31
3TL Vacuum Contactors
2
Equipment Selection
Accessories and spare parts
Designation Remark Operating voltage Order No.
Shunt release For 3TL6 110/115 V AC, 50/60 Hz 3TY5695-0AG7
125/127 V AC, 50/60 Hz 3TY5695-0AL7
220 V AC, 50/60 Hz 3TY5695-0AN2
230/240 V AC, 50/60 Hz 3TY5695-0AN7
24 V DC 3TY5695-0BB4
30 V DC 3TY5695-0BC4
48 V DC 3TY5695-0BW4
60 V DC 3TY5695-0BE4
110/115 V DC 3TY5695-0BF4
125/127 V DC 3TY5695-0BG4
220 V DC 3TY5695-0BM4
Vacuum interrupter For 3TL6
VS 7202 7.2 kV, 450 A 3TY5 610-2AA0
VS 12003 12 kV, 400 A 3TY5 650-1AA0
VS 12003 SP 12 kV, 400 A (Ud = 42 kV) 3TY5 650-2AA0
For 3TL8
Up to serial number 31 670 935 3TY5 810-0AA0
From serial number 31 670 936 3TY5 810-1AA0
2014
To select the correct spare vacuum interrupter, please
specify the type designation, serial number and year of
manufacture of the contactor. This data is given on the
rating plate.
Data on the rating plate
Vacuum interrupters and other spare parts must only be
replaced by instructed personnel.
Note:
For any query regarding spare parts, subsequent deliveries,
etc. the following details are necessary:
– Type designation
– Serial no. (No. S)
– Year of manufacture (Year of manuf.)
HG11-2727a eps
Siemens HG 11.21 · 2014 32
3TL Vacuum Contactors
R_HG11_222.tif
Siemens HG 11.21 · 2014 33
3TL Vacuum Contactors
3
Technical Data 33
Electrical data, dimensions and weights
Medium-voltage part 34
Low-voltage part 35
Short-time withstand current/
load time characteristic 36
Operating cycle diagrams 36
Dimension drawings 37
Auxiliary contacts 38
Ambient conditions 38
Circuit diagrams
3TL6 vacuum contactor 39
3TL7 vacuum contactor 41
3TL8 vacuum contactor 42
Transport dimensions and weights
Types of transport 43
Contents Page
Flexible connector
Long operating shaft for 3TL8
Technical Data
Contents
R-HG11-223.tif R-HG11-092.tif
Siemens HG 11.21 · 2014 34
3TL Vacuum Contactors
3
Technical Data
Electrical data, dimensions and weights
Ur Ir Ith Ie Im Ic Iba Ik Oper.
cycles/h
Oper.
cycles
Oper.
cycles
Oper.
cycles kV A A A A A A kA kA A kA kV kV kV kV kg s_A7E_
3TL61 ... 7.2 450 450 360 450 4500 3600 5 8 250 10 1200 3 mio. 2 mio. 1 mio. 60 40 20 20 28 154 01503
3TL65 ... 12 400 400 315 400 4000 3200 4.5 8 250 10 600 1 mio. 1 mio. 0.5 mio. 75 60 28 28 30 154 01503
3TL68 ... 15 320 320 315 320 3200 2560 4.5 8 – – 600 1 mio. 1 mio. 0.25 mio. 75 60 38 38 30 154 01504
3TL71 ... 24 800 800 630 450 4500 3600 7 8 400 5 60 1 mio. 1 mio. 0.5 mio. 125 95 50 50 80 154 02492
3TL81 ... 7.2 400 400 3604) 400 4000 3200 5 8 250 10 1200 1 mio. 0.25 mio. 0.25 mio. 60 40 20 20 30 154 02120
1) According to utilization category AC-1, AC-2, AC-3 and AC-4
2) According to utilization category AC-4 (cos φ = 0.35)
3) For short-time withstand current with longer durations, see short-time withstand current/load time characteristic
4) Ambient air temperature + 65 °C
Medium-voltage part Order No. Rated voltage Rated normal current 1) Rated continuous normal current at ambient air temperature up to + 55 °C Thermal current
at ambient temperature up to + 80 °C
1) Rated operational current
2) Switching capacity
Rated making current
2) Switching capacity
Rated breaking current
Rated short-circuit breaking current
(limit switching capacity)
Rated short-time withstand current
3) (r.m.s. value) 1 s
Rated single capacitor bank breaking current
Rated normal current of capacitor
Rated making current
for a parallel capacitor bank
Switching rate
Without mechanical closing latch
Mechanical endurance of the contactor
Mechanical endurance of the
vacuum interrupter
Electrical endurance (AC-1)
while breaking the rated normal current
Rated lightning impulse withstand voltage
to earthed parts and between phases
Rated lightning impulse withstand voltage
across the open contact gap
Rated short-duration power-frequency
withstand voltage
to earthed parts and between phases
Rated short-duration power-frequency
withstand voltage
across the open contact gap
Weight
Detailed dimension drawing
(can be ordered)
Siemens HG 11.21 · 2014 35
3TL Vacuum Contactors
3
Technical Data
Electrical data, dimensions and weights
Oper.
cycles
Oper.
cycles W W V ms ms ms ms W V s
3TL61 ...
3TL65 ...
3TL68 ...
650 90 0.8 to 1.1 Ua 100 80 75 to 100 1) 50 to 75 100,000 60 900 0.85 to 1.1 Ua 0.2 to max. 1
3TL71 ... 1200 200 0.85 to 1.1 Ua 100 40 to 60 50 to 100 2) – – –– – –
3TL81 ... 600 90 0.85 to 1.1 Ua 300 150 250 to 400
≤ 50 3) 30 to 50 100,000 60 900 0.85 to 1.1 Ua 0.2 to max. 1
1) 3TL6 With special wiring G01 ≤ 50 ms
With special wiring G02 100 to 180 ms
With special wiring G03 180 to 320 ms
With special wiring G08 Reconnectable: 100 to 180 ms and 50 to 75 ms
2) 3TL71 With special wiring G01 ≤ 50 ms
3) 3TL8 Implementation by external circuit (see page 42)
Low-voltage part Order No. Power consumption of the drive solenoid Making capacity Power consumption of the drive solenoid
Holding power referred to 230 V AC
Voltage range of the drive solenoid
Operating voltage
Minimum closing command
for drive solenoid
Closing time
(Interval of time between the command and the
instant when the contacts touch in all poles)
Opening time
(Interval of time between the command
and the instant of the contact separation
in the last pole)
(without mechanical latch)
Opening time
Mechanical closing latch
Mechanical closing latch
Service life
Mechanical closing latch
Switching rate
Mechanical closing latch
Power consumption of the latch release solenoid
Mechanical closing latch
Voltage range of the latch release solenoid
Mechanical closing latch
Opening impulse
Siemens HG 11.21 · 2014 36
3TL Vacuum Contactors
3
Technical Data
Electrical data, dimensions and weights
Operating cycle diagrams
Short-time withstand current/load time characteristic
The permissible number of
electrical operating cycles
is shown as a function of
the breaking current
(r.m.s. value). The curve
shape shows average
values. The number of
operating cycles that can
actually be reached can be
different depending on the
respective application.
Load time
1) 3TL61
2) 3TL81
3) 3TL68
4) 3TL65
5) 3TL71
Breaking current (r.m.s. value)
2 1 0
10
100
1,000
0.01 0.1 1 10 kA 5 0.4 0.45
10,000
100,000
250,000
1,000,000
10,000,000
Breaking current (r.m.s. value)
1 4.5 7 0.4 0.8 kA
4 5 3 0
10
100
1,000
0.01
10,000
100,000
250,000
10,000,000
0.1 10
500,000
1,000,000
0.32
HG11-2637_en eps
Short-time withstand current (r.m.s.value)
Operating cycles
HG11-2638a_en eps
Operating cycles
HG11-2639b_en eps
Siemens HG 11.21 · 2014 37
3TL Vacuum Contactors
3
Technical Data
Electrical data, dimensions and weights
3TL61 dimension drawing 3TL65 / 68 dimension drawing
3TL7 dimension drawing
3TL8 dimension drawing
Dimension drawings
Values identifi ed with 1) are connecting dimensions
Siemens HG 11.21 · 2014 38
3TL Vacuum Contactors
3
Technical Data
Electrical data, dimensions and weights
Rated normal current
Utilization category for AC voltage AC-14/15
at rated voltage
Rated normal current
Utilization category for DC voltage DC-13
at rated voltage
Connection cross-sections
of the auxiliary contacts
acc. to DIN EN 60947 Part 1
Ir Ir Ir Ir Ir Ir Ir Ir Ir Ir Ir Ir Ir Ir
A A A A A A A A A A A A A A A mm2 mm2
3TL61 ...
4 NO + 3 NC
6 NO + 6 NC
8 NO + 7 NC
10 10 10 10 10 – 5.6 5.6 10 5 5 5 1.14 0.98 0.48 0.6 – 4 0.5 – 2.5
3TL65 ...
4 NO + 3 NC
6 NO + 6 NC
8 NO + 7 NC
10 10 10 10 10 – 5.6 5.6 10 5 5 5 1.14 0.98 0.48 0.6 – 4 0.5 – 2.5
3TL68 ...
4 NO + 3 NC
6 NO + 6 NC
8 NO + 7 NC
10 10 10 10 10 – 5.6 5.6 10 5 5 5 1.14 0.98 0.48 0.6 – 4 0.5 – 2.5
3TL71 ... 4 NO + 4 NC
8 NO + 8 NC – 5 – – – 2.5 – – 10 9 9 7 4 – 2 0.6 – 4 0.5 – 2.5
3TL81 ... 2 NO + 2 NC
4 NO + 4 NC 10 10 10 10 10 – 5.6 5.6 10 5 5 5 1.14 0.98 0.48 0.6 – 4 0.5 – 2.5
Auxiliary contacts
Service life at ambient air temperature Site altitude Shock resistance Degree of
protection
Storage
at – 40 °C
to + 65 °C
Operation
at – 5 °C
to + 55 °C
Operation
at – 5 °C
to + 65 °C
Operation
at + 55 °C
to + 80 °C
Operation
at – 25 °C
to – 5 °C
according to
IEC 60529
3TL61 ... 20 years 3 mio.
oper. cycles – 1 mio.
oper. cycles
0.5 mio.
oper. cycles
1250 m below sea level
to 5000 m above sea level
5 x g, 10 ms or
10 x g, 5 ms IP00
3TL65 ... 20 years 1 mio.
oper. cycles – 1 mio.
oper. cycles
0.25 mio.
oper. cycles
1250 m below sea level
to 5000 m above sea level
5 x g, 10 ms or
10 x g, 5 ms IP00
3TL68 ... 20 years 1 mio.
oper. cycles – 1 mio.
oper. cycles
0.25 mio.
oper. cycles
1250 m below sea level
to 5000 m above sea level
5 x g, 10 ms or
10 x g, 5 ms IP00
3TL71 ... 20 years – 1 mio.
oper. cycles – 0.5 mio. 1)
oper. cycles
50 m below sea level
to 5000 m above sea level – IP00
3TL81 ... 20 years – 1 mio.
oper. cycles
0.5 mio.
oper. cycles
0.5 mio.
oper. cycles
200 m below sea level
to 5000 m above sea level
5 x g, 10 ms or
10 x g, 5 ms IP00
1) Operation at – 40 °C to – 5 °C
Ambient conditions Number of auxiliary contacts
Rated continuous current
Order No.
110 V AC
115 V AC
120 V AC
125 V AC
220 V AC
230 V AC
240 V AC
24 V DC
30 V DC
48 V DC
60 V DC
110 V DC
125 V DC
220 V DC
Single wire
Finely stranded
with wire end ferrule
Order No.
Siemens HG 11.21 · 2014 39
3TL Vacuum Contactors
3
3TL6 vacuum contactor
DC operation
• Voltage range 24 V to 220 V DC
• Opening time with latching 50 to 75 ms
• Opening time without latching depends on the G supplements (see page 40)
• Resistor for economy circuit
• Auxiliary contact block 4 NO + 3 NC, 6 NO + 5 NC (shown), or 8 NO + 7 NC
• Mechanical closing latch (optionally)
AC operation
• Voltage range 110 V to 500 V AC,
50/60 Hz
The wiring of the 3TL6 vacuum contactor with
AC operation only differs by the upstream rectifi er
(circuit symbol G).
83
84
61 53
54 62
102 94
93 101
22 14
13 21
71
72
A2
A1
1 2
-K
-X1
-X1
-K1 -K1
Y1
-K1
-R1
1L1 3L2 5L3
-S1 -S2
2T1 4T2 6T3
121 113
114 122
32
44
43
31
-Y2
E1
E2
-K2
-K2
-K2
A2
A1
A1
A2
43 44 13 14
A1
A2
A1
A2
23
24
14
13
-K2
-K2
44
43
34
33
83 61 53 121 113 102 94 22 14 32
84 54 62 114 122 93 101 13 21 31
1)
Closing latch (option) Vacuum contactor (with auxiliary switch 6 NO + 5 NC)
without closing latch
1) In 3TL6133 and 3TL6135 contactors (with withdrawable terminal strip), the current must be deactivated externally via the unlatching coil.
Technical Data
Circuit diagrams
K Vacuum contactor
Y1 Magnetic drive
K1 Contactor for economy circuit
Y2 Latch release solenoid
K2 Contactor for latch release
R1 Resistor
S1, S2 Auxiliary contact block
X1 Terminal strip
Legend
HG11-2831a eps
Siemens HG 11.21 · 2014 40
3TL Vacuum Contactors
3
Circuit examples
Standard opening time 75 to 100 ms (without G supplements and without latching)
• Opening time with G02: 120 to 180 ms
• Opening time with G03: 180 to 320 ms
Momentary-contact operation
Momentary-contact operation
Momentary-contact operation
Opening time with G01: ≤ 50 ms
Opening time with G08: 100 to 180 ms // 50 to 75 ms reconnectable
1) Bridge open: 50 ms to 75 ms
Bridge closed: 100 ms to 180 ms
Maintained-contact operation
Maintained-contact operation
Maintained-contact operation
Technical Data
Circuit diagrams
F Fuse
K Vacuum contactor
K2 External auxiliary contactor (e.g. Siemens 3RH2140)
S1, S2 Auxiliary contact block
S0Q External OFF pushbutton
S1Q External ON pushbutton
X1 Terminal strip
1) Bridge
Legend
L1(L+) -F
-S1Q
-K2
-K2
-X1
A2
-S0Q -K2
A1 A1
-K
N(L2,L-)
83
84
61 53
62 54
12113 2214 94
12114
32
S1 S2
A2
4410
2113 314310 93
L1(L+) -F
-K2
-X1
A2
-S0Q -K2
A1
-K
N(L2,L-)
83
84
61 53
62 54
12113 2214 94
12114
32
S1 S2
4410
2113 314310 93
-K2 -K2
L1(L+) -F
-S1Q
-K2
-K2
-X1
A2
-S0Q -K2
A1A1
-K
N(L2,L-)
83
84
61 53
62 54
12113 2214 94
12114
32
S1 S2
A2
4410
2113 314310 93
S S
-K2 -K2
L1(L+) -F
-K2
-X1
A2
-S0Q -K2
A1A1
-K
N(L2,L-)
83
84
61 53
62 54
12113 2214 94
12114
32
S1 S2
A2
4410
2113 314310 93
S S
L1(L+) -F
-S1Q
-K2
-K2
-X1
A2
-S0Q -K2
A1 A1
-K
N(L2,L-)
83
84
61 53
62 54
12113 2214 94
12114
32
S1 S2
A2
4410
2113 314310 93
120 ms1)
S S
L1(L+) -F
-K2
-X1
A2
-S0Q -K2
A1
-K
N(L2,L-)
83
84
61 53
62 54
12113 2214 94
12114
32
S1 S2
4410
2113 314310 93
120 ms1)
S S A2
HG11-2817 eps
HG11-2818 eps
HG11-2819 eps
HG11-2820 eps
HG11-2821 eps
HG11-2822 eps
Siemens HG 11.21 · 2014 41
3TL Vacuum Contactors
3
Technical Data
Circuit diagrams
3TL71 vacuum contactor
• Voltage range 110 V to 230 V AC, 50 / 60 Hz
• Standard opening time 50 to 100 ms (without G supplements)
• Voltage range 110 V to 220 V DC
• Opening time with G01: ≤ 50 ms
F Fuse
K Vacuum contactor
Y1 Magnetic drive for vacuum contactor
K1, K2 Contactor for pick-up coil
K3 Contactor for holding coil
K4 External auxiliary contactor
S Auxiliary switch
S0Q External OFF pushbutton
S1Q External ON pushbutton
V2 Rectifi er module
X0 Plug or terminal strip for auxiliary wire connection
Legend
Circuit examples
Standard opening time 50 to 100 ms (without G supplements)
Momentary-contact operation
Momentary-contact operation
Opening time with G01: ≤ 50 ms
Maintained-contact operation
Maintained-contact operation
The circuit diagrams shown here are examples from the manifold possibilities of contactor wiring
-K2
-K1
B1
B2
-Y1
1L1 3L2 5L3
2T1 4T2 6T3
A1
A2
-K2 -K3
31 43
32 44
51 63
52 64
71 83
72 84
91 103
92 104
23
24
13
14
-S
-X0 D1
-X0
-K
-K3
-V2
A1
4(--)
2(~)
3(+)
1(~)
A1
A2
A1
A2
A1
A2
-K3
R3 R4 R2 R1
-K2 -K1
R3 R4 R2 R1
-K1
3 42 1
14 15 16 17 18 19 20 21
3 2 5 4 7 6 9 8
L1(L+) -F
-S1Q
-K4
-K4
-X0
1
-S0Q -K4
13
-K
N(L2,L-)
161718 21
-S
1920
45 678 9
1415
2 3
L1(L+) -F
-K4
-X0
1
-S0Q -K4
13
-K
N(L2,L-)
161718 21
-S
1920
45678 9
14 15
2 3
L1(L+) -F
-S1Q
-K4
-K4
-X0
1
-S0Q
13 22
-K
N(L2,L-)
161718 21
-S
10
1920
45 678 9
1415
2 3
-K4 11
L1(L+) -F
-K4
-X0
1
-S0Q
13 22
-K
N(L2,L-)
161718 21
-S
10
1920
45 678 9
1415
2 3
-K4 11
HG11-2832a eps
HG11-2823 eps
HG11-2824 eps
HG11-2825 eps
HG11-2826 eps
Siemens HG 11.21 · 2014 42
3TL Vacuum Contactors
3
Technical Data
Circuit diagrams
A3 Electronic module
F Fuse
K Vacuum contactor
K2 External auxiliary contactor (e.g. Siemens 3RH2140)
S1 Auxiliary contact block, top
S2 Auxiliary contact block, bottom
S0Q External OFF pushbutton
S1Q External ON pushbutton
V2 Rectifi er module
Y1 Magnet drive
Y2 Latch release solenoid (option)
X1 Terminal strip for auxiliary wire connection
Legend
Circuit examples
Standard opening time 250 to 400 ms (without latching)
The circuit diagrams shown here are examples from the manifold possibilities of contactor wiring
3TL8 vacuum contactor
AC and DC operation
• Voltage range 110 V to 250 V AC / DC, 50 / 60 Hz
• Opening time with latching ≤ 50 ms
• Opening time without latching 250 ms to 400 ms
• Opening time with external circuit ≤ 50 ms
• Auxiliary contact block 2 NO + 2 NC, or 4 NO + 4 NC (option)
• With mechanical closing latch (-K2S) only with
auxiliary contact block 4 NO + 4 NC
Closing latch (option)
Vacuum contactor without closing latch
E1
1L1 3L2 5L3
2T1 4T2 6T3
-S1 71 83 61 53
-K2
-V2
A1
-K2
44 43 34 33
-X1
-X1
-K
A2
-K2 -K2
23 24 14 13
84 62 54 72
32
44
-S2 22 14
31
43
13 21
-Y2
A1
A2
E2
-Y1
4(--)
3(+)
2(~)
1(~)
-A3
-K2 A1
A2
bl
sw
bl
sw
A1
A2
2211
L1(L+) -F
-S1Q
-K2
-K2
-X1
A2
-S0Q -K2
A1
-K
N(L2,L-)
71 83
72 84
61 2214
62
3244
2113 3143
53
54
L1(L+) -F
-K2
-X1
A2
-S0Q -K2
A1
-K
N(L2,L-)
71 83
72 84
61 2214
62
3244
2113 3143
53
54
-K2 -K2
L1(L+) -F
-S1Q
-K2
-K2
-X1
A2
-S0Q -K2
A1 2
-K
N(L2,L-)
71 83
72 84
2214 61
62
3244
2113 3143
2 1 53 1
54
-K2 -K2
-K2 -K2
L1(L+) -F
-K2
-X1
A2
-S0Q -K2
A1 2
-K
N(L2,L-)
71 83
72 84
2214 61
62
3244
2113 3143
2 1 53 1
54
-K2 -K2
Momentary-contact operation
Momentary-contact operation
Opening time: ≤ 50 ms
Maintained-contact operation
Maintained-contact operation
HG11-2833a eps
HG11-2827 eps
HG11-2828 eps
HG11-2829 eps
HG11-2830 eps
Siemens HG 11.21 · 2014 43
3TL Vacuum Contactors
3
Technical Data
Transport dimensions and weights
Packing type 3TL6 2) 3TL8 2)
For number
of vacuum
contactors
Dimensions
length / width / height Volume
For number
of vacuum
contactors
Dimensions
length / width / height Volume
mm m3 mm m3
Cardboard box or lattice box 1)
1 600 x 500 x 500 0.150 1 – 2 600 x 500 x 550 0.165
1 – 2 800 x 500 x 480 0.192 2 800 x 500 x 480 0.192
2 920 x 640 x 780 0.459 2 – 3 920 x 640 x 780 0.459
– – – 2 – 4 800 x 760 x 930 0.565
4 – 8 1120 x 820 x 1130 1.038 5 – 10 1120 x 820 x 1130 1.038
6 – 8 1140 x 1020 x 1020 1.186 10 – 14 1140 x 1020 x 1020 1.186
16 – 18 1215 x 1040 x 1270 1.605 15 – 16 1215 x 1040 x 1270 1.605
1) Cardboard box with inside cardboard suiting the device, cardboard box with sealed packing and inside cardboard suiting the device,
or lattice box with dust protection foil
2) Gross weight for 3TL6 with approx. 31 kg and 3TL8 with approx. 22 kg per device, depending on the equipment
Packing type 3TL71
For number
of vacuum
contactors
Dimensions
length / width / height Volume Gross weight
mm m3 kg
Cardboard box with
inside cardboard suiting
the device 1 – 2 1120 x 820 x 1130 1.038 150 – 293
3 1140 x 1020 x 1020 1.186 286 – 400
3 1) 1215 x 1040 x 1270 1.605 425 – 431
Lattice box with
dust protection foil
1 – 2 2) 1200 x 850 x 900 0.918 199 – 313
1) With partitions
2) Not stackable
Transport by truck, rail, airfreight or ship
Transport by truck, rail, airfreight or ship
Siemens HG 11.21 · 2014 44
3TL Vacuum Contactors
R-HG11-181.tif
Siemens HG 11.21 · 2014 45
3TL Vacuum Contactors
4
Annex 45
Inquiry form 46
Confi guration instructions 47
Confi guration aid Foldout page
Contents Page
Switchgear Factory, Berlin
Annex
Contents
R-HG11-180.eps
Siemens HG 11.21 · 2014 46
3TL Vacuum Contactors
4
Annex
Inquiry form
Please copy, fi ll in and return to
your Siemens partner
Inquiry concerning
3TL6 vacuum contactor
3TL7 vacuum contactor
3TL8 vacuum contactor
Please
Submit an offer
Call us
Visit us
Your address
Company
Department
Name
Street
Zip code/City
Country
Phone
Fax
Siemens AG
Department
Name
Street
Zip code/City
Country
Fax
Technical data
Other values
Rated voltage 7.2 kV 12 kV 15 kV
24 kV ___ kV
Rated lightning impulse- to earth 60 kV 75 kV 125 kV
withstand voltage open 40 kV 60 kV 95 kV
contact gap
Rated short-duration
power-frequency 20 kV 28 kV 38 kV 50 kV ___ kV
withstand voltage
Rated normal current 320 A 400 A 450 A 800 A ___ A
Rated making current 3200 A 4000 A 4500 A ___ A
Rated breaking current 2560 A 3200 A 3600 A ___ A
Switching rate 60 600 1200
oper. cycles/h oper. cycles/h oper. cycles/h
Mechanical endurance 1 mio. 3 mio. ___
of the contactor oper. cycles oper. cycles oper. cycles
Mechanical endurance 0.25 mio. 1 mio. 2 mio. ___
of the interrupter oper. cycles oper. cycles oper. cycles oper. cycles
Electrical endurance 0.25 mio. 0.5 mio. 1 mio. ___
(AC-1) oper. cycles oper. cycles oper. cycles oper. cycles
Equipment
Contact elements 3TL6 4 NO + 4 NC 6 NO + 6 NC 8 NO + 8 NC
3TL71 4 NO + 4 NC 6 NO + 6 NC 8 NO + 8 NC
3TL8 2 NO + 2 NC 4 NO + 4 NC ___
Operating voltage
of the magnet coil ___ V DC ___ V AC, ___ Hz
Mechanical
closing latch with without
Operating voltage
of the closing latch ___ V DC ___ V AC,__ Hz
Operating instructions in German English French Spanish
Application and other requirements
Please check off ___ Please fi ll in
You prefer to confi gure your 3TL vacuum contactor on your own?
Follow the steps to the confi guration and enter the order number in the confi guration help.
Siemens HG 11.21 · 2014 47
Instruction for confi guration of the 3TL vacuum contactor
1st step: Defi nition of the primary part
Please specify the following ratings: Possible options:
Rated voltage (Ur) Ur: 7.2 kV to 24 kV
Rated lightning impulse withstand voltage (Up) Up: 60 kV to 125 kV
Rated short-duration power-frequency withstand voltage (Ud) Ud: 20 kV to 50 kV
Rated normal current (Ir) Ir: 320 A to 800 A
Switching rate 60 operating cycles/h to 1200 operating cycles/h
Mechanical endurance of the contactor 1 mio. to 3 mio. operating cycles
2nd step: Defi nition of the equipment
Please specify the following equipment features: Possible options:
Number of auxiliary contacts 2 NO + 2 NC to 8 NO + 8 NC
Operating voltage of the magnet coil Operating voltages from 24 V DC to 240 V AC
Operating voltage of the closing latch Operating voltages from 24 V DC to 240 V AC
Operating voltage of the shunt release Operating voltages from 24 V DC to 230 / 240 V AC
Site altitude – 500 m below sea level to + 5000 m above sea level
3rd step: Do you still have further requirements concerning the equipment?
Your Siemens sales partner will be pleased to support you.
For confi guration of your
3TL vacuum contactors
1 2 3 4 5 6 7 – 8 9 10 11 12 – 13 14
3TL – – – Z
3TL – –
+++
+++
3TL – –
+++
+++
3TL – –
+++
+++
3TL – –
+++
+++
3TL – –
+++
+++
3TL – –
+++
+++
3TL – –
+++
+++
3TL – –
+++
+++
For more information,
please contact our
Customer Support Center.
Tel.: +49 180 524 84 37
Fax: +49 180 524 24 71
(Charges depending on provider)
E-mail: [email protected]
Order No. IC1000-K1511-A211-A5-7600
Printed in Germany
KG 11.13 1.0 50 En
7400 / 50897
Printed on elementary chlorine-free bleached paper.
Published by and copyright © 2014:
Siemens AG
Infrastructure & Cities Sector
Wittelsbacherplatz 2
80333 Munich, Germany
Siemens AG
Infrastructure & Cities Sector
Low and Medium Voltage Division
Nonnendammallee 104
13629 Berlin, Germany
www.siemens.com
All rights reserved.
lf not stated otherwise on the individual pages of this
catalog, we reserve the right to include modifications,
especially regarding the stated values, dimensions and
weights.
Drawings are not binding.
All product designations used are trademarks or
product names of Siemens AG
or other suppliers.
lf not stated otherwise, all dimensions in this catalog
are given in mm.
Subject to change without prior notice.
The information in this document contains general
descriptions of the technical options available,
which may not apply in all cases.
The required technical options should therefore
be specified in the contract for the individual case.
Previous : Robicon Siemens Power Cell Medium Voltage VFD Control Board PN: 460N15.00 A5E03409686 A5E02610594
Next : Siemens Robicon Perfect Harmony Sinamics Drives SIMOTICS Servo SIMATIC PLC HMI
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
We are the world's leading supplier of spare parts for medium voltage drives of various brands
点击右上角
分享给朋友吧
GET IN TOUCH
East Sun Industrial Centre, No 16 Shing Yip Street Kl, Hongkong
Call us : +852 5261 7322
Email us : [email protected]
SITEMAP
BUSINESS HOURS
Monday to Friday : 9 am to 6 pm
Saturday : 9 am to 12 am
Sunday : Closed Support Hours in 24/7 Everyday
DISCLAIMER:
We are not an authorized distributor, reseller or representative of the following products presented on this website. All Product names and logos throughout this site are trademarks of their respective holders. Use of them DOES NOT imply any affiliation with or endorsement by them.
© 2020 robiconperfectharmony.com site . All rights reserved Site Map
