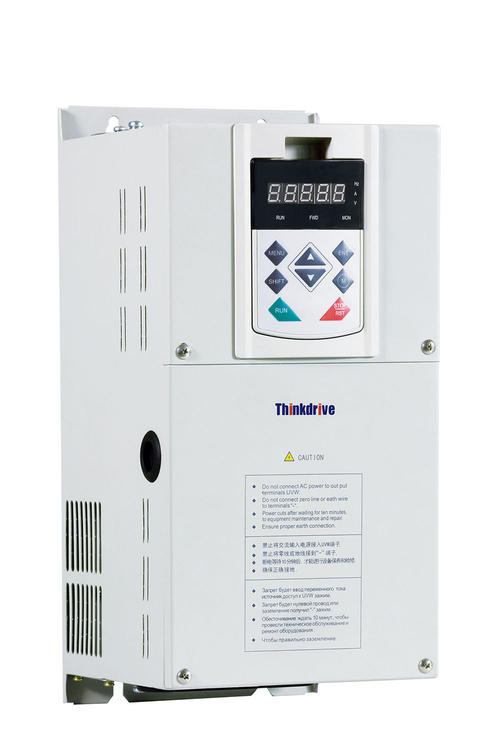

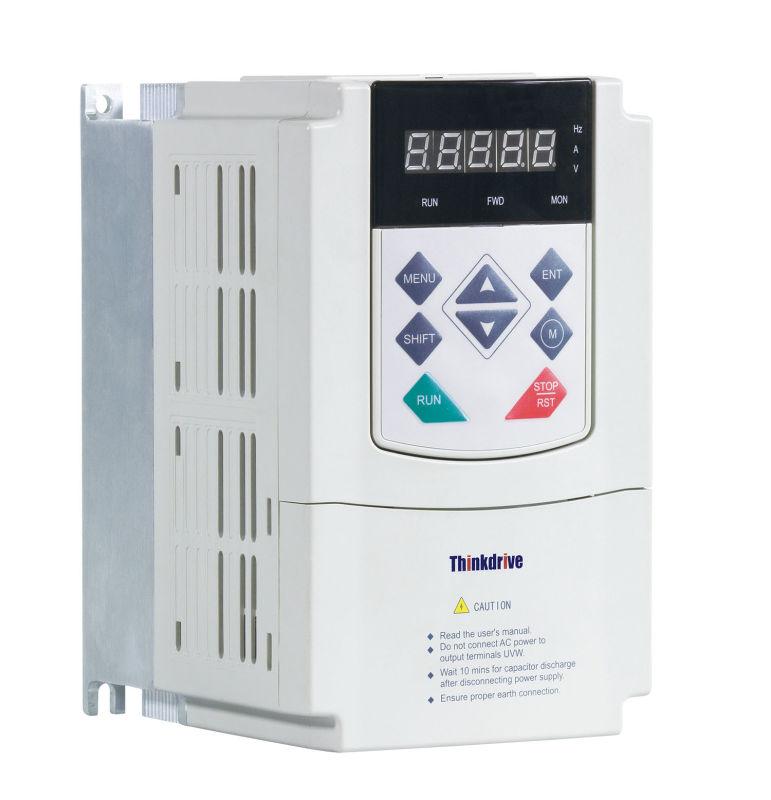

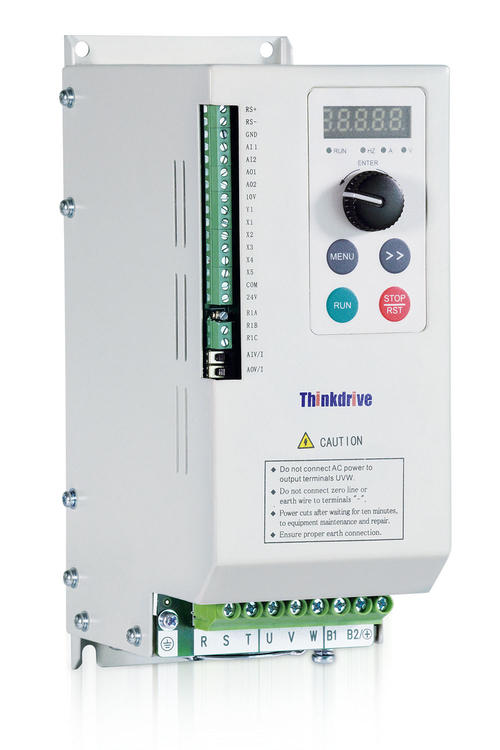

Variable Frequency Drive, Variable Speed Drive, VFD, VSD, Frequency Inverter, Frequency Converter, Inverter, AC Drives

Electrical specifications	Rated Voltage/ Frequency	Three-phase：380V, 50/60Hz
	Allowable Fluctuation	Voltage：-20%～+20%，Imbalance rate＜3% Frequency：±5% (Non - standard customized)
	Output Voltage	0~Rated Input
	Output Frequency	0.00Hz～600.00Hz
Control feature	Control Mode	Simple Vector control	Opened loop vector control	Closed loop vector control
	Start-up Torque	0.50Hz 180%	0.50Hz 200%	0.00Hz 200%
	Speed Range	1：100	1：200	1：1000
	Stable Speed accuracy	±0.5%	±0.2%	±0.02%
	Overload capacity	150% of rated output current lasts 60 seconds 180% of rated output current lasts 10 seconds 200% of rated output current lasts 0.5 seconds
Product Basic performance	Frequency setting mode	Digital setting+UP/DOWN Simulation setting Communication setting Pulse setting Main and auxiliary operation mode
	Running command mode	Operation panel mode External terminal mode Modbus communication mode
	Acceleration and deceleration time	0.1s～6000.0s
	Carrier frequency	1.0KHz～16.0KHz
	Start-up mode	From Start frequency From Direct current injection From Speed tracking
	Stop mode	Slowing down Free stop Deceleration + DC braking shutdown
	Energy consumption braking function	Operation voltage of brake unit：4T：650V～750V The power of built-in brake unit≤22KW
	DC braking function	Starting frequency of DC braking: 0.00Hz ~ 50.00Hz DC braking current: 0% ~ 100% DC braking time: 0.00s ~ 10.00s
	Electromagnetic braking function	Factory default Settings status is running continuously.
Special Functions	Programmable input/output interface	The editable input interface is up to 49 functions The editable output interface is up to 34 functions
	Process Closed-loop PID adjustable function	Built-in process PID closed loop regulation function
	Simple PLC control	There is a built-in simple module in it, which can achieve timing and multiple frequency output.
	Textile pendulum frequency function	Built-in textile pendulum frequency function module
	Parameters copy	Operation panel can upload and download the parameters.
	Keyboard locked	Can lock the buttons of keyboard in different ways
	User password	Can set up user password to prevent the parameters being modified
Protection function	Automatic current limit protection	Output current can be limited automatically, in order to prevent fault of frequent overcurrent.
	Over-pressure stall regulation	Bus voltage can be controlled automatically to prevent fault of overvoltage.
	Overload forecasting warning and alarm	forecasting warning and protection in advance of overload
	Input/output lack-phase protection	It can provide automatic detection and pre-alert protection.
	Output inter-phase short circuit protection	Effective protection function of output inter-phase short circuit
	Output earthing short circuit protection	Effective protection function of output earthing short circuit.
	Process PID setting and feedback loss inspection	Process PID can identify its setting automatically ,the feedback whether is lost and the pre-alert protective function .
Environmental characteristics	Working environment temperature	-40℃～+60℃ Need derating at 40℃～60℃, the output current will derate 1% once it exceeds every 1℃.
	Storage environment temperature	-40℃～70℃
	Operation place	Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt, etc.
	Altitude	Lower than 1000m, 1000~2500m: need derating, when >2500m need confined space and derateing.
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9m/s2
Efficiency	When at rated power, ≤7.5KW, power efficiency level≥93%; ≤45KW, power efficiency ≥95%；≥55KW, power efficiency ≥98%
Others	Installation type	Wall-mounted
	Protection Level	IP20 (Can be customized in special occasions, up to IP68)
	Cooling type	Air cooling (Customized in special occasions).

Driver Number	Power （KW）	Input Current （A）	Output Current （A）	Adaptable motor（KW）	Braking unit
TD620-4T0.75G/1.5LB	0.75	3.4	2.3	0.75	Standard Built-in
TD620-4T1.5G/2.2LB	1.5	5.2	3.8	1.5	Standard Built-in
TD620-4T2.2G/3.7LB	2.2	7.3	5.1	2.2	Standard Built-in
TD620-4T3.7G/5.5LB	3.7	11.9	9.0	3.7	Standard Built-in
TD620-4T5.5G/7.5LB	5.5	15	13	5.5	Standard Built-in
TD620-4T7.5G/11LB	7.5	19	17	7.5	Standard Built-in
TD620-4T11G/15LB	11	28	25	11	Standard Built-in
TD620-4T15G/18.5LB	15	35	32	15	Standard Built-in
TD620-4T18.5G/22LB	18.5	39	37	18.5	Standard Built-in
TD620-4T22G/30LB	22	50	45	22	Standard Built-in
TD620-4T30G/37L	30	62	60	30	Optional built-in
TD620-4T37G/45L	37	77	75	37	Optional built-in
TD620-4T45G/55L	45	92	90	45	Optional built-in
TD620-4T55G/75L	55	113	110	55	Optional built-in
TD620-4T75G/90L	75	156	152	75	Optional built-in
TD620-4T90G/110L	90	160	176	90	Optional built-in
TD620-4T110G/132L	110	192	214	110	Optional built-in
TD620-4T132G/160L	132	232	253	132	External
TD620-4T160G/185L	160	285	310	160	External
TD620-4T185G/200L	185	326	350	185	External
TD620-4T200G/220L	200	354	380	200	External
TD620-4T220G/250L	220	403	430	220	External
TD620-4T250G/280L	250	441	470	250	External
TD620-4T280G/315L	280	489	520	280	External
TD620-4T315G/355L	315	571	590	315	External
TD620-4T355G/400L	355	624	650	355	External
TD620-4T400G/450L	400	699	725	400	External
TD620-4T450G/500L	450	790	820	450	External
TD620-4T500G/560L	500	835	860	500	External
TD620-4T560G/630L	560	920	950	560	External
TD620-4T630G/710L	630	1050	1100	630	External

Driver Number	Power （KW）	Input Current （A）	Output Current （A）	Adaptable motor（KW）	Braking unit
TD620S-2T0.4G/0.75LB	0.4	3.4	2.5	0.4	Standard Built-in
TD620S-2T0.75G/1.5LB	0.75	5.2	4.2	0.75	Standard Built-in
TD620S-2T1.5G/2.2LB	1.5	7.3	7.5	1.5	Standard Built-in
TD620S-2T2.2G/3.7LB	2.2	11.9	10	2.2	Standard Built-in

Driver Number	Power （KW）	Input Current （A）	Output Current （A）	Adaptable motor（KW）	Braking unit
TD620S-4T0.75G/1.5LB	0.75	3.4	2.3	0.75	Standard Built-in
TD620S-4T1.5G/2.2LB	1.5	5.2	3.8	1.5	Standard Built-in
TD620S-4T2.2G/3.7LB	2.2	7.3	5.1	2.2	Standard Built-in
TD620S-4T3.7G/5.5LB	3.7	11.9	9.0	3.7	Standard Built-in

Driver Number	Power （KW）	Input Current （A）	Output Current （A）	Adaptable motor（KW）	Braking unit
TD610-4T0.75G/1.5LB	0.75	3.4	2.3	0.75	Standard Built-in
TD610-4T1.5G/2.2LB	1.5	5.2	3.8	1.5	Standard Built-in
TD610-4T2.2G/3.7LB	2.2	7.3	5.1	2.2	Standard Built-in
TD610-4T3.7G/5.5LB	3.7	11.9	9.0	3.7	Standard Built-in
TD610-4T5.5G/7.5LB	5.5	15	13	5.5	Standard Built-in
TD610-4T7.5G/11LB	7.5	19	17	7.5	Standard Built-in
TD610-4T11G/15LB	11	28	25	11	Standard Built-in
TD610-4T15G/18.5LB	15	35	32	15	Standard Built-in
TD610-4T18.5G/22LB	18.5	39	37	18.5	Standard Built-in
TD610-4T22G/30LB	22	50	45	22	Standard Built-in
TD610-4T30G/37L	30	62	60	30	Optional built-in
TD610-4T37G/45L	37	77	75	37	Optional built-in
TD610-4T45G/55L	45	92	90	45	Optional built-in
TD610-4T55G/75L	55	113	110	55	Optional built-in
TD610-4T75G/90L	75	156	152	75	Optional built-in
TD610-4T90G/110L	90	160	176	90	Optional built-in
TD610-4T110G/132L	110	192	214	110	Optional built-in
TD610-4T132G/160L	132	232	253	132	External
TD610-4T160G/185L	160	285	310	160	External
TD610-4T185G/200L	185	326	350	185	External
TD610-4T200G/220L	200	354	380	200	External
TD610-4T220G/250L	220	403	430	220	External
TD610-4T250G/280L	250	441	470	250	External
TD610-4T280G/315L	280	489	520	280	External
TD610-4T315G/355L	315	571	590	315	External
TD610-4T355G/400L	355	624	650	355	External
TD610-4T400G/450L	400	699	725	400	External
TD610-4T450G/500L	450	790	820	450	External
TD610-4T500G/560L	500	835	860	500	External
TD610-4T560G/630L	560	920	950	560	External
TD610-4T630G/710L	630	1050	1100	630	External

Driver Number	Power （KW）	Input Current （A）	Output Current （A）	Adaptable motor（KW）	Braking unit
TD620M-4T0.75G/1.5LB	0.75	3.4	2.3	0.75	Standard Built-in
TD620M-4T1.5G/2.2LB	1.5	5.2	3.8	1.5	Standard Built-in
TD620M-4T2.2G/3.7LB	2.2	7.3	5.1	2.2	Standard Built-in
TD620M-4T3.7G/5.5LB	3.7	11.9	9.0	3.7	Standard Built-in
TD620M-4T5.5G/7.5LB	5.5	15	13	5.5	Standard Built-in
TD620M-4T7.5G/11LB	7.5	19	17	7.5	Standard Built-in
TD620M-4T11G/15LB	11	28	25	11	Standard Built-in
TD620M-4T15G/18.5LB	15	35	32	15	Standard Built-in
TD620M-4T18.5G/22LB	18.5	39	37	18.5	Standard Built-in
TD620M-4T22G/30LB	22	50	45	22	Standard Built-in
TD620M-4T30G/37L	30	62	60	30	Optional built-in
TD620M-4T37G/45L	37	77	75	37	Optional built-in
TD620M-4T45G/55L	45	92	90	45	Optional built-in
TD620M-4T55G/75L	55	113	110	55	Optional built-in
TD620M-4T75G/90L	75	156	152	75	Optional built-in
TD620M-4T90G/110L	90	160	176	90	Optional built-in
TD620M-4T110G/132L	110	192	214	110	Optional built-in
TD620M-4T132G/160L	132	232	253	132	External
TD620M-4T160G/185L	160	285	310	160	External
TD620M-4T185G/200L	185	326	350	185	External
TD620M-4T200G/220L	200	354	380	200	External
TD620M-4T220G/250L	220	403	430	220	External
TD620M-4T250G/280L	250	441	470	250	External
TD620M-4T280G/315L	280	489	520	280	External
TD620M-4T315G/355L	315	571	590	315	External
TD620M-4T355G/400L	355	624	650	355	External
TD620M-4T400G/450L	400	699	725	400	External
TD620M-4T450G/500L	450	790	820	450	External
TD620M-4T500G/560L	500	835	860	500	External
TD620M-4T560G/630L	560	920	950	560	External
TD620M-4T630G/710L	630	1050	1100	630	External

Driver Number	Power （KW）	Input Current （A）	Output Current （A）	Adaptable motor（KW）	Braking unit
TD680-4T0.75G/1.5LB	0.75	3.4	2.3	0.75	Standard Built-in
TD680-4T1.5G/2.2LB	1.5	5.2	3.8	1.5	Standard Built-in
TD680-4T2.2G/3.7LB	2.2	7.3	5.1	2.2	Standard Built-in
TD680-4T3.7G/5.5LB	3.7	11.9	9.0	3.7	Standard Built-in
TD680-4T5.5G/7.5LB	5.5	15	13	5.5	Standard Built-in
TD680-4T7.5G/11LB	7.5	19	17	7.5	Standard Built-in
TD680-4T11G/15LB	11	28	25	11	Standard Built-in
TD680-4T15G/18.5LB	15	35	32	15	Standard Built-in
TD680-4T18.5G/22LB	18.5	39	37	18.5	Standard Built-in
TD680-4T22G/30LB	22	50	45	22	Standard Built-in
TD680-4T30G/37L	30	62	60	30	Optional built-in
TD680-4T37G/45L	37	77	75	37	Optional built-in
TD680-4T45G/55L	45	92	90	45	Optional built-in
TD680-4T55G/75L	55	113	110	55	Optional built-in
TD680-4T75G/90L	75	156	152	75	Optional built-in
TD680-4T90G/110L	90	160	176	90	Optional built-in
TD680-4T110G/132L	110	192	214	110	Optional built-in
TD680-4T132G/160L	132	232	253	132	External
TD680-4T160G/185L	160	285	310	160	External
TD680-4T185G/200L	185	326	350	185	External
TD680-4T200G/220L	200	354	380	200	External
TD680-4T220G/250L	220	403	430	220	External
TD680-4T250G/280L	250	441	470	250	External
TD680-4T280G/315L	280	489	520	280	External
TD680-4T315G/355L	315	571	590	315	External
TD680-4T355G/400L	355	624	650	355	External
TD680-4T400G/450L	400	699	725	400	External
TD680-4T450G/500L	450	790	820	450	External
TD680-4T500G/560L	500	835	860	500	External
TD680-4T560G/630L	560	920	950	560	External
TD680-4T630G/710L	630	1050	1100	630	External
